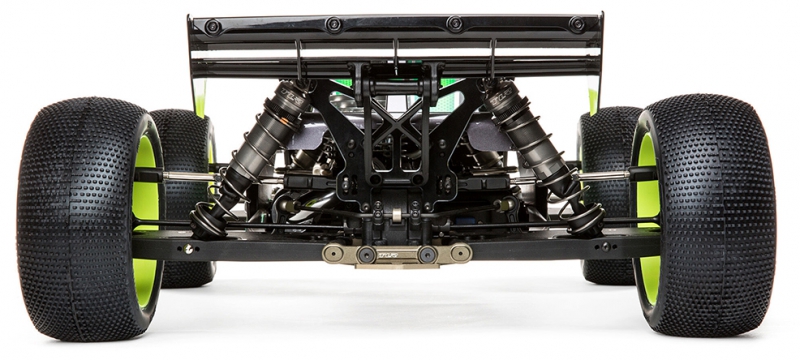

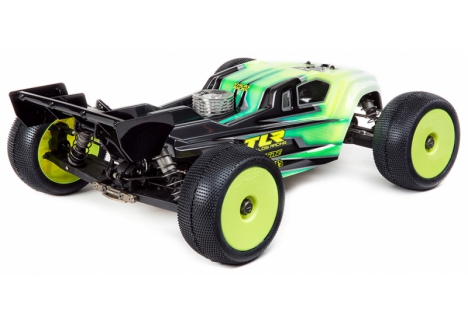

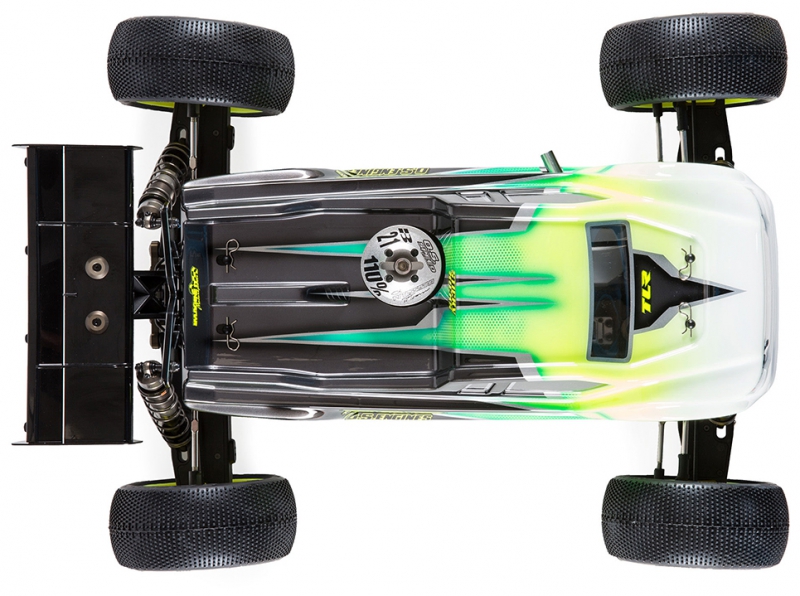

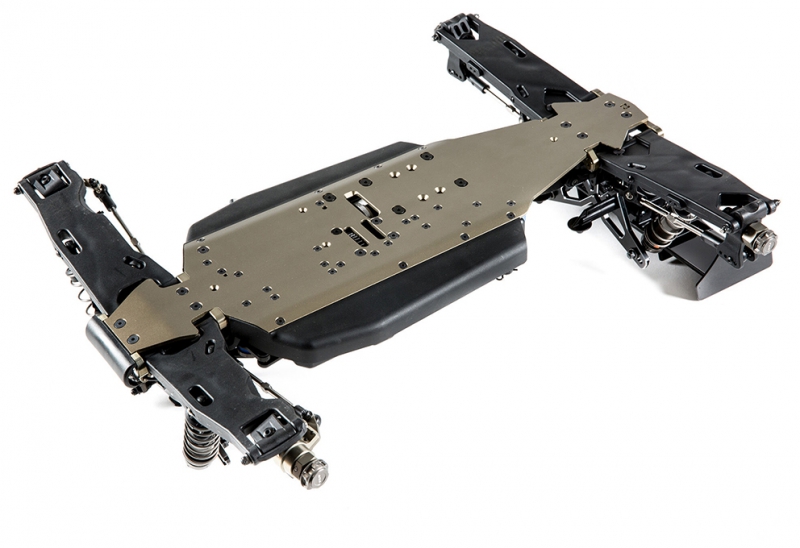

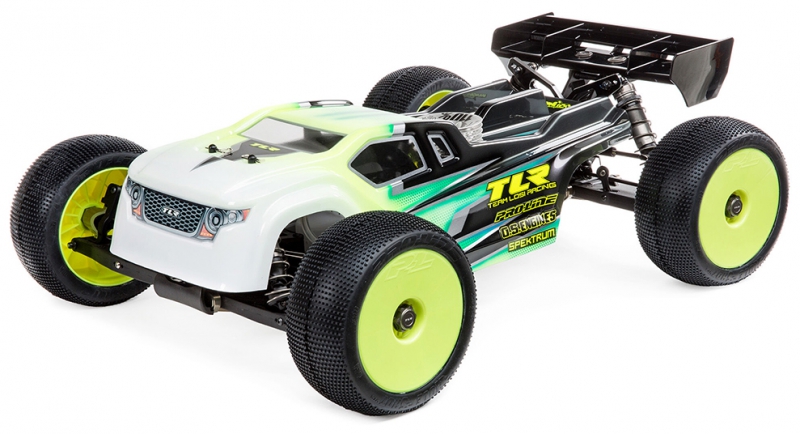

The TLR 8IGHT XT/XTE truggy kit (model C-TLR04009) is a next-generation 1/8 scale 4WD race platform engineered for serious RC competitors. Developed by Team Losi Racing, this kit combines nitro and electric compatibility in one box, offering unmatched flexibility for racers who demand performance and adaptability. With a redesigned chassis layout, updated suspension geometry, and precision drivetrain enhancements, the TLR 8IGHT XT/XTE truggy kit delivers superior handling, durability, and tuning potential. Whether you're building for high-traction tracks or technical layouts, this race kit is built to dominate from the first lap.
Key features of the TLR 8IGHT XT/XTE truggy kit
- Flex Tune suspension arms – customise stiffness with molded or optional carbon plates
- Wider 3mm chassis – improves stability and equalises torsional flex
- Ackerman adjustable draglink steering rack – fine-tune steering response and servo saver performance
- Machined aluminium shock towers – increase durability and camber tuning options
- Bleeder shock caps – simplify oil bleeding for consistent damping
- Shorter wheelbase – enhances grip and agility on tight circuits
- Equalised driveline – balanced shaft angles for true 4WD feel
- Large footprint nitro engine mount – reduces flex and chassis fatigue
- One-piece electric motor mount – allows easy pinion adjustments
- LiPo/LiIon compatible battery box – supports multiple receiver pack formats
What makes the Team Losi Racing 8IGHT XT race truggy ideal for competitive RC?
The Team Losi Racing 8IGHT XT race truggy is built on a championship-winning legacy, now enhanced with a balanced chassis layout and forward-shifted weight distribution. This configuration reduces the number of parts needed while improving driving feel and control. The cab-forward body design increases downforce, boosting steering precision and overall stability. Combined with chassis side guards and a wide 3mm aluminium frame, the truggy maintains rigidity under extreme conditions, making it a reliable choice for competitive racing.

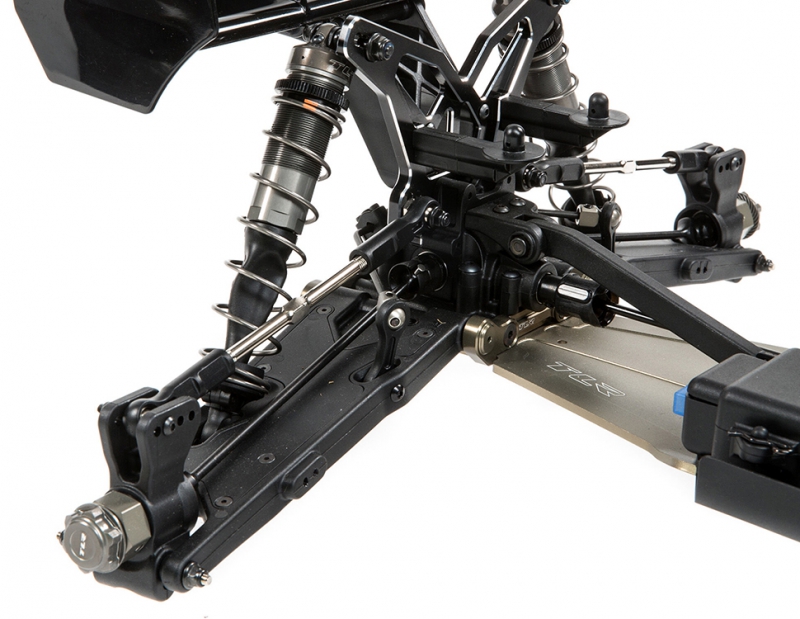

How does the TLR truggy with Flex Tune suspension arms improve handling?

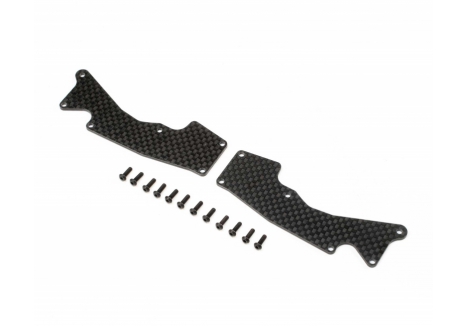

The TLR truggy with Flex Tune suspension arms introduces a new level of adjustability. Each arm is designed to accept stiffener plates, allowing racers to tune flex characteristics based on track conditions. Molded plates are included, while optional carbon fibre plates offer further refinement. The updated geometry features a wider front pivot with reduced scrub radius, narrower rear pivot, and longer arms front and rear—resulting in a nimble, responsive setup that’s easier to drive at speed.
Why choose the TLR nitro and electric race kit with 4WD drivetrain?
The TLR nitro and electric race kit with 4WD drivetrain offers dual compatibility straight out of the box. Whether you prefer the raw power of nitro or the precision of electric setups, this kit includes all necessary components for both formats. The drivetrain features three sealed viscous-filled gear differentials and equalised centre shaft angles, delivering smooth power transfer and balanced traction. With improved diff access and a sway bar system that equalises both sides, maintenance and tuning are faster and more efficient.

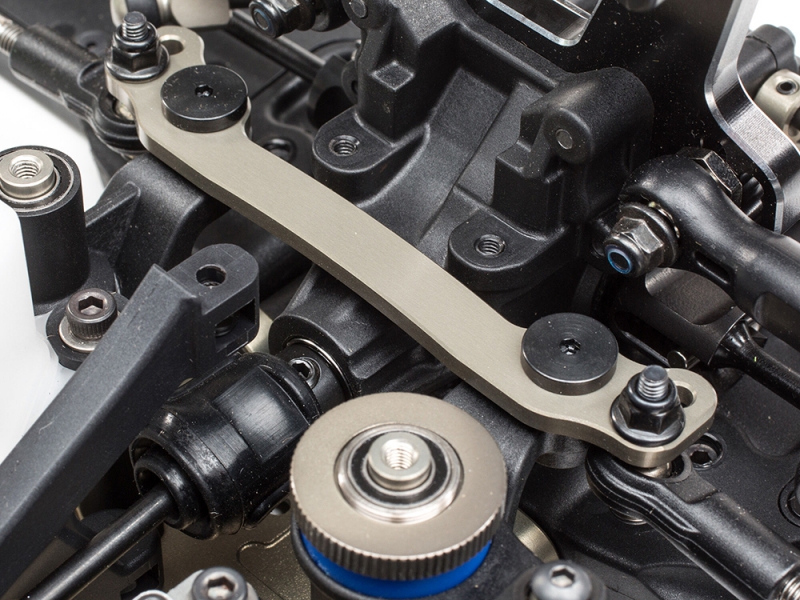

How does the TLR truggy chassis with adjustable draglink steering rack enhance control?

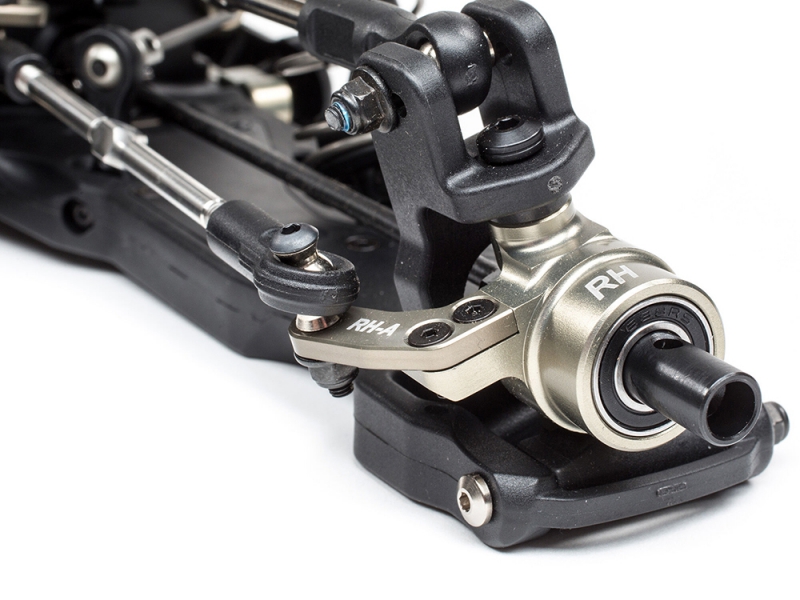

The TLR truggy chassis with adjustable draglink steering rack is designed for precision. The redesigned rack allows for expanded Ackerman adjustments and includes an improved servo saver to eliminate bellcrank bind under high loads. Combined with ball bearing-equipped throttle and brake actuators, the steering system delivers smooth, responsive input that translates directly to track performance. Adjustable caster blocks with 17.5° angles further refine spindle height and cornering behaviour.
Best TLR truggy kit for 4WD RC racing performance on any surface
From high-traction tracks to loose dirt layouts, the TLR 8IGHT XT/XTE truggy kit adapts with ease. Optimised shocks reduce centre of gravity and lighten the chassis, while large bearing spindles and carriers ensure durability across all four corners. The sway bar system features adjustable-length links and centering collars for consistent roll control. With a shorter wheelbase and balanced weight distribution, this truggy delivers confident handling and race-winning agility.
Affordable TLR 8IGHT truggy with wide 3mm chassis and oil-filled shocks for serious racers
For RC enthusiasts seeking high-end performance without compromise, the TLR 8IGHT XT/XTE truggy kit C-TLR04009 offers a complete race-ready solution. With premium materials, advanced geometry, and dual-format compatibility, this kit is engineered to win. Buy TLR 1/8 8IGHT XT/XTE race truggy kit for nitro or electric setups and experience the precision, power, and control that define Team Losi Racing.
Technical Specifications
Brand, Model and Appliance Type
- Brand: TLR (Team Losi Racing)
- Model: C-TLR04009
- Product Type: TLR 8IGHT XT/XTE truggy kit, Team Losi Racing 8IGHT XT race truggy, TLR C-TLR04009 1/8 truggy chassis, TLR truggy with Flex Tune suspension arms, TLR nitro and electric race kit with 4WD drivetrain, TLR truggy chassis with adjustable draglink steering rack
Dimensions
- Product Length: 53.6 cm – extended chassis for improved balance and stability
- Product Width: 42.2 cm – wide stance enhances cornering grip and control
- Product Height: 18.5 cm – low profile supports aerodynamic cab-forward body
- Wheelbase: 37.3 cm – shortened for agile handling and increased traction
- Ground Clearance: 4.0 cm – suitable for varied track surfaces and jump landings
- Front Track: 40.2 cm – wide pivot geometry for reduced scrub radius
- Rear Track: 40.2 cm – matched width for balanced rear grip
- Max Battery Dimensions: 13.8 x 4.7 x 4.0 cm – fits common LiPo and Li-Ion receiver packs
Chassis and Frame

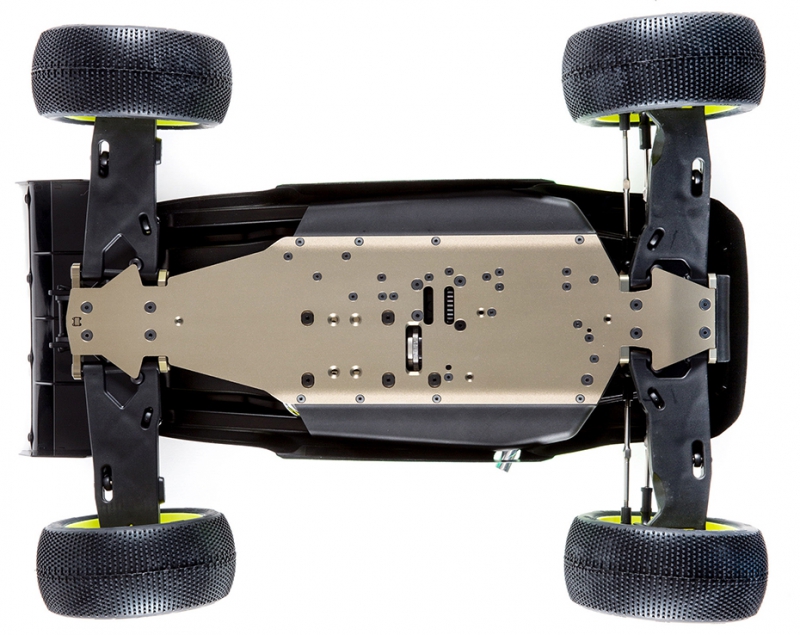

- Chassis Material: 3mm 7075-T6 hard anodised aluminium – lightweight and torsionally balanced
- Chassis Type: Wide layout with equalised side-to-side flex – improves neutral handling

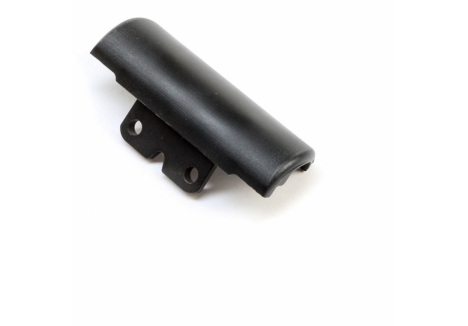

- Chassis Side Guards: Redesigned for improved fit and protection

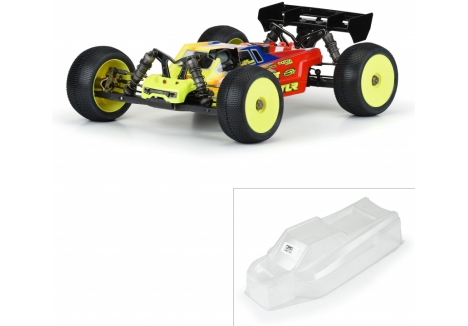

- Cab Forward Body: Enhances downforce and steering response
Suspension and Steering
- Suspension Type: Independent – tuned for competitive racing
- Suspension Arms: Flex Tune design – supports stiffener plates for flex control

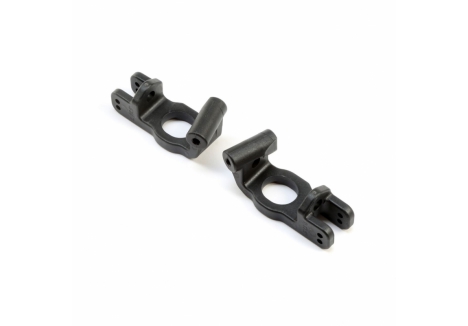

- Caster Blocks: Adjustable 17.5° – allows spindle height tuning
- Shock Towers: Machined aluminium – durable with updated camber link holes

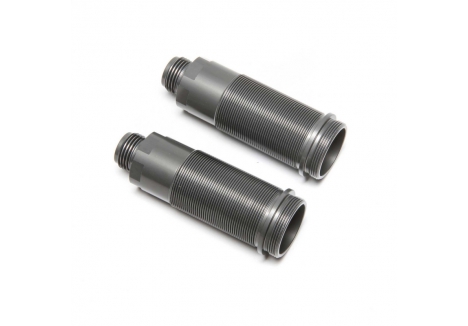

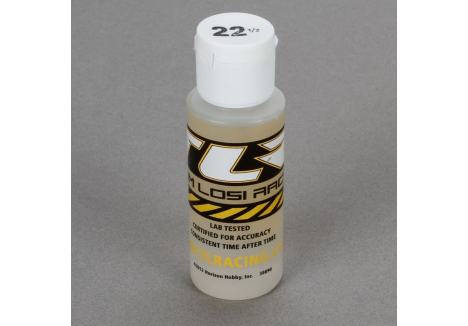

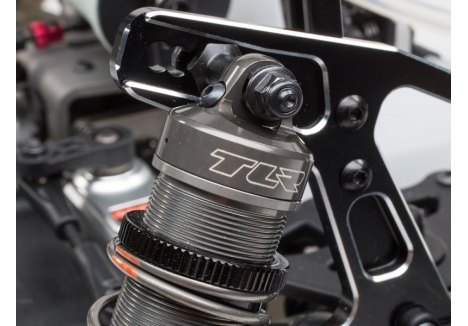

- Shock Type: Aluminium body, oil-filled – optimised for low centre of gravity
- Shock Caps: Bleeder-style – threaded for consistent oil bleeding

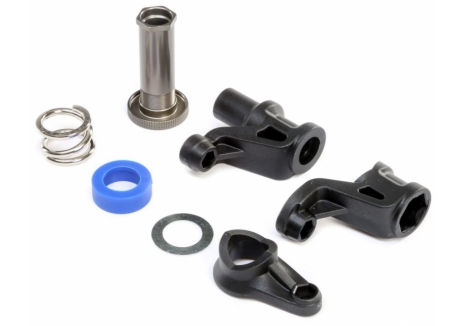

- Steering Rack: Ackerman adjustable draglink – improves servo saver and eliminates bind
Drivetrain and Transmission
- Drivetrain: 4WD – equalised centre shaft angles for balanced traction
- Differentials: Three sealed viscous-filled gear diffs – smooth power delivery
- Final Drive Ratio: 16.6:1 – tuned for racing performance
- Internal Gear Ratio: 4.5:1 – supports efficient torque transfer
- Gear Pitch: 1.0 Mod – standardised for durability

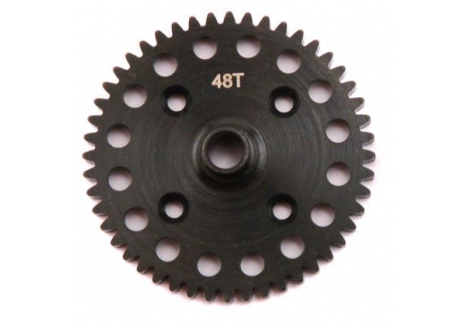

- Spur Gear: 48T – compatible with nitro and electric setups
- Pinion Bearing: Larger size – increased durability under load

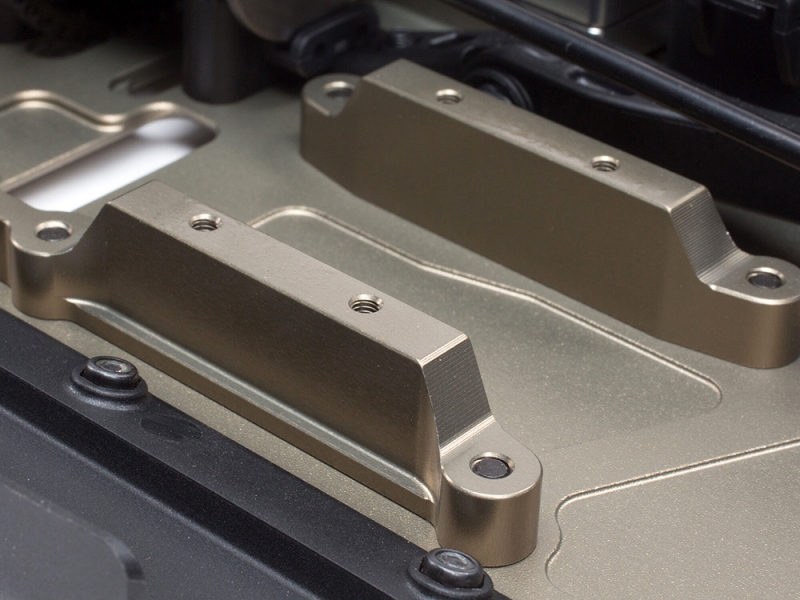

- Engine Mount: Large footprint – reduces flex and fatigue for nitro builds

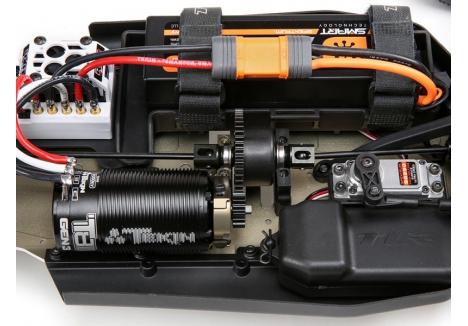

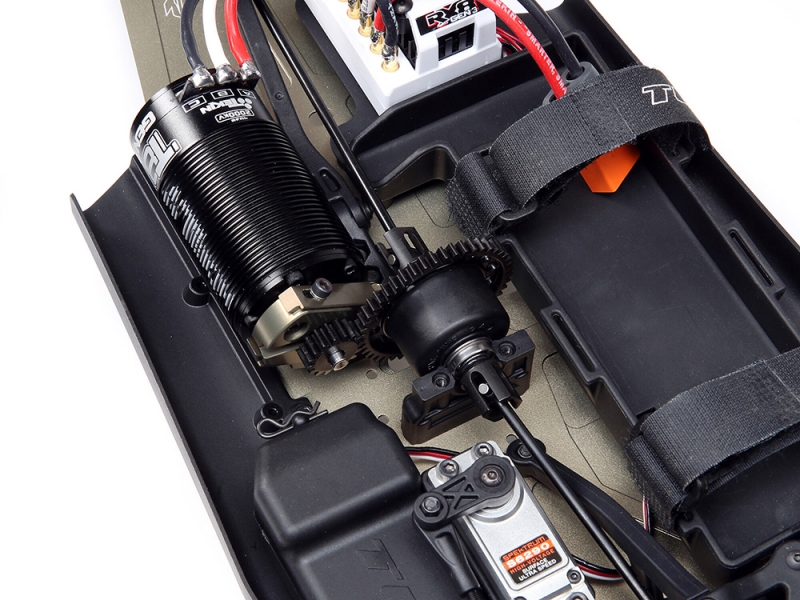

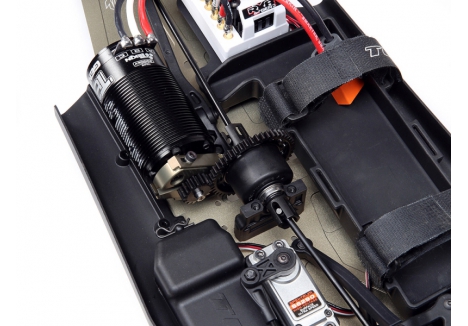

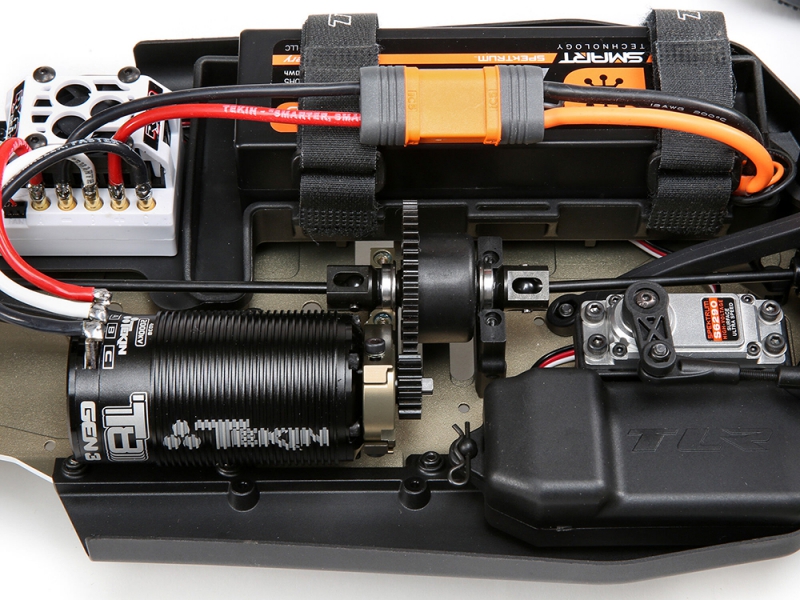

- Motor Mount: One-piece aluminium – simplifies pinion adjustment for electric builds
Electronics and Compatibility

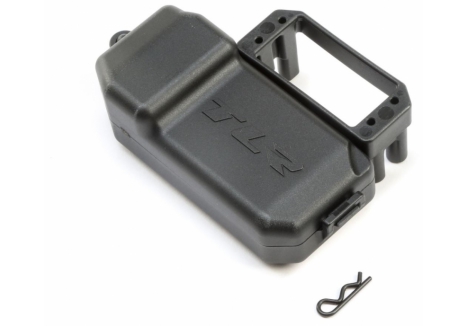

- Battery Box: LiPo/LiIon compatible – supports multiple receiver pack formats
- Radio Tray: Updated layout – positions throttle servo near engine for reduced linkage

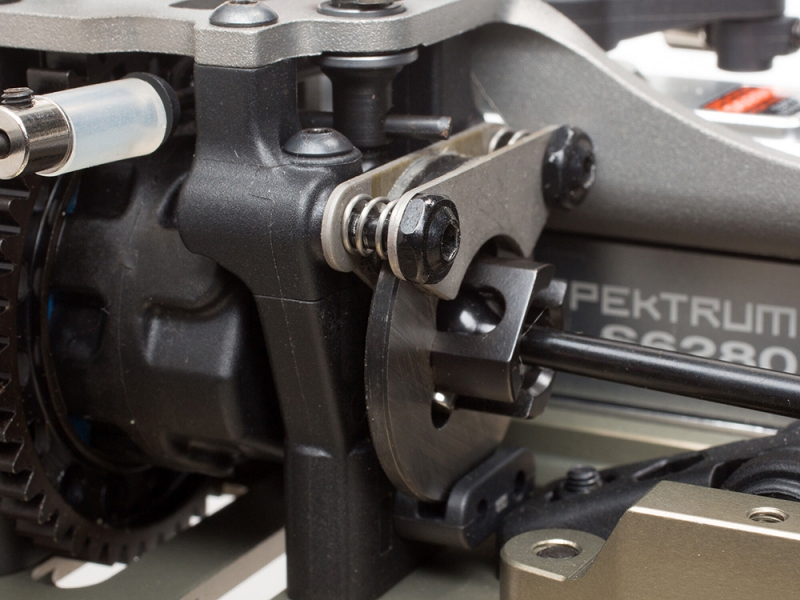

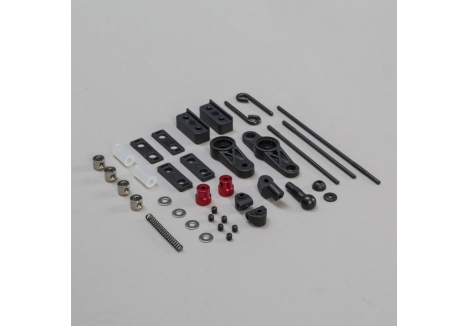

- Throttle/Brake Actuator: Ball bearing equipped – delivers smooth control

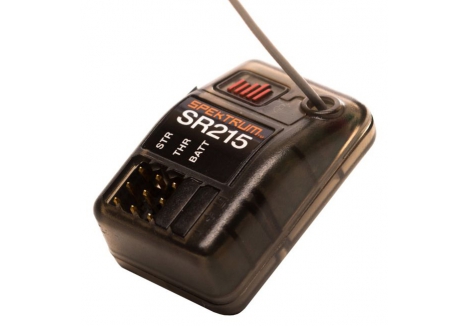

- Receiver: Sold separately – choose based on preferred control system

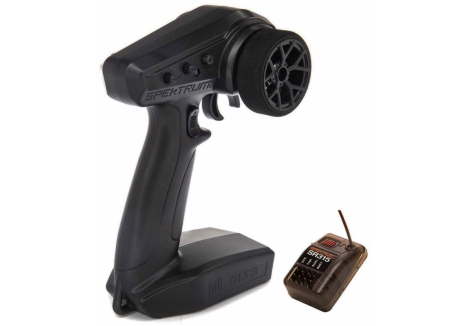

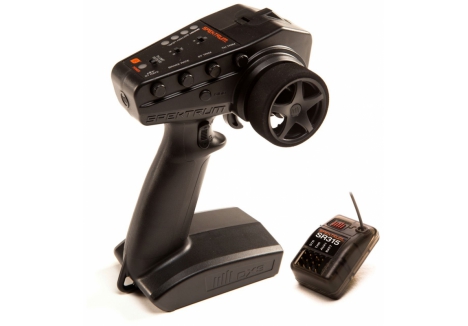

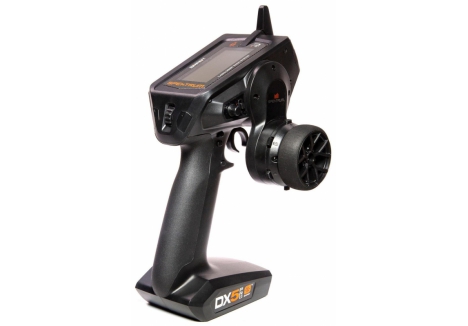

- Radio: Sold separately – compatible with standard 2-channel systems
- Servos: Sold separately – select high-torque models for optimal performance
- Speed Control: Sold separately – required for electric configuration
Additional Features

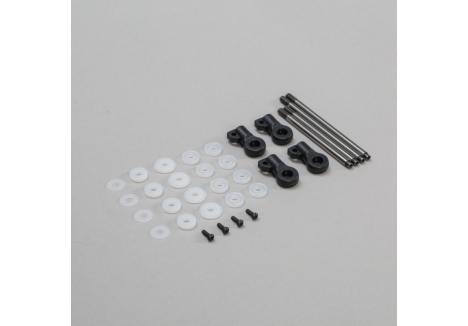

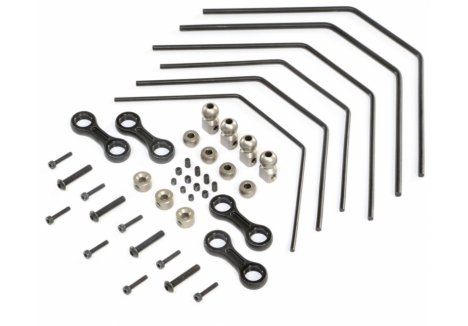

- Sway Bar System: Adjustable length links and centering collars – improves roll control

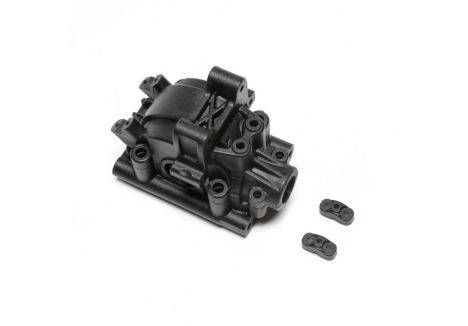

- Diff Access: Improved – front and rear cases allow easier maintenance
- Driveline: Equalised – modified angles for consistent 4WD feel
- Completion Level: Kit – requires assembly and electronics
- Assembly Time: Approximately 3–5 hours – based on experience level

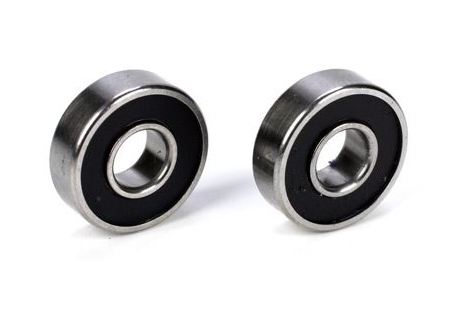

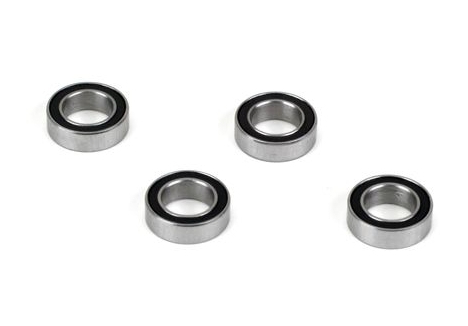

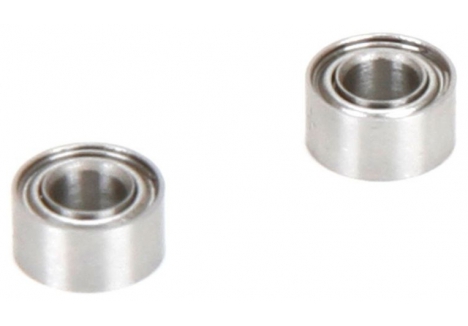

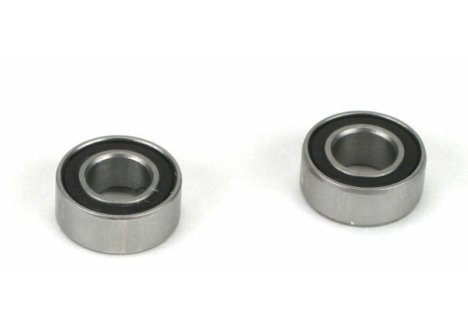

- Ball Bearings: Full set included – enhances drivetrain efficiency
- Brakes: Ball bearing equipped actuator – smooth and responsive

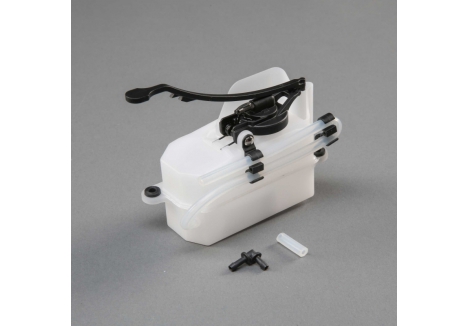

- Fuel Tank Capacity: 150cc – suitable for .21 cu in nitro engines
- Engine Size: .21 cu in (3.4cc) – sold separately
Warranty
- Warranty: 1 year manufacturer’s warranty – contact Team Losi Racing for details
Parts Diagrams
Front Assembly
Rear Assembly

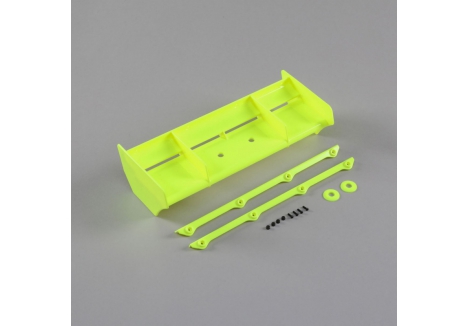

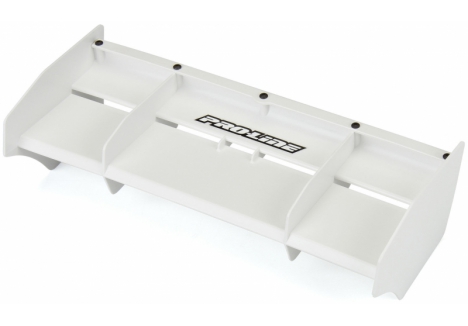

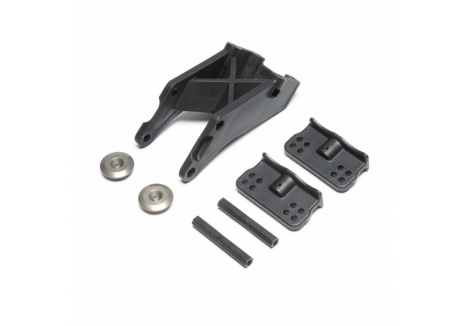

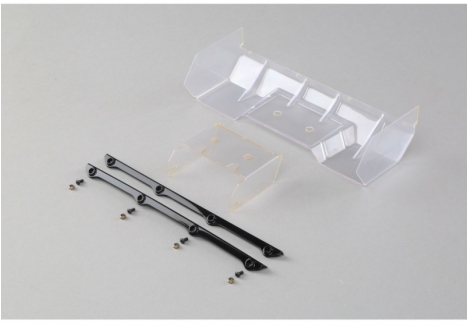

Rear Shock Tower and Wing
Nitro Chassis and Steering Assembly

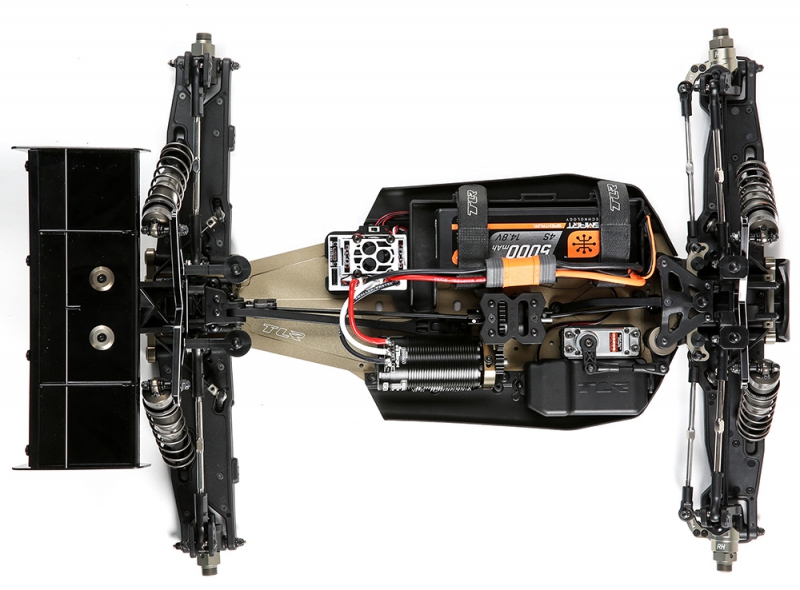

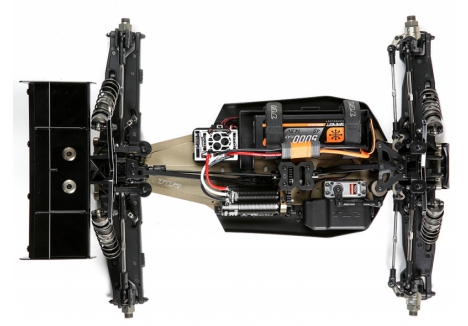

Electric Chassis and Steering Assembly
Differential Assembly

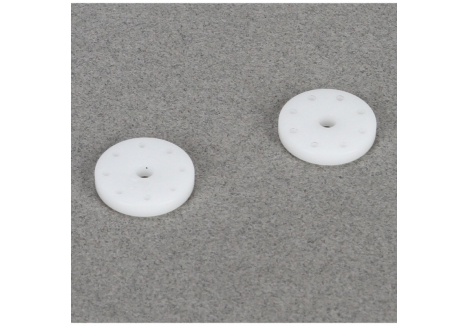

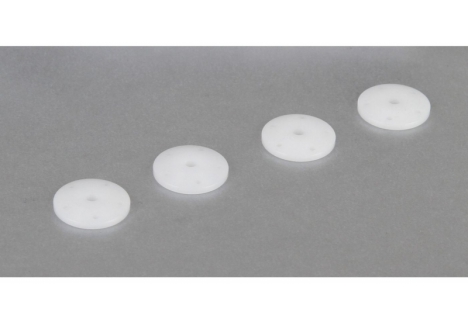

Shock Absorber Assembly
