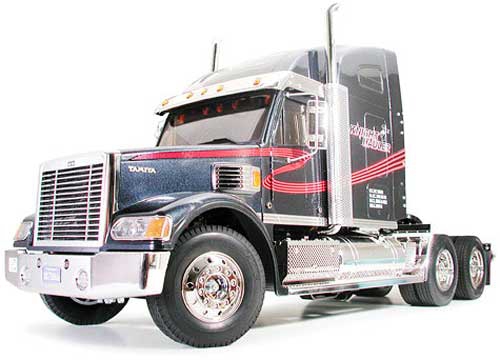

Tamiya Knight Hauler 1/14 Scale RC Tractor Truck with 3-Speed Transmission and 630mm Length – TAM56314

Manufacturer: Tamiya
Part Number: 56314
EAN: 4950344563142
Drive: 2WD
Surface Type: On-Road
Assembly Type: Un-Assembled (Kit)
Scale :1:14
Skill Level: Skill Level 3
Motor Type: Brushed
Vehicle: HGV
Power Bundles: Power Bundle Required

The Tamiya TAM56314 Knight Hauler 1/14 R/C truck with 3-speed transmission and dual rear axle drive is a premium big rig model designed for scale realism and functional control. Inspired by full-size American highway trucks, this assembly kit combines rugged mechanical engineering with refined visual detailing. With a molded plastic cab, metal-plated trim, and a robust aluminum/polycarbonate ladder frame, the Knight Hauler delivers both durability and style. Its transmitter-controlled gearbox and Multi-Function Unit compatibility (sold separately) allow users to simulate gear shifts, lights, sounds, and even vibration—bringing the experience of long-haul trucking to life in 1/14 scale.

Key features of the Tamiya TAM56314 Knight Hauler

• 3-speed transmission – selectable gear ratios for realistic acceleration and torque control
• Dual rear axle drive – supports trailer towing and scale hauling performance
• Aluminum/polycarbonate ladder frame – combines strength and weight efficiency for structural integrity
• Leaf spring suspension – rigid setup for terrain stability and authentic movement
• Molded plastic cab – detailed shell with metal-plated trim for visual realism
• Chrome wheels and 88mm tires – enhance scale proportions and grip
• ESC-ready drivetrain – supports Multi-Function Unit integration for sound, light, and vibration effects

How does the 3-speed transmission enhance realism?

The Knight Hauler kit with 3-bevel differential gears, aluminum dummy dampers, and Type 540 motor features a transmitter-controlled gearbox that allows users to shift gears on the fly. With selectable ratios of 32.49:1 (low), 17.76:1 (medium), and 10.66:1 (high), the transmission replicates the torque and speed dynamics of full-size trucks. Whether accelerating from a standstill or cruising at scale highway speeds, the gear system adds depth and control to the driving experience. Reverse gear shifting is also supported, enabling realistic maneuvering and trailer alignment.

What makes the chassis suitable for heavy-duty hauling?

The Tamiya TAM56314 scale tractor truck with aluminum/polycarbonate ladder frame and leaf spring suspension is built for strength and stability. The hybrid frame construction offers rigidity without excessive weight, supporting the drivetrain and suspension components with precision. Leaf spring suspension ensures consistent wheel contact and terrain absorption, while aluminum dummy dampers add visual authenticity. With a 476mm wheelbase and 3.1kg assembled weight, the chassis is optimized for towing Tamiya’s range of 1/14 scale trailers with confidence and control.

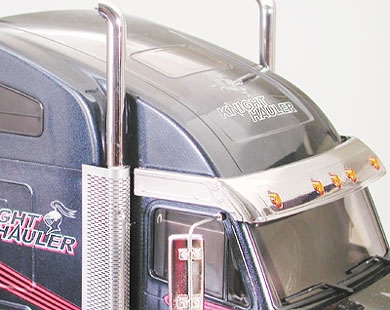

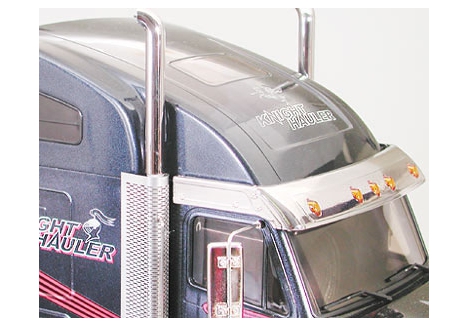

How does the cab design reflect real-world trucking?

The 1/14 scale R/C truck with molded plastic cab, metal-plated trim, and transmitter-controlled gear shifting features a stylized cab inspired by American long-haul rigs. The molded plastic shell includes aerodynamic contours and chrome detailing, while the metal-plated trim adds a polished finish. With a height of 295mm and a length of 630mm, the Knight Hauler commands attention on the road or display shelf. The cab is designed to accommodate Multi-Function Units, allowing users to simulate engine sounds, horn, turn signals, and hazard lights—all controllable via a 4-channel transmitter.

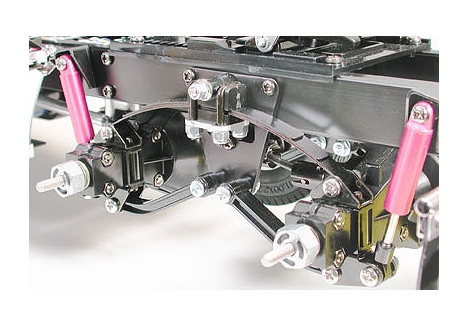

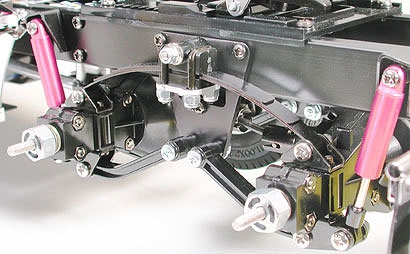

What suspension and drivetrain features support terrain realism?

The Tamiya Knight Hauler with 0° caster/camber/toe angles, solid axle suspension, and ESC-ready drivetrain is engineered for scale accuracy and operational stability. The solid axle suspension maintains consistent wheel alignment, while the 0° caster, camber, and toe angles ensure neutral handling characteristics. Metal friction dampers simulate suspension movement, and the bevel gear differential supports smooth cornering. The ESC-ready drivetrain allows users to integrate advanced control systems, including multifunction units for enhanced realism.

How do the wheels and tires contribute to scale performance?

The Tamiya TAM56314 with 3.1kg weight, 476mm wheelbase, and 88mm diameter tires for scale realism includes chrome wheels fitted with 22mm wide treaded tires. These components provide grip and cushioning across varied terrain, while maintaining the proportions of full-size rigs. The wheel and tire setup complements the truck’s dual rear axle drive, ensuring traction and stability during towing operations. Combined with the rigid suspension and balanced chassis, the wheels and tires complete the Knight Hauler’s functional and visual package.

Is the Knight Hauler compatible with trailers and multifunction units?

The Tamiya TAM56314 big rig hauler with 630mm length, 186mm width, and 295mm height for trailer compatibility is designed to pair seamlessly with Tamiya’s 1/14 scale semi-trailers. When connected, the full rig can exceed one metre in length, creating a commanding presence for display or operation. The truck supports Multi-Function Units (sold separately), enabling users to control sound, light, vibration, and accessory functions such as auto support legs. This integration transforms the Knight Hauler into a fully interactive RC trucking experience.

Buy Tamiya TAM56314 Knight Hauler for realistic 1/14 scale trucking with 3-speed gearbox and trailer compatibility.

Brand, Model and Product Type

• Brand – Tamiya
• Model – TAM56314
• Product Type – Tamiya TAM56314 Knight Hauler 1/14 R/C truck with 3-speed transmission and dual rear axle drive, Tamiya scale tractor truck with aluminum/polycarbonate ladder frame and leaf spring suspension, Tamiya big rig hauler with 630mm length, 186mm width, and 295mm height for trailer compatibility, Tamiya 1/14 scale R/C truck with molded plastic cab and transmitter-controlled gear shifting, Knight Hauler kit with 3-bevel differential gears and Type 540 motor

Dimensions

• Length – 63.0 cm: extended chassis for realistic trailer pairing and long-haul proportions
• Width – 18.6 cm: standardised for 1/14 scale compatibility with Tamiya trailers
• Height – 29.5 cm: aerodynamic cab height with commanding road presence
• Wheelbase – 47.6 cm: supports stable handling and dual axle drive
• Ground clearance – 1.9 cm: suitable for scale terrain navigation
• Front tread – 15.6 cm: ensures balanced steering and visual symmetry
• Rear tread – 13.8 cm: aligned for trailer towing and axle stability
• Weight – 3.1 kg: optimised for towing performance and display realism

Chassis and Suspension

• Chassis type – Aluminum/polycarbonate ladder frame: combines strength and lightweight flexibility
• Suspension – Leaf spring rigid suspension: delivers consistent wheel contact and terrain absorption
• Caster angle – 0° front/rear: neutral steering geometry for predictable handling
• Camber angle – 0° front/rear: maintains upright wheel alignment for scale realism
• Toe angle – 0° front/rear: ensures straight-line stability and minimal tire wear
• Dummy dampers – Aluminum components for visual authenticity without mechanical complexity

Drivetrain and Transmission

• Drive system – Dual rear axle drive: supports trailer hauling and load distribution
• Transmission – 3-speed gearbox: transmitter-controlled shifting for realistic throttle modulation
• Gear ratios – 32.49:1 (low), 17.76:1 (medium), 10.66:1 (high): simulate torque and speed dynamics
• Differential type – 3-bevel gear system: ensures smooth power delivery and cornering

Motor and Electronics

• Motor type – Type 540 brushed motor: included for reliable scale propulsion
• ESC – Required for operation unless using Multi-Function Unit (sold separately)

Body and Styling

• Cab design – Molded plastic body: replicates American big rig styling with aerodynamic contours
• Trim – Metal-plated accents: enhance visual realism and finish

Wheels and Tires

• Tire diameter – 8.8 cm: scaled for terrain realism and proportional accuracy
• Tire width – 2.2 cm: supports grip and visual balance
• Wheel type – Chrome finish: matches Tamiya trailer aesthetics and adds polish

Compatibility and Integration

• Scale – 1/14: designed for seamless integration with Tamiya semi-trailers
• Multi-Function Unit support – Compatible with separately sold MFC units for sound, light, and vibration control

What’s in the Box

• 1x Tamiya TAM56314 Knight Hauler truck kit
• 1x Type 540 motor
• Molded plastic cab and metal-plated trim components
• Aluminum/polycarbonate chassis parts
• Chrome wheels and 88mm tires

What You Require

• 4-channel transmitter and receiver
• Electronic speed controller (ESC) or Multi-Function Unit
• 7.2V battery and compatible charger
• 8x R6/AA/UM3 batteries
• Assembly tools and paint (not included)

Sold Separately

• Tamiya 1/14 scale semi-trailers
• Multi-Function Control Unit (MFC)
