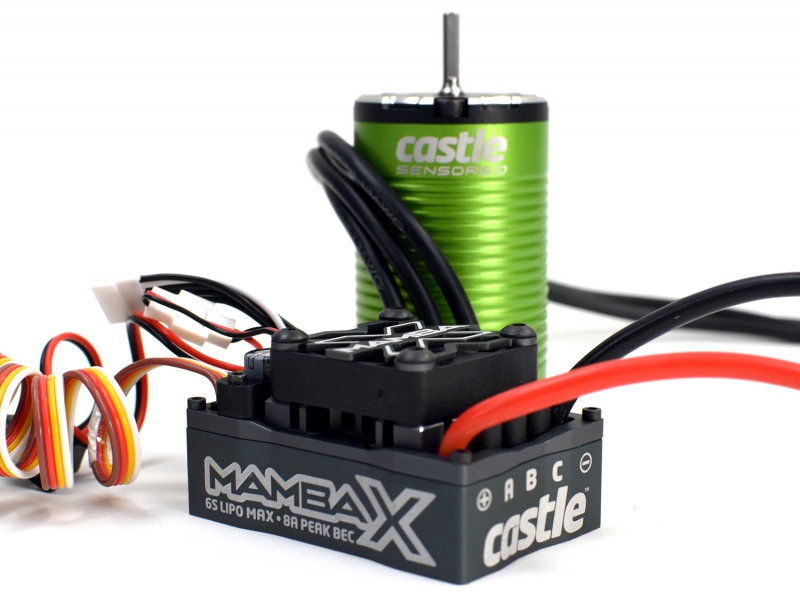

CASTLE MAMBA X SCT,  SENSORED, 25.2V WP ESC w/1412-3200KV COMBO P-CC010-0155-12

Model No: P-CC010-0155-12


£334.99

£42.99

£292.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty
Product Overview

Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller.

The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*.The Mamba X with 1412-3200Kv sensored motor is perfect for 2WD and 4x4 short course trucks, monster trucks and rock racers running up to 3s LiPo and weighing up to 6.5 lbs; it can be run on a 4s LiPo with very conservative gearing and keep a close eye on temperatures. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 4s LiPo.



Features
  • ESC voltage range 2S-6S (4s max with included motor)
  • 1412-3200Kv Sensored Motor
  • Waterproof
  • 8A Adjustable BEC (5.25V-8.0V)
  • Data-logging
  • Rugged CNC Aluminum Case
  • Castle Link Programming Support
  • Convenient Transmitter Programming
  • Auxiliary Wire Functionality for on-the-fly adjustments
  • SmartSense Technology
  • Integrated Capacitors
  • Removable 30mm Cooling Fan
  • Integrated 4mm Bullet Connectors
  • 12 AWG Power Wires
  • Waterproof Switch
  • Audible Alerts and LED Alerts for easy diagnoses of common issues
  • ROAR Certified ESC
  • RECON G6 Certified ESC




In the Box
  • Mamba X ESC with Sensor Harness
  • 1412-3200Kv 4-pole 12-slot sensored motor
  • Coupon for free Castle Link USB
  • Mamba Decals
  • Driver's Ed and Quick Start Guide
  • Gearing Chart for Castle Motors


*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv (P/N: 060-0062-00) or Castle 1515-2200Kv (P/N: 060-0063-00) motor, with appropriate gearing only.

When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the Mamba Monster X 8S system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.

The Mamba X allows on-the-fly adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.

Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.

For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase or download the Castle Link iOS App and purchase the B-Link Bluetooth Adapter. Download the simple to install software from our website and you are ready to personalize your controller's parameters. Don't forget to use the check for updates feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle

Mamba X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

Product Description of Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo

The Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo is engineered for short course trucks, stadium trucks, and rock racers demanding torque-rich control and telemetry-ready performance. This SCT-specific setup pairs Castle’s rugged Mamba X ESC with the 1412-3200kV sensored motor, delivering smooth startups, real-time tuning, and efficient power delivery across 2WD and 4x4 platforms. With SmartSense™ and QuietSense™ technologies enabled by default, the system transitions seamlessly from sensored launches to high-efficiency sensorless operation. Designed for vehicles up to 6.5 lbs on 3S, or conservatively geared 4S setups, this combo offers waterproof resilience, dynamic tuning, and diagnostic insight for confident control in all conditions.

Key features of the Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo

  • SmartSense™ startup – sensor-based launches with seamless transition to sensorless mode
  • QuietSense™ motor design – reduces startup noise and improves low-speed precision
  • 8A adjustable BEC – selectable output from 5.25V to 8.0V for high-draw servo compatibility
  • Telemetry-ready – compatible with Futaba S.BUS2 transmitters for live data monitoring
  • Data logging – captures voltage, current, RPM, and temperature for post-run optimization
  • Auxiliary wire tuning – enables on-the-fly adjustments to torque, throttle, and brake settings
  • Removable 30mm fan – provides active cooling during dry runs and can be detached for wet terrain
  • Splashproof epoxy housing – protects ESC internals from moisture and trail debris
  • CNC aluminum case – enhances heat dissipation and structural durability
  • 4mm bullet connectors – ensures secure motor-to-ESC power delivery
  • Audible alerts – notify users of calibration issues and error conditions
  • ROAR and RECON G6 certified – approved for competitive and endurance SCT applications

Why is the Castle P-CC010-0155-12 waterproof ESC with telemetry and 8A adjustable BEC ideal for SCT platforms?

The Castle P-CC010-0155-12 waterproof ESC with telemetry and 8A adjustable BEC is built for short course trucks and stadium platforms that demand performance and durability. Its splashproof epoxy potting and CNC aluminum housing ensure resilience in wet, dusty, and high-impact environments. The adjustable BEC supports high-voltage servos and auxiliary electronics, while telemetry compatibility allows drivers to monitor system health in real time. Whether you're racing on track or bashing off-road, this ESC delivers consistent control and thermal stability.

How does the Castle SCT combo with auxiliary wire tuning and ROAR certification enhance race adaptability?

The Castle SCT combo with auxiliary wire tuning and ROAR certification offers dynamic control for competitive and recreational driving. The auxiliary wire enables real-time tuning of torque, throttle, and braking profiles directly from the transmitter, allowing drivers to adapt instantly to changing track conditions. ROAR and RECON G6 certifications confirm the combo’s readiness for sanctioned events and endurance challenges. Combined with sensored motor feedback, this system responds with precision across dirt, turf, and mixed terrain.

Can the Castle P-CC010-0155-12 with CNC aluminum case and 4mm bullet connectors handle SCT race stress?

Absolutely. The Castle P-CC010-0155-12 with CNC aluminum case and 4mm bullet connectors is built to endure the physical demands of short course racing and stadium truck bashing. The aluminum case acts as a heat sink, maintaining thermal stability during extended runs, while the epoxy potting protects internal components from vibration and splash exposure. The 4mm bullet connectors ensure low-resistance power transfer, supporting consistent motor output even under aggressive throttle demands.

Why is the Castle brushless ESC with removable 30mm fan and splashproof epoxy housing ideal for mixed terrain?

The Castle brushless ESC with removable 30mm fan and splashproof epoxy housing adapts to both dry and damp environments. The fan module provides active cooling during high-speed sessions and can be removed when moisture is present. The epoxy potting shields internal components from water and debris, making the system suitable for puddles, mud trails, and rocky inclines. This combo is built to perform wherever your SCT goes.

Why is this the affordable Castle ESC with Castle Link programming and data logging support?

The affordable Castle ESC with Castle Link programming and data logging support delivers advanced configurability without inflating your budget. Castle Link software unlocks a full suite of tuning parameters, from throttle curves to brake profiles, while data logging captures key metrics for post-run optimization. Firmware updates are free, and the included coupon for a Castle Link USB adapter makes setup seamless. This combo is a smart investment for SCT builders who want control and insight without compromise.

Why is this the best Castle waterproof ESC with 3200kV motor and telemetry-ready design for stadium trucks and rock racers?

The best Castle waterproof ESC with 3200kV motor and telemetry-ready design is built for drivers who prioritize torque, control, and configurability. The 1412-3200kV motor delivers race-grade acceleration ideal for SCT platforms, while the telemetry-ready ESC provides real-time feedback to optimize performance. With SmartSense™ startup, waterproof construction, and dynamic tuning capabilities, this combo is the definitive choice for stadium trucks and rock racers.

For builders seeking a sensored, SCT-optimized brushless system, the Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo delivers precision, adaptability, and control. Buy Castle P-CC010-0155-12 ESC combo for stadium trucks and rock racers.

Technical Specifications of Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo

Brand, Model and Product Type

  • Brand: Castle Creations
  • Model: P-CC010-0155-12
  • Product Type: Castle P-CC010-0155-12 Mamba X ESC and 1412-3200kV sensored motor combo, Castle P-CC010-0155-12 waterproof ESC with telemetry and 8A adjustable BEC, Castle P-CC010-0155-12 ESC combo for 2WD and 4x4 short course trucks, Castle P-CC010-0155-12 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and splashproof epoxy housing, Castle SCT combo with auxiliary wire tuning and ROAR certification

ESC Specifications

  • ESC Type: Castle Mamba X – waterproof surface ESC
  • Input Voltage Range: 2S–6S LiPo (motor recommended for up to 4S)
  • BEC Output: Adjustable – 5.25V to 8.0V with 8A peak current
  • ESC Housing: CNC-machined aluminum case, potted in waterproof epoxy
  • Cooling System: Removable 30mm fan for active heat management
  • Integrated Capacitors: Yes – for stable voltage delivery
  • ESC Alerts: Audible alerts and LED indicators for diagnostics

Motor Specifications

  • Motor Type: Castle 1412-3200kV – 4-pole, 12-slot sensored brushless motor
  • Motor Design: Inrunner configuration
  • Kv Rating: 3200Kv – optimized for SCT, stadium trucks, and rock racers
  • Recommended Voltage: Up to 3S LiPo (4S possible with conservative gearing)
  • Motor Connectors: 4mm bullet connectors – compatible with Mamba X ESC

Programming and Tuning

  • Programming Interface: Castle Link USB and Castle Link Mobile (Bluetooth adapter sold separately)
  • Transmitter Programming: Yes – supports six common adjustable settings
  • Auxiliary Wire: Yes – enables real-time tuning of torque, throttle, brake, and drag brake

Telemetry and Data Logging

  • Telemetry Ready: Yes – compatible with Futaba T4PX and 7PX transmitters via S.BUS2
  • Data Logging: Yes – records voltage, current, RPM, temperature, and throttle input

Drive and Control Modes

  • Drive Type: Forward/Brake/Reverse
  • Brakes: Electronic – programmable for precision deceleration
  • Startup Logic: SmartSense™ – sensor-driven launches with adaptive timing
  • Noise Reduction: QuietSense™ – minimizes startup noise and improves low-speed control

Vehicle Compatibility

  • Recommended Use Case: 2WD and 4x4 short course trucks, stadium trucks, and rock racers up to 6.5 lbs
  • Extended Use Case: 1/8 scale buggies up to 9 lbs (only with appropriate motor and gearing)

Certifications

  • ROAR Approved: Yes – eligible for sanctioned racing
  • RECON G6 Certified: Yes – validated for endurance and trail performance

What’s in the Box

  • 1 × Castle Mamba X Electronic Speed Controller with Sensor Harness
  • 1 × Castle 1412-3200kV sensored brushless motor
  • 1 × Coupon for Castle Link USB adapter
  • 1 × Mamba Decal Sheet
  • 1 × Driver’s Ed and Quick Start Guide
  • 1 × Gearing Chart for Castle Motors

What You Require / What You Will Need

  • Castle Link USB or Bluetooth adapter for programming (sold separately)
  • Castle telemetry device for real-time monitoring (sold separately)

Sold Separately

  • Castle Link USB adapter
  • Castle B-Link Bluetooth adapter
  • Castle telemetry device
