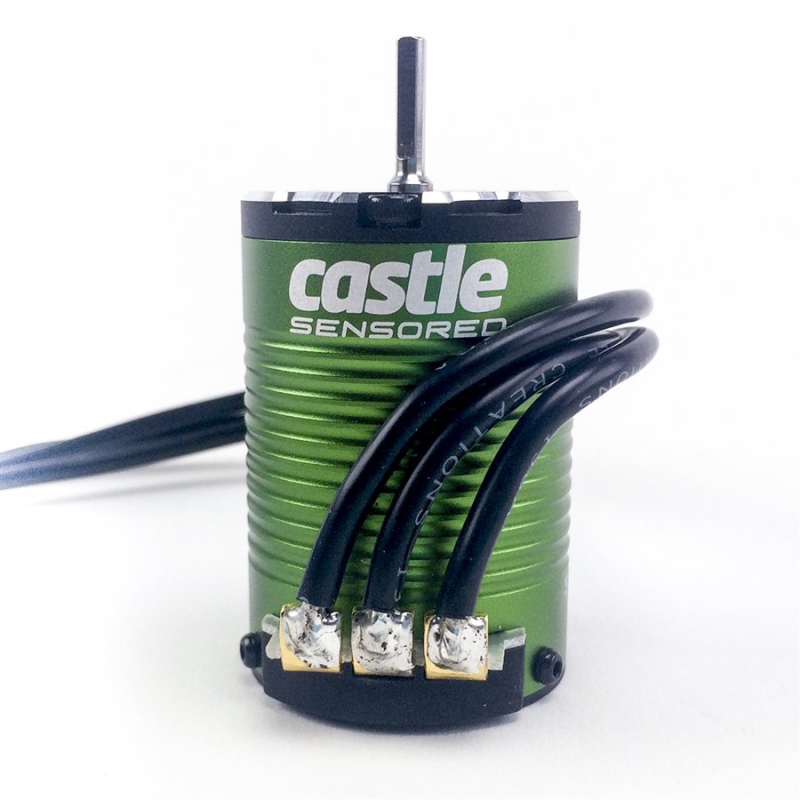

The Castle M-CC060-0065-00 1410-3800kV sensored brushless motor for 1/10 SCT is precision-engineered for short course trucks, buggies, and stadium builds that demand smooth throttle control and consistent torque delivery. With a compact 36mm diameter and 51mm length, this motor integrates a 4-pole, 12-slot inrunner design optimized for 2S–3S LiPo setups. The Castle M-CC060-0065-00 4-pole motor with SmartSense and QuietSense technology delivers cog-free launches and seamless transitions to sensorless operation, ensuring efficient timing across all load phases. Whether you're racing on track or bashing off-road, this motor offers the responsiveness and thermal stability needed for competitive performance.
Key features of the Castle M-CC060-0065-00 1410-3800kV motor
- SmartSense startup – delivers cog-free launches and torque-rich low-speed control
- QuietSense synchronization – maintains ESC-motor sync for smoother transitions
- Kevlar-wrapped rotor – reinforced for durability under high RPM stress
- 180°C neodymium magnets – resist thermal degradation during extended runs
- ROAR sensor port – ensures compatibility with race-legal ESCs
- Rebuildable architecture – allows rotor, shaft, and bearing replacement
How does SmartSense™ improve throttle response in 2S–3S builds?
The Castle M-CC060-0065-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors uses SmartSense™ to initiate motion with sensor-based rotor alignment, eliminating startup cogging and delivering immediate torque. Once in motion, the motor transitions to Castle’s ultra-efficient sensorless mode, where timing is electronically optimized for each phase and load condition. This dynamic timing adjustment ensures consistent torque output and throttle response, making the motor ideal for SCT, buggy, and stadium truck platforms that require controlled acceleration and reliable low-speed drivability.
What makes QuietSense™ valuable for short course truck control?
The Castle M-CC060-0065-00 with 180°C magnets and Kevlar-wrapped rotor incorporates QuietSense™ technology to suppress magnetic field noise generated by motor coils. This shielding effect maintains clean signal communication between the motor and ESC, preventing desynchronization during rapid throttle changes or directional shifts. For short course trucks operating in unpredictable terrain, QuietSense™ ensures smoother transitions and more predictable handling, especially during aggressive driving or competitive racing.
Why is the Kevlar-wrapped rotor essential for durability?

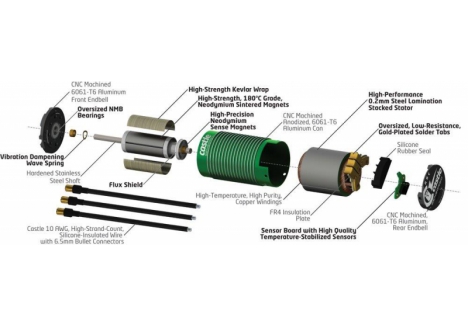

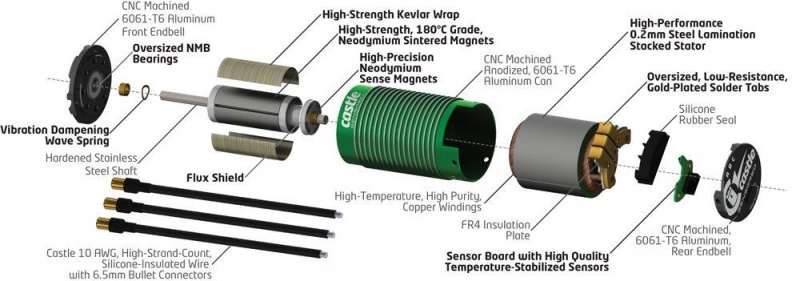

The rotor in the Castle 1410 motor with ROAR sensor port and CNC aluminum heatsink can is wrapped in Kevlar, a material known for its high tensile strength and resistance to deformation. This reinforcement allows the rotor to maintain structural integrity under extreme centrifugal forces, which are common in high-RPM applications. Combined with hardened stainless steel shafts and oversized NMB bearings, the Kevlar wrap ensures that the motor remains reliable and vibration-free during extended use. This durability translates into longer service life and reduced maintenance intervals for serious RC drivers.
How does the CNC aluminum can contribute to thermal management?
The Castle 3800kV motor with oversized bearings and high-purity copper windings features a 6061-T6 billet aluminum heatsink can that serves as a passive cooling system. This material is chosen for its excellent thermal conductivity, allowing heat generated by the motor’s internal components to dissipate efficiently. The can’s design also supports airflow around the motor, further enhancing cooling during operation. This thermal management system helps prevent overheating, ensuring that the motor maintains consistent performance even during long runs or aggressive driving sessions.
Is this motor suitable for SCT, buggy, and stadium truck builds?
Absolutely. The Castle M-CC060-0065-00 1410-3800kV sensored brushless motor for 1/10 SCT is optimized for 2S–3S LiPo applications where speed and control are paramount. Its 3800kV rating delivers rapid acceleration and top-end velocity, while the sensored architecture ensures smooth launches and precise throttle modulation. The ROAR-compliant sensor port makes it compatible with race-legal ESCs, and the rebuildable design allows users to maintain peak performance over time. Whether you're tuning for straight-line speed or technical cornering, this motor provides the responsiveness and reliability needed to excel.
What makes this motor the best Castle upgrade for smooth startup control?
The Castle M-CC060-0065-00 sensored inrunner motor with 3.17mm shaft and 4mm bullet connectors combines advanced materials, intelligent software, and precision engineering to deliver a performance-focused solution for 1/10 scale platforms. Its 4-pole, 12-slot configuration enhances torque and startup smoothness, while the high-purity copper windings and low-resistance gold-plated connectors ensure efficient power delivery. Every component is optimized for smooth throttle control and low cogging startup, making this motor the best Castle upgrade for smooth throttle control and low cogging startup.
For RC enthusiasts seeking a sensored motor with rebuildable architecture and advanced timing control, the affordable Castle 1410-3800kV motor with rebuildable design and SmartSense timing offers unmatched value and performance. Buy Castle M-CC060-0065-00 sensored motor for 2S–3S SCT, buggy, and stadium truck builds today.
