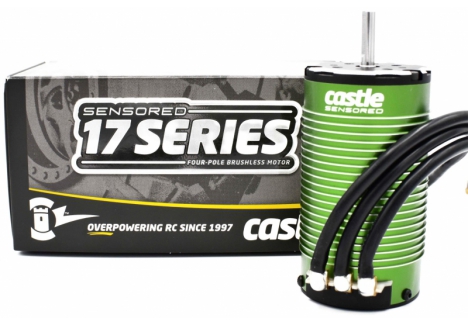

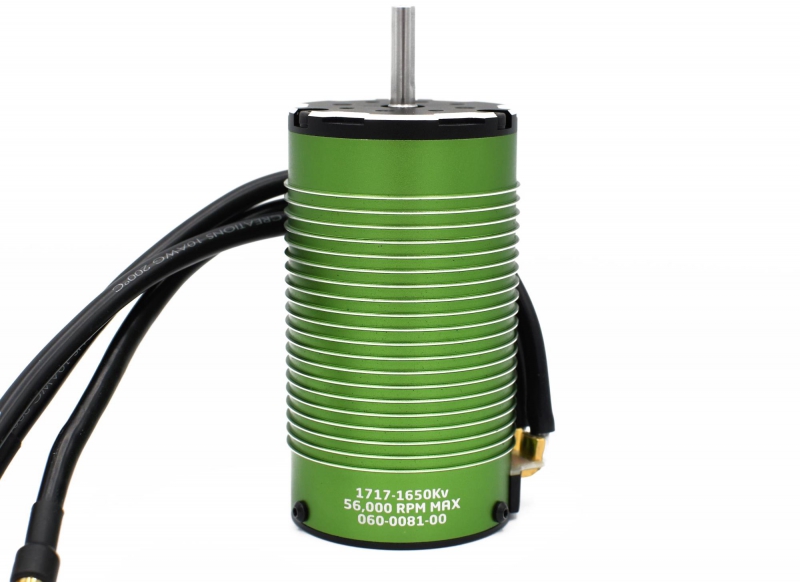

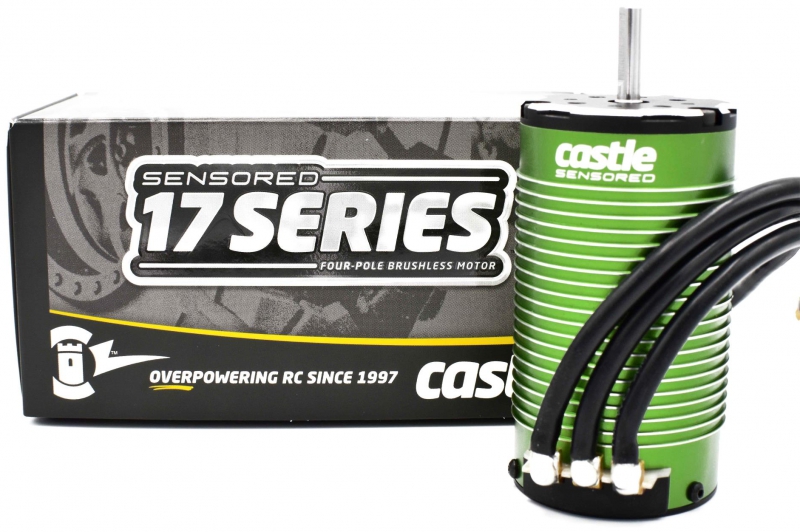

CASTLE SENSORED 1717-1650KV FOUR-POLE BRUSHLESS MOTOR M-CC060-0081-00

Model No: M-CC060-0081-00


£274.99

£36.99

£238.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty

The Castle 1717 1650KV motor now has an IMPROVED 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any 1/6th scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles.

  • Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
  • High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Updated modern and sleek design; looks as cool as it performs


Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn't put our name on anything less.



Product Description of Castle M-CC060-0081-00 1717-1650kV sensored brushless motor

The Castle M-CC060-0081-00 1717-1650kV sensored brushless motor for 1/6 scale vehicles is engineered for high-torque performance, hybrid timing control, and ultra-smooth throttle response across demanding 8S builds. Designed with Castle’s advanced 4-pole, 12-slot inrunner architecture, this motor integrates SmartSense™ and QuietSense™ technologies to deliver precise rotor alignment, cog-free startups, and seamless transitions between load phases. With a robust 85mm length and 47mm diameter, the Castle M-CC060-0081-00 4-pole motor with SmartSense and QuietSense technology is built to power 1/6 scale platforms up to 20 lbs and also serves as a high-efficiency upgrade for heavier 1/8 scale vehicles.

Key features of the Castle M-CC060-0081-00 1717-1650kV motor

  • SmartSense hybrid timing – combines sensored startup with sensorless efficiency
  • QuietSense shielding – maintains ESC-motor sync by suppressing magnetic field noise
  • Kevlar-wrapped rotor – reinforced for structural integrity under extreme loads
  • Oversized NMB bearings – extend bearing life and reduce vibration
  • Low-resistance stator – supports cooler operation and longer runtime
  • ROAR sensor port – ensures compatibility with race-compliant ESCs
  • Rebuildable design – allows rotor, shaft, and bearing replacement

How does SmartSense™ enhance hybrid timing control?

The Castle M-CC060-0081-00 sensored inrunner motor with 5mm shaft and 6.5mm bullet connectors uses SmartSense™ to initiate motor rotation with sensor-based precision, eliminating startup hesitation and delivering immediate torque. Once in motion, the motor transitions to sensorless mode, where electronic timing is automatically adjusted to match load conditions. This hybrid approach ensures optimal performance across all driving phases—whether launching from a standstill or accelerating at full throttle—without sacrificing efficiency or responsiveness.

What role does QuietSense™ play in maintaining synchronization?

The Castle M-CC060-0081-00 4-pole motor with SmartSense and QuietSense technology incorporates QuietSense™ shielding to block magnetic field noise generated by motor coils. This ensures uninterrupted communication between the motor and ESC, preventing desynchronization during rapid throttle changes or directional shifts. For high-powered 1/6 scale builds, QuietSense™ delivers smoother transitions, more predictable handling, and consistent torque delivery under all conditions.

Why is Kevlar reinforcement essential for high-load durability?

The rotor in the Castle M-CC060-0081-00 with Kevlar-wrapped rotor and oversized NMB bearings is wrapped in high-strength Kevlar to withstand the centrifugal forces generated during high-RPM operation. This reinforcement maintains rotor integrity under stress, reducing the risk of deformation or imbalance. Paired with oversized NMB bearings and a vibration dampening system, the Kevlar wrap ensures long-term reliability and smooth operation in extreme off-road environments.

How does the stator design improve cooling and runtime?

The Castle 1650kV motor with low-resistance stator and high-purity copper windings features proprietary winding techniques that minimize electrical resistance across the stator assembly. This design reduces heat buildup, allowing the motor to operate cooler and more efficiently. As a result, users benefit from longer runtimes on a single charge and improved power delivery under sustained loads—ideal for extended trail sessions and competitive racing.

Is the Castle 1717 motor compatible with race-legal ESCs?

Yes. The Castle 1717 motor with ROAR sensor port and vibration dampening system includes a ROAR-compliant sensor port and clearly labeled connections, ensuring compatibility with sensored ESCs used in sanctioned racing environments. The integrated vibration dampening system protects internal components from mechanical stress, while the rebuildable design allows users to maintain peak performance by replacing worn assemblies as needed.

What makes this motor the best Castle upgrade for high-torque control?

The Castle M-CC060-0081-00 1717-1650kV sensored brushless motor for 1/6 scale vehicles combines advanced sensor technology, hybrid timing control, and rugged construction to deliver a premium power solution for 8S platforms. Its 4-pole configuration enhances torque and startup smoothness, while SmartSense™ and QuietSense™ ensure precise rotor alignment and consistent throttle response. This makes it the best Castle upgrade for high-torque 1/8 scale vehicles with buttery smooth startup.

For RC enthusiasts seeking a sensored motor with rebuildable architecture and hybrid timing control, the affordable Castle 1717-1650kV motor with rebuildable design and hybrid timing control offers exceptional value and performance. Buy Castle M-CC060-0081-00 sensored motor for 8S LiPo 1/6 scale builds up to 20lbs.

Technical Specifications of Castle M-CC060-0081-00 1717-1650kV sensored brushless motor

Brand, Model and Product Type

  • Brand: Castle Creations
  • Model: M-CC060-0081-00
  • Product Type: Castle M-CC060-0081-00 1717-1650kV sensored brushless motor for 1/6 scale vehicles, Castle M-CC060-0081-00 4-pole motor with SmartSense and QuietSense technology, Castle M-CC060-0081-00 sensored inrunner motor with 5mm shaft and 6.5mm bullet connectors, Castle M-CC060-0081-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1717 motor with ROAR sensor port and vibration dampening system, Castle 1650kV motor with low-resistance stator and high-purity copper windings

Dimensions

  • Outer Diameter: 4.7 cm – compact yet powerful for high-load 1/6 scale applications
  • Product Length: 8.5 cm – optimized for torque delivery and internal cooling
  • Shaft Diameter: 0.5 cm – precision-machined for secure gear engagement
  • Product Weight: 597.6 g – engineered for stability and vibration resistance

Motor Architecture and Performance

  • Motor Type: Brushless – delivers high efficiency and reduced maintenance
  • Motor Design: Inrunner – enclosed rotor configuration for consistent torque output
  • Number of Poles: 4 – enhances startup torque and low-speed drivability
  • Slot Configuration: 12-slot – improves motor efficiency and reduces heat generation
  • RPM/Volt (Kv): 1650 kV – tuned for high-torque 8S LiPo systems
  • Input Voltage Range: 7.4V to 33.6V – supports 3S to 8S LiPo configurations
  • Application: Suitable for 1/6 scale vehicles up to 20 lbs and heavier 1/8 scale builds
  • Water Resistance: Yes – designed for rugged terrain and splash exposure

Connectivity and Compatibility

  • Connector Type: 6.5 mm bullet – supports high-current delivery and secure fit
  • Sensor Port: ROAR standard – ensures compatibility with sensored ESCs
  • Recommended ESC: Castle Creations Mamba Monster X 8S 33.6V – optimized for full SmartSense functionality

Integrated Technologies

  • SmartSense Technology: Enables hybrid timing control by combining sensored startup with sensorless drive efficiency
  • QuietSense Technology: Shields sensors from magnetic field noise for uninterrupted ESC-motor synchronization
  • Flux Shield: Works with secondary Sense Magnets to improve rotor alignment and startup precision
  • Sensor Alignment: Automatically delivers uniform timing and torque in both directions without mechanical adjustment

Materials and Build Quality

  • Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under extreme RPM stress
  • Magnet Type: High-strength, high-temperature neodymium sintered magnets – resist thermal degradation during prolonged use
  • Bearings: Oversized NMB bearings – extend operational lifespan and reduce vibration
  • Vibration Dampening: Integrated system – minimizes mechanical stress and protects internal components
  • Stator Assembly: Proprietary low-resistance winding – supports cooler operation and longer runtime

What’s in the Box

  • (1) Castle 1717 4-Pole Sensored Brushless Motor – model M-CC060-0081-00

What You Require

  • (1) Compatible Brushless Electronic Speed Control – must support sensored operation
