CASTLE SV3 WATERPROOF 1:10TH 12V ESC 1406-4600 SENSORED COMBO P-CC010-0115-05

Model No: P-CC010-0115-05


£189.99

£24.99

£165.00

Inc VAT & delivery

Sorry, Out Of Stock
We Accept
Delivery Included
1 Year Warranty

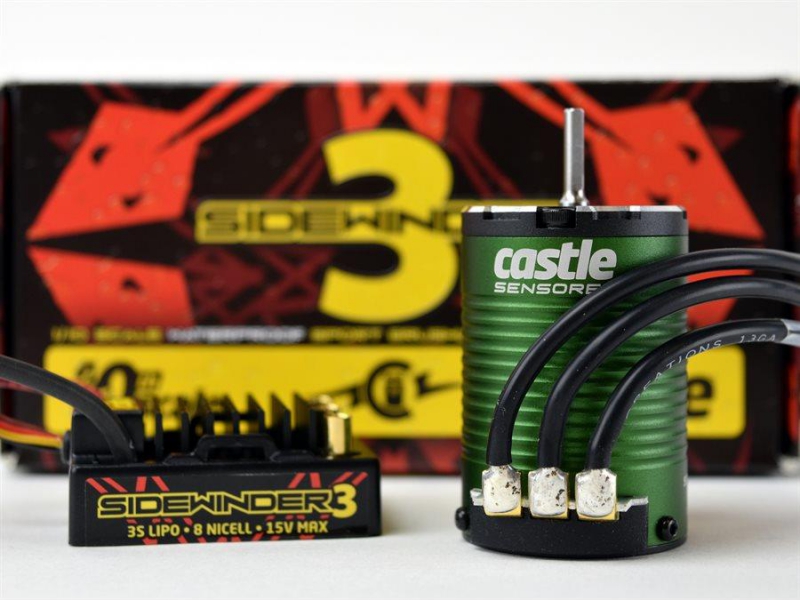

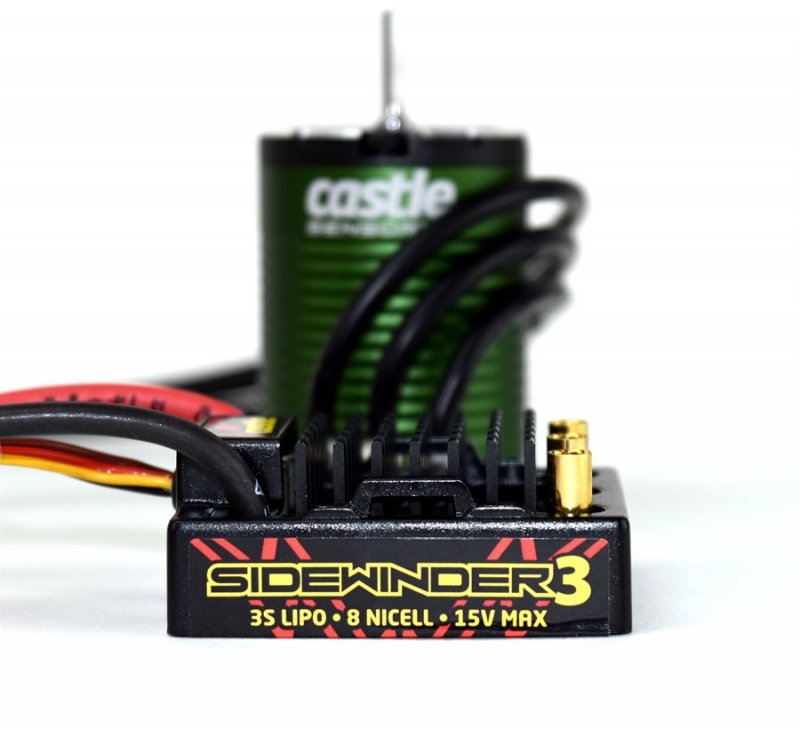

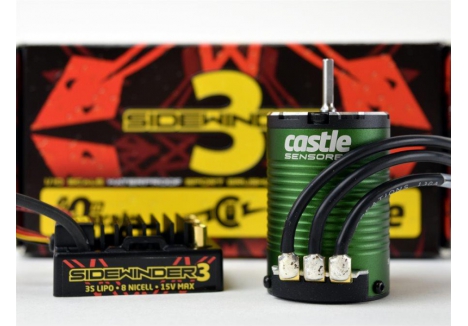

The Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo is a high-performance brushless system designed for 1/10 scale RC enthusiasts who demand responsive control, durability, and flexible tuning options. This combo includes the SV3 Sidewinder ESC and the 1406-4600Kv sensored motor, offering a powerful upgrade for 2WD stadium trucks, buggies, and on-road platforms. With support for up to 3S LiPo and programmable throttle curves, the Castle P-CC010-0115-05 1/10 scale brushless ESC with 1406-4600Kv motor delivers consistent power and control whether you're bashing, racing, or fine-tuning your setup for optimal performance.

Key features of the Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo

  • Water-resistant ESC – designed for wet conditions with proper post-run maintenance
  • 1406-4600Kv motor – sensored, rebuildable, and ideal for 2WD platforms
  • 3S LiPo compatibility – supports high-voltage setups for aggressive driving
  • Programmable throttle curves – customizable response via transmitter or Castle Link
  • Proportional brakes – precise control for on-road and off-road applications
  • 4-pole motor design – delivers smooth torque and efficient acceleration
  • 4mm bullet connectors – secure and reliable motor-to-ESC connection
  • 5V BEC output – powers receiver and accessories with stable voltage

What makes the Castle P-CC010-0115-05 combo ideal for 2WD RC trucks and buggies?

The Castle P-CC010-0115-05 sensored brushless combo for 2WD RC trucks and buggies is engineered for platforms that benefit from high RPM and responsive throttle control. The 1406-4600Kv motor is optimized for 2S LiPo use and performs exceptionally well in short course trucks and stadium buggies when geared conservatively. While the motor includes sensored capabilities, the SV3 ESC operates in sensorless mode, offering rebuildability and wire replacement options for long-term maintenance. This combo is not recommended for 4WD short course trucks due to thermal limitations but excels in 2WD setups where weight and gearing are properly managed.

How does the waterproof ESC enhance durability?

The Castle waterproof ESC with proportional brakes and 4-pole motor design is built to withstand wet conditions, making it suitable for off-road bashing and trail runs. While not intended for full submersion, the ESC can operate in damp environments when properly rinsed and dried after use. This water-resistant design adds versatility to your RC setup, allowing you to drive confidently in rain, puddles, or mud. The proportional braking system ensures smooth deceleration, while the 4-pole motor delivers consistent torque across varied terrain.

What tuning options are available with the SV3 Sidewinder ESC?

The Castle P-CC010-0115-05 with 3S LiPo compatibility and programmable throttle curves offers extensive tuning capabilities through your transmitter or optional Castle Link programmer. Users can adjust throttle response, brake strength, drag brake, and other parameters to match their driving style. Firmware updates and feature upgrades are available via PC, allowing you to keep your ESC current and optimized. These programmable features make the SV3 Sidewinder a flexible choice for hobbyists who want to fine-tune their vehicle’s behavior for different track conditions or driving preferences.

Why is this combo a reliable upgrade for 1/10 scale platforms?

The Castle brushless combo with 4mm bullet connectors and 5V BEC output is designed for plug-and-play installation and long-term reliability. The 4mm bullet connectors ensure a secure motor-to-ESC connection, while the 5V BEC powers your receiver and accessories with consistent voltage. The compact dimensions and lightweight design make this combo suitable for most 1/10 scale chassis, and the rebuildable motor adds value by allowing wire replacement and maintenance over time. Whether you're upgrading from brushed systems or enhancing your current brushless setup, this combo delivers dependable performance across multiple RC disciplines.

Is this the best Castle combo for general bashing and 2S LiPo use?

For drivers focused on general bashing and reliable 2S performance, the best Castle waterproof brushless combo for general bashing and 2S LiPo use offers a balanced mix of power, durability, and customization. The 1406-4600Kv motor provides strong acceleration without overwhelming the ESC, and the SV3’s programmable features allow you to tailor the system to your terrain and driving style. With water-resistant construction and rebuildable motor design, this combo is a smart investment for hobbyists who want consistent results without the complexity of high-end racing systems.

Why is this an affordable choice for 2WD stadium trucks and buggies?

The affordable Castle ESC and motor kit for 2WD stadium trucks and buggies delivers premium features at a competitive price point. Its compatibility with 2S and 3S LiPo batteries, programmable settings, and rebuildable motor make it a versatile solution for both casual and performance-focused drivers. The waterproof ESC adds durability for outdoor use, and the sensored motor design ensures long-term value through serviceability. This combo is ideal for users who want to upgrade their electronics without overspending or sacrificing reliability.

For RC enthusiasts seeking a dependable, customizable power system, the Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo is a proven performer. Buy Castle P-CC010-0115-05 Sidewinder combo for 1/10 scale off-road RC setups.

Product Description of Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo

The Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo is a high-performance brushless system designed for 1/10 scale RC enthusiasts who demand responsive control, durability, and flexible tuning options. This combo includes the SV3 Sidewinder ESC and the 1406-4600Kv sensored motor, offering a powerful upgrade for 2WD stadium trucks, buggies, and on-road platforms. With support for up to 3S LiPo and programmable throttle curves, the Castle P-CC010-0115-05 1/10 scale brushless ESC with 1406-4600Kv motor delivers consistent power and control whether you're bashing, racing, or fine-tuning your setup for optimal performance.

Key features of the Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo

  • Water-resistant ESC – designed for wet conditions with proper post-run maintenance
  • 1406-4600Kv motor – sensored, rebuildable, and ideal for 2WD platforms
  • 3S LiPo compatibility – supports high-voltage setups for aggressive driving
  • Programmable throttle curves – customizable response via transmitter or Castle Link
  • Proportional brakes – precise control for on-road and off-road applications
  • 4-pole motor design – delivers smooth torque and efficient acceleration
  • 4mm bullet connectors – secure and reliable motor-to-ESC connection
  • 5V BEC output – powers receiver and accessories with stable voltage

What makes the Castle P-CC010-0115-05 combo ideal for 2WD RC trucks and buggies?

The Castle P-CC010-0115-05 sensored brushless combo for 2WD RC trucks and buggies is engineered for platforms that benefit from high RPM and responsive throttle control. The 1406-4600Kv motor is optimized for 2S LiPo use and performs exceptionally well in short course trucks and stadium buggies when geared conservatively. While the motor includes sensored capabilities, the SV3 ESC operates in sensorless mode, offering rebuildability and wire replacement options for long-term maintenance. This combo is not recommended for 4WD short course trucks due to thermal limitations but excels in 2WD setups where weight and gearing are properly managed.

How does the waterproof ESC enhance durability?

The Castle waterproof ESC with proportional brakes and 4-pole motor design is built to withstand wet conditions, making it suitable for off-road bashing and trail runs. While not intended for full submersion, the ESC can operate in damp environments when properly rinsed and dried after use. This water-resistant design adds versatility to your RC setup, allowing you to drive confidently in rain, puddles, or mud. The proportional braking system ensures smooth deceleration, while the 4-pole motor delivers consistent torque across varied terrain.

What tuning options are available with the SV3 Sidewinder ESC?

The Castle P-CC010-0115-05 with 3S LiPo compatibility and programmable throttle curves offers extensive tuning capabilities through your transmitter or optional Castle Link programmer. Users can adjust throttle response, brake strength, drag brake, and other parameters to match their driving style. Firmware updates and feature upgrades are available via PC, allowing you to keep your ESC current and optimized. These programmable features make the SV3 Sidewinder a flexible choice for hobbyists who want to fine-tune their vehicle’s behavior for different track conditions or driving preferences.

Why is this combo a reliable upgrade for 1/10 scale platforms?

The Castle brushless combo with 4mm bullet connectors and 5V BEC output is designed for plug-and-play installation and long-term reliability. The 4mm bullet connectors ensure a secure motor-to-ESC connection, while the 5V BEC powers your receiver and accessories with consistent voltage. The compact dimensions and lightweight design make this combo suitable for most 1/10 scale chassis, and the rebuildable motor adds value by allowing wire replacement and maintenance over time. Whether you're upgrading from brushed systems or enhancing your current brushless setup, this combo delivers dependable performance across multiple RC disciplines.

Is this the best Castle combo for general bashing and 2S LiPo use?

For drivers focused on general bashing and reliable 2S performance, the best Castle waterproof brushless combo for general bashing and 2S LiPo use offers a balanced mix of power, durability, and customization. The 1406-4600Kv motor provides strong acceleration without overwhelming the ESC, and the SV3’s programmable features allow you to tailor the system to your terrain and driving style. With water-resistant construction and rebuildable motor design, this combo is a smart investment for hobbyists who want consistent results without the complexity of high-end racing systems.

Why is this an affordable choice for 2WD stadium trucks and buggies?

The affordable Castle ESC and motor kit for 2WD stadium trucks and buggies delivers premium features at a competitive price point. Its compatibility with 2S and 3S LiPo batteries, programmable settings, and rebuildable motor make it a versatile solution for both casual and performance-focused drivers. The waterproof ESC adds durability for outdoor use, and the sensored motor design ensures long-term value through serviceability. This combo is ideal for users who want to upgrade their electronics without overspending or sacrificing reliability.

For RC enthusiasts seeking a dependable, customizable power system, the Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo is a proven performer. Buy Castle P-CC010-0115-05 Sidewinder combo for 1/10 scale off-road RC setups.

Technical Specifications of Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo

Brand, Model and Product Type

  • Brand: Castle
  • Model: P-CC010-0115-05
  • Product Type: Castle P-CC010-0115-05 SV3 Sidewinder waterproof ESC and 4600Kv motor combo, Castle P-CC010-0115-05 1/10 scale brushless ESC with 1406-4600Kv motor, Castle P-CC010-0115-05 sensored brushless combo for 2WD RC trucks and buggies, Castle P-CC010-0115-05 with 3S LiPo compatibility and programmable throttle curves, Castle waterproof ESC with proportional brakes and 4-pole motor design, Castle brushless combo with 4mm bullet connectors and 5V BEC output

Dimensions

  • ESC Length: 4.9 cm – compact footprint for 1/10 scale chassis
  • ESC Width: 3.8 cm – fits standard electronics trays
  • ESC Height: 2 cm – low-profile design for easy mounting
  • Motor Outer Diameter: 3.6 cm – suitable for 1/10 scale motor bays
  • Motor Shaft Diameter: 0.3 cm – compatible with standard pinion gears
  • Motor Shaft Length: 1.5 cm – supports secure gear engagement
  • Product Weight: 55.5 g – lightweight for improved vehicle balance

Motor Specifications

  • Motor Type: Brushless – designed for high-efficiency power delivery
  • Motor Design: Inrunner – compact and thermally efficient
  • RPM/Volt (Kv): 4600Kv – optimized for 2WD platforms and 2S LiPo setups
  • Number of Poles: 4 – delivers smooth torque and acceleration
  • Bushing or Bearing: Bearing – supports low-friction operation
  • Rebuildable Motor: Yes – allows wire replacement and long-term maintenance

ESC Specifications

  • Speed Control Type: Brushless – sensorless operation with programmable features
  • Drive Type: Brushless & Brushed – supports multiple motor configurations
  • Forward/Reverse: Yes – enables full directional control
  • Brakes: Proportional – provides smooth deceleration and control
  • Programmable: Yes – adjustable via transmitter or Castle Link programmer
  • BEC: Yes – integrated power supply for receiver and accessories
  • BEC Voltage: 5V – stable output for consistent accessory performance

Power and Compatibility

  • Compatible Input Voltage: 6–8 cells NiMH, 2–3S LiPo – supports common RC battery formats
  • Recommended Use: 2WD stadium trucks, buggies, and on-road cars – not suitable for 4WD short course trucks
  • Battery Compatibility: 2S and 3S LiPo – ideal for general bashing and performance tuning

Connectivity and Interfaces

  • Connector Type: 4mm bullet – secure motor-to-ESC connection
  • Programming Interface: Castle Link USB adapter or Field Link card (sold separately)

Water Resistance and Maintenance

  • Water-Resistant: Yes – suitable for wet conditions with post-run rinsing and drying
  • Submersion Warning: Not intended for submerged operation – rinse and dry after exposure

What’s in the Box

  • 1 × SV3 Sidewinder Waterproof ESC
  • 1 × 1406-4600Kv Brushless Motor

Needed to Complete

  • Battery connector of chosen type (optional)
  • Castle Link programmer (optional)
