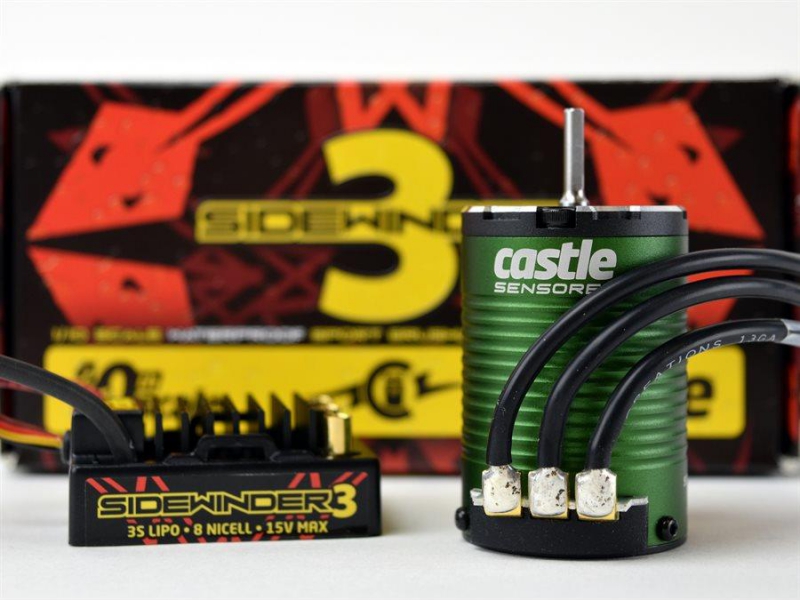

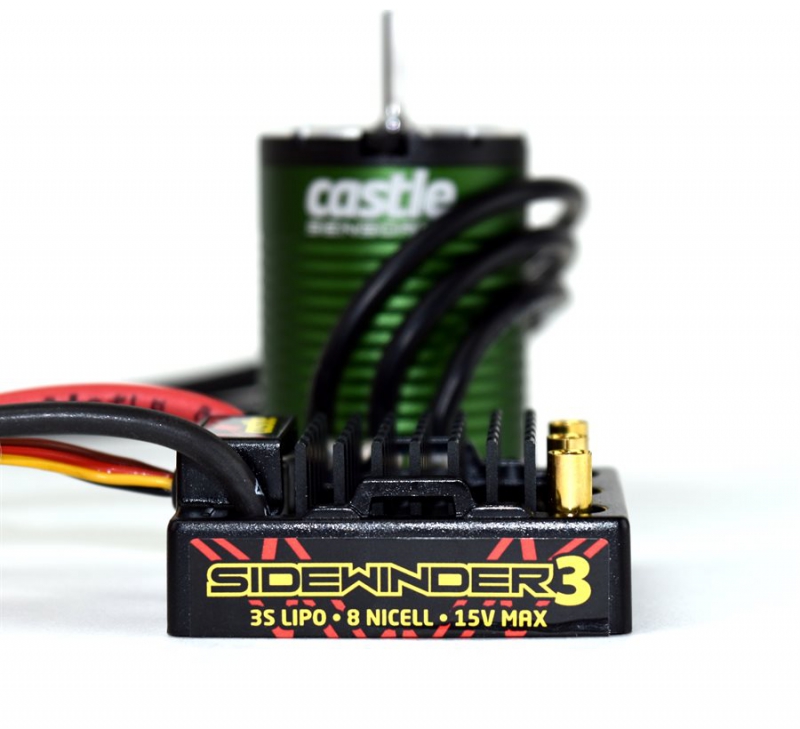

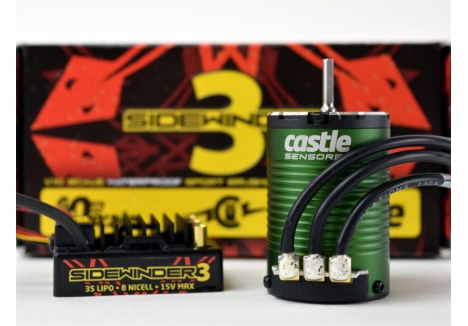

The Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo is a high-efficiency brushless system designed for 1/10 scale on-road RC enthusiasts seeking responsive throttle control, programmable tuning, and long-term durability. This combo includes the SV3 Sidewinder ESC paired with Castle’s 1406-6900Kv sensored motor, delivering fast acceleration and smooth performance for lightweight stadium trucks and on-road platforms. With support for up to 3S LiPo and a rebuildable motor design, the Castle P-CC010-0115-07 1/10 scale brushless ESC with 1406-6900Kv motor offers a versatile upgrade for drivers who prioritize speed and control in dry or damp conditions.
Key features of the Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo
- Water-resistant ESC – suitable for wet conditions with proper post-run care
- 1406-6900Kv sensored motor – rebuildable with replaceable wires
- 3S LiPo compatibility – supports high-voltage setups for aggressive driving
- Programmable throttle curves – adjustable via transmitter or Castle Link
- 4-pole motor construction – delivers efficient torque and acceleration
- 4mm bullet connectors – secure motor-to-ESC interface
- 5V BEC output – powers receiver and accessories with stable voltage
Why is the Castle P-CC010-0115-07 combo ideal for on-road RC cars?
The Castle P-CC010-0115-07 sensored brushless combo for on-road RC cars is optimized for platforms that benefit from high Kv output and efficient power delivery. The 1406-6900Kv motor excels in 1/10 scale on-road vehicles when paired with 2S LiPo and conservative gearing. While the motor includes sensored capabilities, the SV3 ESC operates in sensorless mode, offering rebuildability and wire replacement for long-term maintenance. This combo is not suitable for 2WD or 4WD short course trucks due to thermal limitations but performs exceptionally well in on-road setups where weight and gearing are properly managed.
How does the waterproof ESC improve durability?
The Castle waterproof ESC with 4-pole motor and 4mm bullet connectors is built to handle wet conditions, making it ideal for on-road bashing and light off-road use. Although not intended for full submersion, the ESC can operate in damp environments when rinsed and dried properly after use. This water-resistant design adds versatility to your RC setup, allowing confident driving in rain or puddles. The 4-pole motor construction ensures smooth torque delivery, while the 4mm bullet connectors provide a secure and reliable connection between motor and ESC.
What tuning options are available with the SV3 Sidewinder ESC?
The Castle P-CC010-0115-07 with 3S LiPo compatibility and programmable throttle curves offers extensive tuning capabilities through your transmitter or optional Castle Link programmer. Users can adjust throttle response, brake strength, drag brake, and other parameters to suit their driving style. Firmware updates and feature upgrades are available via PC, ensuring your ESC remains current and optimized. These programmable features make the SV3 Sidewinder a flexible choice for hobbyists who want to fine-tune their vehicle’s behavior for different terrain and performance goals.
Why is the rebuildable motor design a valuable feature?
The Castle brushless combo with 5V BEC output and rebuildable motor design offers long-term value through serviceability and customization. The sensored motor allows users to replace damaged wires and maintain performance over time. While the SV3 ESC does not utilize the motor’s sensored capabilities, the rebuildable design ensures durability and flexibility for future upgrades. The 5V BEC output powers your receiver and accessories with consistent voltage, supporting stable operation across varied driving conditions.
Is this the best Castle combo for 2S LiPo use and rebuildable motor design?
For drivers focused on reliable 2S performance and long-term serviceability, the best Castle waterproof brushless combo for 2S LiPo use and rebuildable motor design delivers a balanced mix of speed, efficiency, and durability. The 6900Kv motor provides strong acceleration without overwhelming the ESC, and the SV3’s programmable features allow you to tailor the system to your terrain and driving style. With water-resistant construction and a rebuildable motor, this combo is a smart investment for hobbyists who want consistent results without the complexity of high-end racing systems.
Why is this an affordable choice for stadium trucks with conservative gearing?
The affordable Castle ESC and motor kit for stadium trucks with conservative gearing combines premium features with a competitive price point. Its compatibility with 2S and 3S LiPo batteries, programmable settings, and rebuildable motor make it a versatile solution for both casual and performance-focused drivers. The waterproof ESC adds durability for outdoor use, and the sensored motor design ensures long-term value through serviceability. This combo is ideal for users who want to upgrade their electronics without overspending or sacrificing reliability.
For RC enthusiasts seeking a dependable, customizable power system, the Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo is a proven performer. Buy Castle P-CC010-0115-07 Sidewinder combo for 1/10 scale on-road RC setups.
Product Description of Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo
The Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo is a high-efficiency brushless system designed for 1/10 scale on-road RC enthusiasts seeking responsive throttle control, programmable tuning, and long-term durability. This combo includes the SV3 Sidewinder ESC paired with Castle’s 1406-6900Kv sensored motor, delivering fast acceleration and smooth performance for lightweight stadium trucks and on-road platforms. With support for up to 3S LiPo and a rebuildable motor design, the Castle P-CC010-0115-07 1/10 scale brushless ESC with 1406-6900Kv motor offers a versatile upgrade for drivers who prioritize speed and control in dry or damp conditions.
Key features of the Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo
- Water-resistant ESC – suitable for wet conditions with proper post-run care
- 1406-6900Kv sensored motor – rebuildable with replaceable wires
- 3S LiPo compatibility – supports high-voltage setups for aggressive driving
- Programmable throttle curves – adjustable via transmitter or Castle Link
- 4-pole motor construction – delivers efficient torque and acceleration
- 4mm bullet connectors – secure motor-to-ESC interface
- 5V BEC output – powers receiver and accessories with stable voltage
Why is the Castle P-CC010-0115-07 combo ideal for on-road RC cars?
The Castle P-CC010-0115-07 sensored brushless combo for on-road RC cars is optimized for platforms that benefit from high Kv output and efficient power delivery. The 1406-6900Kv motor excels in 1/10 scale on-road vehicles when paired with 2S LiPo and conservative gearing. While the motor includes sensored capabilities, the SV3 ESC operates in sensorless mode, offering rebuildability and wire replacement for long-term maintenance. This combo is not suitable for 2WD or 4WD short course trucks due to thermal limitations but performs exceptionally well in on-road setups where weight and gearing are properly managed.
How does the waterproof ESC improve durability?
The Castle waterproof ESC with 4-pole motor and 4mm bullet connectors is built to handle wet conditions, making it ideal for on-road bashing and light off-road use. Although not intended for full submersion, the ESC can operate in damp environments when rinsed and dried properly after use. This water-resistant design adds versatility to your RC setup, allowing confident driving in rain or puddles. The 4-pole motor construction ensures smooth torque delivery, while the 4mm bullet connectors provide a secure and reliable connection between motor and ESC.
What tuning options are available with the SV3 Sidewinder ESC?
The Castle P-CC010-0115-07 with 3S LiPo compatibility and programmable throttle curves offers extensive tuning capabilities through your transmitter or optional Castle Link programmer. Users can adjust throttle response, brake strength, drag brake, and other parameters to suit their driving style. Firmware updates and feature upgrades are available via PC, ensuring your ESC remains current and optimized. These programmable features make the SV3 Sidewinder a flexible choice for hobbyists who want to fine-tune their vehicle’s behavior for different terrain and performance goals.
Why is the rebuildable motor design a valuable feature?
The Castle brushless combo with 5V BEC output and rebuildable motor design offers long-term value through serviceability and customization. The sensored motor allows users to replace damaged wires and maintain performance over time. While the SV3 ESC does not utilize the motor’s sensored capabilities, the rebuildable design ensures durability and flexibility for future upgrades. The 5V BEC output powers your receiver and accessories with consistent voltage, supporting stable operation across varied driving conditions.
Is this the best Castle combo for 2S LiPo use and rebuildable motor design?
For drivers focused on reliable 2S performance and long-term serviceability, the best Castle waterproof brushless combo for 2S LiPo use and rebuildable motor design delivers a balanced mix of speed, efficiency, and durability. The 6900Kv motor provides strong acceleration without overwhelming the ESC, and the SV3’s programmable features allow you to tailor the system to your terrain and driving style. With water-resistant construction and a rebuildable motor, this combo is a smart investment for hobbyists who want consistent results without the complexity of high-end racing systems.
Why is this an affordable choice for stadium trucks with conservative gearing?
The affordable Castle ESC and motor kit for stadium trucks with conservative gearing combines premium features with a competitive price point. Its compatibility with 2S and 3S LiPo batteries, programmable settings, and rebuildable motor make it a versatile solution for both casual and performance-focused drivers. The waterproof ESC adds durability for outdoor use, and the sensored motor design ensures long-term value through serviceability. This combo is ideal for users who want to upgrade their electronics without overspending or sacrificing reliability.
For RC enthusiasts seeking a dependable, customizable power system, the Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo is a proven performer. Buy Castle P-CC010-0115-07 Sidewinder combo for 1/10 scale on-road RC setups.
Technical Specifications of Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0115-07
- Product Type: Castle P-CC010-0115-07 SV3 Sidewinder waterproof ESC and 6900Kv motor combo, Castle P-CC010-0115-07 1/10 scale brushless ESC with 1406-6900Kv motor, Castle P-CC010-0115-07 sensored brushless combo for on-road RC cars, Castle P-CC010-0115-07 with 3S LiPo compatibility and programmable throttle curves, Castle waterproof ESC with 4-pole motor and 4mm bullet connectors, Castle brushless combo with 5V BEC output and rebuildable motor design
Dimensions
- ESC Length: 4.9 cm – compact footprint for 1/10 scale electronics trays
- ESC Width: 3.8 cm – fits standard off-road and on-road chassis
- ESC Height: 2 cm – low-profile for easy mounting
- Motor Length: 4.95 cm – suitable for 1/10 scale motor bays
- Motor Diameter: 3.6 cm – compatible with standard mounting brackets
- Mounting Holes: M3 @ 2.5 cm spacing – supports secure installation
- Recommended Vehicle Weight: Up to 2.27 kg (5 lbs) with battery – ideal for lightweight platforms
Motor Specifications
- Motor Type: Brushless – engineered for high-efficiency power delivery
- Motor Design: Inrunner – compact and thermally efficient
- RPM/Volt (Kv): 6900Kv – optimized for on-road RC cars and 2S LiPo setups
- Number of Poles: 4 – delivers smooth torque and acceleration
- Bushing or Bearing: Bearing – supports low-friction operation
- Rebuildable Motor: Yes – allows wire replacement and long-term maintenance
ESC Specifications
- Speed Control Type: Brushless – sensorless operation with programmable features
- Drive Type: Brushless & Brushed – supports multiple motor configurations
- Forward/Reverse: Yes – enables full directional control
- Programmable: Yes – adjustable via transmitter or Castle Link programmer
- BEC: Yes – integrated power supply for receiver and accessories
- BEC Voltage: 5V – stable output for consistent accessory performance
Power and Compatibility
- Compatible Input Voltage: 6–8 cells NiMH, 2–3S LiPo – supports common RC battery formats
- Battery Compatibility: 2S and 3S LiPo – ideal for on-road setups and conservative gearing
Connectivity and Interfaces
- Connector Type: 4mm bullet – secure motor-to-ESC connection
- Programming Interface: Castle Link USB adapter or Field Link card (sold separately)
Water Resistance and Maintenance
- Water-Resistant: Yes – suitable for wet conditions with post-run rinsing and drying
- Submersion Warning: Not intended for submerged operation – rinse and dry after exposure
What’s in the Box
- 1 × SV3 Sidewinder Waterproof ESC
- 1 × 1406-6900Kv Brushless Motor
Needed to Complete
- Soldering 4mm female bullet connectors for motor connection (sold separately)
