CASTLE Monster X 25.2V ESC, 8A BEC W/1512-1800kV Sensored P-CC010-0145-05

Model No: P-CC010-0145-05


£389.99

£48.99

£341.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty
Product Overview

Mamba Monster X paired with our 1512-1800Kv motor is capable of 2S to 4S LiPo and is perfect for 1:8th scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle's legendary monster performance to a whole new level.

Features
  • Input Voltage range 2S-6S
  • 8A Adjustable BEC (5.25V-8.0V)
  • 1512-1800Kv, 4-pole 12-slot sensored motor.
  • Waterproof design.
  • Removable 30MM cooling fan.
  • Convenient transmitter programming for six common adjustable settings.
  • Easily program and update ESC with use of Castle Link and freely downloadable Castle-Link WindowsT program.
  • Data Logging capable
  • Telemetry Ready
  • Auxiliary Wire Functionality allows for on-the-fly adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.


*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make on-the-go adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter

Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field

Mamba Monster X Combo Includes
  • Mamba Monster X ESC
  • 1512-1800Kv Sensored Motor
  • Castle Sensor Harness adapter
  • 210mm length sensor wire (for sensored operation)
  • Driver's Ed and Quick Start Guide
  • Castle Decals

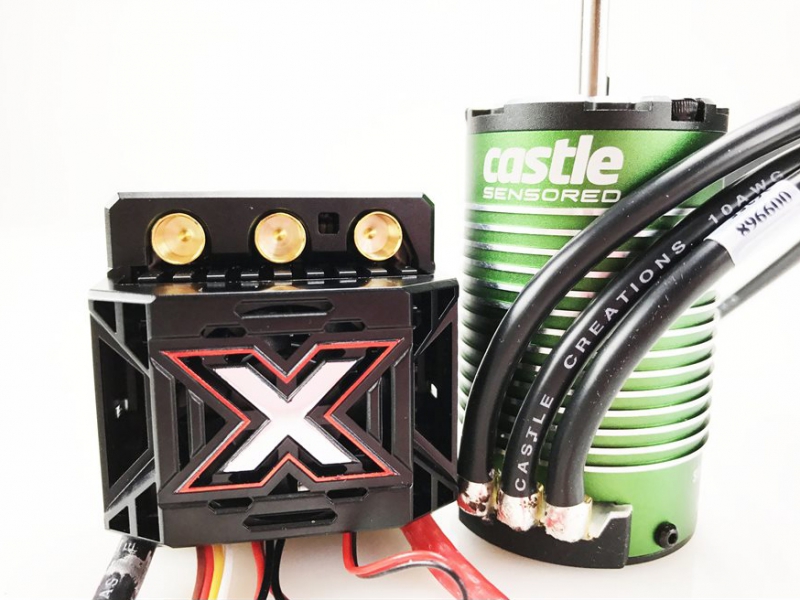

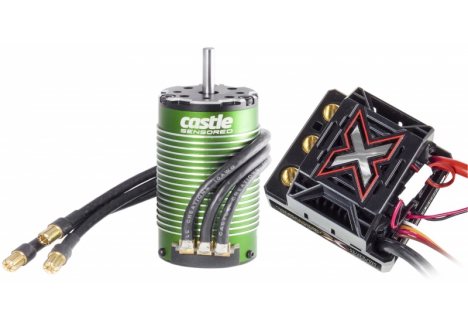

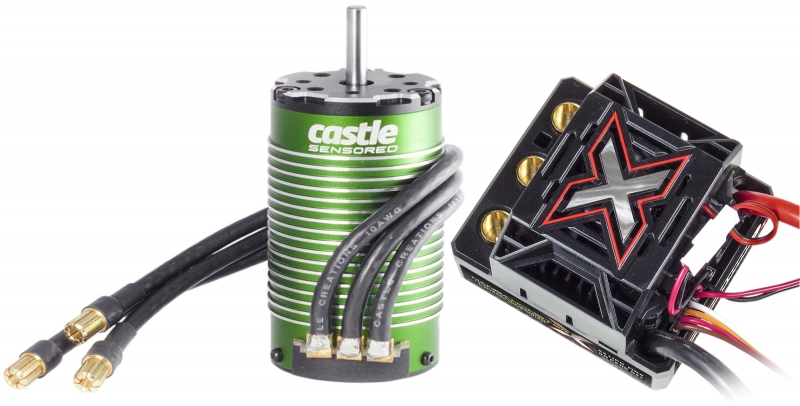

Product Description of The Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo

The Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo is engineered for RC drivers who demand precision, power, and configurability in one rugged system. Designed for 1/8 scale buggies, monster trucks, and on-road platforms up to 9 lbs, this waterproof combo delivers high-voltage performance with advanced control features. The ESC supports 2S to 6S LiPo input and includes an adjustable BEC with selectable voltage outputs of 5.5V, 6.0V, 7.5V, or 8.0V at 8A peak. Paired with the 1512-1800kV sensored motor, the system offers smooth startups, efficient torque delivery, and enhanced low-speed control. The Castle P-CC010-0145-05 waterproof ESC with 8A BEC and 30mm cooling fan is built to withstand demanding terrain while maintaining consistent thermal performance and responsiveness.

Key features of the Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo

  • Adjustable BEC – supports multiple servo setups with selectable voltage levels
  • Programmable auxiliary wire – enables real-time tuning of throttle, brake, and torque
  • Audible alert diagnostics – provides immediate feedback on calibration and error conditions
  • Telemetry readiness – allows real-time monitoring of ESC temperature, voltage, and RPM
  • Integrated data logging – captures performance metrics for post-run analysis
  • Sensored motor support – delivers smooth startups and improved low-speed control
  • Waterproof ESC housing – protects electronics during wet terrain operation
  • Removable 30mm cooling fan – maintains thermal stability and is easy to service
  • Integrated heatsink design – enhances motor cooling and durability
  • 6.5mm bullet connectors – ensures secure and low-resistance motor-to-ESC interface

How does the Castle P-CC010-0145-05 1/8 scale ESC with telemetry and data logging support improve control?

The Castle P-CC010-0145-05 1/8 scale ESC with telemetry and data logging support offers advanced visibility into your vehicle’s performance. Telemetry readiness enables real-time monitoring of ESC temperature, voltage, and RPM when paired with compatible transmitters, helping prevent overheating and voltage drops. Data logging captures performance metrics from previous runs, which can be accessed via Castle Link software and Quick Connect Duo (sold separately). This allows users to analyze driving behavior, battery efficiency, and ESC response, making it easier to fine-tune gear ratios, throttle curves, and braking profiles for optimal results.

Why is the Castle brushless combo with sensored motor and integrated heatsink design ideal for technical driving?

The Castle brushless combo with sensored motor and integrated heatsink design is built for drivers who need smooth, controlled acceleration and reliable heat management. The 1512-1800kV motor features a sensored design that eliminates cogging during startup and enhances low-speed control—especially useful for rock crawling and technical terrain. The integrated heatsink improves thermal dissipation, allowing the motor to maintain performance under load. Combined with the ESC’s removable 30mm fan, this combo ensures consistent operation even in high-demand environments.

Can the Castle P-CC010-0145-05 with auxiliary wire tuning and 6.5mm bullet connectors be adjusted mid-run?

Yes, the Castle P-CC010-0145-05 with auxiliary wire tuning and 6.5mm bullet connectors allows real-time adjustments during operation. The programmable auxiliary wire can be assigned to throttle, brake, or torque control functions and adjusted via a compatible transmitter. This feature is disabled by default but can be activated using Castle Link software. The 6.5mm bullet connectors ensure a secure and low-resistance connection between motor and ESC, supporting consistent power delivery during aggressive driving or rapid directional changes.

What makes the Castle waterproof ESC with adjustable BEC and removable cooling fan a reliable upgrade?

The Castle waterproof ESC with adjustable BEC and removable cooling fan is designed for durability and flexibility. Its waterproof housing protects internal electronics from moisture, making it suitable for wet grass, mud, and damp conditions. The BEC voltage is adjustable across four levels, allowing users to match power output to their servo requirements. The removable 30mm fan helps regulate ESC temperature during extended runs and can be serviced or replaced as needed. These features make the ESC a reliable upgrade for hobbyists who want consistent performance across varied terrain.

Is the Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo suitable for competitive setups?

Absolutely. The Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo is built for competitive performance. With support for up to 6S LiPo input and vehicles up to 9 lbs, the combo delivers high-voltage power and responsive control. The ESC’s proportional braking and reversible drive mode add flexibility for racing and technical driving, while the motor’s sensored design ensures smooth transitions and torque delivery. The system’s telemetry and data logging capabilities provide the insight needed to optimize performance and battery life, making it ideal for serious racers and advanced hobbyists.

Why is this the best Castle sensored brushless combo with telemetry and splashproof design?

The best Castle sensored brushless combo with telemetry and splashproof design combines high-end features with rugged construction. Telemetry readiness and data logging offer advanced tuning capabilities, while the splashproof ESC housing protects against environmental stress. The sensored motor delivers smooth startups and consistent torque, and the integrated heatsink ensures thermal stability. These features make the combo a top choice for drivers who want precision, durability, and configurability in one package.

For RC enthusiasts seeking a powerful, configurable, and telemetry-ready brushless system, the Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo delivers unmatched control and performance. Buy Castle P-CC010-0145-05 ESC combo for 1/8 scale buggies and monster trucks.

Technical Specifications of The Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo

Brand, Model and Product Type

  • Brand: Castle
  • Model: P-CC010-0145-05
  • Product Type: Castle P-CC010-0145-05 Monster X ESC and 1512-1800kV sensored motor combo, Castle P-CC010-0145-05 waterproof ESC with 8A BEC and 30mm cooling fan, Castle P-CC010-0145-05 1/8 scale ESC with telemetry and data logging support, Castle P-CC010-0145-05 with auxiliary wire tuning and 6.5mm bullet connectors, Castle waterproof ESC with adjustable BEC and removable cooling fan, Castle brushless combo with sensored motor and integrated heatsink design

Dimensions

  • ESC Length: 6.22 cm – compact footprint for 1/8 scale chassis integration
  • ESC Width: 5.6 cm – fits standard electronics trays with minimal space impact
  • ESC Height: 3.4 cm – includes removable 30mm cooling fan for thermal regulation
  • ESC Weight: Approximately 100 g (excluding connectors) – lightweight for improved vehicle balance

Power and Voltage Specifications

  • Input Voltage Range: 2S–6S LiPo (ESC supports up to 25.2V; motor rated for up to 4S)
  • BEC Output: Adjustable – 5.5V, 6.0V, 7.5V, or 8.0V with 8A peak current

Cooling and Durability

  • Cooling System: Removable 30mm fan – maintains ESC temperature during high-load operation
  • Motor Cooling: Integrated heatsink – enhances thermal dissipation and motor longevity
  • Waterproof Rating: Splashproof – ESC housing protects electronics from moisture exposure

Motor Specifications

  • Motor Type: Sensored brushless – 4-pole, 12-slot design for smooth startup and torque delivery
  • Motor Kv Rating: 1800Kv – optimized for 1/8 scale applications with 4S LiPo compatibility

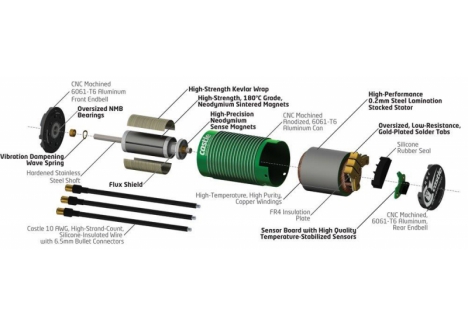

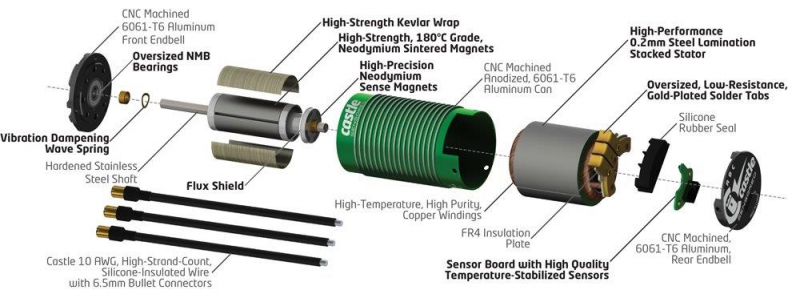

  • Motor Quality: Features oversized bearings, sintered Neodymium magnets, and precision electromagnetic design

Connectivity and Interfaces

  • Connector Type: 6.5mm female bullet connectors – ensures secure motor-to-ESC interface
  • Programming Interface: Castle Link USB or Bluetooth – supports advanced tuning and firmware updates

Control and Operation Modes

  • Auxiliary Wire: Programmable – allows on-the-fly tuning of throttle, brake, and torque settings
  • Drive Mode: Reversible – can be disabled for racing configurations
  • Programming Options: Transmitter-based or via Castle Link Suite – enables full customization

Diagnostics and Feedback

  • Audible Alerts: Yes – notifies users of calibration issues and error conditions

Telemetry and Data Logging

  • Telemetry Ready: Yes – compatible with Futaba S.BUS2 transmitters via Castle Telemetry Link (sold separately)
  • Data Logging: Supported – records performance metrics for post-run analysis

Vehicle Compatibility

  • Supported Platforms: 1/8 scale buggies, on-road vehicles, and 1/10 monster trucks
  • Maximum Vehicle Weight: Up to 9 lbs (ready-to-run with battery)

What’s in the Box

  • 1 × Castle Mamba Monster X ESC
  • 1 × Castle 1512-1800kV sensored brushless motor
  • 1 × Sensor harness
  • 1 × 210mm sensor wire
  • 1 × Quick Start Guide

What You Require / What You Will Need

  • Castle Link USB or Bluetooth adapter for programming (sold separately)
  • Castle Quick Connect Duo for data logging access (sold separately)
  • Castle Telemetry Link for Futaba S.BUS2 transmitters (sold separately)

Sold Separately

  • Castle Link USB or Bluetooth adapter
  • Castle Quick Connect Duo
  • Castle Telemetry Link for Futaba S.BUS2
