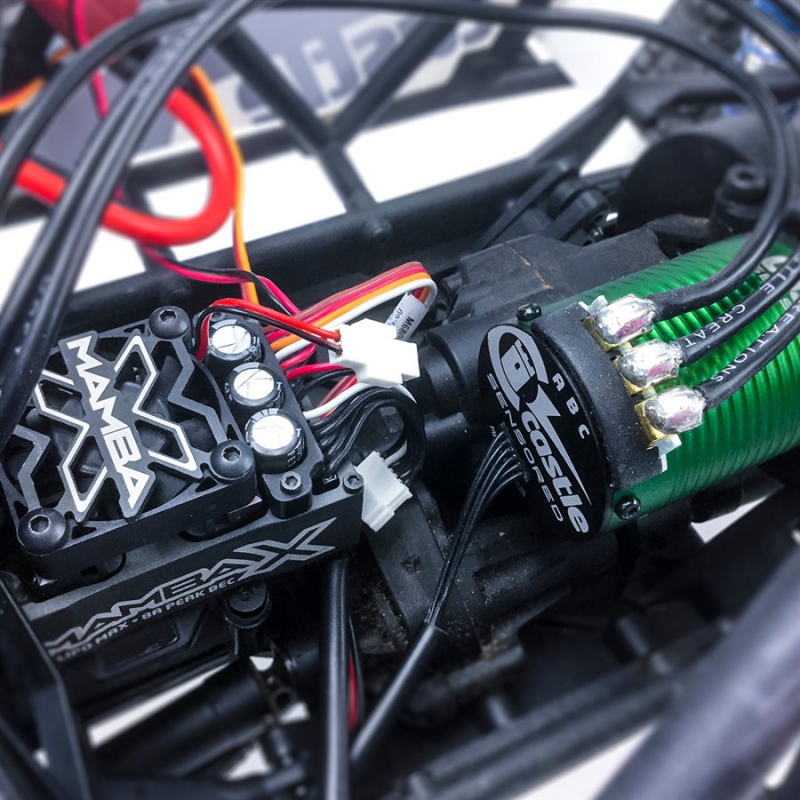

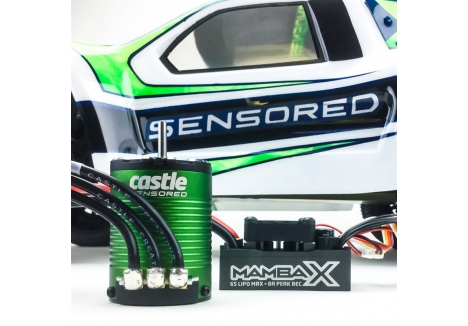

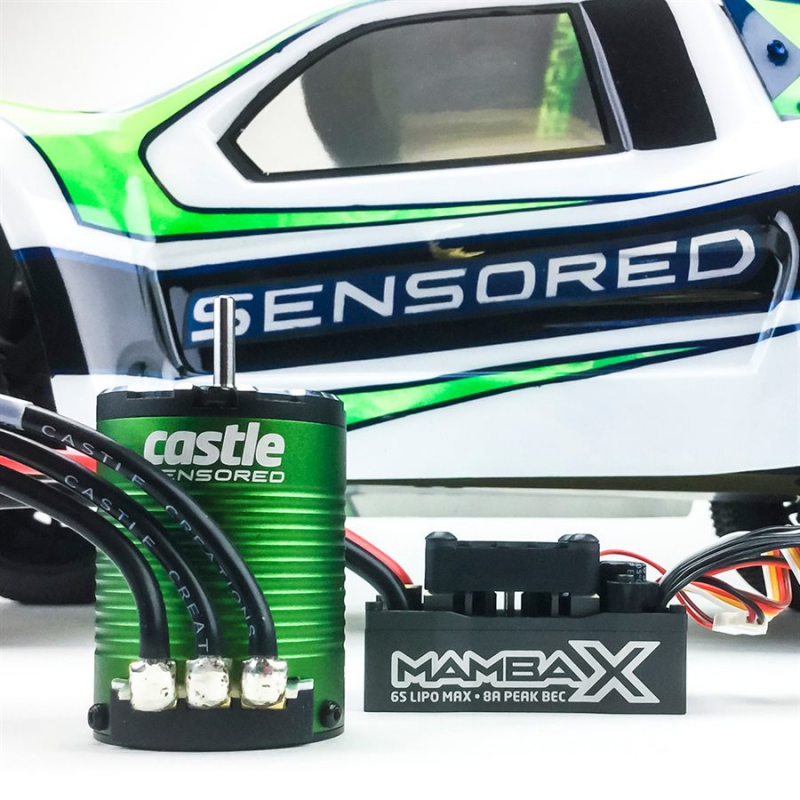

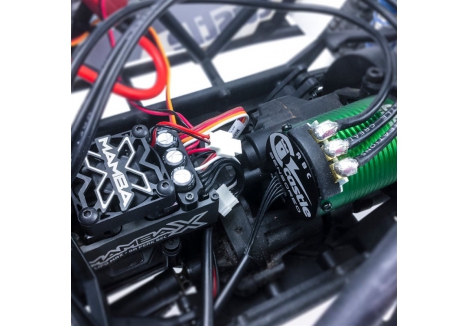

The Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo is built for RC drivers who prioritize raw acceleration, ultra-responsive control, and thermal resilience in lightweight 1/10 scale builds. This combo isn’t just fast—it’s engineered to stay fast under pressure. With a 6900kV motor at its core, the system delivers explosive launches and sustained top-end speed, while the ESC’s SMARTSENSE™ mode ensures startup precision and seamless transitions to sensorless operation. Whether you're pushing a 2WD touring car to its limits or dialing in a lightweight buggy for track dominance, this setup responds with authority.
Key features of the Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo
- Hybrid drive intelligence – SMARTSENSE™ startup with automatic timing advance for peak efficiency
- Voltage-flexible BEC – 8A peak output with selectable voltage range from 5.25V to 8.0V
- Live telemetry support – real-time visibility into ESC temperature, voltage, and RPM
- Integrated data capture – onboard logging of performance metrics for post-run diagnostics
- Transmitter-based tuning – AUX wire enables real-time adjustment of throttle, brake, and torque
- Removable fan module – 30mm cooling unit for active heat management in dry conditions
- Waterproof switch – sealed interface for reliable power control in damp environments
- Machined aluminum housing – CNC case doubles as a heat sink and impact shield
- Low-resistance connectors – 4mm bullet terminals for secure motor-to-ESC power delivery
- Electronic braking system – programmable deceleration for controlled cornering and descent
What sets the Castle P-CC010-0155-03 waterproof ESC with SMARTSENSE and 8A adjustable BEC apart?
This isn’t just another waterproof ESC—it’s a precision-tuned control system with a built-in edge. The Castle P-CC010-0155-03 waterproof ESC with SMARTSENSE and 8A adjustable BEC combines sensor-driven startup logic with adaptive timing to maintain efficiency across variable loads. The BEC isn’t just adjustable—it’s voltage-flexible, supporting high-draw servos and advanced electronics without compromise. And with its epoxy-potted internals and CNC-machined shell, the ESC is built to survive the kind of terrain that chews through lesser systems.
How does the Castle sensored combo with auxiliary wire tuning and electronic brakes adapt mid-run?
Adaptability is baked into the design. The Castle sensored combo with auxiliary wire tuning and electronic brakes gives drivers the ability to modify key parameters—throttle curve, brake force, torque delivery—on the fly. No pit stops. No reprogramming. Just real-time control from your transmitter. Whether you’re adjusting for grip loss on a wet track or dialing back torque for a technical section, the AUX wire functionality ensures your setup evolves with the terrain.
Can the Castle P-CC010-0155-03 with CNC aluminum case and 4mm bullet connectors handle high-speed abuse?
Absolutely. The Castle P-CC010-0155-03 with CNC aluminum case and 4mm bullet connectors is designed to absorb the punishment of high-speed impacts, thermal stress, and vibration. The aluminum case isn’t just for looks—it’s a functional heat sink that dissipates energy during extended runs. The 4mm bullet connectors lock in power delivery with minimal resistance, ensuring that the motor receives consistent current even under peak load. This combo doesn’t flinch when pushed—it performs.
Why is the Castle brushless ESC with removable 30mm fan and waterproof switch ideal for mixed conditions?
The Castle brushless ESC with removable 30mm fan and waterproof switch is built for environments where conditions change fast. The fan module provides active cooling during dry, high-speed runs, and can be removed when moisture is a factor. The waterproof switch adds a layer of reliability, allowing you to power up confidently even when the terrain is damp. This combo is as comfortable on a wet track as it is on a sunbaked straightaway.
Why is this the affordable Castle ESC with SMARTSENSE startup and Castle Link programming?
The affordable Castle ESC with SMARTSENSE startup and Castle Link programming delivers premium-grade control without the premium price tag. SMARTSENSE ensures smooth launches and efficient transitions, while Castle Link software unlocks a full suite of tuning options. From throttle profiles to brake curves, every parameter is yours to define. And with firmware updates included, your system evolves as Castle’s technology does—no extra cost, no compromise.
Why is this the best Castle waterproof ESC with 6900kV motor and telemetry-ready design for speed-focused builds?
The best Castle waterproof ESC with 6900kV motor and telemetry-ready design isn’t just fast—it’s smart. The 6900kV motor delivers explosive acceleration, while the telemetry-ready ESC provides real-time feedback to keep that speed in check. From voltage dips to thermal spikes, you’ll see it all before it becomes a problem. This combo is built for drivers who want to go fast—and stay fast—with full control and zero guesswork.
For RC builders who demand speed, control, and resilience in one package, the Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo is the answer. Buy Castle P-CC010-0155-03 ESC combo for 2WD touring cars and lightweight buggies.
Product Description of Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo
The Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo is built for RC drivers who prioritize raw acceleration, ultra-responsive control, and thermal resilience in lightweight 1/10 scale builds. This combo isn’t just fast—it’s engineered to stay fast under pressure. With a 6900kV motor at its core, the system delivers explosive launches and sustained top-end speed, while the ESC’s SMARTSENSE™ mode ensures startup precision and seamless transitions to sensorless operation. Whether you're pushing a 2WD touring car to its limits or dialing in a lightweight buggy for track dominance, this setup responds with authority.
Key features of the Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo
- Hybrid drive intelligence – SMARTSENSE™ startup with automatic timing advance for peak efficiency
- Voltage-flexible BEC – 8A peak output with selectable voltage range from 5.25V to 8.0V
- Live telemetry support – real-time visibility into ESC temperature, voltage, and RPM
- Integrated data capture – onboard logging of performance metrics for post-run diagnostics
- Transmitter-based tuning – AUX wire enables real-time adjustment of throttle, brake, and torque
- Removable fan module – 30mm cooling unit for active heat management in dry conditions
- Waterproof switch – sealed interface for reliable power control in damp environments
- Machined aluminum housing – CNC case doubles as a heat sink and impact shield
- Low-resistance connectors – 4mm bullet terminals for secure motor-to-ESC power delivery
- Electronic braking system – programmable deceleration for controlled cornering and descent
What sets the Castle P-CC010-0155-03 waterproof ESC with SMARTSENSE and 8A adjustable BEC apart?
This isn’t just another waterproof ESC—it’s a precision-tuned control system with a built-in edge. The Castle P-CC010-0155-03 waterproof ESC with SMARTSENSE and 8A adjustable BEC combines sensor-driven startup logic with adaptive timing to maintain efficiency across variable loads. The BEC isn’t just adjustable—it’s voltage-flexible, supporting high-draw servos and advanced electronics without compromise. And with its epoxy-potted internals and CNC-machined shell, the ESC is built to survive the kind of terrain that chews through lesser systems.
How does the Castle sensored combo with auxiliary wire tuning and electronic brakes adapt mid-run?
Adaptability is baked into the design. The Castle sensored combo with auxiliary wire tuning and electronic brakes gives drivers the ability to modify key parameters—throttle curve, brake force, torque delivery—on the fly. No pit stops. No reprogramming. Just real-time control from your transmitter. Whether you’re adjusting for grip loss on a wet track or dialing back torque for a technical section, the AUX wire functionality ensures your setup evolves with the terrain.
Can the Castle P-CC010-0155-03 with CNC aluminum case and 4mm bullet connectors handle high-speed abuse?
Absolutely. The Castle P-CC010-0155-03 with CNC aluminum case and 4mm bullet connectors is designed to absorb the punishment of high-speed impacts, thermal stress, and vibration. The aluminum case isn’t just for looks—it’s a functional heat sink that dissipates energy during extended runs. The 4mm bullet connectors lock in power delivery with minimal resistance, ensuring that the motor receives consistent current even under peak load. This combo doesn’t flinch when pushed—it performs.
Why is the Castle brushless ESC with removable 30mm fan and waterproof switch ideal for mixed conditions?
The Castle brushless ESC with removable 30mm fan and waterproof switch is built for environments where conditions change fast. The fan module provides active cooling during dry, high-speed runs, and can be removed when moisture is a factor. The waterproof switch adds a layer of reliability, allowing you to power up confidently even when the terrain is damp. This combo is as comfortable on a wet track as it is on a sunbaked straightaway.
Why is this the affordable Castle ESC with SMARTSENSE startup and Castle Link programming?
The affordable Castle ESC with SMARTSENSE startup and Castle Link programming delivers premium-grade control without the premium price tag. SMARTSENSE ensures smooth launches and efficient transitions, while Castle Link software unlocks a full suite of tuning options. From throttle profiles to brake curves, every parameter is yours to define. And with firmware updates included, your system evolves as Castle’s technology does—no extra cost, no compromise.
Why is this the best Castle waterproof ESC with 6900kV motor and telemetry-ready design for speed-focused builds?
The best Castle waterproof ESC with 6900kV motor and telemetry-ready design isn’t just fast—it’s smart. The 6900kV motor delivers explosive acceleration, while the telemetry-ready ESC provides real-time feedback to keep that speed in check. From voltage dips to thermal spikes, you’ll see it all before it becomes a problem. This combo is built for drivers who want to go fast—and stay fast—with full control and zero guesswork.
For RC builders who demand speed, control, and resilience in one package, the Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo is the answer. Buy Castle P-CC010-0155-03 ESC combo for 2WD touring cars and lightweight buggies.
Technical Specifications of Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC010-0155-03
- Product Type: Castle P-CC010-0155-03 Mamba X ESC and 1406-6900kV sensored motor combo, Castle P-CC010-0155-03 waterproof ESC with SMARTSENSE and 8A adjustable BEC, Castle P-CC010-0155-03 1/10 scale ESC with telemetry and data logging support, Castle P-CC010-0155-03 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and waterproof switch, Castle sensored combo with auxiliary wire tuning and electronic brakes
Dimensions
- ESC Length: 5.44 cm – compact footprint for 1/10 scale chassis integration
- ESC Width: 3.52 cm – fits standard electronics trays with minimal space impact
- ESC Height: 3.0 cm – includes removable 30mm cooling fan for thermal regulation
- ESC Weight: 101 g – potted design for durability and moisture resistance
- Motor Shaft Diameter: 3.17 mm – compatible with standard gear interfaces
Power and Voltage Specifications
- Input Voltage Range: 2S–6S LiPo – supports high-voltage setups for extreme performance
- BEC Output: Adjustable – 5.25V to 8.0V with 8A peak current
- BEC Type: Integrated – housed within ESC for compact design
Cooling and Durability
- Cooling System: Removable 30mm fan – maintains ESC temperature during high-load operation
- ESC Housing: CNC-machined aluminum case – enhances heat dissipation and structural integrity
- Waterproof Rating: Water-resistant epoxy-potted ESC – protects electronics from moisture exposure
Motor Specifications
- Motor Type: Brushless sensored – inrunner design for efficient torque delivery
- Kv Rating: 6900Kv – optimized for high-speed 1/10 scale applications
- Motor Configuration: 4-pole, 12-slot – delivers smooth startup and consistent torque
Connectivity and Interfaces
- Connector Type: 4mm bullet connectors – ensures secure motor-to-ESC interface
- Programming Interface: Castle Link USB or Bluetooth – supports advanced tuning and firmware updates
Control and Operation Modes
- Auxiliary Wire: Programmable – allows on-the-fly tuning of throttle, brake, and torque settings
- Drive Mode: Forward/Brake/Reverse – supports full directional control
- Programming Options: Transmitter-based or via Castle Link Suite – enables full customization
- Timing Advance: Electronic – adjusts automatically for optimal efficiency across load conditions
Diagnostics and Feedback
- Audible Alerts: Yes – notifies users of calibration issues and error conditions
Telemetry and Data Logging
- Telemetry Ready: Yes – compatible with Castle telemetry devices and supported transmitters
- Data Logging: Enabled by default – records performance metrics for post-run analysis
Vehicle Compatibility
- Supported Platforms: 1/10 scale 2WD touring cars, lightweight buggies, and short course setups
- Extended Compatibility: Select 1/8 scale race buggies (as per manufacturer guidance)
What’s in the Box
- 1 × Castle Mamba X ESC with Sensor Harness
- 1 × Castle 1406-6900kV sensored brushless motor
- 1 × Coupon for Castle Link USB adapter
- 1 × Mamba Decal Sheet
- 1 × Driver’s Ed and Quick Start Guide
- 1 × Gearing Chart for Castle Motors
What You Require / What You Will Need
- Castle Link USB or Bluetooth adapter for programming (sold separately)
- Castle telemetry device for real-time monitoring (sold separately)
Sold Separately
- Castle Link USB adapter
- Castle B-Link Bluetooth adapter
- Castle telemetry device
