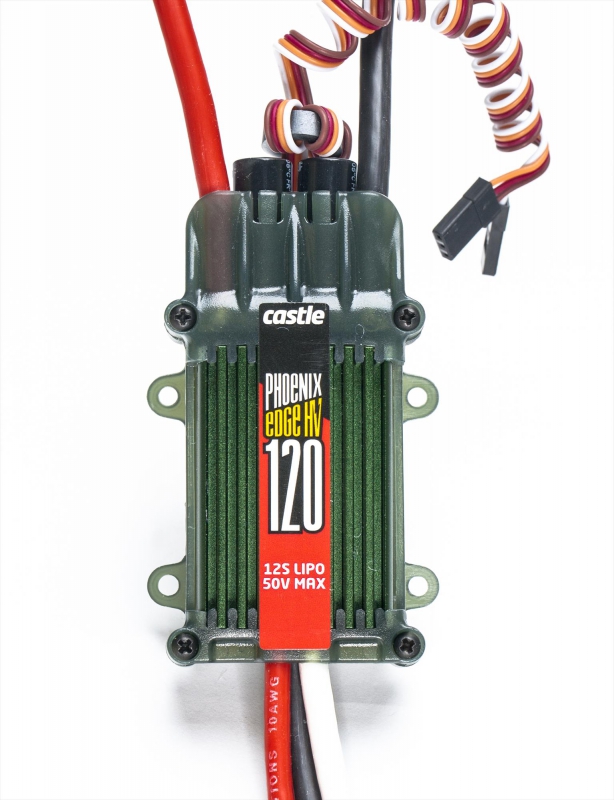

The Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support is engineered for serious pilots operating high-performance aircraft in demanding environments. Designed to support 550–700 class helicopters and giant scale fixed-wing aircraft, this high-voltage ESC delivers sustained current and precision control across a wide range of flight profiles. With a maximum input voltage of 50.4V and no internal BEC, the Castle P-CC10400 ensures clean power separation for sensitive electronics while offering advanced programmability and real-time telemetry feedback. Whether you're pushing the limits of aerobatic maneuvers or managing rotor speed in large helis, this ESC provides the reliability and configurability required for confident flight.
Key features of the Castle P-CC10400 Phoenix Edge 120HV
- High-voltage support – handles up to 12S LiPo input for extreme power setups
- Advanced telemetry – enables real-time monitoring of system health and performance
- AUX wire versatility – supports RPM output, governor gain input, and arming lockout
- Data logging capability – records flight metrics for post-flight diagnostics and tuning
- USB and Bluetooth programmability – allows full access to firmware updates and configuration options
- Compact and lightweight – optimized for installation in mid-to-large scale aircraft
What makes the Castle P-CC10400 ideal for high-voltage aircraft?
The Castle P-CC10400 high-voltage ESC for 550–700 class helis and giant scale fixed-wing aircraft is built to handle the power demands of advanced flight systems. With a continuous current rating of 120 amps and support for up to 12S LiPo batteries, this ESC delivers consistent performance under full throttle conditions. The absence of an internal BEC ensures that receiver and servo systems remain isolated from motor power, reducing electrical noise and improving reliability. Measuring 83.6mm in length and weighing just 148.8g with wires, the Castle P-CC10400 fits comfortably into fuselage compartments while maintaining efficient airflow for cooling.
How does telemetry enhance flight safety and control?
Telemetry is a critical feature for pilots operating high-performance aircraft, and the Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility delivers robust support for real-time data feedback. When paired with Castle Telemetry Link modules for S.BUS2 or X-BUS systems, users can monitor ESC temperature, input voltage, and receiver battery status during flight. This data helps prevent unexpected shutdowns and allows pilots to respond to system alerts before they escalate into failures. The telemetry system also supports audible alarms and LED indicators, providing immediate visual and acoustic feedback on power system conditions.
Why is the AUX wire functionality so valuable?
The Phoenix Edge 120HV ESC with RPM output, governor gain input, and arming lockout key includes a white AUX wire that unlocks multiple advanced control options. Pilots can use this wire to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. Additionally, the AUX wire can be configured as an arming lockout, preventing the ESC from activating until a designated receiver channel exceeds 50% signal. This feature adds an extra layer of safety during setup and transport, ensuring that the motor remains inactive until the pilot is ready to fly.
How does data logging improve post-flight analysis?
Data logging is a powerful tool for pilots who want to optimize their aircraft’s performance. The Castle P-CC10400 programmable ESC with data logging, AUX wire, and Castle Link USB access records key flight metrics such as RPM, voltage, and current draw. These logs can be reviewed using Castle Link software, allowing users to identify inefficiencies, diagnose faults, and fine-tune throttle curves or governor settings. The ability to store and analyze flight data is especially valuable for competitive pilots and engineers who require precise control over every aspect of their aircraft’s behavior.
What programming options are available for the Castle P-CC10400?
Configuration flexibility is a hallmark of the Castle programmable ESC with 50.4V max voltage, no BEC, and Castle Link USB access. Users can program the ESC using the Castle Link USB adapter (included via coupon) and the Castle Link Windows software. For mobile access, the ESC is compatible with the Castle Link iOS App and B-Link Bluetooth Adapter. These tools allow pilots to adjust throttle response, AUX wire behavior, and telemetry parameters. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. Manual programming via transmitter stick is also supported for basic adjustments.
Is the Castle P-CC10400 suitable for aerobatic and rotorcraft platforms?
Absolutely. The Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support is optimized for both aerobatic fixed-wing aircraft and rotorcraft in the 550–700 class range. Its compact form factor and lightweight design make it easy to install in tight fuselage compartments, while its high-voltage capacity ensures consistent power delivery during aggressive maneuvers. The combination of telemetry, data logging, and AUX wire control gives pilots the tools they need to manage complex flight profiles with precision and confidence.
For pilots seeking a high-voltage, telemetry-capable ESC with advanced programmability and safety features, the Castle P-CC10400 Phoenix Edge 120HV ESC for 550–700 class helis and 12S fixed-wing aircraft is a proven solution. Buy Castle P-CC10400 Phoenix Edge 120HV ESC for 550–700 class helis and 12S fixed-wing aircraft.
Product Description of Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support
The Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support is engineered for serious pilots operating high-performance aircraft in demanding environments. Designed to support 550–700 class helicopters and giant scale fixed-wing aircraft, this high-voltage ESC delivers sustained current and precision control across a wide range of flight profiles. With a maximum input voltage of 50.4V and no internal BEC, the Castle P-CC10400 ensures clean power separation for sensitive electronics while offering advanced programmability and real-time telemetry feedback. Whether you're pushing the limits of aerobatic maneuvers or managing rotor speed in large helis, this ESC provides the reliability and configurability required for confident flight.
Key features of the Castle P-CC10400 Phoenix Edge 120HV
- High-voltage support – handles up to 12S LiPo input for extreme power setups
- Advanced telemetry – enables real-time monitoring of system health and performance
- AUX wire versatility – supports RPM output, governor gain input, and arming lockout
- Data logging capability – records flight metrics for post-flight diagnostics and tuning
- USB and Bluetooth programmability – allows full access to firmware updates and configuration options
- Compact and lightweight – optimized for installation in mid-to-large scale aircraft
What makes the Castle P-CC10400 ideal for high-voltage aircraft?
The Castle P-CC10400 high-voltage ESC for 550–700 class helis and giant scale fixed-wing aircraft is built to handle the power demands of advanced flight systems. With a continuous current rating of 120 amps and support for up to 12S LiPo batteries, this ESC delivers consistent performance under full throttle conditions. The absence of an internal BEC ensures that receiver and servo systems remain isolated from motor power, reducing electrical noise and improving reliability. Measuring 83.6mm in length and weighing just 148.8g with wires, the Castle P-CC10400 fits comfortably into fuselage compartments while maintaining efficient airflow for cooling.
How does telemetry enhance flight safety and control?
Telemetry is a critical feature for pilots operating high-performance aircraft, and the Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility delivers robust support for real-time data feedback. When paired with Castle Telemetry Link modules for S.BUS2 or X-BUS systems, users can monitor ESC temperature, input voltage, and receiver battery status during flight. This data helps prevent unexpected shutdowns and allows pilots to respond to system alerts before they escalate into failures. The telemetry system also supports audible alarms and LED indicators, providing immediate visual and acoustic feedback on power system conditions.
Why is the AUX wire functionality so valuable?
The Phoenix Edge 120HV ESC with RPM output, governor gain input, and arming lockout key includes a white AUX wire that unlocks multiple advanced control options. Pilots can use this wire to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. Additionally, the AUX wire can be configured as an arming lockout, preventing the ESC from activating until a designated receiver channel exceeds 50% signal. This feature adds an extra layer of safety during setup and transport, ensuring that the motor remains inactive until the pilot is ready to fly.
How does data logging improve post-flight analysis?
Data logging is a powerful tool for pilots who want to optimize their aircraft’s performance. The Castle P-CC10400 programmable ESC with data logging, AUX wire, and Castle Link USB access records key flight metrics such as RPM, voltage, and current draw. These logs can be reviewed using Castle Link software, allowing users to identify inefficiencies, diagnose faults, and fine-tune throttle curves or governor settings. The ability to store and analyze flight data is especially valuable for competitive pilots and engineers who require precise control over every aspect of their aircraft’s behavior.
What programming options are available for the Castle P-CC10400?
Configuration flexibility is a hallmark of the Castle programmable ESC with 50.4V max voltage, no BEC, and Castle Link USB access. Users can program the ESC using the Castle Link USB adapter (included via coupon) and the Castle Link Windows software. For mobile access, the ESC is compatible with the Castle Link iOS App and B-Link Bluetooth Adapter. These tools allow pilots to adjust throttle response, AUX wire behavior, and telemetry parameters. Firmware updates are available at no charge, and users can save multiple setup profiles for different aircraft. Manual programming via transmitter stick is also supported for basic adjustments.
Is the Castle P-CC10400 suitable for aerobatic and rotorcraft platforms?
Absolutely. The Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support is optimized for both aerobatic fixed-wing aircraft and rotorcraft in the 550–700 class range. Its compact form factor and lightweight design make it easy to install in tight fuselage compartments, while its high-voltage capacity ensures consistent power delivery during aggressive maneuvers. The combination of telemetry, data logging, and AUX wire control gives pilots the tools they need to manage complex flight profiles with precision and confidence.
For pilots seeking a high-voltage, telemetry-capable ESC with advanced programmability and safety features, the Castle P-CC10400 Phoenix Edge 120HV ESC for 550–700 class helis and 12S fixed-wing aircraft is a proven solution. Buy Castle P-CC10400 Phoenix Edge 120HV ESC for 550–700 class helis and 12S fixed-wing aircraft.
Technical Specifications of Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support
Brand, Model and Product Type
- Brand: Castle
- Model: P-CC10400
- Product Type: Castle P-CC10400 Phoenix Edge 120HV ESC with 120A continuous rating, 12S max input, and telemetry support, Castle P-CC10400 high-voltage ESC for 550–700 class helis and giant scale fixed-wing aircraft, Castle P-CC10400 programmable ESC with data logging, AUX wire, and Castle Link USB access, Castle P-CC10400 with 50.4V max voltage, 148g weight with wires, and 83.6mm length, Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility
Dimensions
- Length: 8.36 cm – compact enough for fuselage installations in 550–700 class helis and fixed-wing aircraft
- Width: 5.08 cm – standard footprint for high-voltage ESCs
- Depth: 2.32 cm – slim profile supports efficient airflow and cooling
- Weight (with wires): 148.8 g – lightweight for mid-to-large scale aircraft
- Weight (without wires): 69.4 g – ideal for installations requiring reduced onboard mass
Electrical and Performance Specifications
- Input Voltage Range: 3S–12S LiPo – supports high-voltage setups up to 50.4V
- Max Continuous Amperage: 120A – delivers sustained current for demanding flight profiles
- Max Voltage: 50.4V – optimized for 12S configurations in giant scale aircraft
- Internal BEC: None – requires external BEC or receiver power source for servo systems
- Receiver Voltage Input Range: 4.8V–9V – compatible with standard receiver systems
Telemetry and Monitoring
- Telemetry Capable: Yes – supports real-time monitoring of ESC temperature, voltage, and receiver battery status
- Compatible Systems: Castle Telemetry Link for S.BUS2 and X-BUS – enables integration with Futaba and Spektrum radios
- Power System Alerts: Audible tones and flashing LED patterns indicate over-temperature, excessive load, and locked head speed
Control and AUX Features
- AUX Wire: Yes – supports RPM output, helicopter governor gain input, and audible beacon functionality
- Arming Lockout: Enabled via AUX wire – prevents motor activation until receiver signal exceeds 50%
- Arm Lock Key: Included – physical key disables ESC arming for added safety during setup
Programming and Software
- Programmability: Fully programmable using Castle Link USB adapter and Castle Link Windows software
- Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter
- Firmware Updates: Free access to all future firmware enhancements via Castle Link
- Manual Programming: Basic settings accessible via transmitter stick input
- Setup Profiles: Ability to save and load multiple configurations for different aircraft
Data Logging
- Logging Capability: Yes – records RPM, voltage, current draw, and system alerts during flight
- Analysis Tools: Compatible with Castle Link software for post-flight diagnostics and performance tuning
Application Guidelines
- Aircraft Compatibility: Designed for 550, 600, and 700 class helicopters and giant scale fixed-wing aircraft
- Installation Notes: Ensure adequate airflow and verify current draw at full throttle before flight
What’s in the Box
- 1 × Castle Phoenix Edge 120HV ESC
- 1 × Coupon for Castle Link USB Adapter
- 1 × Coupon for Arming Lockout Key and Harness
What You Require / What You Will Need
- Battery connectors – sold separately, must support high-current draw
- Motor connectors – sold separately, compatible with bullet-style terminals
- Castle Link USB Adapter – redeemable via included coupon
- Windows PC – required for Castle Link software and firmware updates
Sold Separately
- Castle Telemetry Link for S.BUS2 – required for telemetry integration with Futaba radios
- Castle Telemetry Link for X-BUS – required for telemetry integration with Spektrum radios
- B-Link Bluetooth Adapter – optional for mobile programming via iOS
