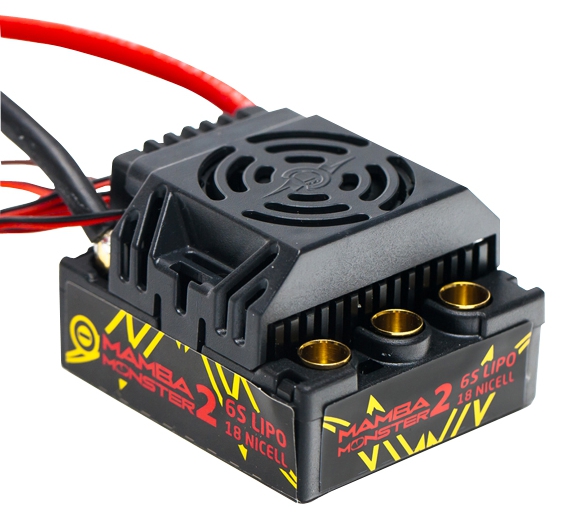

Product Description of Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC cars, 6S max input, waterproof design

The Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC cars, 6S max input, waterproof design is engineered for brute power and relentless durability across extreme terrain and weather conditions. Designed for buggies, truggies, and monster trucks weighing under 15 lbs, this sensorless ESC delivers high-voltage performance with full programmability and rugged construction. With a 25.2V max input, adjustable 5A peak BEC, and removable 30mm cooling fan, the Castle P-CC10800 offers precise control and thermal stability for high-speed off-road and on-road applications. Whether you're tearing through snow, mud, or dry track, this ESC is built to dominate.

Key features of the Castle P-CC10800 Mamba Monster 2 ESC

• Waterproof housing – enables operation in wet, snowy, and muddy environments
• Adjustable BEC – user-selectable output from 5.0V to 7.0V in 0.1V increments (5A peak)
• Removable 30mm fan – factory-equipped for cooling, detachable for wet conditions
• Sensorless motor support – compatible with brushless and brushed motors
• Castle Link USB and Bluetooth programming – full access to firmware updates and tuning
• LED error codes – visual alerts for over-temperature and signal faults
• Solder posts and 6.5mm motor bullets – customizable wiring and secure connections

Why is the Castle P-CC10800 ideal for 1/8 scale RC vehicles?

The Castle P-CC10800 programmable ESC for buggies, truggies, and monster trucks under 15 lbs is built to handle the voltage and current demands of large-scale RC platforms. With support for 2S to 6S LiPo batteries and a 25.2V max input, this ESC delivers sustained power for aggressive driving styles. Its waterproof design allows users to run through wet grass, snow, and puddles without compromising performance. The ESC’s compact dimensions—56mm length, 47mm width, and 34mm height—fit easily into most 1/8 scale chassis, while its 111g weight ensures balance and stability during high-speed runs.

How does the adjustable BEC improve system compatibility?

The Mamba Monster 2 ESC with LED error codes, solder posts, and 5.0–7.0V adjustable BEC features a built-in BEC that can be set between 5.0V and 7.0V in 0.1V increments, with a peak output of 5A. This flexibility allows users to match voltage requirements for different servos and receivers, improving system compatibility and reducing the need for external regulators. The default setting of 5.5V offers a balanced starting point for most setups, while the ability to fine-tune output ensures optimal performance across a wide range of components.

What makes this ESC suitable for wet and rugged conditions?

The Castle ESC for 2S–6S LiPo vehicles with waterproof housing and removable cooling fan is designed to withstand harsh environments. Its waterproof enclosure protects internal electronics from moisture and debris, making it suitable for snow, mud, and wet grass. While the ESC itself is waterproof, users should remove the cooling fan before driving in wet conditions, as the fan is not waterproof. The ESC also features LED error codes that flash to indicate system faults such as overheating or signal loss, helping users diagnose issues quickly and safely.

How does Castle Link enhance programmability?

The Castle P-CC10800 sensorless ESC with 5A peak BEC, 30mm fan, and Castle Link compatibility supports full programmability via Castle Link USB adapter (sold separately) and Castle Link Windows software. Users can also access settings through the Castle Link iOS App using the B-Link Bluetooth Adapter. These tools allow for precise tuning of throttle response, brake strength, voltage cutoffs, and more. Firmware updates are available at no charge, and users can save multiple profiles for different vehicles or driving conditions. Transmitter-based programming is also supported for nine common settings.

Is this ESC compatible with sensored motors?

The Castle programmable ESC with 25.2V max input, sensorless motor support, and 30mm fan is optimized for sensorless brushless and brushed motors. While it will operate with sensored motors, it does so in sensorless mode. For users requiring true sensored operation, Castle recommends the Monster X or Cobra 8 ESCs. The Mamba Monster 2 is ideal for users who prioritize waterproofing, brute power, and simplified wiring in rugged environments.

What kind of motors and vehicles are recommended?

The Castle P-CC10800 is recommended for use with Castle’s 1512 2650Kv V2 motor (up to 4S) and 1515 2200Kv V2 motor (up to 6S). The ESC is intended for vehicles weighing less than 15 lbs ready-to-run with the 2200Kv motor, and no more than 9 lbs with the 2650Kv motor. It is not recommended for high-speed 1/8 scale applications such as the Arrma Infraction or Traxxas XO-1. For best results, users should pair the ESC with high-quality LiPo batteries rated at 30C or higher and avoid extreme gear ratios when using NiMH cells.

For drivers seeking a waterproof, programmable ESC with high-voltage support and rugged reliability, the Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC buggies and monster trucks is a proven choice. Buy Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC buggies and monster trucks.

Technical Specifications of  Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC cars, 6S max input, waterproof design

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC10800
• Product Type: Castle P-CC10800 Mamba Monster 2 ESC for 1/8 scale RC cars, 6S max input, waterproof design, Castle P-CC10800 sensorless ESC with 5A peak BEC, 30mm fan, and Castle Link compatibility, Castle P-CC10800 programmable ESC for buggies, truggies, and monster trucks under 15 lbs, Castle P-CC10800 with 25.2V max voltage, 111g weight, and 6.5mm motor bullets, Castle ESC for 2S–6S LiPo vehicles with waterproof housing and removable cooling fan

Dimensions

• Length: 5.6 cm – compact enough for most 1/8 scale RC chassis
• Width: 4.7 cm – fits securely within standard mounting areas
• Height: 3.4 cm – accommodates internal components and cooling fan
• Weight: 111.5 g – lightweight for balanced vehicle performance

Electrical and Performance Specifications

• Input Voltage Range: 2S–6S LiPo – supports up to 25.2V for high-output setups
• Max Voltage: 25.2V – optimized for 6S LiPo configurations
• BEC Output: Adjustable from 5.0V to 7.0V in 0.1V increments – default 5.5V
• BEC Peak Current: 5A – supports high-torque servos and receiver systems
• On/Off Switch: Yes – integrated for convenient power control
• Brake: Proportional – allows smooth deceleration and control
• Reversible: Yes – can be disabled for racing applications

Motor Compatibility

• Supported Motors: Sensorless brushless and brushed motors
• Sensored Operation: Not supported – operates sensorless even with sensored motors
• Motor Connectors: 6.5mm female bullets – secure and high-current capable

Cooling and Environmental Protection

• Cooling Fan: 30mm factory-equipped – fully removable for wet conditions
• Waterproof Design: Yes – suitable for use in wet, snowy, and muddy environments
• Fan Waterproofing: No – must be removed before wet operation

Programming and Software

• Programmability: Fully programmable via Castle Link USB adapter (sold separately)
• Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter (sold separately)
• Transmitter Programming: Supports nine common adjustable settings
• Firmware Updates: Free access via Castle Link software

System Alerts and Diagnostics

• LED Error Codes: Yes – visual alerts for over-temperature and signal faults
• Telemetry Capable: No – telemetry integration not supported
• Data Logging: No – flight data recording not available

Application Guidelines

• Vehicle Compatibility: Designed for 1/8 scale buggies, truggies, and monster trucks
• Max Vehicle Weight: Less than 15 lbs ready-to-run with 2200Kv motor; 9 lbs max with 2650Kv motor
• Recommended Motors: Castle 1512 2650Kv V2 (up to 4S), Castle 1515 2200Kv V2 (up to 6S)
• Battery Recommendations: 5000mAh or larger LiPo cells with 30C continuous rating

What’s in the Box

• 1 × Castle Mamba Monster 2 ESC
• 1 × Driver’s Ed and Quick Start Guides
• 1 × Castle decal sheet

What You Require / What You Will Need

• Battery connector – required; 6.5mm Castle Connectors recommended
• Castle Link USB adapter – sold separately for programming and updates
• B-Link Bluetooth Adapter – optional for mobile programming

Sold Separately

• Castle Link USB Adapter – required for full programming access
• B-Link Bluetooth Adapter – enables wireless configuration via iOS
