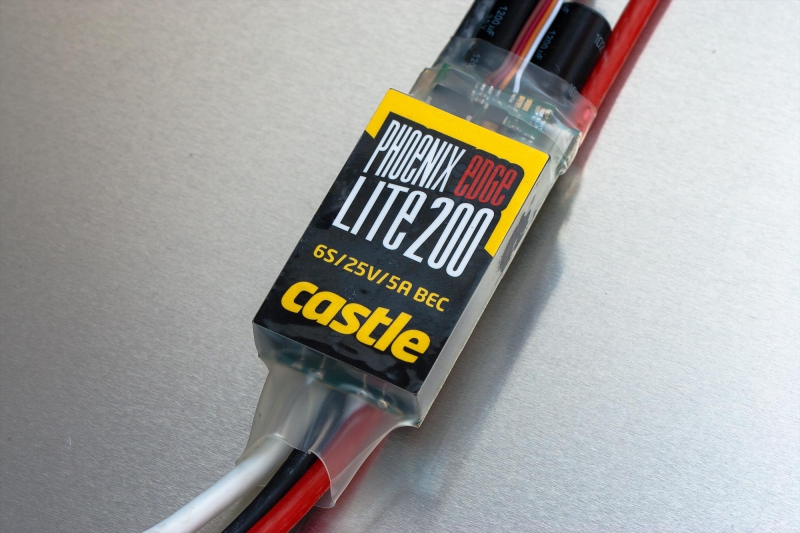

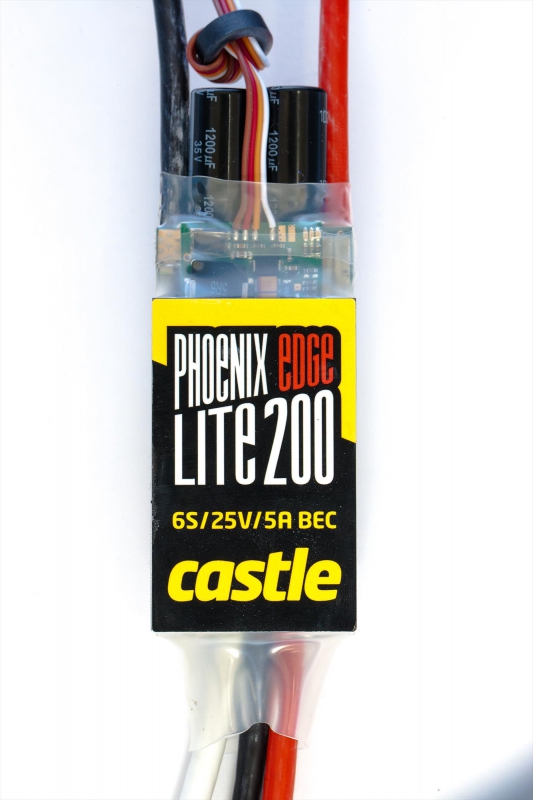

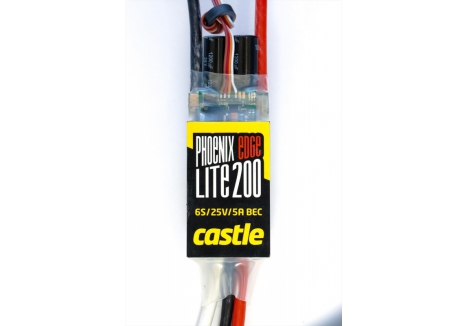

Product Description of Castle P-CC10900 Phoenix Edge Lite 200 ESC with 200A continuous rating, 8S max input, and 5A BEC

The Castle P-CC10900 Phoenix Edge Lite 200 ESC with 200A continuous rating, 8S max input, and 5A BEC is a high-performance, lightweight electronic speed controller engineered for demanding helicopter and fixed-wing aircraft applications. Designed to deliver uncompromising power and precision, this ESC combines reduced weight with full telemetry support, advanced programmability, and robust safety features. With a maximum input voltage of 33.6V and a peak BEC output of 5 amps, the Castle P-CC10900 offers exceptional control and reliability for pilots who require both agility and endurance in flight.

Key features of the Castle P-CC10900 Phoenix Edge Lite 200 ESC

• Reduced weight – optimized for aircraft requiring high power-to-weight efficiency
• 200A continuous current – supports aggressive throttle profiles and sustained output
• Integrated BEC – user-selectable voltage from 5V to 8.4V with 5A peak output
• Telemetry compatibility – enables real-time monitoring of system health and performance
• AUX wire functionality – supports RPM output, governor gain input, and arming lockout
• Castle Link USB and Bluetooth programming – full access to firmware updates and tuning
• Data logging capability – records flight metrics for post-flight diagnostics and optimization

Why is the Castle P-CC10900 ideal for high-performance aircraft?

The Castle P-CC10900 lightweight ESC for helicopters and fixed-wing aircraft with telemetry and AUX wire is designed for pilots who demand maximum output without excess mass. Weighing just 187g with wires and measuring 106.7mm in length, this ESC fits seamlessly into high-performance airframes where space and weight are critical. Its 200A continuous rating ensures stable power delivery even under full throttle, while the internal BEC eliminates the need for external regulators, simplifying installation and reducing onboard clutter.

How does the integrated BEC enhance system compatibility?

The Castle ESC for 2S–8S LiPo setups with full telemetry compatibility and internal BEC features a built-in BEC that can be configured between 5V and 8.4V, supporting a wide range of servos and receiver systems. With a peak output of 5 amps, the BEC provides reliable power for high-torque digital servos and telemetry-enabled receivers. This flexibility allows users to tailor voltage output to match their specific hardware requirements, improving system stability and responsiveness during flight.

What telemetry capabilities does the Castle P-CC10900 offer?

Telemetry is a vital tool for monitoring system health in real time, and the Castle P-CC10900 supports full integration with Castle Telemetry Link modules for S.BUS2 and X-BUS systems. Pilots can track ESC temperature, input voltage, and receiver battery status during flight, receiving alerts for over-temperature, excessive load, or locked head speed conditions. These features help prevent unexpected failures and allow users to make informed decisions mid-flight, enhancing safety and control.

How does the AUX wire improve flight control?

The Phoenix Edge Lite 200 ESC with RPM output, governor gain input, and arming lockout key includes a white AUX wire that unlocks multiple advanced functions. Pilots can use it to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or activate an audible beacon after an unexpected landing. The AUX wire also supports ESC arming lockout, preventing motor activation until a designated receiver channel exceeds 50% signal. These features add layers of control and safety, especially during setup and transport.

What programming options are available?

The Castle P-CC10900 programmable ESC with data logging, Castle Link USB access, and reduced weight is fully configurable using Castle Link software via USB adapter (included via coupon) or the Castle Link iOS App with a B-Link Bluetooth Adapter. Users can adjust throttle curves, voltage cutoffs, and AUX wire behavior, and access firmware updates at no charge. Data logging captures flight metrics such as RPM, voltage, and current draw, enabling post-flight analysis and performance tuning. Manual programming via transmitter stick is also supported for basic adjustments.

Is the Castle P-CC10900 suitable for aggressive flight profiles?

Absolutely. The Castle programmable ESC with reduced weight, 200A continuous rating, and Castle Link USB access is built for high-output applications where precision and endurance are essential. Its lightweight design and high current capacity make it ideal for aerobatic maneuvers, sustained climbs, and demanding flight conditions. Combined with telemetry, data logging, and programmable safety features, this ESC delivers the control and reliability needed for advanced aircraft operations.

For pilots seeking a lightweight, telemetry-capable ESC with high current output and advanced programmability, the Castle P-CC10900 Phoenix Edge Lite 200 ESC for high-performance helis and fixed-wing aircraft is a proven solution. Buy Castle P-CC10900 Phoenix Edge Lite 200 ESC for high-performance helis and fixed-wing aircraft.

Technical Specifications of Castle P-CC10900 Phoenix Edge Lite 200 ESC with 200A continuous rating, 8S max input, and 5A BEC

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC10900
• Product Type: Castle P-CC10900 Phoenix Edge Lite 200 ESC with 200A continuous rating, 8S max input, and 5A BEC, Castle P-CC10900 lightweight ESC for helicopters and fixed-wing aircraft with telemetry and AUX wire, Castle P-CC10900 programmable ESC with data logging, Castle Link USB access, and reduced weight, Castle P-CC10900 with 33.6V max voltage, 187g weight with wires, and 106.7mm length, Castle ESC for 2S–8S LiPo setups with full telemetry compatibility and internal BEC

Dimensions

• Length: 10.67 cm – suitable for large fuselage installations in high-performance aircraft
• Width: 3.76 cm – compact enough for streamlined mounting
• Depth: 2.54 cm – slim profile supports efficient airflow and thermal management
• Weight (with wires): 187 g – lightweight for reduced onboard mass and improved flight efficiency
• Weight (without wires): 89 g – ideal for weight-sensitive builds

Electrical and Performance Specifications

• Input Voltage Range: 2S–8S LiPo – supports setups up to 33.6V max input
• Max Continuous Amperage: 200A – delivers sustained current for demanding flight profiles
• Max Voltage: 33.6V – optimized for 8S configurations in high-output aircraft
• Internal BEC: Yes – integrated for simplified power distribution
• BEC Voltage: Selectable from 5V to 8.4V – supports a wide range of receiver and servo systems
• BEC Output: 5A peak – sufficient for high-torque digital servos and telemetry receivers

Telemetry and Monitoring

• Telemetry Capable: Yes – supports real-time monitoring of ESC temperature, voltage, and receiver battery status
• Compatible Systems: Castle Telemetry Link for S.BUS2 and X-BUS – enables integration with Futaba and Spektrum radios
• Power System Alerts: Audible tones and flashing LED patterns indicate over-temperature, excessive load, and locked head speed

Control and AUX Features

• AUX Wire: Yes – supports RPM output, helicopter governor gain input, and audible beacon functionality
• Arming Lockout: Enabled via AUX wire – prevents motor activation until receiver signal exceeds 50%
• Arm Lock Key: Included – physical key disables ESC arming for added safety during setup

Programming and Software

• Programmability: Fully programmable using Castle Link USB adapter and Castle Link Windows software
• Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter
• Firmware Updates: Free access to all future firmware enhancements via Castle Link
• Manual Programming: Basic settings accessible via transmitter stick input
• Setup Profiles: Ability to save and load multiple configurations for different aircraft

Data Logging

• Logging Capability: Yes – records RPM, voltage, current draw, and system alerts during flight
• Analysis Tools: Compatible with Castle Link software for post-flight diagnostics and performance tuning

Application Guidelines

• Aircraft Compatibility: Designed for helicopters and fixed-wing aircraft
• Installation Notes: Ensure adequate airflow and verify current draw at full throttle before flight

What’s in the Box

• 1 × Castle Phoenix Edge Lite 200 ESC
• 1 × Coupon for Castle Link USB Adapter
• 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

• Battery connectors – sold separately
• Motor connectors – sold separately
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC – required for Castle Link software and firmware updates

Sold Separately

• Castle Telemetry Link for S.BUS2 – required for telemetry integration with Futaba radios
• Castle Telemetry Link for X-BUS – required for telemetry integration with Spektrum radios
• B-Link Bluetooth Adapter – optional for mobile programming via iOS
