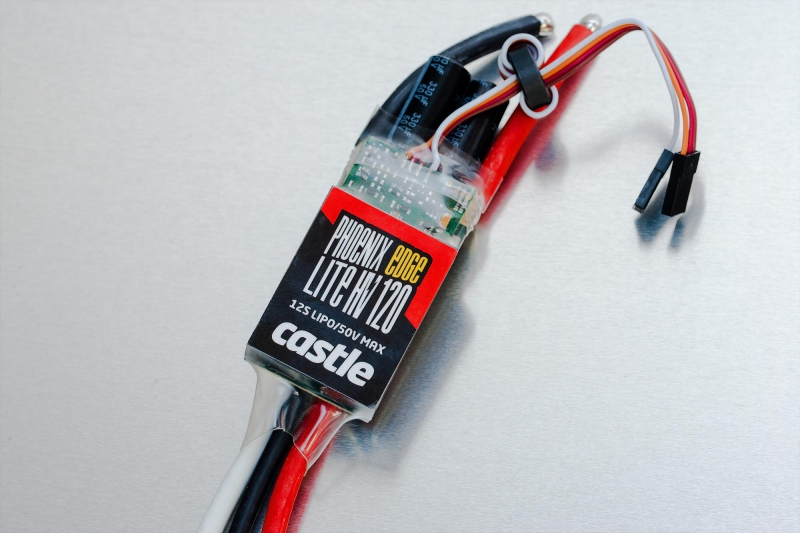

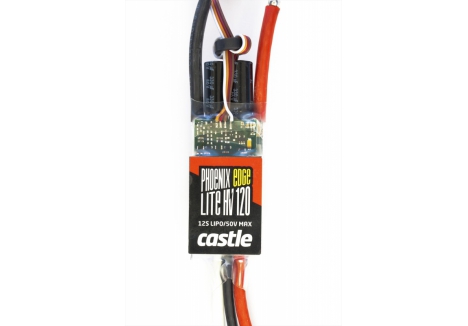

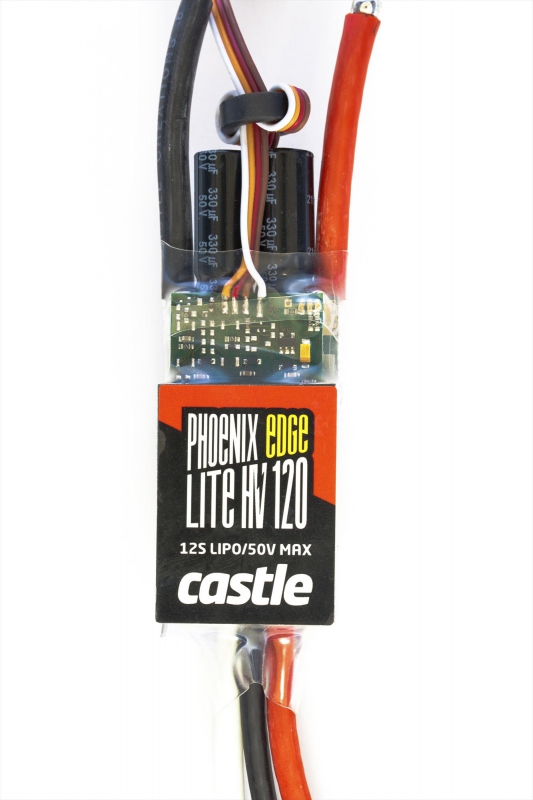

Product Description of Castle P-CC11900 Phoenix Edge Lite 120HV ESC with 120A continuous rating, 12S max input, and telemetry support

The Castle P-CC11900 Phoenix Edge Lite 120HV ESC with 120A continuous rating, 12S max input, and telemetry support is a high-performance electronic speed controller designed for advanced helicopter and fixed-wing aircraft applications. Built for 3S–12S LiPo power systems, the Phoenix Edge Lite 120HV delivers robust current handling, intelligent system monitoring, and flexible configuration options—all in a compact, reduced-weight form factor. With no internal BEC and a full suite of programmable features, this ESC is engineered for pilots who demand precision, reliability, and control in high-voltage environments.

Key features of the Castle P-CC11900 Phoenix Edge Lite 120HV ESC

• High-current output – supports sustained 120A operation for aggressive throttle demands
• Compact and lightweight – optimized for installations with limited space and weight constraints
• Telemetry integration – enables real-time monitoring of voltage, temperature, and receiver battery status
• AUX wire functionality – supports RPM output, governor gain input, and arming lockout safety
• Data logging capability – records flight metrics for post-flight analysis and performance tuning
• USB and mobile programmability – full access to configuration settings and firmware updates

What makes the Castle P-CC11900 suitable for high-performance aircraft?

The Castle P-CC11900 with 50.4V max voltage, 116g weight with wires, and 76.2mm length is engineered to meet the demands of high-output flight systems. Its 120A continuous current rating ensures consistent power delivery during extended climbs, rapid throttle transitions, and sustained high-load conditions. The compact dimensions and reduced weight make it ideal for installations where space is limited and every gram counts. Whether used in precision helis or 12S fixed-wing aircraft, the Phoenix Edge Lite 120HV supports responsive control and efficient power management without compromising structural integrity or flight dynamics.

How does telemetry improve flight safety and system awareness?

Telemetry transforms the Castle P-CC11900 Phoenix Edge Lite 120HV ESC into a real-time diagnostic tool. By integrating with Castle Telemetry Link modules for S.BUS2 and X-BUS systems, pilots gain access to live data on ESC temperature, input voltage, and receiver battery status. Audible alerts and LED flash patterns provide immediate feedback on system anomalies such as over-temperature, excessive load, or locked head speed. These alerts help prevent mid-flight failures and allow pilots to make informed decisions based on actual system conditions, enhancing both safety and performance.

What functions does the AUX wire unlock?

The white AUX wire included with the Phoenix Edge Lite 120HV ESC with RPM output, governor gain input, and arming lockout key adds a layer of programmable control. It can be configured to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or act as an audible beacon after an unexpected landing. Additionally, the AUX wire supports arming lockout functionality, preventing motor activation until a designated receiver channel exceeds 50% signal. This feature is especially valuable during setup, transport, or maintenance, where accidental motor engagement poses a safety risk.

How does data logging support performance optimization?

The Castle P-CC11900 programmable ESC with Castle Link USB access and reduced weight includes onboard data logging that captures key flight metrics such as RPM, voltage, current draw, and system alerts. These logs can be reviewed using Castle Link software to identify inefficiencies, diagnose faults, and refine throttle curves or governor settings. For pilots focused on continuous improvement, data logging provides actionable insights that support iterative tuning and precision calibration across flight cycles. This capability is especially useful in competitive or experimental builds where performance margins are critical.

How can users configure the Castle P-CC11900?

Programming the Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility is straightforward and flexible. Users can access the full configuration suite via the Castle Link USB adapter (included via coupon) and Castle Link Windows software. Mobile programming is supported through the Castle Link iOS App and B-Link Bluetooth Adapter. Settings such as throttle response, voltage cutoffs, and AUX behavior can be adjusted to match specific aircraft requirements. Manual programming via transmitter stick is also available for basic field adjustments. Firmware updates are provided free of charge, ensuring long-term compatibility and feature expansion.

Why is the Phoenix Edge Lite 120HV ESC built without an internal BEC?

Excluding an internal BEC allows the Castle P-CC11900 Phoenix Edge Lite 120HV ESC to support external voltage regulation systems tailored to specific receiver and servo configurations. This design reduces onboard complexity and enables the use of high-voltage components that operate outside standard BEC ranges. For advanced aircraft builds, external regulation offers cleaner power distribution and greater flexibility in component selection. The absence of a BEC also contributes to the ESC’s reduced weight and compact form factor, aligning with the needs of performance-focused installations.

Is the Castle P-CC11900 the best choice for demanding flight environments?

In contexts where sustained output, responsive control, and intelligent system monitoring are essential, the Castle P-CC11900 Phoenix Edge Lite 120HV ESC stands out as a reliable and configurable solution. Its high-current rating, telemetry integration, and programmable safety features make it suitable for aggressive flight profiles and precision maneuvers. The compact design supports installations with strict space and weight constraints, while the data logging and AUX functionality provide tools for both safety and performance optimization. For pilots seeking a robust ESC that adapts to evolving flight demands, the Phoenix Edge Lite 120HV offers a compelling balance of power and control.

Buy Castle P-CC11900 Phoenix Edge Lite 120HV ESC for high-performance helis and 12S fixed-wing aircraft.

Technical Specifications of Castle P-CC11900 Phoenix Edge Lite 120HV ESC with 120A continuous rating, 12S max input, and telemetry support

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC11900
• Product Type: Castle P-CC11900 Phoenix Edge Lite 120HV ESC with 120A continuous rating, 12S max input, and telemetry support, Castle P-CC11900 lightweight HV ESC for helicopters and fixed-wing aircraft with AUX wire and data logging, Castle P-CC11900 programmable ESC with Castle Link USB access and reduced weight

Dimensions

• Length: 7.62 cm – suitable for high-voltage aircraft requiring robust power delivery
• Width: 3.05 cm – compact enough for streamlined installations
• Depth: 2.14 cm – optimized for efficient airflow and thermal management
• Weight (with wires): 116 g – lightweight for reduced onboard mass in HV setups
• Weight (without wires): 52 g – ideal for weight-sensitive configurations

Electrical and Performance Specifications

• Input Voltage Range: 3S–12S LiPo – supports setups up to 50.4V max input
• Max Continuous Amperage: 120A – delivers sustained current for demanding flight profiles
• Max Voltage: 50.4V – optimized for 12S configurations in high-output aircraft
• Internal BEC: No – designed for external regulation systems
• BEC Voltage: N/A
• BEC Output: N/A

Telemetry and Monitoring

• Telemetry Capable: Yes – supports real-time monitoring of ESC temperature, voltage, and receiver battery status
• Compatible Systems: Castle Telemetry Link for S.BUS2 and X-BUS – enables integration with Futaba and Spektrum radios
• Power System Alerts: Audible tones and flashing LED patterns indicate over-temperature, excessive load, and locked head speed

Control and AUX Features

• AUX Wire: Yes – supports RPM output, helicopter governor gain input, and audible beacon functionality
• Arming Lockout: Enabled via AUX wire – prevents motor activation until receiver signal exceeds 50%
• Arm Lock Key: Included – physical key disables ESC arming for added safety during setup

Programming and Software

• Programmability: Fully programmable using Castle Link USB adapter and Castle Link Windows software
• Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter
• Firmware Updates: Free access to all future firmware enhancements via Castle Link
• Manual Programming: Basic settings accessible via transmitter stick input
• Setup Profiles: Ability to save and load multiple configurations for different aircraft

Data Logging

• Logging Capability: Yes – records RPM, voltage, current draw, and system alerts during flight
• Analysis Tools: Compatible with Castle Link software for post-flight diagnostics and performance tuning

Application Guidelines

• Aircraft Compatibility: Designed for helicopters and fixed-wing aircraft operating on high-voltage power systems
• Installation Notes: Ensure adequate airflow and verify current draw at full throttle before flight

What’s in the Box

• 1 × Castle Phoenix Edge Lite 120HV ESC
• 1 × Coupon for Castle Link USB Adapter
• 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

• Battery connectors – sold separately
• Motor connectors – sold separately
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC – required for Castle Link software and firmware updates

Sold Separately

• Castle Telemetry Link for S.BUS2 – required for telemetry integration with Futaba radios
• Castle Telemetry Link for X-BUS – required for telemetry integration with Spektrum radios
• B-Link Bluetooth Adapter – optional for mobile programming via iOS
