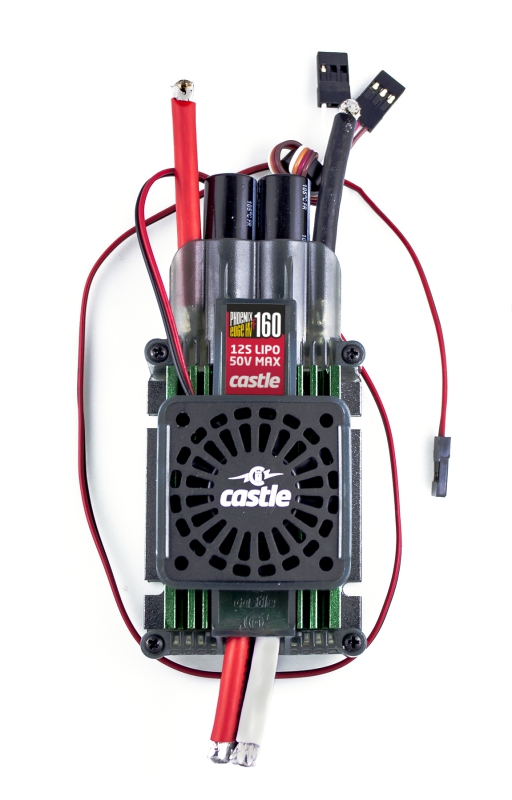

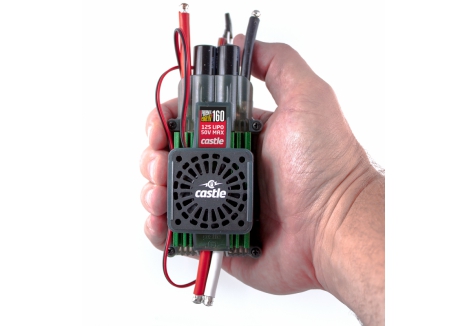

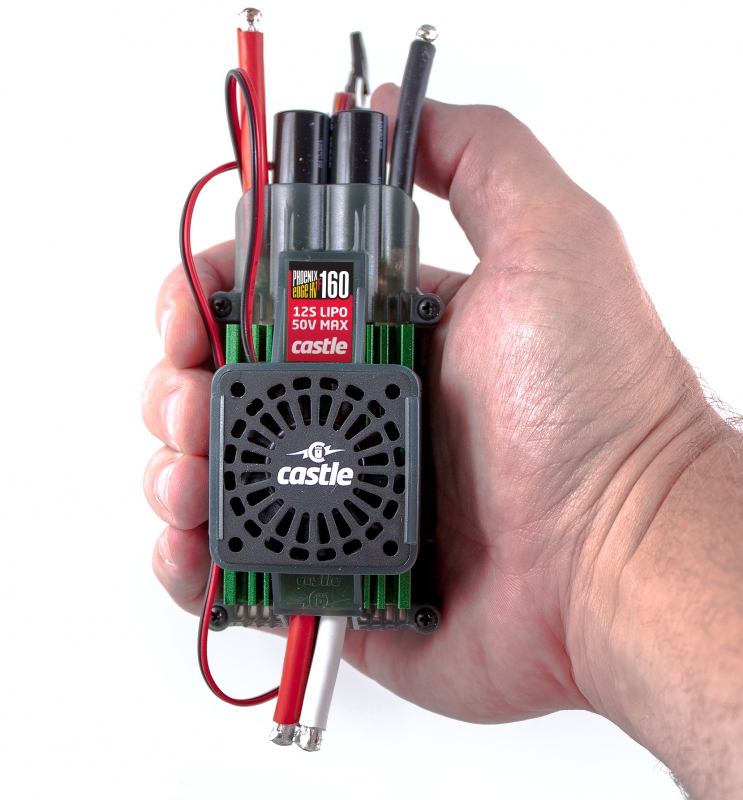

Product Description of Castle P-CC12700 Phoenix Edge 160HVF ESC with 160A continuous rating, 12S max input, and active cooling

The Castle P-CC12700 Phoenix Edge 160HVF ESC with 160A continuous rating, 12S max input, and active cooling is engineered for high-demand flight environments where sustained power delivery, thermal stability, and system intelligence are non-negotiable. Designed for 700–800 class helicopters and giant scale fixed-wing aircraft, this ESC combines Castle’s most advanced control technologies with a fan-cooled architecture rated for 4.8–7.4V operation. With no internal BEC and full telemetry compatibility, the Phoenix Edge 160HVF delivers precision, safety, and configurability in a form factor built to withstand the rigors of high-voltage flight.

Key features of the Castle P-CC12700 Phoenix Edge 160HVF ESC

• 160A continuous output – supports aggressive throttle loads without thermal compromise
• Integrated cooling fan – maintains optimal operating temperature during sustained high-current use
• Telemetry support – enables real-time monitoring of voltage, temperature, and receiver battery status
• AUX wire functionality – unlocks RPM output, governor gain input, and arming lockout safety
• Data logging capability – records flight metrics for post-flight diagnostics and tuning
• USB and mobile programmability – full access to configuration settings and firmware updates

How does the Castle P-CC12700 handle extreme current demands?

The Castle P-CC12700 with 50.4V max voltage, 241g weight with wires, and 108mm length is built to deliver uninterrupted power under the most demanding conditions. Its 160A continuous rating ensures consistent performance during extended climbs, rapid throttle transitions, and high-load maneuvers typical of 700–800 class helis and giant scale aircraft. The integrated cooling fan, rated for 4.8–7.4V, actively regulates ESC temperature, preventing thermal shutdown and preserving component integrity. This combination of raw power and thermal management makes the Phoenix Edge 160HVF a reliable choice for pilots pushing the limits of their airframes.

What benefits does telemetry integration provide?

Telemetry transforms the Castle ESC for 3S–12S LiPo setups with no internal BEC and full telemetry compatibility into a real-time diagnostic system. Compatible with Castle Telemetry Link modules for S.BUS2 and X-BUS platforms, the ESC provides live feedback on voltage, temperature, and receiver battery status. Audible alerts and LED flash patterns notify users of system anomalies such as over-temperature, excessive load, or locked head speed. These alerts allow pilots to respond proactively to changing conditions, reducing the risk of mid-flight failures and enhancing overall flight safety.

How does the AUX wire enhance control and safety?

The Phoenix Edge 160HVF ESC with RPM output, governor gain input, and arming lockout key includes a white AUX wire that expands the ESC’s functional range. This programmable line can be configured to adjust helicopter governor gain mid-flight, output RPM data to compatible gyros, or serve as an audible beacon after an unexpected landing. The AUX wire also supports arming lockout, preventing motor activation until a designated receiver channel exceeds 50% signal. This feature adds a critical layer of safety during setup, transport, and maintenance, helping prevent accidental motor engagement.

How does data logging support performance optimization?

The Castle P-CC12700 programmable ESC with data logging, Castle Link USB access, and fan-rated 4.8–7.4V includes onboard logging that captures RPM, voltage, current draw, and system alerts throughout each flight. These logs can be reviewed using Castle Link software to identify inefficiencies, diagnose faults, and refine throttle curves or governor settings. For pilots focused on continuous improvement, data logging provides actionable insights that support iterative tuning and precision calibration across flight cycles. This capability is especially valuable in competitive or experimental builds where performance margins are critical.

How can users configure the Castle P-CC12700 ESC?

Programming the Castle P-CC12700 HV ESC for 700–800 class helis and giant scale aircraft with telemetry and AUX wire is supported via the Castle Link USB adapter (included via coupon) and Castle Link Windows software. Mobile access is available through the Castle Link iOS App and B-Link Bluetooth Adapter. Users can adjust throttle response, voltage cutoffs, and AUX behavior, save multiple setup profiles, and access all future firmware updates at no charge. Manual programming via transmitter stick is also available for basic field adjustments, ensuring flexibility in both workshop and field environments.

Why is the Phoenix Edge 160HVF built without an internal BEC?

Excluding an internal BEC allows the Castle programmable ESC with active cooling, no BEC, and Castle Link USB access to support external voltage regulation systems tailored to specific receiver and servo configurations. This design reduces onboard complexity and enables the use of high-voltage components that operate outside standard BEC ranges. For advanced aircraft builds, external regulation offers cleaner power distribution and greater flexibility in component selection. The absence of a BEC also contributes to the ESC’s reduced weight and compact form factor, aligning with the needs of performance-focused installations.

Is the Castle P-CC12700 the best choice for high-voltage aircraft?

For pilots operating in high-voltage environments where sustained output, intelligent monitoring, and thermal stability are essential, the Castle P-CC12700 Phoenix Edge 160HVF ESC offers a compelling solution. Its active cooling system, telemetry integration, and programmable safety features make it suitable for aggressive flight profiles and precision maneuvers. The compact design supports installations with strict space and weight constraints, while the data logging and AUX functionality provide tools for both safety and performance optimization. The Phoenix Edge 160HVF is engineered to meet the demands of serious flight operations with confidence and control.

Buy Castle P-CC12700 Phoenix Edge 160HVF ESC for 700–800 class helis and 12S fixed-wing aircraft.

Technical Specifications of Castle P-CC12700 Phoenix Edge 160HVF ESC with 160A continuous rating, 12S max input, and active cooling

Brand, Model and Product Type

• Brand: Castle
• Model: P-CC12700
• Product Type: Castle P-CC12700 Phoenix Edge 160HVF ESC with 160A continuous rating, 12S max input, and active cooling, Castle P-CC12700 HV ESC for 700–800 class helis and giant scale aircraft with telemetry and AUX wire, Castle P-CC12700 programmable ESC with data logging, Castle Link USB access, and fan-rated 4.8–7.4V

Dimensions

• Length: 10.84 cm – suitable for large-scale aircraft requiring robust power delivery
• Width: 5.08 cm – accommodates high-current wiring and airflow
• Depth: 4.32 cm – optimized for thermal management and fan integration
• Weight (with wires): 241 g – engineered for high-voltage platforms with active cooling
• Weight (without wires): 159 g – ideal for weight-conscious installations

Electrical and Performance Specifications

• Input Voltage Range: 3S–12S LiPo – supports setups up to 50.4V max input
• Max Continuous Amperage: 160A – delivers sustained current for demanding flight profiles
• Max Voltage: 50.4V – optimized for 12S configurations in high-output aircraft
• Internal BEC: No – designed for external regulation systems
• BEC Voltage: N/A
• BEC Output: N/A

Cooling System

• Cooling Fan: Included – rated for 4.8–7.4V operation
• Cooling Type: Active – supports sustained high-current use without thermal shutdown

Telemetry and Monitoring

• Telemetry Capable: Yes – supports real-time monitoring of ESC temperature, voltage, and receiver battery status
• Compatible Systems: Castle Telemetry Link for S.BUS2 and X-BUS – integrates with Futaba and Spektrum radios
• Power System Alerts: Audible tones and flashing LED patterns indicate over-temperature, excessive load, and locked head speed

Control and AUX Features

• AUX Wire: Yes – supports RPM output, helicopter governor gain input, and audible beacon functionality
• Arming Lockout: Enabled via AUX wire – prevents motor activation until receiver signal exceeds 50%
• Arm Lock Key: Included – physical key disables ESC arming for added safety during setup

Programming and Software

• Programmability: Fully programmable using Castle Link USB adapter and Castle Link Windows software
• Mobile Access: Compatible with Castle Link iOS App and B-Link Bluetooth Adapter
• Firmware Updates: Free access to all future firmware enhancements via Castle Link
• Manual Programming: Basic settings accessible via transmitter stick input
• Setup Profiles: Ability to save and load multiple configurations for different aircraft

Data Logging

• Logging Capability: Yes – records RPM, voltage, current draw, and system alerts during flight
• Analysis Tools: Compatible with Castle Link software for post-flight diagnostics and performance tuning

Application Guidelines

• Aircraft Compatibility: Designed for 700–800 class helicopters and giant scale fixed-wing aircraft
• Installation Notes: Ensure adequate airflow and verify current draw at full throttle before flight

What’s in the Box

• 1 × Castle Phoenix Edge 160HVF ESC with Cooling Fan
• 1 × Coupon for Castle Link USB Adapter
• 1 × Coupon for Arming Lockout Key and Harness

What You Require / What You Will Need

• Battery connectors – sold separately
• Motor connectors – sold separately
• Castle Link USB Adapter – redeemable via included coupon
• Windows PC – required for Castle Link software and firmware updates

Sold Separately

• Castle Telemetry Link for S.BUS2 – required for telemetry integration with Futaba radios
• Castle Telemetry Link for X-BUS – required for telemetry integration with Spektrum radios
• B-Link Bluetooth Adapter – optional for mobile programming via iOS
