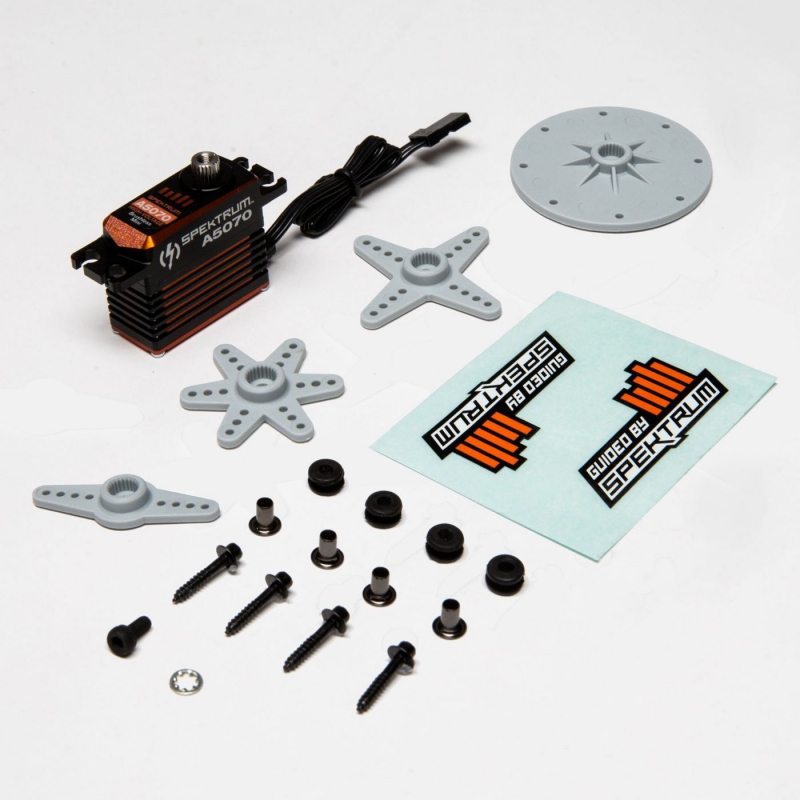

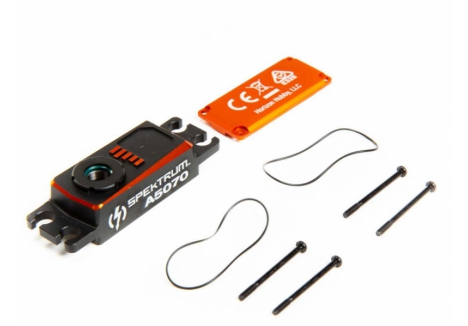

SPM A5070 High Torque High Speed Mini MG HV Servo P-SPMSA5070

Model No: P-SPMSA5070


Please note:

This item is a special order Available on 22/10/2025. Due to its nature, orders for this product cannot be cancelled. To complete your purchase, we require payment via bank transfer. Kindly contact us to arrange payment details.

£169.99

£21.99

£148.00

Inc VAT & delivery

SPECIAL ORDER ITEM PLEASE CONTACT US ON: 01922 494 608.
We Accept
Delivery Included
1 Year Warranty

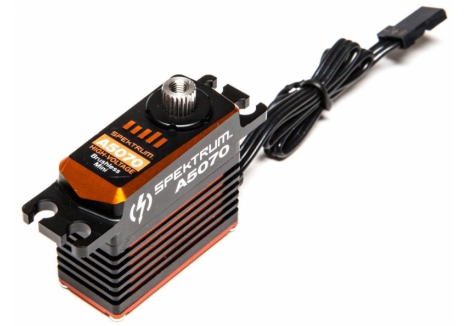

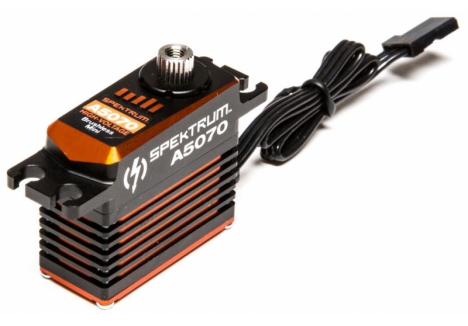

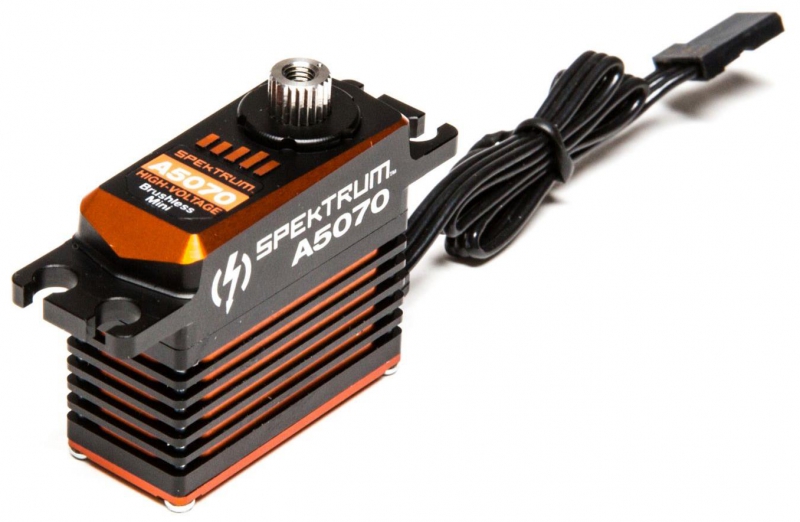

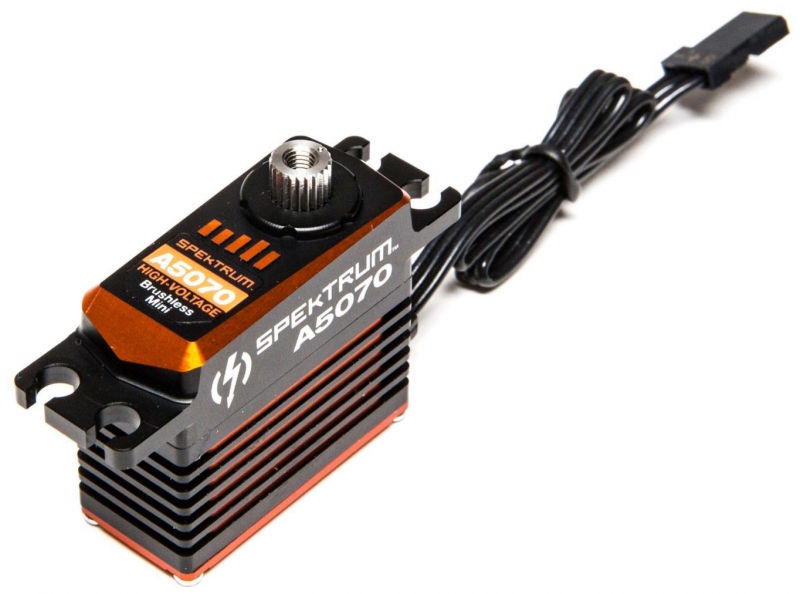

The Spektrum P-SPMSA5070 A5070 mini HV servo with brushless motor, metal gears, and dual ball bearings is a high-performance digital servo engineered for demanding aircraft and helicopter applications. Designed to deliver exceptional torque, speed, and precision, this compact unit combines advanced brushless motor technology with a rugged aluminum case and precision-machined metal gears. Whether you're building a high-speed heli or a responsive fixed-wing aircraft, the A5070 offers the reliability and control fidelity required for modern flight systems operating on high-voltage setups.

Key features of the Spektrum P-SPMSA5070 A5070 mini HV servo

  • Brushless motor – ultra-smooth, high-speed performance with improved efficiency
  • Metal gear train – precision-machined for durability and consistent torque delivery
  • Dual ball bearings – smooth rotation and extended lifespan under load
  • High torque output – up to 190 oz-in at 8.4V for aggressive control surfaces
  • Fast transit speed – 0.078 sec at 8.4V for rapid response and maneuverability
  • HV compatibility – supports 6.0–8.4V input for adjustable BEC ESCs
  • Aluminum case – acts as a heat sink for motor and ESC, enhancing thermal stability
  • Low deadband – 2µs resolution for precise input and holding torque
  • Over-current protection – safeguards against electrical stress and overheating
  • Universal connector – compatible with standard receiver ports and wiring setups

What makes the Spektrum P-SPMSA5070 ideal for high-performance aircraft builds?

The Spektrum P-SPMSA5070 high-speed aircraft servo with 190 oz-in torque and 0.078 sec transit time is purpose-built for pilots who demand responsive control and mechanical resilience. With a brushless motor at its core, the A5070 delivers smoother acceleration and greater efficiency than conventional servo designs. Its metal gear train and dual ball bearings ensure consistent torque delivery under high loads, making it suitable for aggressive control surfaces and rapid maneuvering. Whether you're flying aerobatic planes or high-speed helis, this servo provides the speed and strength needed to maintain control authority in dynamic conditions.

How does HV compatibility enhance servo performance?

The Spektrum P-SPMSA5070 digital mini servo for airplane and heli with 6.0–8.4V HV compatibility supports high-voltage input ranges, allowing pilots to optimize performance by adjusting BEC settings on compatible ESCs. Operating at 8.4V, the A5070 achieves its maximum torque and fastest transit speed, enabling sharper control and quicker response times. This flexibility is especially valuable in setups where power delivery and servo responsiveness are critical to flight stability and precision. The servo’s ability to act as a heat sink further enhances its thermal management, ensuring consistent performance even under prolonged load.

What role does the aluminum case play in durability and cooling?

The Mini brushless servo with aluminum case, 23T spline, and 120° rotation range features a full aluminum housing that not only reinforces structural integrity but also aids in heat dissipation. This design helps regulate internal temperatures during extended operation, protecting the brushless motor and internal electronics from thermal stress. The aluminum finish also adds a layer of durability, making the A5070 suitable for high-impact environments and vibration-prone installations. Combined with its compact dimensions and lightweight build, the servo integrates easily into tight airframes without compromising strength or cooling efficiency.

How does low deadband and high resolution improve control fidelity?

The Spektrum P-SPMSA5070 with low deadband, high resolution, and over-current protection is engineered for precision. With a 2µs deadband, the servo responds to minute input changes with exceptional accuracy, delivering smooth and predictable control behavior. This is particularly important in aircraft where fine adjustments to control surfaces can dramatically affect flight performance. The high-resolution response also contributes to stronger holding torque, ensuring that control surfaces remain locked in position even under aerodynamic pressure. Over-current protection adds a layer of reliability, shielding the servo from electrical anomalies and ensuring long-term operational integrity.

Is the A5070 suitable for both airplane and helicopter applications?

Absolutely. The HV-compatible servo for adjustable BEC ESCs with heat-sink functionality and universal connector is designed for versatility across multiple aircraft types. Its compact mini form factor fits easily into tight fuselage spaces, while its torque and speed ratings support both cyclic and tail rotor control in helicopters as well as elevator, rudder, and aileron functions in airplanes. The universal connector and 22 AWG wiring ensure compatibility with most receiver systems, and the 120° rotation range accommodates a wide variety of linkage geometries. Whether you're building a high-speed heli or a precision aerobatic plane, the A5070 adapts to your control needs.

Why choose the Spektrum P-SPMSA5070 for your next build?

The Best brushless metal gear servo with 190 oz-in torque and dual ball bearing support offers a rare combination of speed, strength, and precision in a mini-sized package. From its brushless motor and metal gears to its HV compatibility and thermal efficiency, every aspect of the A5070 is engineered for high-performance flight. With built-in protection features and a robust aluminum case, it’s a servo that delivers under pressure and lasts through demanding cycles. Whether you're upgrading an existing aircraft or starting a new build, the A5070 provides the control fidelity and reliability that serious pilots expect.

Buy Spektrum P-SPMSA5070 mini HV servo for high-performance aircraft and helicopter builds.

Product Description of Spektrum P-SPMSA5070 A5070 mini HV servo with brushless motor, metal gears, and dual ball bearings

The Spektrum P-SPMSA5070 A5070 mini HV servo with brushless motor, metal gears, and dual ball bearings is a high-performance digital servo engineered for demanding aircraft and helicopter applications. Designed to deliver exceptional torque, speed, and precision, this compact unit combines advanced brushless motor technology with a rugged aluminum case and precision-machined metal gears. Whether you're building a high-speed heli or a responsive fixed-wing aircraft, the A5070 offers the reliability and control fidelity required for modern flight systems operating on high-voltage setups.

Key features of the Spektrum P-SPMSA5070 A5070 mini HV servo

  • Brushless motor – ultra-smooth, high-speed performance with improved efficiency
  • Metal gear train – precision-machined for durability and consistent torque delivery
  • Dual ball bearings – smooth rotation and extended lifespan under load
  • High torque output – up to 190 oz-in at 8.4V for aggressive control surfaces
  • Fast transit speed – 0.078 sec at 8.4V for rapid response and maneuverability
  • HV compatibility – supports 6.0–8.4V input for adjustable BEC ESCs
  • Aluminum case – acts as a heat sink for motor and ESC, enhancing thermal stability
  • Low deadband – 2µs resolution for precise input and holding torque
  • Over-current protection – safeguards against electrical stress and overheating
  • Universal connector – compatible with standard receiver ports and wiring setups

What makes the Spektrum P-SPMSA5070 ideal for high-performance aircraft builds?

The Spektrum P-SPMSA5070 high-speed aircraft servo with 190 oz-in torque and 0.078 sec transit time is purpose-built for pilots who demand responsive control and mechanical resilience. With a brushless motor at its core, the A5070 delivers smoother acceleration and greater efficiency than conventional servo designs. Its metal gear train and dual ball bearings ensure consistent torque delivery under high loads, making it suitable for aggressive control surfaces and rapid maneuvering. Whether you're flying aerobatic planes or high-speed helis, this servo provides the speed and strength needed to maintain control authority in dynamic conditions.

How does HV compatibility enhance servo performance?

The Spektrum P-SPMSA5070 digital mini servo for airplane and heli with 6.0–8.4V HV compatibility supports high-voltage input ranges, allowing pilots to optimize performance by adjusting BEC settings on compatible ESCs. Operating at 8.4V, the A5070 achieves its maximum torque and fastest transit speed, enabling sharper control and quicker response times. This flexibility is especially valuable in setups where power delivery and servo responsiveness are critical to flight stability and precision. The servo’s ability to act as a heat sink further enhances its thermal management, ensuring consistent performance even under prolonged load.

What role does the aluminum case play in durability and cooling?

The Mini brushless servo with aluminum case, 23T spline, and 120° rotation range features a full aluminum housing that not only reinforces structural integrity but also aids in heat dissipation. This design helps regulate internal temperatures during extended operation, protecting the brushless motor and internal electronics from thermal stress. The aluminum finish also adds a layer of durability, making the A5070 suitable for high-impact environments and vibration-prone installations. Combined with its compact dimensions and lightweight build, the servo integrates easily into tight airframes without compromising strength or cooling efficiency.

How does low deadband and high resolution improve control fidelity?

The Spektrum P-SPMSA5070 with low deadband, high resolution, and over-current protection is engineered for precision. With a 2µs deadband, the servo responds to minute input changes with exceptional accuracy, delivering smooth and predictable control behavior. This is particularly important in aircraft where fine adjustments to control surfaces can dramatically affect flight performance. The high-resolution response also contributes to stronger holding torque, ensuring that control surfaces remain locked in position even under aerodynamic pressure. Over-current protection adds a layer of reliability, shielding the servo from electrical anomalies and ensuring long-term operational integrity.

Is the A5070 suitable for both airplane and helicopter applications?

Absolutely. The HV-compatible servo for adjustable BEC ESCs with heat-sink functionality and universal connector is designed for versatility across multiple aircraft types. Its compact mini form factor fits easily into tight fuselage spaces, while its torque and speed ratings support both cyclic and tail rotor control in helicopters as well as elevator, rudder, and aileron functions in airplanes. The universal connector and 22 AWG wiring ensure compatibility with most receiver systems, and the 120° rotation range accommodates a wide variety of linkage geometries. Whether you're building a high-speed heli or a precision aerobatic plane, the A5070 adapts to your control needs.

Why choose the Spektrum P-SPMSA5070 for your next build?

The Best brushless metal gear servo with 190 oz-in torque and dual ball bearing support offers a rare combination of speed, strength, and precision in a mini-sized package. From its brushless motor and metal gears to its HV compatibility and thermal efficiency, every aspect of the A5070 is engineered for high-performance flight. With built-in protection features and a robust aluminum case, it’s a servo that delivers under pressure and lasts through demanding cycles. Whether you're upgrading an existing aircraft or starting a new build, the A5070 provides the control fidelity and reliability that serious pilots expect.

Buy Spektrum P-SPMSA5070 mini HV servo for high-performance aircraft and helicopter builds.

Technical Specifications of Spektrum P-SPMSA5070 A5070 mini HV servo with brushless motor, metal gears, and dual ball bearings

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMSA5070
  • Product Type: Spektrum P-SPMSA5070 A5070 mini HV servo with brushless motor, metal gears, and dual ball bearings, Spektrum P-SPMSA5070 high-speed aircraft servo with 190 oz-in torque and 0.078 sec transit time, Spektrum P-SPMSA5070 digital mini servo for airplane and heli with 6.0–8.4V HV compatibility, Spektrum P-SPMSA5070 with low deadband, high resolution, and over-current protection, Mini brushless servo with aluminum case, 23T spline, and 120° rotation range

Dimensions

  • Product Length: 3.4 cm – compact footprint for tight installations
  • Product Height: 2.9 cm – low-profile design for streamlined integration
  • Product Width: 1.5 cm – mini form factor ideal for lightweight aircraft builds
  • Product Weight: 40 g – optimized for performance without adding bulk

Motor and Gear System

  • Motor Type: Brushless – delivers ultra-smooth, high-speed operation with improved efficiency
  • Gear Type: Metal – precision-machined for durability and consistent torque delivery
  • Spline Count: 23-tooth – compatible with standard servo arms

Performance and Speed

  • Maximum Torque: 190.58 oz-in @8.4V; 146.43 oz-in @6.0V – high output for aggressive control surfaces
  • Transit Speed: 0.078 sec/60° @8.4V; 0.094 sec/60° @6.0V – rapid response for precision maneuvers
  • Rotation Range: 120 degrees – suitable for wide-angle control applications

Voltage and Compatibility

  • Operating Voltage: 6.0–8.4V HV – supports high-voltage systems and adjustable BEC ESCs
  • HV Compatibility: Yes – enables performance tuning via elevated BEC settings

Protection and Reliability

  • Overload Protection: Yes – safeguards against current spikes and thermal stress
  • Deadband: 2µs – low deadband for high-resolution input and holding torque
  • Programmable: No – factory-tuned for optimized performance

Build and Materials

  • Case Material: Aluminum – acts as a heat sink for motor and ESC, enhancing thermal stability
  • Bearing Type: Dual ball bearing – ensures smooth rotation and long-term durability
  • Water Resistance: No – not rated for wet environments

Connectivity and Wiring

  • Connector Type: Universal – compatible with standard receiver ports
  • Wire Length: 30 cm (11.8 inches) – suitable for most aircraft installations
  • Wire Gauge: 22 AWG – supports stable current delivery and signal integrity

Application

  • Primary Use: Airplane or Helicopter – optimized for high-performance flight control
  • Servo Size Category: Mini – ideal for compact aircraft builds

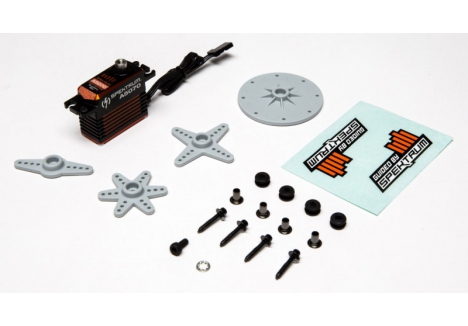

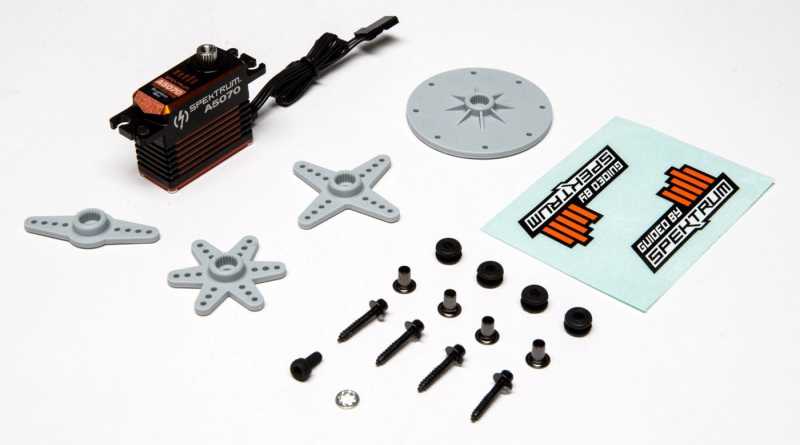

What’s in the Box

  • 1 × Spektrum A5070 Mini Digital HV Brushless Metal Gear Servo (Model No: P-SPMSA5070)

What You Require / What You Will Need

  • Compatible receiver and adjustable BEC ESC – required for full HV performance integration
