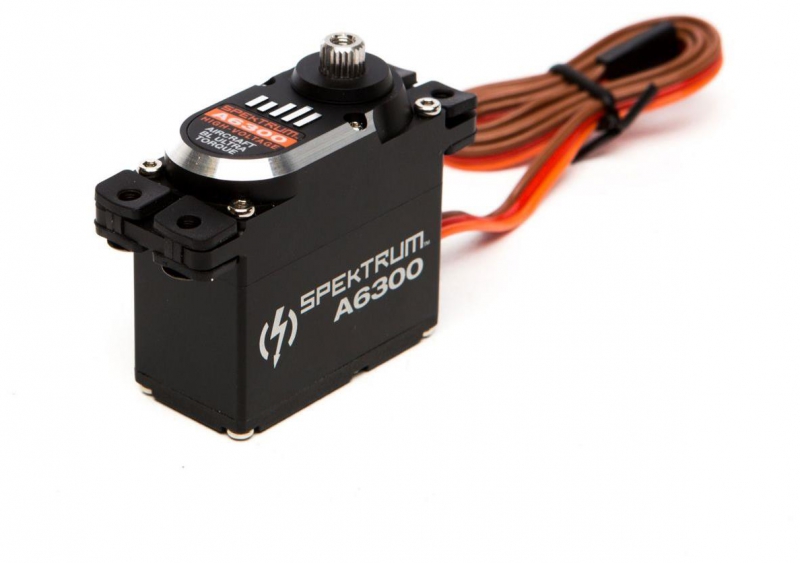

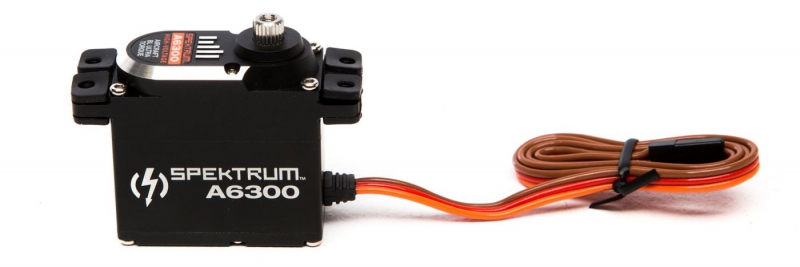

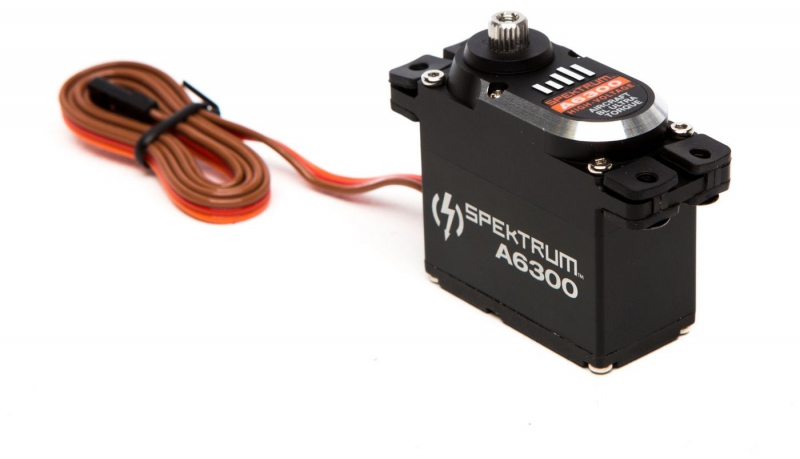

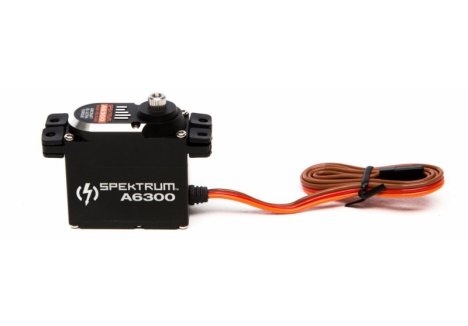

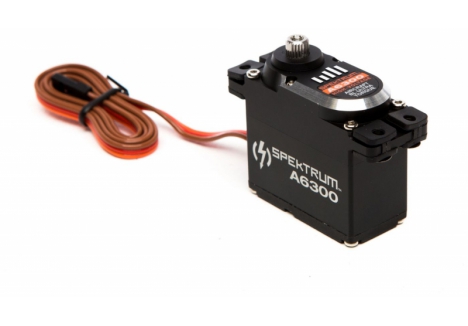

SPM A6300 Ultra Torque High Speed Metal BL HV Servo P-SPMSA6300

Model No: P-SPMSA6300


COMING SOON 22/10/2025

Coming Soon - Stock Arriving: 22/10/2025

Stock Arriving: 22/10/2025

£199.99

£24.99

£175.00

Inc VAT & delivery

We Accept
Delivery Included
1 Year Warranty

Key Features

  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 200hz to 333hz

Overview

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMSA6300
  • Product Type: Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed, Spektrum P-SPMSA6300 brushless aircraft servo with metal gears, dual ball bearings, and aluminum case, Spektrum P-SPMSA6300 digital HV servo for giant-scale planes, jets, and 3D aerobatics, Spektrum P-SPMSA6300 with soft start, failsafe hold, and over-current/temperature protection, High-voltage brushless servo with 22 AWG wiring, 23T spline, and 18" universal connector

Dimensions

  • Product Length: 4.0 cm – standard-size footprint for large aircraft installations
  • Product Height: 3.8 cm – accommodates robust internal components and heat dissipation
  • Product Width: 2.0 cm – optimized for mounting in high-load control surfaces
  • Product Weight: 79.8 g – substantial build for torque-intensive applications

Motor and Gear System

  • Motor Type: Brushless – delivers consistent high-speed performance with reduced wear
  • Gear Type: Metal – tightly meshed for durability and virtually slop-free operation
  • Spline Count: 23-tooth – compatible with standard servo arms

Performance and Speed

  • Maximum Torque: 530.22 oz-in @8.4V; 467.06 oz-in @7.4V; 378.37 oz-in @6.0V – ideal for giant-scale and jet aircraft
  • Transit Speed: 0.10 sec/60° @8.4V; 0.11 sec @7.4V; 0.14 sec @6.0V – rapid actuation for precision control
  • Frequency Range: 200–333Hz – supports high-speed signal processing for advanced flight systems

Voltage and Compatibility

  • Operating Voltage: 6.0–8.4V HV – compatible with adjustable BEC ESCs and high-voltage setups
  • HV Compatibility: Yes – unlocks full performance potential at 8.4V

Protection and Reliability

  • Overload Protection: Yes – includes over-current and temperature safeguards
  • Failsafe Hold: Yes – retains last known position if signal is lost while power is maintained
  • Soft Start: Yes – prevents abrupt initialization that could damage airframe components
  • Deadband: 2µs, 3µs – low deadband for high-resolution input and stable holding torque
  • Programmable: No – factory-tuned for optimized performance

Build and Materials

  • Case Material: Aluminum – acts as a heat sink to regulate internal temperatures
  • Bearing Type: Dual ball bearing – ensures smooth rotation and long-term durability
  • Water Resistance: No – not rated for wet environments

Connectivity and Wiring

  • Connector Type: Universal – compatible with standard receiver ports
  • Wire Length: 45.7 cm (18 inches) – suitable for large aircraft installations
  • Wire Gauge: 22 AWG – supports stable current delivery and signal integrity

Application

  • Primary Use: Airplane – optimized for giant-scale, jet, and aerobatic aircraft
  • Servo Size Category: Standard – designed for high-load control surfaces

What’s in the Box

  • 1 × Spektrum A6300 Standard Digital HV Brushless Metal Gear Servo (Model No: P-SPMSA6300)

What You Require / What You Will Need

  • Compatible receiver and adjustable BEC ESC – required for full HV performance integration

Product Description of Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed

The Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed is engineered for elite RC pilots who demand uncompromising torque, speed, and reliability in their aircraft control systems. Designed for giant-scale planes, jets, and 3D aerobatics, this digital brushless servo combines a high-performance motor with a virtually slop-free metal gear train and dual ball bearings—all housed in a heat-dissipating aluminum case. Whether you're executing aggressive maneuvers or maintaining precision in high-load conditions, the A6300 delivers consistent power and control across the full voltage range of 6.0–8.4V.

Key features of the Spektrum P-SPMSA6300 A6300 HV servo

  • Brushless motor – delivers ultra-smooth, high-speed response with reduced wear
  • 530 oz-in torque – maximum output at 8.4V for demanding control surfaces
  • 0.10 sec transit speed – lightning-fast actuation for precision maneuvers
  • Metal gear train – tightly meshed for durability and virtually zero slop
  • Dual ball bearings – ensures smooth rotation and long-term reliability
  • Aluminum case – acts as a heat sink to regulate operating temperatures
  • Soft start – prevents airframe stress during initialization
  • Failsafe hold – retains last known position if signal is lost
  • Over-current and temperature protection – safeguards internal components
  • Universal connector – 18" 22 AWG wiring for flexible installation

Why is the Spektrum P-SPMSA6300 ideal for giant-scale and jet aircraft?

The Spektrum P-SPMSA6300 digital HV servo for giant-scale planes, jets, and 3D aerobatics is built to handle extreme loads and rapid control demands. With a torque rating of 530 oz-in at 8.4V, it provides the muscle needed for large control surfaces and high-speed flight. The brushless motor ensures consistent performance with minimal wear, while the metal gear train maintains precise alignment under stress. Whether you're flying high-performance jets or executing complex aerobatic routines, the A6300 offers the strength and responsiveness required for advanced flight control.

How does the aluminum case improve thermal performance?

The Spektrum P-SPMSA6300 brushless aircraft servo with metal gears, dual ball bearings, and aluminum case features a full aluminum housing that functions as a heat sink, dissipating thermal energy generated during operation. This design helps maintain optimal internal temperatures, especially during prolonged use or high-load conditions. By reducing thermal strain on the motor and electronics, the aluminum case enhances reliability and extends the servo’s operational lifespan—making it a smart choice for demanding flight environments.

What makes the gear train virtually slop-free?

The Aircraft-grade servo with 200–333Hz frequency range and virtually slop-free gear train uses a tightly meshed metal gear system supported by dual ball bearings. This configuration minimizes backlash and ensures precise movement, even under heavy torque. The result is a servo that holds position accurately and responds instantly to input—critical for maintaining control authority during high-speed or high-G maneuvers. Combined with the brushless motor’s smooth acceleration, the gear train delivers unmatched fidelity in flight control.

How does the A6300 protect itself during operation?

The Spektrum P-SPMSA6300 with soft start, failsafe hold, and over-current/temperature protection includes multiple safeguards to ensure safe and reliable performance. Soft start prevents sudden jolts during power-up, protecting both the servo and the airframe. Over-current and temperature protection monitor internal conditions and adjust operation to prevent damage. In the event of signal loss, the failsafe hold feature retains the last known position, helping maintain aircraft stability until control is restored. These features combine to deliver peace of mind in every flight.

Is the A6300 compatible with high-voltage systems?

Absolutely. The High-voltage brushless servo with 22 AWG wiring, 23T spline, and 18" universal connector supports an input range of 6.0–8.4V, making it ideal for HV setups with adjustable BEC ESCs. Operating at 8.4V unlocks the servo’s full torque and speed potential, while the 22 AWG wiring ensures stable current delivery. The 23T spline offers compatibility with standard servo arms, and the 18" wire length provides installation flexibility across large airframes. Whether you're upgrading an existing system or building from scratch, the A6300 integrates seamlessly into high-performance aircraft builds.

Why choose the Spektrum P-SPMSA6300 for your next aircraft project?

The Best brushless metal gear servo with 530 oz-in torque and aluminum heat-sinking case offers a rare combination of power, speed, and durability in a standard-size format. From its brushless motor and slop-free gear train to its thermal management and failsafe features, every aspect of the A6300 is engineered for elite-level performance. Whether you're flying giant-scale aerobatics or precision jets, this servo delivers the control fidelity and resilience needed to push your aircraft to its limits.

Buy Spektrum P-SPMSA6300 A6300 HV servo for high-performance aircraft and jet applications.

Technical Specifications of Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMSA6300
  • Product Type: Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed, Spektrum P-SPMSA6300 brushless aircraft servo with metal gears, dual ball bearings, and aluminum case, Spektrum P-SPMSA6300 digital HV servo for giant-scale planes, jets, and 3D aerobatics, Spektrum P-SPMSA6300 with soft start, failsafe hold, and over-current/temperature protection, High-voltage brushless servo with 22 AWG wiring, 23T spline, and 18" universal connector

Dimensions

  • Product Length: 4.0 cm – standard-size footprint for large aircraft installations
  • Product Height: 3.8 cm – accommodates robust internal components and heat dissipation
  • Product Width: 2.0 cm – optimized for mounting in high-load control surfaces
  • Product Weight: 79.8 g – substantial build for torque-intensive applications

Motor and Gear System

  • Motor Type: Brushless – delivers consistent high-speed performance with reduced wear
  • Gear Type: Metal – tightly meshed for durability and virtually slop-free operation
  • Spline Count: 23-tooth – compatible with standard servo arms

Performance and Speed

  • Maximum Torque: 530.22 oz-in @8.4V; 467.06 oz-in @7.4V; 378.37 oz-in @6.0V – ideal for giant-scale and jet aircraft
  • Transit Speed: 0.10 sec/60° @8.4V; 0.11 sec @7.4V; 0.14 sec @6.0V – rapid actuation for precision control
  • Frequency Range: 200–333Hz – supports high-speed signal processing for advanced flight systems

Voltage and Compatibility

  • Operating Voltage: 6.0–8.4V HV – compatible with adjustable BEC ESCs and high-voltage setups
  • HV Compatibility: Yes – unlocks full performance potential at 8.4V

Protection and Reliability

  • Overload Protection: Yes – includes over-current and temperature safeguards
  • Failsafe Hold: Yes – retains last known position if signal is lost while power is maintained
  • Soft Start: Yes – prevents abrupt initialization that could damage airframe components
  • Deadband: 2µs, 3µs – low deadband for high-resolution input and stable holding torque
  • Programmable: No – factory-tuned for optimized performance

Build and Materials

  • Case Material: Aluminum – acts as a heat sink to regulate internal temperatures
  • Bearing Type: Dual ball bearing – ensures smooth rotation and long-term durability
  • Water Resistance: No – not rated for wet environments

Connectivity and Wiring

  • Connector Type: Universal – compatible with standard receiver ports
  • Wire Length: 45.7 cm (18 inches) – suitable for large aircraft installations
  • Wire Gauge: 22 AWG – supports stable current delivery and signal integrity

Application

  • Primary Use: Airplane – optimized for giant-scale, jet, and aerobatic aircraft
  • Servo Size Category: Standard – designed for high-load control surfaces

What’s in the Box

  • 1 × Spektrum A6300 Standard Digital HV Brushless Metal Gear Servo (Model No: P-SPMSA6300)

What You Require / What You Will Need

  • Compatible receiver and adjustable BEC ESC – required for full HV performance integration

Warranty

  • Warranty information is not provided by the manufacturer and is therefore excluded

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMSA6300
  • Product Type: Spektrum P-SPMSA6300 A6300 standard-size HV servo with 530 oz-in torque and .10 sec transit speed, Spektrum P-SPMSA6300 brushless aircraft servo with metal gears, dual ball bearings, and aluminum case, Spektrum P-SPMSA6300 digital HV servo for giant-scale planes, jets, and 3D aerobatics, Spektrum P-SPMSA6300 with soft start, failsafe hold, and over-current/temperature protection, High-voltage brushless servo with 22 AWG wiring, 23T spline, and 18" universal connector

Dimensions

  • Product Length: 4.0 cm – standard-size footprint for large aircraft installations
  • Product Height: 3.8 cm – accommodates robust internal components and heat dissipation
  • Product Width: 2.0 cm – optimized for mounting in high-load control surfaces
  • Product Weight: 79.8 g – substantial build for torque-intensive applications

Motor and Gear System

  • Motor Type: Brushless – delivers consistent high-speed performance with reduced wear
  • Gear Type: Metal – tightly meshed for durability and virtually slop-free operation
  • Spline Count: 23-tooth – compatible with standard servo arms

Performance and Speed

  • Maximum Torque: 530.22 oz-in @8.4V; 467.06 oz-in @7.4V; 378.37 oz-in @6.0V – ideal for giant-scale and jet aircraft
  • Transit Speed: 0.10 sec/60° @8.4V; 0.11 sec @7.4V; 0.14 sec @6.0V – rapid actuation for precision control
  • Frequency Range: 200–333Hz – supports high-speed signal processing for advanced flight systems

Voltage and Compatibility

  • Operating Voltage: 6.0–8.4V HV – compatible with adjustable BEC ESCs and high-voltage setups
  • HV Compatibility: Yes – unlocks full performance potential at 8.4V

Protection and Reliability

  • Overload Protection: Yes – includes over-current and temperature safeguards
  • Failsafe Hold: Yes – retains last known position if signal is lost while power is maintained
  • Soft Start: Yes – prevents abrupt initialization that could damage airframe components
  • Deadband: 2µs, 3µs – low deadband for high-resolution input and stable holding torque
  • Programmable: No – factory-tuned for optimized performance

Build and Materials

  • Case Material: Aluminum – acts as a heat sink to regulate internal temperatures
  • Bearing Type: Dual ball bearing – ensures smooth rotation and long-term durability
  • Water Resistance: No – not rated for wet environments

Connectivity and Wiring

  • Connector Type: Universal – compatible with standard receiver ports
  • Wire Length: 45.7 cm (18 inches) – suitable for large aircraft installations
  • Wire Gauge: 22 AWG – supports stable current delivery and signal integrity

Application

  • Primary Use: Airplane – optimized for giant-scale, jet, and aerobatic aircraft
  • Servo Size Category: Standard – designed for high-load control surfaces

What’s in the Box

  • 1 × Spektrum A6300 Standard Digital HV Brushless Metal Gear Servo (Model No: P-SPMSA6300)

What You Require / What You Will Need

  • Compatible receiver and adjustable BEC ESC – required for full HV performance integration
