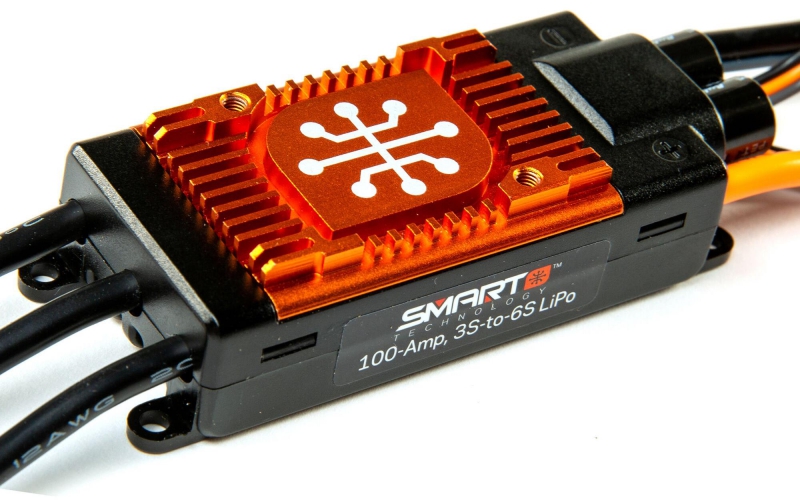

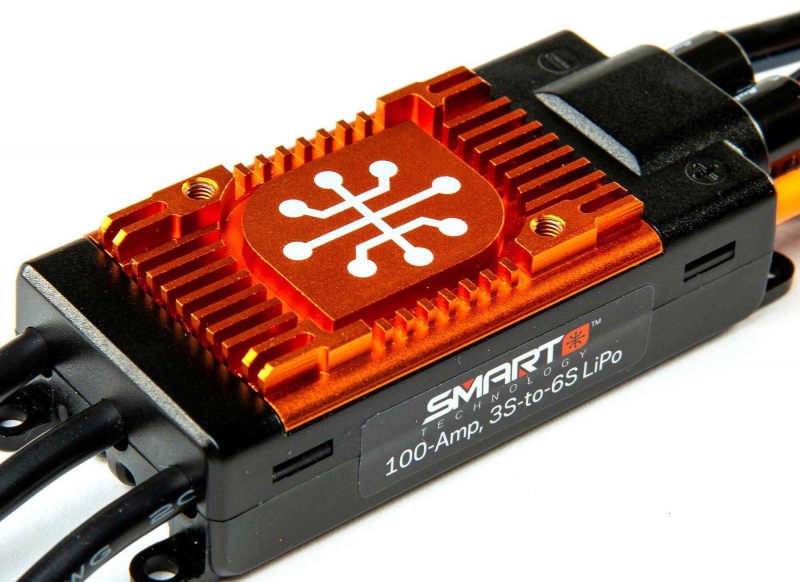

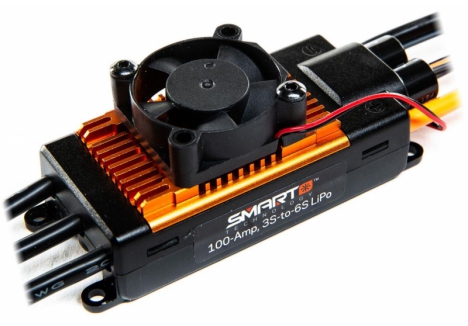

The Spektrum P-SPMXAE1100A Avian 100A Smart ESC with 3–6S LiPo support, IC5 input, and 32-bit ARM M4 processor is a purpose-built electronic speed control designed for EDF aircraft, including the E-flite F-16 Falcon 80mm EDF. This “Version A” model features extended lead lengths and optimized programming to simplify installation and maximize performance in ducted fan setups. With Smart telemetry, thrust reversing, and a rugged heat-dissipating design, the Spektrum P-SPMXAE1100A delivers precision control and real-time diagnostics in a compact, ready-to-install package. Whether you're upgrading an EDF jet or building a custom 3–6S aircraft, this ESC offers the reliability and configurability needed for high-performance flight.
Key features of the Spektrum P-SPMXAE1100A Avian 100A Smart ESC
- Smart telemetry – transmits real-time data to your Spektrum transmitter via one-wire connection
- Thrust reversing – enables motor reversal for braking and ground mobility
- EDF-specific lead lengths – 15.75" battery, 5.12" motor, and 17.71" throttle leads for clean installs
- Switch-mode BEC – adjustable output at 6V, 7.4V, or 8.4V for servo compatibility
- Multi-point protection – includes thermal, over-current, and low-voltage cutoff safeguards
- Rugged plastic case – features aluminum heat sink and mounting tabs for secure installation
- Firmware updatable – supports SmartLink USB and Programming Box for field updates
Why is the Spektrum P-SPMXAE1100A ideal for EDF aircraft?
The Spektrum P-SPMXAE1100A brushless air ESC with Smart telemetry, thrust reversing, and EDF-specific lead lengths is engineered to meet the unique demands of electric ducted fan installations. With extended wire lengths—15.75" battery input, 5.12" motor output, and 17.71" throttle lead—the ESC simplifies routing within tight fuselage compartments and ensures clean, interference-free connections. This tailored configuration makes it especially well-suited for models like the E-flite F-16 Falcon 80mm EDF, where space and layout precision are critical. The inclusion of Smart telemetry and thrust reversing further enhances control and flight realism.
How does Smart telemetry improve flight monitoring?
Integrated Smart technology transforms the Spektrum digital air ESC with 100A output, 4.4 oz weight, and 6V–8.4V adjustable BEC into a real-time diagnostic tool. Through a single-wire connection, the ESC transmits vital data—current, voltage, temperature, RPM, and cell balance—directly to your Spektrum transmitter. This eliminates the need for separate sensors or modules, reducing weight and complexity. Pilots can monitor system health mid-flight and make informed adjustments to optimize performance. Smart telemetry ensures that your aircraft remains responsive and protected throughout every flight session.
What advantages does thrust reversing offer?
Thrust reversing, available on the Spektrum P-SPMXAE1100A Avian 100A Smart ESC with 3–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, provides enhanced ground control and braking capability. With a Smart-compatible transmitter and receiver, users can reverse motor direction instantly, allowing for smoother taxiing and reduced landing roll. This feature is particularly valuable for EDF jets that require extended runway space or operate in confined environments. Activated through ESC parameters, thrust reversing adds realism and safety without requiring additional hardware.
How does the ARM M4 processor improve responsiveness?
At the heart of the Spektrum P-SPMXAE1100A HV ESC with 100A continuous current, 120A burst, and adjustable switch-mode BEC is a powerful 32-bit ARM M4 processor. This advanced chip architecture delivers high-resolution signal input and precise motor output, resulting in smoother throttle transitions and improved flight dynamics. The processor also supports complex telemetry functions and real-time data handling, ensuring accurate feedback without latency. For pilots seeking maximum control and responsiveness, the M4 processor is a key contributor to the ESC’s performance and reliability.
What programming options are available for field adjustments?

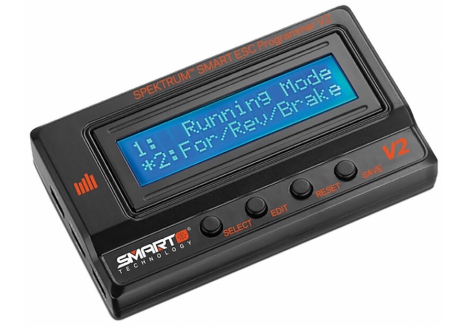

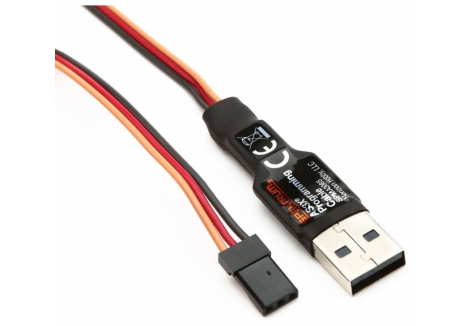

The Smart ESC for E-flite F-16 Falcon 80mm EDF with one-wire telemetry and firmware updatable via SmartLink offers multiple programming methods to suit different pilot preferences. Throttle stick programming allows basic adjustments without extra tools. For more detailed configuration, the Smart ESC Programming Box provides a user-friendly interface for on-site tuning. Additionally, the SmartLink USB application enables firmware updates and parameter changes via PC. These options ensure that pilots can adapt their ESC settings to match flying conditions and performance goals with minimal downtime.
How does the rugged case and heat sink improve durability?

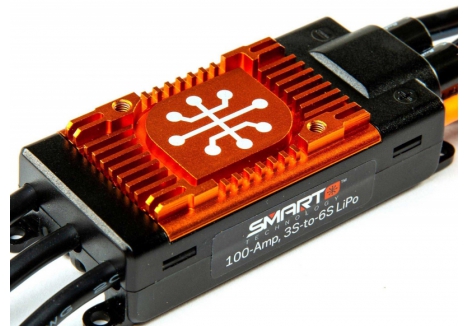

The high-performance air ESC with rugged plastic case, aluminum heat sink, and tabs for hard mounting is built to withstand the rigors of EDF flight. Its plastic housing offers impact resistance, while the integrated aluminum heat sink ensures efficient thermal dissipation during high-load operation. Mounting tabs provide secure attachment points, reducing vibration and improving installation stability. These design elements contribute to long-term reliability and consistent performance, even in demanding flight environments.
Is the Spektrum P-SPMXAE1100A easy to install and integrate?

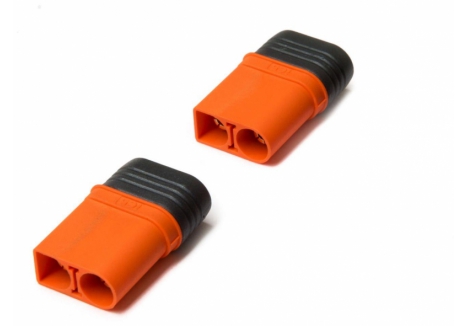

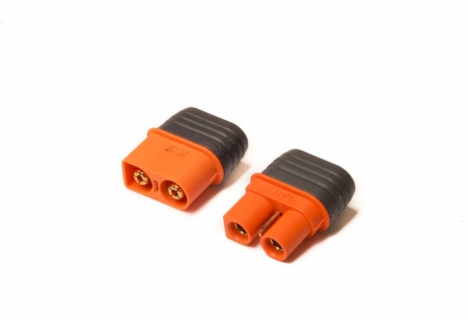

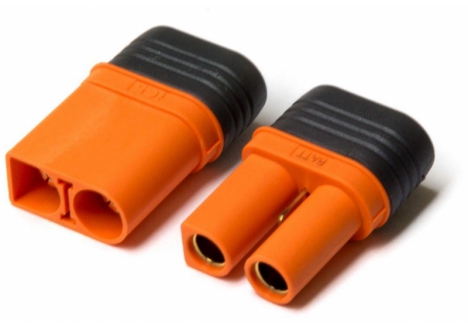

Installation is streamlined with the Spektrum P-SPMXAE1100A with 15.75" battery lead, 5.12" motor lead, and 17.71" throttle lead for EDF installs. The ESC arrives ready to install with no soldering required, and its compact dimensions (76mm length, 33mm height, 36mm width) make it suitable for a wide range of EDF fuselages. The IC5 battery input connector offers high heat resistance and solid electrical contact, while maintaining backward compatibility with EC3 and EC5 connectors. With 4mm motor output leads and Smart telemetry integration, the ESC supports efficient setup and reliable operation.
Buy Spektrum P-SPMXAE1100A Avian 100A Smart ESC for E-flite F-16 Falcon 80mm EDF and other 3–6S aircraft.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMXAE1100A
- Product Type: Spektrum P-SPMXAE1100A Avian 100A Smart ESC with 3–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, Spektrum P-SPMXAE1100A brushless air ESC with Smart telemetry, thrust reversing, and EDF-specific lead lengths, Spektrum P-SPMXAE1100A HV ESC with 100A continuous current, 120A burst, and adjustable switch-mode BEC, Spektrum P-SPMXAE1100A with 15.75" battery lead, 5.12" motor lead, and 17.71" throttle lead for EDF installs, Smart ESC for E-flite F-16 Falcon 80mm EDF with one-wire telemetry and firmware updatable via SmartLink
Dimensions
- Product Length: 7.6 cm – compact for EDF fuselage integration
- Product Height: 3.3 cm – low-profile for tight installations
- Product Width: 3.6 cm – standard footprint for air ESC mounting
- Product Weight: 4.4 oz (126 g) – lightweight for balanced aircraft setups
Electrical and Performance Specifications
- ESC Type: Brushless – optimized for high-efficiency motor control
- Application: Air – tailored for EDF aircraft and 3–6S LiPo systems
- Input Voltage: 3S–6S LiPo – supports up to 22.2V for HV setups
- Maximum Continuous Current: 100A – sustained output for high-demand flight profiles
- Maximum Burst Current: 120A – short-duration peak power handling
Lead Configuration

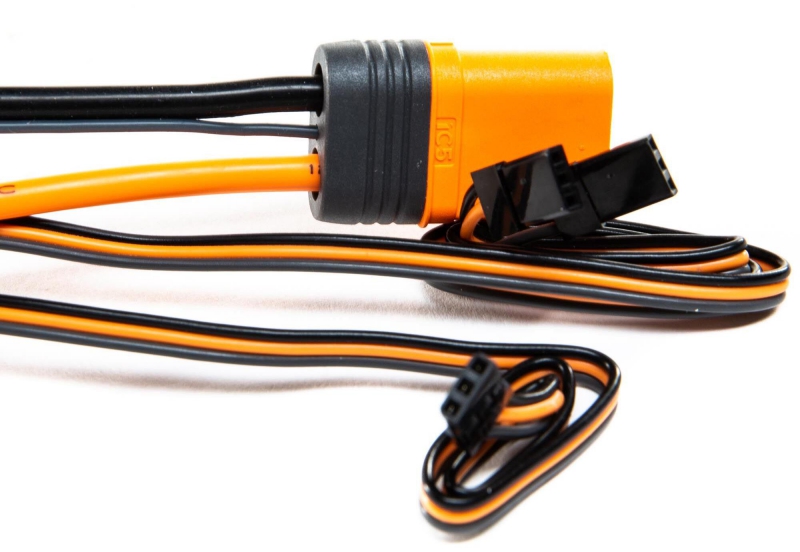

- Battery Input Lead: 15.75 in (400 mm), 12AWG with IC5 connector – extended length for EDF routing

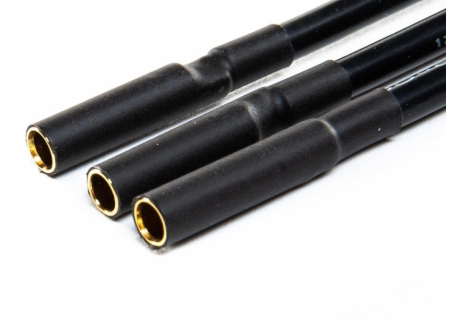

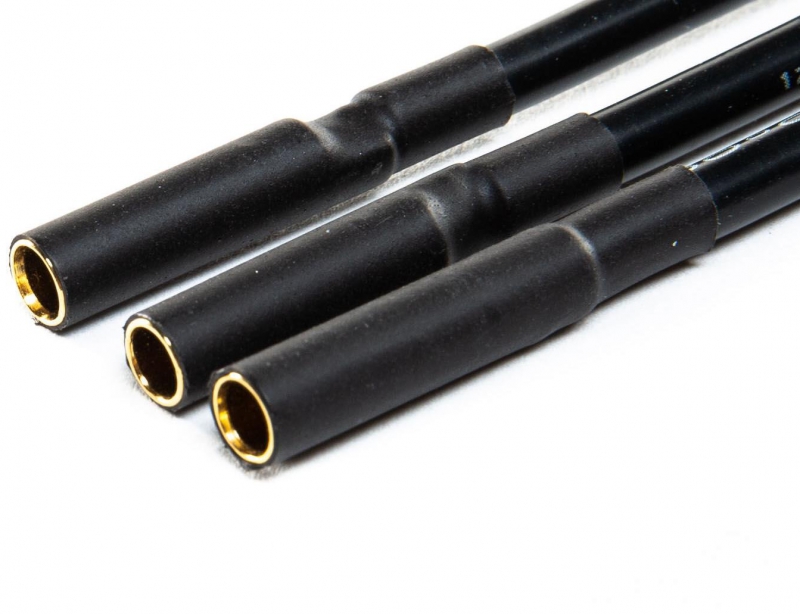

- Motor Output Lead: 5.12 in (130 mm), 12AWG with 4.0 mm bullet connectors – standard for brushless motors

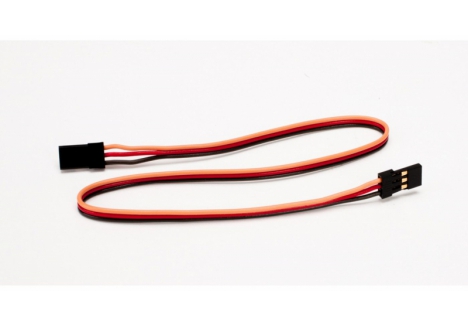

- Throttle Lead: 17.71 in (450 mm), standard gauge with servo connector – optimized for EDF installs
Processor and Control Features
- Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
- Programmable: Yes – supports transmitter stick input, Smart ESC Programming Box, and SmartLink app
- Adjustable Timing: Yes – enables fine-tuning of motor performance
- Brakes: Yes – supports braking functionality for landing control
- Forward/Reverse: Yes – includes thrust reversing for ground mobility
Telemetry and Smart Technology
- Telemetry: One-wire Smart telemetry – transmits current, voltage, temperature, RPM, and cell balance
- Firmware Updates: Supported – via Smart ESC Programming Box and SmartLink PC application
Protection and Safety Features
- Auto Cutoff: Yes – protects against low-voltage conditions
- Failsafe Protection: Yes – ensures controlled shutdown during signal loss
- Thermal Protection: Yes – prevents overheating during extended operation
- Over-Current Protection: Yes – safeguards against electrical surges
BEC Specifications
- BEC Type: Switch-mode – efficient power delivery to receiver and servos
- BEC Voltage: Adjustable – 6V, 7.4V, or 8.4V output options
- BEC Continuous Current: 8A – supports high-demand servo systems
- BEC Maximum Burst Current: 25A – handles peak loads during flight maneuvers
- Dual BEC Connectors: Yes – ensures stable and redundant power distribution
Construction and Mounting
- Case Material: Rugged plastic – impact-resistant for EDF environments
- Heat Sink: Integrated aluminum – supports efficient thermal dissipation
- Mounting Tabs: Included – enables secure hard mounting in aircraft fuselage
What’s in the Box
- 1 × Spektrum Avian 100A Smart ESC for the E-flite F-16 Falcon 80mm EDF
- 1 × Spektrum Smart sticker sheet
- 1 × Product Manual
What You Require / What You Will Need

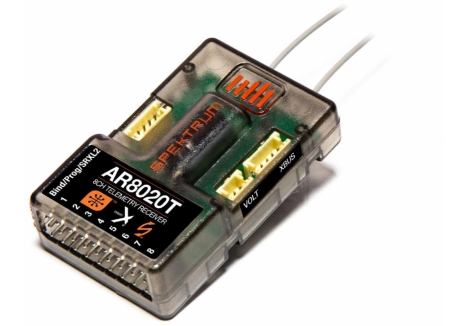

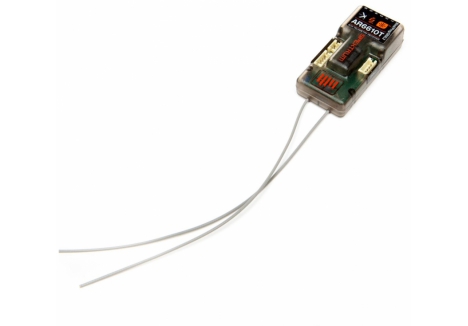

- Spektrum Aircraft Receiver – required for ESC integration

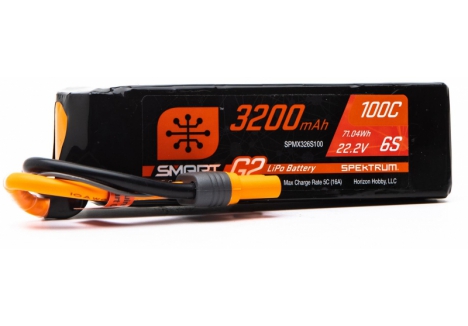

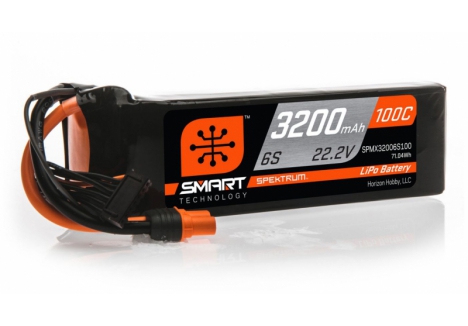

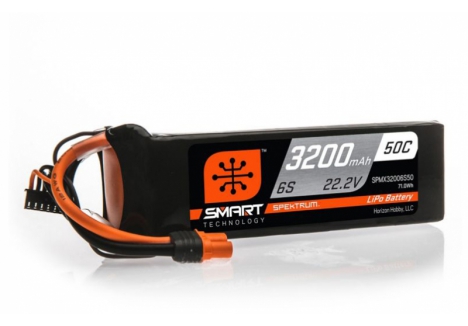

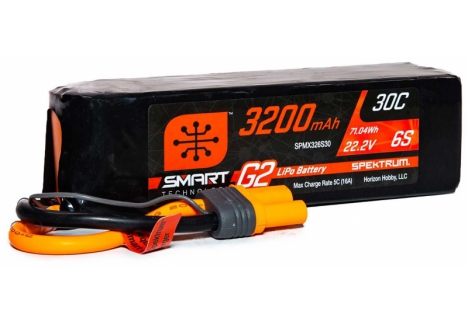

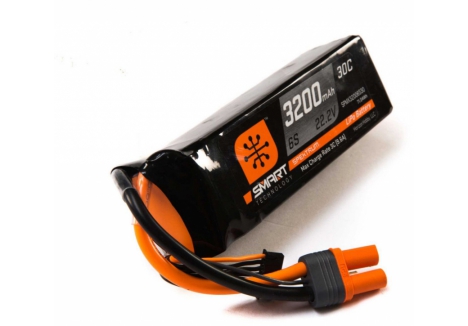

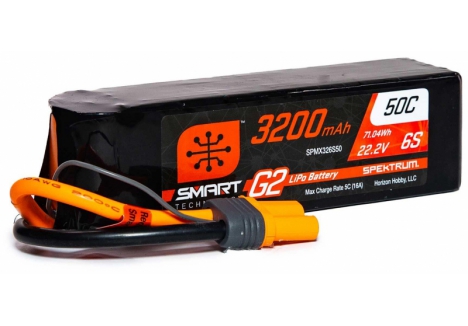

- Spektrum Smart Technology LiPo Battery – required for full telemetry functionality
- Spektrum Transmitter – required for Smart telemetry and thrust reversing
