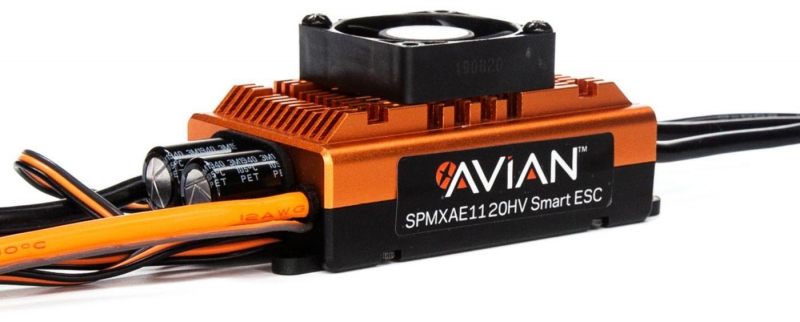

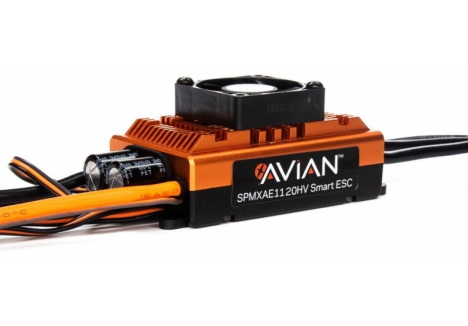

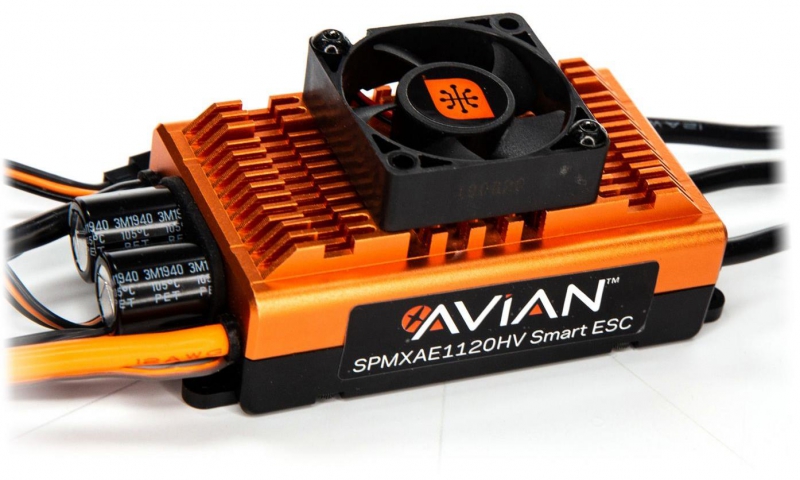

SPM Avian 120 Amp Brushless Smart ESC 6S - 12S P-SPMXAE1120HV

Model No: P-SPMXAE1120HV


Dispatched Within 3 Working Days

£259.99

£30.99

£229.00

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

Smart Technology — More connected for more confidence and control

Spektrum™ Smart Technology is about offering a higher connection to your hobby. It's an RC ecosystem that puts you in complete control while making vital components of your model easier to use than ever before. Smart technology ensures that all of your model's electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component's status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use.

Spektrum radios with Smart features can download firmware updates instantly using Wi-Fi and can swap setups with compatible radios via Bluetooth. Spektrum Smart LiPo batteries have a built-in microchip that records and communicates your charging preferences automatically to Smart chargers — just connect your pack and press "Start." Smart IC™ series connectors include an innovative data wire that transfers information easily between Smart components with a single connection. Finally, Smart ESCs not only deliver power but also eliminate the hassles from running telemetry. The days of installing and connecting multiple wires, sensors, modules and links are over.

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:

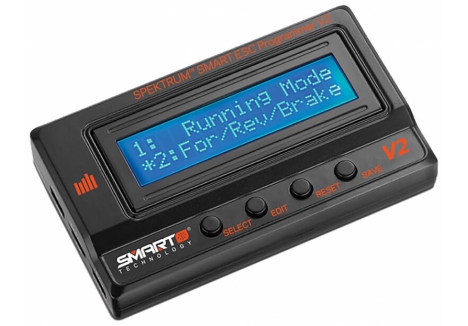

    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Up to 12S input voltage for high speed and top performance
  • Ideal for giant scale fixed wing aircraft and 600 sized and above helicopters
  • Compact for easy installation
  • Ready to install — no soldering required
  • Rugged plastic case
  • Heat dissipating design
  • Tabs included for a hard mount

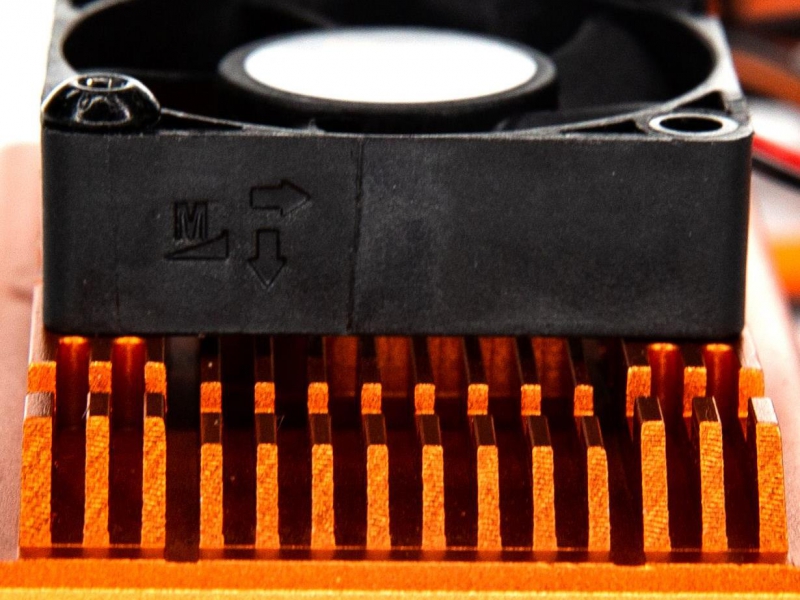

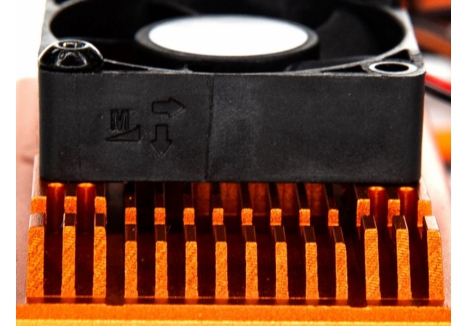

  • Aluminum heat sink for high efficiency

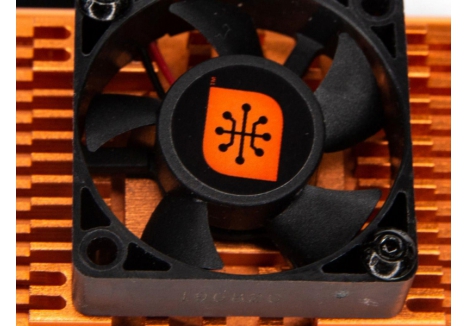

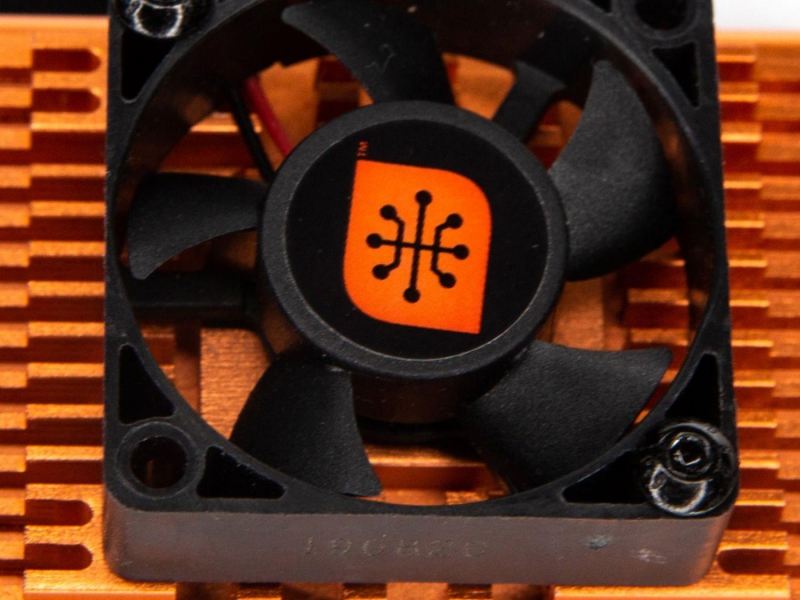

  • Cooling fan
  • Adjustable high-power BEC
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors

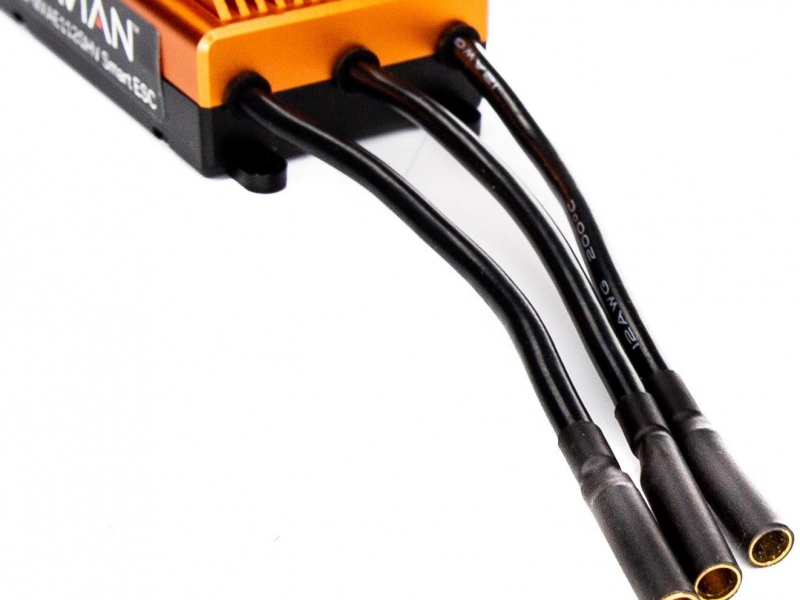

  • 6mm Motor connections fitted
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
  • Spektrum™ Aircraft Receiver

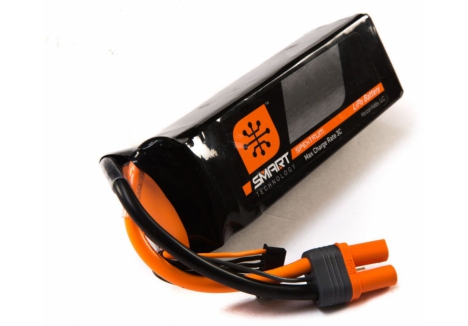

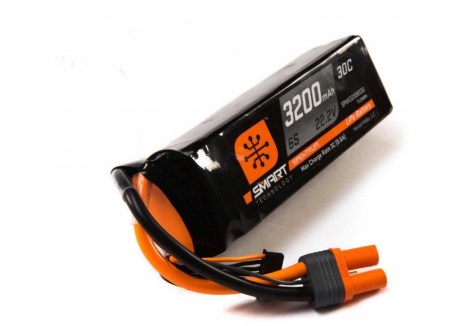

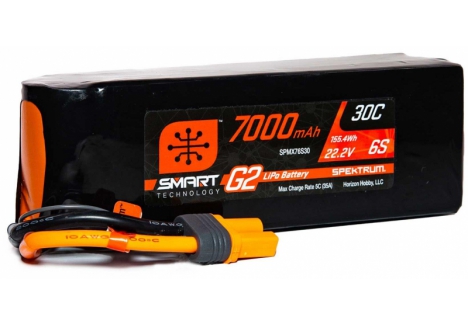

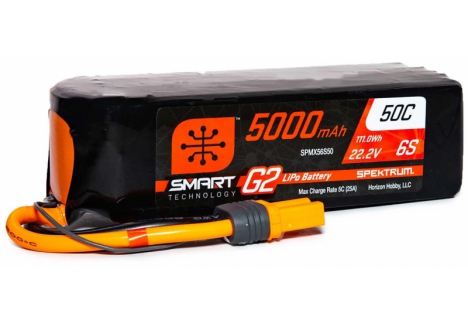

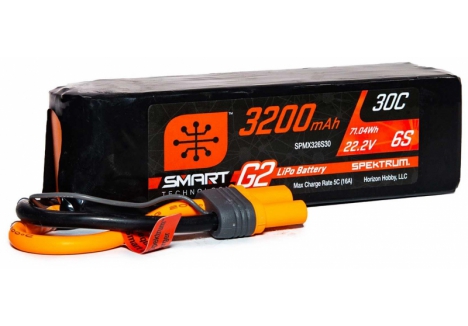

  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter
What's in the Box?
  • (1) Spektrum™ Avian™ Smart ESC
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual
ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

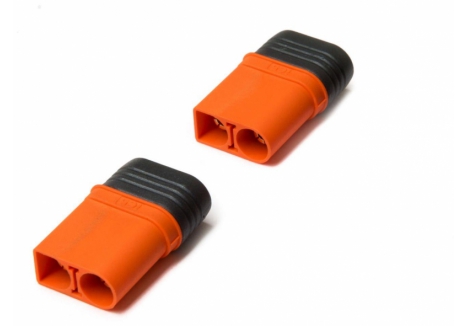

EC3™/EC5™ BACKWARDS COMPATIBLE

EC3™/EC5™ Backwards Compatible

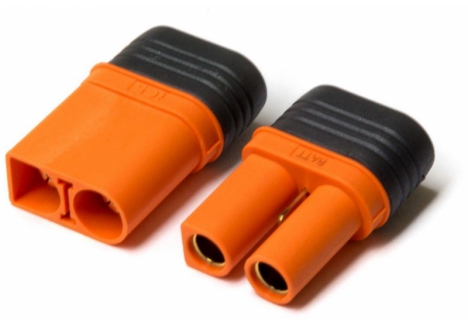

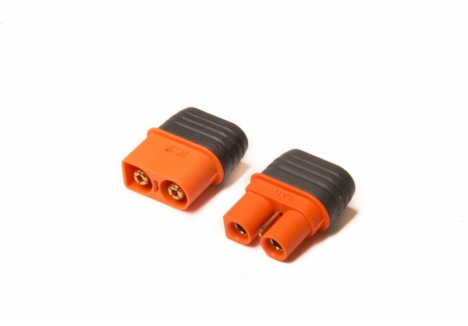

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



SMART TECHNOLOGY BATTERY DATA

Smart Technology Battery Data

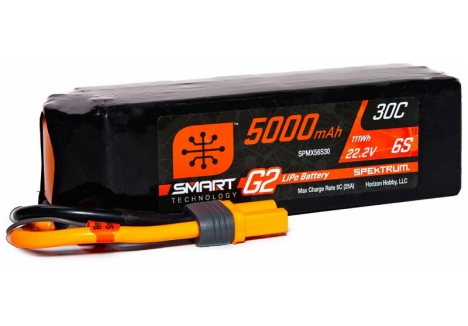

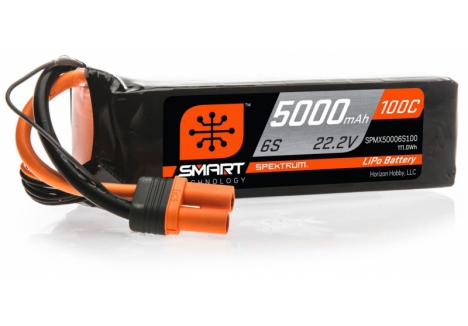

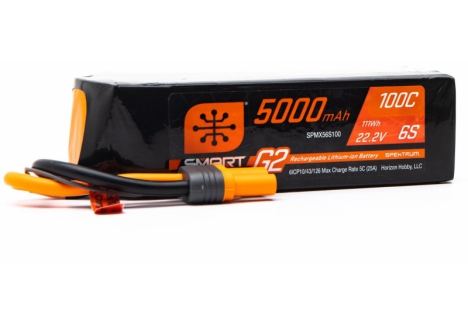

When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS

Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



FAST, POWERFUL M4 PROCESSOR

Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



The Spektrum P-SPMXAE1120HV Avian 120A Smart ESC with 6S–12S LiPo support, IC5 input, and 32-bit ARM M4 processor is engineered for giant-scale aircraft and high-performance helicopters that demand uncompromising power and precision. Designed in collaboration with a leading ESC manufacturer, this brushless electronic speed control integrates Smart telemetry, thrust reversing, and advanced programming options into a compact, heat-dissipating form factor. With support for up to 50.4V input and 120A continuous current, the Spektrum P-SPMXAE1120HV delivers the responsiveness, reliability, and configurability required for extreme airframes and demanding flight profiles.

Key features of the Spektrum P-SPMXAE1120HV Avian 120A Smart ESC

  • Smart telemetry – real-time data transmission via one-wire connection to Spektrum transmitters
  • Thrust reversing – motor reversal for braking and ground mobility

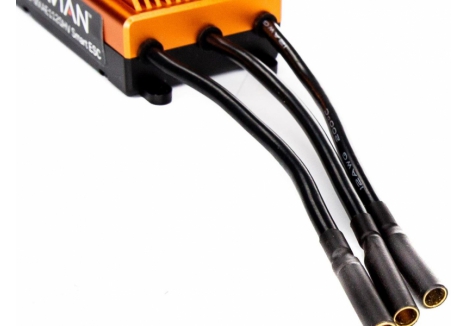

  • 6mm bullet motor leads – supports high-current brushless motor connections
  • Switch-mode BEC – adjustable output at 6V, 7.4V, or 8.4V for servo compatibility
  • Multi-point protection – includes thermal, over-current, and low-voltage cutoff safeguards
  • Aluminum heat sink – enhances thermal dissipation during high-load operation
  • Firmware updatable – supports SmartLink USB and Programming Box for field updates

What makes the Spektrum P-SPMXAE1120HV ideal for giant-scale aircraft?

The Spektrum P-SPMXAE1120HV brushless air ESC with Smart telemetry, thrust reversing, and 6mm bullet motor leads is built to handle the extreme electrical demands of large-scale fixed-wing aircraft and 600+ class helicopters. With a voltage input range of 22.2V to 50.4V and a continuous current rating of 120A, this ESC delivers sustained power for oversized motors and aggressive flight profiles. The 6mm bullet connectors ensure secure, high-current motor connections, while the IC5 input supports efficient battery integration. Whether you're flying aerobatic giants or scale helis, this ESC provides the muscle and control needed for top-tier performance.

How does Smart telemetry enhance flight safety and control?

Smart technology transforms the Spektrum digital air ESC with 6mm bullet motor leads, adjustable BEC, and thrust reversing into a real-time diagnostic hub. Through a single-wire connection, the ESC transmits key data—current, voltage, temperature, RPM, and cell balance—directly to your Spektrum transmitter. This eliminates the need for external sensors or modules, reducing weight and simplifying installation. Pilots gain immediate insight into system health and battery status, allowing for proactive adjustments and safer flight decisions. Smart telemetry ensures that your aircraft remains responsive and protected throughout every mission.

What role does thrust reversing play in ground handling?

Thrust reversing, available on the Spektrum P-SPMXAE1120HV Avian 120A Smart ESC with 6S–12S LiPo support, IC5 input, and 32-bit ARM M4 processor, adds a layer of control for ground mobility and landing management. With a Smart-compatible transmitter and receiver, users can reverse motor direction instantly, enabling smoother taxiing and braking on the runway. This feature is particularly valuable for large aircraft that require extended landing distances or operate in confined environments. Activated through ESC parameters, thrust reversing enhances realism and safety without requiring additional hardware.

How does the ARM M4 processor improve responsiveness?

At the core of the Spektrum P-SPMXAE1120HV HV ESC with 120A continuous current, 140A burst, and switch-mode BEC is a powerful 32-bit ARM M4 processor. This advanced chip architecture delivers high-resolution signal input and precise motor output, resulting in smoother throttle transitions and improved flight dynamics. The processor also supports complex telemetry functions and real-time data handling, ensuring accurate feedback without latency. For pilots seeking maximum control and responsiveness, the M4 processor is a key contributor to the ESC’s performance and reliability.

What programming options are available for field adjustments?

The Smart ESC for giant-scale aircraft and 600+ class helicopters with one-wire telemetry and firmware updates offers multiple programming methods to suit different pilot preferences. Throttle stick programming allows basic adjustments without extra tools. For more detailed configuration, the Smart ESC Programming Box provides a user-friendly interface for on-site tuning. Additionally, the SmartLink USB application enables firmware updates and parameter changes via PC. These options ensure that pilots can adapt their ESC settings to match flying conditions and performance goals with minimal downtime.

How does the aluminum heat sink and compact design support durability?

The high-performance air ESC with aluminum heat sink, dual BEC connectors, and overload protection is built to withstand the rigors of high-voltage flight. Its aluminum heat sink enhances thermal dissipation, preventing overheating during extended operation. The compact form factor (89mm length, 28mm height, 46mm width) allows for easy integration into tight fuselage compartments, while the 0.43 lb weight maintains aircraft balance. Dual BEC connectors ensure stable power distribution, and overload protection safeguards against electrical surges. These features combine to deliver long-term reliability and consistent performance.

Buy Spektrum P-SPMXAE1120HV Avian 120A Smart ESC for 6S–12S giant-scale aircraft and high-performance helis.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMXAE1120HV
  • Product Type: Spektrum P-SPMXAE1120HV Avian 120A Smart ESC with 6S–12S LiPo support, IC5 input, and 32-bit ARM M4 processor, Spektrum P-SPMXAE1120HV brushless air ESC with Smart telemetry, thrust reversing, and 6mm bullet motor leads, Spektrum P-SPMXAE1120HV HV ESC with 120A continuous current, 140A burst, and switch-mode BEC, Smart ESC for giant-scale aircraft and 600+ class helicopters with one-wire telemetry and firmware updates

Dimensions

  • Product Length: 8.9 cm – suitable for large fuselage compartments
  • Product Height: 2.8 cm – low-profile for streamlined integration
  • Product Width: 4.6 cm – standard footprint for HV air ESCs
  • Product Weight: 0.43 lb – balanced for giant-scale aircraft and helis

Electrical and Performance Specifications

  • ESC Type: Brushless – optimized for high-efficiency motor control
  • Application: Air – designed for giant-scale aircraft and 600+ class helicopters
  • Input Voltage: 22.2–50.4V (6S–12S LiPo) – supports high-voltage setups
  • Maximum Continuous Current: 120A – sustained output for demanding flight profiles
  • Maximum Burst Current: 140A – short-duration peak power handling
  • Output Connector: 6mm bullet – supports high-current motor connections
  • Battery Input Lead: IC5 – high heat-resistant connector with EC3/EC5 compatibility
  • Wire Gauge: 12 AWG – suitable for high-current applications

Processor and Control Features

  • Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
  • Programmable: Yes – supports transmitter stick input, Smart ESC Programming Box, and SmartLink app
  • Adjustable Timing: Yes – enables fine-tuning of motor performance
  • Brakes: Yes – supports braking functionality for landing control
  • Forward/Reverse: Yes – includes thrust reversing for ground mobility

Telemetry and Smart Technology

  • Telemetry: One-wire Smart telemetry – transmits current, voltage, temperature, RPM, and cell balance
  • Firmware Updates: Supported – via Smart ESC Programming Box and SmartLink PC application

Protection and Safety Features

  • Auto Cutoff: Yes – protects against low-voltage conditions
  • Failsafe Protection: Yes – ensures controlled shutdown during signal loss
  • Thermal Protection: Yes – prevents overheating during extended operation
  • Over-Current Protection: Yes – safeguards against electrical surges
  • Overload Protection: Yes – supports high-load safety

BEC Specifications

  • BEC Type: Switch-mode – efficient power delivery to receiver and servos
  • BEC Voltage: Adjustable – 6V, 7.4V, or 8.4V output options
  • BEC Continuous Current: 8A – supports high-demand servo systems
  • BEC Maximum Burst Current: 25A – handles peak loads during flight maneuvers
  • Dual BEC Connectors: Yes – ensures stable and redundant power distribution

Construction and Mounting

  • Heat Sink: Integrated aluminum – supports efficient thermal dissipation
  • Ready to Install: Yes – arrives pre-configured with no soldering required

What’s in the Box

  • 1 × Spektrum Avian 120A Smart ESC
  • 1 × Spektrum Smart sticker sheet
  • 1 × Product Manual

What You Require / What You Will Need

  • Spektrum Aircraft Receiver – required for ESC integration
  • Spektrum Smart Technology LiPo Battery – required for full telemetry functionality
  • Spektrum Transmitter – required for Smart telemetry and thrust reversing
