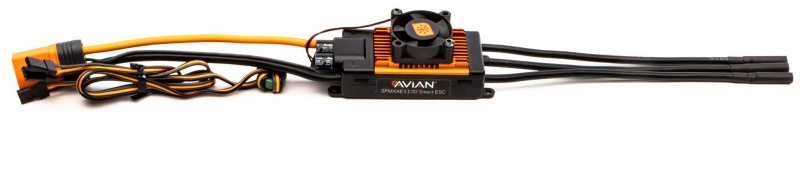

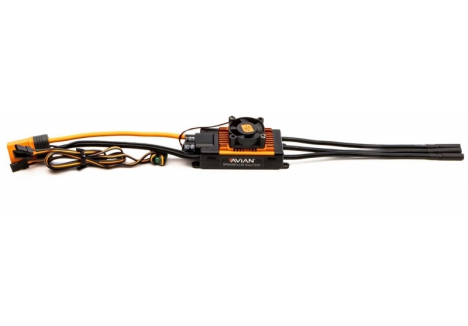

SPM Avian 130A Brushless Smart ESC 6S Ver:A P-SPMXAE1130A

Model No: P-SPMXAE1130A


Dispatched Within 3 Working Days

£134.99

£15.99

£119.00

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

SPMXAE1130A Specs

  • Motor Output Leads: 5.12 in (130mm) 12AWG with 4.0mm bullet connector
  • Battery Input Leads: 15.75 in (400mm) 12AWG with IC5 connector
  • Throttle Lead: 17.71 in (450mm) standard gauge with servo connector

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install - no soldering required
  • Rugged plastic case
  • Heat dissipating design
  • Tabs included for a hard mount
  • Aluminum heat sink for high efficiency
  • Adjustable high-power BEC
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC connectors, backwards compatible with EC connectors
  • Limited 1-year warranty

Product Overview

Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY
One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.



EC3<sup>™</sup>/EC5<sup>™</sup> BACKWARDS COMPATIBLE
EC3/EC5 Backwards Compatible

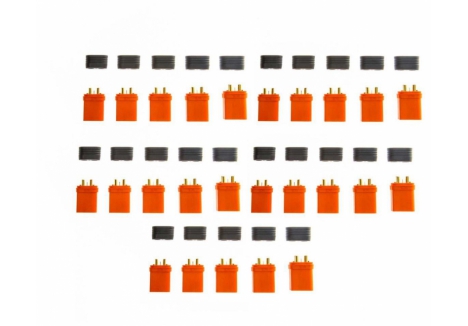

Avian ESCs feature IC series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



SMART TECHNOLOGY BATTERY DATA
Smart Technology Battery Data

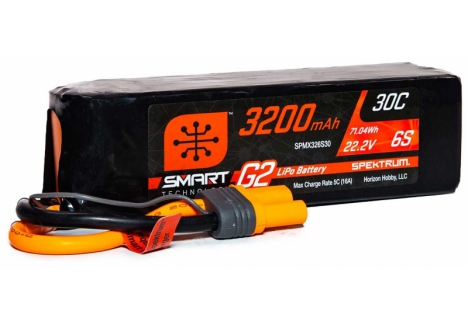

When used with a Spektrum Smart LiPo battery, your Avian ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS
Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



FAST, POWERFUL M4 PROCESSOR
Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



Smart ESC Thrust Reversing
Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.



On-Screen ESC Programming
On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency , right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.





The Spektrum P-SPMXAE1130A Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor is engineered for EDF aircraft requiring high-current performance and streamlined installation. This “Version A” model is tailored specifically for the E-flite Viper 90mm EDF and similar platforms, featuring extended lead lengths and optimized programming to simplify integration. With Smart telemetry, thrust reversing, and a rugged heat-dissipating design, the Spektrum P-SPMXAE1130A delivers precision control and real-time diagnostics in a compact, ready-to-install package. Whether you're upgrading an EDF jet or building a custom 3S–6S aircraft, this ESC offers the reliability and configurability needed for high-performance flight.

Key features of the Spektrum P-SPMXAE1130A Avian 130A Smart ESC

  • Smart telemetry – transmits real-time data to your Spektrum transmitter via one-wire connection
  • Thrust reversing – enables motor reversal for braking and ground mobility
  • EDF-specific lead lengths – 15.75" battery, 5.12" motor, and 17.71" throttle leads for clean installs
  • Switch-mode BEC – adjustable output at 6V, 7.4V, or 8.4V for servo compatibility
  • Multi-point protection – includes thermal, over-current, and low-voltage cutoff safeguards
  • Rugged plastic case – features aluminum heat sink and mounting tabs for secure installation
  • Firmware updatable – supports SmartLink USB and Programming Box for field updates

Why is the Spektrum P-SPMXAE1130A ideal for EDF aircraft?

The Spektrum P-SPMXAE1130A brushless air ESC with Smart telemetry, thrust reversing, and EDF-specific lead lengths is built to meet the unique demands of electric ducted fan installations. With extended wire lengths—15.75" battery input, 5.12" motor output, and 17.71" throttle lead—the ESC simplifies routing within tight fuselage compartments and ensures clean, interference-free connections. This tailored configuration makes it especially well-suited for models like the E-flite Viper 90mm EDF, where space and layout precision are critical. The inclusion of Smart telemetry and thrust reversing further enhances control and flight realism.

How does Smart telemetry improve flight monitoring?

Smart technology transforms the Spektrum digital air ESC with 130A output, 160A burst, and on-screen programming via Spektrum transmitter into a real-time diagnostic hub. Through a single-wire connection, the ESC transmits key data—current, voltage, temperature, RPM, and cell balance—directly to your Spektrum transmitter. This eliminates the need for separate sensors or modules, reducing weight and complexity. Pilots gain immediate insight into system health and battery status, allowing for proactive adjustments and safer flight decisions. Smart telemetry ensures that your aircraft remains responsive and protected throughout every mission.

What role does thrust reversing play in ground handling?

Thrust reversing, available on the Spektrum P-SPMXAE1130A Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, adds a layer of control for ground mobility and landing management. With a Smart-compatible transmitter and receiver, users can reverse motor direction instantly, allowing for smoother taxiing and braking on the runway. This feature is particularly valuable for EDF jets that require extended landing distances or operate in confined environments. Activated through ESC parameters, thrust reversing enhances realism and safety without requiring additional hardware.

How does the ARM M4 processor improve responsiveness?

At the heart of the Spektrum P-SPMXAE1130A HV ESC with 130A continuous current, 160A burst, and adjustable switch-mode BEC is a powerful 32-bit ARM M4 processor. This advanced chip architecture delivers high-resolution signal input and precise motor output, resulting in smoother throttle transitions and improved flight dynamics. The processor also supports complex telemetry functions and real-time data handling, ensuring accurate feedback without latency. For pilots seeking maximum control and responsiveness, the M4 processor is a key contributor to the ESC’s performance and reliability.

What programming options are available for field adjustments?

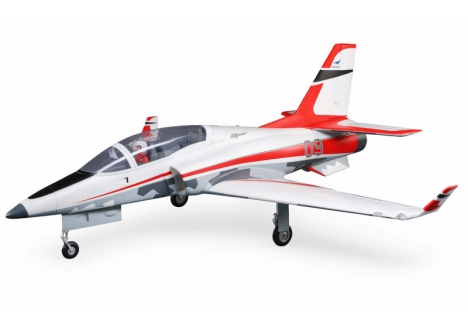

The Smart ESC for E-flite Viper 90mm EDF and similar aircraft with one-wire telemetry and firmware updates offers multiple programming methods to suit different pilot preferences. Throttle stick programming allows basic adjustments without extra tools. For more detailed configuration, the Smart ESC Programming Box provides a user-friendly interface for on-site tuning. Additionally, the SmartLink USB application enables firmware updates and parameter changes via PC. These options ensure that pilots can adapt their ESC settings to match flying conditions and performance goals with minimal downtime.

How does the rugged case and heat sink improve durability?

The high-performance air ESC with rugged plastic case, aluminum heat sink, and tabs for hard mounting is built to withstand the rigors of EDF flight. Its plastic housing offers impact resistance, while the integrated aluminum heat sink ensures efficient thermal dissipation during high-load operation. Mounting tabs provide secure attachment points, reducing vibration and improving installation stability. These design elements contribute to long-term reliability and consistent performance, even in demanding flight environments.

Buy Spektrum P-SPMXAE1130A Avian 130A Smart ESC for E-flite Viper 90mm EDF and other 3S–6S aircraft.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMXAE1130A
  • Product Type: Spektrum P-SPMXAE1130A Avian 130A Smart ESC with 3S–6S LiPo support, IC5 input, and 32-bit ARM M4 processor, Spektrum P-SPMXAE1130A brushless air ESC with Smart telemetry, thrust reversing, and EDF-specific lead lengths, Spektrum P-SPMXAE1130A HV ESC with 130A continuous current, 160A burst, and adjustable switch-mode BEC, Smart ESC for E-flite Viper 90mm EDF and similar aircraft with one-wire telemetry and firmware updates

Dimensions

  • Product Length: 8.4 cm – compact for EDF fuselage integration
  • Product Height: 3.3 cm – low-profile for tight installations
  • Product Width: 3.6 cm – standard footprint for air ESC mounting
  • Product Weight: 126 g (4.4 oz) – lightweight for balanced aircraft setups

Electrical and Performance Specifications

  • ESC Type: Brushless – optimized for high-efficiency motor control
  • Application: Air – tailored for EDF aircraft and 3S–6S LiPo systems
  • Input Voltage: 3S–6S LiPo – supports up to 22.2V for HV setups
  • Maximum Continuous Current: 130A – sustained output for high-demand flight profiles
  • Maximum Burst Current: 160A – short-duration peak power handling

Lead Configuration

  • Battery Input Lead: 15.75 in (400 mm), 12AWG with IC5 connector – extended length for EDF routing
  • Motor Output Lead: 5.12 in (130 mm), 12AWG with 4.0 mm bullet connectors – standard for brushless motors
  • Throttle Lead: 17.71 in (450 mm), standard gauge with servo connector – optimized for EDF installs

Processor and Control Features

  • Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
  • Programmable: Yes – supports transmitter stick input, Smart ESC Programming Box, and SmartLink app
  • Adjustable Timing: Yes – enables fine-tuning of motor performance
  • Brakes: Yes – supports braking functionality for landing control
  • Forward/Reverse: Yes – includes thrust reversing for ground mobility

Telemetry and Smart Technology

  • Telemetry: One-wire Smart telemetry – transmits current, voltage, temperature, RPM, and cell balance
  • Firmware Updates: Supported – via Smart ESC Programming Box and SmartLink PC application

Protection and Safety Features

  • Auto Cutoff: Yes – protects against low-voltage conditions
  • Failsafe Protection: Yes – ensures controlled shutdown during signal loss
  • Thermal Protection: Yes – prevents overheating during extended operation
  • Over-Current Protection: Yes – safeguards against electrical surges
  • Overload Protection: Yes – supports high-load safety

BEC Specifications

  • BEC Type: Switch-mode – efficient power delivery to receiver and servos
  • BEC Voltage: Adjustable – 6V, 7.4V, or 8.4V output options
  • BEC Continuous Current: 8A – supports high-demand servo systems
  • BEC Maximum Burst Current: 25A – handles peak loads during flight maneuvers
  • Dual BEC Connectors: Yes – ensures stable and redundant power distribution

Construction and Mounting

  • Case Material: Rugged plastic – impact-resistant for EDF environments
  • Heat Sink: Integrated aluminum – supports efficient thermal dissipation
  • Mounting Tabs: Included – enables secure hard mounting in aircraft fuselage

What’s in the Box

  • 1 × Spektrum Avian 130A Smart ESC for the E-flite Viper 90mm EDF
  • 1 × Spektrum Smart sticker sheet
  • 1 × Product Manual

What You Require / What You Will Need

  • Spektrum Aircraft Receiver – required for ESC integration
  • Spektrum Smart Technology LiPo Battery – required for full telemetry functionality
  • Spektrum Transmitter – required for Smart telemetry and thrust reversing
