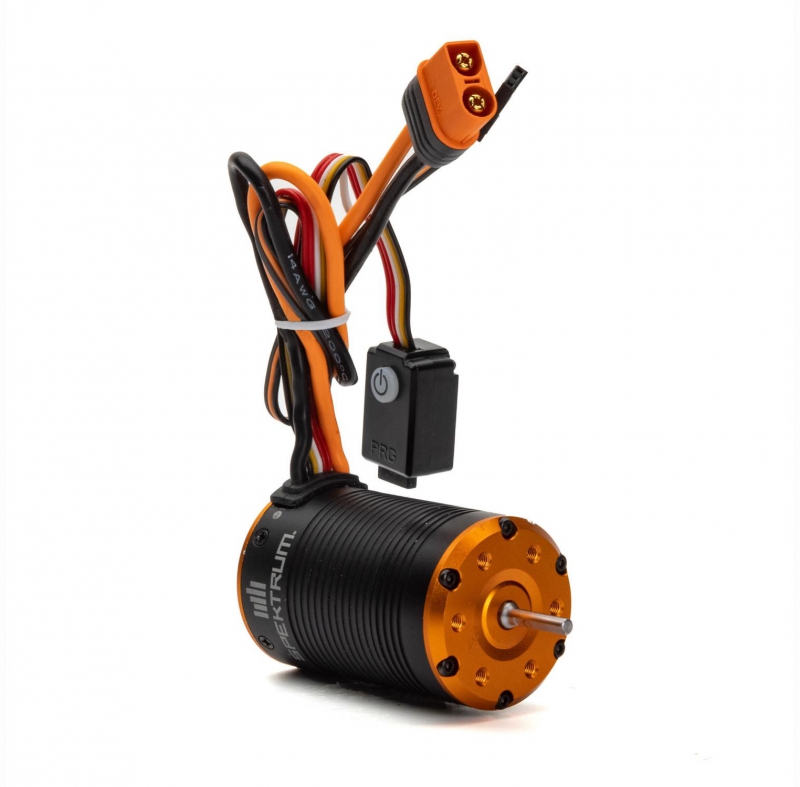

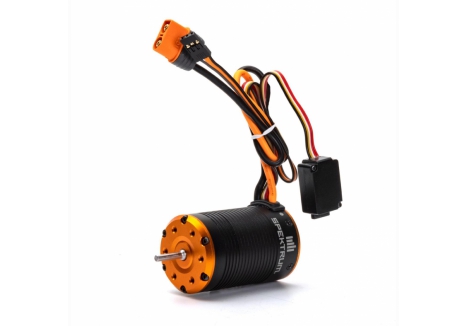

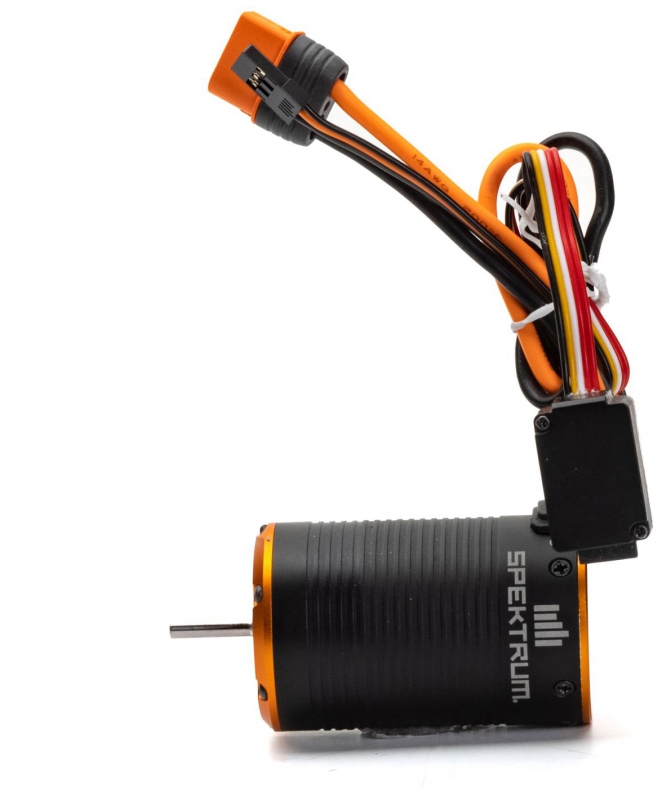

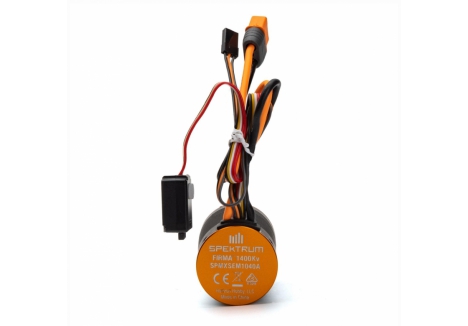

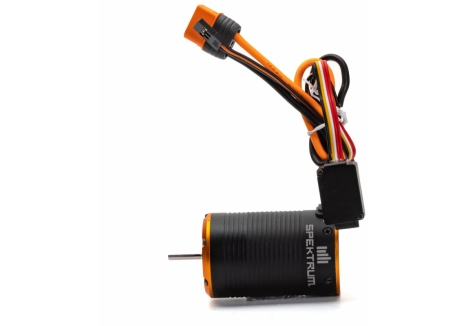

SPM Firma 2-in-1 Brushless Crawler Motor/ESC: 1400Kv P-SPMXSEM1040A

Model No: P-SPMXSEM1040A


Dispatched Within 3 Working Days

£199.99

£24.99

£175.00

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

Product Details

The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control, all while being fully waterproof.

Key Features

  • Pro-level Drag Brake performance and adjustability
  • IP-67 Rated Waterproof System
  • Compact for easy installation in most applications
  • Ready to install - no soldering required
  • Integrated 40A / 160A ESC
In The Box
  • (1) Spektrum Firma Brushless Sensored 2-in-1 System 1400Kv
  • (1) Product Manual
Needed to Complete
  • Spektrum Surface Receiver

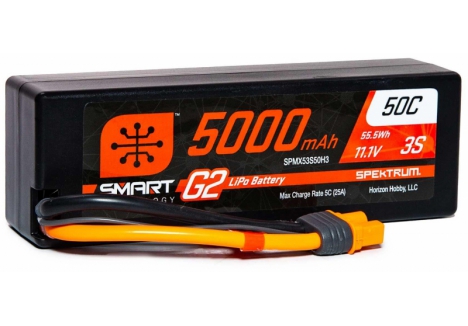

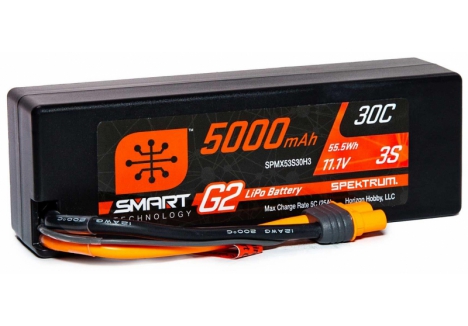

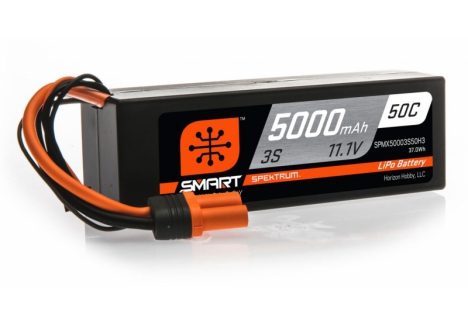

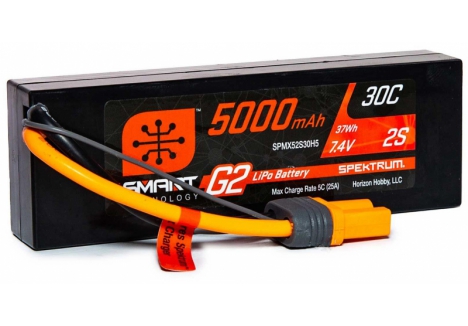

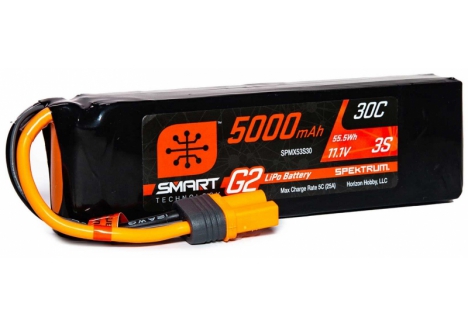

  • 2S or 3S LiPo Battery with EC3 or IC3 Connector
  • Spektrum Transmitter

Key Benefits

2-in-1 ESC Motor Combo: Compact option for detailed scale builds where space is limited

Advanced Sensored Motor Control: Great for slow speed driving and next level drag brake performance

IP-67 Waterproof Design: The IP-67 waterproof system provides industry leading waterproof and dustproof operation for worry-free driving in mud, sand, snow and water

Multi-point Protection:

  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection

Features

  • Pro-level Drag Brake performance and adjustability
  • RPM/Throttle Matching enabled
  • FOC (Field-Oriented Control) equipped
  • Integrated 40-amp ESC (160amp burst)

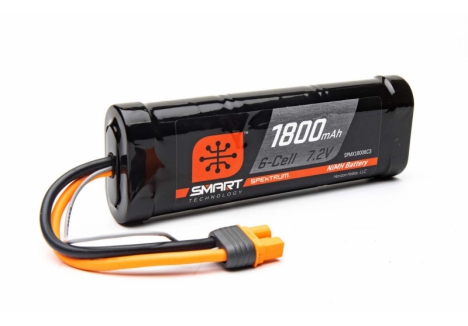

  • 2-3S LiPo/6-9 Cell NiMH input voltage range
  • IP-67 rated waterproof system
  • Fully programmable with optional Spektrum ESC Programmer Box (not included)
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC and Brushless Motor manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Adjustable high-power BEC (6V or 7.4V)
  • Firmware updatable through the Spektrum ESC Programming Box
  • High heat resistant IC3 connectors, backwards compatible with EC3 connectors
  • Limited 1-year warranty

The Ultimate Compact Crawler Solution

The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control, all while being fully waterproof.

The compact 2-in-1 design grants builders the ability to reduce clutter and components, giving you the most room for scale accessories and customization. The integrated design makes the size similar to a 550 can size motor, making it a easy drop-in option for most 1/10 scale crawler, scaler and trailer models.

Available in a low speed 1400Kv option for extreme slow speed and high angle of attack performance. And a high speed 2300Kv for excellent control for trailers and rock bouncers.

Field-oriented Control
Field-oriented Control

The Spektrum Firma Sensored 2-in-1 System features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving, rock crawling competitions and rock racing setups. This advancement in sensored motor control allows the ESC to match your throttle input to the motors RPM with unmatched precision.



Intelligent Speed And Control
Intelligent Speed And Control

The Spektrum Firma Sensored 2-in-1 System provides a closed loop control, ensuring that the esc maintains torque and RPM levels even as driving conditions change. Giving unprecedented control when driving uphill or downhill and even when in wet or loose traction conditions. No matter the terrain, the Spektrum Firma Crawler system keeps you in complete control.



Maximum Power Efficiency Provides Longer Lasting Battery Life
Maximum Power Efficiency Provides Longer Lasting Battery Life

When driving with the Spektrum Firma Sensored 2-in-1 System, drivers are better equipped for the long trails ahead. The Spektrum Firma Sensored 2-in-1 System only uses the power it needs to match your desired throttle output, providing substantially more efficient current levels and extremely long battery life when compared with similar sensorless systems.



Pro-level Drag Brake Adjustment
Pro-level Drag Brake Adjustment

The Spektrum Firma Sensored 2-in-1 System features a huge range of drag brake adjustability, allowing for drivers to expertly tune their crawlers and scalers depending on their driven train and vehicle weight. Allowing up to 200% drag power, no matter the setup, the Spektrum Firma Sensored 2-in-1 System can keep your vehicle parked at nearly any incline.



Waterproof
Waterproof

The all-weather, waterproof design of Spektrum Firma ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



High-adjustability Prgramming Options
High-adjustability Prgramming Options

Using the Spektrum ESC Programming Box (version V2 required) , you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.



The Spektrum P-SPMXSEM1040A Firma 2-in-1 sensored crawler motor and ESC combo with 1400Kv output and 2S–3S LiPo support is a purpose-built solution for 1/10-scale crawlers, scalers, and trail rigs demanding precision, torque, and compact integration. Engineered with advanced Field-Oriented Control (FOC), this waterproof 550-size unit delivers unmatched throttle fidelity and drag brake performance across steep inclines and technical terrain. With SmartLink compatibility, adjustable BEC, and a fully sealed housing, the Spektrum P-SPMXSEM1040A offers intelligent control and rugged reliability for scale builders and competitive rock crawlers alike.

Key features of the Spektrum P-SPMXSEM1040A Firma 2-in-1 sensored crawler motor and ESC combo

  • Integrated 2-in-1 design – combines motor and ESC in a compact 550-size housing for tight installs
  • Advanced FOC control – delivers precise RPM matching and torque regulation across all terrain types
  • Pro-level drag brake tuning – up to 200% brake force for secure hold on steep inclines
  • SmartLink programming – supports firmware updates and trail-side tuning via optional programmer box
  • Waterproof construction – sealed housing for dustproof and all-weather operation
  • Adjustable BEC – 6V/7.4V switch-mode output with 4A continuous current for servo compatibility
  • High-efficiency power delivery – closed-loop control for longer battery life and consistent torque

How does the 2-in-1 architecture benefit scale builds?

The Spektrum P-SPMXSEM1040A waterproof 550-size motor/ESC system with FOC control, 4A BEC, and IC3 connector is designed to reduce clutter and maximize space in scale crawler chassis. By integrating the ESC directly into the motor housing, builders gain valuable room for accessories, interior detailing, and clean wire routing. The 58mm length and 201g weight make it a drop-in fit for most 1/10-scale platforms, including trail rigs and competition crawlers. This compact footprint ensures compatibility without compromising performance or durability.

What makes FOC control ideal for crawling?

The Smart-compatible 2-in-1 motor/ESC for 1/10-scale crawlers, scalers, and trail rigs with RPM matching features Field-Oriented Control technology that precisely aligns motor output with throttle input. This results in smoother low-speed driving, better torque modulation, and improved control on uneven terrain. The system uses a magnetic encoder and rotor position sensor to maintain 1:1 throttle fidelity, allowing drivers to navigate rocks, slopes, and tight turns with confidence. Whether ascending a steep trail or descending a loose surface, FOC ensures consistent and responsive motor behavior.

How does the drag brake system enhance crawling performance?

The Spektrum P-SPMXSEM1040A brushless crawler system with 40A continuous ESC, 160A burst, and 200% drag brake tuning offers extensive brake adjustability for terrain-specific tuning. With up to 200% drag brake force, users can lock their vehicle in place on steep inclines or during technical maneuvers. This level of control is essential for rock crawling competitions and scale realism, where holding position without rolling is critical. The drag brake can be fine-tuned via the optional Spektrum ESC Programmer Box, allowing for precise calibration based on drivetrain setup and vehicle weight.

Is the Spektrum P-SPMXSEM1040A suitable for wet and dusty conditions?

Absolutely. The high-efficiency crawler system with waterproof housing, failsafe logic, and SmartLink programming options is built for all-weather operation. Its sealed design protects internal electronics from water, mud, and debris, making it ideal for trail driving in unpredictable environments. Whether you're crossing streams, climbing wet rocks, or navigating dusty paths, the waterproof construction ensures uninterrupted performance and long-term reliability.

What kind of power efficiency does this system offer?

The Spektrum digital motor/ESC unit with 160A burst, 4-pole rotor, and 3mm shaft for torque-sensitive platforms uses closed-loop control to match current draw with throttle demand. This intelligent power management reduces unnecessary energy consumption, extending battery life and improving runtime. Compared to sensorless systems, the Spektrum P-SPMXSEM1040A delivers smoother operation and significantly greater efficiency—especially during slow-speed crawling and high-angle climbs where torque consistency is vital.

How flexible is the programming interface?

Using the optional Spektrum ESC Programmer Box (V2 required), users can access a full suite of tuning parameters including throttle curves, drag brake strength, and cutoff thresholds. The Spektrum P-SPMXSEM1040A with 6V/7.4V adjustable BEC, 201g weight, and 58mm length for tight installs also supports firmware updates via SmartLink USB, ensuring compatibility with future enhancements. This flexibility allows drivers to adapt their setup to changing terrain, driving style, or competition requirements—all without removing the unit from the vehicle.

Buy Spektrum P-SPMXSEM1040A Firma 2-in-1 1400Kv motor/ESC combo for 1/10-scale rock crawlers and scalers.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMXSEM1040A
  • Product Type: Spektrum P-SPMXSEM1040A Firma 2-in-1 sensored crawler motor and ESC combo with 1400Kv output and 2S–3S LiPo support, Spektrum P-SPMXSEM1040A waterproof 550-size motor/ESC system with FOC control, 4A BEC, and IC3 connector, Spektrum P-SPMXSEM1040A brushless crawler system with 40A continuous ESC, 160A burst, and 200% drag brake tuning, Spektrum P-SPMXSEM1040A with 6V/7.4V adjustable BEC, 201g weight, and 58mm length for tight installs, Smart-compatible 2-in-1 motor/ESC for 1/10-scale crawlers, scalers, and trail rigs with RPM matching

Dimensions

  • Length: 5.8 cm – compact enough for tight 1/10-scale crawler chassis
  • Outer Diameter: 3.7 cm – standard 550-size motor profile for drop-in fitment
  • Weight: 201 g – includes wire plug; optimized for balance and torque stability
  • Shaft Diameter: 3 mm – suitable for torque-sensitive drivetrains
  • Shaft Length: 1.6 cm – compatible with standard crawler gearboxes

Electrical and Performance Specifications

  • Motor Type: Brushless – engineered for high-efficiency crawling and scaling
  • ESC Type: Integrated – 2-in-1 motor/ESC architecture for simplified installation
  • Application: Crawling, Surface – optimized for 1/10-scale rock crawlers and trail rigs
  • Input Voltage: 2S–3S LiPo / 6–9 cell NiMH – supports common crawler battery setups
  • Maximum Continuous Current: 40A – stable output for slow-speed torque control
  • Maximum Burst Current: 160A – handles peak loads during steep climbs and throttle spikes
  • RPM/Volt (Kv): 1400Kv – tuned for low-speed crawling and high-angle performance
  • Number of Poles: 4 – delivers smooth torque and precise throttle modulation

Control and Programming Features

  • FOC Control: Yes – Field-Oriented Control enables precise RPM/throttle matching
  • Drag Brake Tuning: Up to 200% – customizable hold strength for steep inclines
  • Programmable: Yes – supports SmartLink USB and ESC Programmer Box (V2 required)
  • Forward/Reverse: Yes – full directional control for technical terrain
  • Failsafe Logic: Yes – maintains control during signal loss or system fault

BEC Specifications

  • BEC Type: Switch-mode – efficient power delivery with reduced heat
  • BEC Voltage: Adjustable 6V or 7.4V – supports a wide range of servo configurations
  • BEC Continuous Current: 4A – suitable for high-torque servo systems

Protection and Safety Features

  • Overload Protection: Yes – safeguards against electrical surges
  • Thermal Protection: Yes – prevents overheating during extended use
  • Low-Voltage Cutoff: Yes – protects battery from over-discharge
  • Waterproof Rating: Yes – sealed housing for all-weather operation

Connectivity and Compatibility

  • Connector Type: IC3 – high heat-resistant input, backwards compatible with EC3
  • Smart Compatibility: Yes – supports SmartLink programming and telemetry integration

What’s in the Box

  • 1 × Spektrum Firma Brushless Sensored 2-in-1 System 1400Kv
  • 1 × Product Manual

What You Require / What You Will Need

  • 1 × Spektrum Surface Receiver
  • 1 × 2S or 3S LiPo Battery with EC3 or IC3 Connector
  • 1 × Spektrum Transmitter
