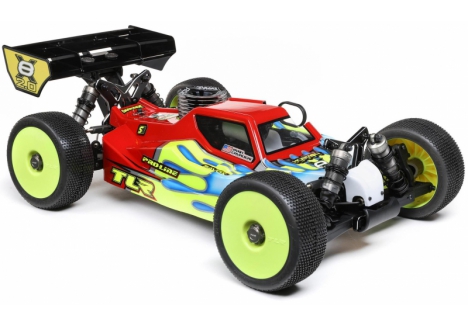

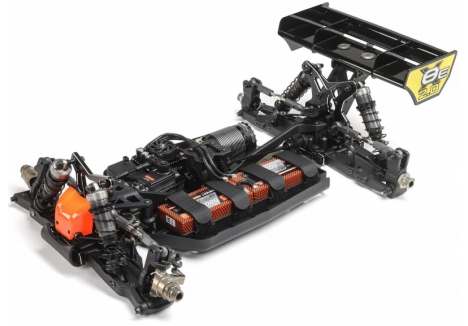

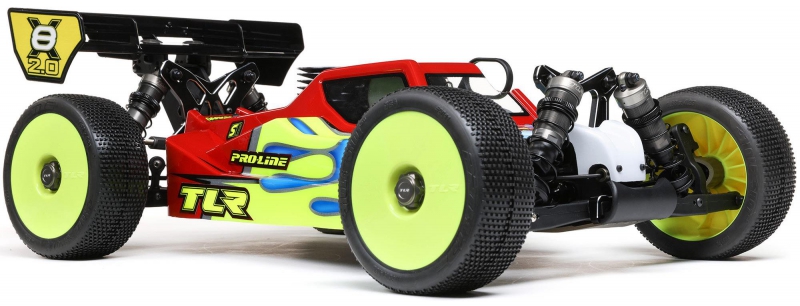

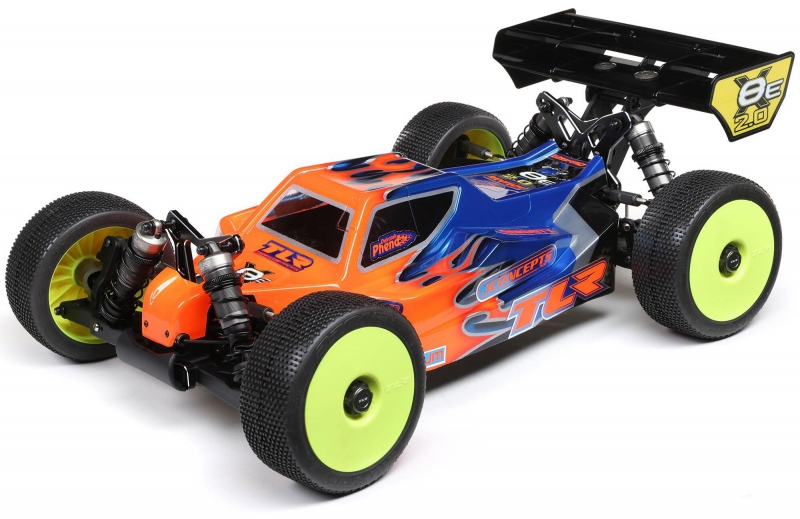

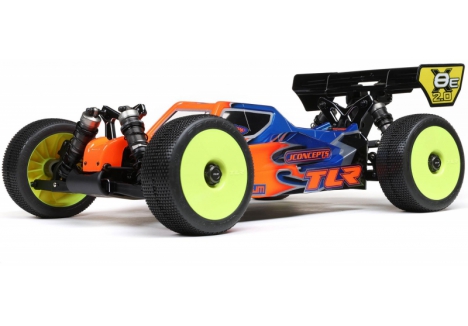

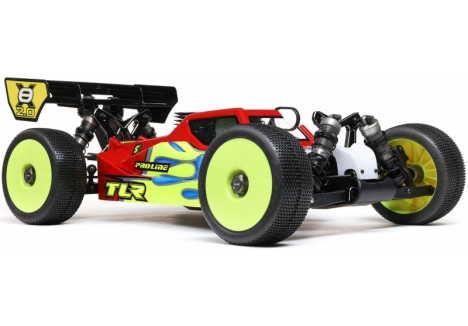

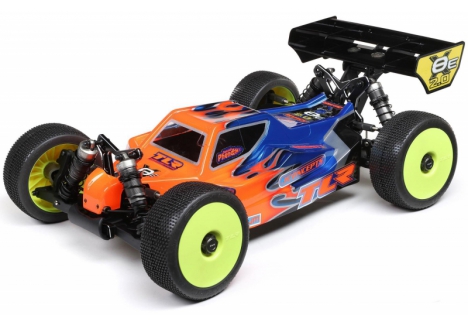

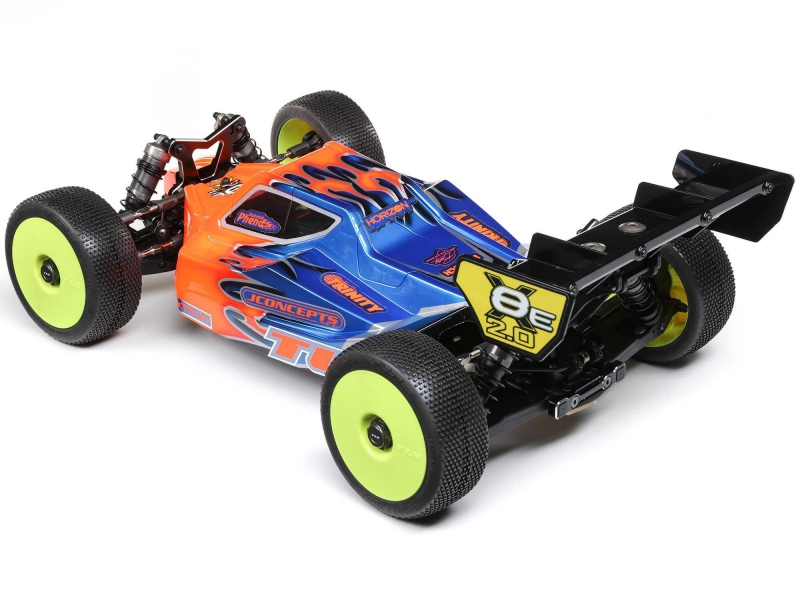

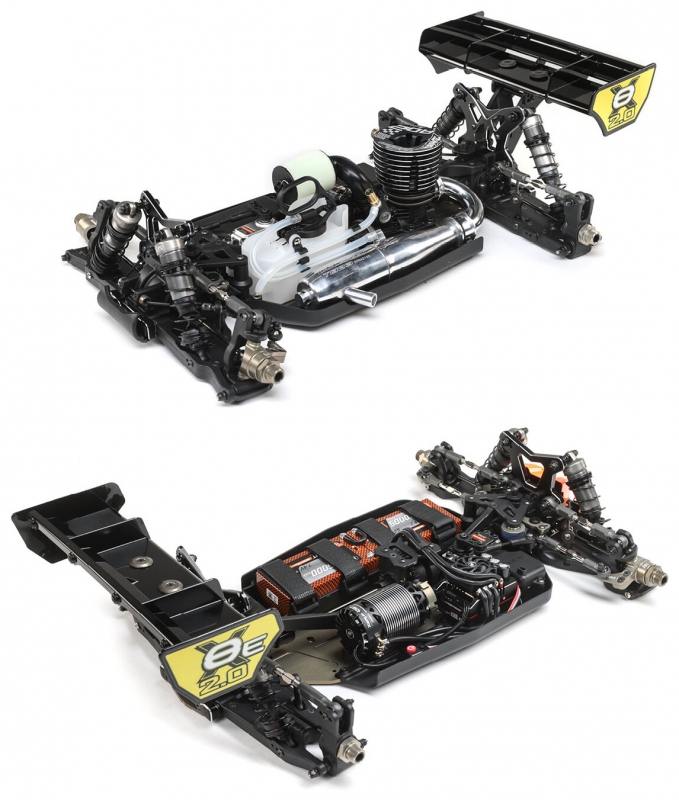

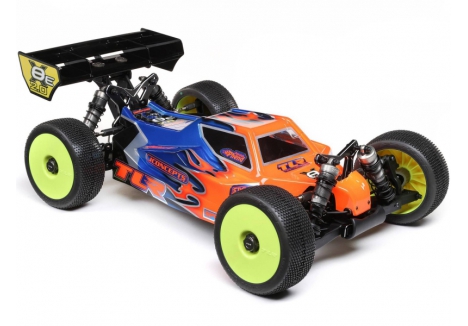

Product Description of TLR C-TLR04012 nitro/electric buggy race kit

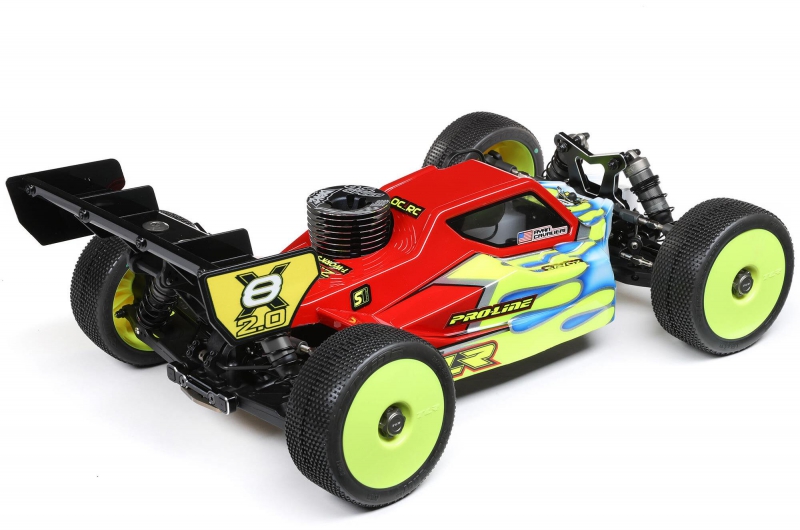

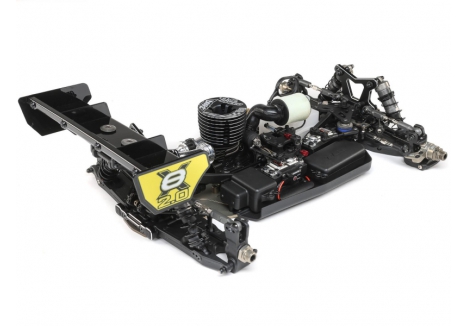

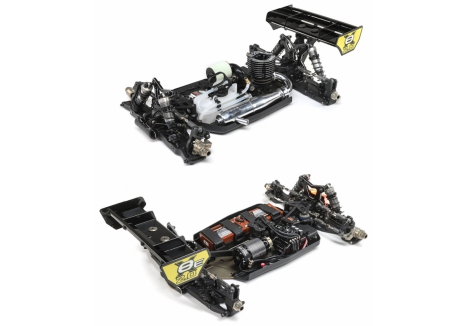

The TLR C-TLR04012 nitro/electric buggy race kit is a 1/8 scale 4WD competition buggy engineered for podium-level performance, precision tuning, and dual-power flexibility. Designed for racers who demand maximum control and adaptability, this brushless/nitro RC race car kit includes all components required to build either a nitro or electric configuration straight out of the box. With a 7075 aluminium chassis, centre diff setup, and fully updated suspension geometry, the TLR C-TLR04012 1/8 scale 4WD competition buggy delivers elite drivability across track conditions. Whether you're chasing lap times or mastering technical layouts, this kit is built to win.
Key features of the C-TLR04012 nitro/electric buggy race kit
- 7075 aluminium chassis – 3mm hard-anodized plate with deep milling for flex and weight reduction
- Centre diff setup – composite mount with integrated throttle servo bracket for rigidity and weight savings

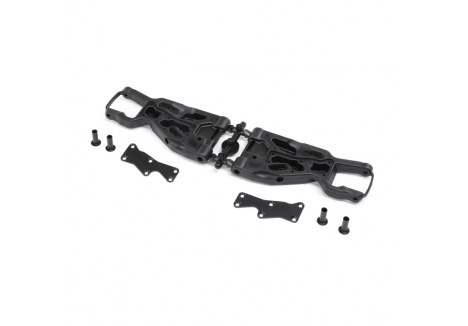

- Truss suspension arms – reinforced structure with upper stiffener plates for tunable flex
- Updated shock towers – lightened aluminium with revised camber and shock mounting positions
- Cab-forward body – precut polycarbonate shell designed for downforce and steering response
- Gear differential system – V2 HD diff cases with composite pin holders and high-traction outdrives
- Sway bar system – collar-based design eliminates lateral play for consistent suspension behaviour
How does the 7075 aluminium chassis improve race performance?

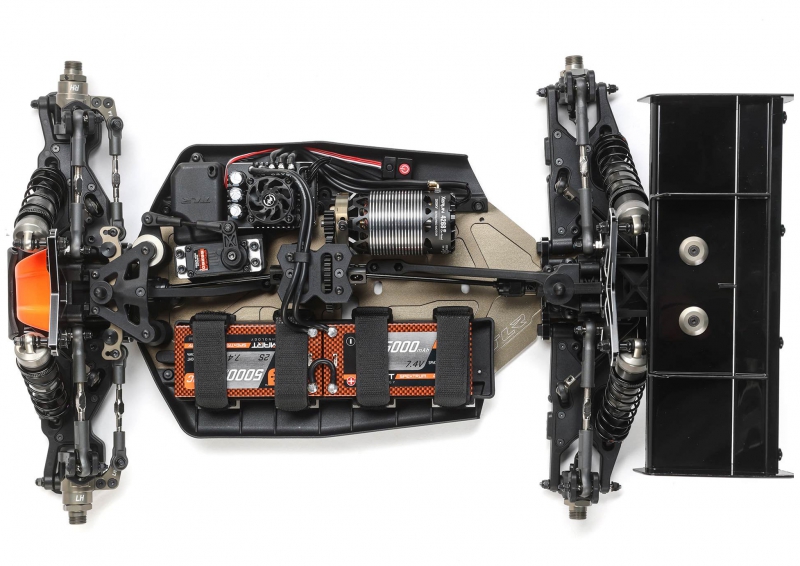

The TLR C-TLR04012 with 7075 aluminium chassis and centre diff setup features a 3mm thick hard-anodized plate milled for optimal flex and weight reduction. This chassis is the lightest in TLR’s 1/8 lineup, offering enhanced responsiveness and durability. The deep milling allows for controlled flex under load, improving traction and cornering stability. Integrated with updated side guards and a centre brace, the chassis layout supports both nitro and electric configurations without compromise. Whether you're building for torque-heavy nitro power or high-voltage brushless speed, the chassis delivers balanced handling and structural integrity.
What makes the suspension system race-ready?

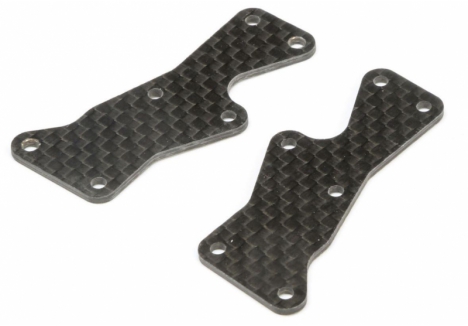

The TLR race buggy with truss suspension arms and updated shock towers is equipped with long front and rear arms featuring a truss-style base and upper stiffener plates. These components provide superior bump absorption and stability, while allowing racers to fine-tune arm flex for different track conditions. The aluminium shock towers are lightened and re-engineered with new mounting positions for camber links and shocks, enabling precise geometry adjustments. Combined with bleeder shock caps and optimized pistons, the suspension system delivers smooth travel, reduced chassis roll, and consistent grip through corners and jumps.

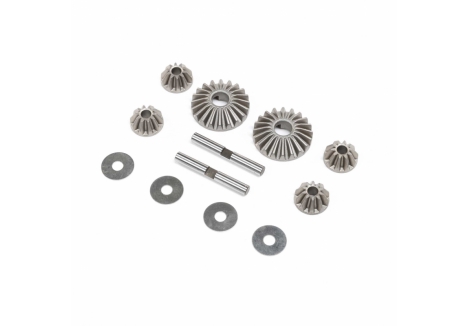

How does the gear differential system enhance drivability?

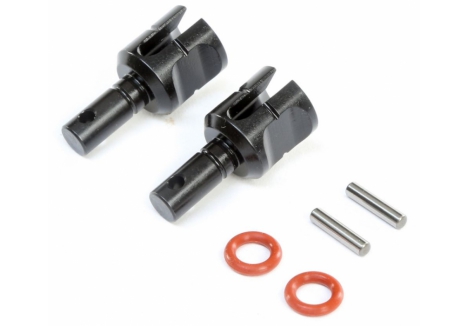

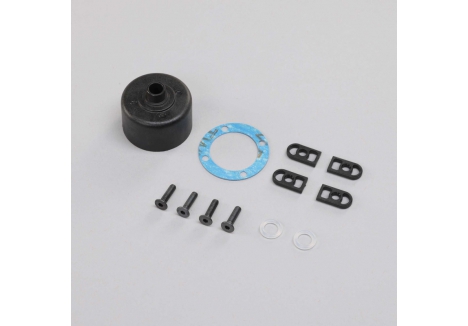

The TLR competition RC car with cab-forward body and gear differential system includes three sealed gear differentials featuring V2 HD diff cases, composite pin holders, and lightened sun gears. These diffs are designed for high traction and consistent power delivery across the entire run. The updated outdrives improve acceleration and reduce wear, while the new diff case design allows easier access without removing bulkheads. This setup ensures predictable handling, quicker throttle response, and longer run times—critical for competitive racing environments where every second counts.

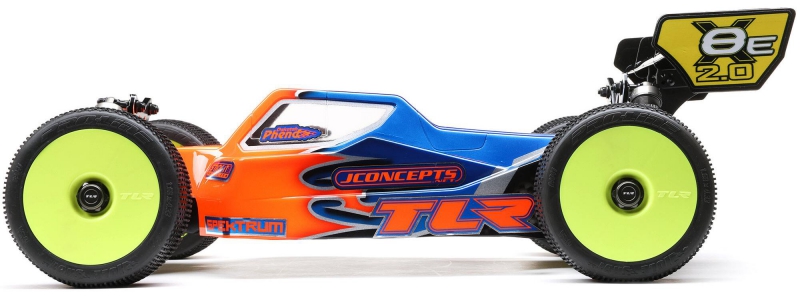

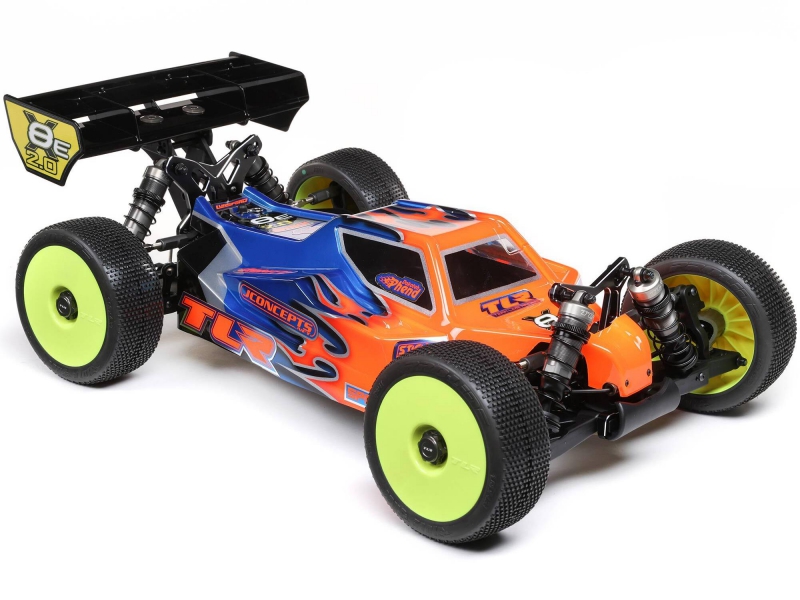

What aerodynamic advantages does the cab-forward body offer?

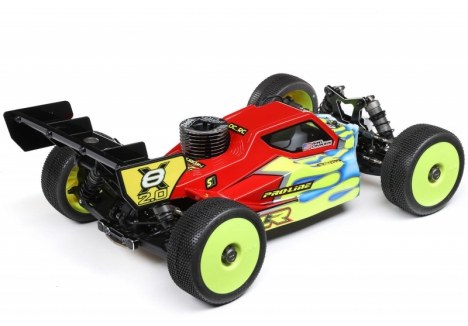

The cab-forward polycarbonate body included in the TLR C-TLR04012 brushless/nitro RC race car kit is designed to increase downforce and improve steering precision. Its aggressive profile enhances airflow over the chassis, reducing lift and improving stability at high speeds. Precut for easy mounting, the body integrates seamlessly with the wing mount system borrowed from the 8IGHT-X Truggy, offering multiple height and angle options for rear traction tuning. This aerodynamic package helps drivers maintain control through technical sections and high-speed straights alike.

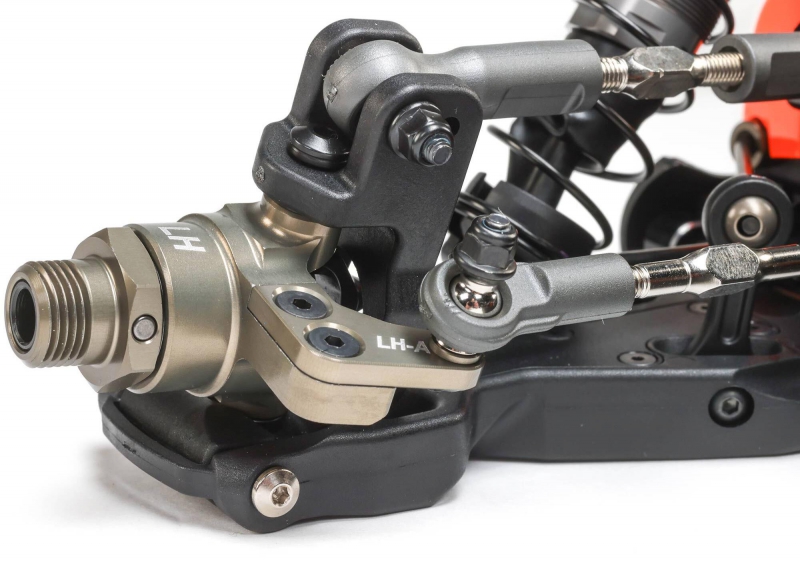

How does the sway bar and caster block system support tuning?
The TLR C-TLR04012 1/8 scale 4WD competition buggy includes a sway bar system with integrated collars that eliminate side-to-side play, resulting in more consistent suspension behaviour. Adjustable caster blocks with 17.5-degree geometry allow spindle height tuning for high-speed stability and cornering response. These features give racers the tools to fine-tune handling characteristics based on track layout, surface conditions, and driving style. Combined with square insert pills and narrower rear pivots, the suspension geometry offers unmatched flexibility and control.

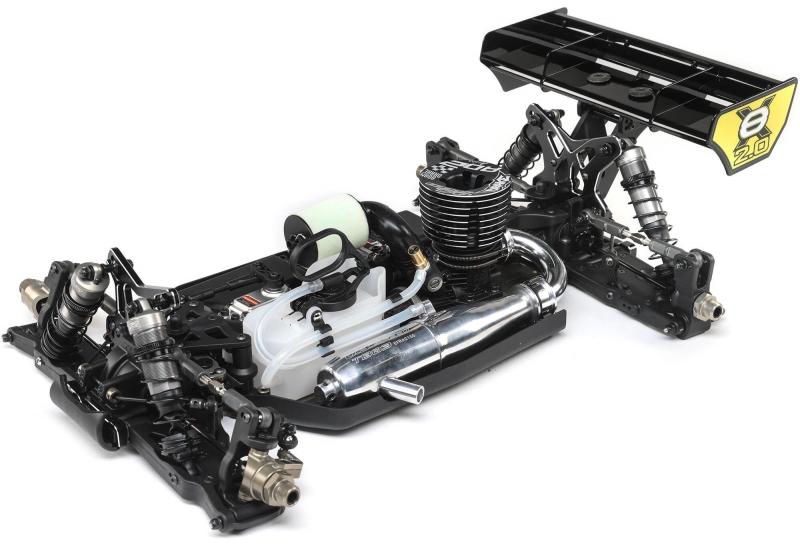

Is this kit suitable for both nitro and electric builds?

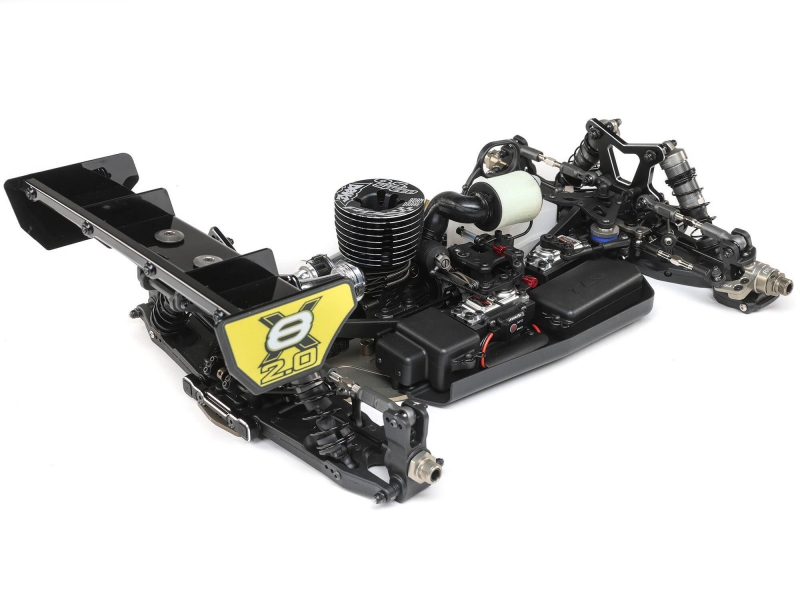

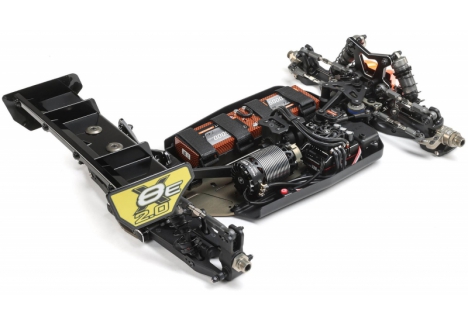

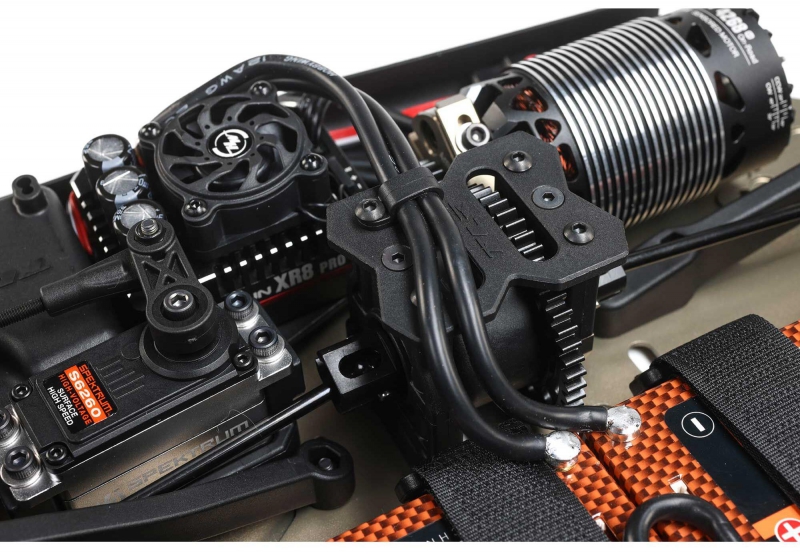

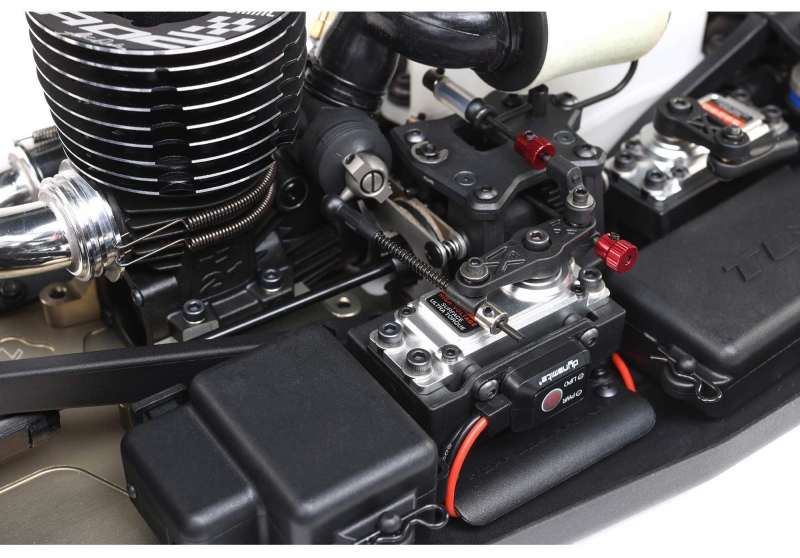

Absolutely. The TLR C-TLR04012 nitro/electric buggy race kit includes all components required to build either configuration. For electric setups, it supports a 4S 14.8V LiPo battery, brushless motor, and ESC. For nitro builds, it accommodates a tuned pipe, throttle servo, receiver battery, and 20–30% nitro fuel system. The radio tray and steering servo mounts are optimized for balance and integration in both formats. This dual-power flexibility makes the kit ideal for racers who want to switch between disciplines or compete across multiple classes.
Whether you're tuning for precision or pushing for speed, the TLR C-TLR04012 brushless/nitro RC race car kit delivers a complete platform for competitive success. From its EXB-grade chassis and suspension geometry to its aerodynamic body and gear diff system, every component is engineered for podium performance. Buy TLR C-TLR04012 buggy kit with sway bar system and adjustable caster blocks today and build your path to race-day dominance.
Technical Specifications of TLR C-TLR04012 nitro/electric buggy race kit
Brand, Model and Product Type
- Brand: TLR
- Model: C-TLR04012
- Product Type: TLR C-TLR04012 nitro/electric buggy race kit, TLR C-TLR04012 1/8 scale 4WD competition buggy, TLR C-TLR04012 brushless/nitro RC race car kit, TLR race buggy with truss suspension arms and updated shock towers, TLR competition RC car with cab-forward body and gear differential system
Dimensions
- Product Length: 48.0 cm – compact chassis layout supports nimble handling and track agility
- Product Width: 30.7 cm – optimised for cornering stability and suspension geometry
- Product Height: 17.0 cm – low-profile body and wing mount reduce drag and improve downforce
- Wheelbase: 32.3 cm – tuned for balance between straight-line stability and responsive turning
- Ground Clearance: 2.7 cm – ideal for competitive off-road track conditions
- Front Track: 30.8 cm – wider pivot with reduced scrub radius for improved steering precision
- Rear Track: 30.6 cm – narrowed pivot enhances rear grip and roll control
- Wheel Width: 4.2 cm – supports standard 1/8 scale buggy tyres

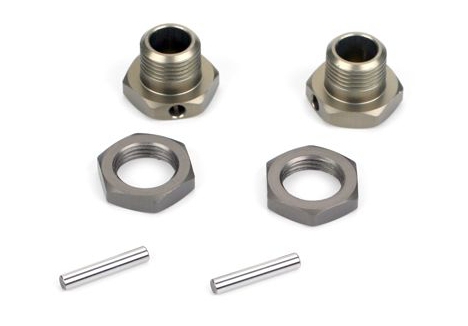

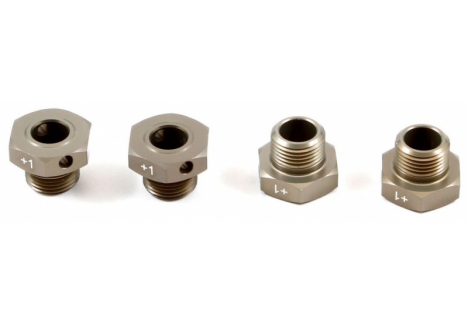

- Wheel Hex Size: 17 mm – aluminium hexes provide durability and secure wheel fitment
Chassis and Structural Components

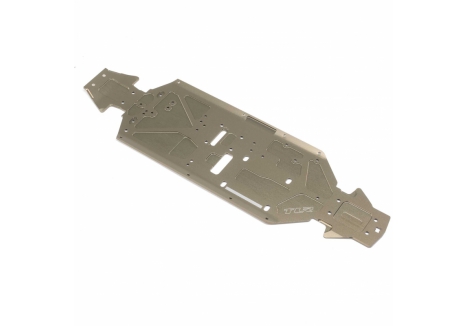

- Chassis Material: 3 mm 7075-T6 aluminium – hard-anodized and deeply milled for flex and weight reduction

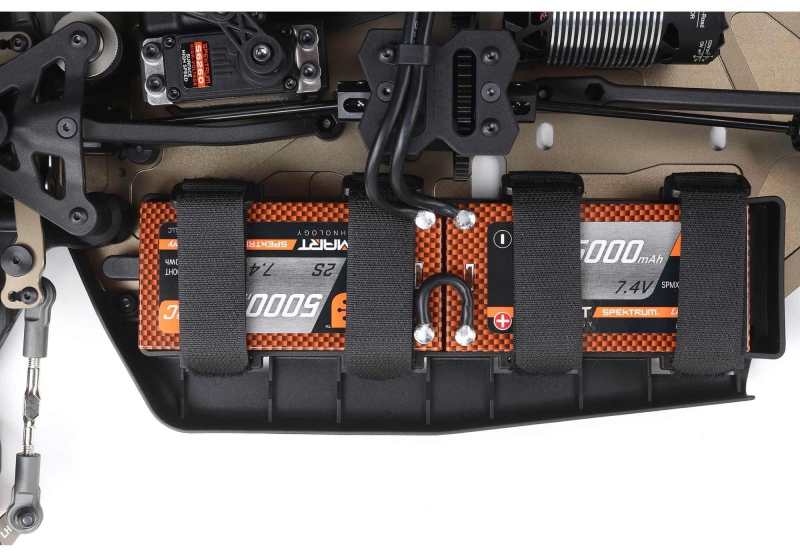

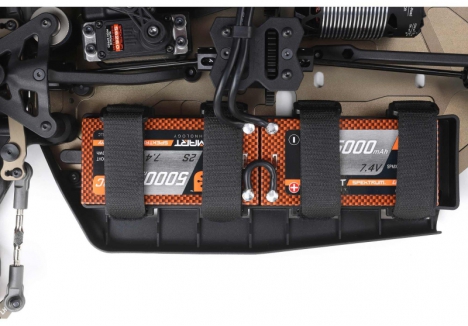

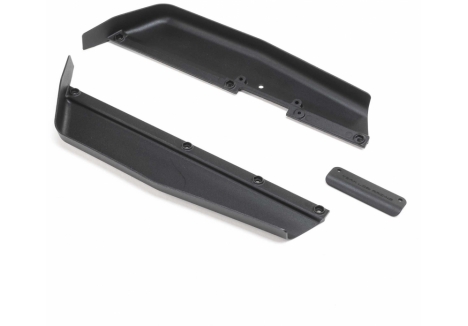

- Chassis Side Guards: Updated design – allows more clearance and integrated battery tray for electric builds

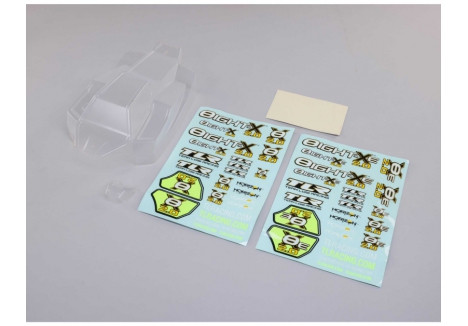

- Body Style: Cab-forward polycarbonate – precut for ease of mounting and aerodynamic stability

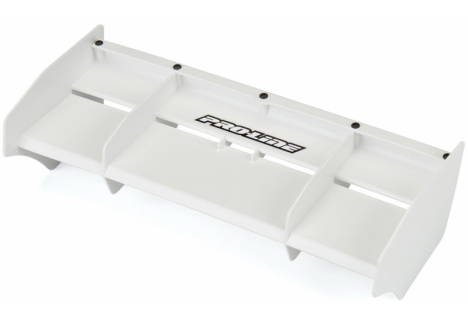

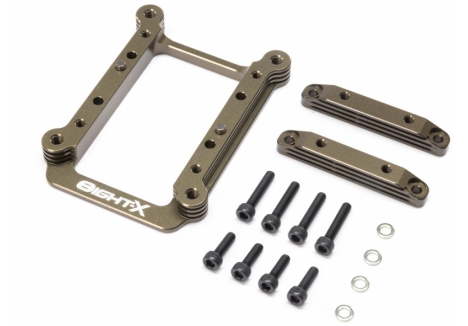

- Wing Mount: Adjustable – borrowed from 8IGHT-X Truggy for multiple height and angle settings
Suspension and Handling
- Suspension Type: Independent – long arms with truss-style reinforcement and upper stiffener plates

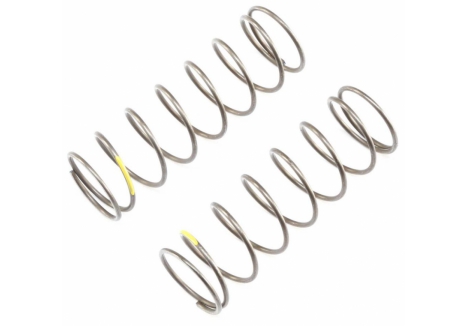

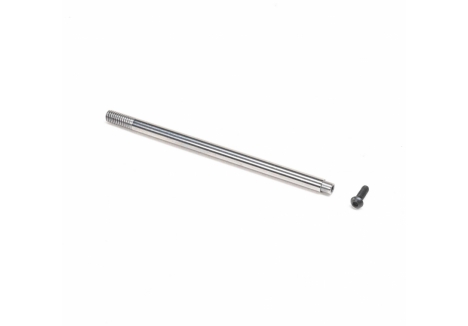

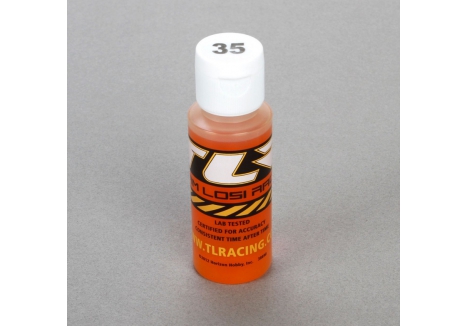

- Shock Type: Aluminium oil-filled – includes bleeder shock caps and 3.5 mm shock shafts
- Shock Towers: Lightened aluminium – revised mounting positions for camber links and shock tuning

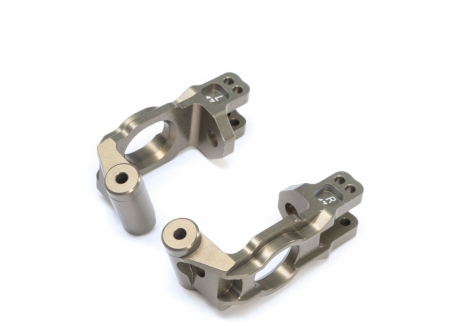

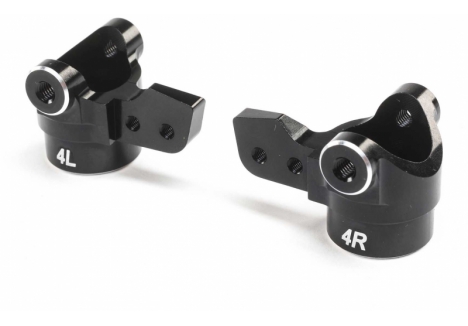

- Caster Blocks: Adjustable 17.5° – allows spindle height tuning for high-speed stability
- Sway Bar System: Collar-based – eliminates lateral play for consistent suspension response

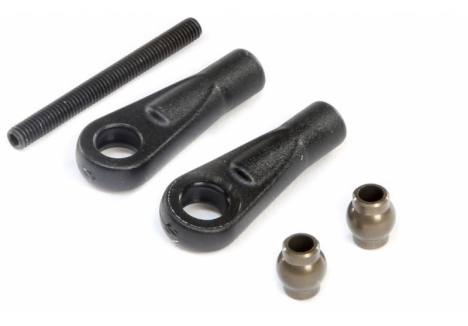

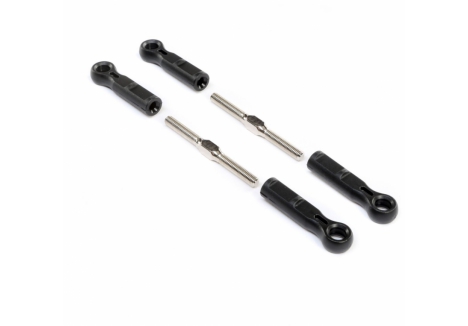

- Turnbuckles: Steel – supports precise camber and toe adjustments
Drivetrain and Transmission
- Drive System: 4WD – supports both nitro and electric configurations
- Differential Type: Sealed gear differentials – V2 HD cases with composite pin holders and lightened sun gears
- Final Drive Ratio: 11.68:1 – tuned for competitive acceleration and top-end speed
- Internal Gear Ratio: 3.23:1 – supports smooth power delivery and efficient drivetrain response

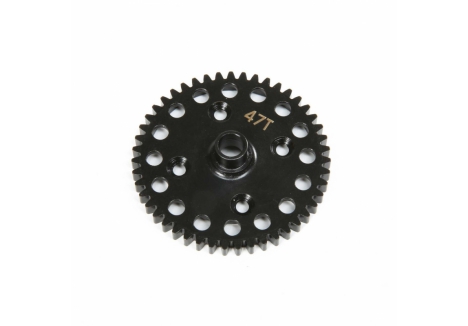

- Spur Gear: 47T – standard gearing for race-tuned performance

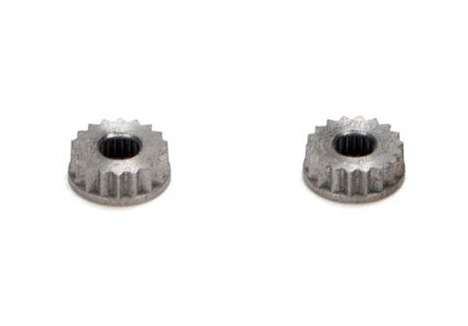

- Pinion Gear: 13T – compatible with MOD1 pitch for durability and torque
- Gear Pitch: MOD1 – heavy-duty gearing for high-load racing conditions
- Brake System: Semi-metallic pad with steel disc – nitro configuration only
Compatibility and Build Options
- Power Type: Nitro/Electric – all required components for both builds included
- Battery Compatibility (Electric): 4S 14.8V LiPo – supports high-voltage brushless setups
- Fuel Tank Capacity (Nitro): 125 cc – suitable for 20–30% nitro fuel
- Motor Compatibility: Brushless motor (electric) / Nitro engine and tuned pipe (nitro)
- ESC Compatibility: Brushless ESC required for electric build
Assembly and Completion
- Completion Level: Kit – requires full assembly and installation of electronics
- Approximate Assembly Time: 3–5 hours – based on user experience and configuration

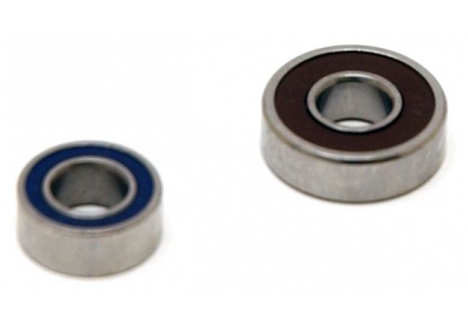

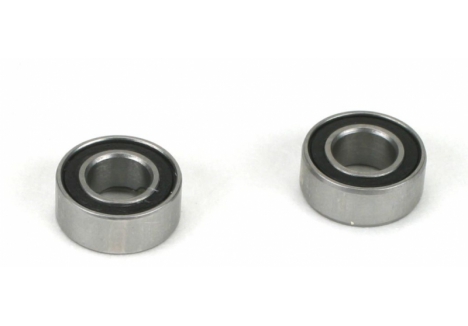

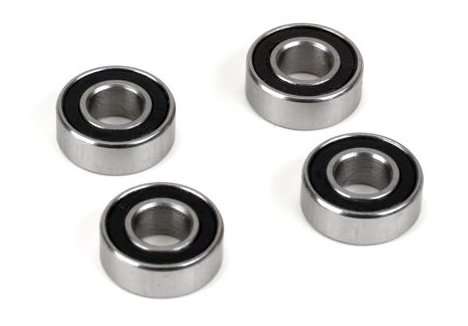

- Ball Bearings: Full set – supports smooth drivetrain and suspension operation
- Body: Unpainted – cab-forward design included and precut
What’s in the Box
- 1 × Complete TLR C-TLR04012 1/8 8IGHT-X/E 4WD Kit
What You Require

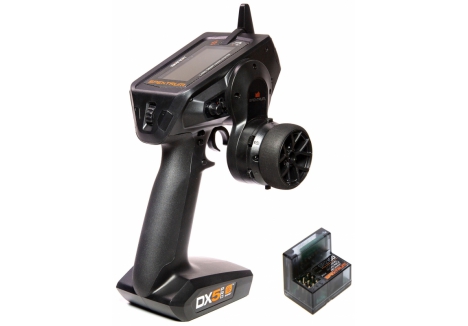

- 1 × Transmitter and receiver
- 1 × Steering servo
- 1 × Compatible battery charger

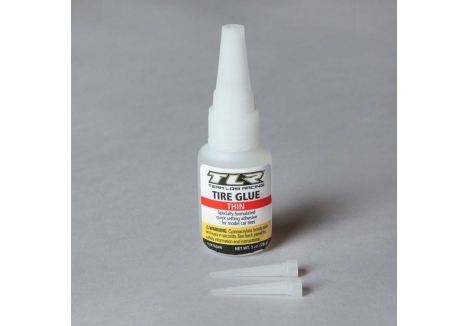

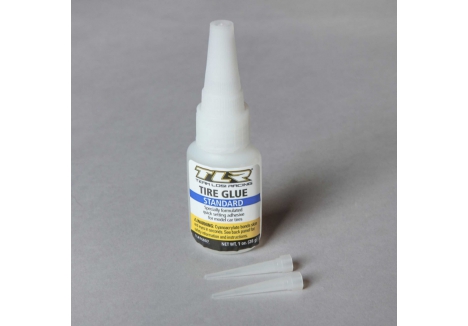

- 1 × Tyre glue

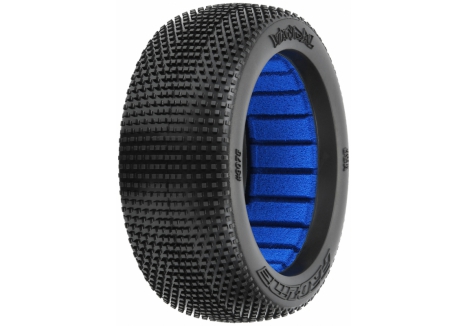

- 4 × Tyres
- Polycarbonate paint
- Assembly tools (refer to manual)
- For electric build: 1 × Brushless motor, 1 × Brushless ESC, 1 × 4S 14.8V LiPo battery
- For nitro build: 1 × Nitro engine and tuned pipe, 1 × Receiver battery, 1 × Receiver switch, 1 × Throttle servo, 1 × Fuel bottle, 1 × 20–30% nitro fuel, 1 × Starter box
Sold Separately
- All electronics and power system components
- Tyres and paint
