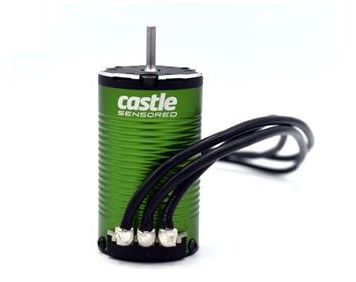

Product Description of Castle M-CC060-0085-00 1412-3200kV sensored brushless motor

The Castle M-CC060-0085-00 1412-3200kV sensored brushless motor for 1/10 2WD and 4x4 vehicles is precision-engineered for high-efficiency performance, smooth throttle response, and consistent torque delivery across short course and stadium truck platforms. Built around Castle’s advanced 4-pole, 12-slot inrunner architecture, this motor integrates QuietSense™ shielding and Flux Shield™ magnet alignment to eliminate startup inconsistencies and maintain ESC-motor synchronization. With a compact 36 mm diameter and 62 mm length, the Castle M-CC060-0085-00 4-pole motor with QuietSense and Flux Shield technology offers a perfect balance of power, control, and thermal stability for 2S–4S LiPo systems.

Key features of the Castle M-CC060-0085-00 1412-3200kV motor

• QuietSense™ shielding – suppresses magnetic field noise for clean ESC-motor communication
• Flux Shield™ with secondary Sense Magnets – enhances rotor alignment and startup precision
• Kevlar-wrapped rotor – reinforced for durability under high-RPM stress
• Oversized NMB bearings – extend bearing life and reduce vibration
• Low-resistance stator – supports cooler operation and longer runtime
• ROAR sensor port – ensures compatibility with race-compliant ESCs
• Rebuildable design – allows rotor, shaft, and bearing replacement

How does QuietSense™ improve throttle control?

The Castle M-CC060-0085-00 sensored inrunner motor with 3mm shaft and 4mm bullet connectors uses QuietSense™ technology to shield its sensors from magnetic interference generated by motor coils. This shielding ensures uninterrupted signal flow between the motor and ESC, preventing desynchronization during throttle transitions. For 1/10 scale 2WD and 4x4 vehicles, QuietSense™ delivers smoother acceleration and more predictable handling, especially during low-speed maneuvers and technical cornering.

What makes the Flux Shield™ system critical for startup precision?

The Castle M-CC060-0085-00 4-pole motor with QuietSense and Flux Shield technology incorporates a Flux Shield™ and secondary Sense Magnets to enhance rotor position detection. This dual-sensor configuration enables the ESC to accurately align motor timing during startup, resulting in smoother launches and reduced cogging. The system automatically adjusts timing across load phases, eliminating the need for mechanical tuning and ensuring optimal performance whether racing or bashing.

Why is Kevlar reinforcement essential for durability?

The rotor in the Castle M-CC060-0085-00 with Kevlar-wrapped rotor and oversized NMB bearings is reinforced with Kevlar to withstand the extreme centrifugal forces encountered during high-RPM operation. This structural reinforcement ensures long-term reliability and vibration-free performance, even under harsh racing conditions. Combined with oversized NMB bearings and a vibration dampening system, the Kevlar wrap contributes to a motor that’s built to endure the rigors of competitive RC driving.

How does the stator design improve runtime and thermal efficiency?

The Castle 3200kV motor with low-resistance stator and high-purity copper windings features proprietary winding techniques that minimize electrical resistance across the stator assembly. This low-resistance configuration reduces heat generation during operation, allowing the motor to run cooler and more efficiently. The result is extended runtime on a single charge and improved power delivery under load, making the motor ideal for short course and stadium truck applications.

Is the Castle 1412 motor compatible with race-legal ESCs?

Yes. The Castle 1412 motor with ROAR sensor port and vibration dampening system includes a ROAR-standard sensor port and clearly labeled connections, ensuring compatibility with sensored ESCs used in race-legal setups. The vibration dampening system further enhances component longevity by minimizing mechanical stress, while the rebuildable design allows users to replace the rotor, shaft, and front end bell with bearings as needed. This flexibility makes the motor a reliable choice for both recreational and competitive drivers.

What makes this motor the best Castle upgrade for smooth throttle control?

The Castle M-CC060-0085-00 1412-3200kV sensored brushless motor for 1/10 2WD and 4x4 combines advanced sensor technology, precision engineering, and rugged construction to deliver a performance-focused solution for 2S–4S platforms. Its 4-pole, 12-slot configuration enhances torque and startup smoothness, while the integrated Flux Shield™ and QuietSense™ systems ensure clean launches and consistent timing. The motor’s compact form factor and modern design reflect its premium build quality, making it the best Castle upgrade for buttery smooth throttle and low-RPM startup control.

For RC enthusiasts seeking a sensored motor with rebuildable architecture and SmartSense timing, the affordable Castle 1412-3200kV motor with rebuildable design and SmartSense timing offers unmatched value and performance. Buy Castle M-CC060-0085-00 sensored motor for 2S–4S short course and stadium trucks.

Technical Specifications of Castle M-CC060-0085-00 1412-3200kV sensored brushless motor

Brand, Model and Product Type

• Brand: Castle Creations
• Model: M-CC060-0085-00
• Product Type: Castle M-CC060-0085-00 1412-3200kV sensored brushless motor for 1/10 2WD and 4x4, Castle M-CC060-0085-00 4-pole motor with QuietSense and Flux Shield technology, Castle M-CC060-0085-00 sensored inrunner motor with 3mm shaft and 4mm bullet connectors, Castle M-CC060-0085-00 with Kevlar-wrapped rotor and oversized NMB bearings, Castle 1412 motor with ROAR sensor port and vibration dampening system, Castle 3200kV motor with low-resistance stator and high-purity copper windings

Dimensions

• Outer Diameter: 3.6 cm – compact profile for tight chassis configurations
• Product Length: 6.2 cm – optimized for short course and stadium truck setups
• Shaft Diameter: 0.3 cm – precision-machined for secure gear fitment
• Shaft Length: 1.5 cm – supports standard pinion mounting
• Product Weight: 265.4 g – lightweight for responsive handling and reduced unsprung mass

Motor Architecture and Performance

• Motor Type: Brushless – delivers high efficiency and minimal maintenance
• Motor Design: Inrunner – enclosed rotor configuration for consistent torque output
• Number of Poles: 4 – enhances startup torque and low-speed drivability
• Slot Configuration: 12-slot – improves motor efficiency and reduces heat generation
• RPM/Volt (Kv): 3200 kV – tuned for 2S–4S LiPo systems in 1/10 scale platforms
• Input Voltage: 2S–4S LiPo – supports a wide range of power setups
• Application: Designed for 1/10 2WD and 4x4 vehicles – ideal for short course and stadium trucks

Materials and Build Quality

• Rotor Construction: Kevlar-wrapped – reinforced for structural integrity under high RPM stress
• Magnet Type: High-strength, high-temperature neodymium sintered magnets – resist thermal degradation
• Bearings: Oversized NMB bearings – extend bearing life and support high RPM loads
• Vibration Dampening: Integrated system – minimizes mechanical stress and improves longevity
• Stator Assembly: Low-resistance proprietary winding – supports cooler operation and longer runtime

Connectivity and Compatibility

• Connector Type: 4 mm bullet – ensures secure, low-resistance power transfer
• Sensor Port: ROAR standard – ensures compatibility with race-legal sensored ESCs
• Recommended ESCs: Mamba Max Pro, Mamba X, or Copperhead – optimized for full sensor support

Integrated Technologies

• QuietSense Technology: Shields sensors from magnetic field noise – maintains ESC-motor synchronization
• Flux Shield: Works with secondary Sense Magnets – improves startup precision and efficiency
• Sensor Alignment: Delivers uniform timing and torque in both directions – no mechanical adjustment required

Rebuildability and Maintenance

• Design: Rebuildable – allows replacement of rotor, shaft, and front end bell with bearings

What’s in the Box

• (1) Castle 1412-3200kV 4-Pole Sensored Brushless Motor – model M-CC060-0085-00

What You Require

• (1) Compatible Brushless Electronic Speed Control – must support sensored operation
