This ESC and Motor Combo is ideal for the weight conscious builder or where space is limited, it is perfect for 1:10 scale low speed rock crawlers/trail runners on 2S or 3S weighing less than 8lbs; can also be used in vehicles up to 4lbs for extended hill climbing and rock racing.
The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.
Features
- Input Voltage range 2S-4S
- Waterproof design; included CC BEC is not waterproof.
- Sensored Motor capable (with optional sensor harness)
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for on-the-fly adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
In the Boxs:
- (1) Mamba Micro X2 ESC with 4 mm Connectors
- (1) 1406-2280Kv Sensored Motor
- (1) Sensor Harness
- (1) Coupon for free Castle Link USB adapter
- (1) Driver's Ed and Quick Start Guide
- (1) Castle Decals

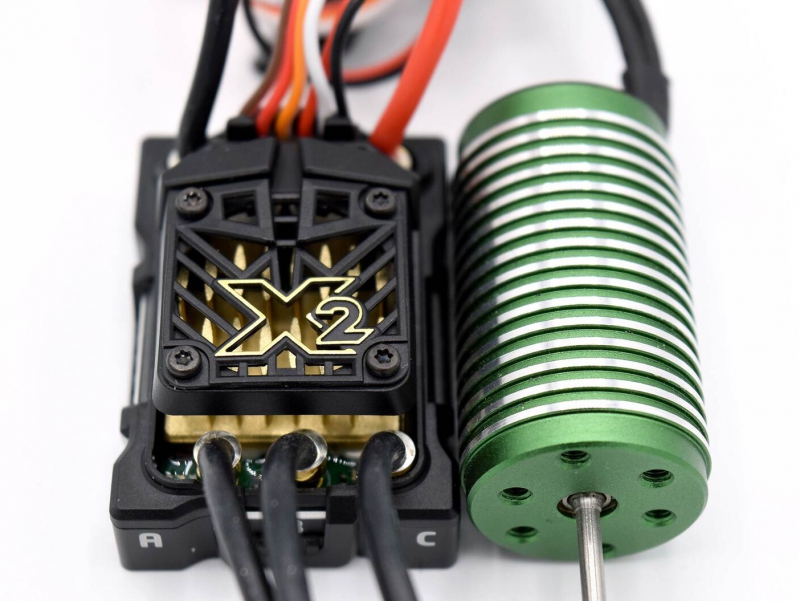

Product Description of Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo
The Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo is a high-performance, waterproof power system engineered for 1/10 scale crawlers and lightweight trail rigs. This combo integrates Castle’s advanced CRYO-DRIVE thermal control, SmartSense startup, and full telemetry support to deliver smooth throttle response, efficient heat management, and real-time diagnostics. The 1406-2280Kv sensored motor offers a refined balance of torque and RPM, ideal for scale realism and technical terrain. With 2S–4S LiPo compatibility and a compact footprint, this combo is built for tight electronics trays and demanding trail conditions.
Key features of the Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo
- SmartSense startup – delivers smooth, cog-free launches and transitions to efficient sensorless mode
- CRYO-DRIVE thermal control – reduces heat generation during partial throttle operation
- Telemetry-ready interface – enables real-time data monitoring with compatible transmitters
- Bluetooth programming support – allows wireless configuration via Castle Link app
- Auxiliary wire tuning – enables on-the-fly adjustments for throttle, brake, and power settings
- Audible alerts – diagnostic tones for calibration errors and system warnings
- Factory-installed 4mm connectors – ensures secure motor connections with open-end flexibility
- Integrated data logging – captures performance metrics for analysis and optimization
- Waterproof epoxy potting – protects internal electronics from moisture and debris
Why is the 1406-2280Kv motor ideal for trail realism?
The Castle P-CC010-0171-02 ESC combo for 1/10 scale crawlers and trail rigs includes a sensored 1406-2280Kv motor designed for balanced torque and RPM. Its Kv rating supports scale-accurate throttle response while maintaining enough speed for trail versatility. Paired with SmartSense technology, the motor delivers precise low-speed control and transitions seamlessly to sensorless mode for efficient cruising across varied terrain.
How does CRYO-DRIVE enhance thermal performance?
The Castle P-CC010-0171-02 waterproof ESC with CRYO-DRIVE and telemetry support uses proprietary software to minimize heat generation during partial throttle operation. This real-time thermal management is especially beneficial for crawlers and trail trucks, where slow, deliberate driving dominates. By maintaining lower temperatures, CRYO-DRIVE allows longer runtimes, higher gear ratios, and consistent performance in all conditions.
Can you tune the ESC wirelessly and in real time?
Yes. The Castle Micro X2 ESC combo with Bluetooth programming and data logging supports wireless configuration via the Castle Link mobile app and optional B-Link Bluetooth Adapter. Users can also connect via USB using the included Castle Link coupon. The app provides access to firmware updates, setup profiles, and advanced tuning parameters. Additionally, the auxiliary wire allows on-the-fly adjustments from the transmitter, enabling real-time control of throttle, brake, and power settings without interrupting the drive.
How does telemetry improve system awareness?
The Castle waterproof ESC with telemetry and drag brake for technical terrain integrates seamlessly with Futaba S.BUS2 transmitters, including T4PX, T7PX, and T7PXR. This allows users to monitor real-time data such as ESC temperature, voltage, and RPM during active driving. Telemetry feedback enhances system awareness and helps prevent performance issues before they arise. Combined with audible alerts, the telemetry-ready interface provides a comprehensive diagnostic toolkit for scale enthusiasts.
What’s included in the Castle P-CC010-0171-02 ESC combo package?
Each package includes the Mamba Micro X2 ESC with 4 mm connectors, a 1406-2280Kv sensored motor, a sensor harness, a coupon for the Castle Link USB adapter, a Driver’s Ed and Quick Start Guide, and Castle decals. With waterproof construction, SmartSense startup, CRYO-DRIVE thermal control, and integrated data logging, this combo is ready to perform in any environment.
For RC drivers seeking a waterproof sensored ESC and motor combo with SmartSense startup, CRYO-DRIVE cooling, and telemetry support, the Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo is the strategic upgrade. Buy Castle P-CC010-0171-02 ESC combo for scale crawlers and lightweight trail trucks.
Technical Specifications of Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0171-02
- Product Type: Castle P-CC010-0171-02 Mamba Micro X2 ESC and 1406-2280Kv sensored motor combo, Castle P-CC010-0171-02 waterproof ESC with CRYO-DRIVE and telemetry support, Castle P-CC010-0171-02 ESC combo for 1/10 scale crawlers and trail rigs, Castle P-CC010-0171-02 with 4mm connectors and auxiliary wire tuning, Castle Micro X2 ESC combo with Bluetooth programming and data logging, Castle sensored ESC with active drag brake and 2S–4S LiPo support
Dimensions
- ESC Size (L x W x H): 41.6 × 29.4 × 21.3 mm – compact footprint for tight electronics trays
- ESC Weight: Approximately 47g with wires – lightweight for scale builds
Voltage and Power Specifications
- Input Voltage Range: 2S–4S LiPo – supports up to 16.8V for flexible terrain setups
- Internal BEC Type: Selectable voltage BEC – adjustable via Castle Link software
- BEC Output Voltage: 5.5V or 7.5V – default set to 5.5V
- BEC Peak Current: 2A – suitable for scale crawler servo and accessory loads
Cooling and Thermal Management
- Thermal Control System: Castle P-CC010-0171-02 waterproof ESC with CRYO-DRIVE and telemetry support – minimizes heat during partial throttle operation
- Waterproofing: Epoxy-potted electronics – protects internal components from moisture and debris
Motor Specifications
- Motor Type: 1406-2280Kv sensored motor – optimized for torque and trail realism
- Motor Compatibility: Designed for 1/10 scale crawlers and lightweight trail trucks
- Connector Type: Castle P-CC010-0171-02 with 4mm connectors and auxiliary wire tuning – secure motor interface with flexible installation options
Control Modes and Programming
- Control Modes: Sensored, Sensorless, and Brushed – selectable via Castle Link software
- Transmitter Programming: Six adjustable settings including cutoff voltage and drag brake
- Bluetooth Programming: Castle Micro X2 ESC combo with Bluetooth programming and data logging – compatible with Castle Link app and B-Link adapter (sold separately)
- Auxiliary Wire: Enables real-time tuning from transmitter – adjust max power, brake, and throttle on-the-fly
Telemetry and Diagnostics
- Telemetry Ready: Castle waterproof ESC with telemetry and drag brake for technical terrain – compatible with Futaba S.BUS2 transmitters
- Audible Alerts: Diagnostic tones for calibration errors and system warnings
Data Logging
- Integrated Data Logging: Captures performance metrics for analysis and optimization
What's in the Box
- Mamba Micro X2 ESC with 4 mm connectors
- 1406-2280Kv sensored motor
- Sensor harness
- Coupon for free Castle Link USB adapter
- Driver's Ed and Quick Start Guide
- Castle Decals
What You Require / What You Will Need
- Castle Link USB adapter (included via coupon)
- B-Link Bluetooth Adapter (sold separately)
- Compatible 2S–4S LiPo battery
Sold Separately
