Product Overview
The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.
This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 2.75lbs and up to 2s LiPo. The sensored 1007-8450kv motor allows for smooth startup with heaps of torque and low temperatures.
Features
- Input Voltage range 2S-3S
- Waterproof design, included CC BEC is not waterproof.
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for
- Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for on-the-fly adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
Mamba Micro X2 w/1010-5600Kv Purchase Includes:
- Mamba Micro X2 ESC with 4mm Connectors
- External 10-amp CC BEC
- 1007-8450Kv Sensored Motor
- Sensor Harness
- Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
- Quick Start Guide
- Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Enabled by default, the Mamba Micro X2 captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life.
Quick Tip: You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
The Mamba Micro X2 allows on-the-fly adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply use the Castle Link adapter with your Mamba Micro X2 purchase and download the simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. You can wirelessly program your ESC with the Castle Link Mobile App and the purchase the B-Link Bluetooth Adapter.
Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.
Mamba Micro X2 is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

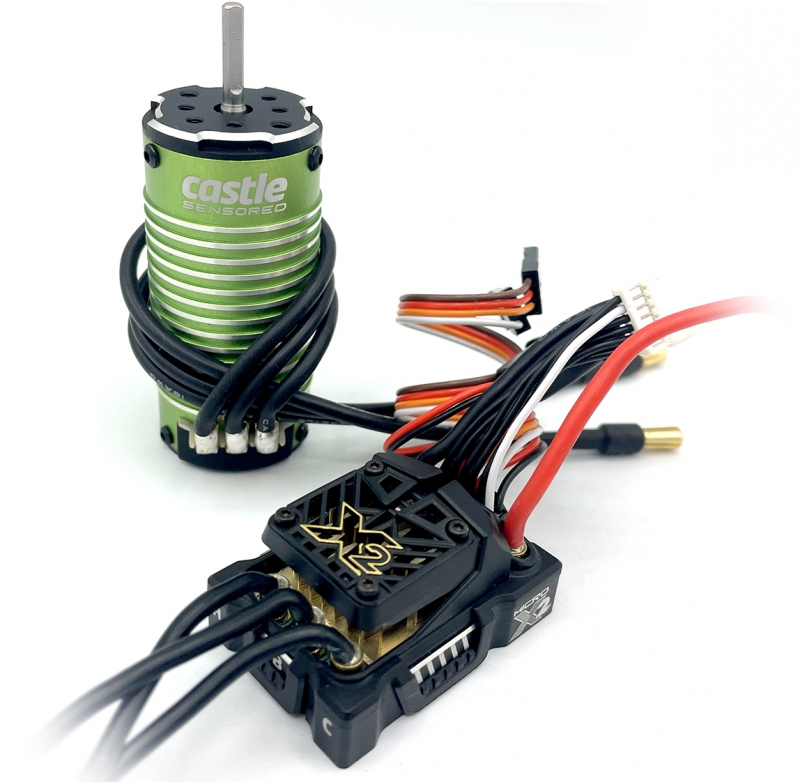

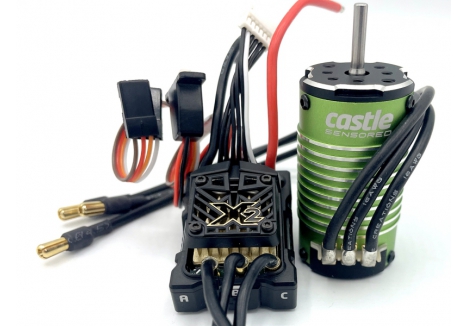

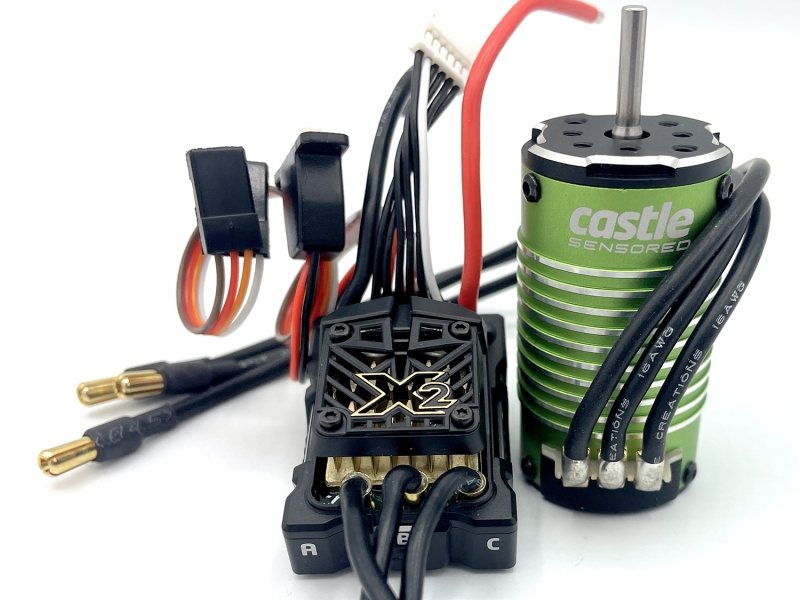

Product Description of Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo
Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo is a high-RPM, waterproof power system engineered for 1/14 and 1/16 scale RC vehicles weighing up to 2.75 lbs. This compact combo integrates Castle’s CRYO-DRIVE thermal control, SmartSense startup, and telemetry-ready architecture to deliver rapid throttle response, efficient heat management, and real-time diagnostics. The sensored 1007-8450Kv motor provides exceptional acceleration and low operating temperatures, making it ideal for lightweight trail rigs and micro platforms that demand speed and precision. With support for 2S LiPo input and a streamlined footprint, this system is tailored for enthusiasts who prioritize responsiveness, reliability, and advanced tuning capabilities.
Key features of the Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo
- SmartSense startup – delivers smooth, cog-free launches and transitions to efficient sensorless operation
- CRYO-DRIVE thermal control – minimizes heat buildup during partial throttle for cooler, longer runs
- External 10A CC BEC – supports high-draw servos with expanded voltage range (note: not waterproof)
- Telemetry-ready interface – enables real-time data monitoring with compatible transmitters
- Bluetooth programming support – allows wireless configuration via Castle Link mobile app
- Auxiliary wire tuning – enables on-the-fly adjustments for throttle, brake, and power settings
- Audible alerts – diagnostic tones for calibration errors and system warnings
- Integrated data logging – captures performance metrics for post-run analysis and optimization
- Compact ESC footprint – fits tight electronics trays in micro-scale builds
How does SmartSense startup enhance launch precision?
The Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo features SmartSense startup, a sensor-driven technology that ensures smooth, cog-free launches. This is particularly beneficial for micro platforms where throttle precision is critical. Once the motor reaches sufficient RPM, the ESC transitions to sensorless mode for optimal efficiency. This dual-mode operation delivers both low-speed finesse and high-speed responsiveness, allowing users to accelerate confidently across varied terrain.
Why is CRYO-DRIVE crucial for high-RPM setups?
The Castle P-CC010-0171-07 waterproof ESC with CRYO-DRIVE and external 10A BEC incorporates Castle’s proprietary thermal control system, designed to reduce heat generation during partial throttle operation. For high-RPM builds, where sustained speed can lead to thermal stress, CRYO-DRIVE ensures cooler operation and consistent performance. This technology extends runtime, protects internal components, and allows for aggressive gearing without overheating, making it a key advantage for lightweight trail rigs and speed-focused micro platforms.
What benefits does the external 10A BEC provide?
Included with the Castle P-CC010-0171-07 ESC combo for 1/14 and 1/16 scale vehicles up to 2.75 lbs is Castle’s external 10A CC BEC, which delivers expanded voltage range and higher current capacity. This upgrade supports high-draw servos and auxiliary systems, ensuring stable voltage delivery under load. While the ESC is waterproof, the BEC is not, so installation should avoid moisture exposure. The external BEC enhances control precision and prevents voltage drops during demanding maneuvers, making it essential for performance-focused builds.
Can the Castle Micro X2 ESC combo be tuned wirelessly?
Yes. The Castle Micro X2 ESC combo with Bluetooth programming and data logging supports wireless configuration via the Castle Link mobile app when paired with the optional B-Link Bluetooth Adapter. Users can also connect via USB using the included Castle Link coupon. The app provides access to firmware updates, setup profiles, and advanced tuning parameters. Combined with the auxiliary wire, which enables real-time adjustments from the transmitter, this combo offers unmatched flexibility for customizing throttle curves, brake strength, and drag brake settings.
How does telemetry improve system awareness?
The Castle P-CC010-0171-07 with 4.0mm connectors and telemetry-ready design integrates seamlessly with Futaba S.BUS2 transmitters, including T4PX, T7PX, and T7PXR. This allows users to monitor real-time data such as ESC temperature, input voltage, and motor RPM during active driving. Telemetry feedback helps prevent performance issues by alerting users to potential problems before they escalate. Combined with audible alerts for calibration errors and system warnings, telemetry provides a comprehensive diagnostic toolkit for high-speed micro builds.
What does integrated data logging offer?
Enabled by default, the Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo captures and records detailed performance data during each run. Users can analyze metrics such as throttle input, motor RPM, ESC and motor temperature, and voltage fluctuations using Castle Link software. This data-driven approach allows for targeted adjustments that improve battery life, optimize gearing, and refine throttle response. For users focused on maximizing performance, data logging is a vital tool for post-run analysis and system refinement.
Is this combo suitable for lightweight trail rigs?
Absolutely. The Castle sensored ESC with auxiliary wire tuning and smooth startup is built for lightweight trail rigs and micro platforms that demand high-RPM performance and precise control. The sensored 1007-8450Kv motor delivers rapid acceleration and consistent torque, while the ESC’s compact footprint fits easily into tight electronics trays. With support for 2S LiPo input, users can tailor their power setup for speed and terrain. The waterproof ESC ensures reliability in wet conditions, though the external BEC should be protected from moisture. Together, these features make the combo a strategic upgrade for speed-focused micro builds.
For RC drivers seeking a telemetry-ready, waterproof ESC and motor combo with SmartSense startup, CRYO-DRIVE cooling, and external BEC support, the Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo delivers precision, speed, and control. Buy Castle P-CC010-0171-07 ESC combo for 2S micro platforms and lightweight trail rigs.
Technical Specifications of Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0171-07
- Product Type: Castle P-CC010-0171-07 Mamba Micro X2 ESC and 1007-8450Kv sensored motor combo, Castle P-CC010-0171-07 waterproof ESC with CRYO-DRIVE and external 10A BEC, Castle P-CC010-0171-07 ESC combo for 1/14 and 1/16 scale vehicles up to 2.75 lbs, Castle P-CC010-0171-07 with 4.0mm connectors and telemetry-ready design, Castle Micro X2 ESC combo with Bluetooth programming and data logging, Castle sensored ESC with auxiliary wire tuning and smooth startup
Dimensions
- ESC Size: 41.6 × 29.4 × 21.3 mm – compact footprint for micro-scale installations
- ESC Weight: Approximately 47g with wires – lightweight for 1/14–1/16 scale builds
Voltage and Power Specifications
- Input Voltage Range: 2S–3S LiPo – supports up to 12.6V for micro platform compatibility
- BEC Type: External CC BEC (included) – 10A peak current, wider voltage range (not waterproof)
Cooling and Thermal Management
- Thermal Control System: Castle P-CC010-0171-07 waterproof ESC with CRYO-DRIVE and external 10A BEC – reduces heat during partial throttle operation
- Waterproofing: ESC is waterproof; external BEC is not waterproof
Motor Specifications
- Motor Type: 1007-8450Kv sensored motor – optimized for high-RPM performance and low operating temperatures
- Motor Compatibility: Designed for 1/14 and 1/16 scale vehicles up to 2.75 lbs
- Connector Type: 4.0mm bullet connectors – secure motor interface with flexible installation
Control Modes and Programming
- Control Modes: Sensored, Sensorless, and Brushed – selectable via Castle Link software
- Transmitter Programming: Six adjustable settings including cutoff voltage and drag brake
- Bluetooth Programming: Castle Micro X2 ESC combo with Bluetooth programming and data logging – compatible with Castle Link app and B-Link adapter (sold separately)
- Auxiliary Wire: Enables real-time tuning from transmitter – adjust max power, brake, and throttle on-the-fly
Telemetry and Diagnostics
- Telemetry Ready: Castle P-CC010-0171-07 with 4.0mm connectors and telemetry-ready design – compatible with Futaba S.BUS2 transmitters
- Audible Alerts: Diagnostic tones for calibration errors and system warnings
Data Logging
- Integrated Data Logging: Captures real-time metrics including RPM, ESC/motor temperature, and throttle input
What's in the Box
- Mamba Micro X2 ESC with 4.0mm connectors
- 1007-8450Kv sensored motor
- Sensor harness
- External 10A CC BEC
- Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
- Quick Start Guide
- Castle Decals
What You Require / What You Will Need
- Castle Link USB adapter (included via coupon)
- B-Link Bluetooth Adapter (sold separately)
- Compatible 2S LiPo battery
Sold Separately
- B-Link Bluetooth Adapter
- Castle Telemetry Link for S.BUS2 (optional for telemetry integration)
