Delivery Included
1 Year Warranty
Overview
Spektrum™ High-Voltage Brushless Servos deliver premium power, precision, and performance. The S6295 is compatible with 8.4V input and boasts a durable, all-aluminum case that helps dissipate heat. Powered by a class-leading brushless powertrain, the S6295 also offers superior protections, such as soft start, over current protection and advanced failsafes. Its metal gear train has been engineered for tight mesh, low wear, and smooth operation. Featuring blindingly fast 0.062 sec speeds, the S6295 servo is a top choice for serious 1/8th scale off-road racers. Equally capable of high-performance operation in crawling and bashing applications that demand fast reactions, maximum torque and holding power. The convenience of a removeable servo lead lets you select different lengths for different vehicle applications.
Features
- Sleek black and silver anodized metal case
- Brushless power and reliability
- High Voltage (HV) Capable (6.0V-8.4V)
- 23T output Spline
- Water Resistant
- Hardened steel gears
- Precision engineered gear train for tight and low wear mesh
- Ultra-fast transit speed (0.062sec at 8.4V)
- Impressive torque (30kg-cm / 416oz-in at 8.4V)
- Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
- Removable standard size servo connector for easy lead swaps
- Soft-Start puts less strain on steering components during start up
- Advanced failsafe and protections
The Spektrum P-SPMSS6295 S6295 HV servo with 416 oz-in torque, 0.062 sec speed, and brushless powertrain is engineered for elite-level surface control in 1/8 scale RC applications. Designed for racers, crawlers, and scalers who demand uncompromising speed and torque, this digital waterproof servo integrates a high-efficiency brushless motor, hardened steel gears, and a precision-engineered gear mesh into a sleek anodized aluminum case. The result is a servo that delivers rapid response, robust torque output, and long-term reliability across the most demanding terrain and competition environments. With advanced failsafe systems and soft-start protection, the Spektrum P-SPMSS6295 is purpose-built for high-performance setups that require consistent control and mechanical resilience.
Key features of the Spektrum P-SPMSS6295 S6295 HV servo
- Brushless motor – delivers ultra-fast response and long-term reliability
- Hardened steel gear train – engineered for tight mesh and minimal wear
- Soft-start protection – reduces strain on steering components during power-up
- Advanced failsafe systems – includes overcurrent protection and signal recovery
- Waterproof anodized aluminum case – enhances heat dissipation and protects internal components
- Removable wire lead – supports flexible installation and simplified maintenance
- Standard-size footprint – optimized for 1/8 scale RC vehicles
How does the brushless motor improve performance in the Spektrum P-SPMSS6295?
The integration of a brushless motor in the Spektrum P-SPMSS6295 high-performance surface servo with hardened steel gears and soft-start protection marks a significant advancement in servo technology. Unlike brushed motors, the brushless design eliminates friction between brushes and the rotor, resulting in smoother operation, reduced heat generation, and extended lifespan. This motor architecture enables the servo to achieve a blistering transit speed of 0.062 seconds at 8.4V, making it one of the fastest options available for 1/8 scale surface applications. The brushless motor also contributes to consistent torque delivery, ensuring that steering and throttle inputs are executed with precision and minimal delay.
What makes the gear train of the Spektrum P-SPMSS6295 ideal for high-load conditions?
The Spektrum digital surface servo with hardened steel gears, 416 oz-in torque, and 0.062 sec transit speed features a gear train engineered for durability and precision. Hardened steel components are selected for their resistance to deformation and wear, especially under the high torque loads typical of off-road racing and crawling. The gear mesh is tightly calibrated to minimize backlash and ensure smooth torque transfer, even during aggressive maneuvers. This design not only enhances control fidelity but also extends the operational life of the servo, making it a reliable choice for users who push their vehicles to the limit.
Why is soft-start protection important for RC steering systems?
The Spektrum P-SPMSS6295 digital waterproof servo for 1/8 scale RC racers, crawlers, and scalers incorporates soft-start protection to safeguard steering components during power-up. When high-voltage systems are activated, servos without soft-start can deliver sudden torque spikes that strain linkages, arms, and mounts. Spektrum’s soft-start feature gradually ramps up power, reducing mechanical stress and preserving the integrity of the steering system. This is especially valuable in setups with sensitive geometry or high-speed steering demands, where component longevity and consistent performance are critical.
How do the failsafe systems enhance reliability in the Spektrum P-SPMSS6295?
Reliability is paramount in competitive RC environments, and the HV-compatible brushless servo with 6.0–8.4V input, advanced failsafe, and tight gear mesh is equipped with multiple protection layers to ensure uninterrupted operation. Overcurrent protection prevents damage from electrical surges, while signal recovery systems maintain control in the event of brief communication loss. These failsafe mechanisms are especially important in off-road and bashing scenarios, where unpredictable terrain and RF interference can compromise signal integrity. By proactively managing risk, the Spektrum P-SPMSS6295 ensures that users maintain control when it matters most.
What installation advantages does the removable wire lead offer?
The Spektrum P-SPMSS6295 with removable lead, 23T spline, and anodized aluminum case includes a detachable wire harness that simplifies installation and maintenance. Users can select lead lengths that suit their chassis layout, enabling clean routing and reducing clutter. The removable design also facilitates quick swaps during upgrades or repairs, minimizing downtime and improving serviceability. The 23T spline ensures compatibility with standard servo arms, while the universal connector supports integration with a wide range of receivers. These features make the Spektrum P-SPMSS6295 a versatile choice for builders who value modularity and precision.
Is the Spektrum P-SPMSS6295 suitable for extreme terrain and wet conditions?
Absolutely. The Waterproof digital servo for off-road and bashing applications with 28mm height and 40mm length is built to withstand harsh environments. Its anodized aluminum case provides both structural reinforcement and thermal regulation, while the waterproof sealing protects internal electronics from moisture and debris. This makes the servo ideal for off-road racing, trail crawling, and bashing in unpredictable conditions. The compact dimensions—28mm in height and 40mm in length—allow for easy integration into tight chassis spaces without compromising performance or durability.
Why is the Spektrum P-SPMSS6295 a top-tier choice for serious RC builders?
The Spektrum P-SPMSS6295 S6295 HV servo with 416 oz-in torque, 0.062 sec speed, and brushless powertrain combines cutting-edge motor technology, precision engineering, and robust protection features into a single high-performance unit. Its brushless motor delivers unmatched speed and efficiency, while the hardened steel gear train ensures reliable torque transfer under load. Soft-start and failsafe systems protect both the servo and surrounding components, and the waterproof anodized case enables operation in challenging environments. With installation flexibility and compatibility across 1/8 scale platforms, the Spektrum P-SPMSS6295 is a standout option for users who demand excellence in every aspect of their build.
Buy Spektrum P-SPMSS6295 S6295 HV servo for 1/8 scale RC trucks, crawlers, and competitive off-road builds.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMSS6295
- Product Type: Spektrum P-SPMSS6295 S6295 HV servo with 416 oz-in torque, 0.062 sec speed, and brushless powertrain, Spektrum P-SPMSS6295 digital waterproof servo for 1/8 scale RC racers, crawlers, and scalers, Spektrum P-SPMSS6295 high-performance surface servo with hardened steel gears and soft-start protection, Spektrum P-SPMSS6295 with removable lead, 23T spline, and anodized aluminum case, Waterproof digital servo for off-road and bashing applications with 28mm height and 40mm length

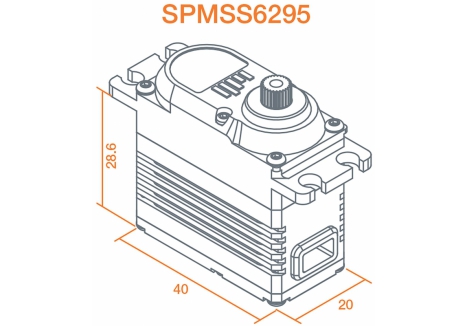

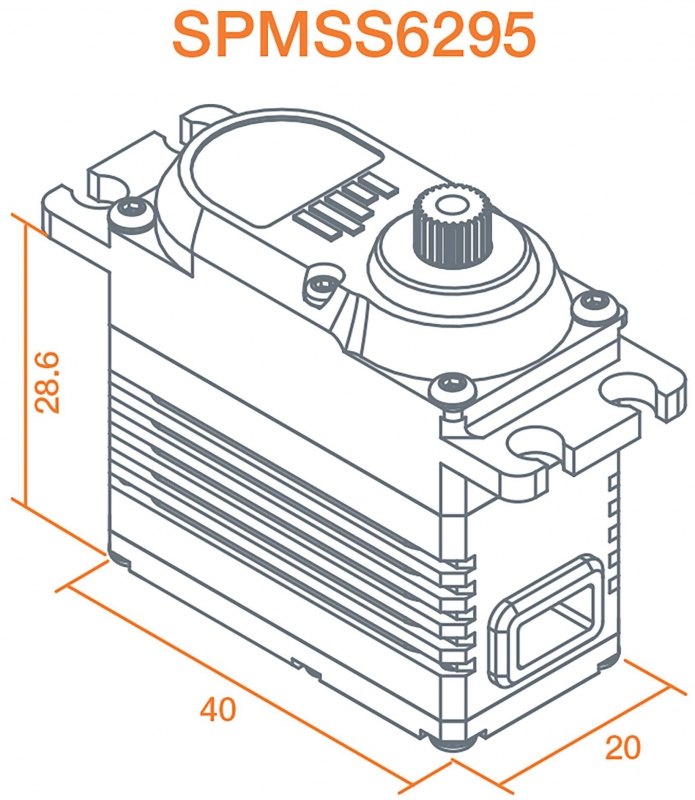

Dimensions
- Product Length: 4.0 cm – compact footprint for 1/8 scale surface installations
- Product Height: 2.8 cm – low-profile vertical clearance for tight chassis layouts
- Product Width: 2.0 cm – standard mounting width for surface servo configurations
Motor and Gear System
- Motor Type: Brushless – delivers ultra-fast response and long-term reliability
- Gear Type: Hardened steel – engineered for tight mesh, low wear, and high torque transfer
- Gear Mesh: Precision-engineered – ensures consistent torque delivery and minimal backlash
- Spline Count: 23 teeth – compatible with standard servo arms
Performance and Speed
- Maximum Torque: 416 oz-in @8.4V – high-output torque for demanding off-road control
- Transit Speed: 0.062 sec @8.4V – ultra-fast response for competitive maneuvering
Voltage and Compatibility
- Operating Voltage: 6.0–8.4V HV – supports high-voltage systems for peak performance
- HV Compatibility: Yes – optimized for advanced ESC and battery configurations
Protection and Reliability
- Waterproof: Yes – sealed anodized aluminum case protects against moisture and debris
- Case Material: Black and silver anodized aluminum – enhances heat dissipation and structural integrity
- Soft-Start: Yes – reduces strain on steering components during power-up
- Failsafe Systems: Advanced – includes overcurrent protection and signal recovery
Connectivity and Wiring
- Connector Type: Universal – compatible with standard receiver ports
- Wire Harness: Removable – allows for custom lead lengths and simplified maintenance
Application
- Primary Use: Surface – ideal for 1/8 scale RC trucks, crawlers, and competitive off-road builds
- Servo Size Category: Standard – designed for high-speed, high-torque surface applications

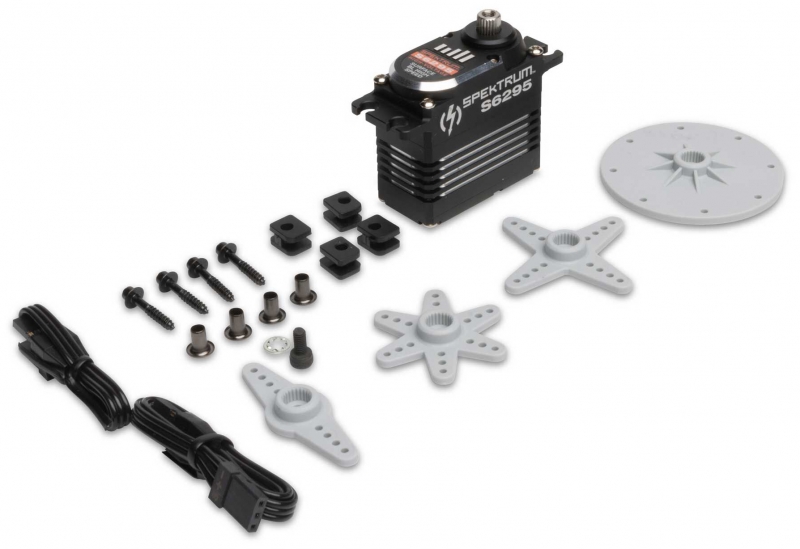

What’s in the Box
- 1 × HV High Speed High Torque Brushless Metal Gear Servo (Model No: P-SPMSS6295)
What You Require / What You Will Need
- Compatible receiver and HV-capable power system – required for full performance operation
