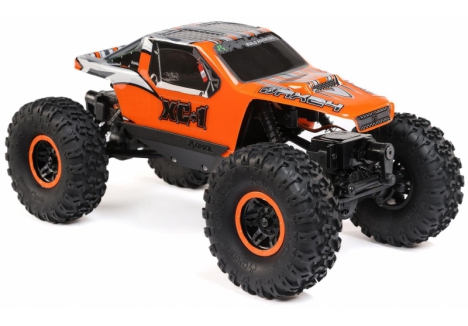

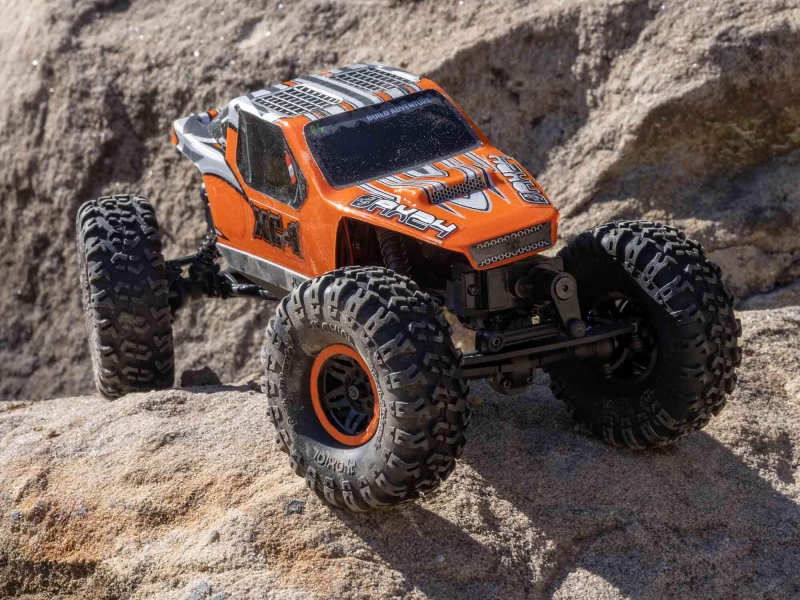

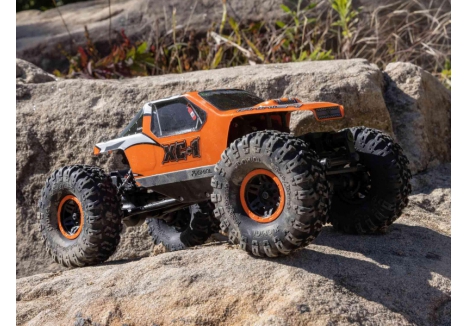

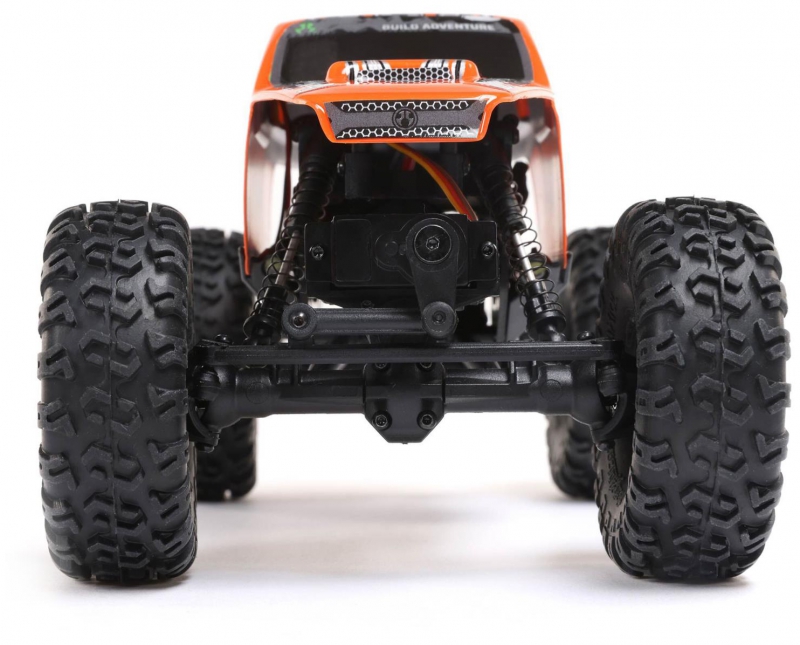

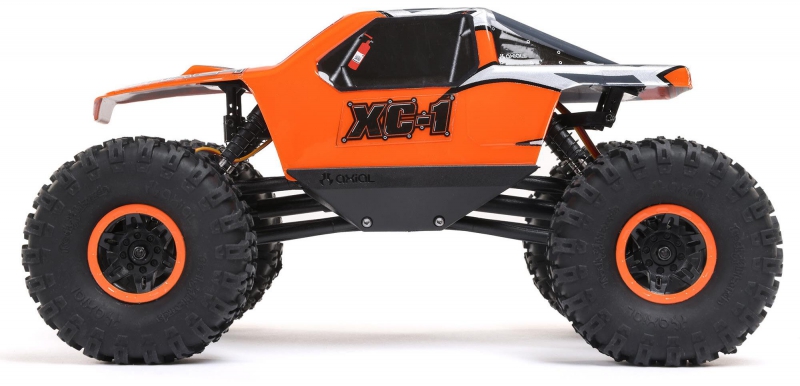

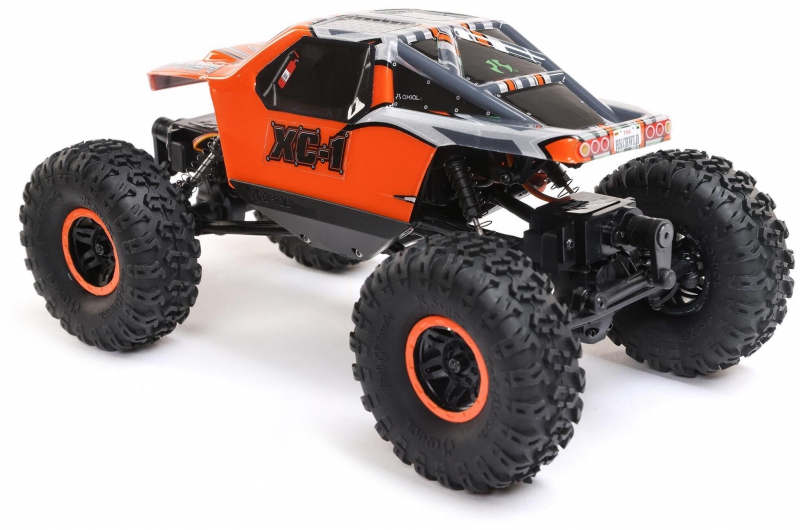

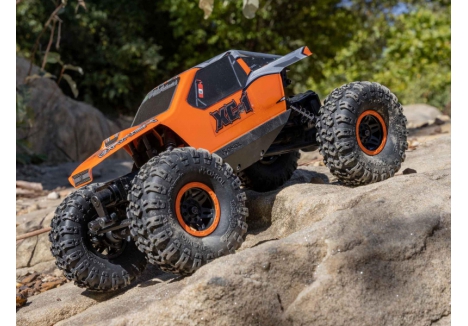

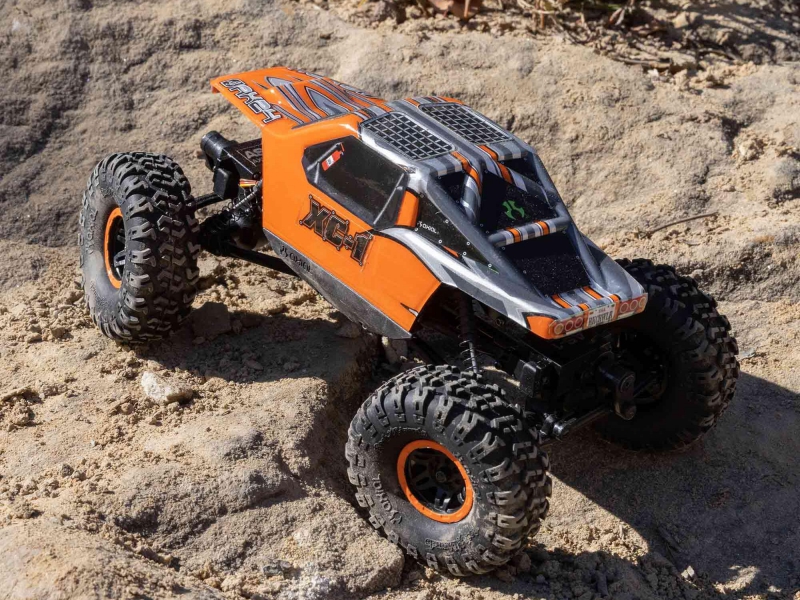

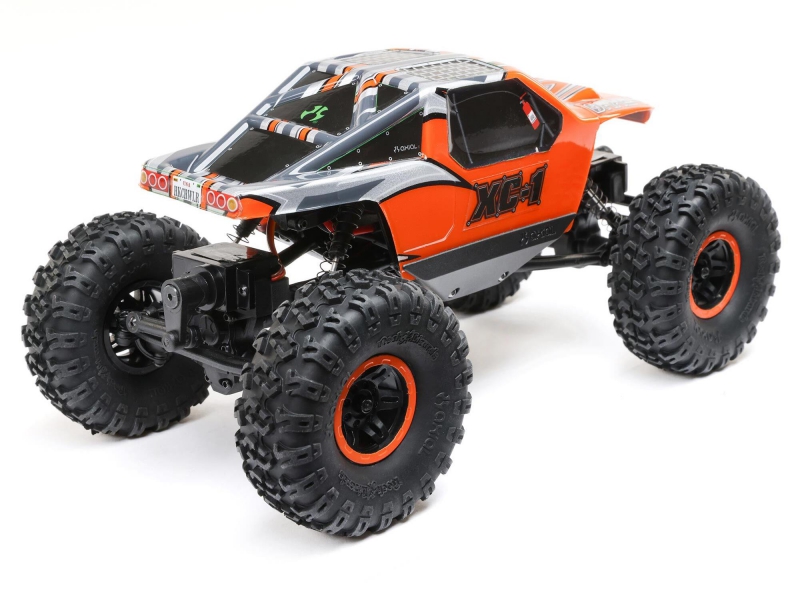

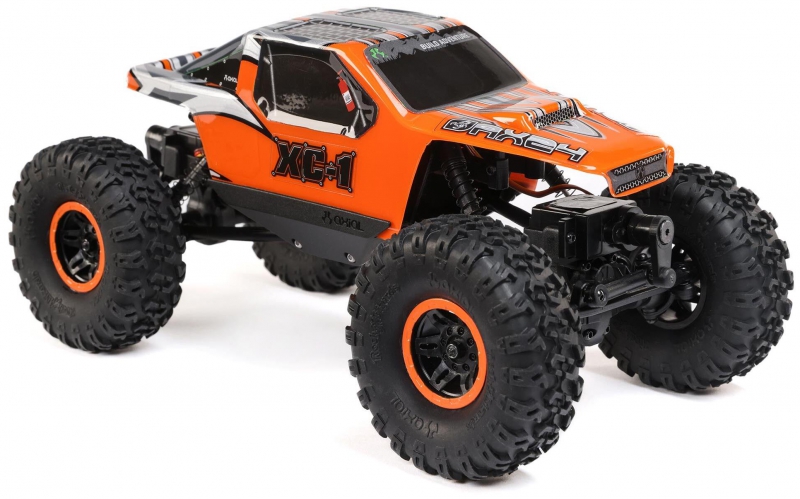

Axial 1/24 AX24 XC-1 Orange 4WS Rock Crawler RTR with LED Lights – C-AXI00003T2

Model No: C-AXI00003T2


Next Working Day Delivery Order before 2pm

In Stock for Immediate Dispatch

£149.99

Inc VAT & delivery

£179.99

£30.00

Next Day Delivery

We Accept
In Stock
Delivery Included
1 Year Warranty

Product Details

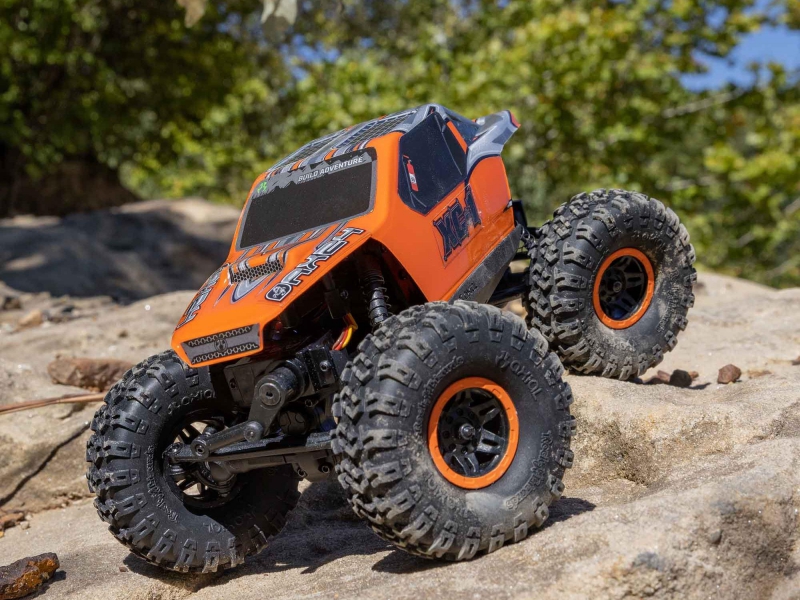

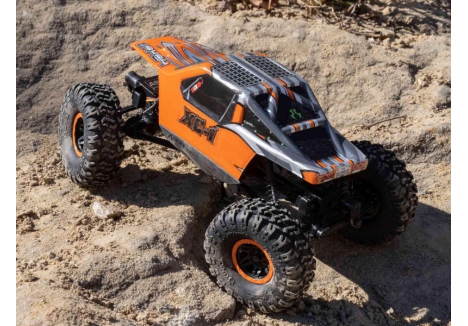

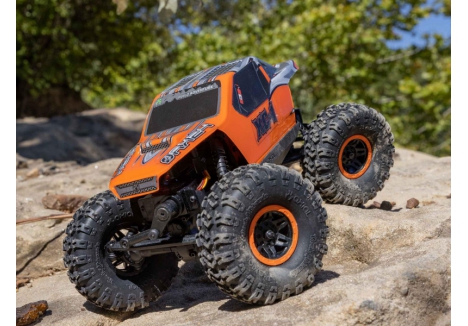

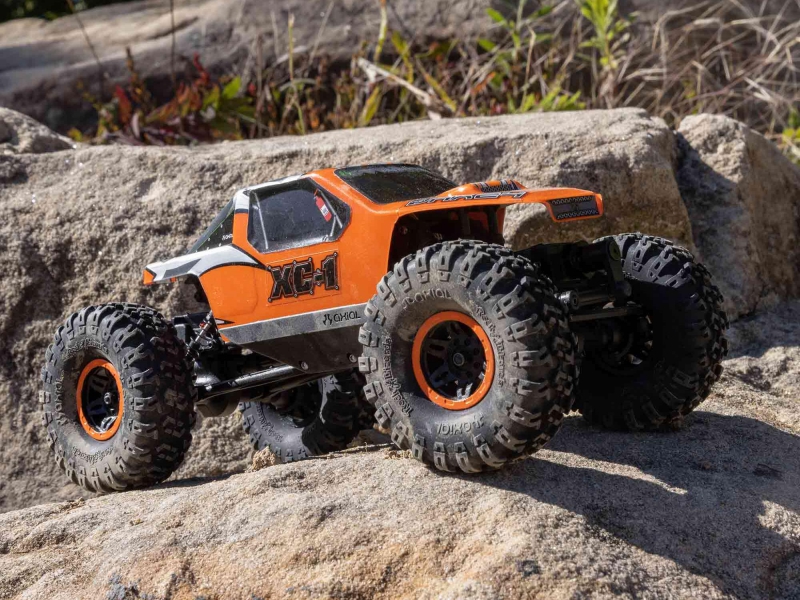

Push past boundaries and conquer more trails with the Axial AX24 XC-1 Rock Crawler RTR. Unique 4WS modes, extreme articulation, oversize tyres, and more let you crawl over bigger obstacles and pull tougher lines than any other 1/24 scale rig.

Key Features

  • Three 4-wheel steering (4WS) modes give drivers new terrain conquering ability.
  • Side plate chassis allows greater articulation for improved handling over rough terrain.
  • LED rock lights mounted in the rock sliders keep your path visible in low light.
  • Rockster wheels and Rock Lizards tyres produce trail-taming traction.
  • Fully equipped - you can hit the trails almost immediately!

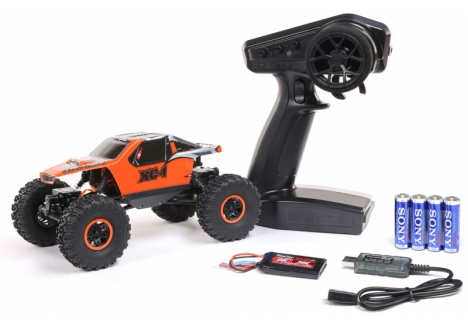

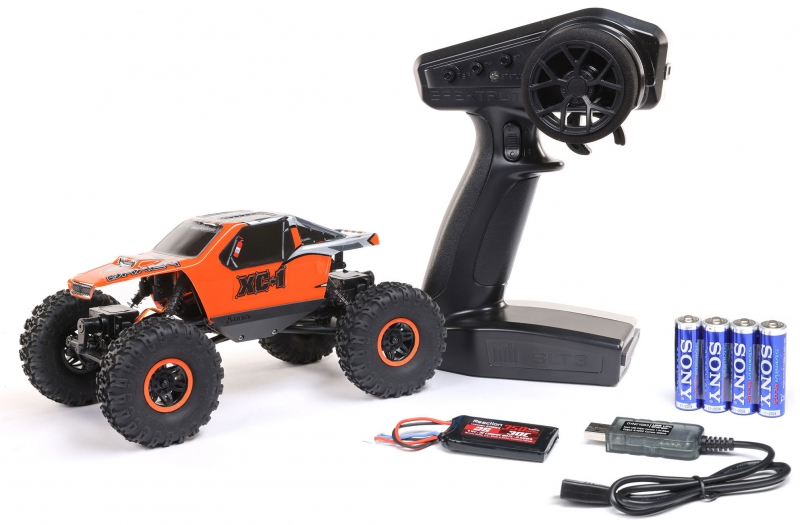

In The Box

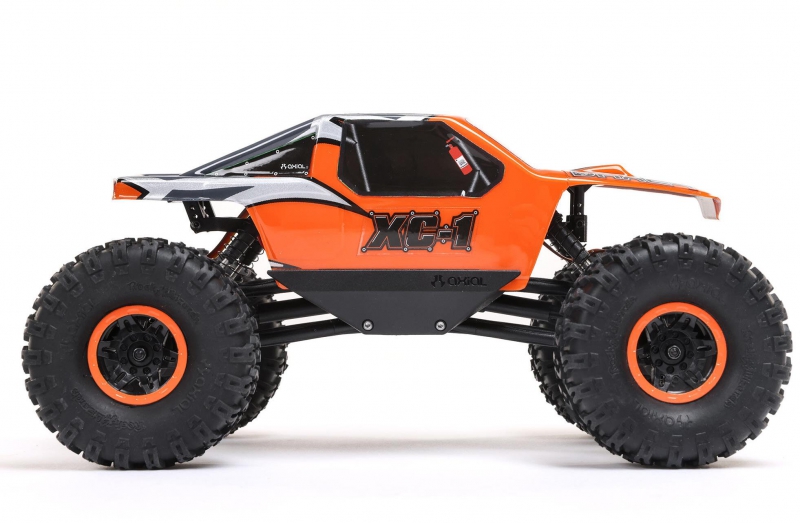

  • (1) Axial AX24 XC-1 1/24 Scale 4WS RTR Rock Crawler
  • (1) Spektrum SLT3 2.4GHz 3-Channel Radio System
  • (2) Axial AS-1 Servo

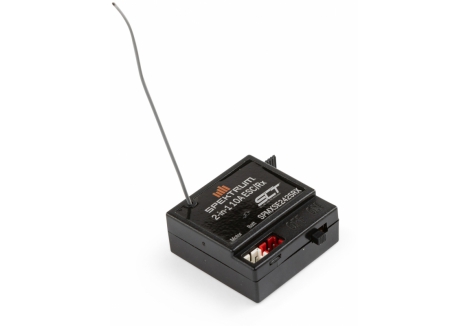

  • (1) Spektrum 2-in-1 ESC/Receiver Combo

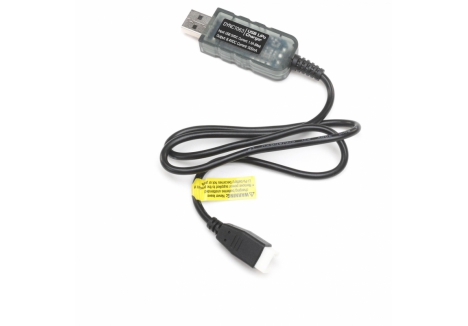

  • (1) 0.5 Amp USB Charger
  • (1) Dynamite 88T Brushed Electric Motor

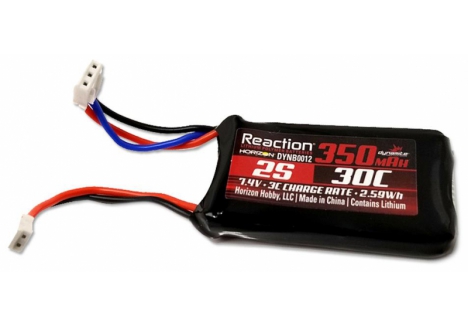

  • (1) Dynamite 350mAh 2S 7.4V LiPo
  • (4) AA Transmitter Batteries
  • (1) Product Manual
  • (1) Miscellaneous Tools
Needed to Complete
  • Nothing! Everything is included in the box!

Features

  • Three 4-wheel steering (4WS) modes give drivers new terrain conquering ability.
  • Side plate chassis allows greater articulation for improved handling over rough terrain.
  • LED rock lights mounted in the rock sliders keep your path visible in low light.
  • Long travel coilover shocks keep wheels on the ground to maximize traction.
  • 4-Link front and rear suspension reduces axle steer and torque twist.
  • Front and rear lockers with worm gear setup increase ground clearance.
  • Steel front and rear axles, stub axles, and dog bones provide strength.
  • Splined and sleeved drive shafts increase suspension travel.
  • Hinged body system offers easy access to on-board components.
  • Rockster wheels and Rock Lizards tyres produce trail-taming traction.
  • No bushings — entyre vehicle features sealed bearings.
  • Dynamite 88T motor provides the torque to conquer steep climbs.
  • Fully equipped — you can hit the trails almost immediately!

Overview

Every weekend, groups of off-road rock crawling enthusiasts gather to follow trails toward destinations far removed from the modern world. Their journey's end will reward them with beautiful views that only a select few ever see. But the best memories are made during the journey itself.

Within this community are the extreme crawlers. Where others see rocks, roots, and barriers, they see puzzle pieces that form a line to maneuver up, over, and beyond. It doesn't matter if most people would have trouble getting through on foot, let alone on wheels. Extreme crawlers have such a deep connection to their rig that they know when it can be pushed to new limits.

The 1/24 scale Axial AX24 XC-1 speaks to the extreme crawlers, and to everyone who wants to be one. With the AX24 XC-1, you'll be able to crawl over bigger obstacles and pull tougher lines than you can with any other 1/24 scale rig.

The new AX24 platform provides stability, durability, high clearance, generous articulation, and everything else extreme rock crawling enthusiasts need to overcome the impossible. Flat chassis side plates with rock sliders help you move through tight formations. Long travel shocks, a 4-link suspension, and worm gear drivetrain combine for easy handling, dependable power delivery, and the ability to clear rough terrain.

Then there's the unique AX24 4-wheel steering system. Following tightly to the line that leads from "here" to "there" has never been easier. Three transmitter-activated steering modes — for no rear tyre input, mirrored rear tyre input, or "crab crawl" — provide the flexibility you need to maneuver over or around almost anything in your way. This system gives all drivers new terrain conquering ability!

In 2007, Axial broke new ground in extreme RC crawling with the 1/10 scale AX10. If you're a long-time Axial fan, you'll love how the AX24 XC-1 pays homage to that legendary rig with a replica body and livery plus Rockster wheels and Rock Lizards tyres.

The AX24 XC-1 isn't just for experienced RC rock crawling hobbyists (though you'll enjoy how it takes on even steeper inclines and bigger obstacles than our SCX24 platform rigs). Newcomers will find it to be a fun and highly capable mini crawler to run on indoor or outdoor courses. It's also a great way for full-scale off roading enthusiasts to exercise and refine their skills.

Get ready to push past boundaries and conquer more trails with the Axial AX24 XC-1 Rock Crawler RTR. Because it's fully assembled and equipped, you can start today.


AXI00003

FOUR-WHEEL
FOUR-WHEEL STEERING (4WS)

The unique AX24 4-wheel steering system gives all drivers new terrain conquering ability. Three transmitter-activated modes — no rear tyre input, mirrored rear tyre input, and "crab crawl" — provide the flexibility you need to maneuver over or around anything in your way.

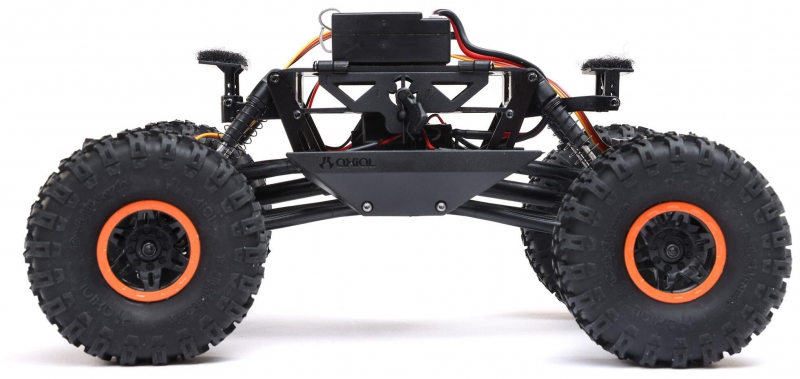

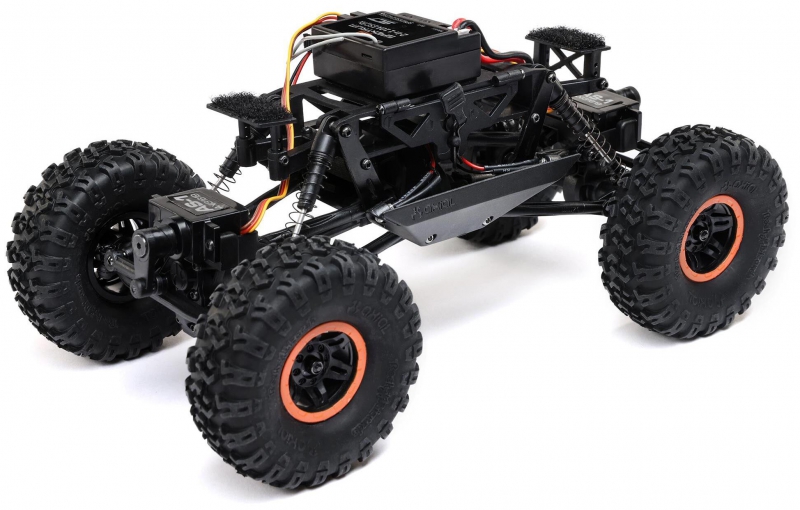

SIDE

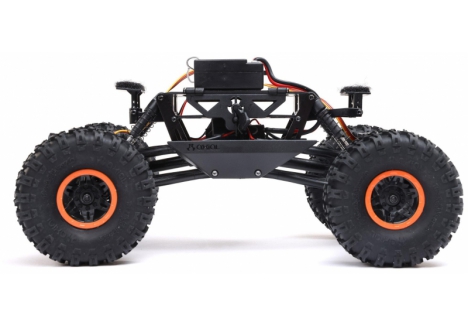

SIDE PLATE CHASSIS

The durable side plate chassis is engineered to allow high clearance and generous articulation. Angled rock sliders also help you maneuver past rocks, roots, ledges, and other large obstacles. Driving the AX24 XC-1, you go where you want to go!



LED
LED LIGHTS

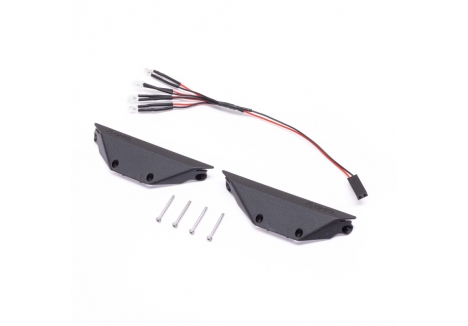

LED rock lights mounted in the rock sliders keep your path visible in low light. You'll be able to see and surmount obstacles you might not otherwise spot. Day or night, the AX24 XC-1 keeps your adventure alive.



COILOVER

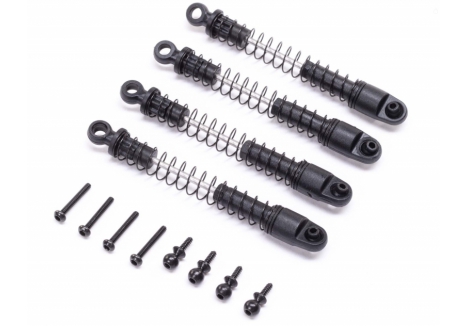

COILOVER SHOCK ABSORBERS

Longer, 51mm coilover shocks are new for the AX24 platform. Mounted at a lay back angle in the side plate chassis, they allow increased articulation to keep the wheels on the ground and maximizing traction over uneven surfaces.



4-LINK
4-LINK FRONT AND REAR SUSPENSION

The suspension geometry uses a 4-link design that works together with the AX24 side plate chassis to increase articulation and reduce axle steer and torque twist.



WORM
WORM GEARS

The front and rear axle housings each have a worm screw and worm gear setup to get power to the axles and create higher ground clearance.



DURABLE

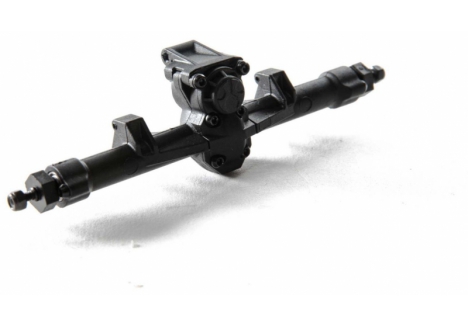

DURABLE STEEL AXLES

Steel front and rear axles, stub axles and dog bones provide the strength and durability needed to keep running with confidence during tough climbs and over rough trails.



SPLINED
SPLINED DRIVE SHAFTS

The drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.



HINGED

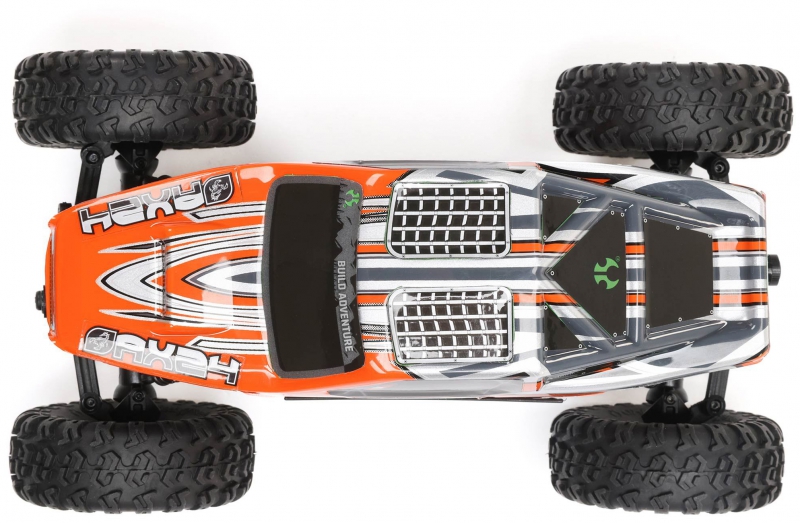

HINGED BODY SYSTEM

The hinged body system provides fast, easy access to on-board components. Its hook-and-loop hinge design lets you reach the chassis and battery simply by swinging the body up.



ROCKSTER

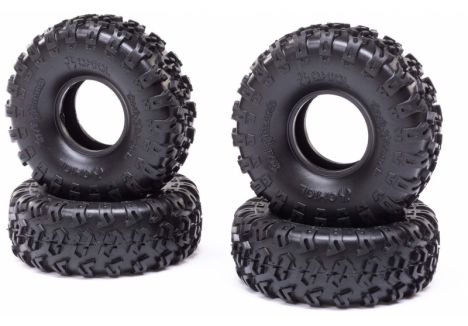

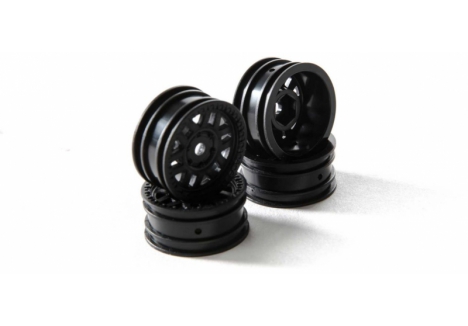

ROCKSTER WHEELS & ROCK LIZARDS TYRES

In 2007, the 1/10 scale Axial AX10 platform revolutionized RC crawling. The 1/24 scale AX24 XC-1 pays homage to that groundbreaking rig with a replica body and livery, plus 1.0" Rockster wheels and 2.44" Rock Lizards tyres for nostalgic looks and trail-taming traction.



FULL
FULL BALL BEARINGS

Although the AX24 is smaller than many other Axial RC crawlers, it still measures up to our highest quality standards. For example, you'll find no bushings here. The drivetrain spins freely on sealed bearings throughout the entyre vehicle.



AXIAL

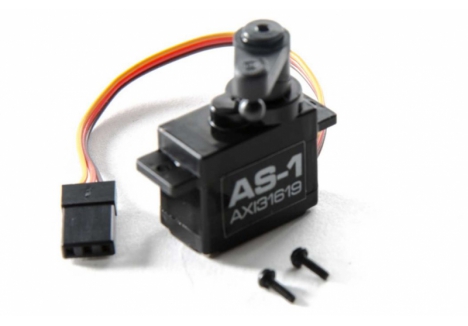

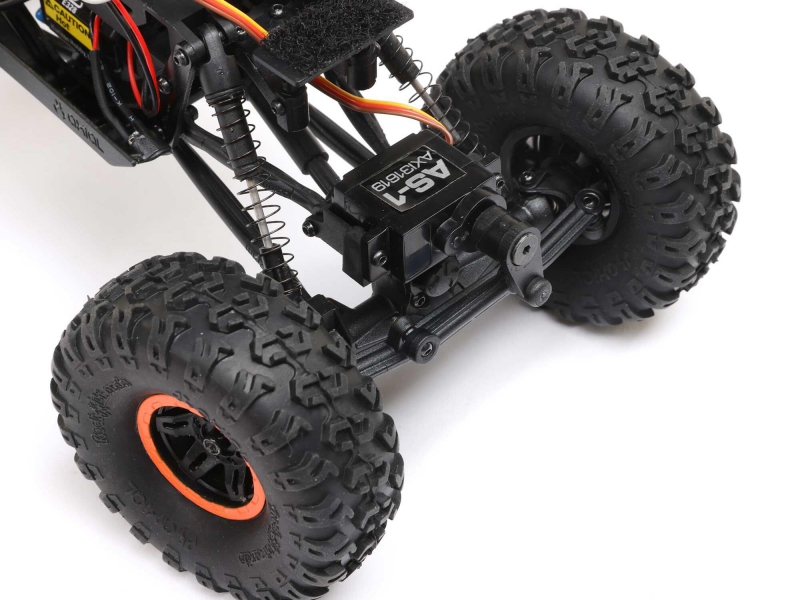

AXIAL AS-1 SERVOS

Axial AS-1 servos are mounted just above the axle, with servo savers that allow for steering accuracy while protecting the servo gears in the event of a bind or impact.



DYNAMITE
DYNAMITE 88T BRUSHED MOTOR

The Dynamite 88T brushed electric motor provides the right amount of torque to conquer steep climbs. It's mated to a stamped aluminium motor mount to keep flex to a minimum and protect the gears.



IMPROVED
IMPROVED SPEKTRUM SLT3 TRANSMITTER WITH 2-IN-1 SYSTEM

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free driving and has a foam wheel for precise fingertip control. Paired with a Spektrum 2-in-1 ESC/Receiver, its 2.4GHz signal lets you crawl in the company of multiple other rigs without worrying about interference. A new throttle port serves as an ESC bypass for using aftermarket ESCs without having to buy a new receiver.




AXI00003


Brand, Model and Product Type

  • Brand: Axial
  • Model: C-AXI00003T2
  • Product Type: Axial AX24 XC-1 1/24 orange 4WS rock crawler RTR C-AXI00003T2, AXIAL 1/24 AX24 XC-1 brushed crawler with LED rock lights and worm gear drivetrain C-AXI00003T2, AX24 XC-1 mini crawler with Rock Lizards tires and Rockster wheels C-AXI00003T2, Axial AX24 orange crawler with 4-wheel steering and hinged body system C-AXI00003T2, XC-1 1/24 scale crawler with side plate chassis and coilover shocks C-AXI00003T2, AX24 RTR crawler with Spektrum SLT3 radio and AS-1 servos C-AXI00003T2

Dimensions

  • Product Length: 19.8 cm – compact chassis for navigating tight indoor and outdoor trail layouts
  • Product Width: 11.4 cm – provides lateral stability across uneven terrain
  • Product Height: 9.4 cm – low-profile design enhances control and visibility
  • Wheelbase: 13.5 cm – optimised for articulation and obstacle clearance
  • Ground Clearance: 3.4 cm – supports high-clearance crawling over rocks and roots
  • Wheel Width: 1.25 cm – compatible with Rockster wheels for scale realism

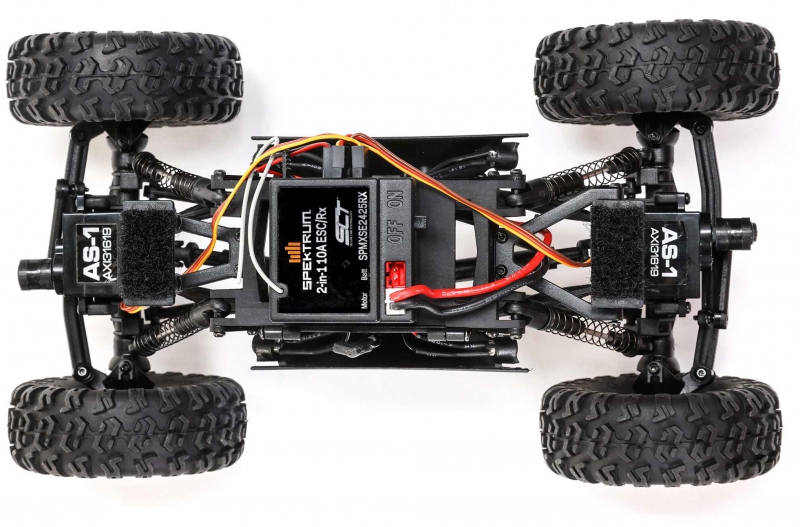

Chassis and Suspension

  • Chassis Type: Side plate chassis – engineered for generous articulation and high clearance
  • Suspension Setup: 4-link front and rear – reduces torque twist and axle steer during technical climbs
  • Shock Type: Coil-over plastic shocks (3.5–5.1 cm travel) – mounted at layback angle to maximise wheel contact
  • Axle Configuration: Solid axle front and rear – supports durability and consistent power delivery

Drivetrain and Steering

  • Drivetrain: 4WD – ensures traction across all wheels for steep inclines and rugged terrain
  • Differential Type: Worm gear 16T/4T – increases ground clearance and provides drag brake control
  • Drive Modes: Forward, brake, reverse – supports versatile terrain handling
  • Steering System: 4-wheel steering with three selectable modes – includes no rear input, mirrored input, and crab crawl
  • Steering Servos: 2 x Axial AS-1 – mounted above axles with servo savers for protection and precision
  • Drive Shafts: Splined and sleeved – allows full suspension travel while maintaining drivetrain integrity
  • Axles: Steel front and rear with stub axles and dog bones – built for strength and trail durability

Motor and Electronics

  • Motor Type: Dynamite 88T brushed – delivers torque for steep climbs and technical crawling
  • Motor Mount: Stamped aluminium – minimises flex and protects gear mesh alignment
  • ESC/Receiver: Spektrum 2-in-1 combo – compact layout with interference-free 2.4GHz signal
  • Radio System: Spektrum SLT3 3-channel – ergonomic design with foam wheel for fatigue-free control
  • Battery: Dynamite 350mAh 2S 7.4V LiPo – rechargeable and sized for extended runtime
  • Charger: 0.5A USB – convenient charging via standard USB ports

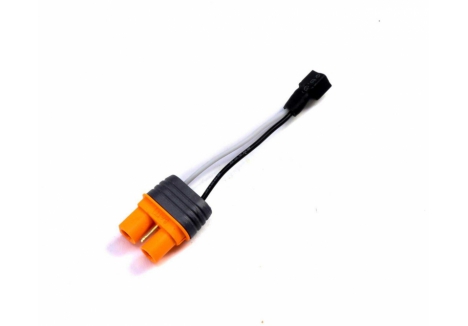

  • Connector Type: PH 2.0 high-current ultra micro – compatible with included battery and charger

Lighting and Body

  • LED Rock Lights: Mounted in rock sliders – illuminate terrain for low-light crawling
  • Body Type: XC-1 screened replica – hinged system with hook-and-loop access for quick maintenance

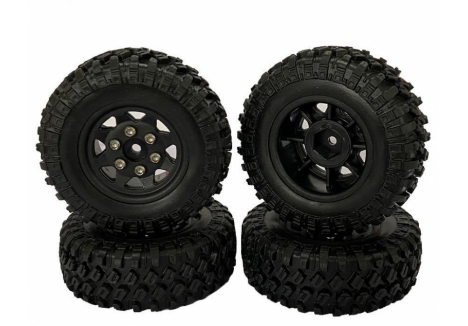

Tyres and Wheels

  • Tyre Type: Rock Lizards – aggressive tread pattern for trail-taming grip
  • Wheel Type: 1.0 inch Rockster – nostalgic styling with scale realism

What’s in the Box

  • Axial AX24 XC-1 1/24 Scale 4WS RTR Rock Crawler
  • Spektrum SLT3 2.4GHz 3-Channel Radio System
  • 2 x Axial AS-1 Servo
  • Spektrum 2-in-1 ESC/Receiver Combo
  • 0.5 Amp USB Charger
  • Dynamite 88T Brushed Electric Motor
  • Dynamite 350mAh 2S 7.4V LiPo Battery
  • 4 x AA Transmitter Batteries
  • Miscellaneous Tools
  • AX24 XC-1 4WS Manual

What You Will Need

  • No additional items required – fully equipped and ready-to-run

Sold Separately

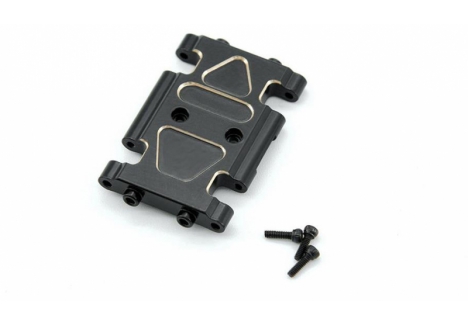

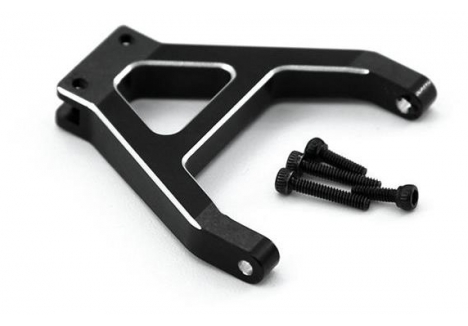

  • Optional upgrade parts – aluminium components, performance tyres, and custom body accessories

Warranty

  • Warranty Duration: 1 year – covers defects in materials and workmanship

Parts Diagrams

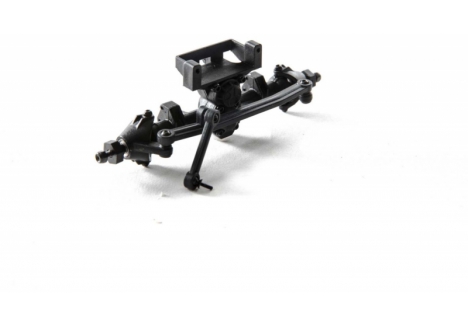

Front & Rear Assembly
Link Assembly

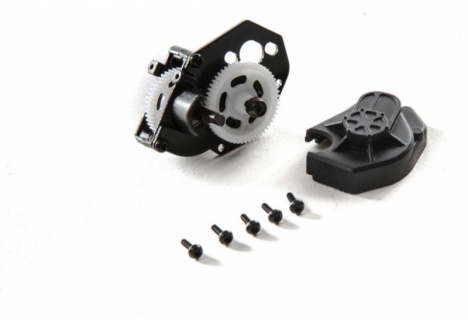

Shocks / Driveshaft / Transmission
Chassis Assembly 1
Chassis Assembly 2

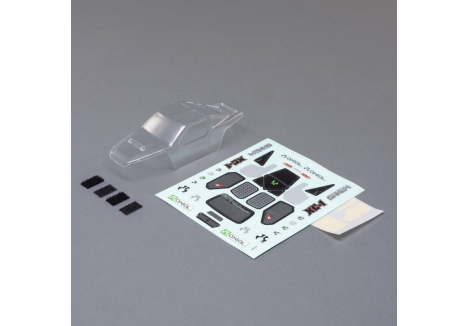

Bodyshell / Wheel & Tyre
