Features
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft
- Includes everything needed to start winching

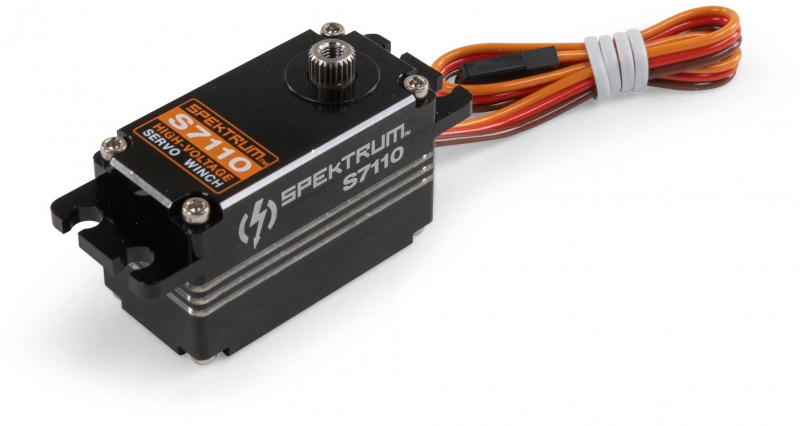

Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
The Spektrum P-SPMSS7110 S7110 HV servo winch with 180 oz-in torque, 155RPM speed, and 25T spline is purpose-built for 1/10 scale rock crawlers and scalers that demand precision, power, and scale realism. Engineered with a durable brushless motor and integrated controller, this low-profile digital winch delivers smooth, high-torque performance across a wide voltage range. Housed in a waterproof aluminum case and supported by ball bearings, the Spektrum P-SPMSS7110 offers consistent rotation and long-term reliability in rugged terrain. With a 360° continuous rotation range and included scale accessories, this winch is ready to tackle technical recoveries and trail challenges straight out of the box.
Key features of the Spektrum P-SPMSS7110 S7110 HV servo winch
- Brushless motor – delivers long-lasting, high-efficiency torque output
- Integrated brushless controller – simplifies setup and ensures smooth operation
- Waterproof aluminum case – protects internal components and dissipates heat
- 360° continuous rotation – enables uninterrupted winch operation for scale recoveries
- Metal gear train – engineered for low wear and precise torque transfer
- Dual ball bearings – supports smooth rotation and consistent load handling
- Included accessories – 7' fiber line, aluminum spool, and scale recovery hook
How does the brushless motor and controller improve winch performance?
The Spektrum P-SPMSS7110 brushless winch servo for 1/10 scale rock crawlers and scalers features a high-efficiency brushless motor paired with an integrated controller, eliminating the need for external ESCs or complex wiring. This combination delivers smooth, consistent torque across the full rotation range, with minimal wear and heat buildup. At 7.4V, the winch achieves 160 oz-in of torque at 155RPM, providing the strength and speed needed for realistic trail recoveries. The controller also ensures precise response and simplified installation, making the S7110 ideal for builders who value performance and convenience.
Why is the waterproof aluminum case essential for trail durability?
The Spektrum P-SPMSS7110 waterproof digital winch with aluminum case and integrated brushless controller is built to withstand the elements. Its anodized aluminum housing provides structural integrity and thermal regulation, while waterproof sealing protects internal electronics from moisture, dust, and debris. This makes the winch suitable for wet trails, muddy conditions, and unpredictable terrain. The compact dimensions and low-profile design allow for easy integration into scale builds without compromising clearance or aesthetics.
What makes the gear train and bearing support ideal for crawler applications?
The HV-compatible servo winch with 6.0–8.4V input, 360° continuous rotation, and metal gear train incorporates a precision-engineered gear system designed for low wear and tight mesh. Metal gears ensure reliable torque transfer under load, while dual ball bearings support smooth rotation and reduce friction. This setup maintains alignment and performance during extended use, making the winch dependable for repeated recoveries and trail challenges. The 25T spline ensures compatibility with standard servo arms and mounting hardware.
What accessories are included with the Spektrum P-SPMSS7110?
The Spektrum P-SPMSS7110 with 7' fiber line, scale recovery hook, and aluminum spool included comes fully equipped for immediate use. The 7-foot fiber line offers ample reach for trail recoveries, while the aluminum spool ensures smooth winding and durability. The scale recovery hook adds realism and functionality, allowing users to anchor and retrieve vehicles with precision. These accessories are designed to integrate seamlessly with the winch, enhancing both performance and visual appeal.
How does the voltage range support flexible power setups?
The Spektrum digital winch with 25T spline, 180 oz-in torque, and 155RPM speed at 7.4V operates across a wide input range of 6.0–8.4V, making it compatible with a variety of battery and ESC configurations. At 8.4V, the winch reaches its peak torque of 180 oz-in, while maintaining high-speed rotation for efficient recoveries. This flexibility allows users to tailor their power systems to match terrain and vehicle requirements, ensuring optimal performance in any scenario.
Why is the Spektrum P-SPMSS7110 ideal for scale trail rigs?
The Low-profile crawler winch with 2 oz weight, 22 AWG wiring, and ball bearing support combines compact design with robust functionality. Weighing just 2 oz and measuring under 1" in height, the winch fits easily into tight chassis layouts without affecting balance or clearance. The 22 AWG wiring supports reliable power delivery, while the ball bearing system ensures smooth operation under load. With its integrated controller, waterproof construction, and included accessories, the S7110 is a top-tier choice for scale builders and trail enthusiasts seeking realism and reliability.
Buy Spektrum P-SPMSS7110 S7110 HV servo winch for 1/10 scale RC crawlers and trail rigs.
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMSS7110
- Product Type: Spektrum P-SPMSS7110 S7110 HV servo winch with 180 oz-in torque, 155RPM speed, and 25T spline, Spektrum P-SPMSS7110 brushless winch servo for 1/10 scale rock crawlers and scalers, Spektrum P-SPMSS7110 waterproof digital winch with aluminum case and integrated brushless controller, Spektrum P-SPMSS7110 with 7' fiber line, scale recovery hook, and aluminum spool included, Low-profile crawler winch with 2 oz weight, 22 AWG wiring, and ball bearing support

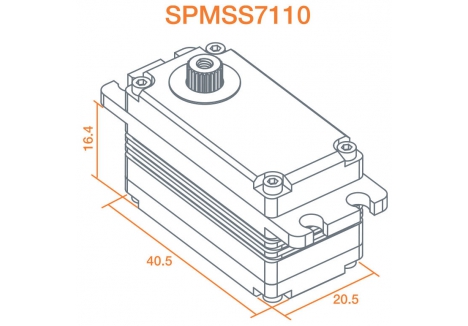

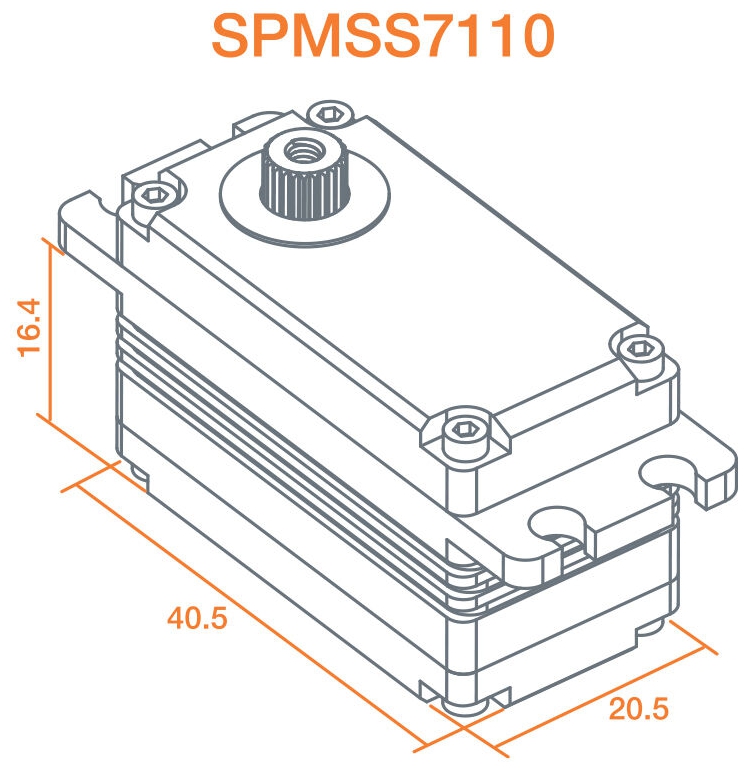

Dimensions
- Product Length: 4.0 cm – compact footprint for scale crawler installations
- Product Height: 2.5 cm – low-profile design for tight chassis layouts
- Product Width: 2.0 cm – standard mounting width for 1/10 scale winch setups
- Product Weight: 2 oz – lightweight construction for minimal impact on vehicle balance
Motor and Gear System
- Motor Type: Brushless – delivers high-efficiency torque and long-term reliability
- Gear Type: Metal – engineered for low wear and precise torque transfer
- Spline Count: 25 teeth – compatible with standard servo arms
- Rotation Range: 360° continuous – supports uninterrupted winch operation
Performance and Speed
- Maximum Torque: 130 oz-in @6.0V; 160 oz-in @7.4V; 180 oz-in @8.4V – optimized for scale recovery tasks
- Maximum Speed: 123 RPM @6.0V; 155 RPM @7.4V – fast line retrieval for trail recoveries
Voltage and Compatibility
- Operating Voltage: 6.0–8.4V HV – supports high-voltage systems for peak performance
- HV Compatibility: Yes – optimized for 2S LiPo setups and high-performance ESCs
Protection and Reliability
- Waterproof: Yes – sealed aluminum housing protects against moisture and debris
- Case Material: Aluminum – provides heat dissipation and rugged durability
- Bearings: Ball bearing supported – ensures smooth rotation and consistent load handling
Connectivity and Wiring
- Connector Type: Universal – compatible with standard receiver ports
- Wire Gauge: 22 AWG – supports stable power delivery
- Wire Length: 190 mm – accommodates flexible routing options
Application
- Primary Use: Winch – ideal for 1/10 scale rock crawlers and trail rigs
- Servo Size Category: Low Profile – designed for compact, scale-accurate installations

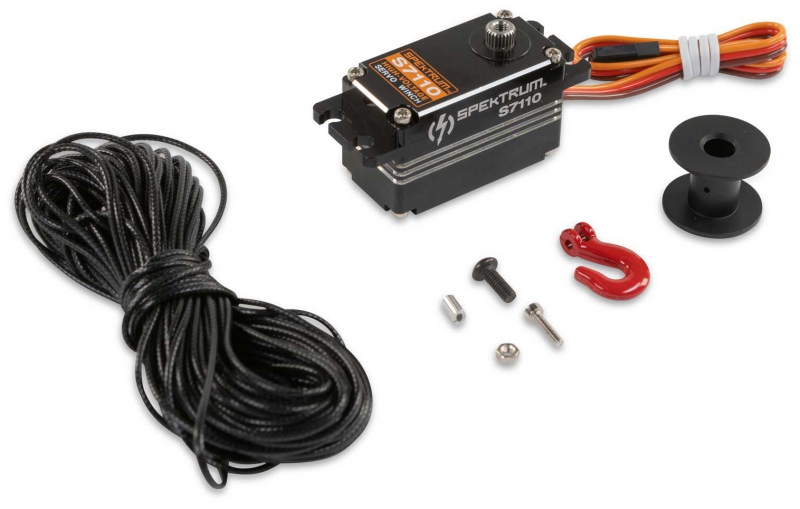

What’s in the Box
- 1 × S7110 High Voltage Servo Winch
- 1 × Scale Recovery Hook
- 1 × Aluminum Spool
- 1 × 7' Fiber Line
What You Require / What You Will Need
- Compatible receiver and HV-capable power system – required for full performance operation
