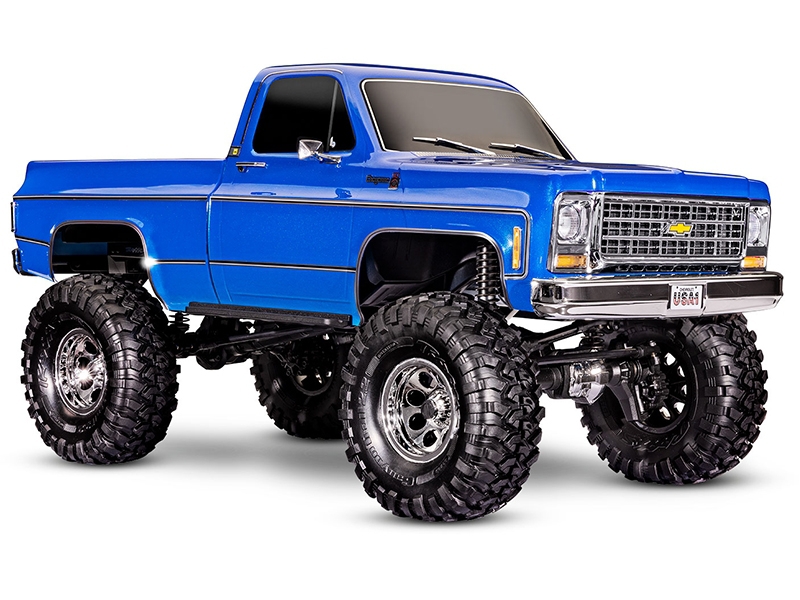

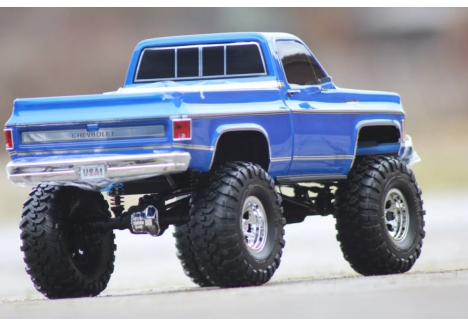

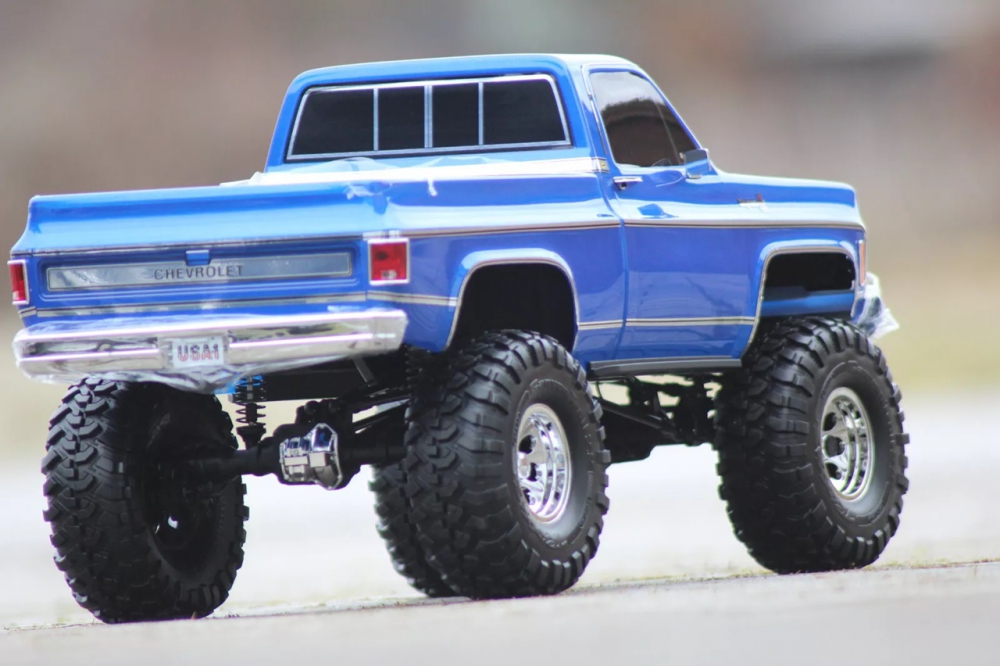

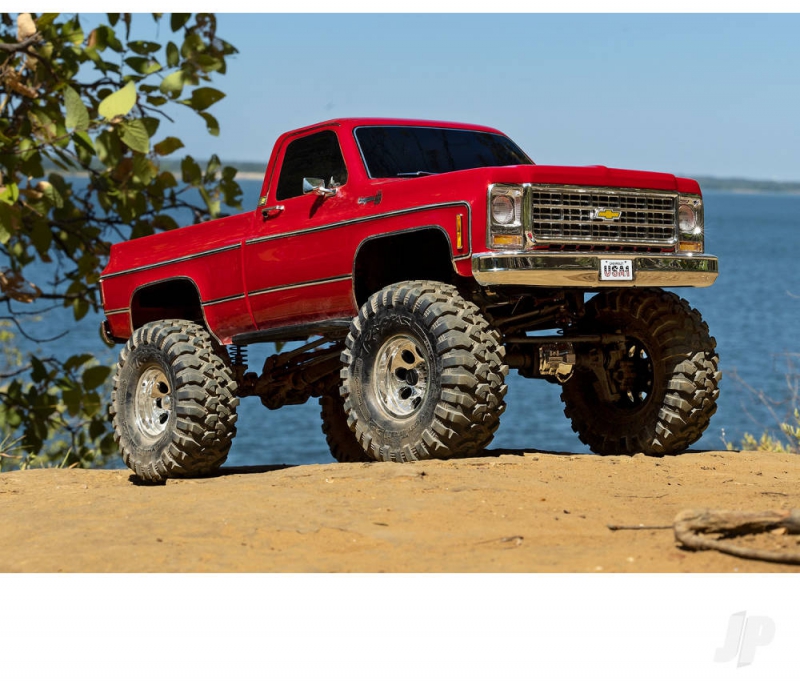

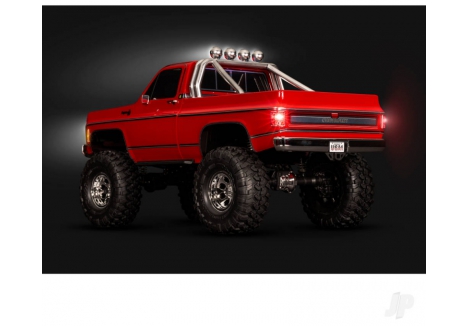

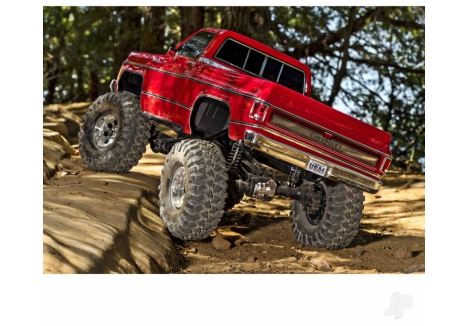

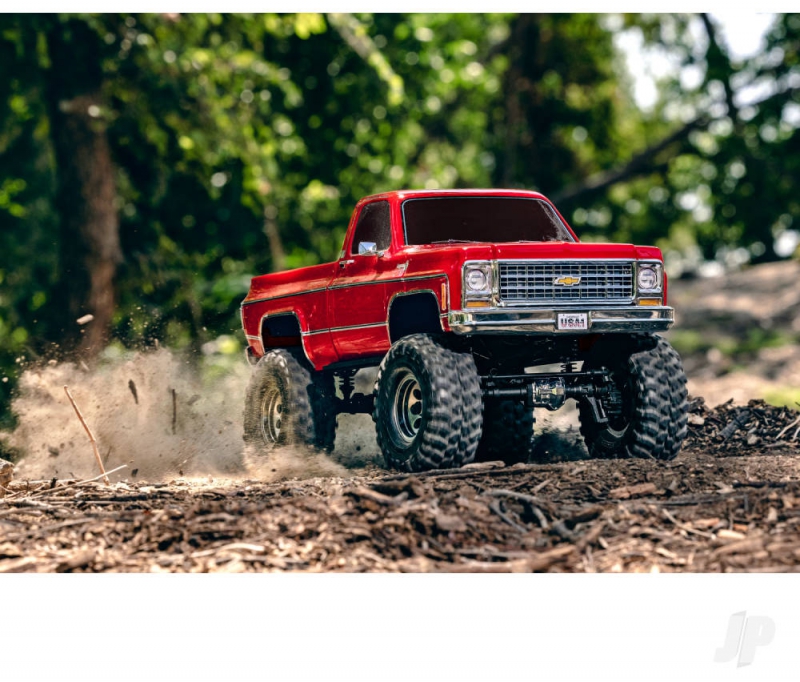

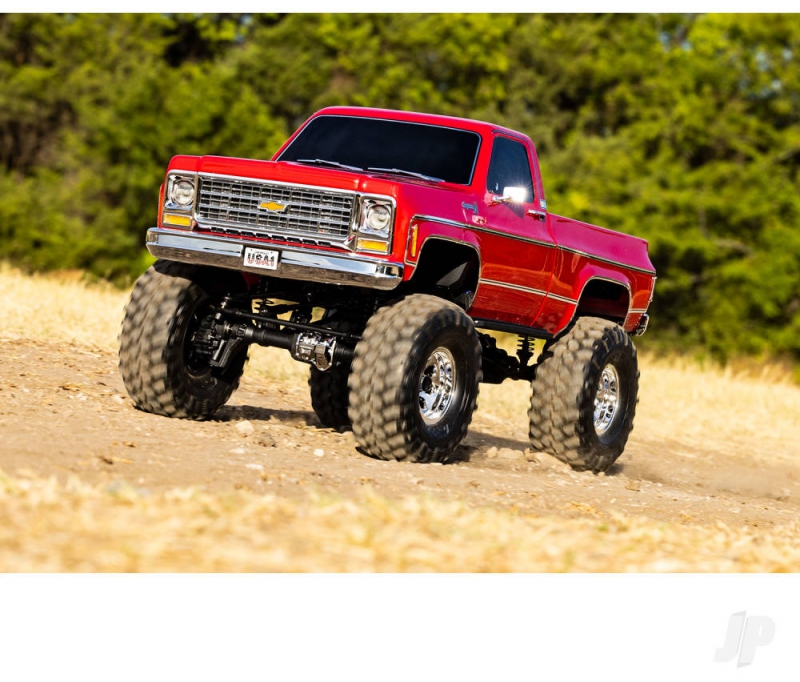

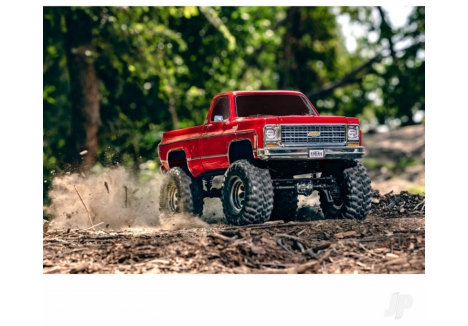

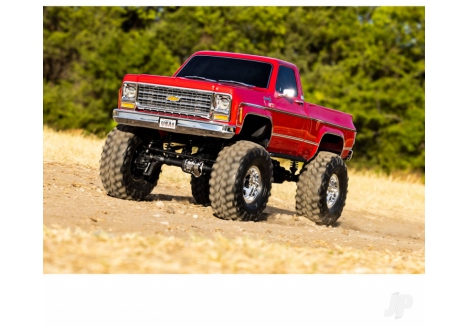

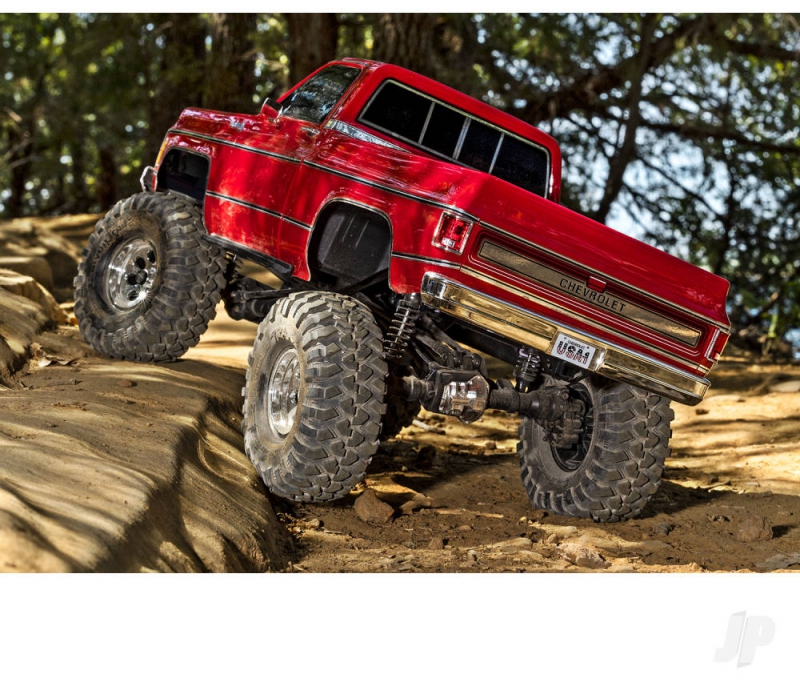

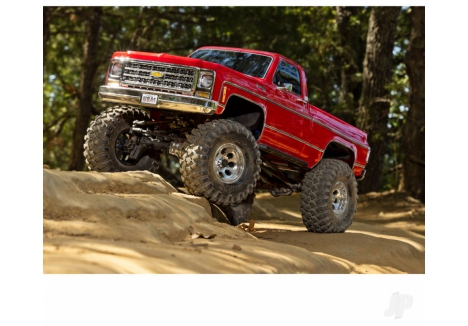

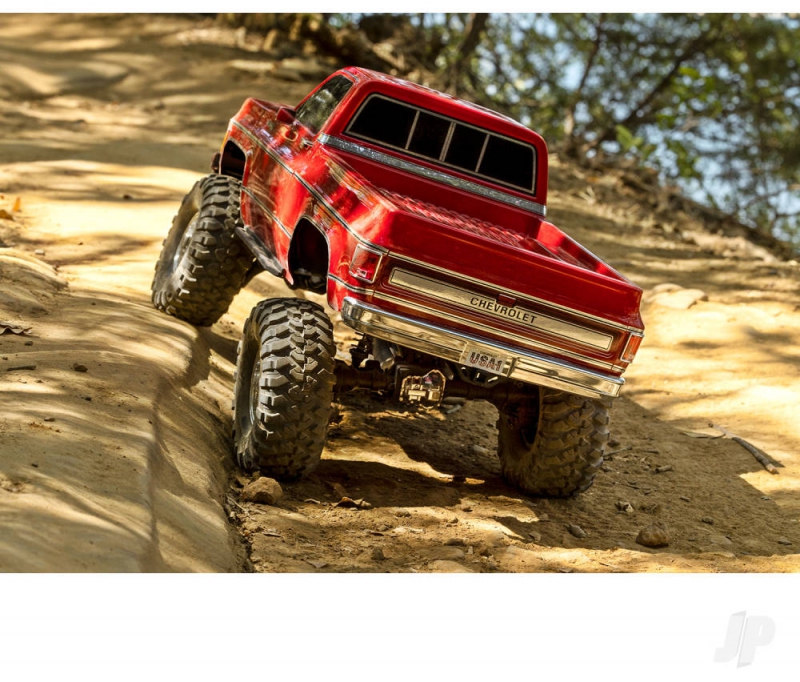

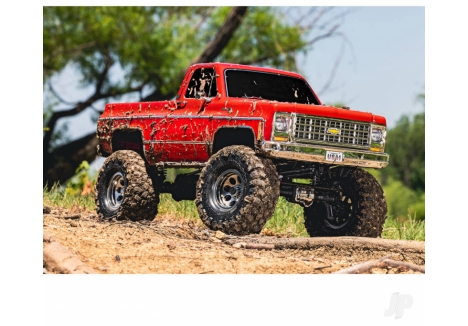

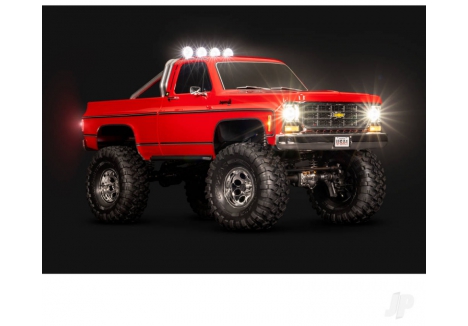

Get ready for extreme scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition pickup. The highly detailed K10 replica body stands over an inch higher than a standard TRX-4 thanks to its factory-installed lift kit and oversize 2.2” tires. K10’s extended wheelbase further enhances TRX-4’s already legendary off-road capability for even more fun on the trail. Storm mud bogs, cross deeper streams, and clear bigger obstacles than ever before with the TRX-4 High Trail Edition K10.
LIFTED OFF-ROAD ADVENTURE

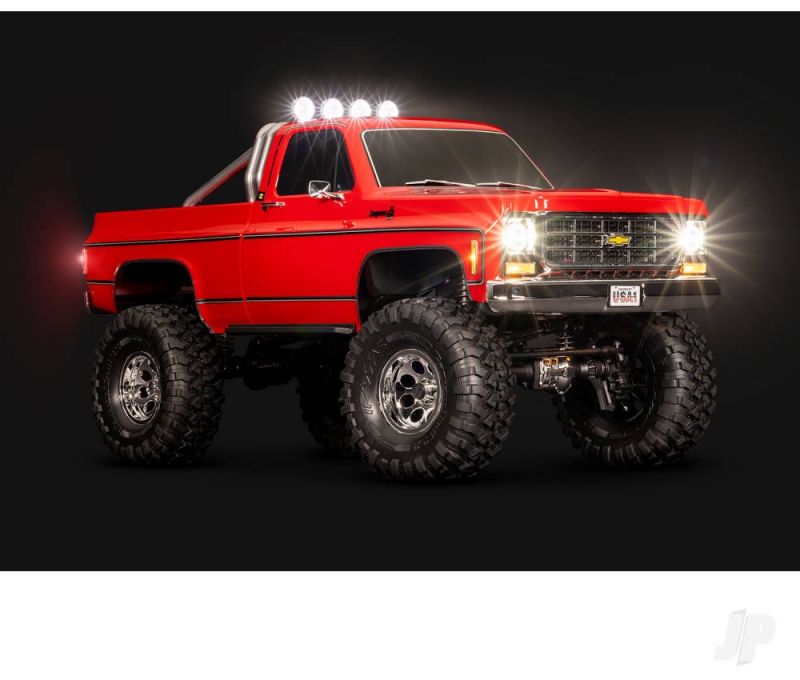

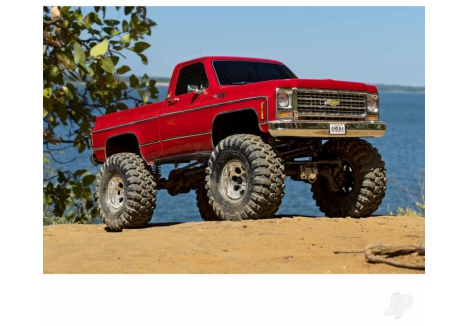

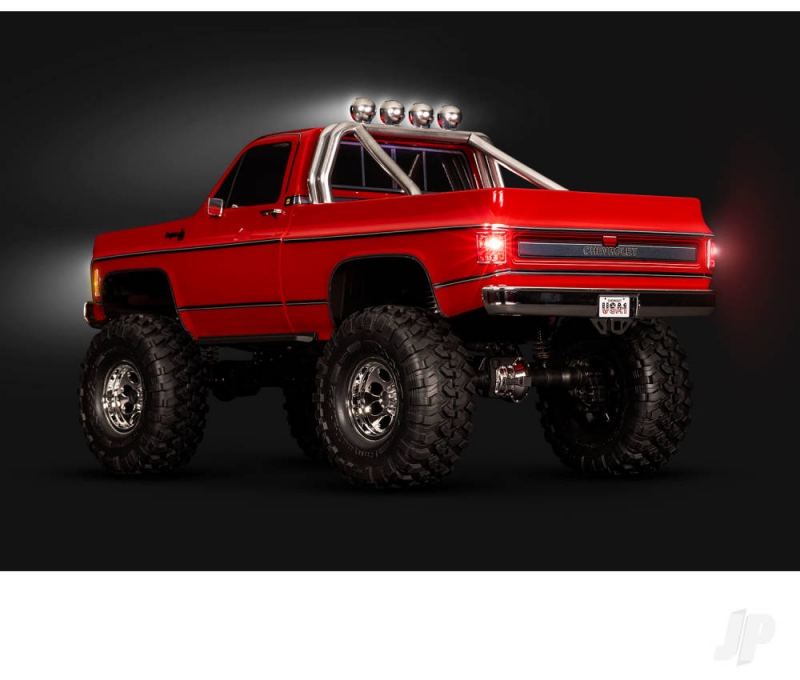

Traxxas elevates scale adventure with the lifted TRX-4® Chevrolet® K10 High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed K10 replica body stands over an inch taller than our standard TRX-4. The K10’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

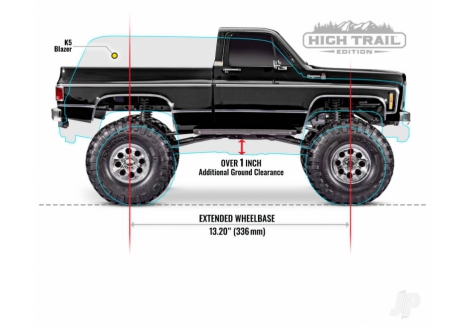

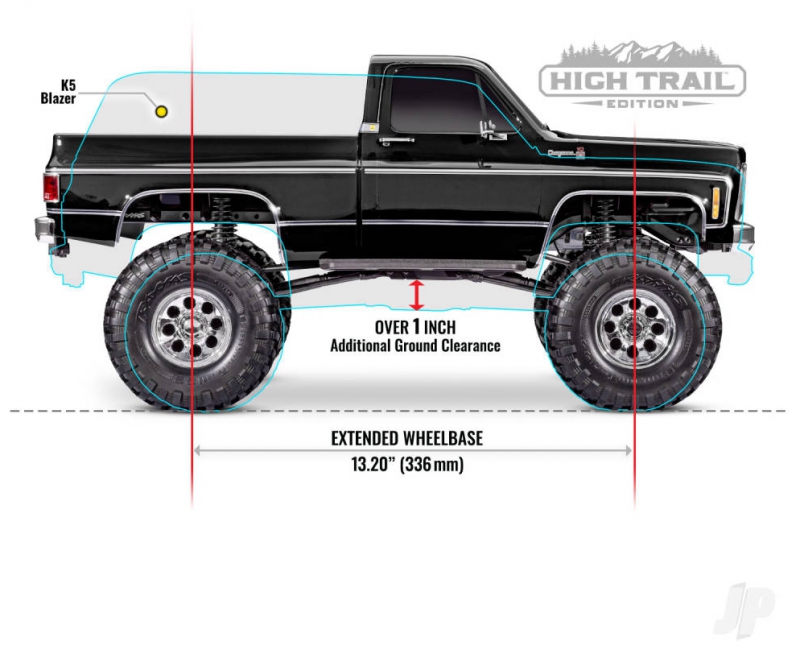

EXTENDED 336MM WHEELBASE

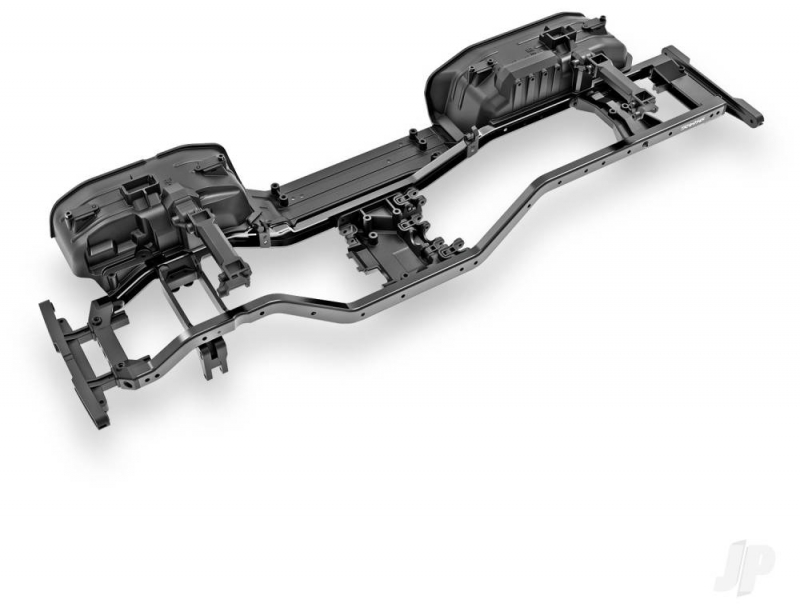

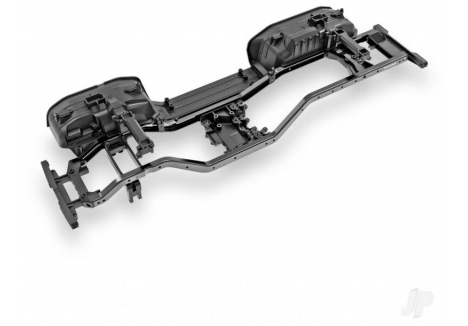

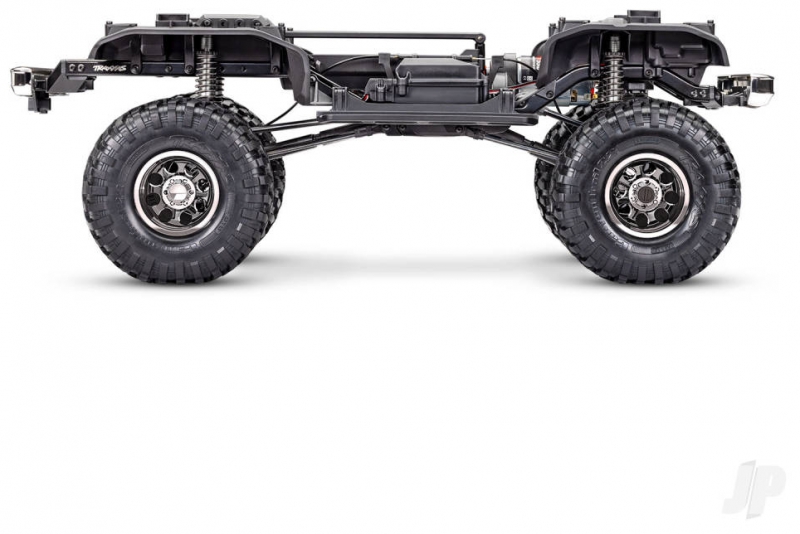

K10’s steel frame rails extend the wheelbase out to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

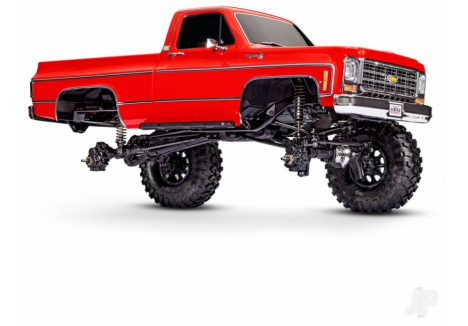

HIGH TRAIL EDITION

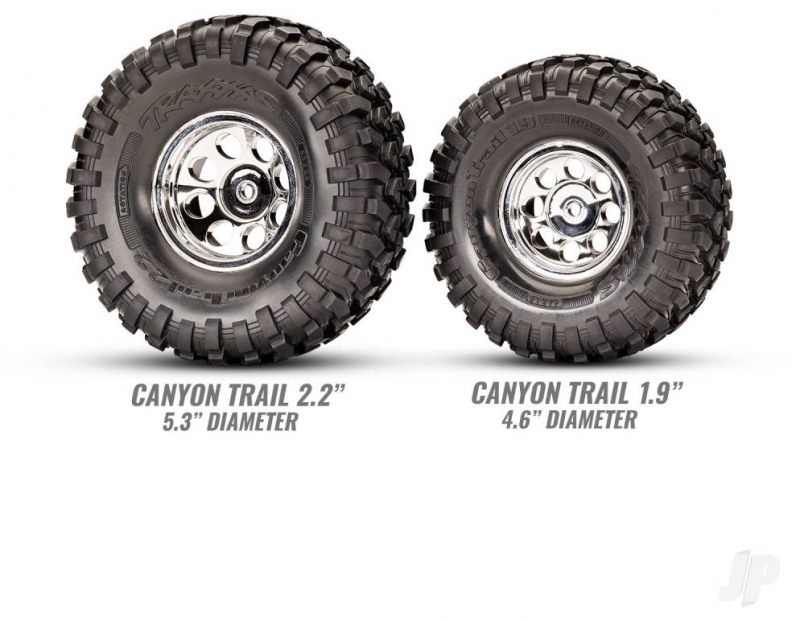

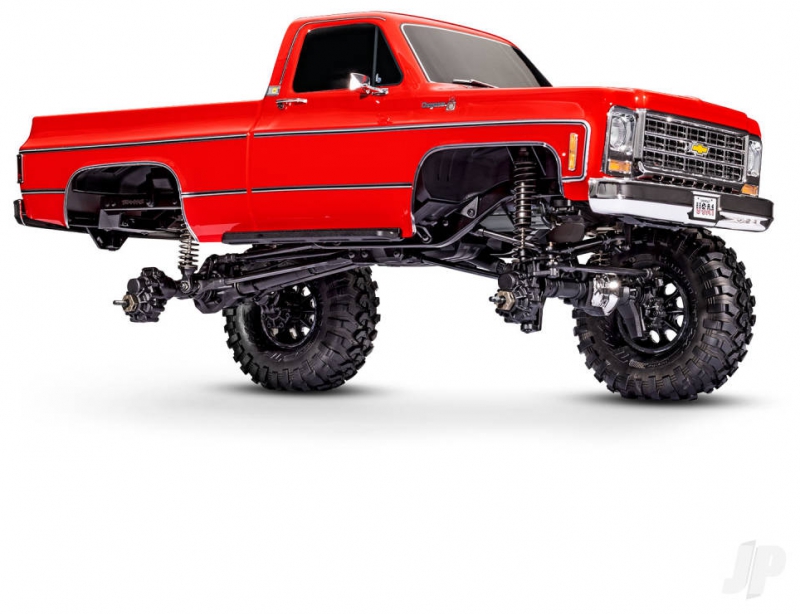

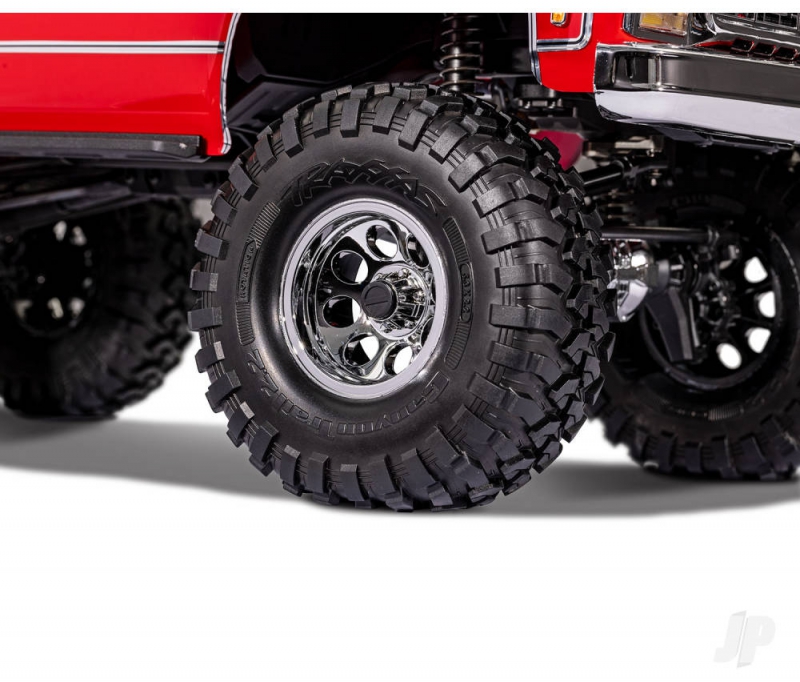

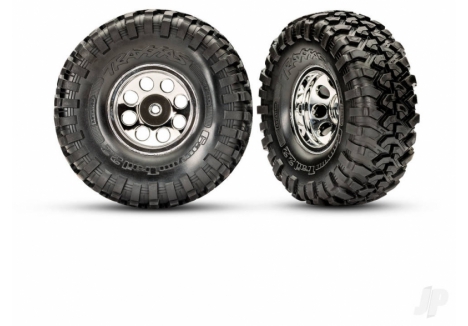

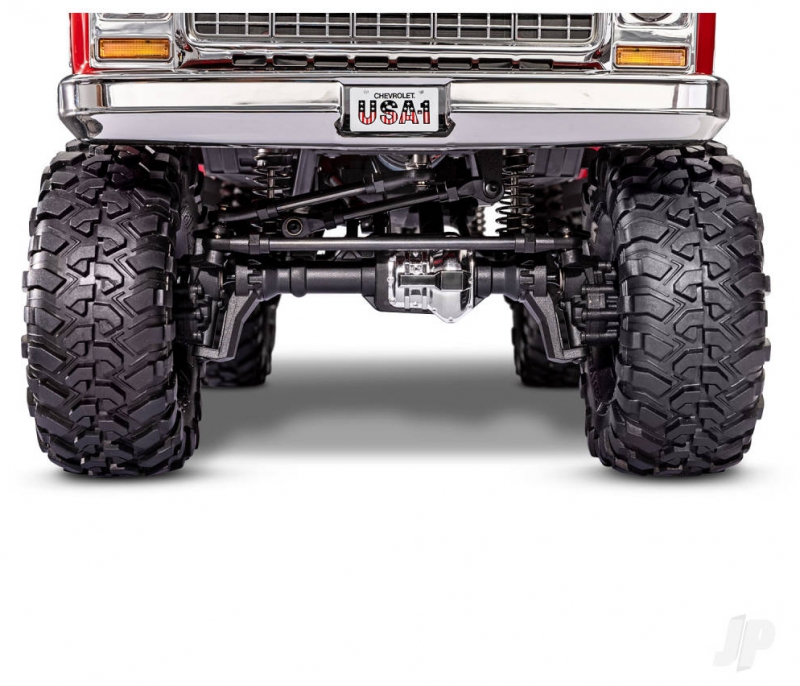

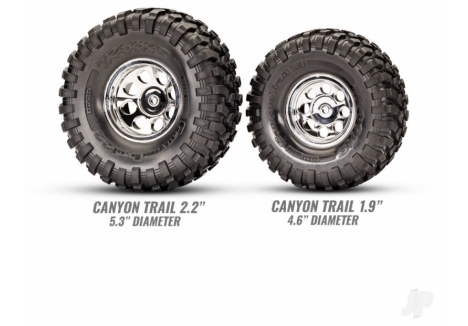

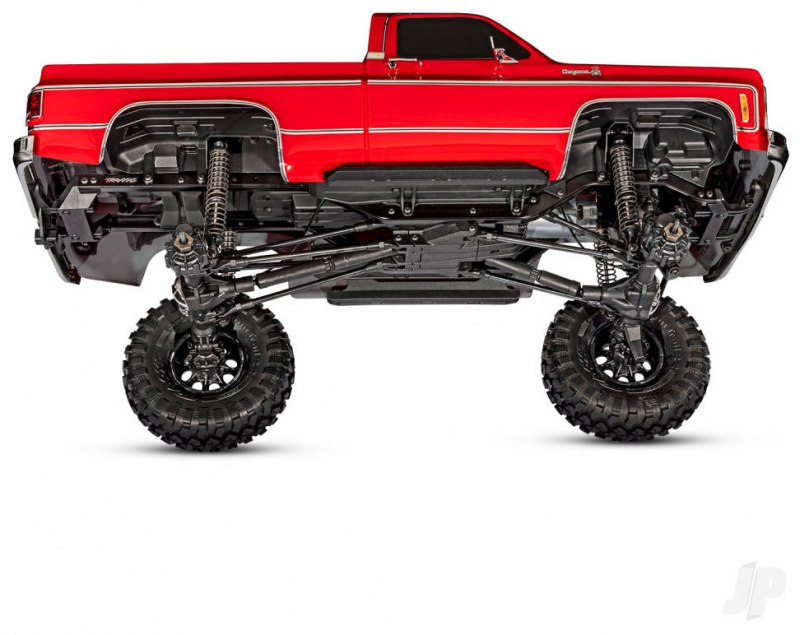

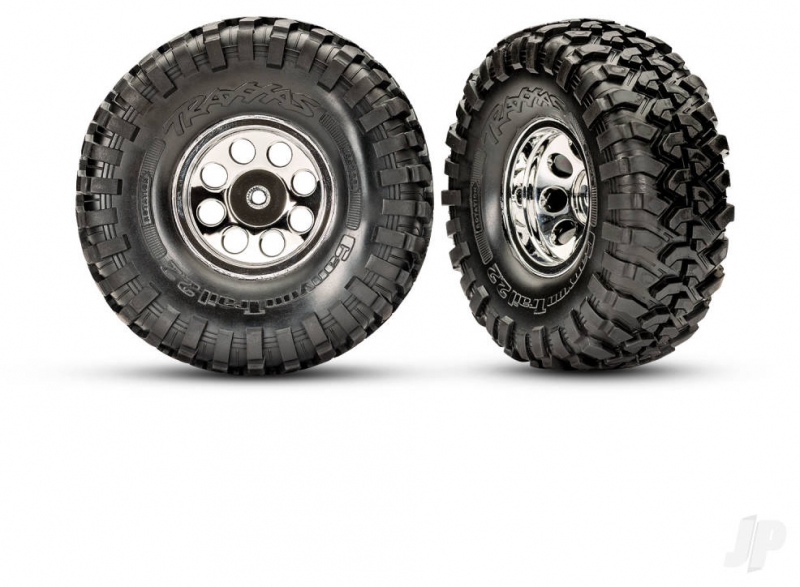

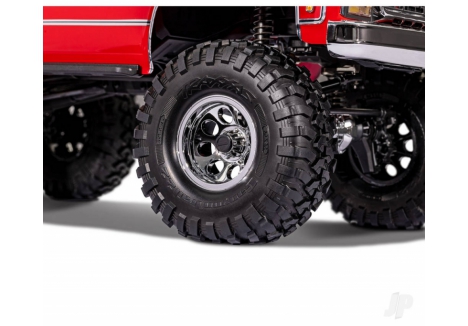

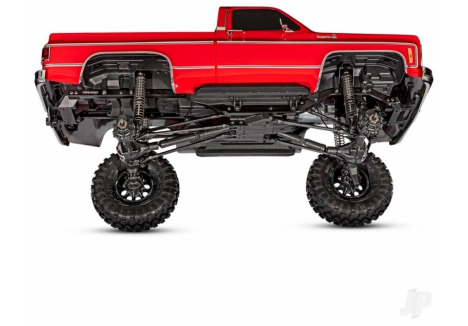

The factory-installed Long Arm Lift Kit raises K10 High Trail™ Edition over an inch taller for superior ground clearance. Large 2.2” mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before

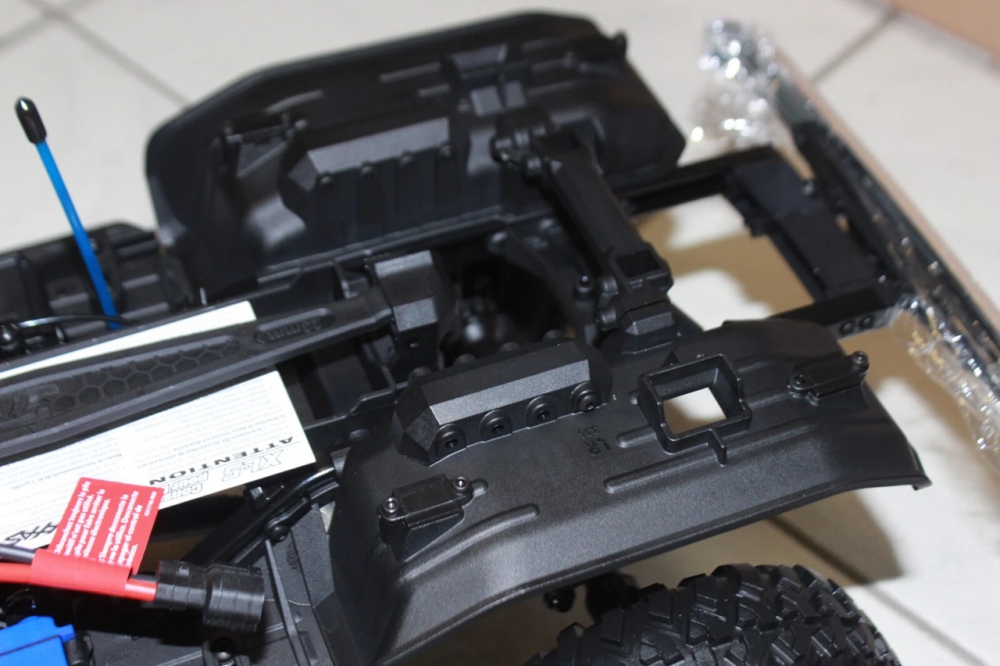

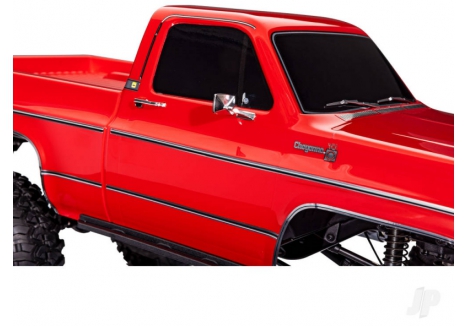

CLIPLESS BODY MOUNTING

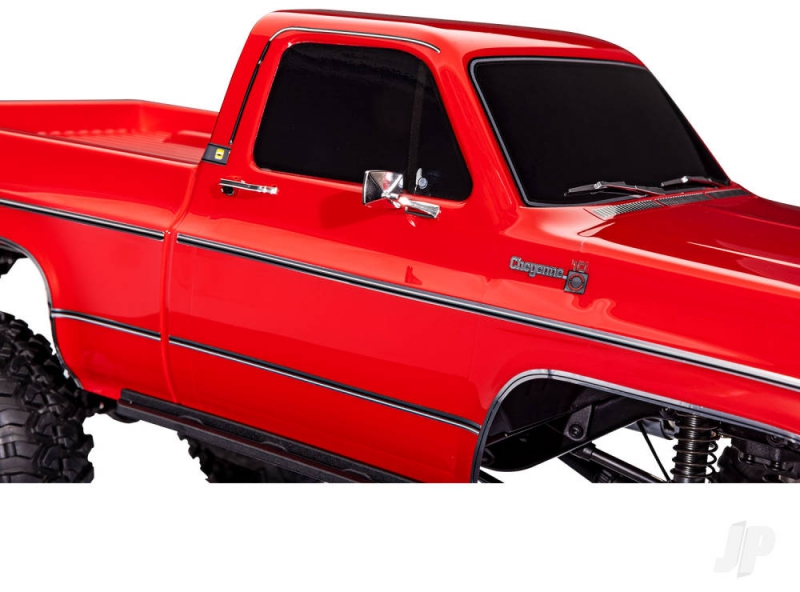

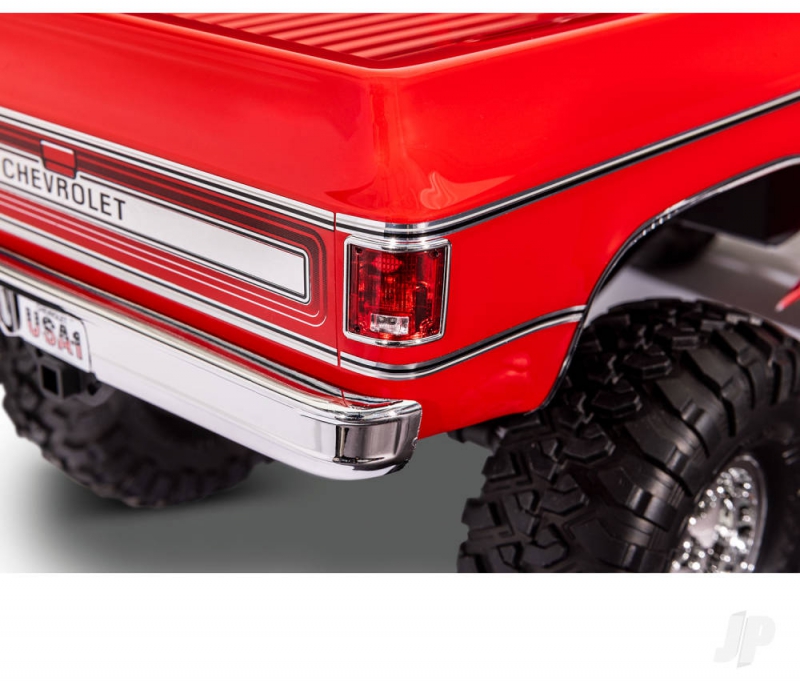

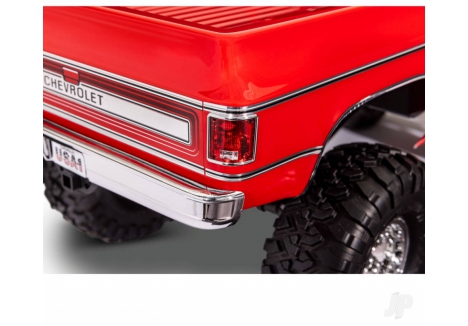

K10’s clipless body holds tight on the trail but releases in just seconds to access the chassis. This hidden latching system adds a new level of convenience and scale realism to the TRX-4 by removing traditional body clips which can interrupt the body’s clean lines.
Vehicle Specs

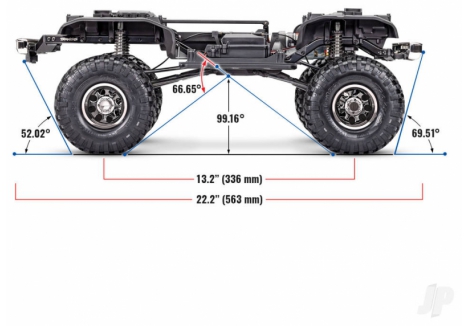

Length: 22.20 inches (563mm)
Front Track: 10.60 inches (270mm)
Rear Track: 10.60 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.38lbs (3.35kg)
Height (overall): 10.89 inches (277mm)

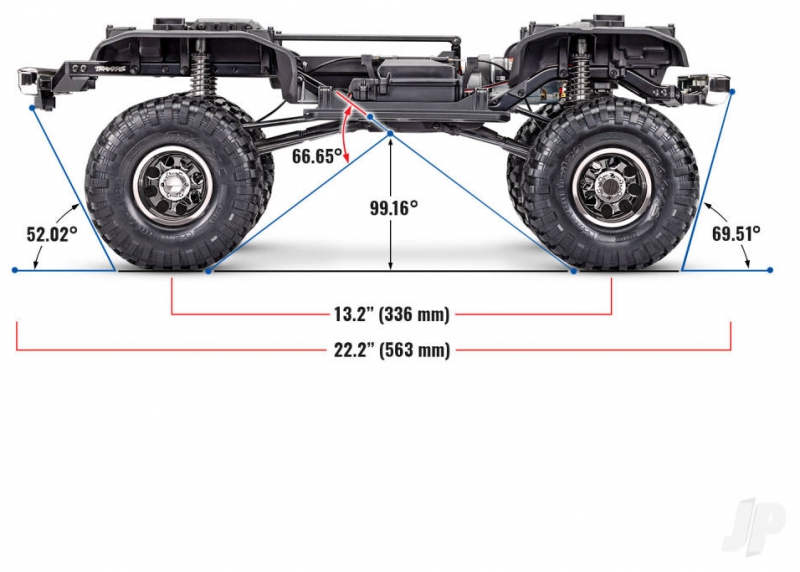

Wheelbase: 13.23 inches (336mm)
Approach Angle: 70°
Departure Angle: 52°
Breakover Angle: 67°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P

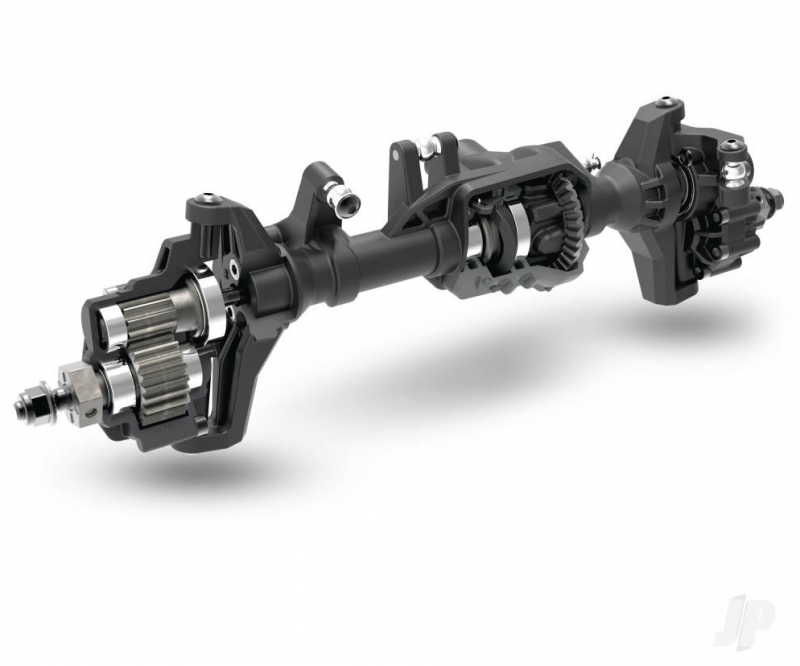

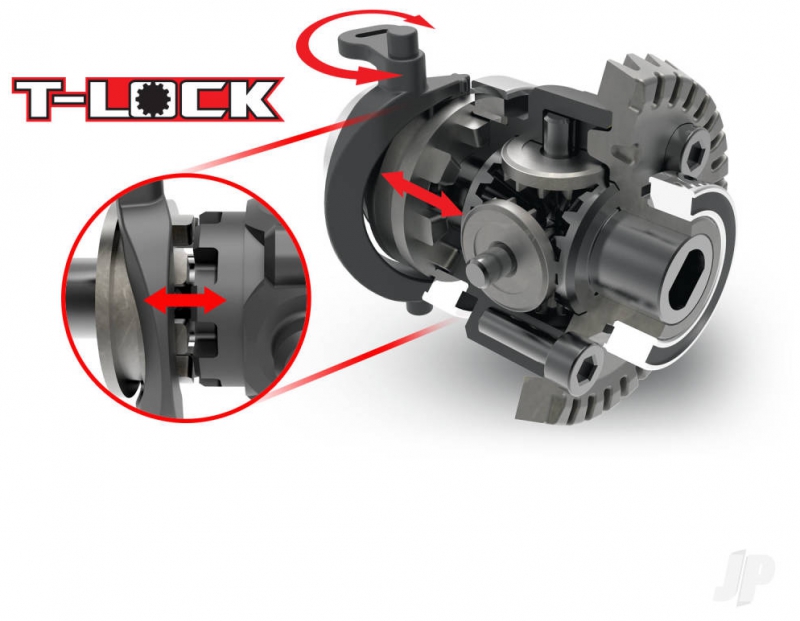

Differential Type: 4 Gear, Remote Locking

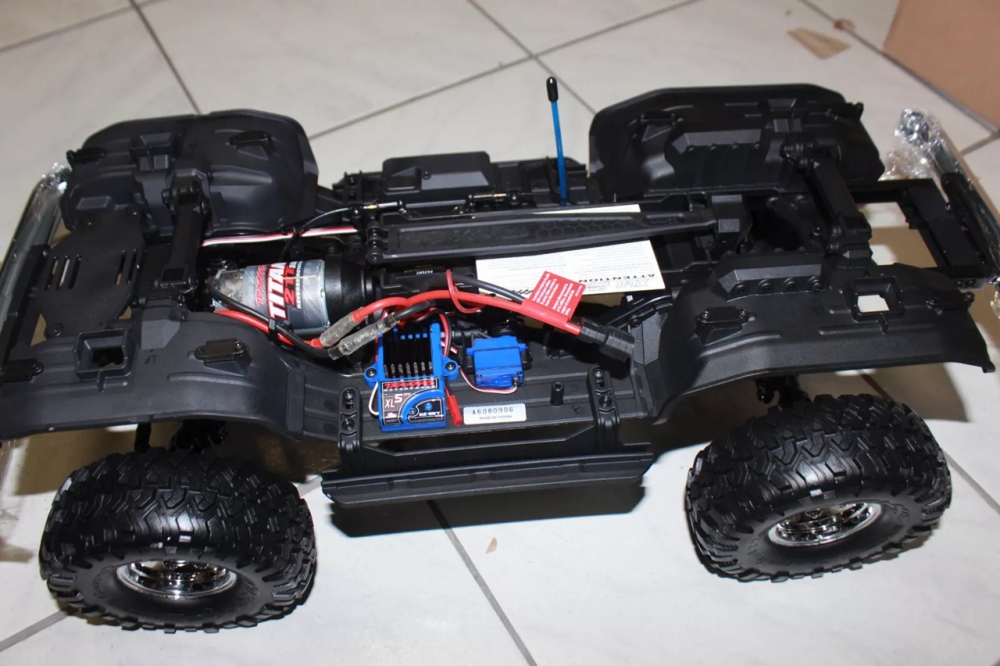

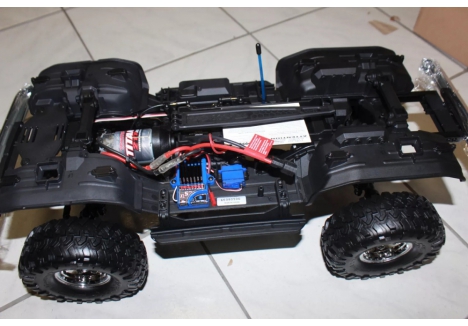

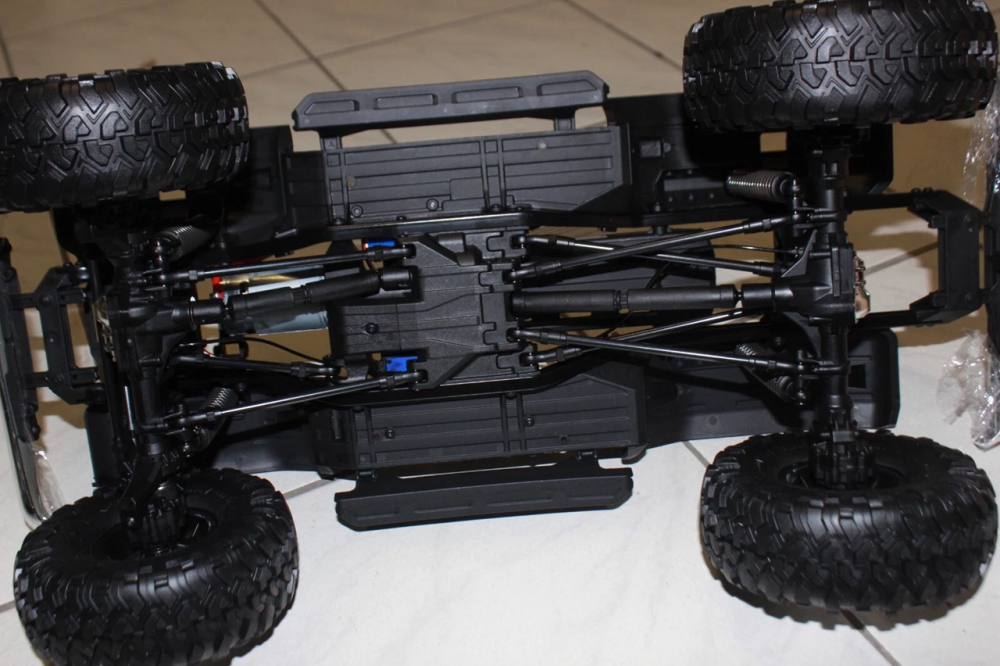

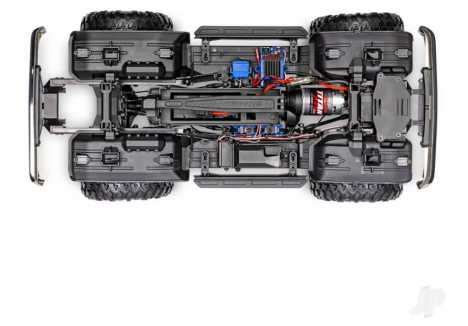

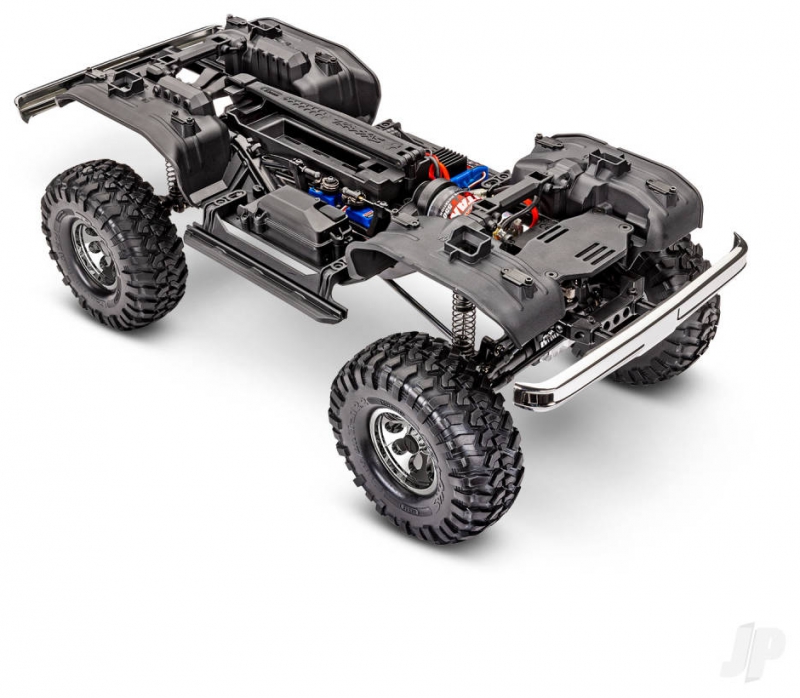

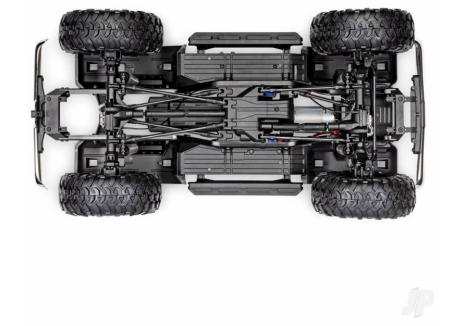

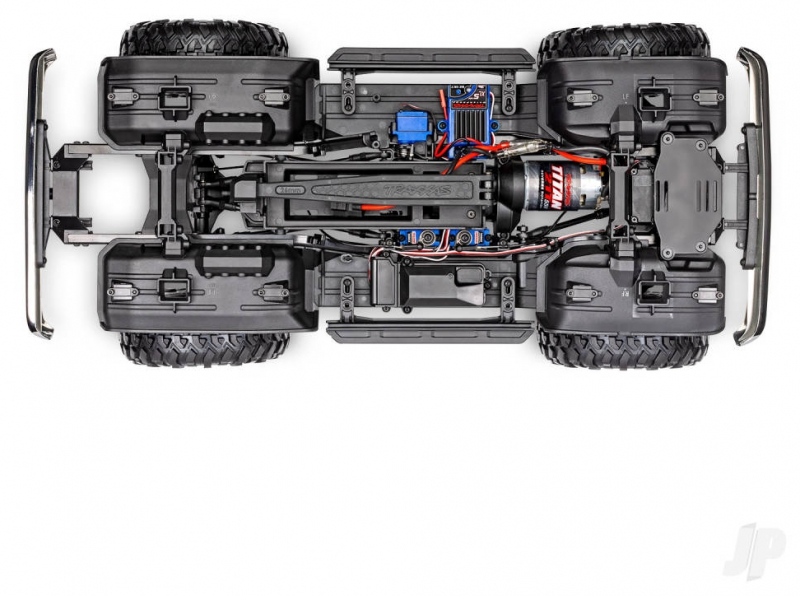

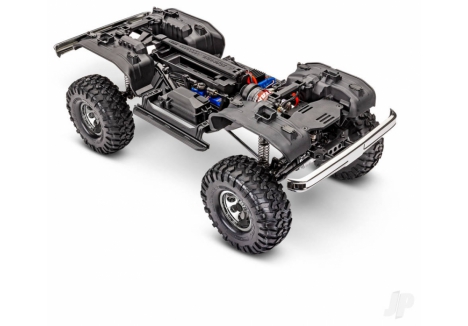

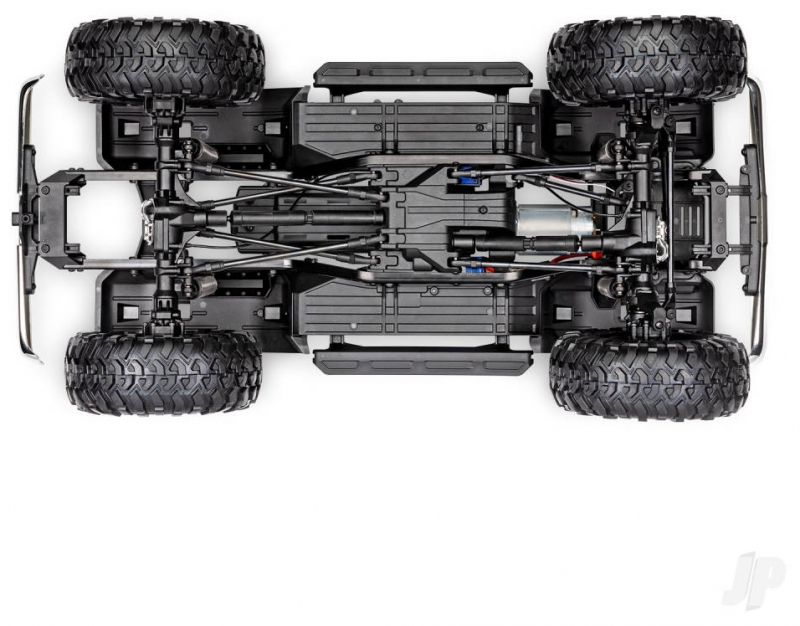

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”

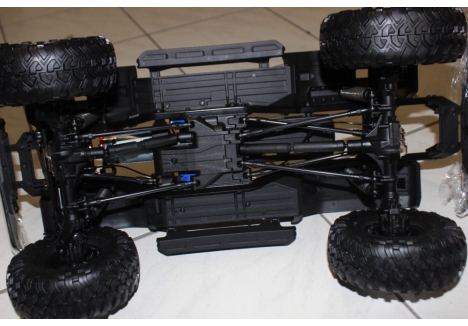

Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo

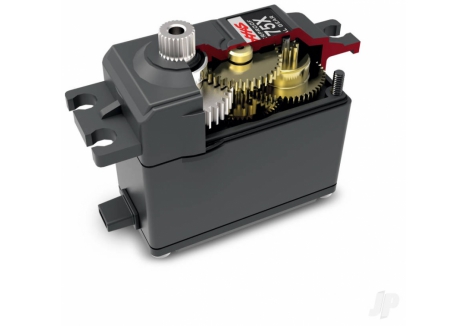

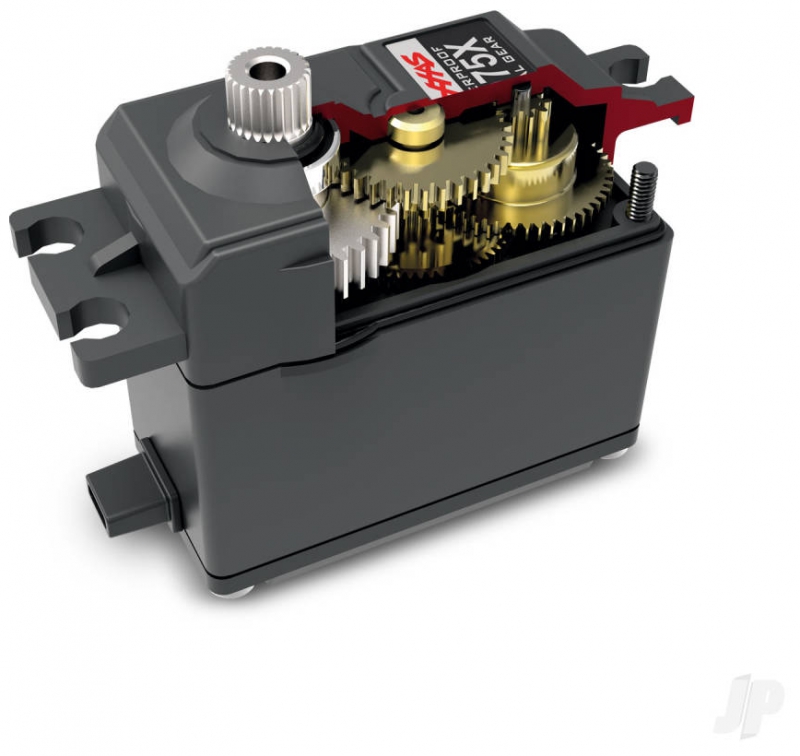

Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H
What’s In The Box:
TRX-4, Ready-To-Race® model

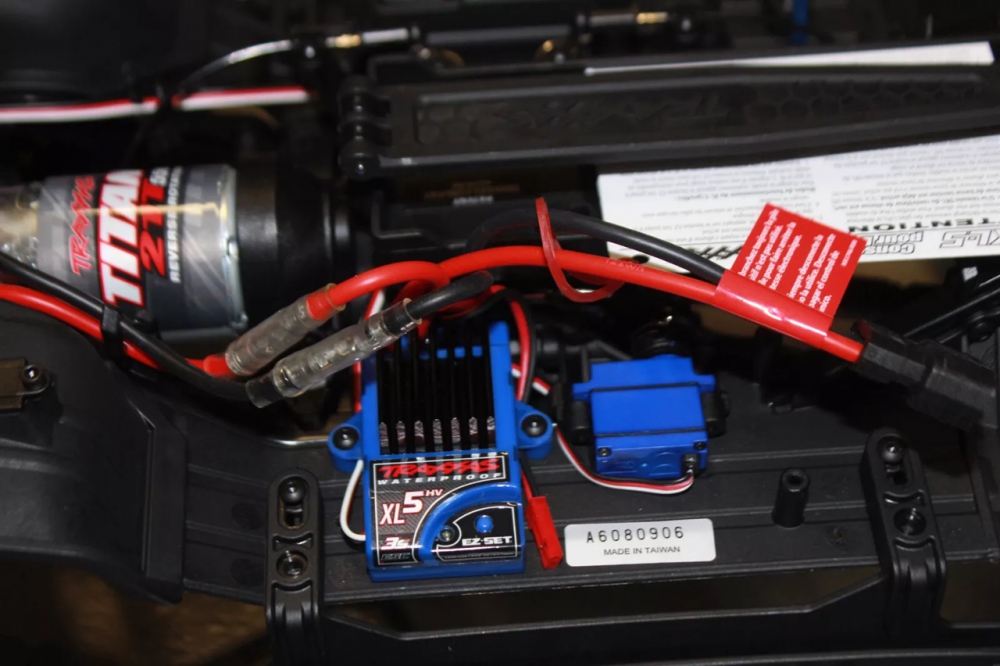

XL-5 HV waterproof electronic speed control

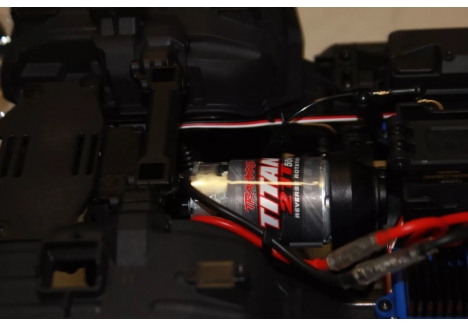

Titan® 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools
What You’ll Need:
Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX92056-4-BLUE
- Product Type: Traxxas TRX92056-4-BLUE TRX-4 1979 Chevrolet K10 High Trail Edition, Traxxas TRX92056-4-BLUE TRX-4 1:10 4WD Electric Trail Crawler, Traxxas TRX92056-4-BLUE TRX-4 Chevrolet K10 RTR Off-Road Truck, Traxxas TRX-4 1979 Chevrolet K10 High Trail Edition TRX92056-4-BLUE, Traxxas TRX-4 1:10 Scale 4WD Rock Crawler, Traxxas TRX-4 Chevrolet K10 RTR Electric Truck
Dimensions
- Length: 56.3 cm – extended chassis improves scale realism and trail stability
- Width: 27 cm – wide track enhances balance and control on uneven terrain
- Height: 27.7 cm – lifted profile supports superior ground clearance
- Wheelbase: 33.6 cm – extended wheelbase improves climbing performance and smooth handling
- Center Ground Clearance: 9.9 cm – raised chassis clears trail obstacles with ease
- Weight (without battery): 3.35 kg – optimized for durability and trail performance
- Approach Angle: 70° – ideal for steep climbs and obstacle negotiation
- Departure Angle: 52° – supports clean exits from technical terrain
- Breakover Angle: 67° – enhances mid-chassis clearance over rocks and ridges

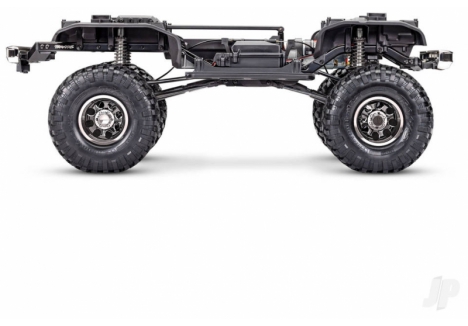

Chassis and Frame
- Chassis Structure: Steel ladder frame with nylon composite crossmembers

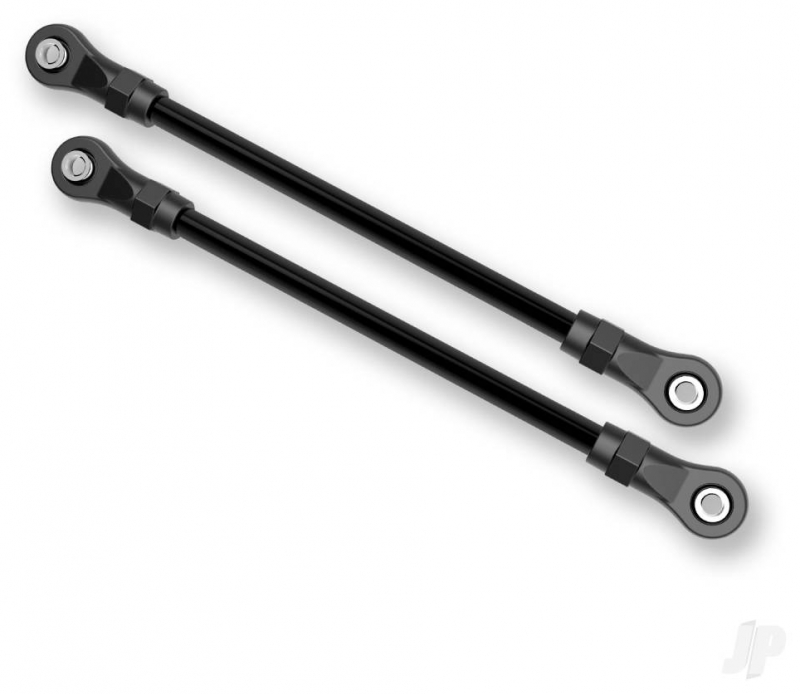

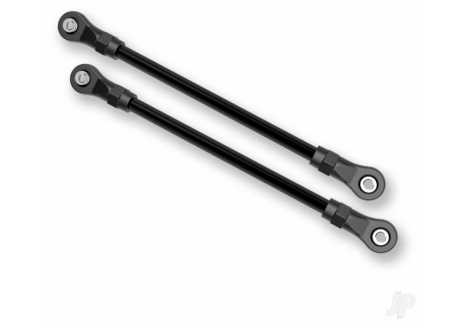

- Lift Kit: Factory-installed Long Arm Lift Kit raises chassis over 1 inch
- Mounting System: Clipless body mounting with hidden latching system
Drivetrain and Transmission

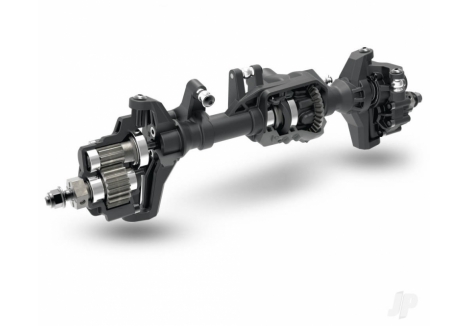

- Drive System: Full-time shaft-driven 4WD for consistent trail traction

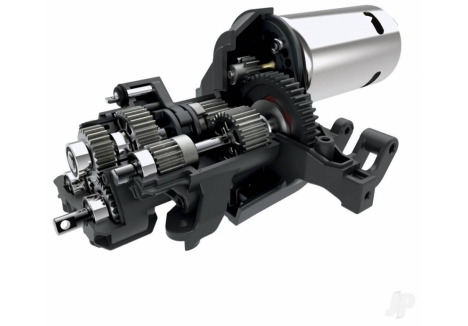

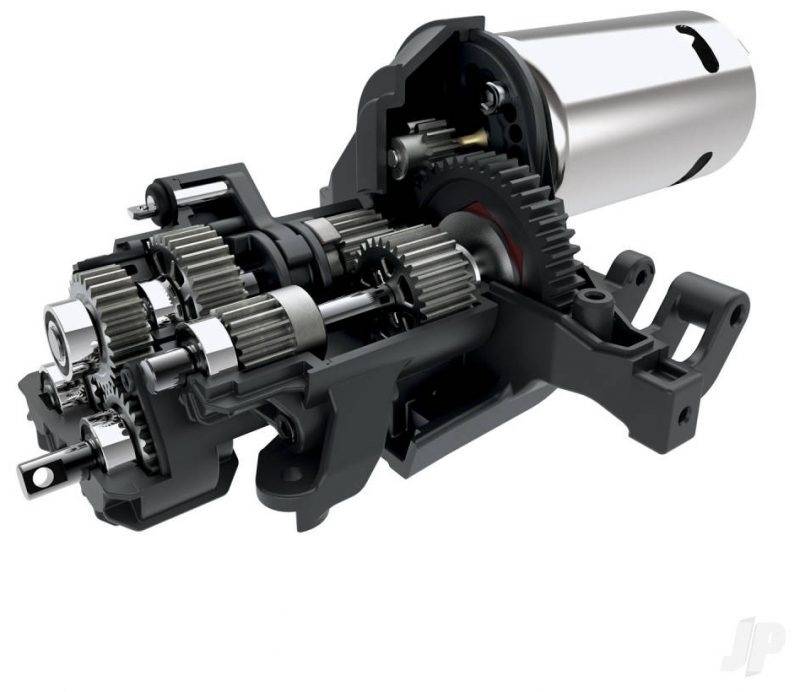

- Transmission: 2-speed Hi-Lo with remote shifting for terrain versatility

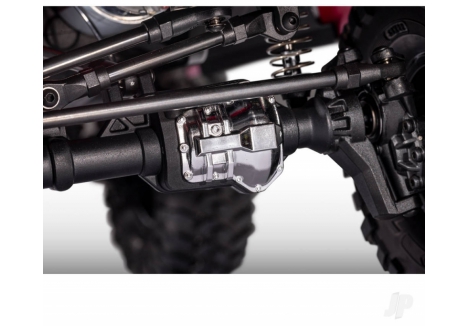

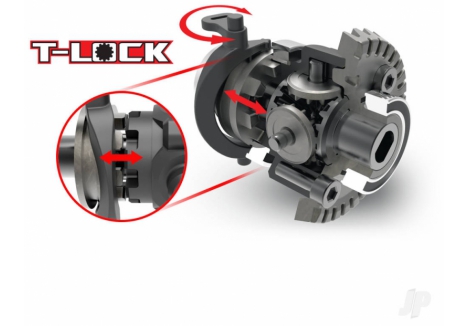

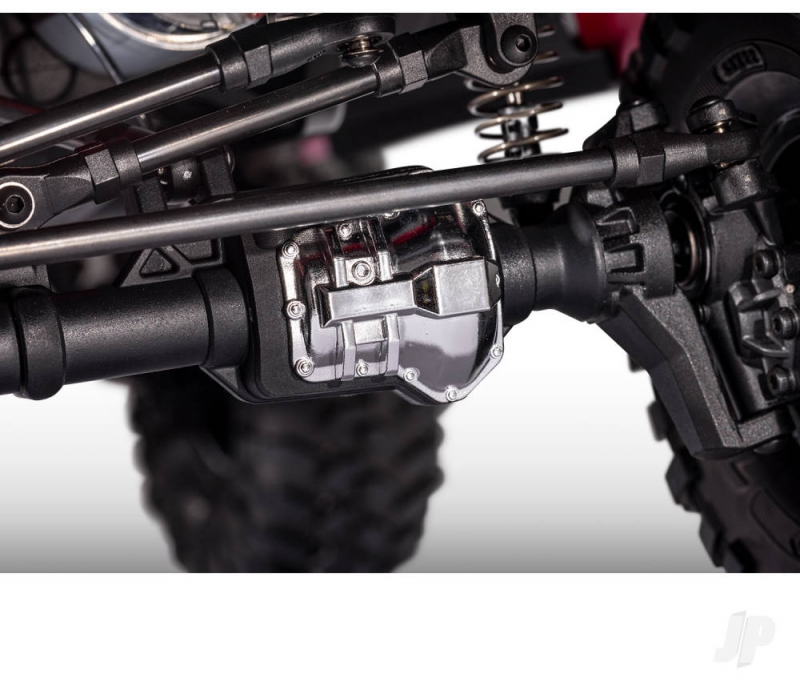

- Differential Type: 4-gear remote locking differentials for on-demand traction
- Gear Pitch: 32P – durable gearing for off-road use
- Brake Type: Electronic hill hold for controlled descents
Motor and Electronic Speed Control

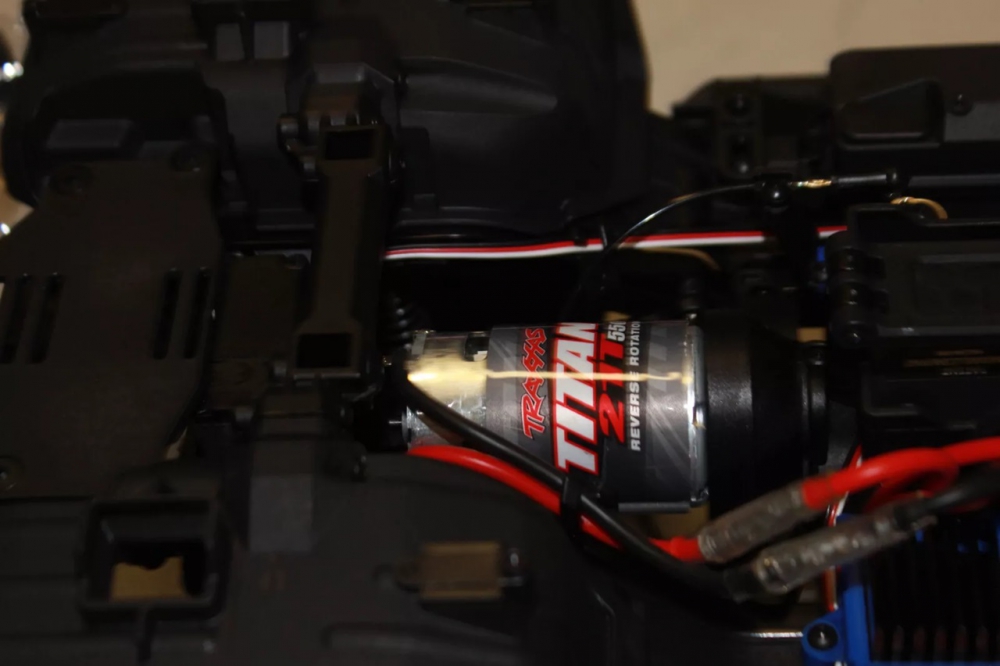

- Motor Type: Titan 550 21T reverse rotation brushed motor
- Cooling System: Internal cooling fan maintains consistent performance

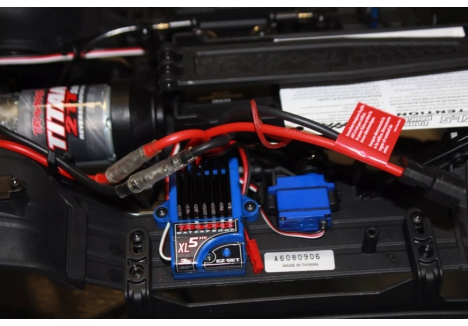

- ESC: XL-5 HV waterproof electronic speed control
- Drive Profiles: Sport, Race, Training, Trail, and Crawl modes
- Voltage Compatibility: Supports 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Low Voltage Protection: Two-stage LVD for battery safety
Suspension and Shocks
- Front Shock Length: 11 cm – extended travel for articulation
- Rear Shock Length: 11 cm – supports rear-end stability and flex

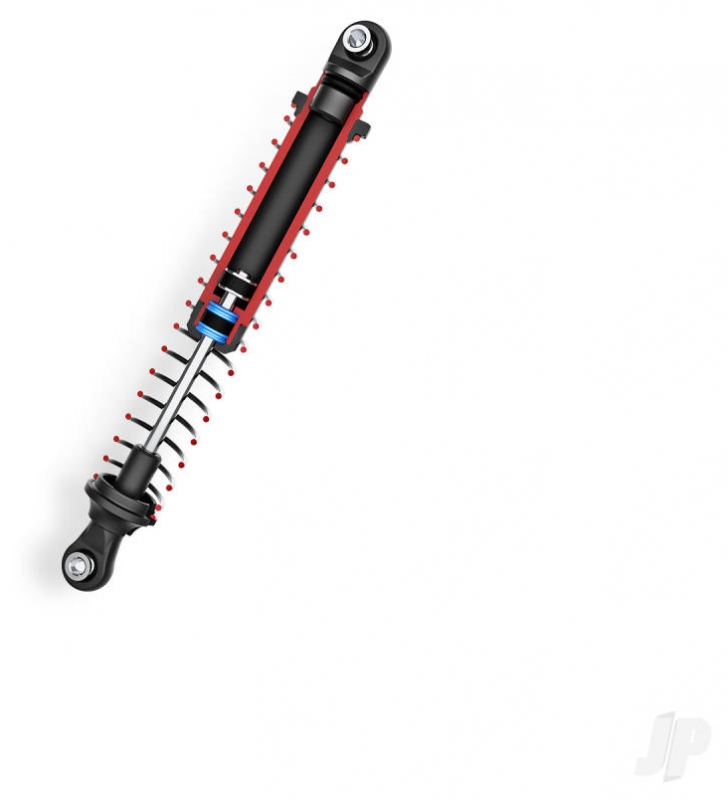

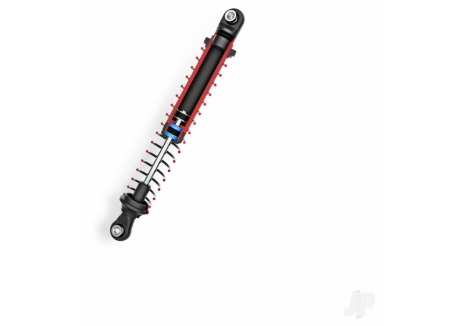

- Shock Type: Aluminum GTS oil-filled coilover shocks
Wheels and Tires
- Front Wheels: 5.6 x 3.4 cm – mag-style design for scale realism
- Rear Wheels: 5.6 x 3.4 cm – matched for balanced performance
- Front Tires: 13.5 x 5.4 cm – Canyon Trail tread for grip and durability
- Rear Tires: 13.5 x 5.4 cm – trail-tuned foam inserts for terrain absorption
- Hex Size: 1.2 cm – standard steel hex for secure mounting
Radio System
- Transmitter: TQi 2.4 GHz 4-channel with cruise control
- Receiver: 6533 micro receiver with integrated telemetry ports
- Model Memory: Stores settings for up to 30 Traxxas Link enabled models
Battery Tray
- Dimensions: 15.875 cm (L) x 4.7 cm (W) x 2.3/2.6 cm (H) – accommodates varied battery sizes
What’s In The Box
- TRX-4 Ready-To-Race model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need
- NiMH (4–7 cell) or LiPo (2s–3s) battery packs
- Traxxas EZ-Peak Live charger (model 2971 recommended)
- Four AA alkaline batteries for the transmitter
Sold Separately
- Battery packs compatible with TRX-4 platform
- Battery charger including Traxxas EZ-Peak Live
- Optional Traxxas Link Wireless Module
Warranty
- 1 year manufacturer warranty included
