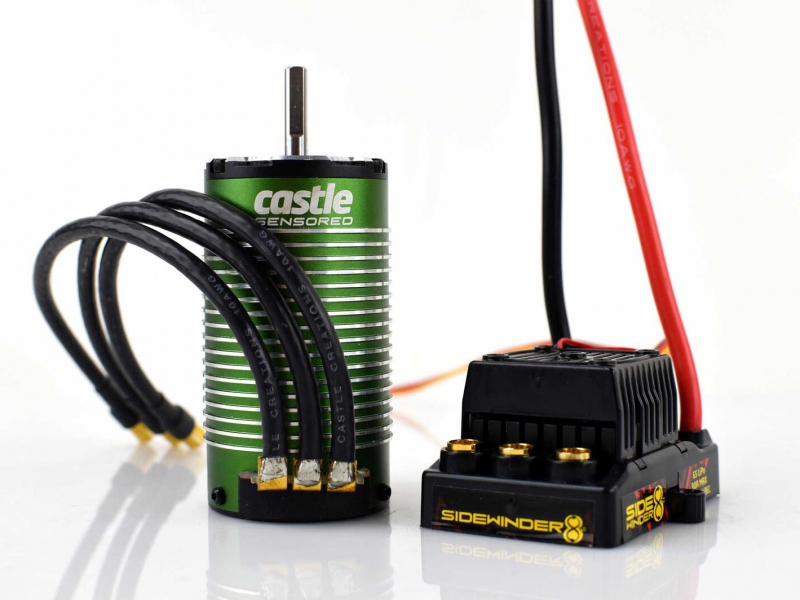

CASTLE Sidewinder 1:8th ESC & 2200kV Sensor Ready Motor Combo P-CC010-0139-02

Model No: P-CC010-0139-02


£329.99

£42.99

£287.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty

Overview

The Sidewinder 8th is a 1:8 scale, waterproof* combo from Castle Creations capable of 2-6 cells of LiPo power, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

* Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Features

  • 2-6S LiPo (25.2V) compatibility in vehicles up to 11.lbs with battery and ready-to-run.
  • Smooth sensorless motor operation with included 1515-2200kv sensored* brushless motor
  • Large 6.5mm female motor bullet connectors (male connectors sold separately)
  • Waterproof** design ESC and splash resistant 30mm fan
  • Powerful 5.5 volts fixed, 8 Amps Peak BEC
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Fully compatible with the Castle Link Programming Suite. See Recommended Items list or Feature Details below for more information.

* Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.

** Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Recommended Items
  • Castle Link USB Programming Kit V3 for modifying settings and downloading software updates through Windows
  • B-LINK Bluetooth Adapter for modifying settings and downloading software updates through the iOS App
  • Field Link Portable Programmer for modifying ESC settings on the go

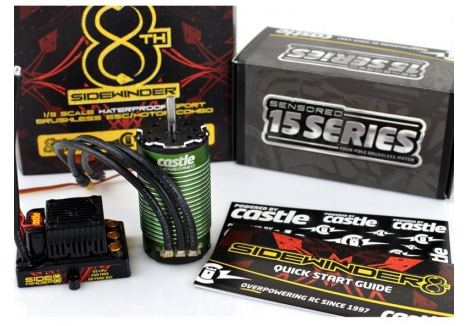

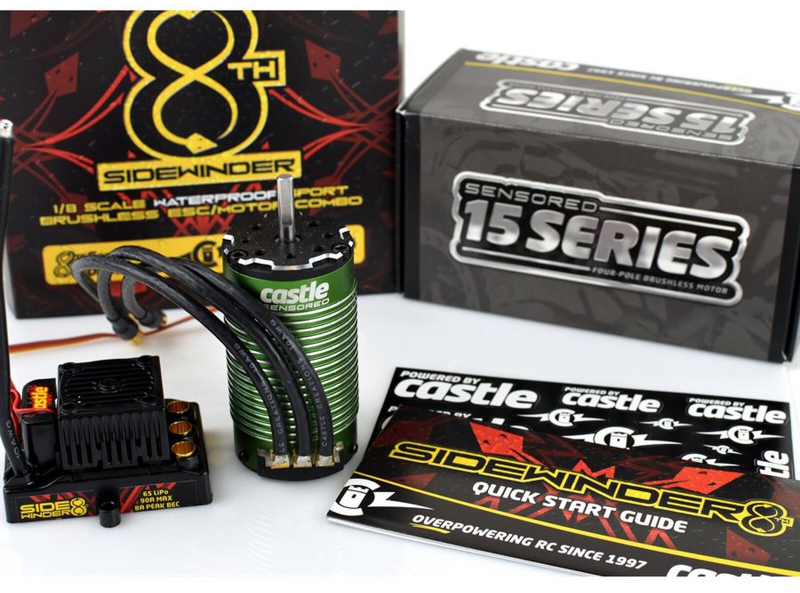

What's in the Box?
    • (1) Sidewinder 8th ESC
    • (1) Castle 1515-2200Kv brushless sensored* motor
    • (1) Castle decal sheet
    • (1) Drivers Ed and Quick Start Guide
* Sensored capabilities of the motor cannot be utilized with the Sidewinder 8th ESC, must be run in sensorless mode.

Feature Details



Castle Link Programming Suite

For over 20 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters simply purchase the Castle Link Adapter and download the simple to install software from our website and you are ready to personalize your controller's parameters. Or you can utilize the Castle Link iOS App and purchase the B-Link Bluetooth Adapter. Don't forget to use the check for updates feature in Castle Link to download new software as it becomes available. New features are yours at no cost, a perk for choosing Castle.



ESC Settings

Adjustable settings include:

  • Throttle
  • Braking curve
  • Drag brake
  • Auto LiPo cutoff
  • Punch Control
  • Reverse Type
  • Motor Type



Product Description of Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo

The Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo is a high-performance brushless power system engineered for 1/8 scale RC vehicles and 1/10 scale monster trucks weighing up to 11 lbs. This waterproof combo integrates Castle’s Sidewinder 8th ESC with the 1515-2200Kv V2 sensored motor, delivering smooth sensorless operation, robust torque, and efficient cooling. Designed for sport-level performance, the system supports 2S to 6S LiPo input and features an 8A peak BEC for stable accessory power. The ESC includes a splash-resistant 30mm cooling fan and LED error codes for diagnostics, while the motor boasts a rebuildable design with CNC-machined end bells and high-grade components. With proportional brakes, transmitter-based programming, and Castle Link compatibility, the Castle P-CC010-0139-02 waterproof brushless ESC with 1515-2200Kv motor offers a reliable upgrade for buggies, truggies, and short course trucks operating on 3S or 4S setups.

Key features of the Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo

  • Waterproof ESC with splash-resistant fan – protects electronics during wet terrain runs
  • Rebuildable motor design – allows replacement of rotor, shaft, and bearing assemblies
  • 8A peak BEC – delivers consistent voltage to receivers and onboard accessories
  • Proportional brakes – enables precise deceleration and control during high-speed driving
  • CNC-machined end bells – enhances durability and thermal stability under load
  • 6.5mm bullet connectors – ensures secure and low-resistance motor-to-ESC connection

How does the Castle P-CC010-0139-02 6S LiPo compatible ESC for 1/8 scale RC vehicles improve performance?

The Castle P-CC010-0139-02 6S LiPo compatible ESC for 1/8 scale RC vehicles is built to handle high-voltage setups with ease. Supporting up to 25.2V input, the Sidewinder 8th ESC delivers consistent power output for vehicles weighing up to 11 lbs. This makes it ideal for large-scale buggies, truggies, and monster trucks that demand sustained torque and speed. The ESC’s integrated splash-resistant fan helps maintain optimal operating temperatures, while the LED error codes provide quick diagnostics for common issues. Whether you're racing on-road or tackling rough terrain, this ESC ensures reliable performance across a wide range of conditions.

What makes the Castle brushless combo with rebuildable motor and CNC-machined end bells a durable choice?

The Castle brushless combo with rebuildable motor and CNC-machined end bells is designed for longevity and serviceability. The 1515-2200Kv V2 motor features a rebuildable architecture, allowing users to replace the front end bell, bearing assembly, rotor, or shaft as needed. This modular design reduces long-term maintenance costs and extends the life of the motor. The CNC-machined T6 aluminum end bells provide structural integrity and improved heat dissipation, making the motor suitable for demanding applications. Combined with oversized NMB bearings and high-purity copper windings, this motor is engineered to withstand the rigors of high-speed RC driving.

Can the Castle waterproof ESC with proportional brakes and splash-resistant fan handle aggressive terrain?

The Castle waterproof ESC with proportional brakes and splash-resistant fan is built for aggressive terrain and unpredictable conditions. Its waterproof housing protects internal components from moisture, while the 30mm fan resists splash damage and keeps the ESC cool during extended runs. Proportional braking allows for controlled deceleration, giving drivers the ability to navigate tight corners and steep descents with confidence. Whether you're running through mud, gravel, or wet grass, this ESC maintains consistent performance and protects your electronics from environmental stress.

How does the Castle P-CC010-0139-02 with 8A peak BEC and 6.5mm bullet connectors support high-current setups?

The Castle P-CC010-0139-02 with 8A peak BEC and 6.5mm bullet connectors is optimized for high-current applications. The 8A peak BEC supplies stable 5.5V power to receivers and onboard electronics, ensuring uninterrupted signal and accessory operation. The motor’s 6.5mm bullet connectors provide a secure and low-resistance interface between motor and ESC, minimizing power loss and heat buildup. These features are especially valuable in setups running 4S or 6S LiPo, where consistent voltage and efficient connectivity are critical for performance and safety.

Is the Castle P-CC010-0139-02 Sidewinder combo suitable for short course trucks and monster platforms?

The Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo is a versatile upgrade for multiple vehicle classes. It performs exceptionally well in 1/8 scale buggies and truggies, and is also compatible with 1/10 scale monster trucks up to 11 lbs. For 4WD short course trucks, the combo supports 3S and 4S LiPo operation, delivering smooth sensorless motor control and efficient power delivery. The motor’s redesigned stator and rotor reduce cogging and improve startup smoothness, while the ESC’s programmable settings allow users to fine-tune throttle response and braking behavior.

Why is this the affordable Castle ESC and motor kit for 4WD short course trucks on 4S LiPo?

The affordable Castle ESC and motor kit for 4WD short course trucks on 4S LiPo offers premium features at a competitive price point. With support for up to 6S LiPo, a rebuildable motor design, and splash-resistant cooling, this combo delivers high-end performance without the premium cost. Its compatibility with multiple vehicle types and programmable control options make it a smart investment for hobbyists who want reliability, flexibility, and long-term value. Whether you're upgrading a short course truck or building a new 1/8 scale rig, this combo provides the power and control needed for serious RC driving.

For RC drivers seeking a rugged, high-voltage power system with serviceable components and advanced control, the Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo delivers consistent performance across demanding terrain. Buy Castle P-CC010-0139-02 Sidewinder combo for 1/8 scale buggies and truggies.

Technical Specifications of Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo

Brand, Model and Product Type

  • Brand: Castle
  • Model: P-CC010-0139-02
  • Product Type: Castle P-CC010-0139-02 Sidewinder 1:8 ESC and 2200Kv motor combo, Castle P-CC010-0139-02 waterproof brushless ESC with 1515-2200Kv motor, Castle P-CC010-0139-02 6S LiPo compatible ESC for 1/8 scale RC vehicles, Castle P-CC010-0139-02 with 8A peak BEC and 6.5mm bullet connectors, Castle waterproof ESC with proportional brakes and splash-resistant fan, Castle brushless combo with rebuildable motor and CNC-machined end bells

Dimensions

  • ESC Length: 6.2 cm – compact for 1/8 scale chassis integration
  • ESC Width: 5.6 cm – fits standard electronics trays
  • ESC Height: 3.4 cm – includes splash-resistant 30mm fan
  • Motor Shaft Diameter: 0.5 cm – compatible with standard pinion gears
  • Motor Shaft Length: 2 cm – supports secure gear engagement
  • Product Weight: 100 g – lightweight for high-speed setups

Motor Specifications

  • Motor Type: Sensored brushless – operates sensorless with Sidewinder ESC
  • Kv Rating: 2200Kv – ideal for high-speed 1/8 scale RC applications
  • Design Features: Rebuildable motor with replaceable rotor, shaft, and bearing assemblies
  • Construction: CNC-machined T6 aluminum end bells for durability and heat dissipation
  • Magnet Type: 180°C grade Neodymium sintered magnets – supports high torque output
  • Stator Design: 0.2mm steel lamination stacked stator – improves magnetic flux and efficiency
  • Winding Material: High-purity copper – enhances conductivity and thermal performance
  • Bearings: Oversized NMB bearings – reduces friction and increases lifespan

ESC Specifications

  • ESC Type: Sidewinder 8th – waterproof and sport-grade for 1/8 scale vehicles
  • Speed Control: Sensorless – smooth motor operation with programmable settings
  • Braking System: Proportional brakes – allows precise deceleration control
  • Reverse Function: Yes – supports full directional control
  • Cooling System: Splash-resistant 30mm fan – maintains thermal stability under load
  • Programming Options: Transmitter-based adjustment for nine common settings
  • Software Interface: Compatible with Castle Link Suite – enables firmware updates and advanced tuning

Power and Battery Compatibility

  • Input Voltage: 2S–6S LiPo (up to 25.2V) – supports high-voltage setups
  • BEC Output: 5.5V fixed – powers receiver and onboard electronics
  • BEC Peak Current: 8A – supports high-demand accessory loads
  • Vehicle Compatibility: Suitable for 1/8 scale buggies, truggies, and 1/10 monster trucks up to 11 lbs

Connectivity and Interfaces

  • Connector Type: 6.5mm bullet connectors – ensures secure and low-resistance motor-to-ESC connection
  • Programming Interface: Castle Link USB adapter (sold separately)

Water Resistance and Durability

  • ESC Waterproofing: Yes – designed for wet terrain and splash exposure
  • Fan Protection: Splash-resistant – maintains cooling performance in damp conditions

What’s in the Box

  • 1 × Sidewinder 8th ESC
  • 1 × Castle 1515-2200Kv V2 Brushless Sensored Motor
  • 1 × Driver’s Ed and Quick Start Guide
  • 1 × Castle Decal Sheet

What You Require / What You Will Need

  • Male 6.5mm bullet connectors for motor connection (sold separately)

Sold Separately

  • Castle Link USB adapter – required for advanced programming and firmware updates
  • Male 6.5mm bullet connectors – needed for motor installation
