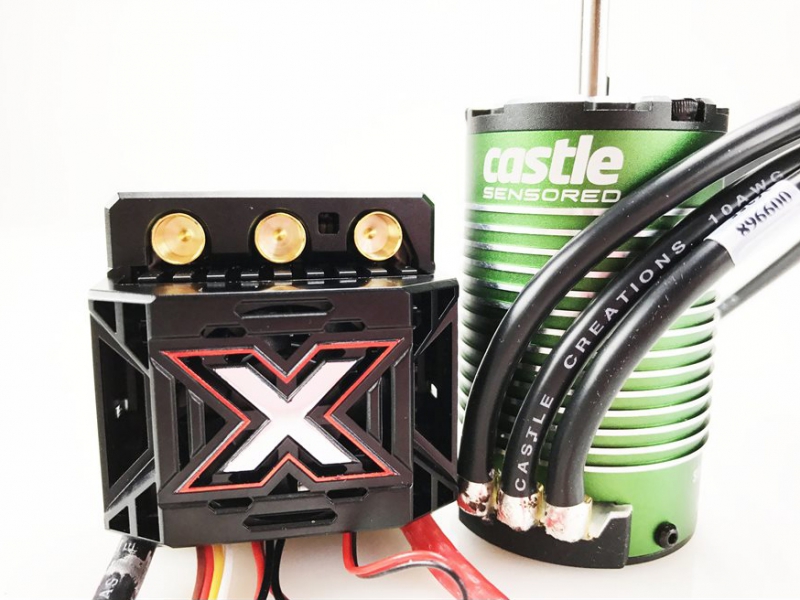

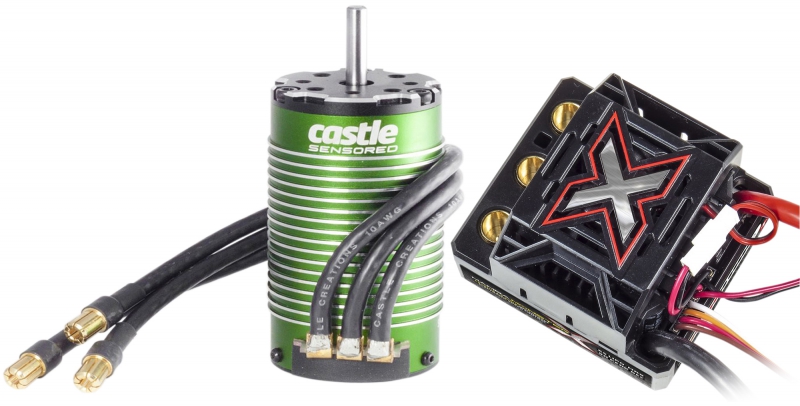

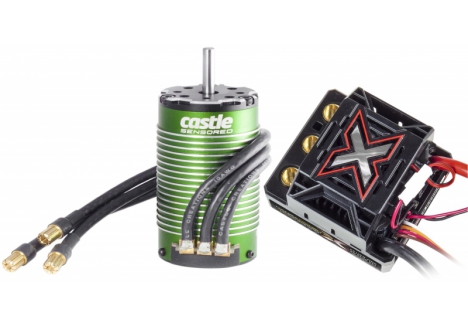

CASTLE Monster X 25.2V ESC, 8A BEC W/1515-2200kV V2 Sensored P-CC010-0145-06

Model No: P-CC010-0145-06


£389.99

£48.99

£341.00

Inc VAT & delivery

Sorry, Out Of Stock

We Accept
Delivery Included
1 Year Warranty
Product Overview

The Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle's legendary monster performance to a whole new level.

The new 1515-2200Kv V2 motor now included! Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

Features
  • Input Voltage range 2S-6S
  • 8A Adjustable BEC (5.25V-8.0V)
  • 1512-1800Kv, 4-pole 12-slot sensored motor.
  • Waterproof design.
  • Removable 30MM cooling fan.
  • Convenient transmitter programming for six common adjustable settings.
  • Easily program and update ESC with use of Castle Link and freely downloadable Castle-Link Windows program.
  • Data Logging capable
  • Telemetry Ready
  • Auxiliary Wire Functionality allows for on-the-fly adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.


*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make on-the-go adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter

Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).

Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field

Mamba Monster X Combo Includes
  • Mamba Monster X ESC
  • 1515-2200Kv Sensored Motor
  • Castle Sensor Harness adapter
  • 210mm length sensor wire (for sensored operation)
  • Driver's Ed and Quick Start Guide
  • Castle Decals

Product Description of Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo

Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo is engineered for RC drivers who demand uncompromising power, precision, and configurability. Designed for 1/8 scale monster trucks, truggies, and on-road platforms up to 15 lbs, this waterproof system delivers high-voltage performance with advanced control features. The ESC supports 2S to 6S LiPo input and includes a selectable BEC output of 5.5V or 7.5V with a 6A peak current. Paired with the redesigned 1515-2200kV V2 motor, the combo offers smoother startups, reduced cogging, and improved thermal efficiency. The Castle P-CC010-0145-06 waterproof ESC with telemetry and data logging support is built to withstand demanding terrain while maintaining consistent responsiveness and configurability.

Key features of the Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo

  • Selectable BEC voltage – supports multiple servo configurations with 5.5V or 7.5V output
  • Programmable auxiliary wire – enables real-time tuning of throttle, brake, and torque settings
  • SMARTSENSE mode – delivers cog-free startups and seamless transition to sensorless operation
  • Telemetry readiness – allows real-time monitoring of ESC temperature, voltage, and RPM
  • Integrated data logging – captures performance metrics for post-run analysis and tuning
  • Removable 30mm cooling fan – maintains ESC thermal stability and is easy to service
  • CNC-machined motor construction – enhances durability and heat dissipation
  • High-purity copper windings – improves motor efficiency and reduces operating temperatures
  • 6.5mm bullet connectors – ensures secure and low-resistance motor-to-ESC interface

How does the Castle P-CC010-0145-06 6S LiPo ESC with adjustable BEC and SMARTSENSE mode improve drivability?

The Castle P-CC010-0145-06 6S LiPo ESC with adjustable BEC and SMARTSENSE mode is designed to deliver smooth, responsive control across a wide range of driving conditions. SMARTSENSE mode uses motor sensors at startup to eliminate cogging and stuttering, providing excellent low-speed drivability and torque delivery. Once the motor is in motion, the ESC transitions seamlessly to Castle’s ultra-efficient sensorless mode, optimizing power consumption and thermal performance. The selectable BEC voltage allows users to tailor output to their servo requirements, supporting both standard and high-voltage configurations. These features make the combo ideal for technical terrain, competitive racing, and high-speed bashing alike.

Why is the Castle brushless ESC with removable 30mm fan and proportional brakes ideal for high-demand setups?

The Castle brushless ESC with removable 30mm fan and proportional brakes is built to handle aggressive driving and extended runtime conditions. The factory-installed 30mm fan regulates ESC temperature during high-load operation and can be removed for wet terrain use. Proportional braking allows for smooth deceleration and precise control, especially useful in downhill sections or tight corners. Combined with the ESC’s waterproof epoxy-potted housing, these features ensure consistent performance and protection in demanding environments. Whether you're navigating rocky trails or racing through mud, the Monster X ESC delivers reliable control and thermal stability.

Can the Castle P-CC010-0145-06 with auxiliary wire tuning and 6.5mm bullet connectors be adjusted mid-run?

Yes, the Castle P-CC010-0145-06 with auxiliary wire tuning and 6.5mm bullet connectors allows real-time adjustments during operation. The programmable auxiliary wire can be assigned to throttle, brake, or torque control functions and adjusted via a compatible transmitter. This feature is disabled by default but can be activated using Castle Link software or the Castle Link iOS app. The 6.5mm bullet connectors ensure a secure and low-resistance connection between motor and ESC, supporting consistent power delivery during aggressive driving or rapid directional changes. These features give users the flexibility to fine-tune their setup without interrupting the run.

What makes the Castle sensored combo with CNC-machined motor and high-purity copper windings a performance upgrade?

The Castle sensored combo with CNC-machined motor and high-purity copper windings is designed for efficiency, durability, and smooth operation. The 1515-2200kV V2 motor features redesigned stator and rotor assemblies that improve magnetic flux and reduce residual drag. CNC-machined aluminum end bells enhance structural integrity and heat dissipation, while high-purity copper windings increase electrical efficiency and reduce operating temperatures. These upgrades result in smoother startups, longer run times, and improved overall performance. Whether you're building a competitive rig or upgrading a basher, this motor delivers the torque and reliability needed for serious RC driving.

Is the Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo suitable for telemetry-based tuning?

Absolutely. The Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo is telemetry-ready and compatible with Futaba S.BUS2 transmitters via Castle’s Telemetry Link (sold separately). Real-time data such as ESC temperature, input voltage, and motor RPM can be monitored during operation, helping users avoid overheating and voltage drops. This data provides valuable insight into system performance and allows for precise tuning of gear ratios, throttle curves, and braking profiles. Combined with Castle’s data logging capabilities, telemetry support makes this combo a powerful tool for racers and advanced hobbyists.

Why is this the affordable Castle ESC with SMARTSENSE startup and telemetry-ready design?

The affordable Castle ESC with SMARTSENSE startup and telemetry-ready design offers premium features at a competitive price point. SMARTSENSE technology ensures smooth, cog-free startups and efficient transitions to sensorless mode, while telemetry readiness provides real-time performance monitoring. The ESC’s programmable auxiliary wire, removable fan, and adjustable BEC add flexibility and configurability, making it suitable for a wide range of applications. These features make the combo a smart investment for hobbyists who want reliability, precision, and long-term value in their electronics setup.

For RC enthusiasts seeking a powerful, configurable, and telemetry-ready brushless system, the Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo delivers unmatched control and performance. Buy Castle P-CC010-0145-06 ESC combo for 1/8 scale monster trucks and truggies.

Technical Specifications of Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo

Brand, Model and Product Type

  • Brand: Castle
  • Model: P-CC010-0145-06
  • Product Type: Castle P-CC010-0145-06 Monster X ESC and 1515-2200kV V2 sensored motor combo, Castle P-CC010-0145-06 waterproof ESC with telemetry and data logging support, Castle P-CC010-0145-06 6S LiPo ESC with adjustable BEC and SMARTSENSE mode, Castle P-CC010-0145-06 with auxiliary wire tuning and 6.5mm bullet connectors, Castle brushless ESC with removable 30mm fan and proportional brakes, Castle sensored combo with CNC-machined motor and high-purity copper windings

Dimensions

  • ESC Length: 5.3 cm – compact footprint for 1/8 scale chassis integration
  • ESC Width: 4.9 cm – fits standard electronics trays with minimal space impact
  • ESC Height: 3.7 cm – includes removable 30mm cooling fan for thermal regulation
  • ESC Weight: 111 g – balanced for vehicles up to 15 lbs
  • Motor Shaft Diameter: 0.5 cm – compatible with standard gear interfaces
  • Motor Shaft Length: 2 cm – supports secure pinion mounting

Power and Voltage Specifications

  • Input Voltage Range: 2S–6S LiPo – supports high-voltage setups for extreme performance
  • BEC Output: Selectable – 5.5V or 7.5V with 6A peak current
  • BEC Type: Internal – integrated into ESC housing for compact design

Cooling and Durability

  • Cooling System: Removable 30mm fan – maintains ESC temperature during high-load operation
  • Motor Cooling: CNC-machined aluminum end bells and integrated heatsink – enhances thermal dissipation
  • Waterproof Rating: Water-resistant epoxy-potted ESC – protects electronics from moisture exposure

Motor Specifications

  • Motor Type: Sensored brushless – 4-pole, 12-slot design for smooth startup and torque delivery
  • Motor Kv Rating: 2200Kv – optimized for 1/8 scale applications with 6S LiPo compatibility
  • Motor Construction: High-purity copper windings, Kevlar wrap, and sintered Neodymium magnets
  • Rotor/Stator: Redesigned assemblies – improves magnetic flux and reduces cogging
  • Bearings: Oversized NMB – supports high-speed rotation and durability
  • Sensor Board: Temperature-stabilized sensors – ensures consistent feedback and startup precision

Connectivity and Interfaces

  • Connector Type: 6.5mm bullet connectors – ensures secure motor-to-ESC interface
  • Programming Interface: Castle Link USB or Bluetooth – supports advanced tuning and firmware updates

Control and Operation Modes

  • Auxiliary Wire: Programmable – allows on-the-fly tuning of throttle, brake, and torque settings
  • Drive Mode: Reversible – can be disabled for racing configurations
  • Running Modes: SMARTSENSE, Sensored Only, and Brushed – selectable via Castle Link
  • Programming Options: Transmitter-based or via Castle Link Suite – enables full customization

Diagnostics and Feedback

  • Audible Alerts: Yes – notifies users of calibration issues and error conditions

Telemetry and Data Logging

  • Telemetry Ready: Yes – compatible with Futaba S.BUS2 transmitters via Castle Telemetry Link (sold separately)
  • Data Logging: Supported – records performance metrics for post-run analysis

Vehicle Compatibility

  • Supported Platforms: 1/8 scale buggies, truggies, on-road vehicles, and 1/10 monster trucks
  • Maximum Vehicle Weight: Up to 15 lbs (ready-to-run with battery)

What’s in the Box

  • 1 × Castle Mamba Monster X 25.2V ESC
  • 1 × Castle 1515-2200kV V2 sensored brushless motor
  • 1 × Castle Sensor Harness Adapter
  • 1 × 210mm Sensor Wire
  • 1 × Coupon for free Castle Link USB
  • 1 × Quick Start Guide
  • 1 × Decal Sheet

What You Require / What You Will Need

  • Castle Link USB or Bluetooth adapter for programming (sold separately)
  • Castle Quick Connect Duo for data logging access (sold separately)
  • Castle Telemetry Link for Futaba S.BUS2 transmitters (sold separately)

Sold Separately

  • Castle Link USB or Bluetooth adapter
  • Castle Quick Connect Duo
  • Castle Telemetry Link for Futaba S.BUS2
