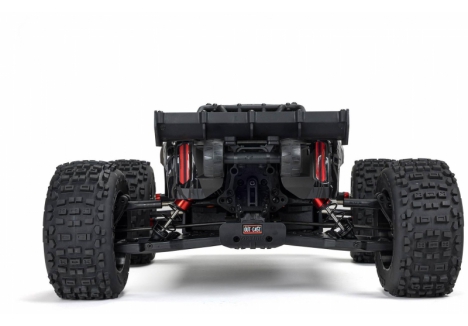

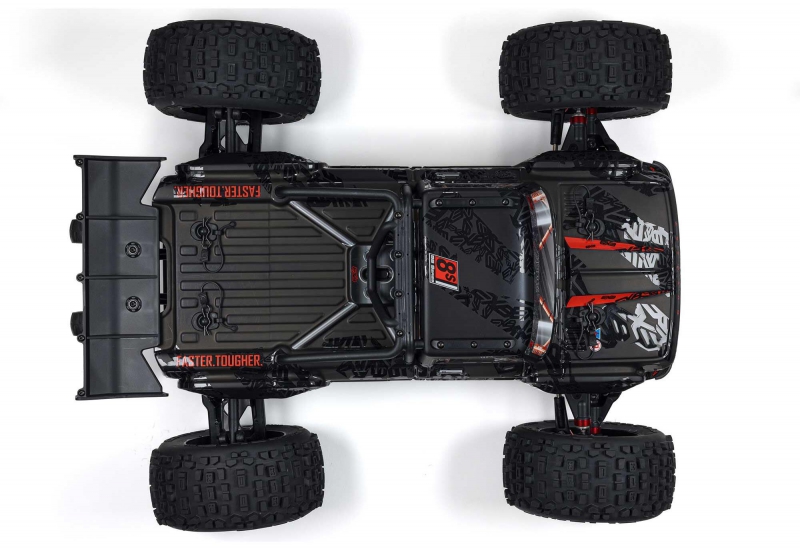

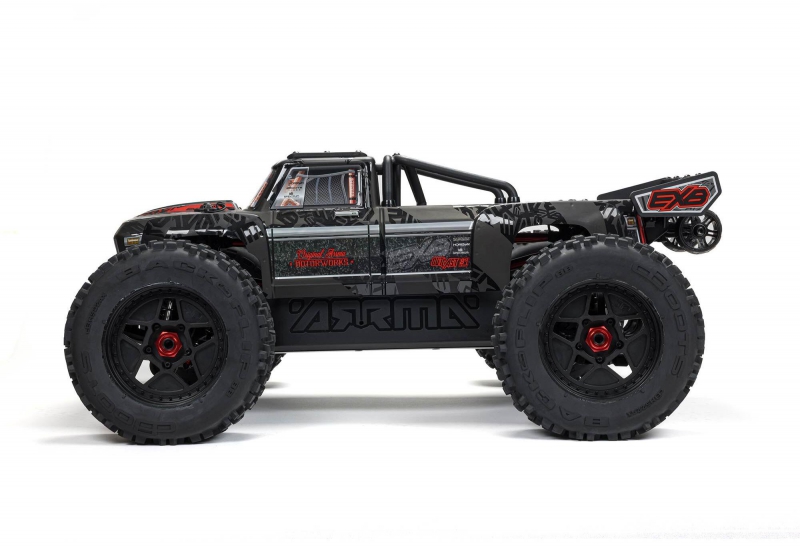

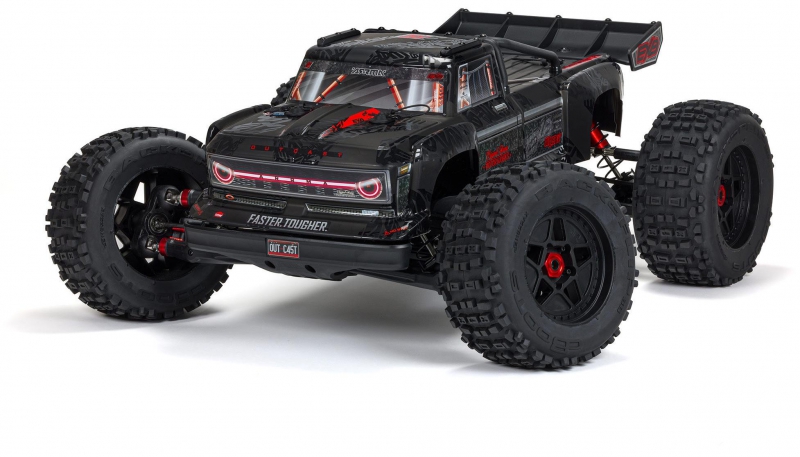

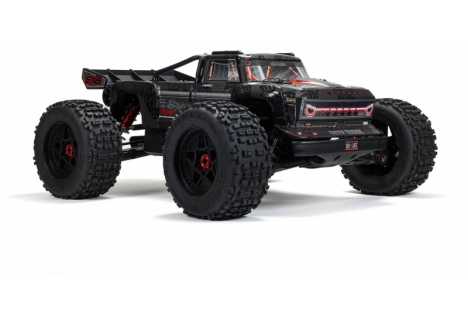

Product Description of ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black

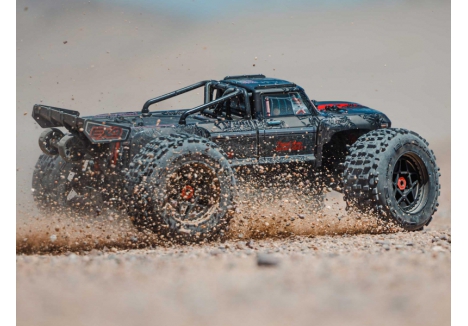

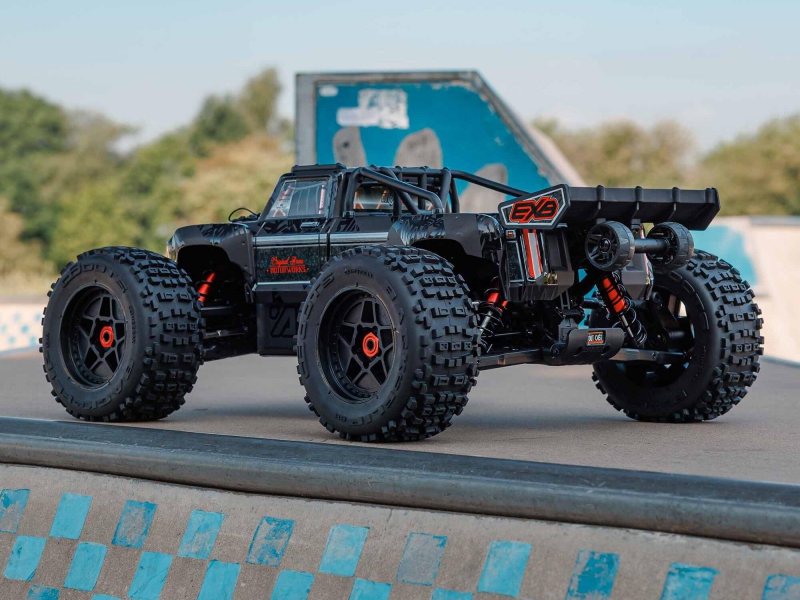

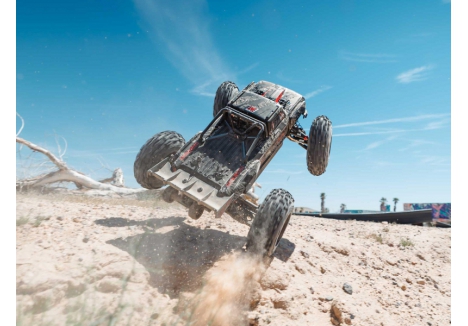

The ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black is engineered for extreme stunts, high-speed bashing, and all-terrain dominance. This 4WD brushless stunt truck combines the brute force of an 8S-capable power system with the reinforced durability of EXB-grade aluminium components. Designed for serious RC enthusiasts, the ARRMA OUTCAST EXB delivers massive torque, responsive control, and rugged construction in a ready-to-run format. From its aggressive matte-and-gloss body finish to its oversized dBoots Back-Flip tyres, every detail is built for performance and impact resistance. Whether you're launching off ramps or tearing through dirt trails, this 1/5 scale electric stunt truck is built to exceed expectations.
Key features of the ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black
- Brushless 1100Kv motor – delivers 10% more torque for powerful launches and sustained speed
- 160A Smart ESC – waterproof and telemetry-enabled for real-time performance monitoring
- AVC stability control – keeps the truck planted during aggressive cornering and high-speed stunts
- EXB aluminium chassis – 5mm thick laser-etched plate with reinforced front brace and composite side pods

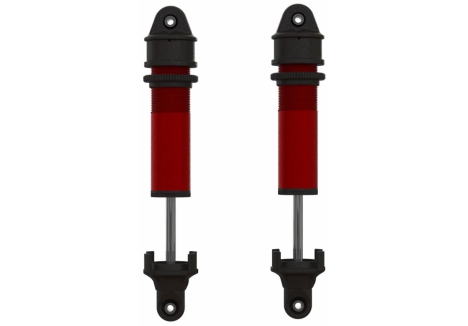

- Oil-filled 20mm shocks – plush damping with 6mm shafts and ultra-thick composite towers
- dBoots Back-Flip tyres – big block tread for all-terrain grip and stunt-ready traction
- Modular electronics layout – quick-access motor mount and waterproof electronics tray

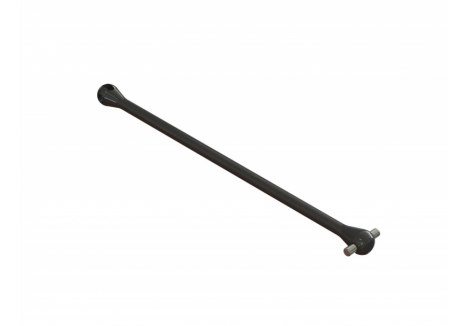

- Steel drivetrain – all-metal diff outdrives, gearbox internals, and heavy-duty driveshafts
How does the EXB aluminium chassis enhance stunt durability?

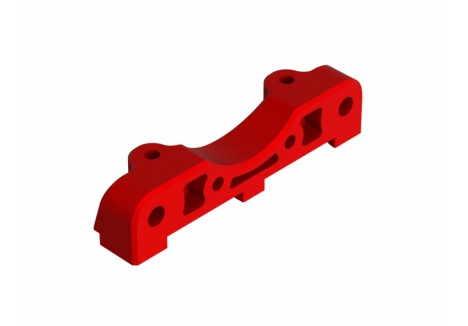

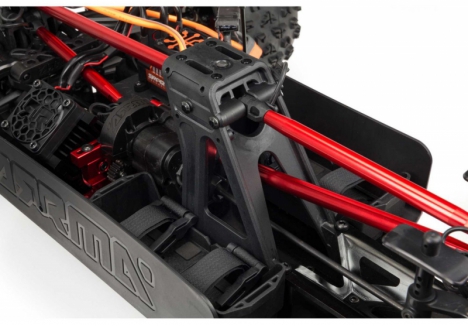

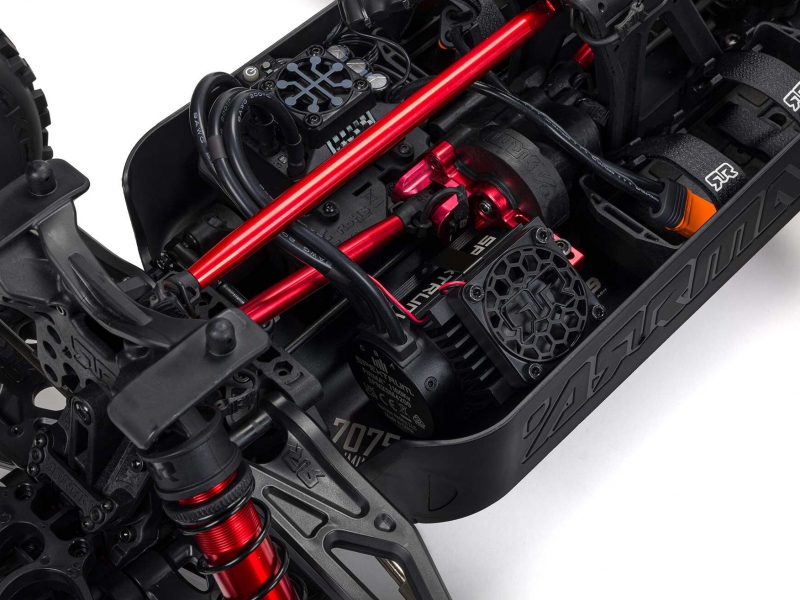

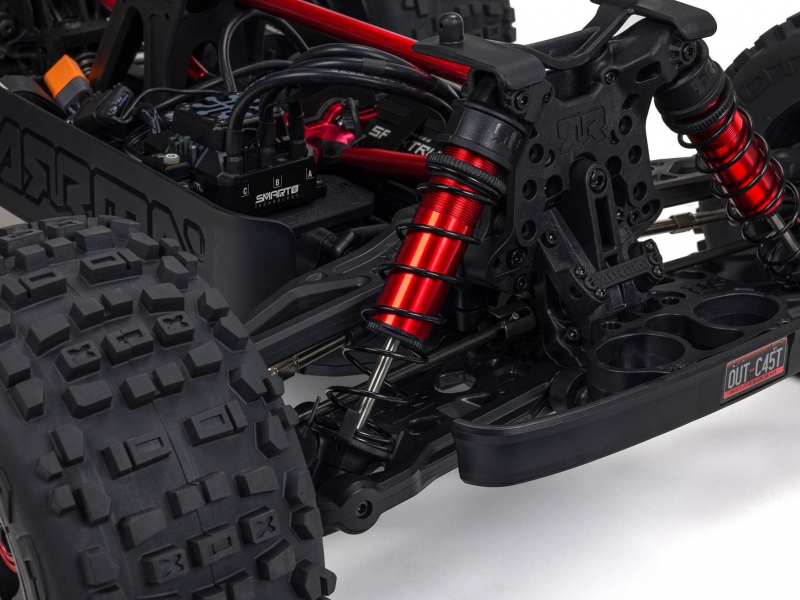

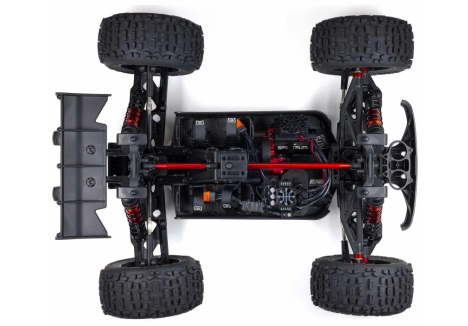

The ARRMA OUTCAST brushless truck with aluminium chassis and oil-filled shocks features a 5mm thick EXB 7075-T6 aluminium plate that forms the structural backbone of the truck. Reinforced with red-anodized CNC aluminium front brace mounts and composite chassis side pods, the chassis resists flex and absorbs impact during extreme landings. A center body support and multi-structured brace system add rigidity, while the modular design allows quick access to key components. This rugged foundation ensures the ARRMA OUTCAST EXB remains stable and responsive, even during high-impact stunts and off-road bashing.
What makes the 5687 1100Kv motor and 160A Smart ESC ideal for stunt performance?
The ARRMA OUTCAST EXB with 5687 1100Kv motor and 160A Smart ESC – C-ARA5810V2T1 is powered by a massive 56mm diameter brushless motor that delivers 10% more torque than previous models. Paired with the updated Spektrum Firma 160A V2 ESC, this system provides smoother throttle response, better punch, and real-time telemetry. The ESC is waterproof and Smart-enabled, allowing drivers to monitor motor RPM, ESC temperature, and battery voltage via the Spektrum Dashboard app. This combination unleashes explosive acceleration and sustained power, making the truck ideal for flips, jumps, and high-speed runs.
Why is AVC control essential for high-speed stunt trucks?
The ARRMA 1/5 scale 8S stunt truck with dBoots Back-Flip tyres and AVC control includes a Spektrum SR6200A receiver with built-in AVC (Active Vehicle Control). This system automatically adjusts steering and throttle inputs to maintain stability during aggressive driving. Whether you're carving corners or launching off ramps, AVC keeps the truck planted without dulling throttle response. The DX3 transmitter allows users to fine-tune the level of assistance, giving full control over handling dynamics while preserving the raw power of the 8S system.
How do the dBoots Back-Flip tyres support stunt versatility?

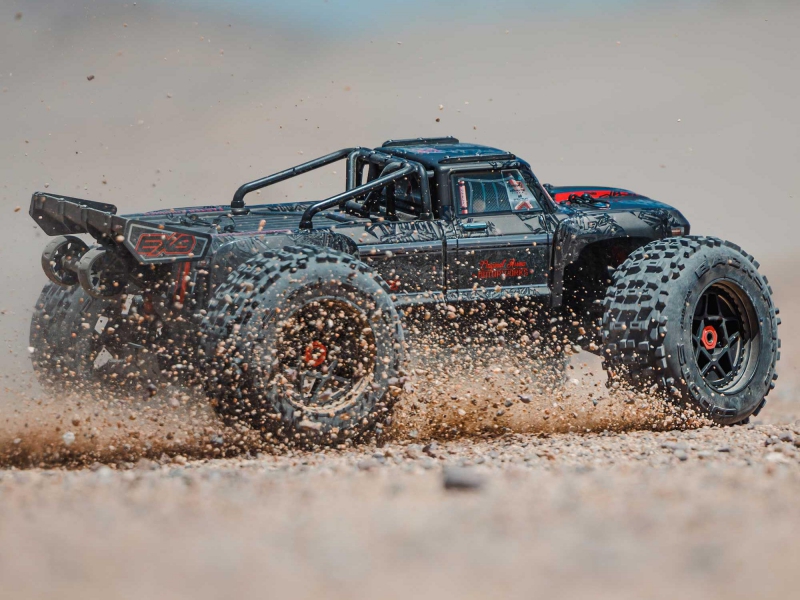

The ARRMA 1/5 scale black stunt truck with Smart telemetry and steel drivetrain – C-ARA5810V2T1 rides on oversized dBoots Back-Flip BB tyres designed for all-terrain traction and stunt execution. Their aggressive tread pattern grips loose surfaces while maintaining stability on hard-packed ground. Mounted on multi-spoke wheels with durable hubs, these tyres absorb shock and resist wear. Combined with oil-filled shocks and steel turnbuckles, they enable the ARRMA OUTCAST EXB to blast through dirt, grass, and gravel while executing flips, wheelies, and jumps with precision.
What makes the modular layout ideal for quick maintenance?

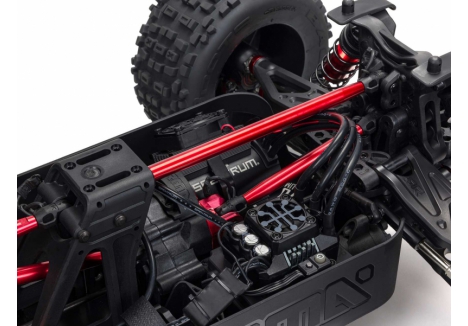

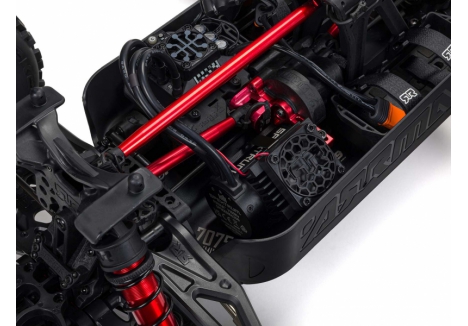

The ARRMA OUTCAST EXB features a driver-friendly layout with easy-access modules for the motor, electronics, and differential systems. The 3-bolt sliding motor mount allows quick removal and adjustment, while the molded electronics tray protects components from moisture and debris. This modular architecture simplifies repairs and upgrades, keeping downtime to a minimum and maximizing time on the track. The electronics module includes a waterproof receiver box, servo mount, and ESC tray, all designed to withstand harsh conditions and support long-term reliability.
Is the ARRMA OUTCAST EXB suitable for serious stunt enthusiasts?
With its EXB-hardened components, 8S-capable power system, and Smart-enabled control, the ARRMA OUTCAST EXB is built for drivers who demand performance and resilience. The steel drivetrain, aluminium chassis, and AVC stability make it one of the best large-scale brushless RC stunt trucks available. Whether you're racing across open fields or tackling technical terrain, the ARRMA OUTCAST EXB delivers unmatched power and precision. Its aggressive styling and matte-gloss finish add visual impact to its already commanding presence.
For those seeking extreme stunt capability, high-speed control, and rugged durability, the ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black is the ultimate choice. With Smart telemetry, modular design, and EXB-grade toughness, this truck is ready to dominate any terrain. Buy ARRMA OUTCAST C-ARA5810V2T1 8S EXB stunt truck with DX3 radio today and unleash the full force of 1/5 scale stunt performance.
Technical Specifications of ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black
Brand, Model and Product Type
- Brand: ARRMA
- Model: C-ARA5810V2T1
- Product Type: ARRMA OUTCAST C-ARA5810V2T1 1/5 8S EXB stunt truck RTR black, ARRMA C-ARA5810V2T1 4WD brushless stunt truck with Smart ESC, ARRMA OUTCAST EXB C-ARA5810V2T1 1/5 scale electric stunt truck, ARRMA OUTCAST EXB with 5687 1100Kv motor and 160A Smart ESC – C-ARA5810V2T1, ARRMA 1/5 scale 8S stunt truck with dBoots Back-Flip tyres and AVC control
Dimensions
- Product Length: 71.4 cm – compact stunt-ready chassis for agile flips and jumps
- Product Width: 59.5 cm – wide stance for enhanced stability during high-speed stunts
- Product Height: 30.5 cm – elevated profile with reinforced body support and shock towers
- Wheelbase: 43 cm – short wheelbase optimised for stunt responsiveness and tight rotation
- Ground Clearance: 6.5 cm – suitable for off-road terrain and obstacle clearance
Drivetrain and Transmission
- Drive Type: 4WD – full-time shaft-driven system for consistent traction and stunt control

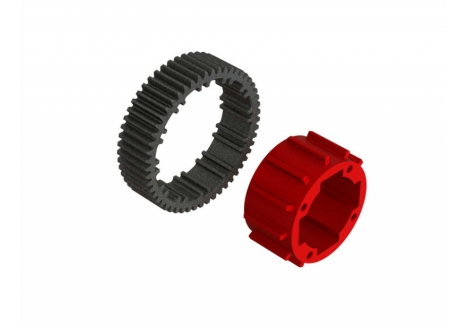

- Differential Type: 3 gear diffs – all-metal internals for high-torque durability and smooth power delivery
- Gear Pitch: 1.0 MOD – heavy-duty gearing designed for extreme loads and impact resistance
- Internal Gear Ratio: 9.06 – tuned for explosive acceleration and stunt execution
- Spur Gear: 47T – paired with high-output motor for balanced torque and speed
Motor and ESC System

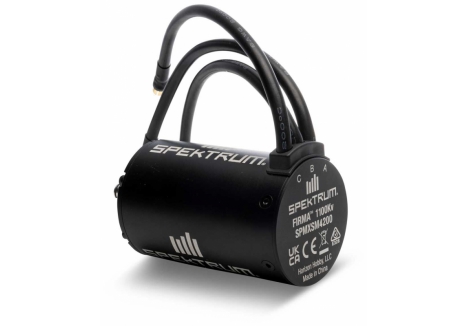

- Motor Type: Brushless – Spektrum Firma 5687 1100Kv 4-pole motor with 10% more torque than previous models
- ESC: Spektrum Firma 160A V2 Smart ESC – waterproof, telemetry-enabled, and tuned for 8S LiPo power
- Power System: 8S – compatible with dual 4S or dual 3S LiPo batteries for maximum output
- Battery Connector: IC5 / EC5 – high-current connectors for efficient power delivery and compatibility
Suspension and Steering
- Suspension Type: Independent – EXB-hardened components with steel turnbuckles and composite towers
- Shock Type: Oil-filled coil-over – 20mm bore shocks with 6mm thick shafts for plush damping and stunt absorption

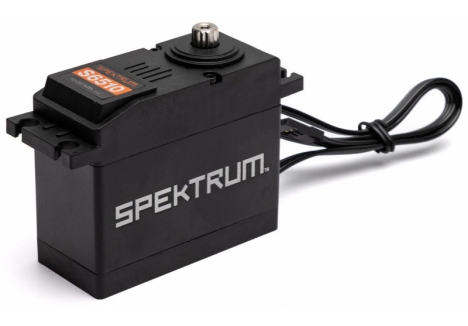

- Steering Servo: Spektrum S6510 – steel gear waterproof servo with 820 oz-in torque at 8.4V for responsive control
Tyres and Wheels
- Tyre Type: dBoots Back-Flip BB – big block tread pattern for all-terrain grip and stunt-ready traction

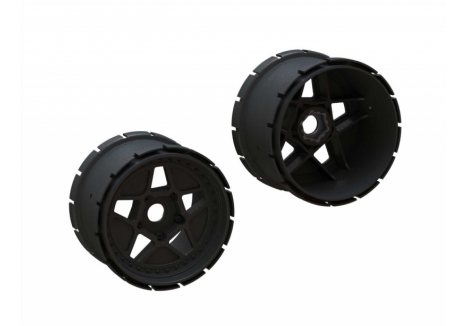

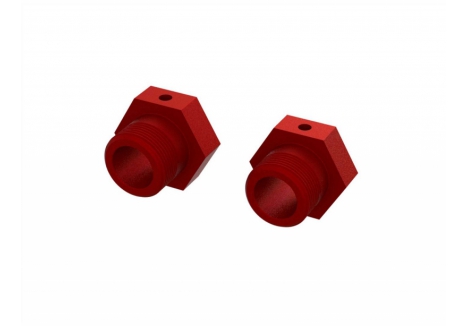

- Wheel Type: Multi-spoke wheels – durable hubs with 24mm hex size for secure fitment and impact resistance
Chassis and Structure

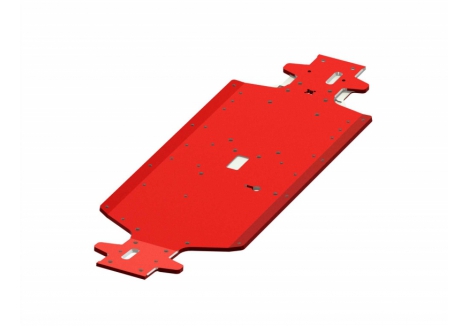

- Chassis: 5mm thick EXB 7075-T6 aluminium – laser-etched plate with composite side pods and center brace
- Body: Painted, decalled, and trimmed – aggressive matte-and-gloss EXB finish for visual impact
- Center Brace: Multi-structured – includes center body support and aluminium brace for added rigidity
- Bumper: EXB front bumper – impact-absorbing design for frontal protection during landings

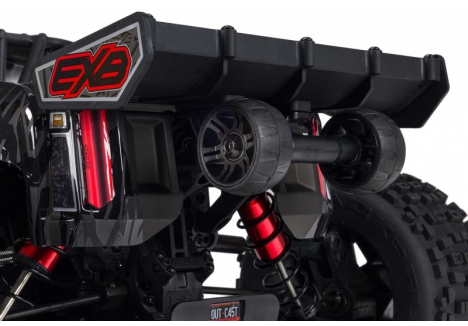

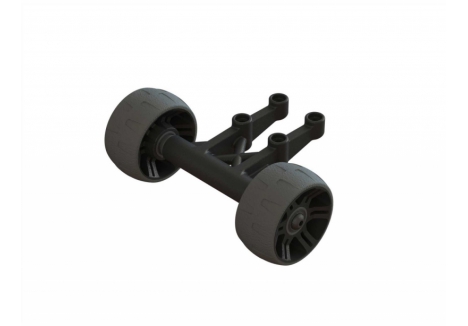

- Wheelie Bar: Integrated – supports high-speed launches and protects rear end during stunt execution
Electronics and Control

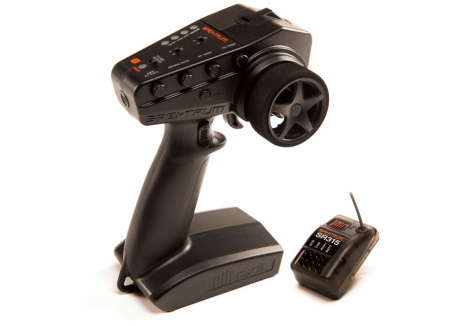

- Radio System: Spektrum DX3 3-channel 2.4GHz DSMR – Smart-compatible with AVC stability control
- Receiver: Spektrum SR6200A – DSMR protocol with AVC and telemetry support for real-time data

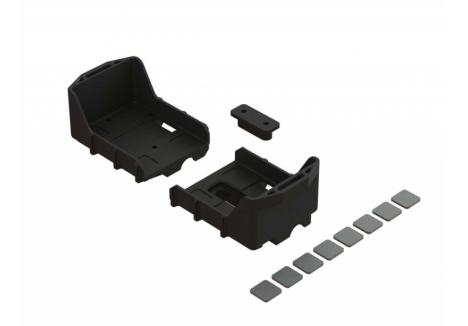

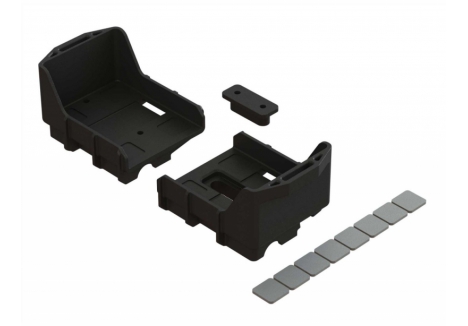

- Electronics Module: Molded waterproof tray – houses receiver, ESC, and servo mount for protection and accessibility
- Smart Features: Real-time telemetry via Spektrum Dashboard – monitor RPM, ESC temperature, battery voltage, and more
What’s in the Box
- 1 × ARRMA OUTCAST 1/5 8S EXB Stunt Truck RTR
- 1 × Spektrum DX3 3-channel DSMR radio
- 1 × Spektrum SR6200A receiver with AVC
- 1 × Spektrum S6510 steel gear waterproof servo
- 1 × Spektrum Firma 1100Kv brushless motor
- 1 × Spektrum Firma 160A V2 Smart ESC
- 1 × CNC machined aluminium 24mm wheel wrench
- 1 × Product Manual
- 4 × AA batteries for transmitter
What You Require

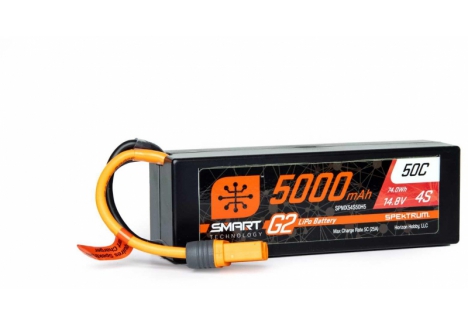

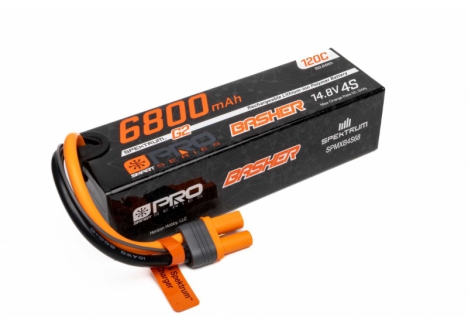

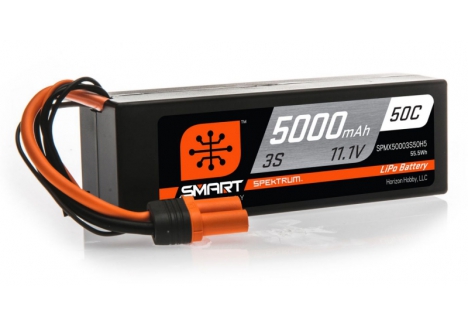

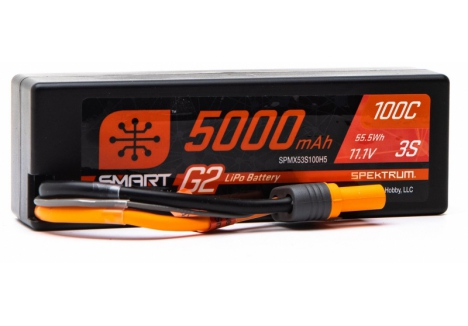

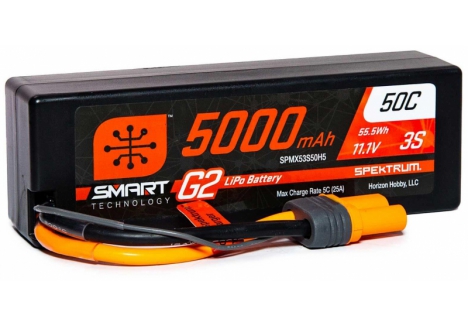

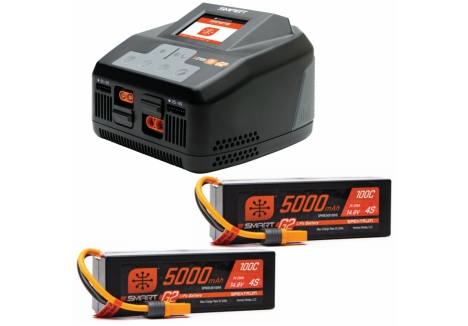

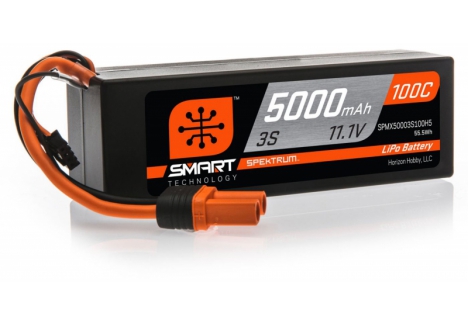

- 2 × 3S or 4S LiPo Batteries with EC5 or IC5 connector

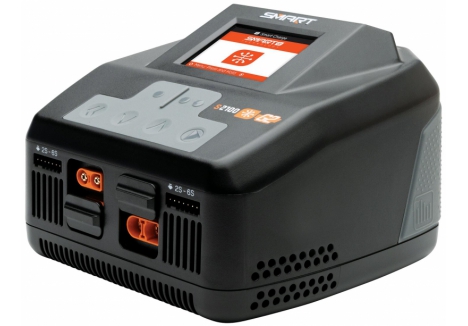

- 1 × Compatible LiPo Battery Charger
