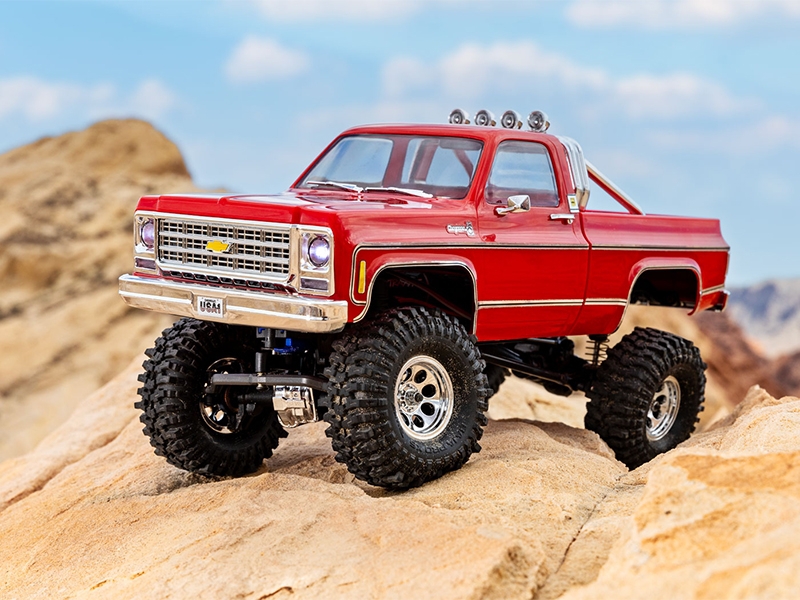

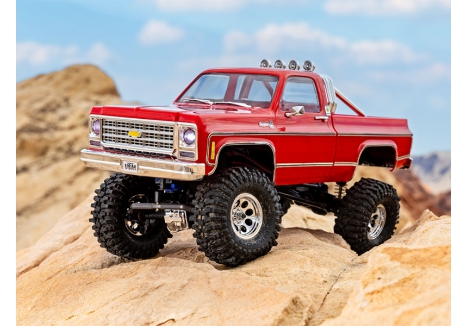

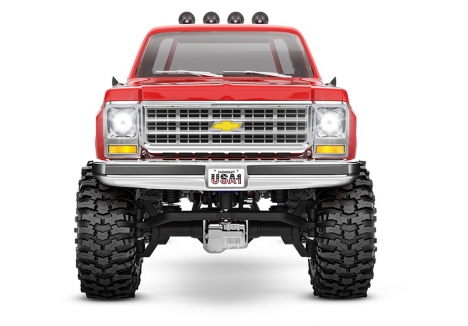

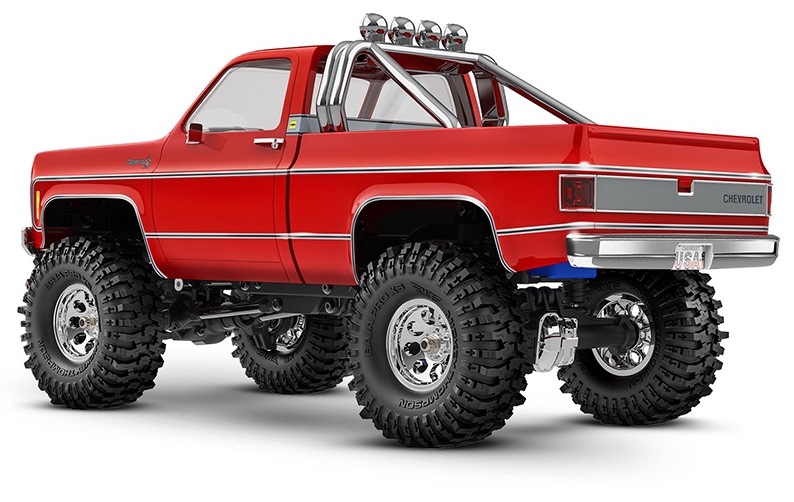

Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevrolet® K10 High Trail™ Edition. The High Trail pickup comes with a pre-installed Long Arm Lift Kit for 35% more center ground clearance than a standard TRX-4M and an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.
LONG ARM LIFT KIT

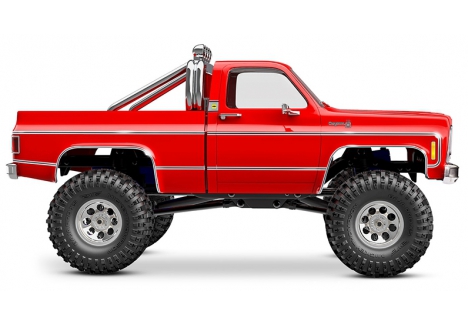

The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.
EXTENDED WHEELBASE
The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
DETAILED CLIPLESS BODY
The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.
Vehicle Specs:
Length: 10.6 inches (269mm)
Front Track: 5.0 inches (127mm)
Rear Track: 5.0 inches (127mm)
Center Ground Clearance: 1.57 inches (40mm)
Weight (with battery): 1.03lbs (468g)
Height: 5.0 inches (127mm)
Wheelbase: 6.38 inches (162mm)
Approach Angle: 62°
Breakover Angle: 51.5°
Departure Angle: 52°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Differential Type: Fully Locked; 2:1 Axle Ratio
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.4 x 1.0 inches (61.9 x 25.6mm)
Electronic Control Module: ECM-2.5™
(Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W

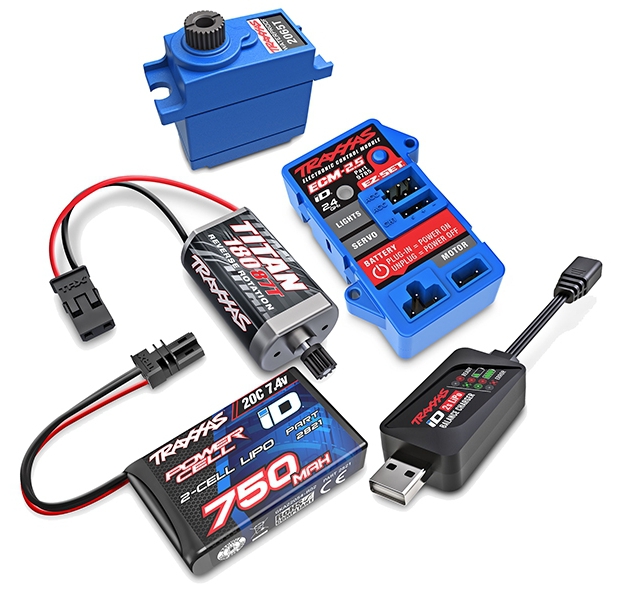

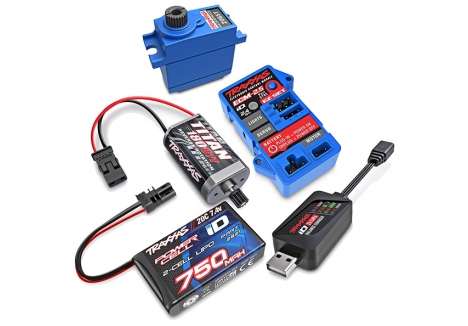

What’s In The Box:
TRX-4M® High Trail™ model
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5™ Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD®
High quality maintenance tools
What You’ll Need:
Four AA alkaline batteries for the transmitter
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX97064-1-RED
- Product Type: Traxxas TRX97064-1-RED 1/18 TRX-4M Chevrolet K10 trail truck red, Traxxas TRX97064-1-RED High Trail crawler with Titan 180 motor, Traxxas TRX97064-1-RED scale RC truck with waterproof electronics, Traxxas TRX-4M red crawler with clipless ABS body and LED headlights TRX97064-1-RED, Traxxas TRX97064-1-RED trail truck with long arm lift kit and 4WD drivetrain, Traxxas TRX97064-1-RED RC truck with ECM-2.5 control module and extended wheelbase
Dimensions
- Length: 26.9 cm – compact for tight trail navigation
- Width: 12.7 cm – balanced stance for stability
- Height: 12.7 cm – lifted profile with enhanced ground clearance
- Front Track: 12.7 cm – matched to rear for consistent handling
- Rear Track: 12.7 cm – ensures symmetrical traction
- Wheelbase: 16.2 cm – extended for improved climbing and scale realism
- Centre Ground Clearance: 4.0 cm – raised by over 35% via Long Arm Lift Kit
- Weight: 468 g – lightweight for agile performance

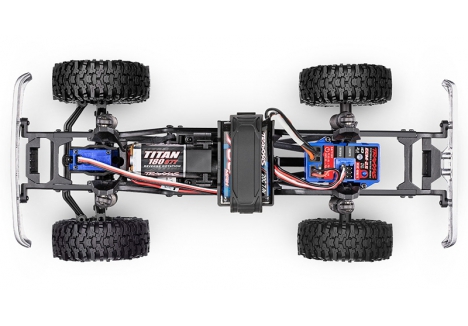

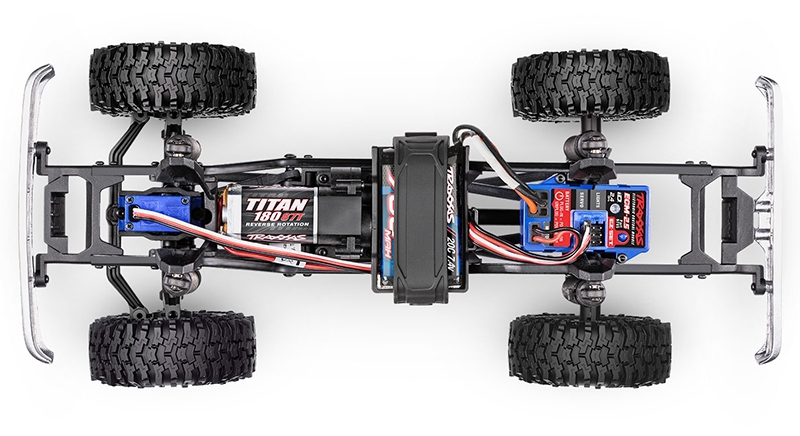

Motor and Power System
- Motor Type: Titan 180 brushed motor – 87-turn configuration for trail-tuned torque
- Motor Position: Forward-mounted for optimal crawling dynamics
- Motor Weight: 33 g – compact and efficient
- Motor Dimensions: Length 4.2 cm, Diameter 2.1 cm – fits securely in chassis
Electronic Control Module
- ESC Type: ECM-2.5 – brushed ESC integrated with receiver and LED controller
- ESC Case Size: 4.5 cm x 3.2 cm x 1.5 cm – compact waterproof housing
- ESC Weight: 26 g – lightweight and durable
- Drive Profiles: Sport Mode, Trail Mode with drag brake, Crawl Mode with 100% hill holding brake
- Protection Features: Low voltage detection, motor overload protection
- LED Support: Built-in Pro Scale LED functionality
Drivetrain and Suspension
- Drivetrain: Full-time shaft-driven 4WD – consistent grip across terrain
- Transmission: Single-speed direct drive – simple and reliable
- Differential Type: Locked spool – maximises traction
- Gear Ratio: Internal 11.38 – tuned for crawling control
- Gear Pitch: 64 pitch – precision gearing
- Lift Kit: Factory-installed Long Arm Lift Kit – raises clearance and maintains geometry

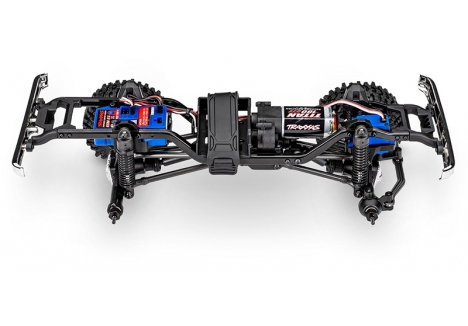

- Suspension: Triangulated 4-link front and rear – stable articulation
- Shock Type: Oil-filled GTM shocks – realistic damping and adjustable preload

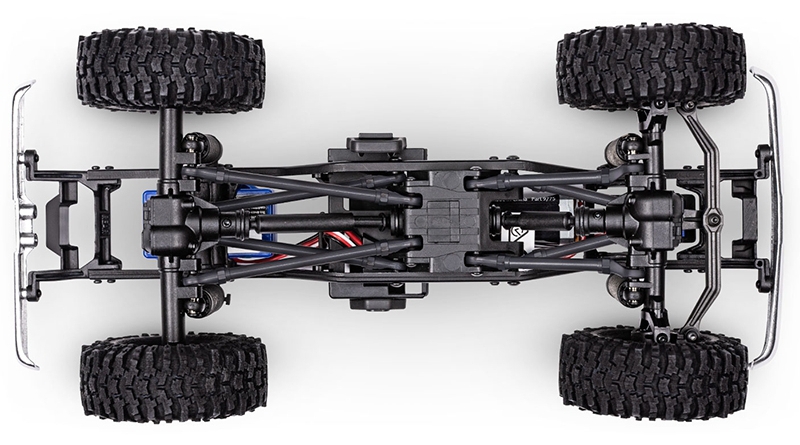

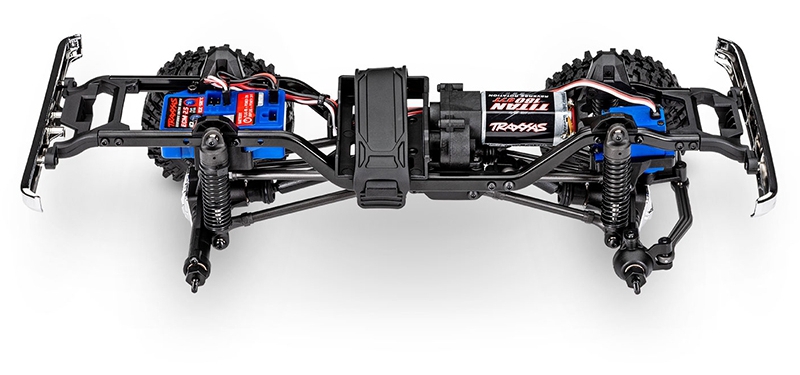

Chassis and Frame

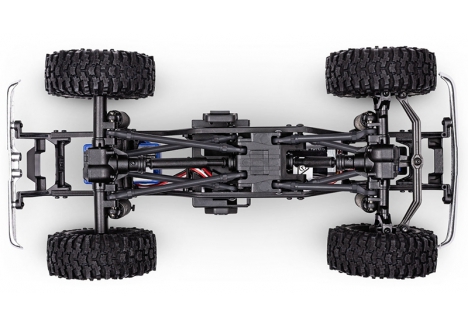

- Frame Type: Extended heavy-duty steel ladder frame – deep C-channel for rigidity
- Rails: Bumper-to-bumper steel rails – structural integrity across the chassis
- Battery Tray: Low-CG design – improves stability and handling
- Battery Strap: Wide rubber strap – secure fit during trail use
Steering System
- Servo Type: 2065T steering servo – metal main gear for durability
- Steering Angle: 45° – superior turning radius
- Steering Design: Direct steering – no servo saver for precise input
Wheels and Tyres
- Wheel Type: 1 inch replica 8-hole chrome mag wheels – scale realism
- Tyre Type: Mickey Thompson Baja Pro XS – aggressive tread and sticky compound
- Hex Size: 7 mm – standard fitment
Battery and Charging
- Battery Type: 2-cell LiPo – 7.4 volts, 750 mAh capacity
- Run Time: Over one hour – trail-ready endurance
- Charger Type: 2-amp USB-powered charger – fast and safe charging
- Charging Technology: iD technology – optimised for safety and efficiency
Radio System
- Transmitter: TQ 2.4 GHz 2-channel – full-size with long-range control
- Comfort: Ergonomic design – all-day usability

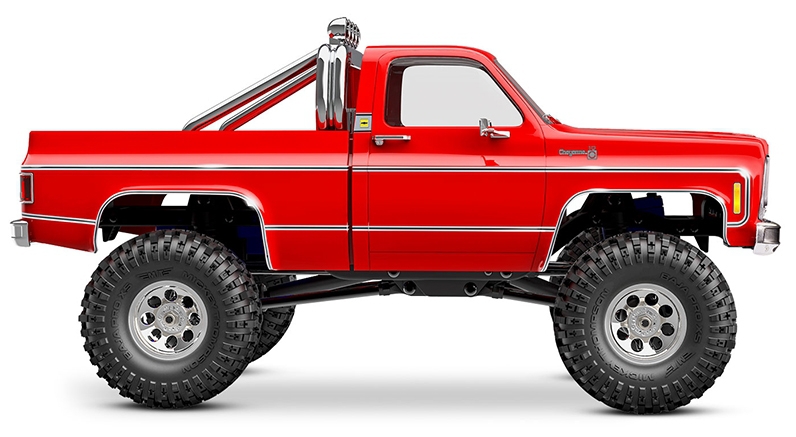

Body and Exterior
- Body Type: Clipless ABS hard body – molded-in colour with chrome trim
- Exterior Details: Fender flares, rock sliders, side mirrors, door handles, roll bar, wipers

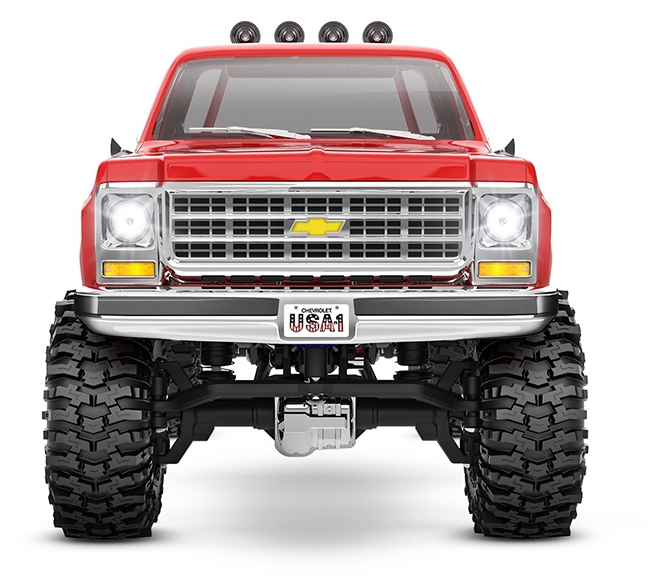

- Headlights: LED headlights – scale illumination
- Latching System: Hidden heavy-duty clips – secure and quick-release
What's in the Box
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD
- High quality maintenance tools
What You’ll Need
- Four AA alkaline batteries for the transmitter
Sold Separately
- Optional Low Range or Speed Gearing transmissions – modular design swaps out in minutes
Warranty
- 1 year warranty – manufacturer-backed coverage
