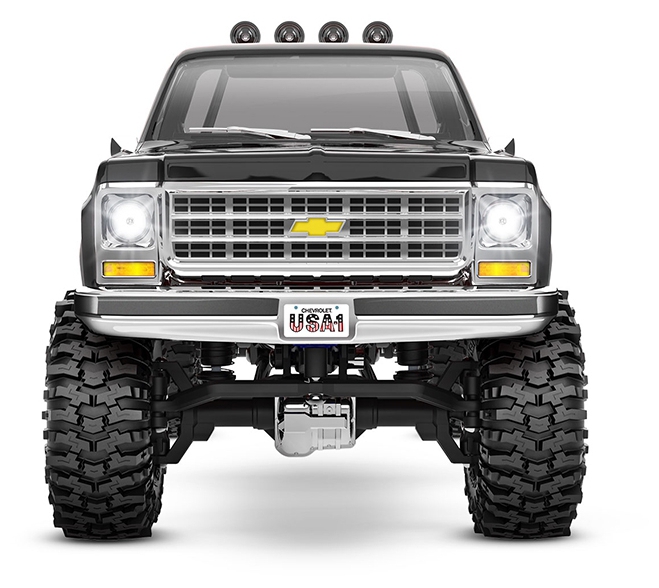

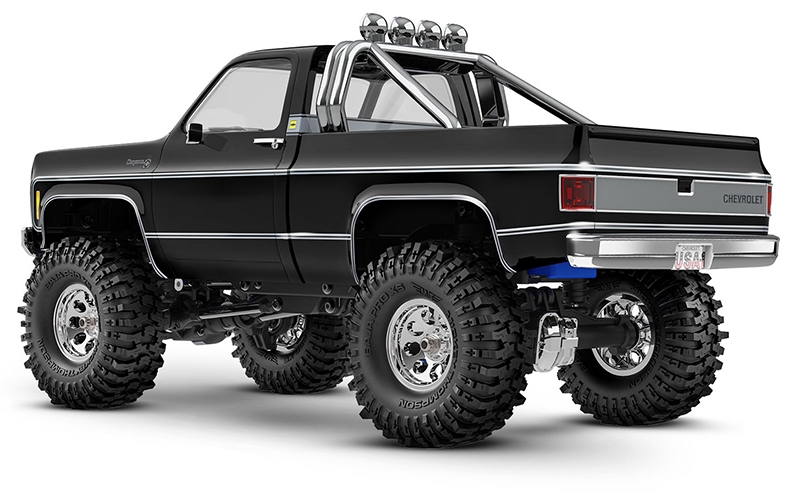

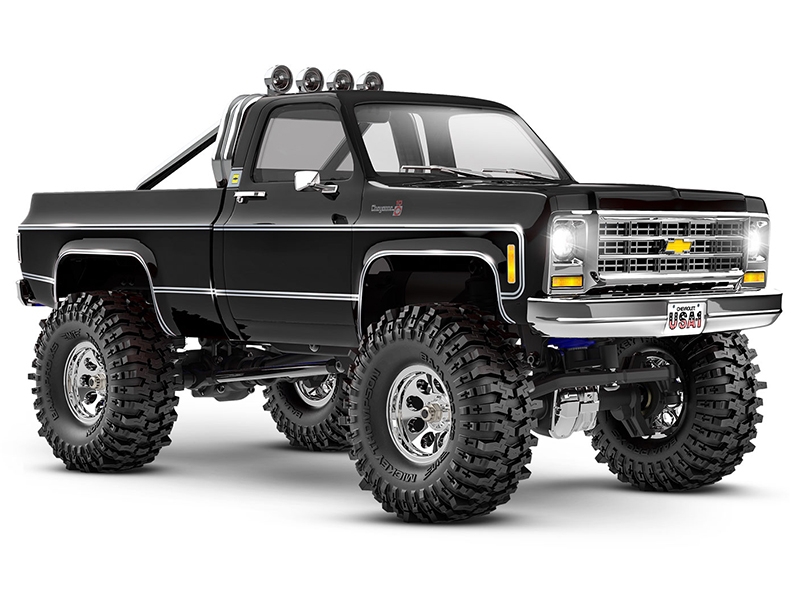

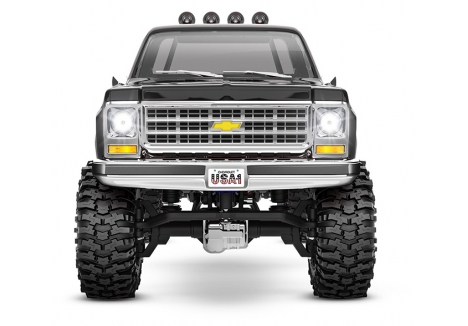

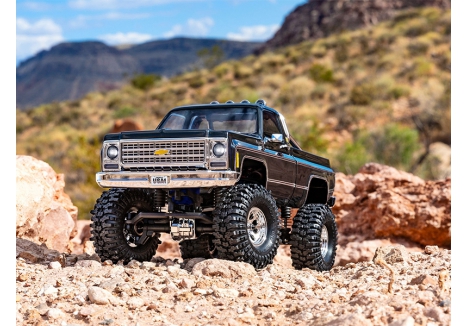

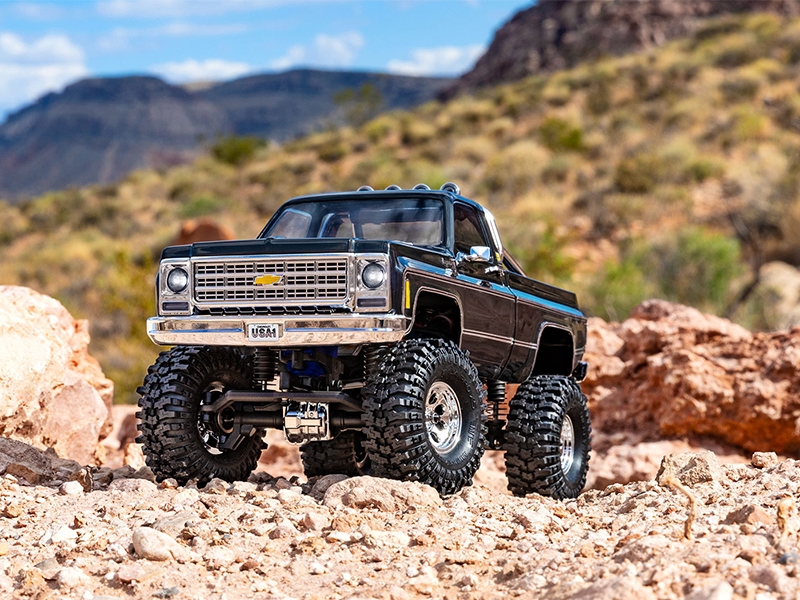

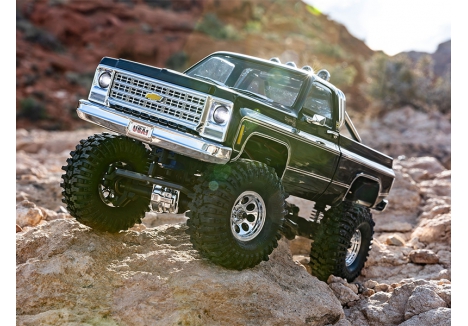

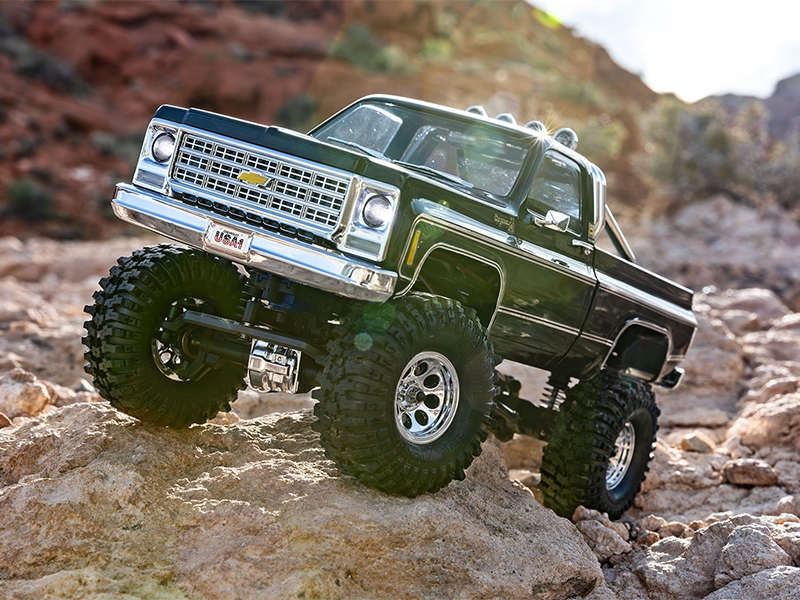

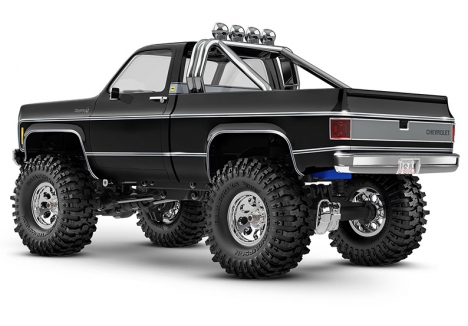

Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevrolet® K10 High Trail™ Edition. The High Trail pickup comes with a pre-installed Long Arm Lift Kit for 35% more center ground clearance than a standard TRX-4M and an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.
LONG ARM LIFT KIT
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.

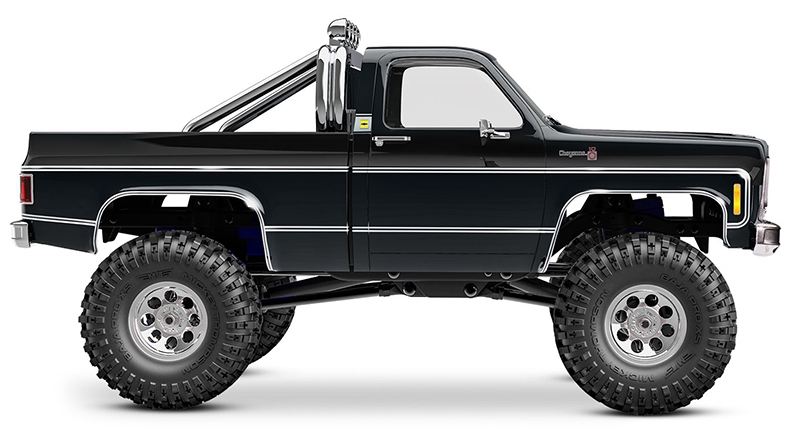

EXTENDED WHEELBASE
The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
DETAILED CLIPLESS BODY

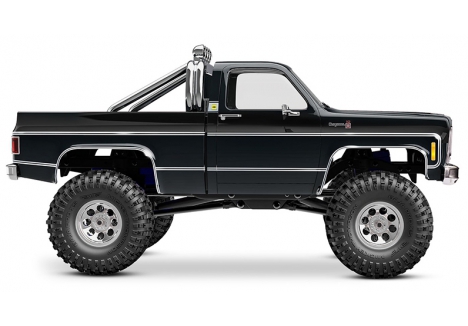

The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.
Vehicle Specs:
Length: 10.6 inches (269mm)
Front Track: 5.0 inches (127mm)
Rear Track: 5.0 inches (127mm)
Center Ground Clearance: 1.57 inches (40mm)
Weight (with battery): 1.03lbs (468g)
Height: 5.0 inches (127mm)
Wheelbase: 6.38 inches (162mm)
Approach Angle: 62°
Breakover Angle: 51.5°
Departure Angle: 52°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Differential Type: Fully Locked; 2:1 Axle Ratio
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.4 x 1.0 inches (61.9 x 25.6mm)
Electronic Control Module: ECM-2.5™
(Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T

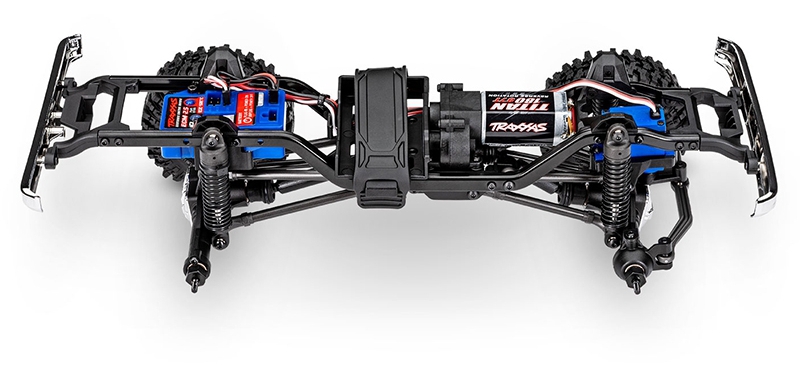

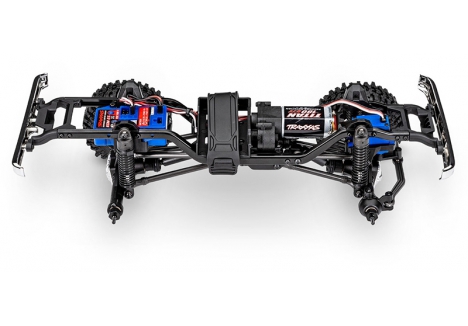

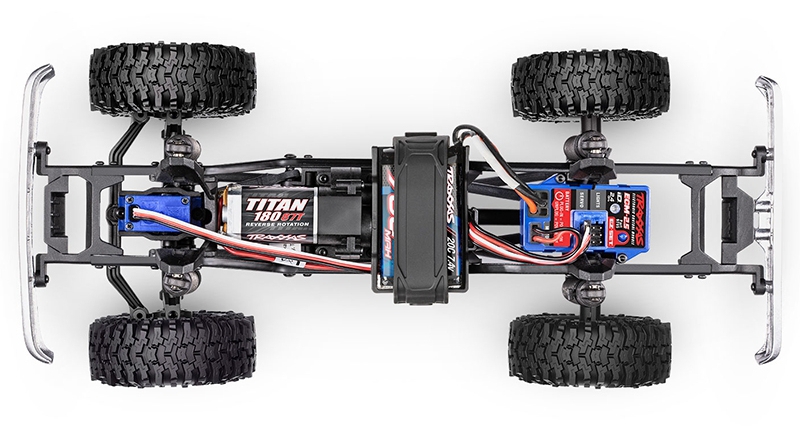

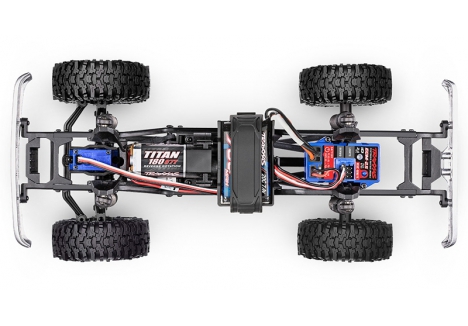

Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W

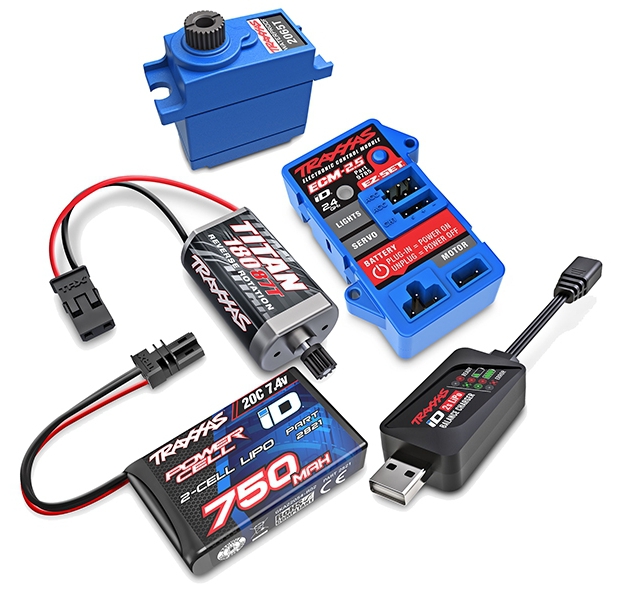

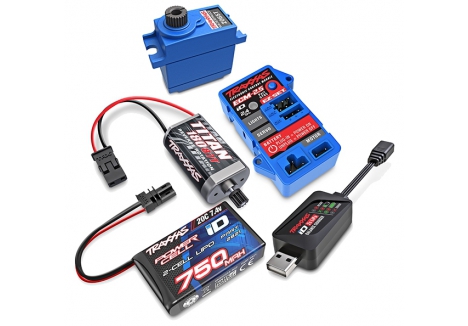

What’s In The Box:
TRX-4M® High Trail™ model
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5™ Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD®
High quality maintenance tools
What You’ll Need:
Four AA alkaline batteries for the transmitter
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX97064-1-BLK
- Product Type: Traxxas TRX97064-1-BLK 1/18 TRX-4M Chevrolet K10 trail truck black, Traxxas TRX97064-1-BLK High Trail crawler with Titan 180 motor, Traxxas TRX97064-1-BLK scale RC truck with waterproof electronics, Traxxas TRX-4M black crawler with clipless ABS body and LED headlights TRX97064-1-BLK, Traxxas TRX97064-1-BLK trail truck with long arm lift kit and 4WD drivetrain, Traxxas TRX97064-1-BLK RC truck with ECM-2.5 control module and extended wheelbase
Dimensions
- Length: 26.9 cm – compact yet trail-capable for tight terrain navigation
- Width: 12.7 cm – balanced stance for improved stability
- Height: 12.7 cm – lifted profile enhances ground clearance
- Wheelbase: 16.2 cm – extended for better climbing and smoother ride
- Front and Rear Track: 12.7 cm – symmetrical for consistent handling
- Centre Ground Clearance: 4.0 cm – raised by over 35% via long arm lift kit
- Weight: 468 g – lightweight for responsive control and transport
Motor and Power System
- Motor Type: Titan® 180 87-turn brushed motor – tuned for torque and crawling precision
- Motor Length: 4.2 cm – compact design fits the 1/18 scale chassis
- Motor Diameter: 2.1 cm – optimised for low-speed control
- Motor Weight: 33 g – lightweight for efficient power delivery
- Fixed Gear Mesh: No adjustment required – simplifies setup and maintenance
Electronic Control Module
- ESC Type: ECM-2.5™ – combines ESC, receiver, and LED controller
- ESC Case Size: 4.5 cm x 3.2 cm x 1.5 cm – compact and integrated
- ESC Weight: 26 g – lightweight and waterproof
- Drive Profiles: Sport Mode, Trail Mode with drag brake, Crawl Mode with 100% hill holding brake
- LED Functionality: Built-in Pro Scale® LED support
- Protection Features: Two-stage low voltage protection and motor overload safeguard
Drivetrain and Transmission
- Drivetrain: Shaft-driven 4WD – full-time traction across all wheels
- Transmission: Single speed direct drive – efficient and reliable
- Differential Type: Locked spool – maximises grip on uneven terrain
- Gear Ratio (Internal): 11.38 – tuned for crawling performance
- Gear Pitch: 64 pitch – fine gearing for smooth operation
- Optional Transmission Ratios: Low Range or Speed Gearing (sold separately)
Suspension and Shocks

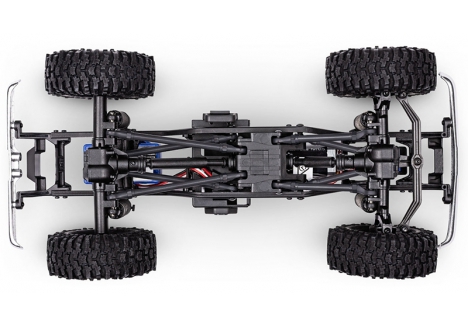

- Suspension Design: Triangulated 4-link front and rear – stable and flexible articulation
- Shock Type: Oil-filled GTM™ shocks – realistic damping and adjustable preload
- Shock Mounts: Revised towers – accommodate lifted geometry
- Rod Ends: Heavy-duty – built for durability under trail stress
Steering System
- Servo Type: 2065T steering servo – metal gear for strength
- Steering Angle: 45° – superior turning radius for tight trails
- Steering Design: Direct steering – no servo saver for precise input
Body and Exterior
- Body Type: Officially licensed Chevrolet® K10 clipless ABS body
- Body Features: Molded-in colour, chrome trim, realistic mirrors, handles, roll bar, and wipers
- Body Mounting: Hidden latching system – secure yet quick-release
- Exterior Protection: Tough fender flares and rock sliders
- Lighting: LED headlights – integrated for scale realism
Wheels and Tyres
- Wheel Type: 1 inch replica 8-hole chrome mag wheels
- Tyre Type: Mickey Thompson® Baja Pro™ XS – aggressive tread and sticky compound
- Hex Size: 7 mm – standardised for compatibility
- Tyre Compound: Trail-tuned rubber – maximises grip and realism
Battery and Charging
- Battery Type: 2-cell LiPo – high-capacity 7.4V 750 mAh
- Runtime: Over one hour – extended trail sessions
- Charger Type: 2-amp USB-powered charger with iD® technology
- Battery Tray: Low-CG design – concentrates weight for stability
- Battery Compartment Size: 5.1 cm x 3.1 cm – fits included LiPo battery securely
Radio System
- Transmitter Type: TQ™ 2.4 GHz 2-channel – full-size with long-range control
- Comfort: Ergonomic design for all-day use
Chassis and Frame
- Frame Type: Extended heavy-duty steel ladder frame
- Design: Deep C-channel with thicker centre section for rigidity
- Coverage: Rails run bumper to bumper for full support
Low-Maintenance Features
- Bushings: Self-lubricating – reduces wear and maintenance
- Hardware: Durable hex fasteners – secure and easy to service
What’s in the Box
- TRX-4M High Trail model
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What You’ll Need
- Four AA alkaline batteries for the transmitter
Sold Separately
- Optional Low Range or Speed Gearing transmissions
Warranty
- 1 year warranty – manufacturer-backed coverage for peace of mind
