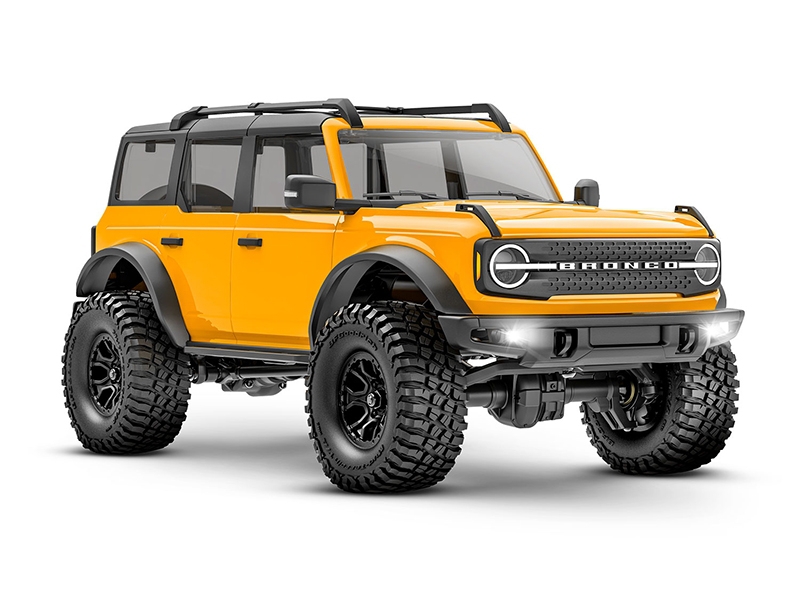

Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.
THE RIGHT SIZE FOR FUN

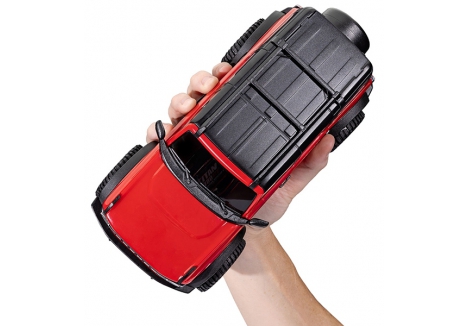

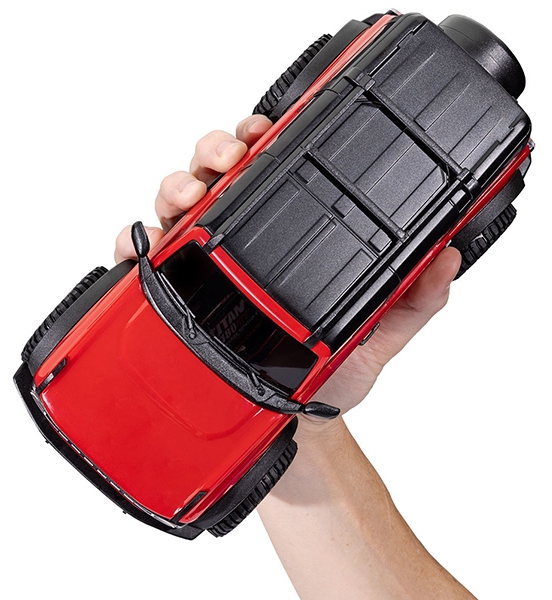

TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.
DETAILED ABS BODIES

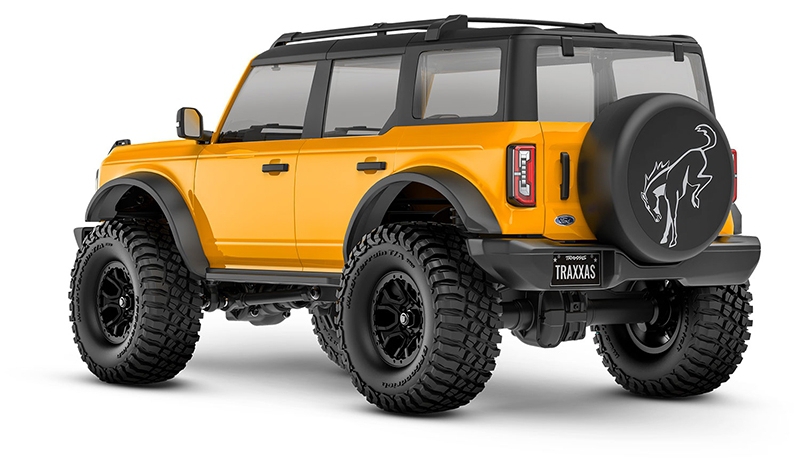

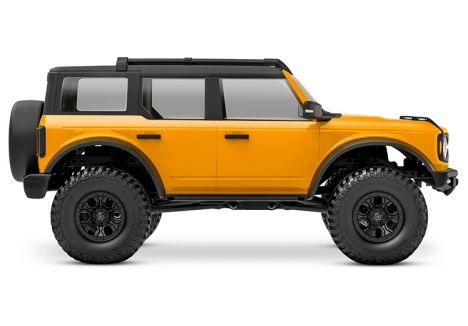

Constructed out of tough ABS, TRX-4M bodies faithfully capture all the details of the full-size Bronco and Defender in exacting 1/18 scale. Tinted windows, spare tire carriers, and other molded body accessories give TRX-4M a truly authentic appearance.

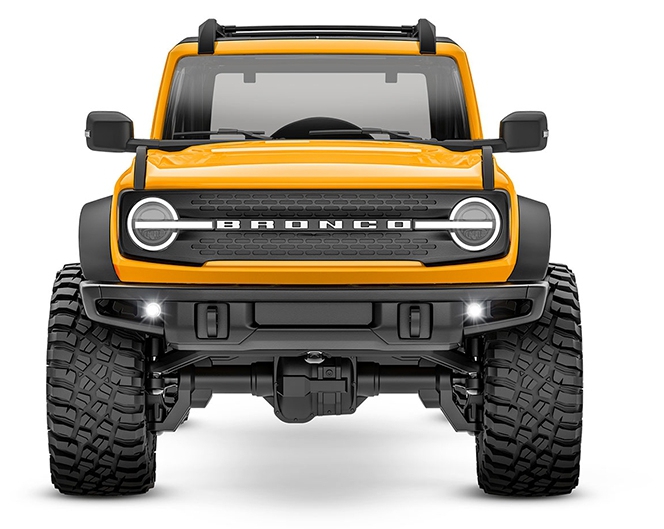

LED DRIVING LIGHTS

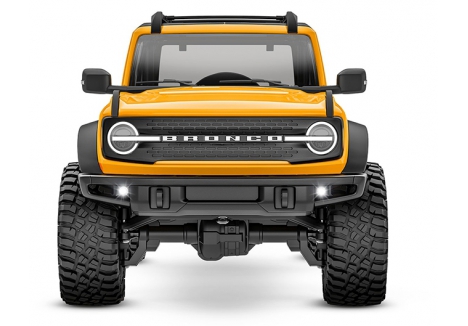

TRX-4M’s standard LED driving lights create new avenues for fun as you challenge your driving skills through sofa-cushion tunnels or over garden obstacles when the sun goes down.
HIGH CAPACITY LIPO BATTERY AND FAST CHARGER

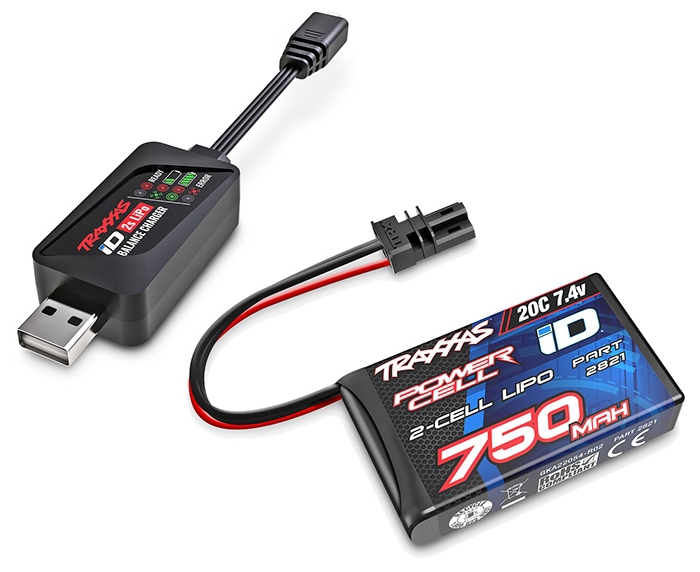

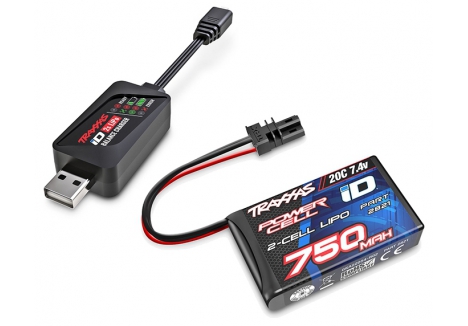

A high-capacity 750 mAh 2-cell LiPo battery provides over an hour of runtime with 7.4 volts of high-performance power and Traxxas iD safety and simplicity. The included USB-powered charger provides quick and reliable fast charging at up to 2-amps of charging capability.
ALL-TERRAIN VERSATILITY

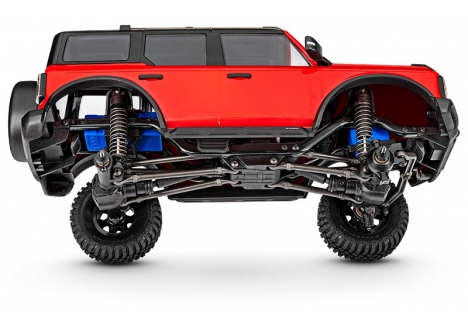

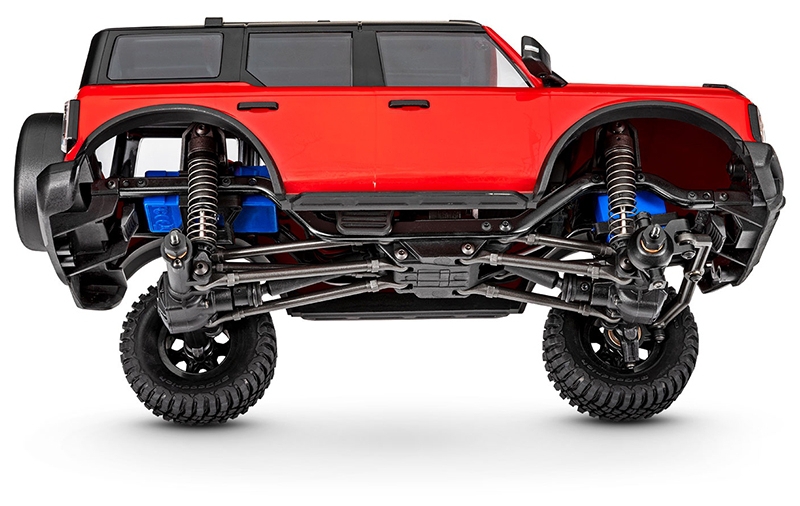

TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.
DETAILED ABS BODY WITH CLIPLESS MOUNTING
The innovative clipless body removes and installs in just seconds with no clips to lose or frustrating hook and loop tabs. Tough, highly detailed ABS bodies feature molded-in color with a deep glossy finish that won’t chip or scrape off.
WATERPROOF ELECTRONICS
TRX-4M is the truck that goes where you want to go, without boundaries or restrictions. Only Traxxas’ fully-waterproof innovation gives you the freedom to drive through wet grass, puddles, and streams that force others to turn around.
Features:
Length: 10.3 inches (262mm) (Bronco)
11 inches (279mm) (Defender)
Front Track: 4.9 inches (124mm)
Rear Track: 4.9 inches (124mm)
Ground Clearance: 1.12 inches (29mm)
Weight (w/o battery): 1.03lbs (468g) (Bronco)
1.06lbs (483g) (Defender)
Height: 4.6 inches (117mm) (Bronco)
5.3 inches (135mm) (Defender)
Wheelbase: 6.10 inches (155mm)
Approach Angle: 54° (Bronco)
52° (Defender)
Breakover Angle: 45° (Bronco)
45° (Defender)
Departure Angle: 48° (Bronco)
41° (Defender)
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)

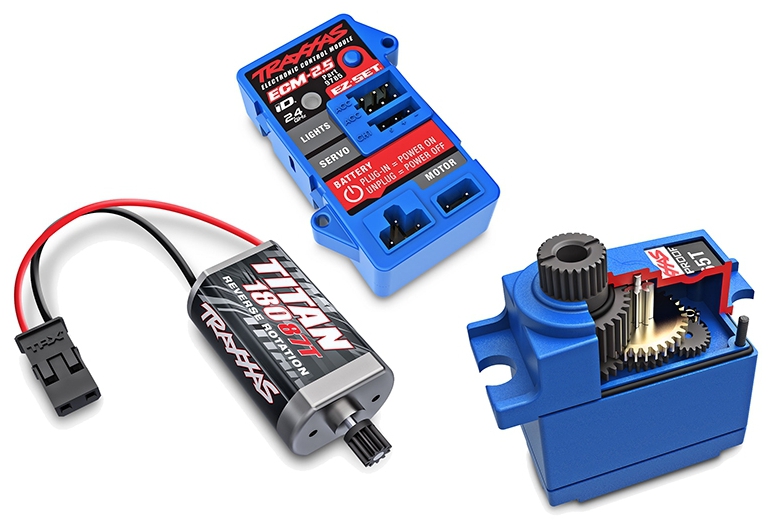

Electronic Control Module: ECM-2.5™
(Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T
Differential Type: Fully Locked; 2:1 Axle Ratio

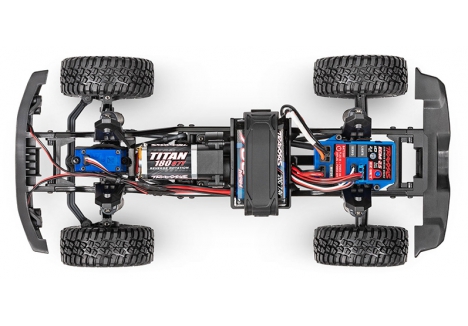

Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy-Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W
What’s In The Box:
TRX-4M® Ready-To-Race® model
Licensed ABS hard body
Titan® 180 87-turn motor
ECM-2.5™ Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD®
High quality maintenance tools
What You’ll Need:
Four AA alkaline batteries for the transmitter
Brand, Model & Appliance Type
- Brand: Traxxas
- Model: TRX97074-1-ORNG
- Appliance Type: Traxxas TRX97074-1-ORNG TRX-4M Ford Bronco 1:18 RTR trail crawler orange, Traxxas TRX97074-1-ORNG electric 4WD crawler with Titan 87T motor and ECM-2.5, Traxxas TRX97074-1-ORNG mini trail truck with 750mAh LiPo and USB charger, Traxxas TRX97074-1-ORNG Ford Bronco crawler with ABS clipless body and LED lights, Traxxas TRX97074-1-ORNG 1:18 scale 4x4 with steel ladder frame and GTM shocks
Dimensions & Weight
- Motor Length: 4.2 cm – compact brushed motor designed for low-speed torque
- Motor Diameter: 2.1 cm – optimised for trail crawling dynamics
- ESC Case Size: 4.5 cm x 3.2 cm x 1.5 cm – waterproof housing with integrated control systems
- Motor Weight: 33 g – lightweight for balanced chassis performance
- ESC Weight: 26 g – compact and efficient for terrain-specific control
Motor & Electronics

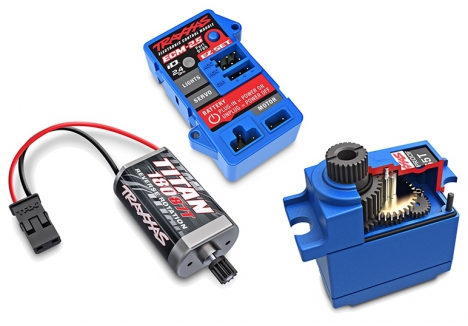

- Titan 180 87-turn brushed motor – forward-mounted for enhanced crawling geometry
- ECM-2.5 electronic control module – integrates ESC, receiver, and LED controller in one waterproof unit
- Drive Profiles: Sport, Trail, Crawl – selectable modes for terrain-adaptive driving
- Pro Scale LED functionality – built-in lighting control for realistic trail visuals
- EZ-Set one-button setup – simplifies configuration and mode switching
- Low voltage detection – two-stage protection for battery longevity
- Motor overload protection – prevents damage during high-torque climbs

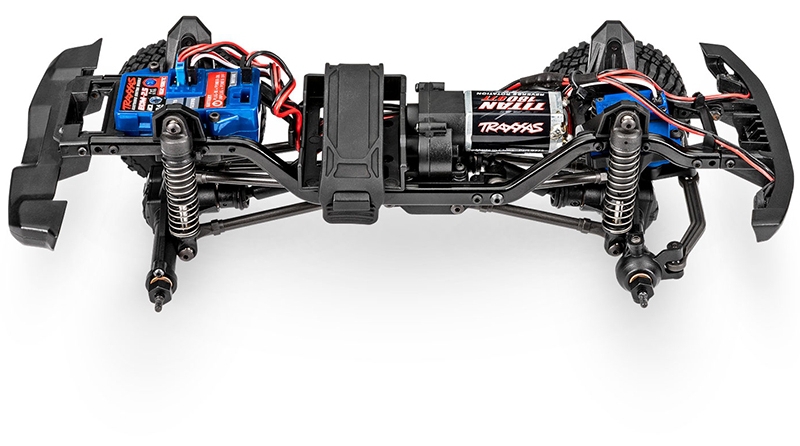

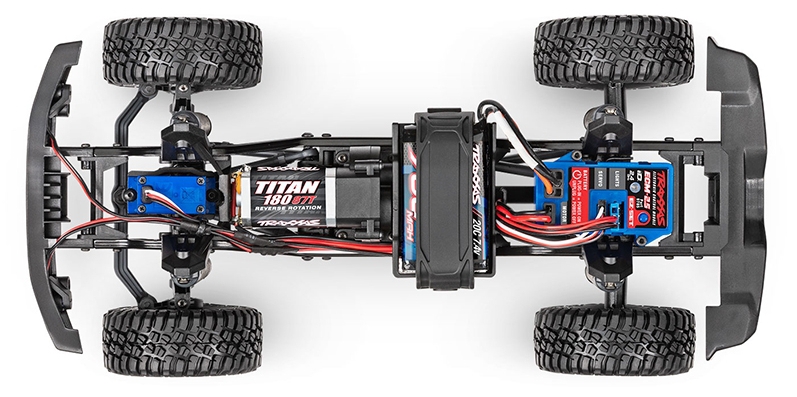

Chassis & Frame
- Steel ladder frame – deep C-channel design with reinforced centre section for rigidity
- Full-length rails – bumper-to-bumper support for structural integrity
- Low-CG battery tray – concentrates weight lower for enhanced trail stability
- Wide rubber strap – secures battery firmly during movement
Drivetrain & Steering
- Full-time shaft-driven 4WD – consistent torque delivery across all wheels
- Solid steel axles – durable and spool-equipped for reliable traction
- Heavy-duty CV centre driveshafts – support high torque transfer
- 2065T steering servo – metal gear with direct steering and 45° angle capability

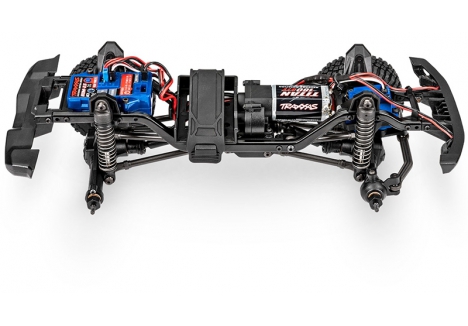

Suspension & Shocks
- Triangulated 4-link suspension – front and rear geometry for realistic articulation
- Heavy-duty rod ends – built for durability under trail stress
- Oil-filled GTM shocks – smooth damping and realistic body movement
- Adjustable preload spacers – allow fine-tuning of suspension response
Body & Exterior

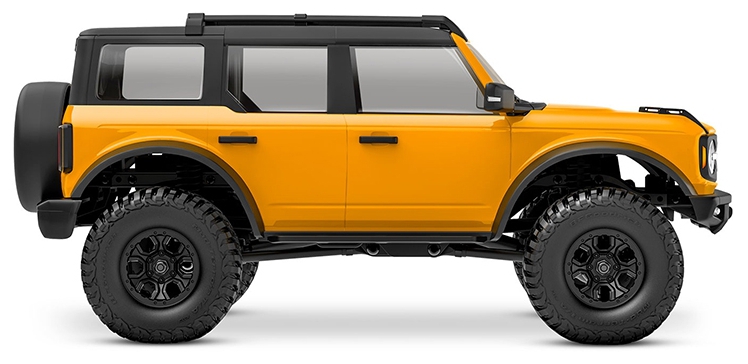

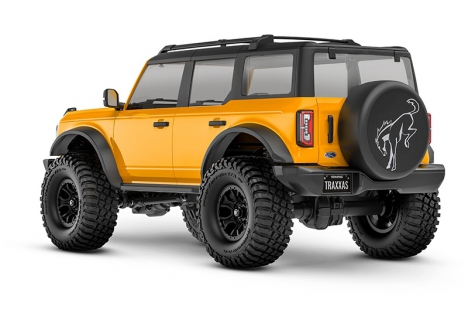

- Licensed Ford Bronco body – highly detailed ABS clipless construction
- Moulded-in colour – resists chipping and flaking for long-term durability
- Heavy-duty latching clips – secure body during use and release quickly
- Realistic detailing – includes side mirrors, door handles, wipers, and LED bumper lights
Wheels & Tires

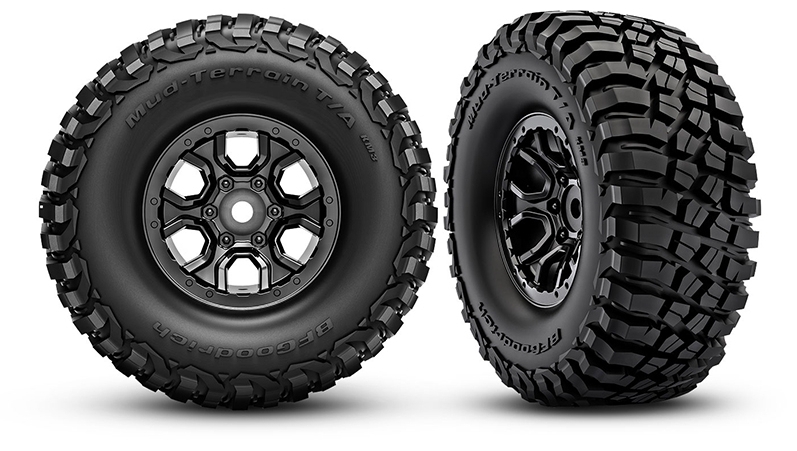

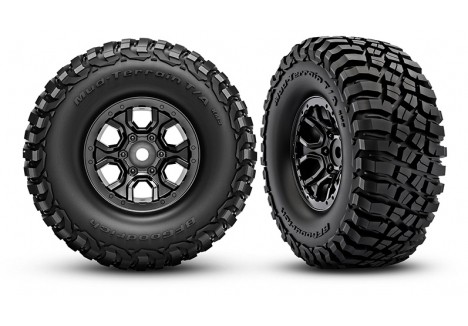

- Replica BFGoodrich Mud Terrain T/A KM3 tires – trail-tuned compound for grip and realism
- 7 mm hex wheels – compatible with scale accessories and upgrades
Battery & Charging
- 2-cell LiPo battery – 7.4 volts, 750 mAh capacity for over an hour of runtime
- 2-amp USB charger – powered by iD technology for safe and efficient charging
Sold Separately
- Optional transmission ratios – low range or speed gearing modules available for modular upgrades
What’s in the Box
- TRX-4M Ready-To-Race model – fully assembled and trail-ready
- Licensed ABS hard body – detailed Ford Bronco styling
- Titan 180 87-turn motor – pre-installed for optimal crawling
- ECM-2.5 electronic control module – integrated and waterproof
- TQ 2.4 GHz transmitter – full-size 2-channel controller with long-range precision
- 7.4 volt 750 mAh 2-cell LiPo battery – high-capacity power source
- 2-amp USB fast charger – equipped with iD technology
- High-quality maintenance tools – included for basic servicing
What You’ll Need
- Four AA alkaline batteries – required for transmitter operation
Warranty
- Warranty Coverage: 1 Year Manufacturer Warranty
