Tamiya Mercedes-Benz Actros 1851 GigaSpace 1/14 Scale RC Truck with Single Axle Drive – TAM56335

Manufacturer: Tamiya
Part Number: 56335
EAN: 4950344563357
Drive: 2WD
Surface Type: On-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:14
Motor Type: Brushed
Vehicle: HGV
Skill Level: Skill Level 3
Power Bundles: Power Bundle Required

The Tamiya TAM56335 Actros 1851 GigaSpace 1/14 R/C truck with 3-speed transmission and rear single axle drive is a precision-engineered scale model that captures the award-winning design and mechanical layout of Mercedes-Benz’s flagship Actros series. Based on the 2012 Truck of the Year, this cabover hauler replicates the 1851 GigaSpace variant with stunning realism, from its HID-style headlights and metal transfer emblems to its polycarbonate resin cross members and aluminum ladder frame. With a length of 458mm, width of 195mm, and height of 305mm, the TAM56335 is proportioned for compatibility with Tamiya’s full range of 1/14 scale trailers, delivering both visual authenticity and operational control.

Key features of the Tamiya TAM56335 Actros 1851 GigaSpace

• Aluminum ladder frame – rigid and lightweight chassis for structural integrity and towing stability
• Leaf spring suspension – metal construction for terrain absorption and load support
• HID-style headlights – white LED illumination replicates the unique glow of full-size Actros lamps
• Metal transfers – premium emblems for grille and door branding
• Trailer coupler – supports linkage with all currently available Tamiya 1/14 scale trailers
• 3-speed transmission – selectable gear ratios for realistic throttle modulation
• Rear single axle drive – differential-equipped for smooth cornering and scale performance
• Friction dampers – simulate shock absorption and suspension movement
• Polycarbonate resin cross members – enhance chassis flexibility and visual realism
• Scale compatibility – designed for pairing with flatbed, tank, and pole trailers

How does the chassis design support scale realism?

The Tamiya TAM56335 semi-truck kit with aluminum ladder frame, leaf spring suspension, and RS540 motor is built on a hybrid chassis that combines aluminum side channels with polycarbonate resin cross members. This structure delivers the rigidity needed for towing while maintaining the flexibility required for terrain adaptability. The ladder frame layout mirrors the mechanical architecture of full-size trucks, supporting the drivetrain and suspension components with precision. The polycarbonate resin elements add visual depth and reduce weight, enhancing both performance and realism. This chassis design ensures that the Actros 1851 GigaSpace remains stable under load and responsive during operation.

What makes the suspension and drivetrain configuration unique?

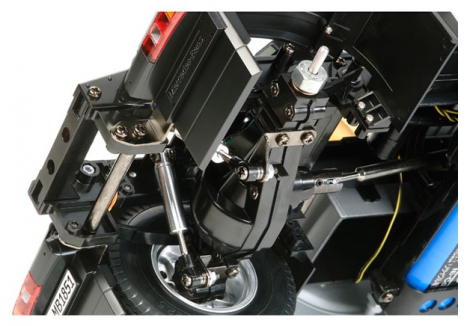

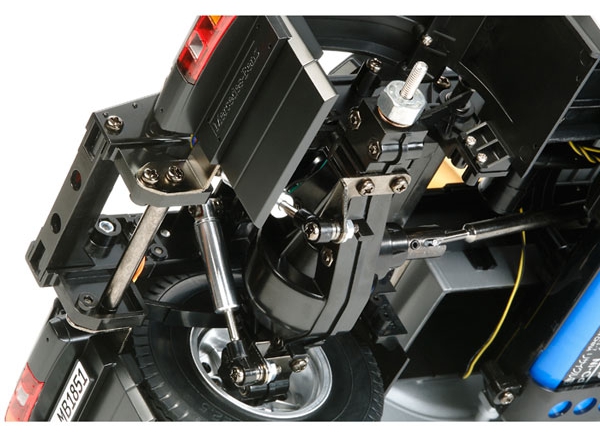

The 1/14 scale Actros truck with 3-bevel differential gears, friction dampers, and polycarbonate resin cross members features a rear single axle drive system equipped with a differential for smooth cornering. Leaf spring suspension absorbs terrain vibration and maintains consistent wheel contact, while friction dampers simulate shock absorption. The 0° caster, camber, and toe angles ensure neutral handling characteristics, making the truck predictable and easy to control. This configuration supports realistic driving dynamics and is ideal for hauling trailers across varied RC environments.

How do the visual details elevate authenticity?

The Tamiya TAM56335 realistic cabover hauler with HID-style headlights, metal transfers, and trailer coupler includes a range of visual enhancements that replicate the styling of the Mercedes-Benz Actros 1851 GigaSpace. The HID-style headlights use white LEDs to mimic the distinctive glow of the full-size truck’s lamps. Metal transfers are used to depict the Mercedes-Benz emblem and model branding, adding a premium finish to the cab. The auxiliary equipment, including air tanks and trim elements, reinforces the model’s replica-quality realism. These details ensure that the TAM56335 is not only mechanically capable but also visually compelling.

How does the transmission system replicate real-world trucking?

The R/C tractor truck kit with 0° caster/camber/toe angles, 85mm front tires, and MFC-01 compatibility features a 3-speed gearbox that allows users to shift gears on the fly. With selectable ratios of 32.49:1 (low), 17.76:1 (medium), and 10.66:1 (high), the transmission replicates the torque and speed dynamics of full-size trucks. The Type RS540 motor provides consistent propulsion, while the ESC-ready drivetrain supports integration with the Multi-Function Control Unit (MFC-01). This unit enables users to simulate engine sounds, gear shifting, air horn, and other realistic effects, enhancing the immersive experience of RC trucking.

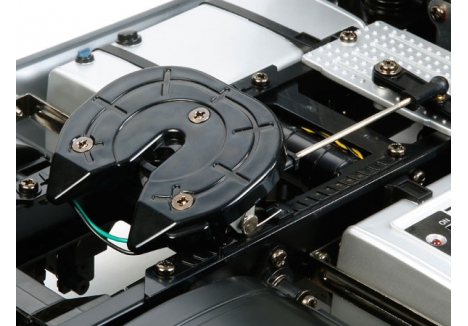

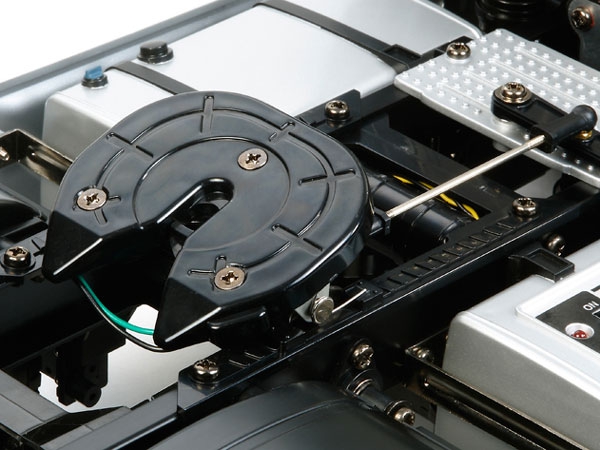

Is the TAM56335 compatible with trailer systems?

The Tamiya TAM56335 with 458mm length, 195mm width, and 305mm height for scale realism and trailer compatibility includes a kit-mounted coupler that supports linkage with all currently available Tamiya 1/14 scale trailers. Whether connecting to a flatbed, tank, or pole trailer, the truck maintains structural alignment and towing stability. When paired, the full rig exceeds one metre in length, creating a commanding presence for display or operation. The MFC-01 system also supports sound effects for trailer attachment and detachment, adding another layer of realism to the experience. This compatibility makes the TAM56335 a versatile platform for building a complete RC freight fleet.

What makes this one of the best R/C semi-truck kits for scale hauling?

The best R/C semi-truck kit with aluminum/polycarbonate chassis, single axle drive, and Multi-Function Control Unit support stands out for its blend of mechanical precision and visual detailing. Every component—from the 3-bevel differential gears to the HID-style headlights—has been designed to replicate the behavior and appearance of full-size trucks. The inclusion of realistic lighting, sound, and vibration effects through the MFC-01 system transforms the TAM56335 into an interactive RC platform. With compatibility across Tamiya’s trailer lineup and a chassis engineered for performance, this model offers enthusiasts a complete and immersive trucking experience.

Buy Tamiya TAM56335 Actros 1851 GigaSpace for realistic 1/14 scale trucking with 3-speed gearbox and trailer coupler.

Brand, Model and Product Type

• Brand – Tamiya
• Model – TAM56335
• Product Type – Tamiya TAM56335 Actros 1851 GigaSpace 1/14 R/C truck with 3-speed transmission and rear single axle drive, Tamiya semi-truck kit with aluminum ladder frame, leaf spring suspension, Tamiya realistic cabover hauler with HID-style headlights, metal transfers, trailer coupler, Tamiya 1/14 scale Actros truck with friction dampers, polycarbonate resin cross members

Dimensions

• Length – 45.8 cm: compact scale length ideal for pairing with Tamiya 1/14 trailers
• Width – 19.5 cm: wider cab profile enhances European-style realism and trailer alignment
• Height – 30.5 cm: accommodates GigaSpace cab height and auxiliary detailing
• Wheelbase – 27.2 cm: supports rear single axle drive and balanced towing
• Front tread – 15.6 cm: ensures steering stability and visual symmetry
• Rear tread – 13.8 cm: aligned for single axle drive and trailer hauling
• Front tire diameter – 8.5 cm: scaled for Actros cab proportions and terrain realism
• Rear tire diameter – 8.3 cm: matched for rear axle drive and suspension geometry
• Front tire width – 3.0 cm: supports neutral caster and camber angles
• Rear tire width – 2.2 cm: optimized for single axle drive and differential performance

Chassis and Suspension

• Chassis type – Aluminum and polycarbonate resin ladder frame: combines structural rigidity with lightweight flexibility
• Suspension – Leaf spring rigid suspension (front and rear): metal leaf springs absorb terrain vibration and support trailer loads
• Shock dampers – Aluminum friction dampers: simulate suspension movement and enhance driving realism
• Caster angle – 0° front/rear: neutral steering geometry for predictable handling
• Camber angle – 0° front/rear: maintains upright wheel alignment for scale realism
• Toe angle – 0° front/rear: ensures straight-line stability and minimal tire wear

Drivetrain and Transmission

• Drive system – Rear single axle drive: differential-equipped for smooth cornering and scale performance
• Transmission – 3-speed gearbox: transmitter-controlled shifting for realistic throttle modulation
• Gear ratios – 32.49:1 (low), 17.76:1 (medium), 10.66:1 (high): simulate torque and speed dynamics of full-size trucks
• Differential type – 3-bevel gear system: ensures smooth power delivery and cornering performance

Motor and Electronics

• Motor type – Type RS540 brushed motor: included for reliable propulsion and scale driving

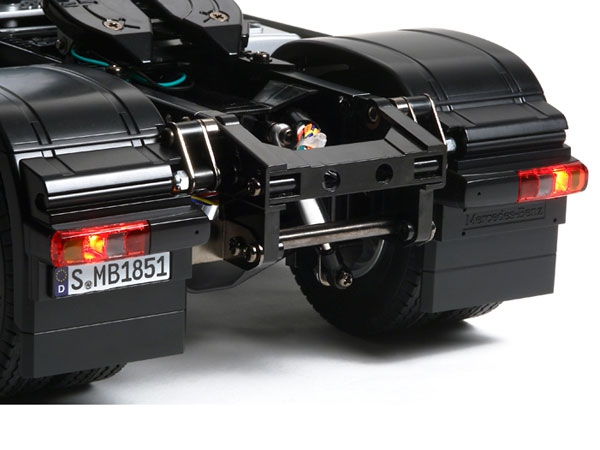

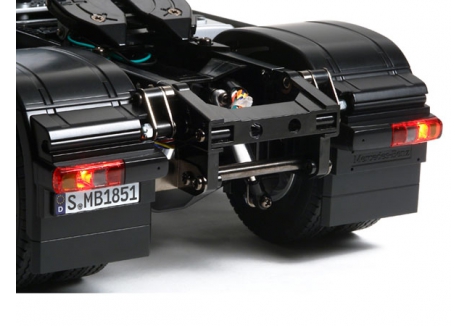

• Lighting – HID-style white LEDs in headlights, red/orange LEDs in taillights: simulate realistic lighting operations
• ESC – Required for operation unless using Multi-Function Control Unit (sold separately)

Body and Styling

• Cab design – GigaSpace cab with replica-quality interior: includes air tanks and auxiliary detailing
• Grille detailing – Metal transfers for Mercedes-Benz emblem and model branding
• Exterior detailing – Includes metal-plated parts and realistic trim elements

Compatibility and Integration

• Scale – 1/14: engineered for seamless pairing with Tamiya semi-trailers including flatbed, tank, and pole types
• Trailer coupler – Included: supports secure linkage with all currently available Tamiya 1/14 scale trailers
• Multi-Function Control Unit support – Compatible with MFC-01 for sound, light, and vibration effects

What’s in the Box

• 1x Tamiya TAM56335 Actros 1851 GigaSpace truck kit
• 1x Type RS540 motor
• Aluminum and polycarbonate chassis components
• HID-style headlights and metal transfer emblems
• Trailer coupler and auxiliary detailing parts

What You Require

• 4-channel transmitter and receiver
• Electronic Speed Controller (ESC) or Multi-Function Control Unit
• 7.2V battery and compatible charger
• 4x R6/AA/UM3 batteries for transmitter
• Assembly tools and paint (not included)

Sold Separately

• MFC-01 Multi-Function Control Unit
• Tamiya 1/14 scale semi-trailers (flatbed, tank, pole)
