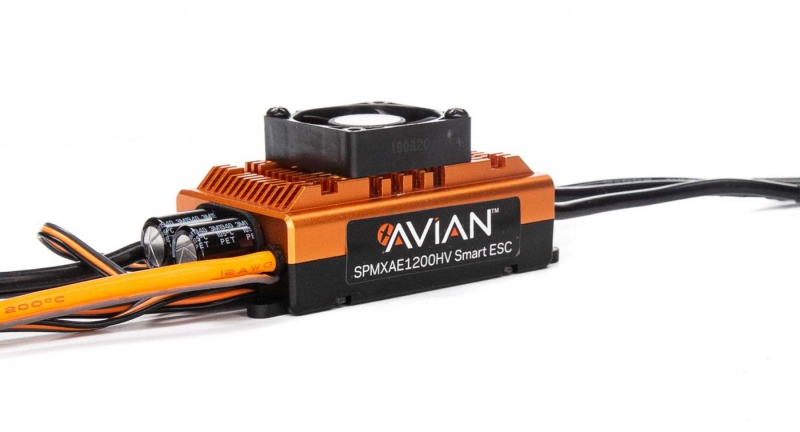

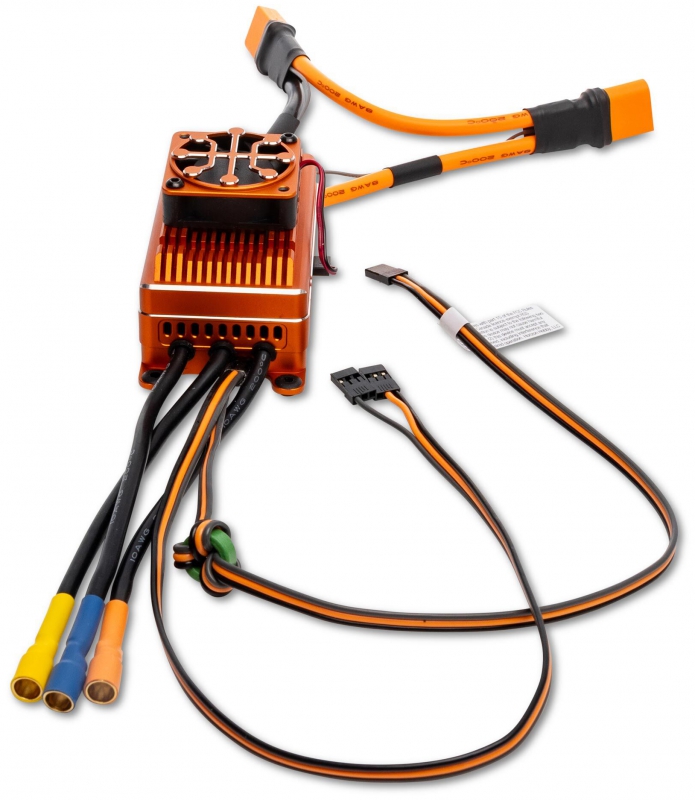

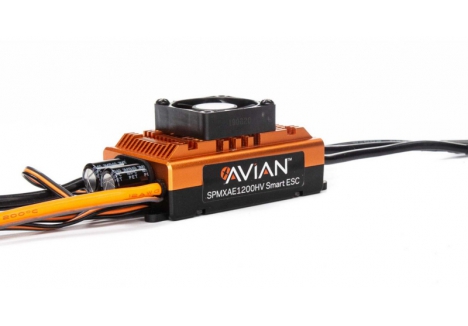

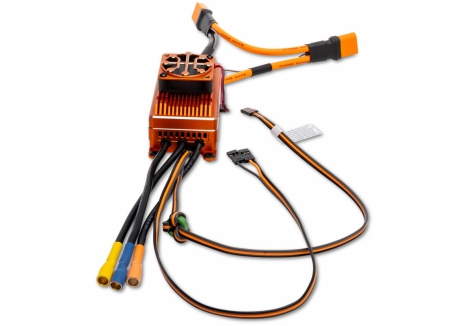

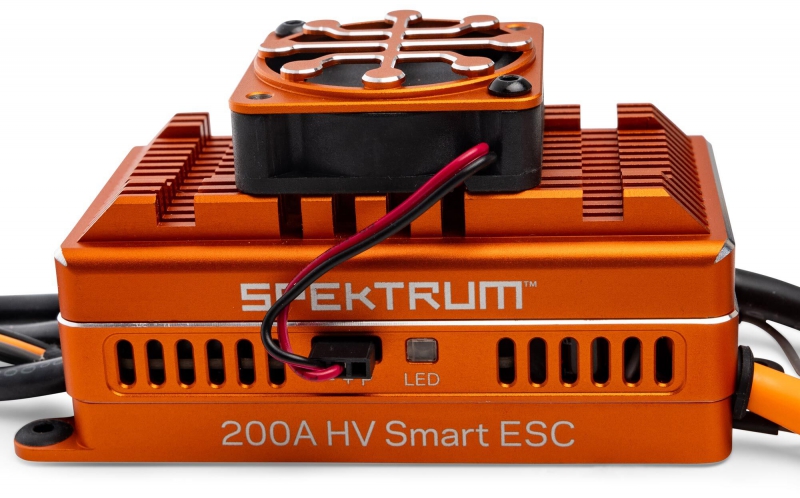

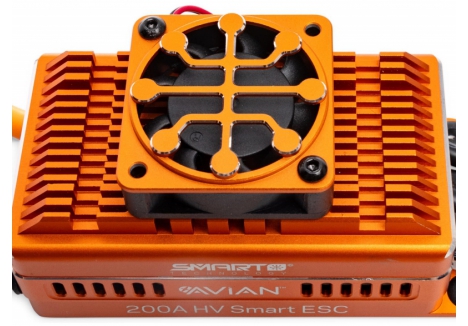

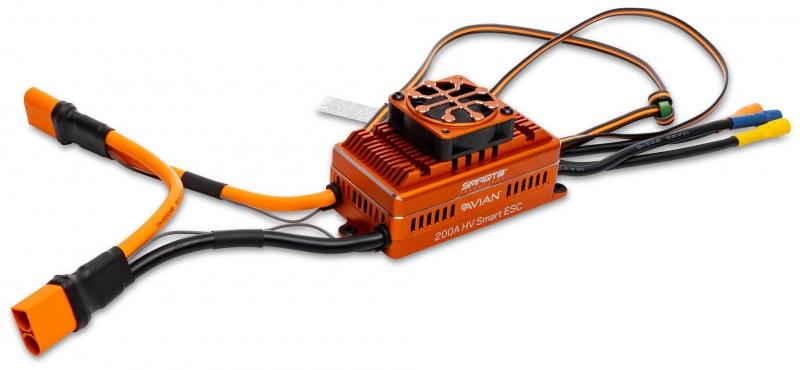

SPM Avian 200A HV Brushless Smart ESC 6S-14S P-SPMXAE1200HV

Model No: P-SPMXAE1200HV


Dispatched Within 3 Working Days

£539.99

£67.99

£472.00

Inc VAT & delivery

We Accept
In Stock With Supplier
Delivery Included
1 Year Warranty

Product Details

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

Key Features

  • Smart All-in-one Telemetry
  • Fast, Powerful 32-bit ARM M4 Processor
  • Compact For Easy Installation In Most Applications
  • Ready To Install - No Soldering Required
  • Limited 1-year Warranty
In The Box
  • (1) Spektrum Avian Smart 200A HV Brushless ESC
  • (1) Spektrum Smart Sticker Sheet
  • (1) Product Manual
Needed to Complete
  • Spektrum Aircraft Receiver

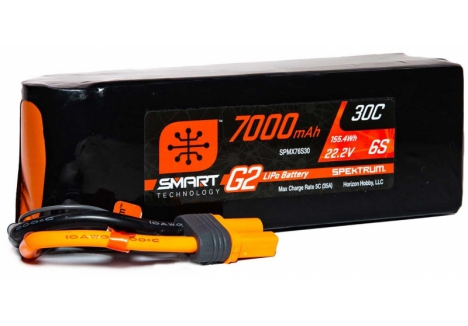

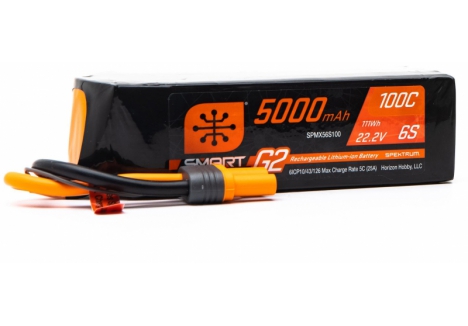

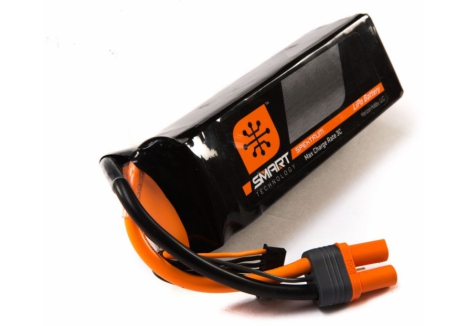

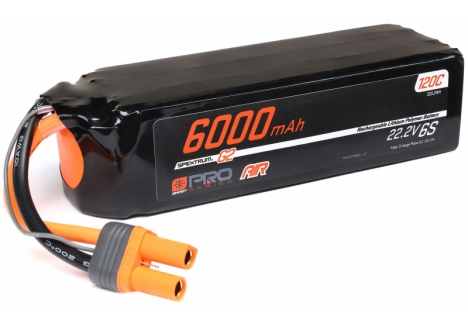

  • Spektrum Smart Technology LiPo Battery
  • Spektrum Transmitter

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Multiple options for easy programming:
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
    • Throttle stick programming
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install - no soldering required
  • Heat dissipating design
  • Dual BEC power connectors
  • Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
  • High heat-resistant IC connectors, backwards compatible with EC connectors
  • Limited 1-year warranty

Overview

Like every component in the Spektrum Smart ecosystem, Avian Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.



EC3/EC5 Backwards Compatible

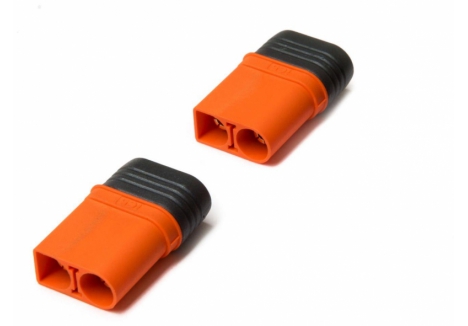

Avian ESCs feature IC series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3 or IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.



Smart Technology Battery Data

When used with a Spektrum Smart LiPo battery, your Avian ESC provides you with the benefit of battery telemetry that's automatically transmitted to your radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.



Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



Smart ESC Thrust Reversing

Now included with Smart Avian ESCs is the ability to reverse the motor at the flip of a switch! This allows for pilots to use the power system for increased mobility on the ground as well as acting as a brake for models requiring more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC parameters.



On-Screen ESC Programming

Avian ESCs now come updated to allow pilots to program any ESC parameter, right from their Spektrum Transmitter, via the Avian Prog telemetry screen. This makes it easier to make quick setting changes, adjustments and experimentation to maximize power output or efficiency, right on the flight line, no extra boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.

  • Weight: 376 g
  • Height: 36 mm
  • Length: 89 mm
  • Width: 50 mm

The Spektrum P-SPMXAE1200HV Avian 200A Smart ESC with 6S–14S LiPo support, IC5 input, and 32-bit ARM M4 processor is the ultimate high-voltage brushless ESC for giant-scale aircraft and 600+ class helicopters. Designed to deliver extreme performance, this ESC supports up to 300A burst current and features Smart telemetry, thrust reversing, and a 10A adjustable BEC. With a rugged heat-dissipating design and seamless integration into the Spektrum Smart ecosystem, the P-SPMXAE1200HV offers unmatched control, protection, and real-time diagnostics for advanced airframes and HV power systems.

Key features of the Spektrum P-SPMXAE1200HV Avian 200A Smart ESC

  • Smart telemetry – one-wire real-time data transmission to Spektrum transmitters
  • Thrust reversing – motor reversal for braking and ground mobility
  • High-voltage support – 6S–14S LiPo input range (22.2V–51.8V)
  • Adjustable switch-mode BEC – 6.0V, 7.4V, or 8.4V output at 10A continuous, 25A burst
  • Heat-dissipating design – aluminum cooling and dual BEC connectors for stable operation
  • Multi-point protection – includes thermal, overload, and low-voltage cutoff safeguards
  • Firmware updatable – via SmartLink USB and Smart ESC Programming Box

Why is the Spektrum P-SPMXAE1200HV ideal for extreme flight platforms?

The Spektrum P-SPMXAE1200HV brushless HV ESC for giant-scale aircraft with Smart telemetry and thrust reversing is built for serious power delivery. With 200A continuous and 300A burst current capability, it supports oversized motors and aggressive flight profiles without compromise. Its compact 89mm length and 13.3 oz weight make it suitable for tight fuselage compartments, while the IC5 input connector ensures secure, high-current battery integration. Whether you're flying aerobatic giants or scale helis, this ESC provides the muscle and control needed for top-tier performance.

How does Smart telemetry improve flight monitoring?

Smart technology transforms the Spektrum digital ESC with 300A burst current, 10A BEC, and on-screen programming via Spektrum transmitter into a real-time diagnostic hub. Through a single-wire connection, the ESC transmits vital data—current, voltage, temperature, RPM, and cell balance—directly to your Spektrum transmitter. This eliminates the need for external sensors or modules, reducing weight and simplifying setup. Pilots gain immediate insight into system health and battery status, allowing for proactive adjustments and safer flight decisions.

What benefits does thrust reversing offer?

Thrust reversing, available on the Spektrum P-SPMXAE1200HV Avian 200A Smart ESC with 6S–14S LiPo support, IC5 input, and 32-bit ARM M4 processor, adds a layer of control for ground mobility and landing management. With a Smart-compatible transmitter and receiver, users can reverse motor direction instantly, enabling smoother taxiing and braking on the runway. This feature is especially valuable for large aircraft that require extended landing distances or operate in confined environments. Activated through ESC parameters, thrust reversing enhances realism and safety without requiring additional hardware.

How does the ARM M4 processor enhance responsiveness?

At the core of the Spektrum P-SPMXAE1200HV air ESC with 200A continuous current, 300A burst, and adjustable 10A BEC is a powerful 32-bit ARM M4 processor. This advanced chip architecture delivers high-resolution signal input and precise motor output, resulting in smoother throttle transitions and improved flight dynamics. The processor also supports complex telemetry functions and real-time data handling, ensuring accurate feedback without latency. For pilots seeking maximum control and responsiveness, the M4 processor is a key contributor to the ESC’s performance and reliability.

What programming options are available for field adjustments?

The Smart ESC for 600+ class helis and fixed-wing platforms with one-wire telemetry and firmware updates offers multiple programming methods to suit different pilot preferences. Throttle stick programming allows basic adjustments without extra tools. For more detailed configuration, the Smart ESC Programming Box provides a user-friendly interface for on-site tuning. Additionally, the SmartLink USB application enables firmware updates and parameter changes via PC. These options ensure that pilots can adapt their ESC settings to match flying conditions and performance goals with minimal downtime.

How does the heat-dissipating design support long-term reliability?

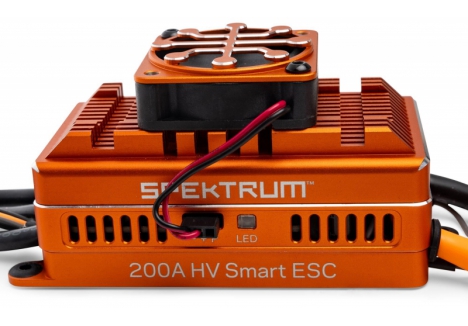

The high-performance air ESC with heat-dissipating design, overload protection, and dual BEC connectors is built to withstand the rigors of HV flight. Its thermal management features prevent overheating during extended operation, while dual BEC connectors ensure stable power distribution to servos and receivers. The switch-mode BEC delivers adjustable voltage to match system requirements, and overload protection safeguards against electrical surges. These features combine to deliver consistent performance and long-term durability in demanding flight environments.

Buy Spektrum P-SPMXAE1200HV Avian 200A Smart ESC for 6S–14S brushless aircraft and HV power systems.

Brand, Model and Product Type

  • Brand: Spektrum
  • Model: P-SPMXAE1200HV
  • Product Type: Spektrum P-SPMXAE1200HV Avian 200A Smart ESC with 6S–14S LiPo support, IC5 input, and 32-bit ARM M4 processor, Spektrum P-SPMXAE1200HV brushless HV ESC for giant-scale aircraft with Smart telemetry and thrust reversing, Spektrum P-SPMXAE1200HV air ESC with 200A continuous current, 300A burst, and adjustable 10A BEC, Smart ESC for 600+ class helis and fixed-wing platforms with one-wire telemetry and firmware updates

Dimensions

  • Product Length: 8.9 cm – compact for HV fuselage integration
  • Product Height: 3.6 cm – low-profile for streamlined installs
  • Product Width: 5.0 cm – standard footprint for high-voltage ESCs
  • Product Weight: 376 g (13.3 oz) – robust build for extreme flight loads

Electrical and Performance Specifications

  • ESC Type: Brushless – optimized for high-efficiency motor control
  • Application: Air – designed for giant-scale aircraft and 600+ class helicopters
  • Input Voltage: 6S–14S LiPo – supports 22.2V to 51.8V HV setups
  • Maximum Continuous Current: 200A – sustained output for high-demand flight profiles
  • Maximum Burst Current: 300A – short-duration peak power handling

Processor and Control Features

  • Processor: 32-bit ARM M4 – delivers high-resolution signal input and motor output
  • Programmable: Yes – supports transmitter stick input, Smart ESC Programming Box, and SmartLink app
  • Adjustable Timing: Yes – enables fine-tuning of motor performance
  • Brakes: Yes – supports braking functionality for landing control
  • Forward/Reverse: Yes – includes thrust reversing for ground mobility

Telemetry and Smart Technology

  • Telemetry: One-wire Smart telemetry – transmits current, voltage, temperature, RPM, and cell balance
  • Firmware Updates: Supported – via Smart ESC Programming Box and SmartLink PC application

Protection and Safety Features

  • Auto Cutoff: Yes – protects against low-voltage conditions
  • Failsafe Protection: Yes – ensures controlled shutdown during signal loss
  • Thermal Protection: Yes – prevents overheating during extended operation
  • Over-Current Protection: Yes – safeguards against electrical surges
  • Overload Protection: Yes – supports high-load safety

BEC Specifications

  • BEC Type: Switch-mode – efficient power delivery to receiver and servos
  • BEC Voltage: Adjustable – 6.0V, 7.4V, or 8.4V output options
  • BEC Continuous Current: 10A – supports high-demand servo systems
  • BEC Maximum Burst Current: 25A – handles peak loads during flight maneuvers
  • Dual BEC Connectors: Yes – ensures stable and redundant power distribution

Construction and Mounting

  • Heat Dissipation: Integrated aluminum design – supports stable operation under high current loads
  • Ready to Install: Yes – arrives pre-configured with no soldering required

What’s in the Box

  • 1 × Spektrum Avian 200A HV Smart ESC
  • 1 × Spektrum Smart sticker sheet
  • 1 × Product Manual

What You Require / What You Will Need

  • Spektrum Aircraft Receiver – required for ESC integration
  • Spektrum Smart Technology LiPo Battery – required for full telemetry functionality
  • Spektrum Transmitter – required for Smart telemetry and thrust reversing
