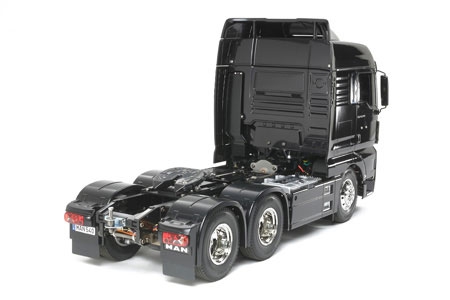

Tamiya MAN TGX 26.540 XLX 1/14 Scale RC Tractor Truck with Dual Axle Drive – TAM56325

Manufacturer: Tamiya
Part Number: 56325
EAN: 4950344563258
Drive: 2WD
Surface Type: On-Road
Assembly Type: Un-Assembled (Kit)
Scale: 1:14
Vehicle: HGV
Skill Level: Skill Level 3
Power Bundles: Power Bundle Required
Motor Type: Brushed

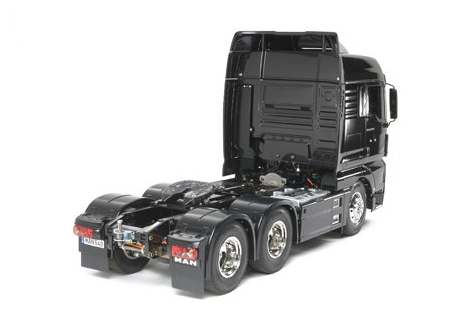

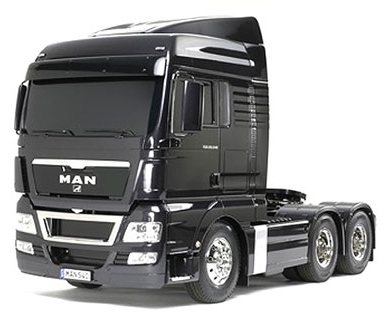

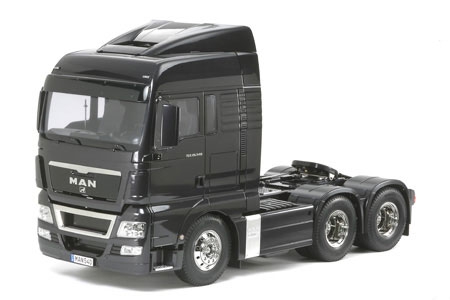

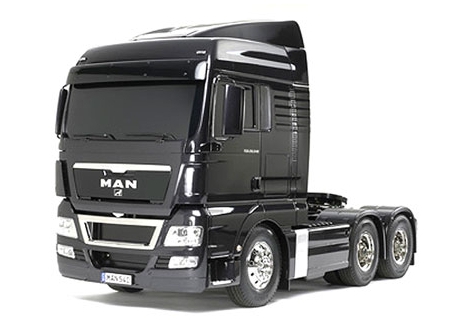

The Tamiya TAM56325 MAN TGX 26.540 6x4 XLX 1/14 R/C truck with 3-speed transmission and dual rear axle drive is a precision-engineered scale model that replicates the award-winning MAN TGX transporter used by elite logistics fleets and motorsport teams. Designed to mirror the full-size 2008 Truck of the Year, this semi-truck kit combines structural realism with operational control. With a length of 526mm, width of 193mm, and height of 301mm, the model is proportioned for compatibility with Tamiya’s 1/14 scale trailer range. From its curved mirrors and EURO 5 exhaust detail to its metal transfers and polycarbonate resin frame, every element of the TAM56325 is crafted to deliver a visually and mechanically authentic RC trucking experience.

Key features of the Tamiya TAM56325 MAN TGX 26.540 XLX

• Aluminum ladder frame – rigid and lightweight chassis for structural integrity and towing stability
• Leaf spring suspension – metal construction for terrain absorption and load support
• Curved mirrors – dual-surface design replicates full-size European truck visibility
• Metal transfers – premium detailing for grille emblems and door logos
• Trailer coupler – supports linkage with all currently available Tamiya 1/14 scale trailers
• 3-speed transmission – selectable gear ratios for realistic throttle modulation
• Dual rear axle drive – each axle equipped with differential for smooth cornering
• Friction dampers – simulate shock absorption and suspension movement
• EURO 5 exhaust detail – matte metal-plated finish with engraved logo
• Polycarbonate resin frame – enhances chassis flexibility and visual realism

How does the chassis design support scale realism?

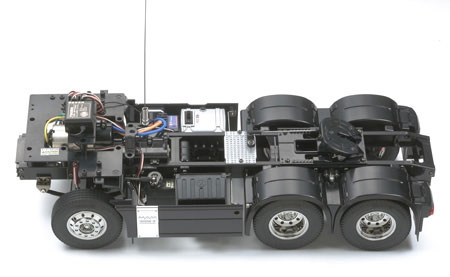

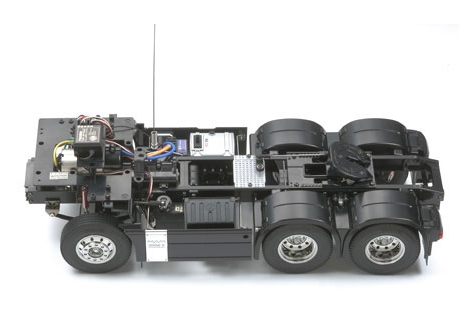

The Tamiya TAM56325 semi-truck kit with aluminum ladder frame, leaf spring suspension, and RS540 motor is built on a hybrid chassis that combines aluminum channels with polycarbonate resin cross members. This structure delivers the rigidity needed for towing while maintaining the flexibility required for terrain adaptability. The ladder frame layout mirrors the mechanical architecture of full-size trucks, supporting the drivetrain and suspension components with precision. The polycarbonate resin elements add visual depth and reduce weight, enhancing both performance and realism. This chassis design ensures that the MAN TGX 26.540 XLX remains stable under load and responsive during operation.

What makes the suspension system lifelike?

The 1/14 scale MAN TGX truck with 3-bevel differential gears, friction dampers, and polycarbonate resin frame features a leaf spring suspension system that absorbs terrain vibration and maintains consistent wheel contact. Friction dampers simulate shock absorption, allowing the truck to navigate uneven surfaces with stability. The dual rear axles are each equipped with a differential, enabling smooth cornering and balanced power distribution. This configuration supports realistic driving dynamics, especially when towing trailers. The 0° caster, camber, and toe angles ensure neutral handling characteristics, making the truck predictable and easy to control during scale operations.

How do the visual details enhance authenticity?

The Tamiya TAM56325 realistic cabover hauler with metal transfers, curved mirrors, and trailer coupler includes a range of visual enhancements that replicate the styling of the MAN TGX 26.540 XLX. The curved side mirrors feature dual reflective surfaces, mirroring the visibility setup of full-size European trucks. Metal transfers are used to depict the MAN logo, Lion emblem, and TGX 26.540 door badges, adding a premium finish to the cab. The EURO 5 exhaust cover is rendered in matte metal-plated detail, complete with engraved branding. These elements combine to elevate the visual realism of the model, making it a standout both in motion and on display.

How does the transmission system replicate real-world trucking?

The R/C tractor truck kit with 0° caster/camber/toe angles, EURO 5 exhaust detail, and MFC-01 compatibility features a 3-speed gearbox that allows users to shift gears on the fly. With selectable ratios of 32.49:1 (low), 17.76:1 (medium), and 10.66:1 (high), the transmission replicates the torque and speed dynamics of full-size trucks. The Type RS540 motor provides consistent propulsion, while the ESC-ready drivetrain supports integration with the Multi-Function Control Unit (MFC-01). This unit enables users to simulate engine sounds, gear shifting, air horn, and other realistic effects, enhancing the immersive experience of RC trucking.

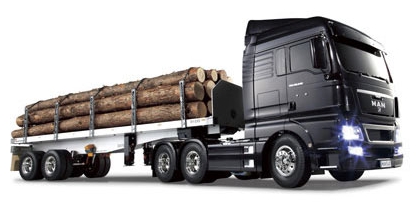

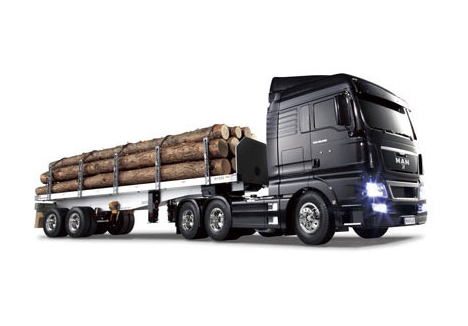

Is the Tamiya TAM56325 compatible with trailer systems?

The Tamiya TAM56325 with 526mm length, 193mm width, and 301mm height for scale realism and trailer compatibility includes a kit-mounted coupler that supports linkage with all currently available Tamiya 1/14 scale trailers. Whether connecting to a flatbed, tank, or pole trailer, the truck maintains structural alignment and towing stability. When paired, the full rig exceeds one metre in length, creating a commanding presence for display or operation. The MFC-01 system also supports sound effects for trailer attachment and detachment, adding another layer of realism to the experience. This compatibility makes the TAM56325 a versatile platform for building a complete RC freight fleet.

What makes this one of the best R/C semi-truck kits for scale hauling?

The best R/C semi-truck kit with aluminum/polycarbonate chassis, dual axle drive, and Multi-Function Control Unit support stands out for its blend of mechanical precision and visual detailing. Every component—from the 3-bevel differential gears to the EURO 5 exhaust detail—has been designed to replicate the behavior and appearance of full-size trucks. The inclusion of realistic lighting, sound, and vibration effects through the MFC-01 system transforms the TAM56325 into an interactive RC platform. With compatibility across Tamiya’s trailer lineup and a chassis engineered for performance, this model offers enthusiasts a complete and immersive trucking experience.

Buy Tamiya TAM56325 MAN TGX 26.540 XLX for realistic 1/14 scale trucking with 3-speed gearbox and trailer coupler.

Brand, Model and Product Type

• Brand – Tamiya
• Model – TAM56325
• Product Type – Tamiya TAM56325 MAN TGX 26.540 6x4 XLX 1/14 R/C truck with 3-speed transmission and dual rear axle drive, Tamiya semi-truck kit with aluminum ladder frame, leaf spring suspension, Tamiya realistic cabover hauler with metal transfers, curved mirrors, Tamiya 1/14 scale MAN TGX truck with friction dampers, polycarbonate resin frame

Dimensions

• Length – 52.6 cm: proportioned for realistic 1/14 scale trucking and trailer compatibility
• Width – 19.3 cm: wider cab profile enhances European-style realism and trailer alignment
• Height – 30.1 cm: accommodates curved mirrors and EURO 5 exhaust detailing
• Wheelbase – 23.7 cm + 10.3 cm: dual rear axle configuration supports load distribution and towing stability
• Front tread – 15.6 cm: ensures balanced steering and visual symmetry
• Rear tread – 13.8 cm: aligned for dual axle drive and trailer hauling
• Weight – Approx. 3.8 kg (without optional electronics): optimized for scale realism and towing performance

Chassis and Suspension

• Chassis type – Aluminum and polycarbonate resin ladder frame: combines structural rigidity with lightweight flexibility
• Suspension – Leaf spring rigid suspension (front and rear): metal leaf springs absorb terrain vibration and support trailer loads
• Shock dampers – Friction type: simulate suspension movement and enhance driving realism
• Caster angle – 0° front/rear: neutral steering geometry for predictable handling
• Camber angle – 0° front/rear: maintains upright wheel alignment for scale realism
• Toe angle – 0° front/rear: ensures straight-line stability and minimal tire wear
• Dummy dampers – Aluminum components for visual authenticity without mechanical complexity

Drivetrain and Transmission

• Drive system – Rear double axle drive: each axle equipped with differential for smooth cornering and power distribution
• Transmission – 3-speed gearbox: transmitter-controlled shifting for realistic throttle modulation
• Gear ratios – 32.49:1 (low), 17.76:1 (medium), 10.66:1 (high): simulate torque and speed dynamics of full-size trucks
• Differential type – 3-bevel gear system: ensures smooth power delivery and cornering performance

Motor and Electronics

• Motor type – Type RS540 brushed motor: included for reliable propulsion and scale driving
• Lighting – Headlights with white LEDs, taillights with red and orange LEDs: simulate realistic lighting operations
• ESC – Required for operation unless using Multi-Function Control Unit (sold separately)

Body and Styling

• Cab design – XLX cab with curved mirrors: dual-surface mirrors replicate full-size European truck visibility
• Grille detailing – Metal transfers for MAN logo and Lion emblem: premium finish for front-end realism
• Door branding – TGX 26.540 logos depicted with metal transfers for enhanced scale presence
• Exhaust system – EURO 5 exhaust cover with matte metal-plated finish and engraved logo

Compatibility and Integration

• Scale – 1/14: engineered for seamless pairing with Tamiya semi-trailers including flatbed, tank, and pole types
• Trailer coupler – Included: supports secure linkage with all currently available Tamiya 1/14 scale trailers
• Multi-Function Control Unit support – Compatible with MFC-01 for sound, light, and vibration effects

What’s in the Box

• 1x Tamiya TAM56325 MAN TGX 26.540 XLX truck kit
• 1x Type RS540 motor
• Aluminum and polycarbonate chassis components
• Curved mirrors and metal transfer emblems
• Trailer coupler
• EURO 5 exhaust detail and exterior styling parts

What You Require

• 4-channel transmitter and receiver
• Electronic Speed Controller (ESC) or Multi-Function Control Unit
• 7.2V battery and compatible charger
• 8x R6/AA/UM3 batteries for transmitter
• Assembly tools and paint (not included)

Sold Separately

• MFC-01 Multi-Function Control Unit
• Tamiya 1/14 scale semi-trailers (flatbed, tank, pole)
