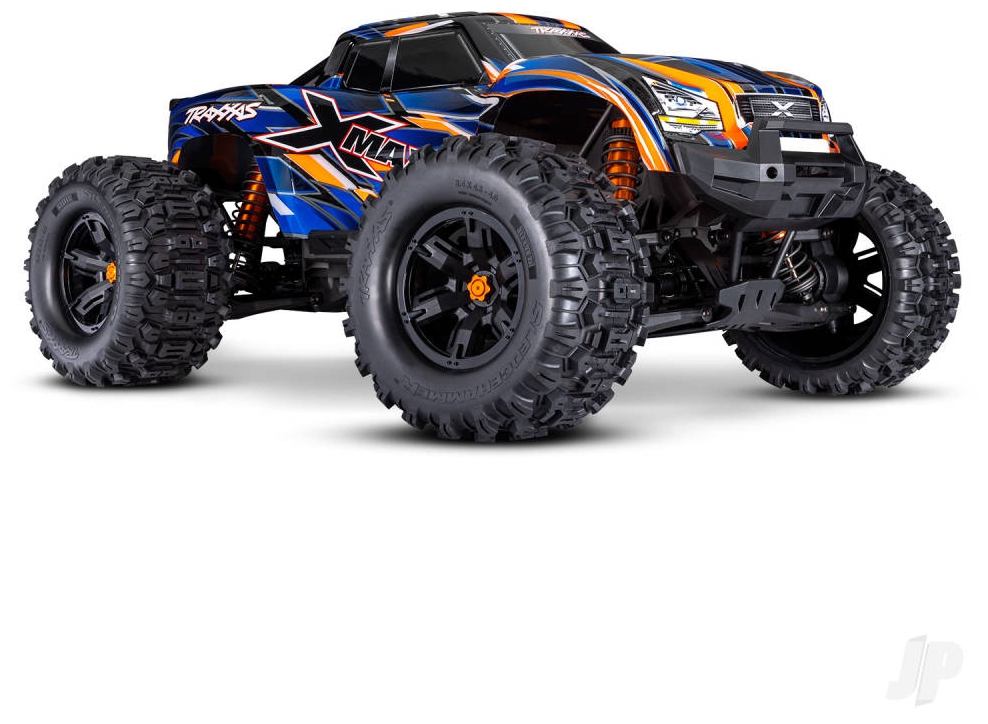

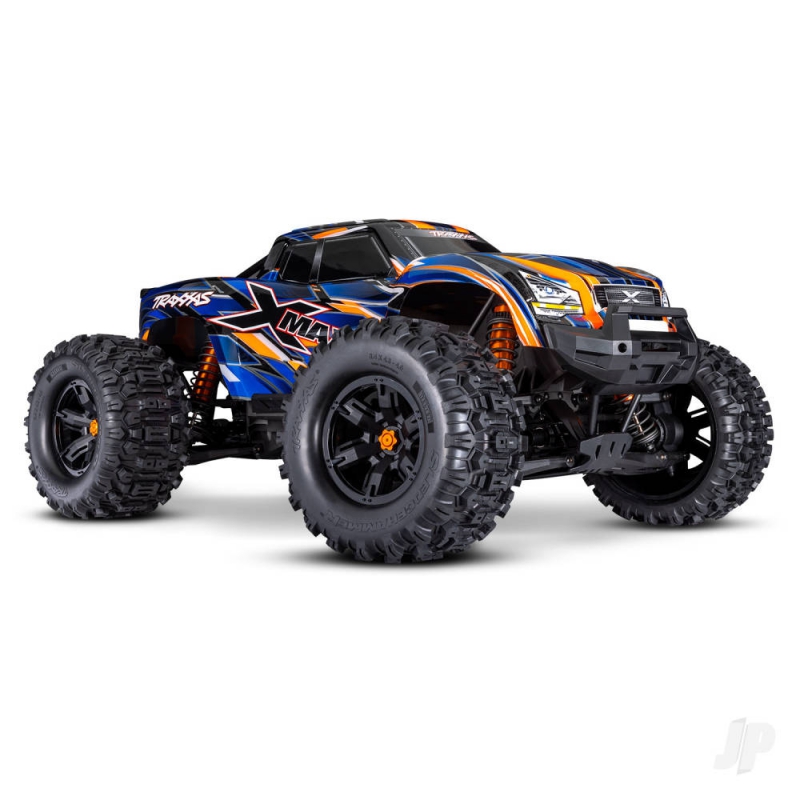

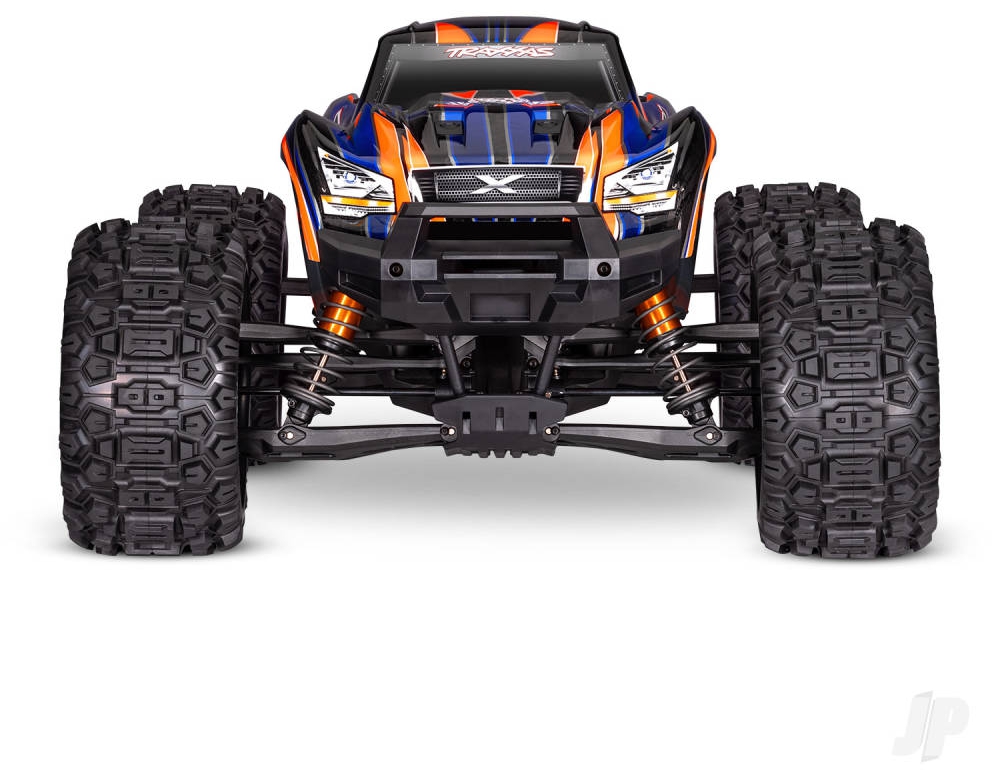

The Traxxas X Maxx is a ground up redesign from the brains at Traxxas, and in one word - it's simply AWESOME!
For starters, it's huge. Much bigger than an E-MAXX, with huge oversized wheels and tyres to clamber over anything in your path. It's also quick; powered by an all new oversized Traxxas brushless motor designed specifically for the Traxxas X MAXX. Even back when we at Wheelspin saw the first pre-production model of the X MAXX, we knew it was going to be one of our best selling RC monster trucks.
The Traxxas X MAXX brings a new stance to the RC monster truck arena. Rather than concentrating on anything else, it seems Traxxas have just set themselve the challenge of designing the most fun vehicle ever! Sure, you can buy a truck that might be a bit quicker in a straight line, or shave a few tenths off your fastest lap time - but if you're looking for all out fun then the Traxxas X MAXX is definitely the truck for you!
We also like the new self-righting system built into the Traxxas X MAXX. Whilst even we were skeptical at first, simply push the button on the transmitter, and X MAXX wobbles and "turtles" it's way back onto it's wheels in a matter of seconds! Traxxas claim it works "most" of the time; but in our tests we've struggled to find any instances where this won't work! A truly revolutionary feature and only availble on the Traxxas X MAXX!
Traxxas Description:
Traxxas X-MAXX is an all-new, clean-sheet design, engineered from the start to take Traxxas Tough to a whole new level. Unrelenting 4X4 power, mammoth size, and ferocious determination makes this mighty monster a truly worthy successor to the Maxx legacy.
Exclusive Self-Righting System
Before Traxxas X-Maxx, monster trucks would sometimes roll over upside down, bringing the action to a screeching halt. Now, press a button and in most cases this exclusive patent-pending Traxxas innovation flips X-Maxx back over onto its wheels so that you can quickly get back to having fun.
Size Wins!
The Traxxas X-Maxx is enormous. Size wins by giving you the advantage to power over and through extreme landscapes. Mammoth 8-inch tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable Monster truck fun.
Extreme Power
Wildly over-powered, the Traxxas X-Maxx stays true to form with its Maxx DNA. 8S 30+ volt dual-LiPo muscle and a Velineon 1200XL Big Block motor propel Traxxas X-Maxx with brutal authority and an exacting quickness that completely defies its enormous size.
Traxxas X-MAXX Features:
Now With Belted Tyres!
30+ Volts of Extreme 8s Power
VXL-8s Waterproof Electronic Speed Control
Velineon 1200XL Brushless Motor
Traxxas Stability Management
TQi 2.4GHz High Output Radio System
NEW Body Mount System

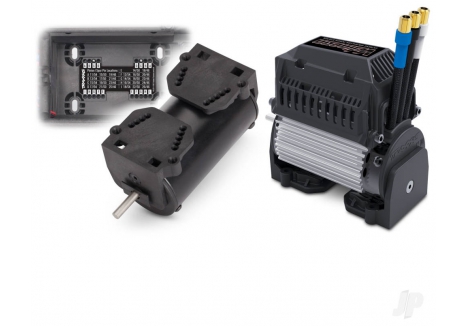

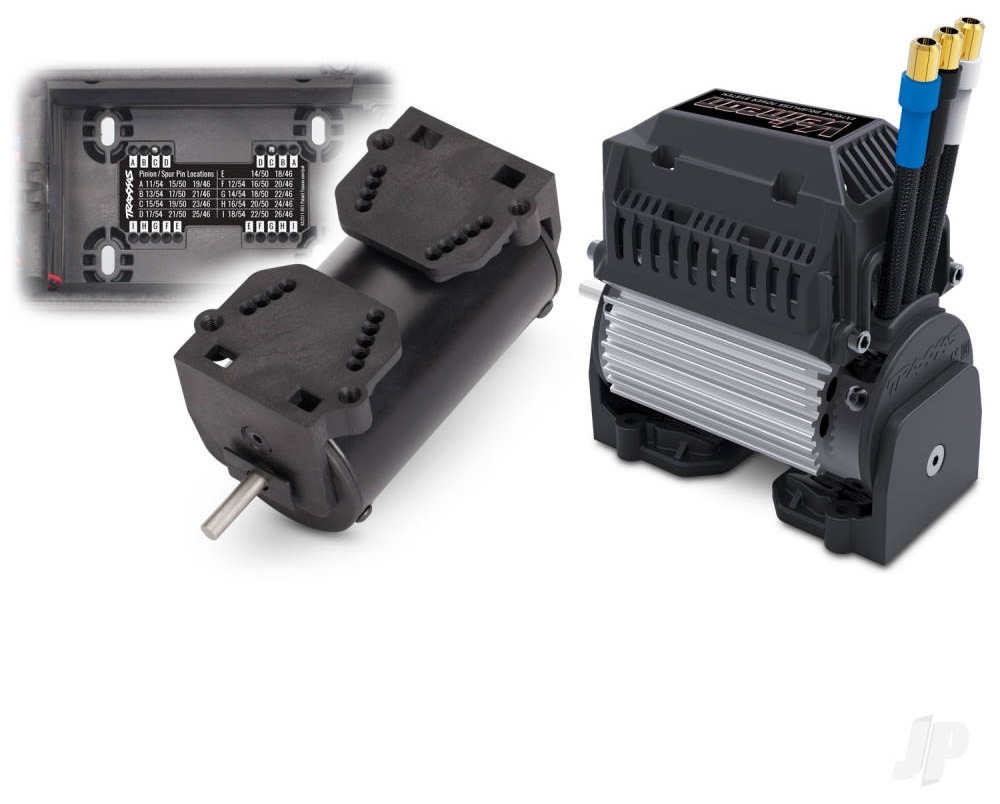

NEW Motor Mounting System
NEW Modular Chassis Structure
NEW Battery Retention System
NEW Steering Bell Cracks and Servo Saver

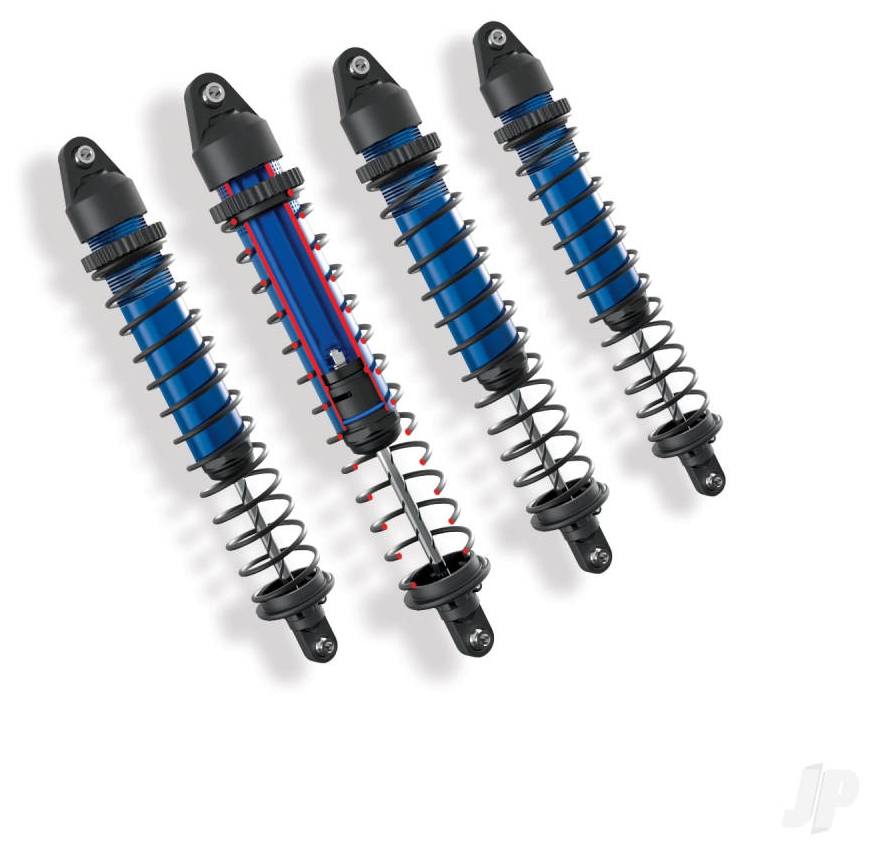

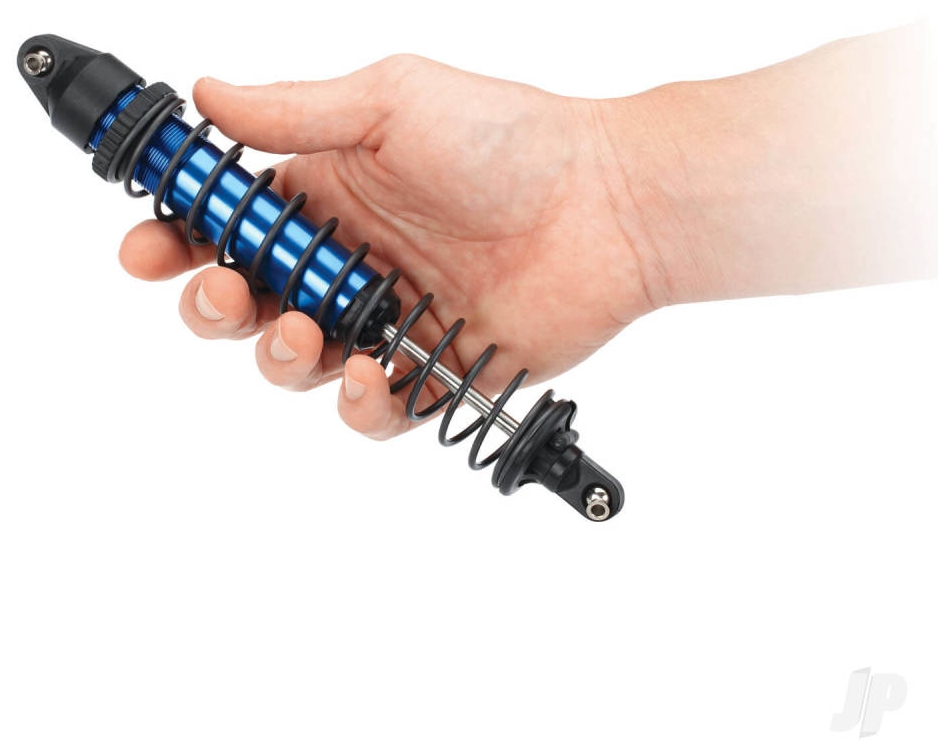

NEW GTX Shocks
50+ MPH with two 4s LiPo Batteries and Included Optional Pinion Gear
Traxxas X-MAXX 8S Spec Check:
Length: 758mm (29.84inches)
Front Track: 540mm (22.26inches)
Rear Track: 525mm (20.66inches)
Ground Clearance: 102mm (4inches)
Weight: 8.66kg (19.1lbs)
Height (Ride): 350mm (13.79inches)
Wheelbase: 480mm (18.92inches)
Shock Length: 187mm (7.4inches)
Wheels: 110x145mm (4.3x5.7inches)
Motor: Velineon 1600

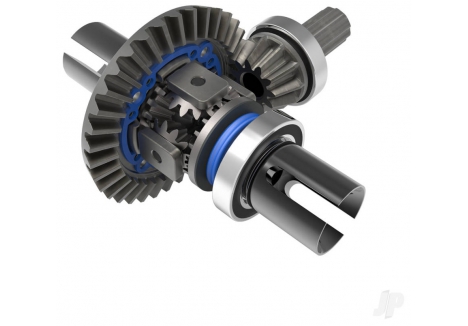

Differential Type: Sealed, Hardened Steel Bevel, Limited Slip
Gear Pitch: 1.0 Pitch
What's In The Box:
X-Maxx, Ready-To-Race® model with Traxxas Big Block™ brushless motor
VXL-8s Waterproof Electronic Speed Control
Quick Start Guide
Traxxas TQi 2.4GHz radio system
High quality maintenance tools
What You'll Need:
Now With Belted Tyres!
Batteries - X Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4S batteries are reccomended.
LiPo Balance Charger
4 x AA Alkaline batteries for the Transmitter.
Compatible Telemetry Sensors (Available Separately):
TRX6521 - Sensor, temperature & voltage.
TRX6511 - Bluetooth link for the transmitter
TRX6526 - Sensor, auto-detectable, temperature. (use with 6550)
TRX6527 - Sensor, auto-detectable, voltage. (use with 6550)
TRX6550 - Expander module
TRX6551 - GPS module for accurate speed reading. (use with 6550)
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX77096-4-ORNG
- Product Type: Traxxas X-MAXX 8S V2 monster truck TRX77096-4-ORNG orange edition, TRX77096-4-ORNG 1/6 scale brushless 4WD RC truck with belted tires, Traxxas 8S electric monster truck with VXL-8s ESC and 1200XL motor, Traxxas TRX77096-4-ORNG orange X-MAXX with Sledgehammer tires and telemetry, Traxxas 4WD monster truck with Cush Drive and aluminium center shaft
Dimensions
- Length: 77.9 cm – extended chassis for high-speed stability and oversized terrain clearance
- Width: 54 cm (front and rear track) – wide stance for confident cornering and grip
- Height: 35 cm – elevated ride height for obstacle clearance and aggressive presence
- Wheelbase: 48 cm – long wheelbase enhances straight-line control and shock absorption
- Ground Clearance: 10.2 cm – suitable for extreme terrain and off-road bashing
- Weight: 8.66 kg – reinforced composite structure and drivetrain components contribute to rugged durability
Motor and ESC System
- Motor: Velineon 1200XL Big Block brushless motor – delivers brutal acceleration and sustained high-speed performance
- ESC: Velineon VXL-8s waterproof ESC – tuned for 8S LiPo power with integrated telemetry support
- Drive Type: 4WD – shaft-driven system optimised for traction and torque distribution
- Speed Capability: 50+ mph – achievable with dual 4S LiPo batteries and optional gearing
Drivetrain and Transmission
- Transmission: Single-speed – simplified for durability and consistent power delivery
- Overall Drive Ratio: 8.11 – tuned for torque and top-end speed
- Differential Type: Sealed, hardened steel bevel – limited slip design for balanced power output
- Driveline: All-metal 8S rated – includes steel driveshafts, aluminium center shaft, and Cush Drive system
- Gear Pitch: 1.0 pitch – heavy-duty gearing for high torque loads
Suspension and Handling
- Shock Length: 18.7 cm – long-travel oil-filled coil-over shocks for terrain adaptability
- Suspension: Long-arm design – maximises articulation and stability across uneven surfaces
- Servo: 365 oz-in torque, 0.17 sec/60° speed – responsive steering with bellcrank geometry
Chassis and Structure

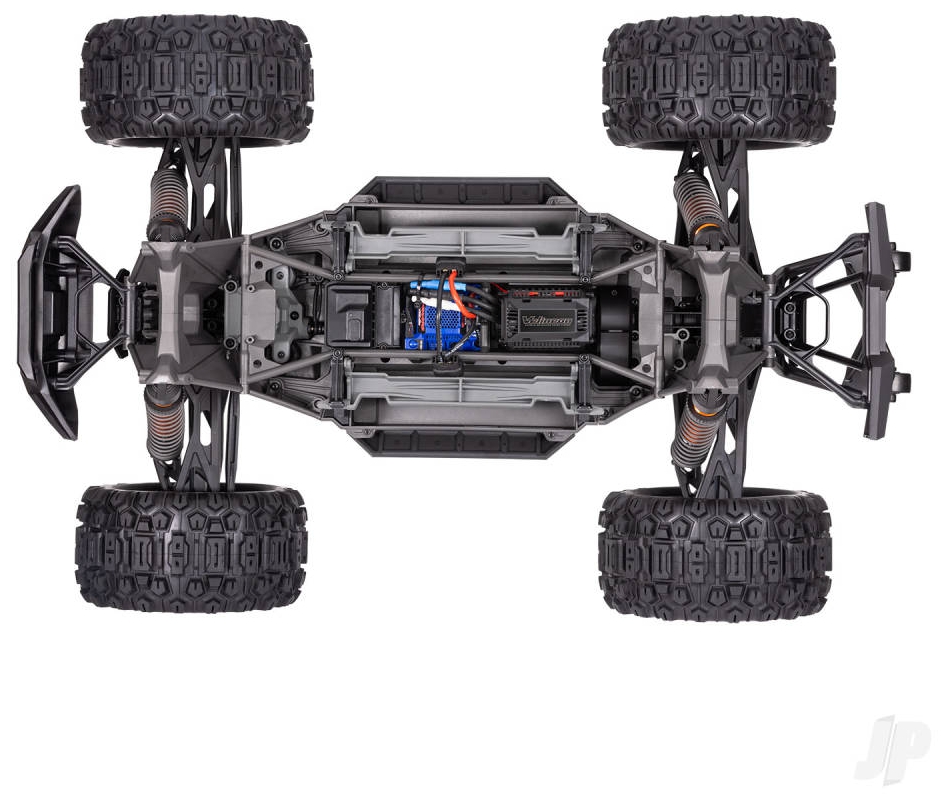

- Chassis: Composite nylon tub – reinforced for impact resistance and weight balance
- Body: Clipless ProGraphix painted shell – quick-release system for fast access and secure fit
- Battery Tray: 19.7 × 5.15 × 4.4 cm – accommodates dual 3-cell or 4-cell LiPo packs
Tyres and Wheels
- Tyres: 20.3 × 10.2 cm belted Sledgehammer – reinforced tread for high-speed stability and extreme terrain grip
- Wheels: 11 × 14.5 cm – durable construction with 24 mm splined hex hubs
Radio and Control System
- Radio: TQi 2.4 GHz 2-channel system – stores settings for up to 30 models
- Stability Management: Traxxas Stability Management (TSM) – improves control on low-traction surfaces
- Telemetry: Integrated via VXL-8s ESC – supports real-time performance monitoring
Durability and Materials
- Bearings: Sealed ball bearings – reduce friction and protect against debris
- Hardware: Rust-resistant hex hardware – ensures long-term reliability in harsh environments
- Waterproofing: ESC and electronics – suitable for wet, muddy, and off-road conditions
What’s in the Box
- 1 × Traxxas X-MAXX 8S V2 Monster Truck – TRX77096-4-ORNG
- 1 × Velineon 1200XL brushless motor (installed)
- 1 × VXL-8s waterproof ESC with telemetry (installed)
- 1 × TQi 2.4 GHz radio system
- 1 × Quick Start Guide
- 1 × High-quality maintenance tools
What You Require
- 2 × 3-cell or 4-cell LiPo batteries with Traxxas High Current Connectors
- 1 × Compatible LiPo battery charger
- 4 × AA batteries for transmitter
The Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck in Orange is engineered to dominate the most extreme off-road environments with brute strength, cutting-edge technology, and unrelenting power. Designed for serious RC enthusiasts, this 1:7 scale monster truck delivers a driving experience that redefines what’s possible in large-scale radio control. With a reinforced all-metal drivetrain, massive belted Sledgehammer tyres, and a Velineon 1200XL Big Block motor, the Traxxas X-Maxx TRX77096-4-ORNG with belted Sledgehammer tyres and aluminium centre shaft is built to conquer terrain that leaves other trucks stranded. From its towering ground clearance to its waterproof electronics, every component is purpose-built for high-speed, high-impact performance.
Key features of the Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck
- Belted Sledgehammer tyres – enhanced grip and stability on loose, rough, or high-speed terrain
- All-metal drivetrain – engineered for extreme torque and long-lasting durability
- Velineon 1200XL Big Block motor – delivers explosive acceleration and 50+ mph top speed
- Aluminium centre shaft – high-strength construction for efficient power transfer
- 8S-ready VXL-8s ESC – waterproof and tuned for high-voltage performance
- Long-arm suspension – absorbs impacts and maintains control over large obstacles
- Massive ground clearance – ploughs through debris and uneven terrain with ease
- Telemetry-ready TQi radio system – provides real-time data and precise control

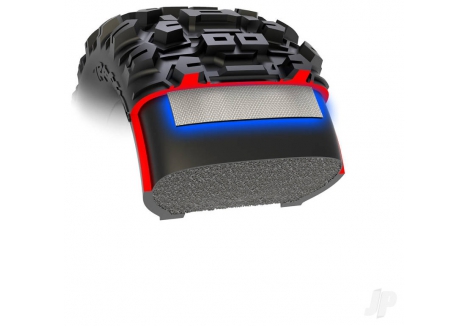

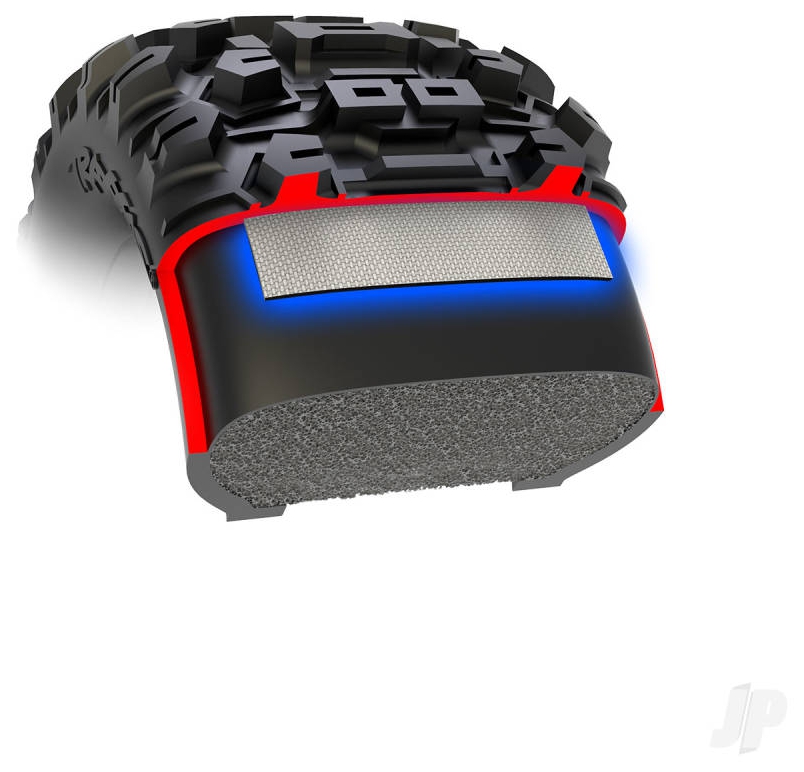

What makes the belted Sledgehammer tyres a game-changer?
The belted Sledgehammer tyres on the Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck are designed to maintain their shape under extreme loads and high speeds. Unlike traditional tyres that balloon or deform, the internal belting ensures a consistent contact patch, improving grip and handling. The open-block tread pattern resists clogging from mud and debris, making these tyres ideal for off-road racing, bashing, or trail running. Whether you're tearing across gravel or launching off ramps, these tyres provide the traction and stability needed to stay in control.
How does the all-metal drivetrain handle extreme torque?
The Traxxas X-Maxx TRX77096-4-ORNG with belted Sledgehammer tyres and aluminium centre shaft features a fully metal 8S drivetrain that includes hardened steel driveshafts, steel 4-gear differentials, and a high-strength extruded aluminium centre shaft. This robust system is designed to withstand the immense torque generated by the Velineon 1200XL motor. The Torque-Biasing Centre Drive and Cush Drive system work together to distribute power evenly and absorb shock loads, protecting internal components during hard landings and aggressive acceleration. This level of durability ensures consistent performance even in the harshest conditions.
Is the Velineon 1200XL motor really that powerful?
Yes, the Velineon 1200XL Big Block motor is the heart of the Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck. Tuned for 8S LiPo power, this motor delivers over 30 volts of raw energy, propelling the truck to speeds exceeding 50 mph. The motor’s oversized design allows it to generate massive torque while maintaining efficiency and thermal stability. Paired with the VXL-8s electronic speed control, the system provides smooth throttle response, precise braking, and waterproof reliability. This combination makes the X-Maxx one of the most powerful and responsive RC trucks in its class.

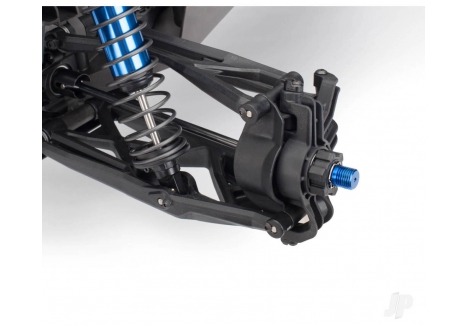

How does the suspension system support off-road dominance?
The long-arm suspension on the Traxxas X-Maxx TRX77096-4-ORNG for sale with belted tyres and waterproof VXL-8s ESC is engineered to absorb punishing impacts while maintaining control and composure. With 187 mm shock length and massive travel, the suspension soaks up jumps, rocks, and ruts with ease. The geometry is optimised for stability at high speeds and agility in tight turns. Combined with the truck’s 102 mm ground clearance and 8-inch tyres, the suspension system allows the X-Maxx to muscle through terrain that would stop smaller trucks in their tracks.

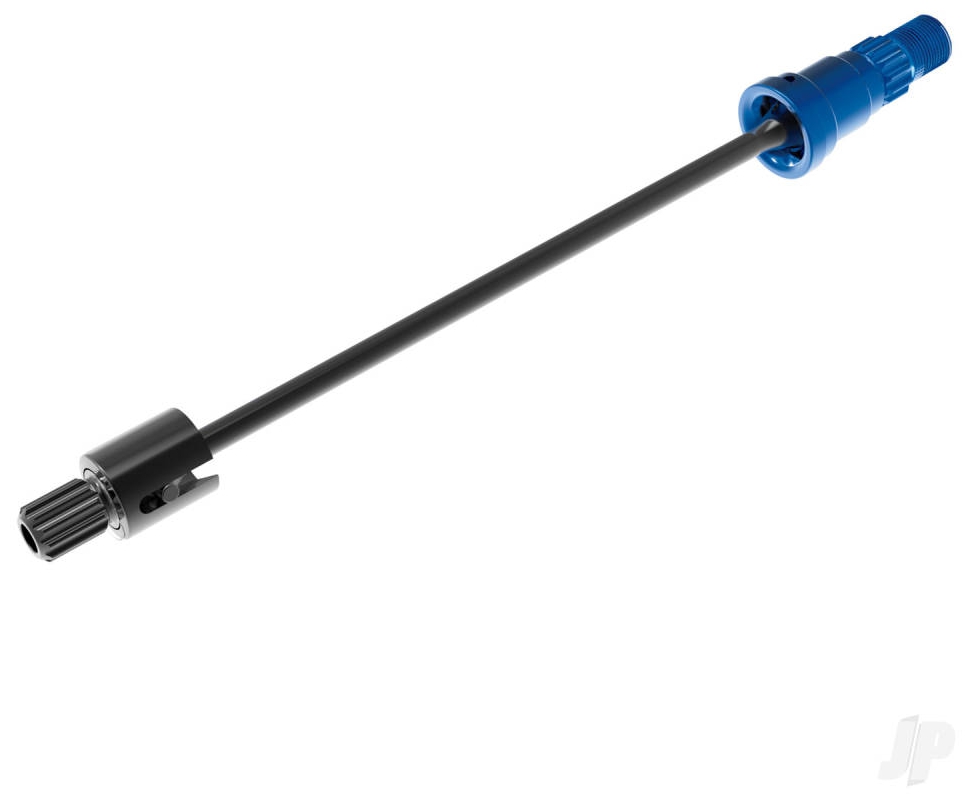

Why is the aluminium centre shaft important for performance?
The aluminium centre shaft in the Traxxas X-Maxx TRX77096-4-ORNG with belted Sledgehammer tyres and aluminium centre shaft plays a critical role in transferring power from the motor to the wheels. Its extruded design offers superior strength without excessive weight, ensuring efficient energy delivery and reduced drivetrain flex. This component is essential for maintaining drivetrain alignment under load, especially during high-speed runs and hard landings. It complements the all-metal construction of the drivetrain, reinforcing the truck’s ability to handle extreme power without compromise.
Is the Traxxas X-Maxx TRX77096-4-ORNG an affordable high-performance monster truck?
For RC enthusiasts seeking an affordable yet uncompromising large-scale truck, the Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck offers exceptional value. Its combination of belted tyres, waterproof electronics, and all-metal drivetrain delivers a premium experience without the need for aftermarket upgrades. The Orange ProGraphix body adds bold styling, while the telemetry-ready TQi radio system ensures precise control and real-time performance monitoring. Whether you're racing, bashing, or exploring rugged trails, this truck is built to exceed expectations.
With its unmatched power, durability, and scale, the Traxxas X-Maxx TRX77096-4-ORNG for sale with belted tyres and waterproof VXL-8s ESC is ready to conquer any terrain. Buy Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck today and experience the thrill of extreme RC performance in bold Orange.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX77096-4-ORNG
- Product Type: Traxxas TRX77096-4-ORNG X-Maxx Belted 8S brushless monster truck, Traxxas X-Maxx TRX77096-4-ORNG with belted Sledgehammer tyres and aluminium centre shaft, Traxxas X-Maxx TRX77096-4-ORNG 4WD RTR electric off-road truck, Traxxas TRX77096-4-ORNG X-Maxx 1:7 scale brushless RC truck, Traxxas X-Maxx TRX77096-4-ORNG with Velineon 1200XL motor and Cush Drive system
- Product Colour: Orange
Dimensions and Weight
- Length: 77.9 cm – extended chassis enhances stability and presence across rugged terrain
- Width (Front and Rear Track): 54 cm – wide stance improves cornering grip and rollover resistance
- Height (ride): 35 cm – elevated profile supports obstacle clearance and shock travel
- Wheelbase: 48 cm – optimised for balance and responsive steering under high torque
- Ground Clearance: 10.2 cm – suitable for extreme terrain and debris-heavy environments
- Weight: 8.66 kg – heavy-duty build supports high-speed durability and impact resistance
Motor and Power System
- Motor Type: Velineon 1200XL Big Block brushless – engineered for 8S LiPo power and explosive acceleration
- ESC: VXL-8s electronic speed control – waterproof and tuned for high-voltage performance
- Top Speed: 50+ mph – achievable with dual 4-cell LiPo batteries and optional gearing
- Battery Compatibility: Two 3-cell or 4-cell LiPo batteries – supports extended runtime and maximum output
- Battery Tray Dimensions: 19.7 x 5.15 x 4.4 cm – accommodates high-capacity packs with secure fit
Drivetrain and Transmission
- Drive System: Shaft-driven 4WD – delivers consistent traction across all four wheels
- Transmission: Single-speed – tuned for monster truck torque and simplicity
- Overall Drive Ratio: 8.11 – balanced for torque delivery and top-end speed

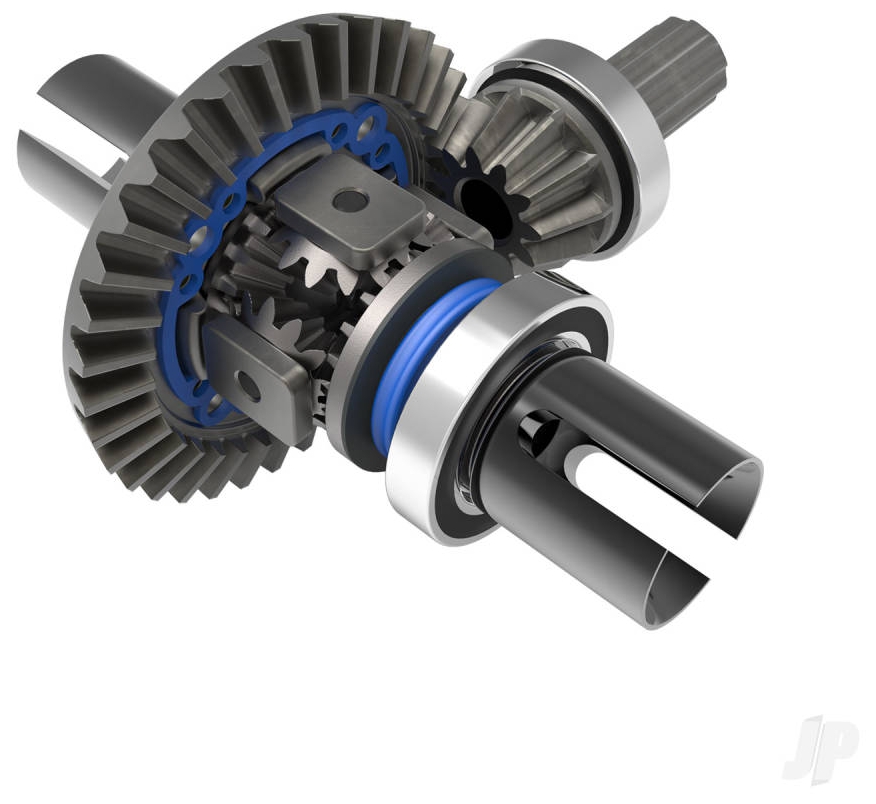

- Differential Type: Sealed hardened steel bevel, limited slip – maintains performance and resists debris intrusion

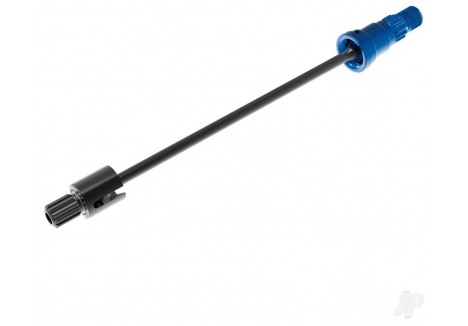

- Centre Shaft: Extruded aluminium – high-strength construction for efficient power transfer
Suspension and Handling

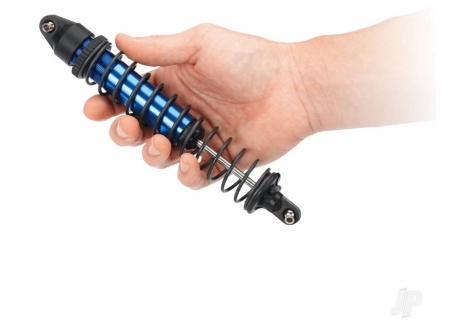

- Shock Length: 18.7 cm – long travel supports aggressive terrain and jump absorption

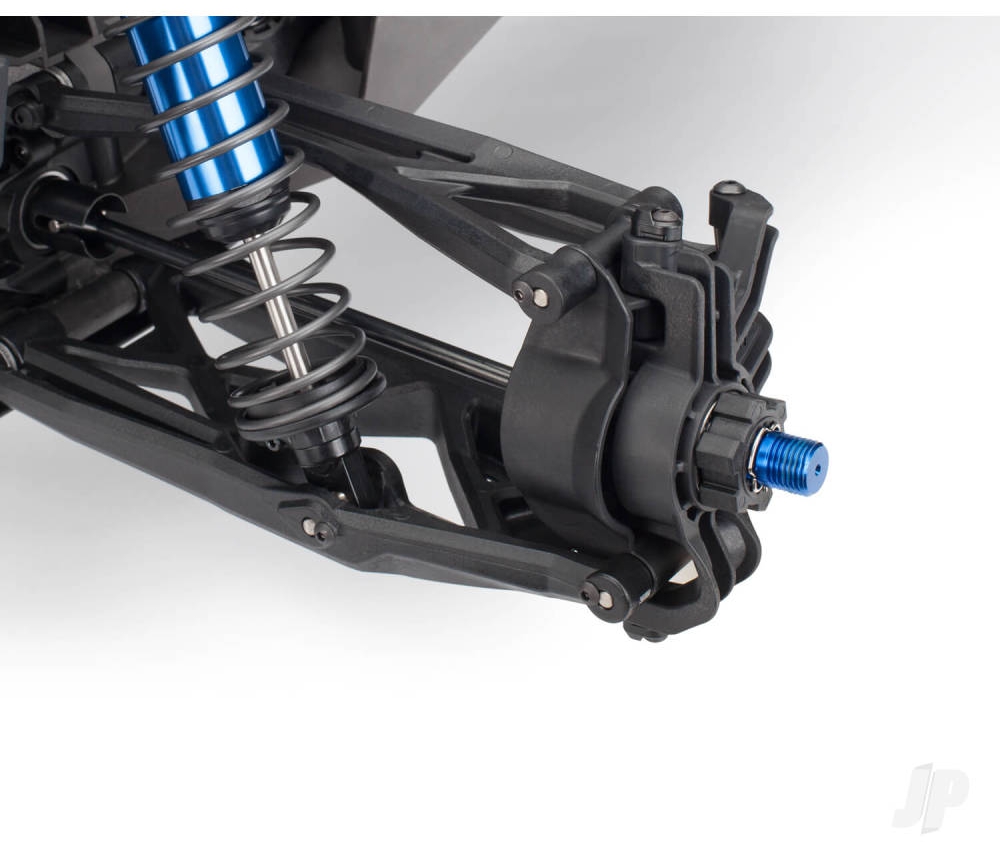

- Suspension Type: Long-arm – absorbs impacts and maintains control over large obstacles
- Tyres: 20.3 x 10.2 cm belted Sledgehammer – designed for grip and high-speed stability
- Wheels: 11 x 14.5 cm – durable and visually striking with splined 24 mm hex
Electronics and Control
- Radio System: TQi 2.4 GHz transmitter – includes TSM receiver and telemetry-ready features
- Servo Torque: 365 oz/in – responsive steering with integrated servo saver
- Servo Speed: 0.17 sec/60° at 6.0 V – fast response for precise control
Chassis and Build
- Chassis Material: Composite nylon tub – lightweight and impact-resistant for off-road use
- Brake Type: Electronic – integrated with ESC for smooth deceleration
Included Accessories
- ProGraphix pre-painted body – bold Orange finish with secure mounting
- Fully assembled Ready-To-Race configuration – includes installed electronics and performance upgrades
- Quick Start Guide – supports setup and operation
- High-quality maintenance tools – support regular upkeep and adjustments
