CASTLE SW 4, 12.6V, 2A BEC, WP SENSORLESS ESC W/1412-2100 5mm SENSO P-CC010-0164-09

Model No: P-CC010-0164-09


£179.99

£21.99

£158.00

Inc VAT & delivery

Sorry, Out Of Stock
We Accept
Delivery Included
1 Year Warranty

Overview

While the all new SIDEWINDER 4 builds upon Castle's most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle's newest technology, CRYO-DRIVE. CRYO-DRIVE combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup.

The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, we've got you covered!

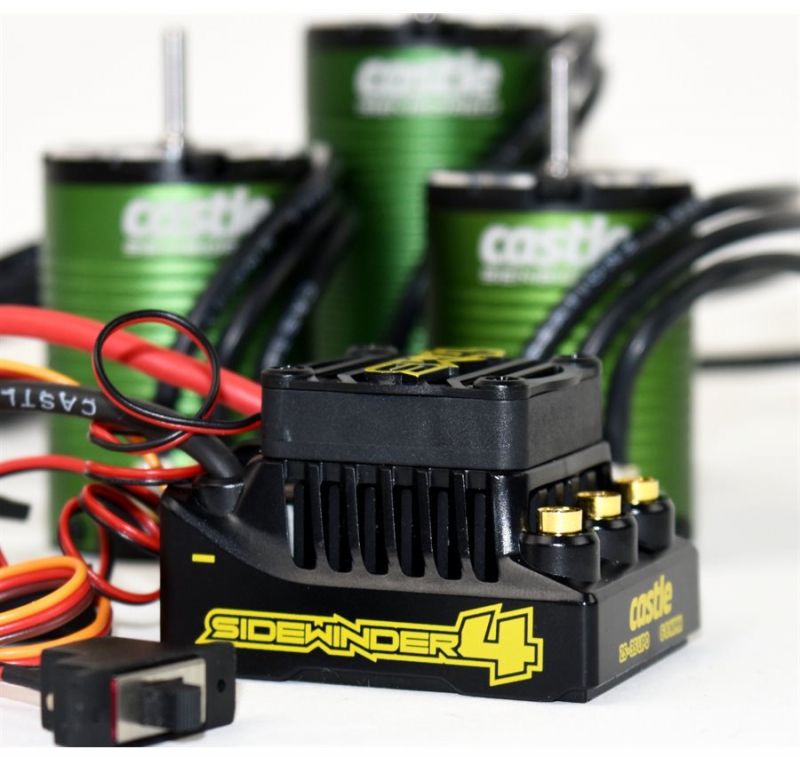

This combo includes a Sidewinder 4 ESC and 1412-2100 5mm shaft sensored* motor. The 1412-2100 is ideal for 2WD and 4x4 Short Course Trucks, 1/10th Monster Trucks, and Rock Racers.

*Sensored capabilities of the motor cannot be utilized with the Sidewinder 4. If you require sensored operation you will need a sensored ESC like the Mamba X or a Copperhead 10.
**Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.

In The Box

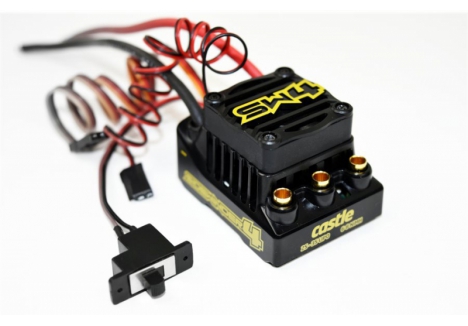

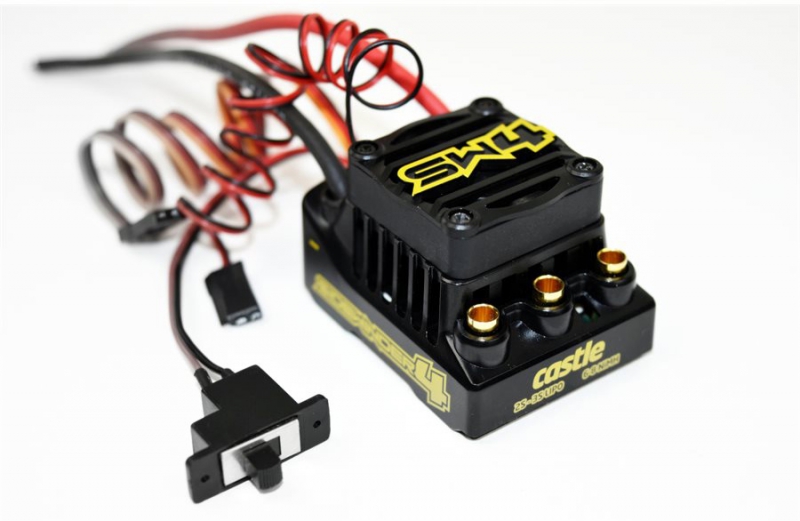

  • P-CC010-0164-00 SIDEWINDER 4 SENSORLESS ESC ONLY

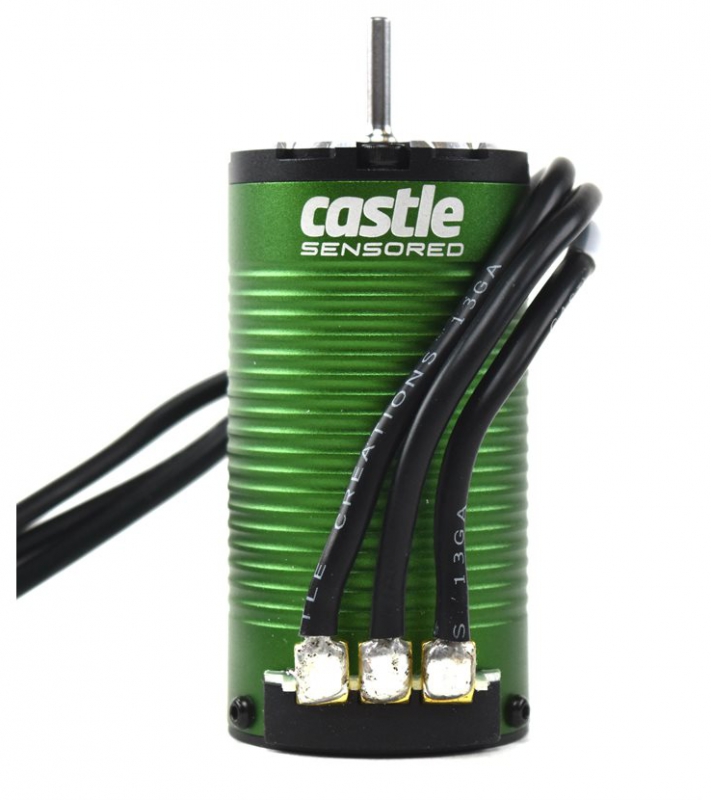

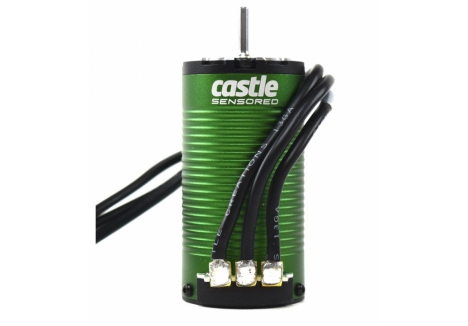

  • M-CC060-0095-00 CASTLE 1412 5mm SHAFT SENSORED MOTOR - 2100KV
  • Quick Start Guide
  • 1/10th scale gearing chart
  • Decal sheet

ESC Features

  • Input Voltage Range for 1412-2100 Kv Combo : 2s-3s LiPo
  • SENSORLESS and BRUSHED Running Modes
  • 5.0 VOLTS FIXED, 2AMP internal BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer. 30mm removable fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
  • Enhanced drag brake functionality
  • Smoother sensorless startups.
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings, including cutoff voltage and drag brake.
  • Additional settings and software updates available via Windows-based Castle Link software and USB adapter (sold separately)
  • Optional smartphone-based programming with the B-LINK BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store

Cryo Drive


Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.

Castle Link


For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.


B Link


You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-LinkT BluetoothT Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!

Telemetry Link


SIDEWINDER NANO is telemetry ready, which means owners of Futaba T4PX, 7PX and T7PXR Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.


Alerts


SIDEWINDER 4 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.

Waterproof


ESC is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.

Product Description of Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo

The Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo is engineered for 2WD and 4x4 short course trucks, monster trucks, and rock racers that demand torque-heavy acceleration, waterproof resilience, and thermal efficiency. This combo integrates Castle’s Sidewinder 4 ESC with the 1412-2100Kv 5mm shaft sensored motor, delivering a sensorless brushless system optimized for 2S and 3S LiPo configurations. With CRYO-DRIVE™ thermal control, a rugged injection-molded waterproof case, and enhanced drag brake functionality, the Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo is built to perform across rugged terrain, technical climbs, and high-speed launches. Whether you're crawling over rocks or ripping through dirt tracks, this system offers the control and durability needed for serious off-road builds.

Key features of the Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo

  • CRYO-DRIVE thermal system – cooler ESC temperatures for longer runtime and improved power handling
  • Injection-molded waterproof case – rugged housing for moisture protection and heat transfer
  • Enhanced drag brake – smoother deceleration and better low-speed control
  • Audible error alerts – instant feedback for troubleshooting and system diagnostics
  • Fixed 5V BEC – stable voltage output for receiver and accessory power
  • 30mm removable fan – active cooling with moisture resistance for off-road reliability

Why is the Castle P-CC010-0164-09 ESC combo ideal for SCT, monster trucks, and rock racers?

The Castle P-CC010-0164-09 ESC combo for 2WD and 4x4 SCT, monster trucks, and rock racers is designed for vehicles weighing up to 6.5 lbs ready-to-run, making it a versatile solution for high-torque off-road platforms. The 1412-2100Kv 5mm motor delivers powerful acceleration and cooler running characteristics, especially on 3S LiPo setups. For users seeking controlled power delivery and thermal efficiency, this combo provides a reliable solution that balances speed, responsiveness, and durability across rugged terrain and demanding driving styles.

How does CRYO-DRIVE technology improve thermal performance?

The Castle P-CC010-0164-09 waterproof ESC with CRYO-DRIVE and 5V fixed BEC features Castle’s proprietary CRYO-DRIVE™ system, which minimizes the time electrical components spend generating heat. By dynamically controlling which components are active during motor operation, CRYO-DRIVE reduces thermal buildup and improves efficiency during partial throttle—where most driving occurs. This allows users to run heavier vehicles with more aggressive gearing while maintaining consistent performance and longer runtimes.

What makes the injection-molded waterproof case essential for off-road builds?

The rugged housing featured in the Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo protects internal electronics from moisture, dirt, and debris. Potted in waterproof epoxy, the ESC is shielded from environmental hazards while promoting efficient heat transfer. This design ensures long-term durability and consistent performance in wet, muddy, or dusty conditions—ideal for rock racers and monster trucks that operate in unpredictable terrain.

How does enhanced drag brake improve control?

The Castle brushless ESC with enhanced drag brake and audible error alerts delivers refined braking control that improves low-speed handling and descent precision. Enhanced drag brake functionality allows for smoother deceleration, giving drivers better modulation during technical climbs, downhill sections, and tight cornering. This feature is particularly valuable in rock racing and trail crawling where traction and responsiveness are critical to maintaining control.

What role do audible alerts play in diagnostics?

Audible error alerts built into the Castle Sidewinder combo with telemetry support and Castle Link compatibility provide immediate feedback when the ESC encounters issues such as motor overheating, low-voltage cutoff, or calibration errors. These alerts simplify diagnostics by allowing users to identify problems without connecting to external software. For hobbyists and racers alike, audible alerts offer a practical solution to maintaining system health and minimizing downtime.

Why is the 30mm removable fan important for thermal management?

The 30mm fan included in the Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo actively cools the ESC during operation, helping maintain optimal temperatures even in high-load conditions. Its removable design allows for easy cleaning and maintenance, while its moisture-resistant construction ensures continued functionality in off-road environments. This fan is a critical component in sustaining performance during extended runs and aggressive driving.

Is this an affordable upgrade for 1/10 scale off-road platforms?

The affordable Castle ESC with CRYO-DRIVE and smoother sensorless startups delivers a robust feature set at a competitive price point. With programmable settings, enhanced braking, and telemetry compatibility, this combo offers performance and reliability without overspending. The inclusion of Castle Link and optional Bluetooth programming ensures easy access to firmware updates and tuning parameters, making it a smart investment for hobbyists upgrading their SCT, monster truck, or rock racer builds.

For RC drivers seeking a sensor-ready, waterproof brushless system with CRYO-DRIVE cooling, enhanced braking, and telemetry support, the Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo is the strategic upgrade. Buy Castle P-CC010-0164-09 ESC combo for 2S/3S SCT and rock racer builds.

Technical Specifications of Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo

Brand, Model and Product Type

  • Brand: Castle Creations
  • Model: P-CC010-0164-09
  • Product Type: Castle P-CC010-0164-09 SW 4 ESC and 1412-2100Kv 5mm sensor-ready motor combo, Castle P-CC010-0164-09 waterproof ESC with CRYO-DRIVE and 5V fixed BEC, Castle P-CC010-0164-09 ESC combo for 2WD and 4x4 SCT, monster trucks, and rock racers, Castle P-CC010-0164-09 with injection-molded waterproof case and 30mm fan, Castle brushless ESC with enhanced drag brake and audible error alerts

ESC and Motor Specifications

  • Motor Type: Brushless – sensor-ready motor paired with sensorless ESC
  • Motor Kv Rating: 2100Kv – tuned for 2S/3S SCT, monster truck, and rock racer builds
  • Motor Shaft Diameter: 5mm – supports high-torque transfer for 1/10 scale platforms
  • ESC Compatibility: Sensorless brushless and brushed motor operation
  • ESC Voltage Range: 2S–3S LiPo – supports standard battery formats
  • Vehicle Weight Limit: Up to 2.95 kg (6.5 lbs) ready-to-run including battery
  • Speed Control: Included – programmable via transmitter or Castle Link software
  • BEC Voltage: 5.0V fixed – stable output for receiver and accessories
  • BEC Peak Current: 2.0A – supports moderate accessory loads
  • Drag Brake: Enhanced – improves low-speed control and braking response
  • Startup Logic: Smoother sensorless startups – ideal for torque-heavy launches
  • Timing Adjustment: Not adjustable – fixed timing for simplified setup
  • Programmability: Yes – six common adjustable settings via transmitter

Cooling and Durability

  • Cooling Fan: 30mm removable fan – active cooling with moisture protection
  • Waterproofing: ESC housed in injection-molded waterproof case and potted in epoxy

Control and Programming

  • Transmitter Programming: Supports six adjustable settings including cutoff voltage and drag brake
  • Castle Link Compatibility: Windows-based software and USB adapter (sold separately)
  • Bluetooth Programming: Optional via B-Link Bluetooth Adapter and Castle Link App (sold separately)

Telemetry and Alerts

  • Telemetry Compatibility: Futaba S.BUS2 support – compatible with T4PX, T7PX, and T7PXR transmitters (sold separately)
  • Audible Alerts: Yes – provides error feedback for diagnostics including motor temperature and voltage cutoff

What's in the Box

  • 1 × Sidewinder 4 Sensorless ESC
  • 1 × Castle 1412-2100Kv 5mm Shaft Sensored Motor
  • 1 × Quick Start Guide
  • 1 × 1/10th Scale Gearing Chart
  • 1 × Decal Sheet

What You Require / What You Will Need

  • Castle Link USB adapter (sold separately)
  • B-Link Bluetooth Adapter (sold separately)
  • Futaba S.BUS2 telemetry module (sold separately)

Sold Separately

  • Castle Link USB adapter
  • B-Link Bluetooth Adapter
  • Futaba S.BUS2 telemetry module
