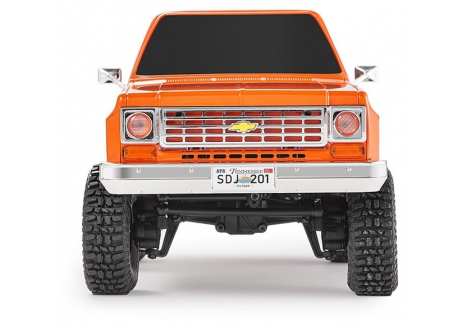

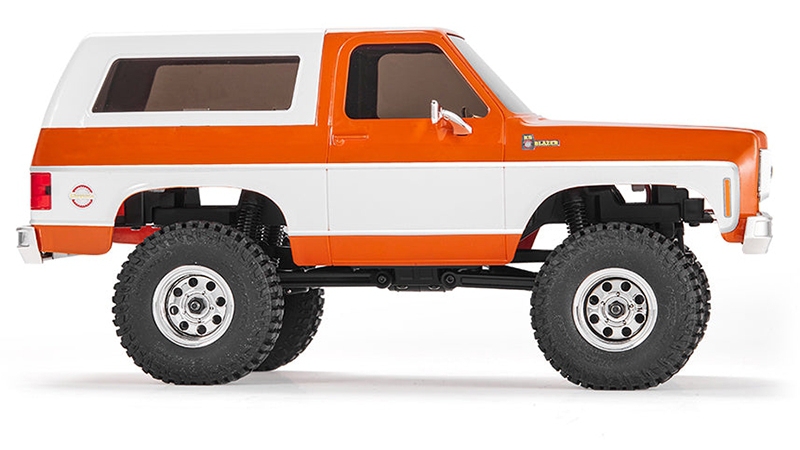

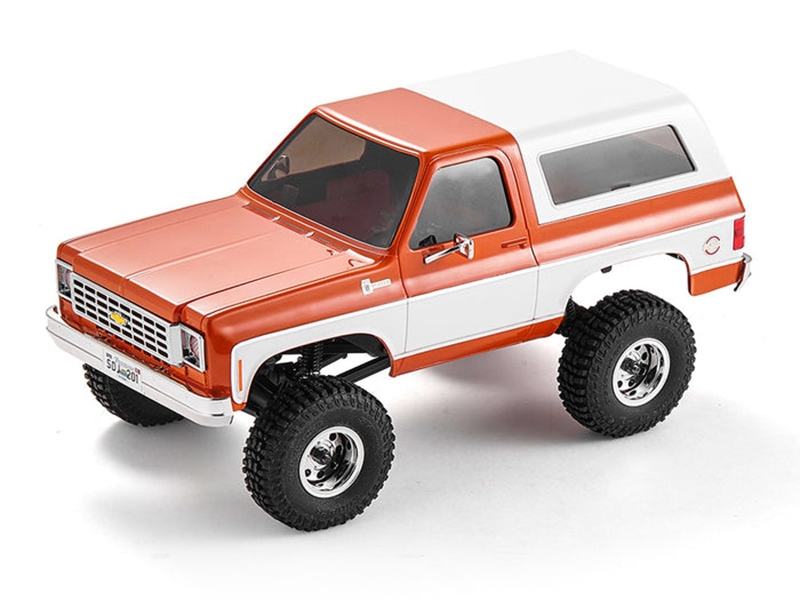

FMS FCX24 Chevrolet K5 Blazer 1/24 Orange 4WD Rock Crawler RTR – FMS12403RTROR

Brand, Model and Product Type

• Brand: FMS
• Model: FMS12403RTROR
• Product Type: FMS FCX24 Chevrolet K5 Blazer orange 1/24 RTR rock crawler FMS12403RTROR, FMS FCX24 Chevy K5 Blazer orange 4WD crawler RTR FMS12403RTROR, FMS FCX24 orange K5 Blazer with two-speed transmission and portal axles, FMS FCX24 Chevy K5 Blazer orange with hydraulic shocks and nylon frame, FMS FCX24 orange Blazer with metal gear steering and smart light system

Dimensions

• Model Vehicle Size: 25.3 cm (L) x 12.9 cm (W) x 12.8 cm (H) – compact and scale-accurate for micro off-road crawling
• Radio Control Size: 11.8 cm x 7.3 cm x 14.5 cm – lightweight and ergonomic for precise handling
• Model Weight: 442g (battery not included) – balanced for climbing stability and scale realism
• Ground Clearance: 3.8 cm – high-clearance chassis design for obstacle negotiation
• Wheelbase: 13.9 cm – optimized for traction and articulation on uneven terrain
• Tire Dimensions: Diameter: 5.48 cm, Width: 1.95 cm – aggressive tread for off-road grip
• Approach Angle: 57° – allows steep incline climbing without front-end interference
• Departure Angle: 45° – enables clean exits from obstacles without rear drag

Drivetrain and Transmission

• Drive Type: 4WD – full-time four-wheel drive for consistent traction
• Transmission: Two-speed – enables both high-speed racing and low-speed crawling modes
• Portal Axles: Metal gear design – increases ground clearance and reduces torque twist
• Suspension: Four-link system – delivers flexible articulation for off-road terrain

Motor and Power System

• Motor Type: Brushed – 130-size motor installed for torque-rich performance
• ESC: 2-in-1 Receiver / 40A ESC – compact and integrated for efficient power management
• Battery: 7.4V 380mAh – rechargeable Li-ion battery included for extended runtime
• Charger: USB battery charger – portable and convenient for quick charging

Steering and Control

• Steering Servo: 13g metal digital servo – durable and responsive for precise control
• Additional Servo: 9g plastic digital servo – supports auxiliary functions
• Remote Control: G3+ R3A transmitter – paired with ESC group control board for seamless operation
• Max Control Distance: 30 meters – suitable for backyard and indoor crawling
• Driving Speed: 8 km/h – balanced for scale realism and maneuverability
• Operating Duration: Approximately 20 minutes – ideal for short trail sessions

Body and Frame

• Body Shell: Hard plastic simulation – electroplated stickers replicate vintage K5 Blazer aesthetics

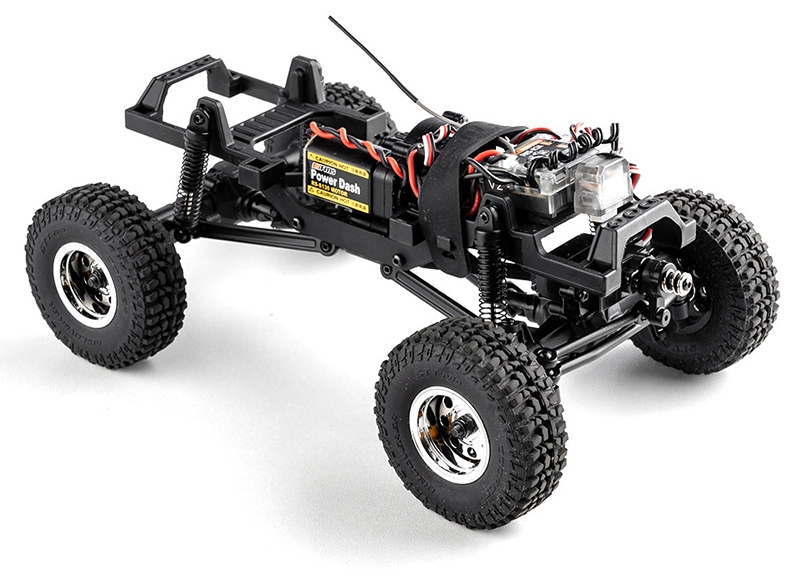

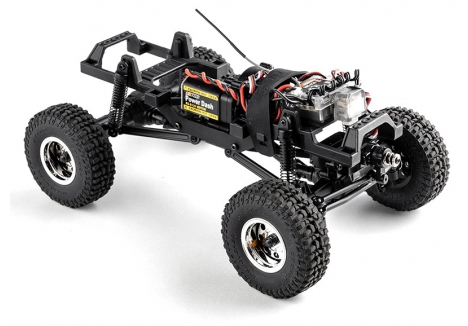

• Frame: High-strength integrated nylon – lightweight yet rigid for structural integrity
• Body Separation: Rapid-release design – simplifies battery access and maintenance

Lighting and Visuals

• Lighting System: Remote-controlled smart light effect – enhances realism and visibility

What's in the Box

• 1 x 1:24 FCX24 Chevrolet K5 Blazer Truck RTR
• 1 x 2.4GHz Transmitter
• 1 x 2-in-1 Receiver / 40A ESC (installed)
• 1 x 130 Brushed Motor (installed)
• 1 x 9g Plastic Digital Servo (installed)
• 1 x 13g Metal Digital Servo (installed)
• 1 x 7.4V 380 mAh Battery
• 1 x USB Battery Charger
• 1 x Hex Wrench Socket
• 1 x Product Manual

What You Require

• 4 x AAA Batteries for Transmitter

Warranty

• 1 Year Manufacturer Warranty – covers defects in materials and workmanship
