Product Details

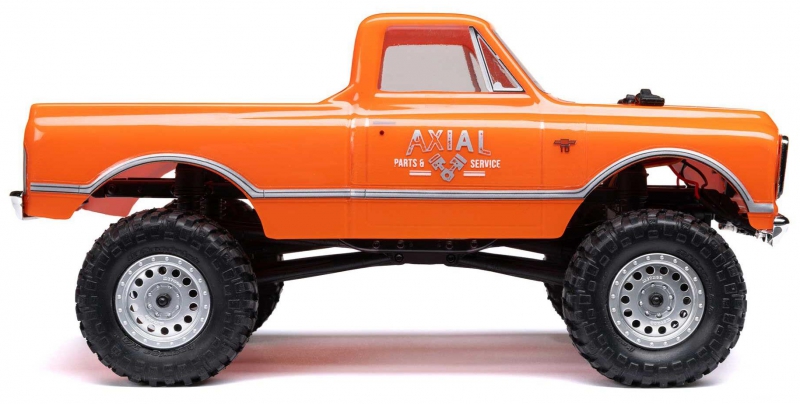

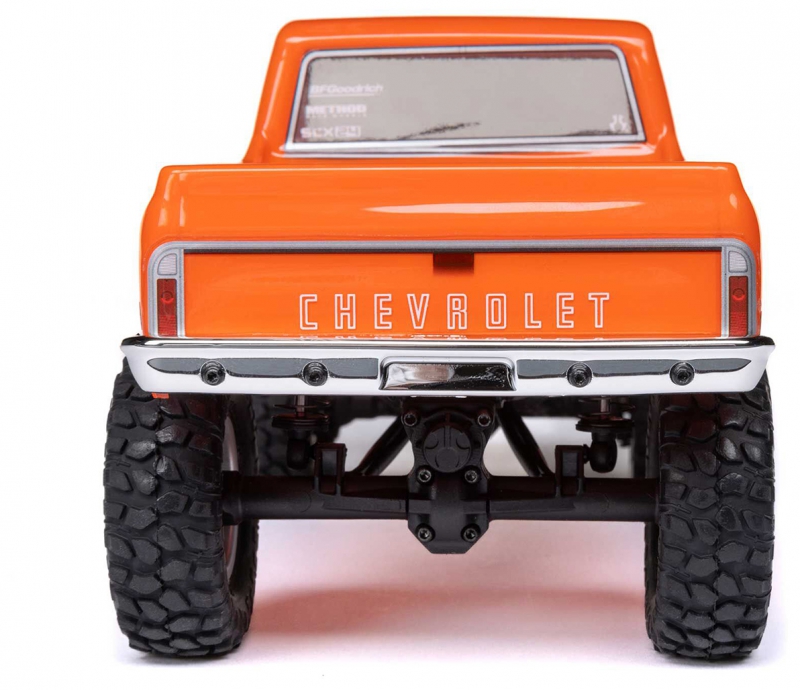

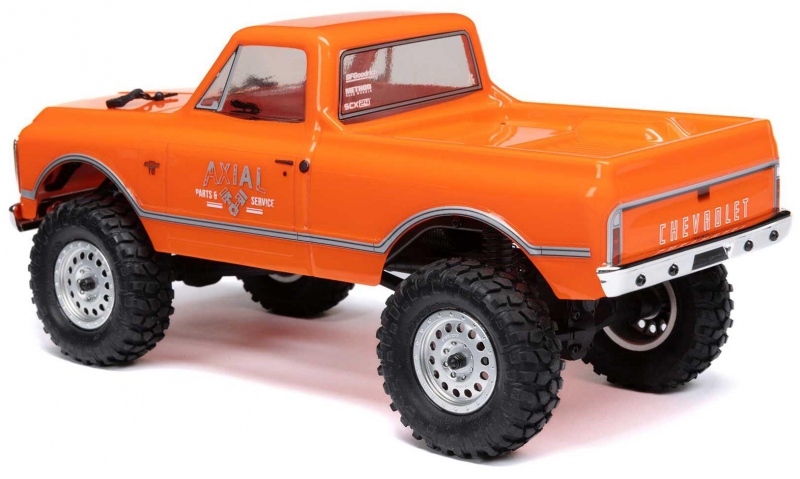

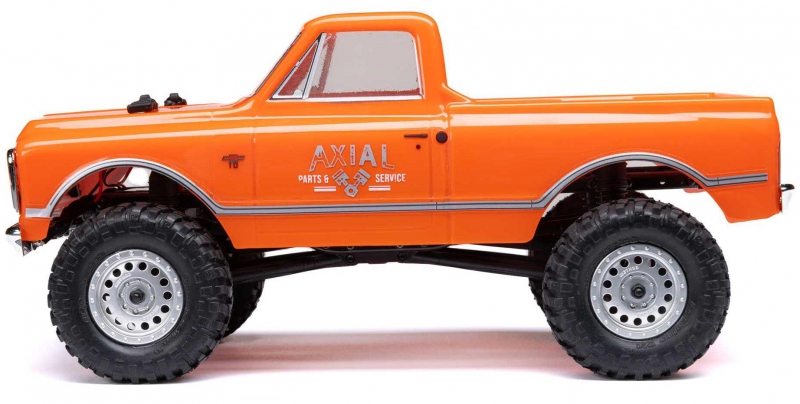

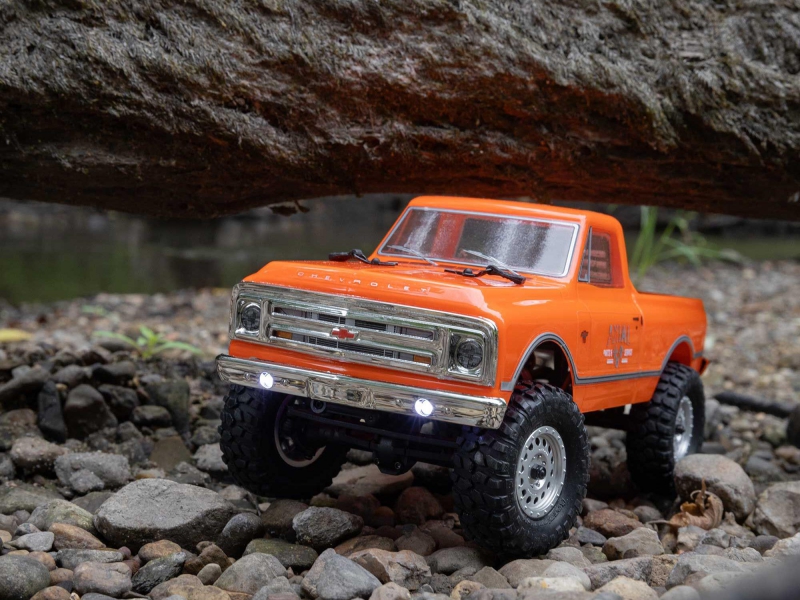

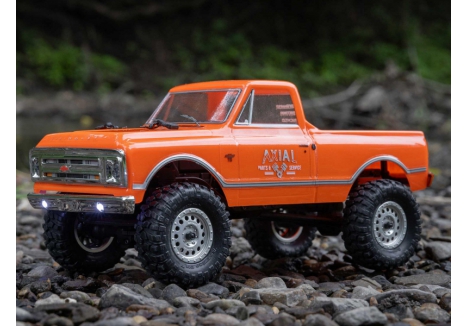

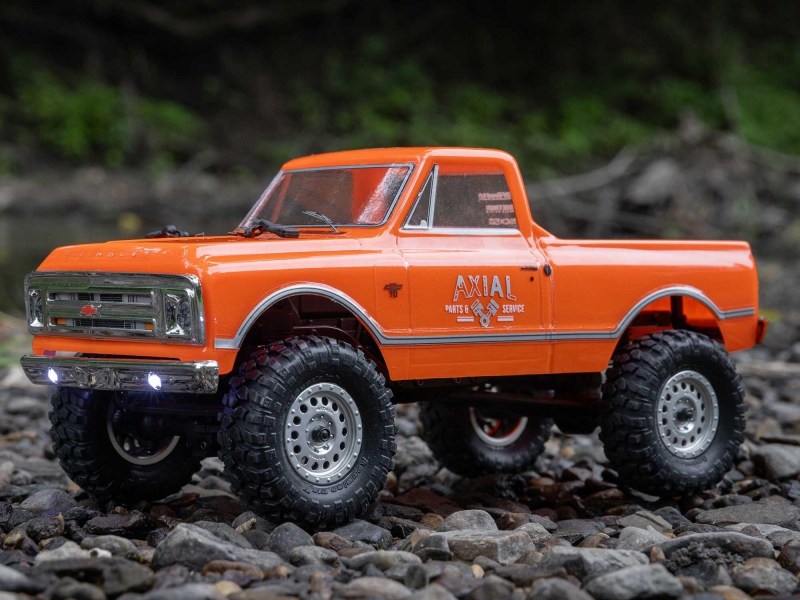

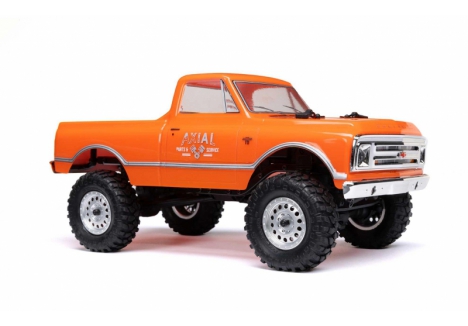

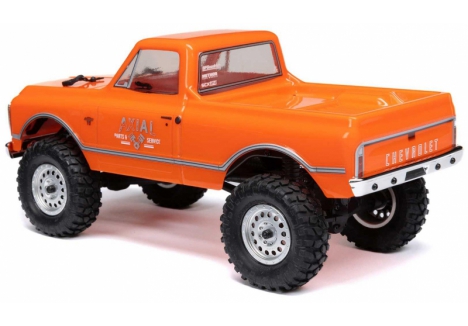

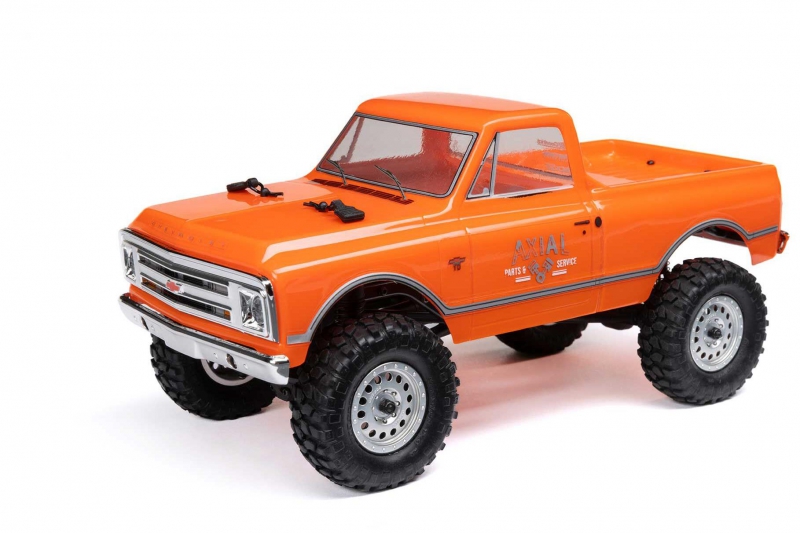

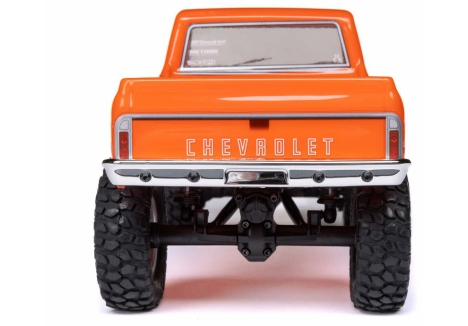

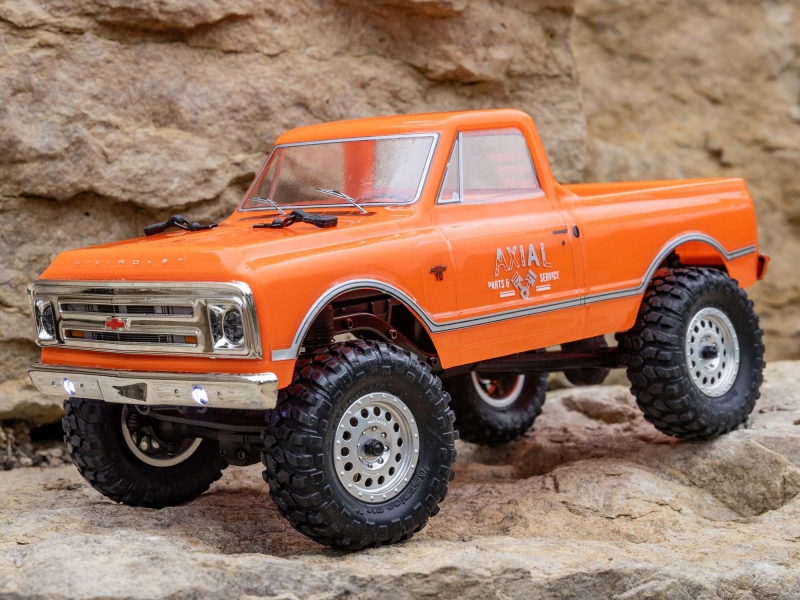

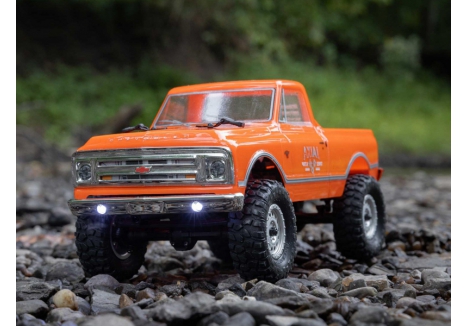

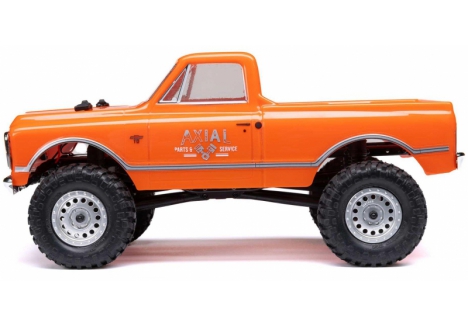

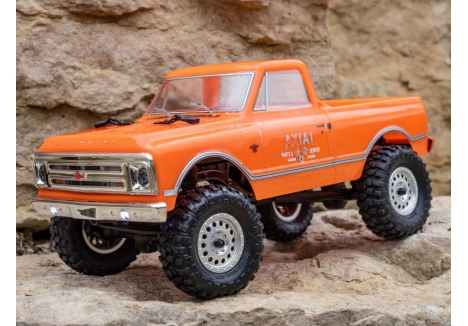

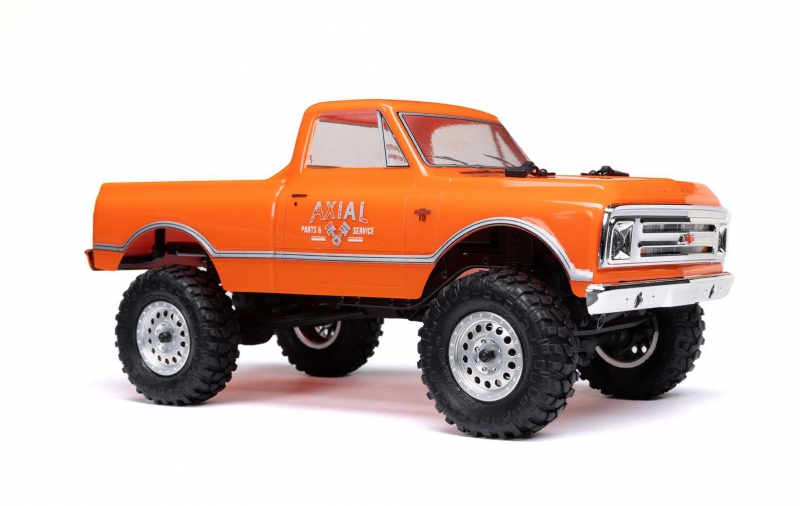

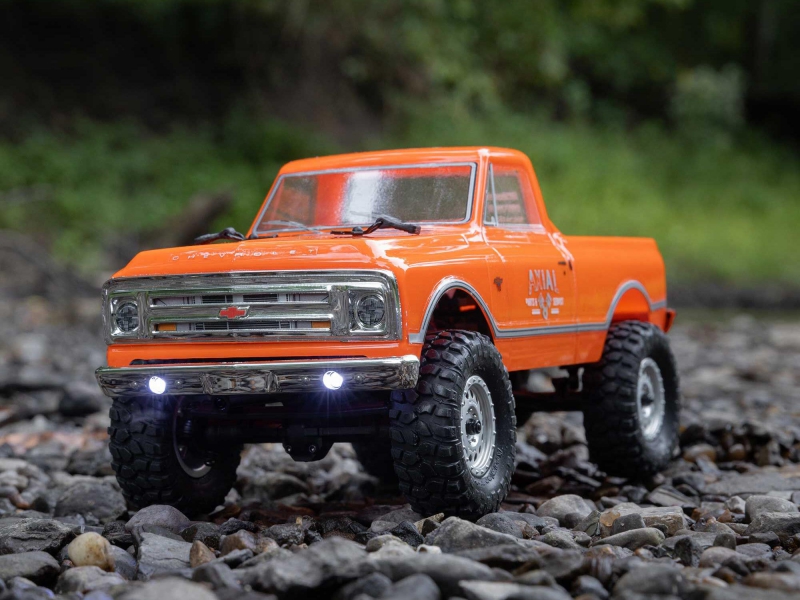

The performance and value of the SCX24 1967 Chevrolet C10 are better than ever before! Oil-filled shocks, Spektrum electronics, and new body colours have been added for a classic style RC rig that's completely ready-to-run and sized to run anywhere.
Key Features

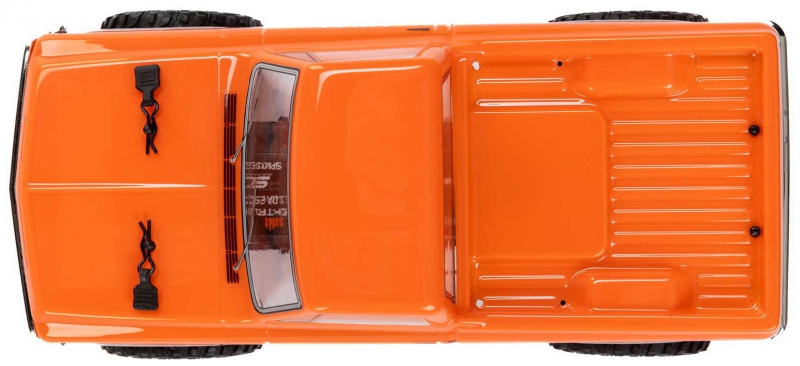

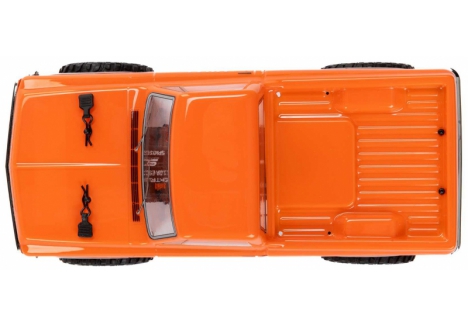

- Detailed 1967 Chevrolet C10 polycarbonate body in two fresh colour options
- Plush oil-filled shocks
- Realistic steel frame rails for added strength
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery and USB charger

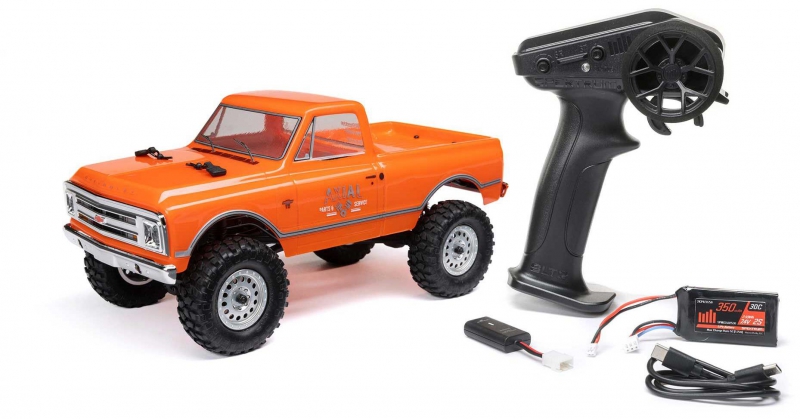

In The Box - Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR with:
- Assembled SCX24 chassis, drivetrain, and suspension
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery and USB charger
- (4) AA transmitter batteries
- Product manual
Overview

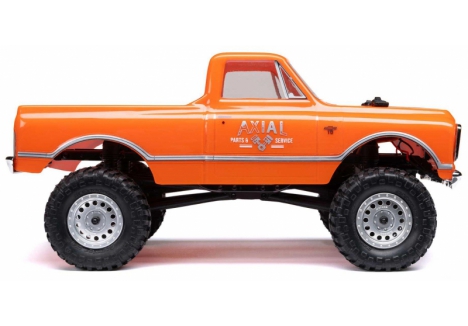

Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial® micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 original's classic styling but also delivers exceptional value in an RC rig - value that's better than ever in this updated version.
Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colours to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.

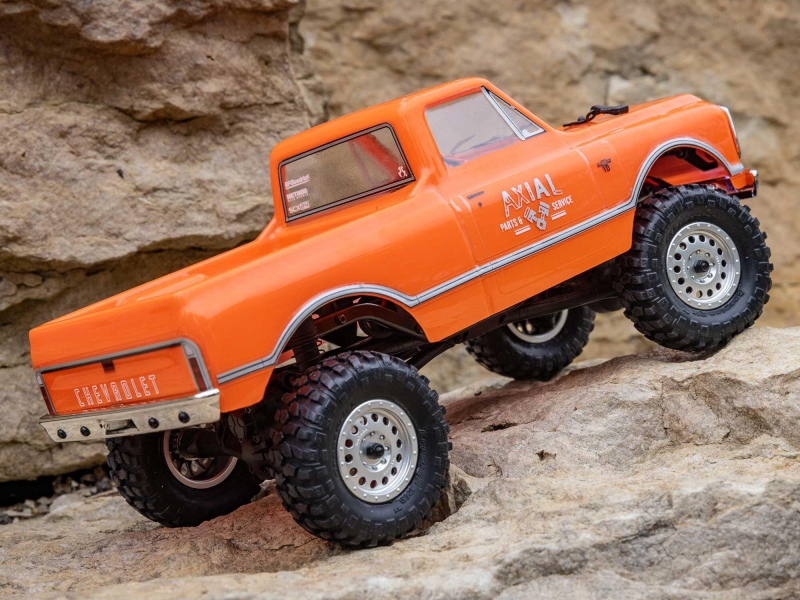

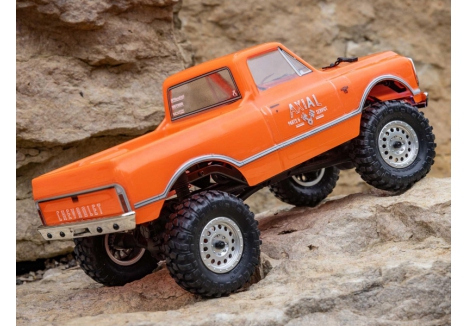

The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.

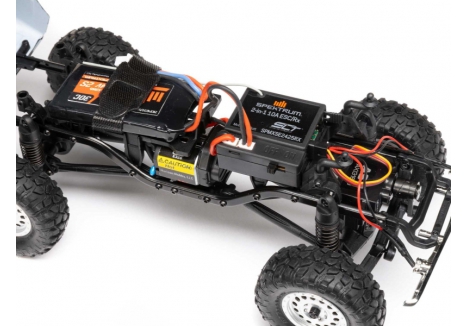

The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tyres that tackle on-road and off-road challenges with ease.

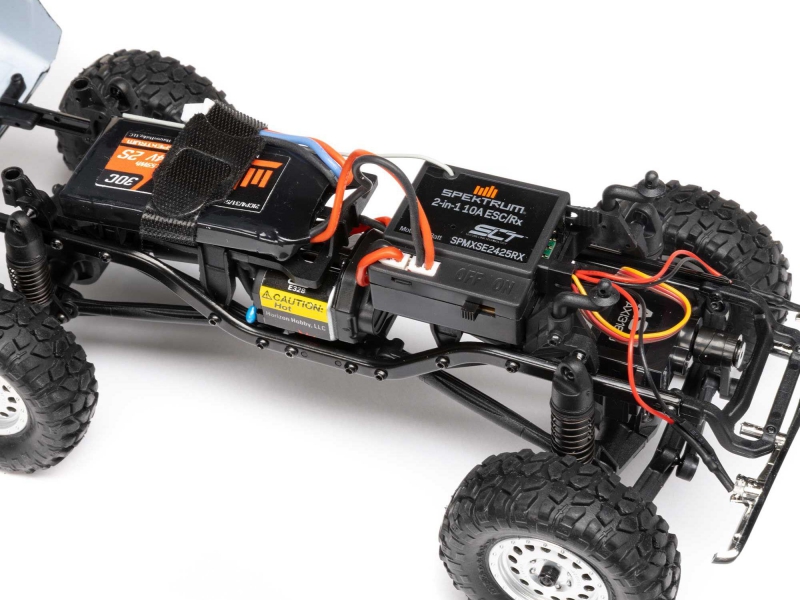

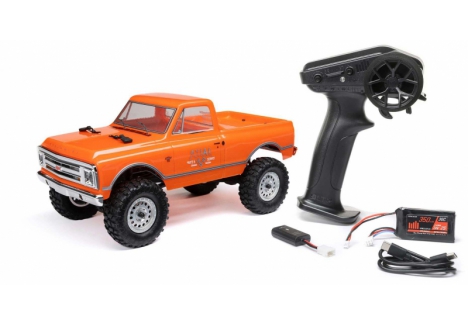

Inside the box, in addition to the assembled and finished rig, you'll find a Spektrum SLT2 2.4GHz transmitter, 350mAh LiPo battery, and handy USB charger. Four AA batteries are also included for the transmitter. Unleash big crawling adventures with the updated Axial SCX24 1967 Chevrolet C10!
Product Description of Axial SCX24 C-AXI00001V2T3
The Axial SCX24 C-AXI00001V2T3 brings the rugged legacy of the 1967 Chevrolet C10 into a compact, high-performance RC platform built for rock crawling in any environment. With its 1/24 scale footprint, the Axial SCX24 orange Chevy C10 rock crawler RTR is engineered for spontaneous indoor obstacle courses and outdoor trail adventures alike. This ready-to-run rig features a factory-finished polycarbonate body, full-time 4WD drivetrain, and a host of upgraded components including oil-filled shocks and steel frame rails. Whether you're a beginner or a seasoned crawler enthusiast, the Axial SCX24 orange 1967 C10 RTR with Method wheels and BFGoodrich tires delivers scale realism and technical capability in one compact package.
Key features of the Axial SCX24 C-AXI00001V2T3
- Oil-filled shocks – smooth suspension articulation for stable crawling over uneven terrain
- Steel frame rails – reinforced chassis structure for long-term durability
- Spektrum SLT2 radio system – adjustable throttle and steering for precise control
- Worm gear axles – increased ground clearance and strong drag brake performance
- LED bumper lights – enhanced visibility for low-light crawling environments
- 3-link front and 4-link rear suspension – optimized geometry for reduced torque twist
- 350mAh LiPo battery and USB charger – reliable power and convenient charging

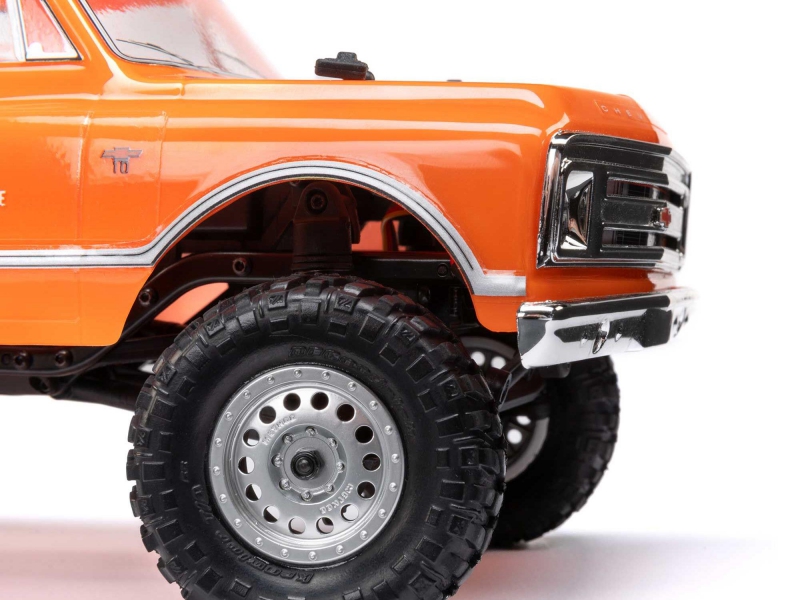

- Licensed Method wheels and BFGoodrich tires – authentic scale appearance with real-world traction
Why is the Axial SCX24 C-AXI00001V2T3 ideal for indoor and outdoor crawling?
The compact dimensions of the Axial SCX24 orange mini crawler with 3-link front and 4-link rear suspension make it perfect for crawling in confined indoor spaces or rugged outdoor terrain. Its 1/24 scale size allows users to transform everyday environments into crawling courses—whether it's a living room floor, a desk, or a backyard trail. The full-time 4WD drivetrain and solid axle suspension system ensure that the crawler maintains traction and stability across a variety of surfaces. With the addition of oil-filled shocks, the suspension absorbs bumps and obstacles with ease, delivering a smooth and controlled ride in any setting.
How do the steel frame rails enhance durability?
The Axial SCX24 orange C10 with oil-filled shocks and steel frame rails features realistic steel C-channel frame rails that mimic the construction of full-size off-road rigs. These frame rails provide structural integrity and resist flexing during aggressive crawling maneuvers. Reinforced with bracing, the chassis remains aligned and intact even under stress, allowing the crawler to maintain consistent performance over time. This rugged foundation supports the drivetrain and suspension components, ensuring that the crawler can withstand repeated use in demanding conditions without compromising its reliability.
What makes the worm gear axles a standout feature?
The Axial 1/24 orange Chevy C10 with worm gear axles and LED bumper lights is equipped with metal worm gears housed in the front and rear differentials. These gears increase ground clearance and provide strong drag brake capabilities, allowing the crawler to hold its position on steep inclines. The worm gear design also contributes to smoother torque delivery, reducing the likelihood of wheel spin and improving overall control. This feature is particularly valuable when navigating rocky terrain or climbing over obstacles, where precision and grip are essential for successful crawling.
How does the Spektrum SLT2 radio system improve control?
The Axial SCX24 orange crawler with Spektrum SLT2 radio and 350mAh LiPo includes a Spektrum SLT2 2-channel 2.4GHz transmitter that offers advanced control features in a user-friendly format. Adjustable throttle and steering travel settings allow users to fine-tune responsiveness based on their skill level and terrain conditions. Throttle limiting options make the crawler accessible to beginners, while experienced users can unlock full performance for more challenging courses. The transmitter is ergonomically designed for comfortable handling, and the included AA batteries ensure that the system is ready to use straight out of the box.
What role do the LED bumper lights play in performance?

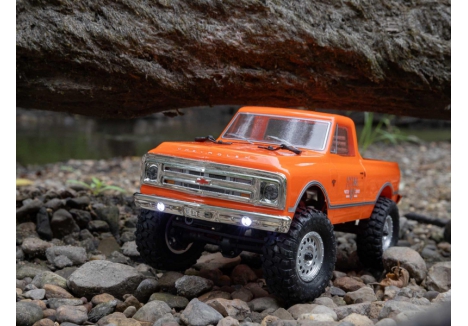

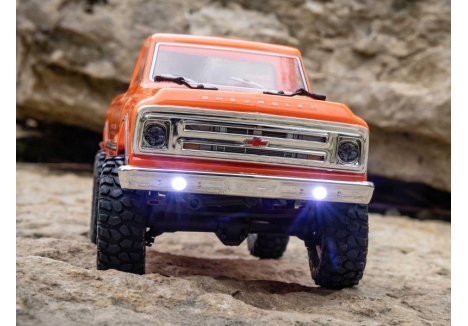

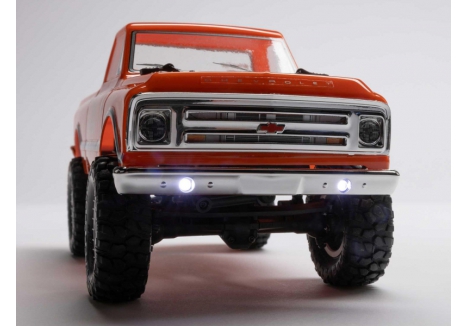

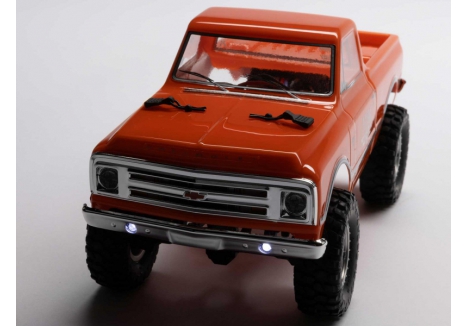

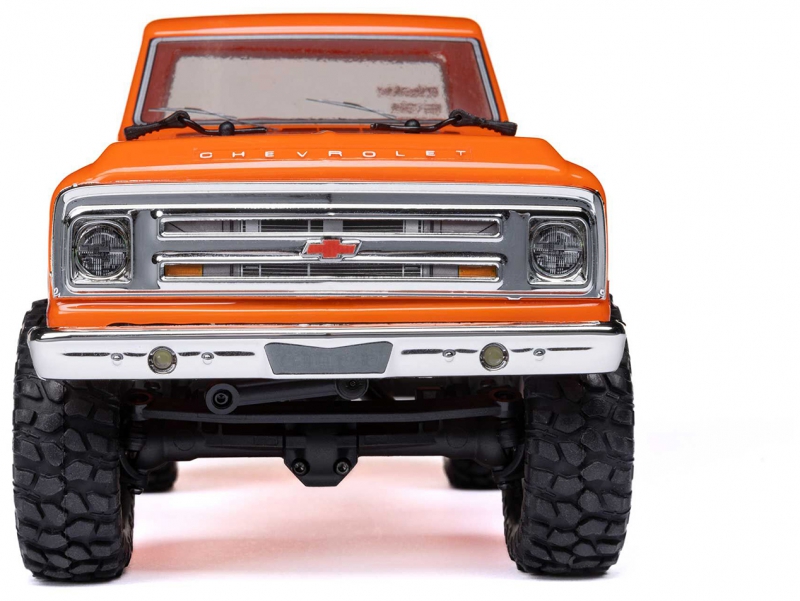

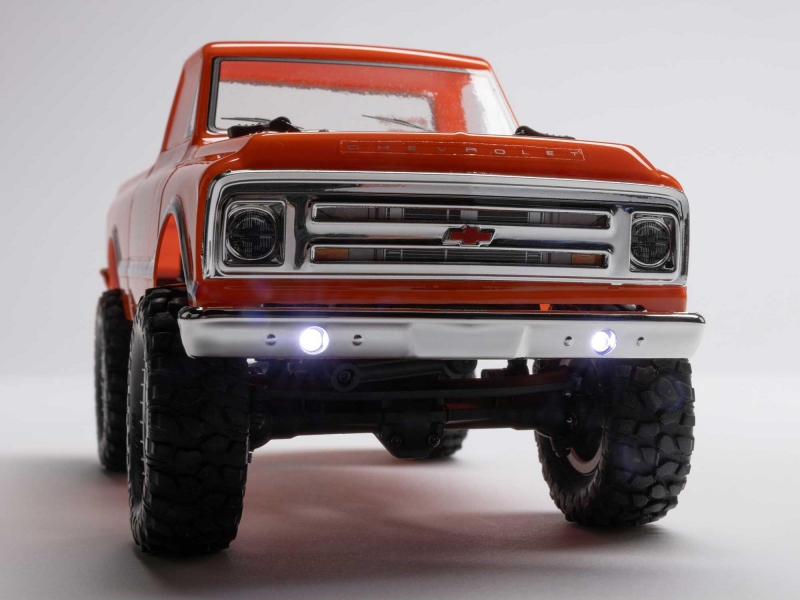

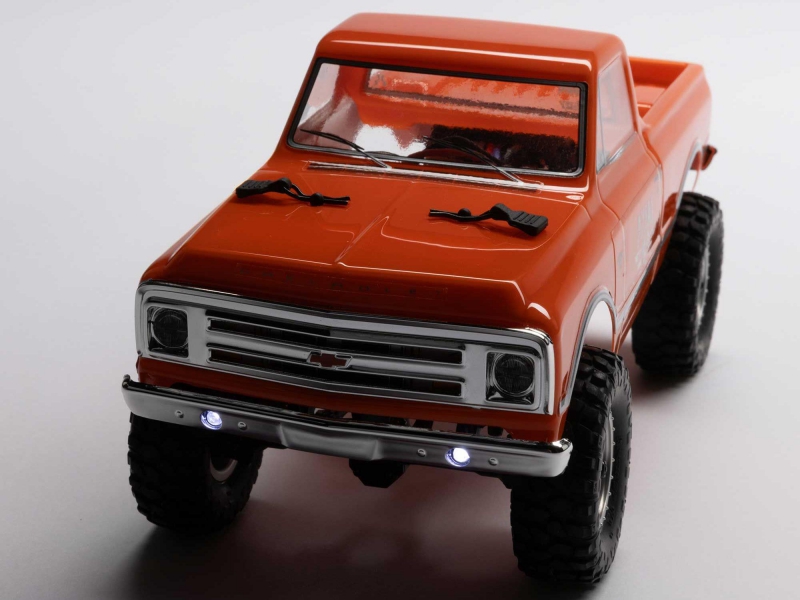

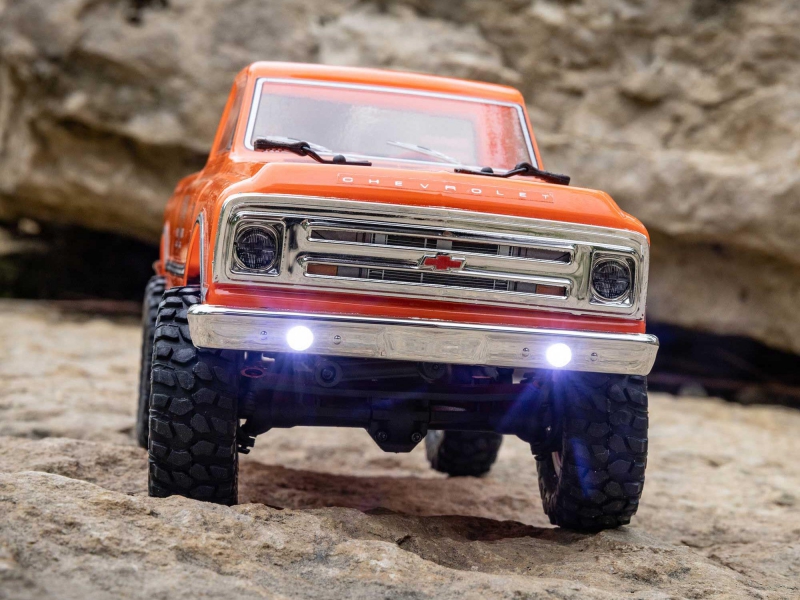

Mounted in the front bumper, the LED lights on the Axial SCX24 orange Chevy C10 4WD RTR crawler with battery and charger enhance visibility during low-light crawling sessions. These bright LEDs illuminate the path ahead, making it easier to navigate obstacles and maintain orientation in dim environments. An additional LED port on the ESC allows users to expand the lighting setup with optional accessories, further customizing the crawler for nighttime use. This feature adds both functional value and visual appeal, making the crawler suitable for a wider range of conditions and enhancing the overall experience.
Why is the suspension geometry important for performance?
The Axial SCX24 orange mini crawler with 3-link front and 4-link rear suspension utilizes a suspension setup that minimizes axle steer and torque twist. The 3-link front configuration provides stable steering input, while the 4-link rear design optimizes articulation and reduces unwanted movement during climbs. This geometry ensures that the crawler maintains consistent contact with the terrain, improving traction and control. Combined with the oil-filled shocks and solid axle housings, the suspension system delivers a balanced and responsive ride that adapts to a variety of crawling scenarios.
Is the Axial SCX24 C-AXI00001V2T3 a good value for RC enthusiasts?
With its combination of scale realism, durable construction, and performance-driven features, the Axial SCX24 orange 1967 C10 RTR with Method wheels and BFGoodrich tires offers exceptional value for both beginners and experienced hobbyists. The licensed wheels and tires replicate the look and feel of full-size off-road champions, while the Dynamite 88T brushed motor delivers the torque needed for steep climbs. Splined drive shafts and full ball bearings ensure smooth power delivery and long-term reliability. For those seeking the best Axial SCX24 orange Chevy C10 for indoor and outdoor rock crawling, this model stands out as a capable and stylish option that performs well across a variety of environments.
To unlock the full potential of small-scale crawling, buy Axial SCX24 1967 Chevrolet C10 orange mini crawler C-AXI00001V2T3 and enjoy rugged performance, authentic styling, and versatile control in one complete package.
Technical Specifications of Axial SCX24 C-AXI00001V2T3
Brand, Model and Product Type
- Brand: Axial
- Model: C-AXI00001V2T3
- Product Type: Axial SCX24 C-AXI00001V2T3, Axial SCX24 orange Chevy C10 rock crawler RTR, Axial SCX24 orange C10 with oil-filled shocks and steel frame rails, Axial SCX24 orange crawler with Spektrum SLT2 radio and 350mAh LiPo, Axial SCX24 orange Chevy C10 4WD RTR crawler with battery and charger, Axial 1/24 orange Chevy C10 with worm gear axles and LED bumper lights
Dimensions
- Product Length: 21.8 cm – compact and portable for indoor and outdoor crawling
- Product Width: 9.9 cm – stable stance for confident maneuvering
- Product Height: 9.1 cm – low-profile build supports scale realism and balance
- Wheelbase: 13.2 cm – optimized for articulation and obstacle clearance
- Ground Clearance: 2.7 cm – elevated chassis aided by worm gear axles for terrain adaptability
- Product Weight: 0.22 kg – lightweight for responsive control and efficient power usage
Chassis and Suspension
- Chassis Type: Stamped steel C-channel frame rails – reinforced for durability and structural integrity
- Suspension Setup: 3-link front and 4-link rear – geometry designed to reduce torque twist and axle steer
- Shock Type: Coil-over oil-filled shocks – adjustable preload spacers for fine-tuned suspension response
- Axle Design: Molded composite solid axle housings – rugged and lightweight for consistent performance
Drivetrain and Motor
- Drive Type: 4WD – full-time four-wheel drive for maximum traction and crawling capability
- Differential: Metal worm gear 16T/4T – increases ground clearance and provides strong drag brake control

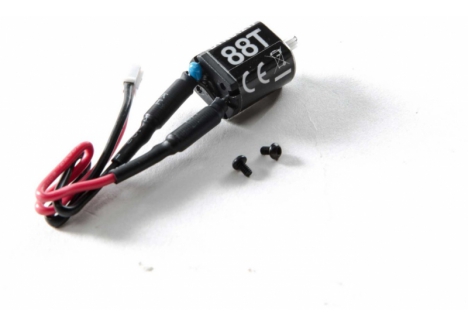

- Motor Type: Dynamite 88T 080-size brushed electric motor – torque-optimized for steep climbs
- Motor Mount: Steel – minimizes flex and protects drivetrain components
- Drive Shafts: Splined and sleeved – allows full suspension travel while maintaining power delivery

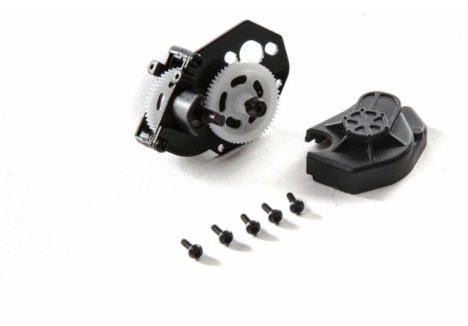

- Spur Gear: 55T – balanced for low-speed crawling precision
- Pinion Gear: 10T – matched for torque and control
Electronics and Control
- Radio System: Spektrum SLT2 2-channel 2.4GHz – includes throttle limiting and steering travel adjustment

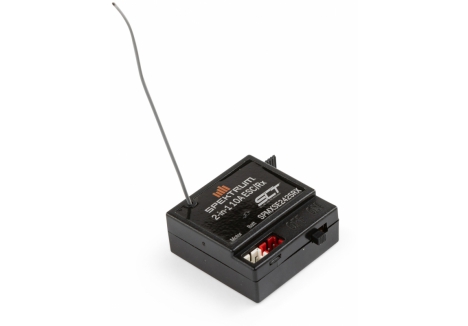

- Receiver: Integrated with ESC – compact and waterproof for simplified installation
- Speed Control: Included – forward/reverse operation with integrated braking
- Steering Type: 2WS – two-wheel steering for precise directional control

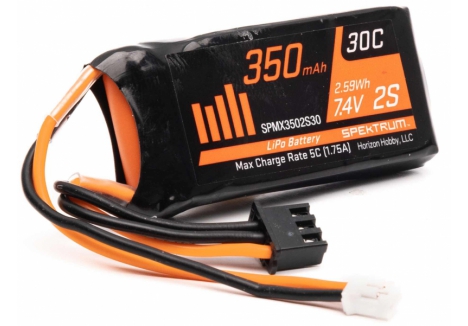

- Battery Type: Spektrum 350mAh LiPo – compact and efficient for extended runtime
- Battery Connector: PH 2.0 (High-Current Ultra Micro) – secure and high-efficiency connection

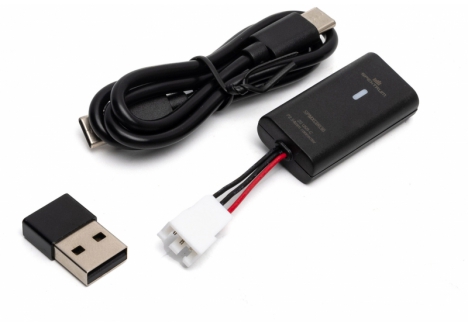

- Charger Type: USB – convenient and portable charging solution
Wheels, Tires and Lighting

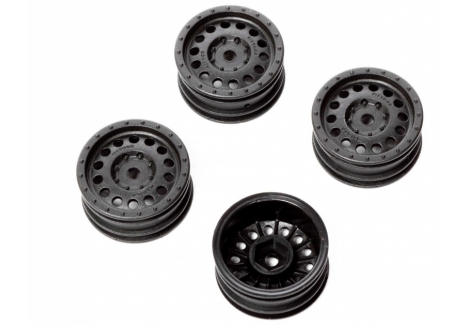

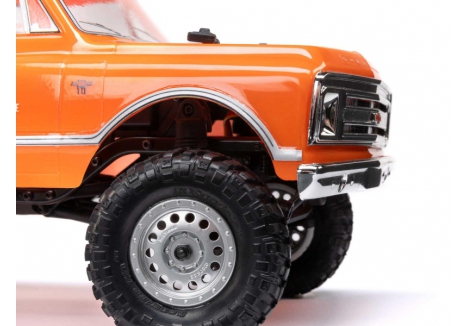

- Wheel Type: Licensed Method MR307 Hole wheels – scale replica design for authentic appearance
- Wheel Width: 1.24 cm – narrow profile for realistic crawling dynamics

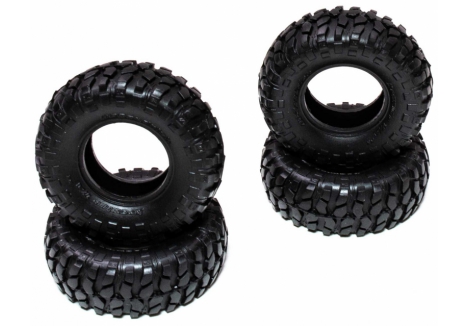

- Tire Type: Licensed BFGoodrich Krawler T/A KX – aggressive tread pattern for superior grip
- Tire Outer Diameter: 4.8 cm – sized for scale realism and obstacle clearance

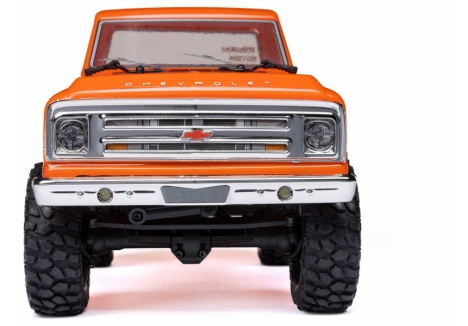

- LED Lights: Two front bumper-mounted LEDs – improves visibility in low-light conditions
- Additional LED Port: Available on ESC – supports optional lighting upgrades
What’s in the Box
- Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR
- Assembled SCX24 chassis, drivetrain, and suspension
- Spektrum SLT2 2.4GHz radio system
- Spektrum 350mAh LiPo battery
- USB charger
- Four AA transmitter batteries
- Product manual
What You Will Need
- Absolutely nothing – fully equipped and ready-to-run straight out of the box
Warranty
- 1 Year Manufacturer Warranty – covers defects in materials and workmanship
