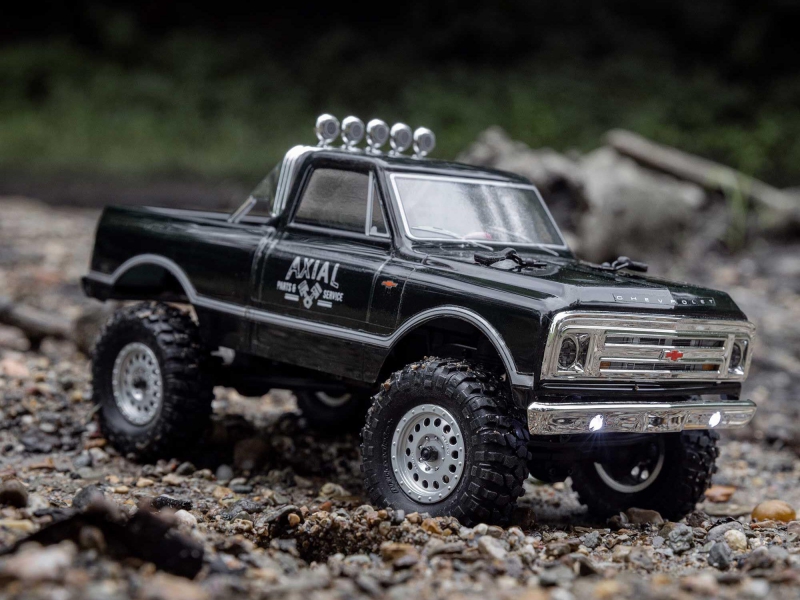

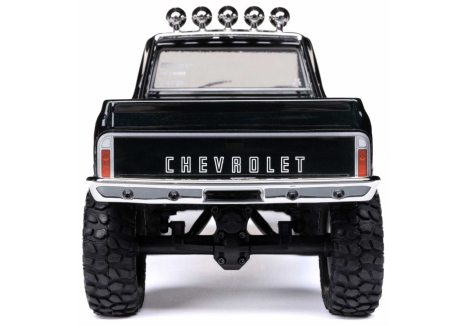

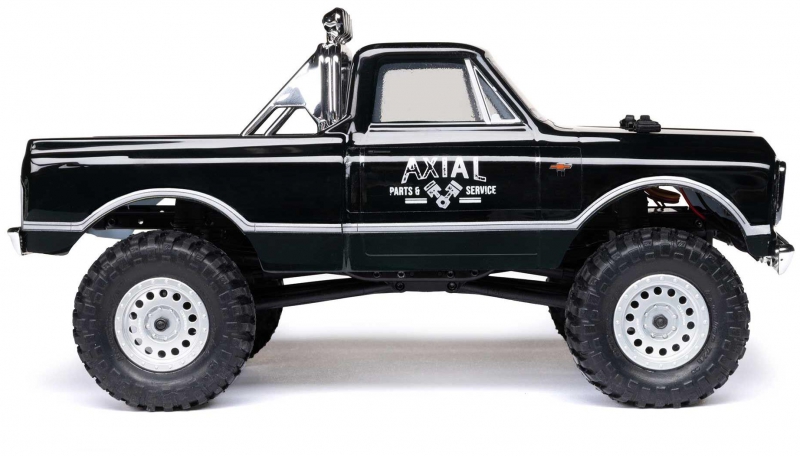

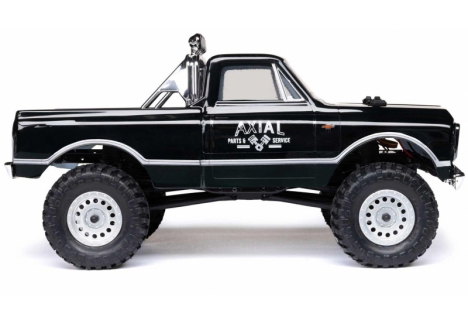

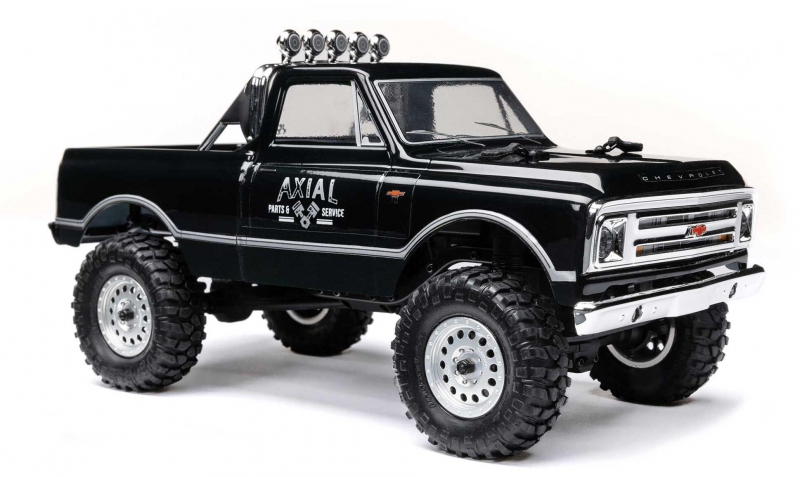

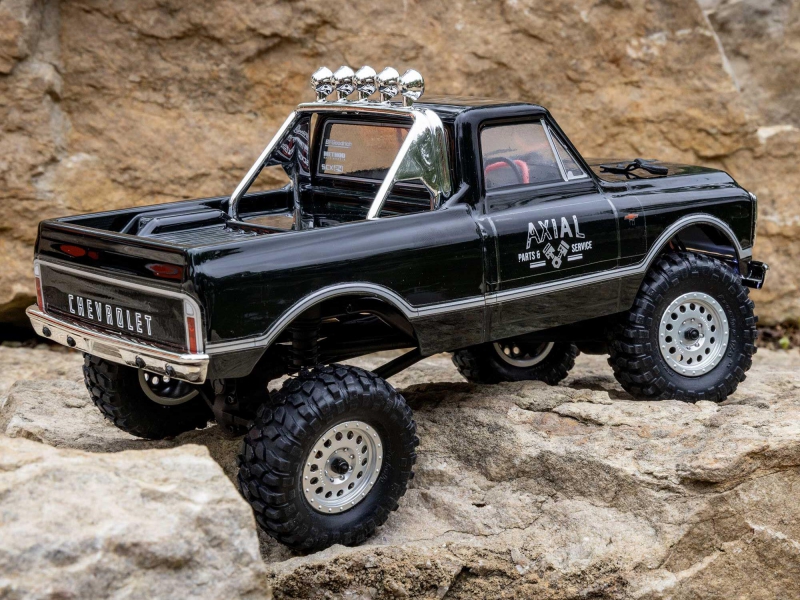

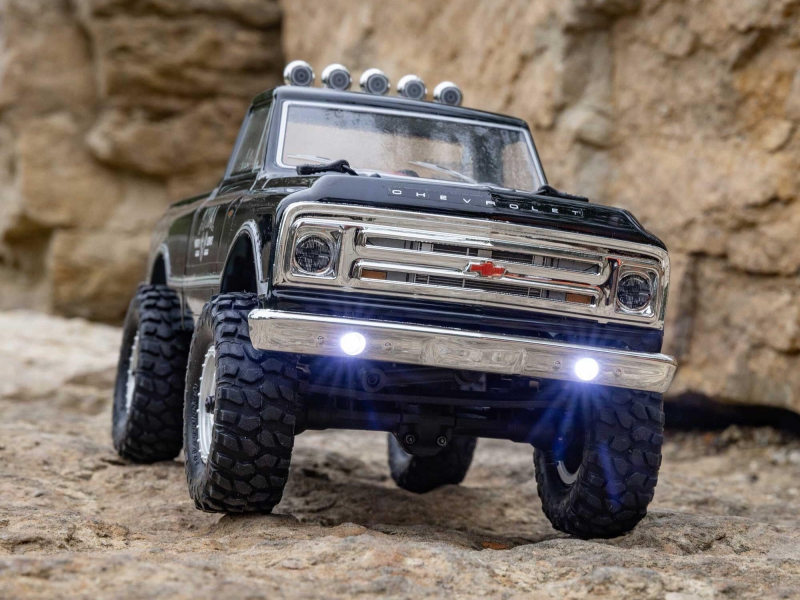

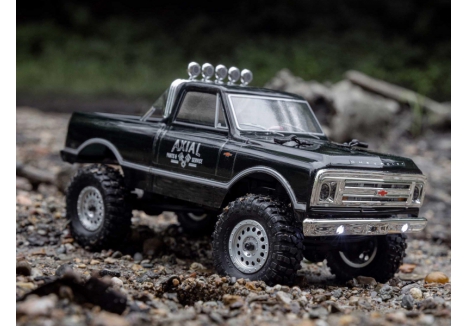

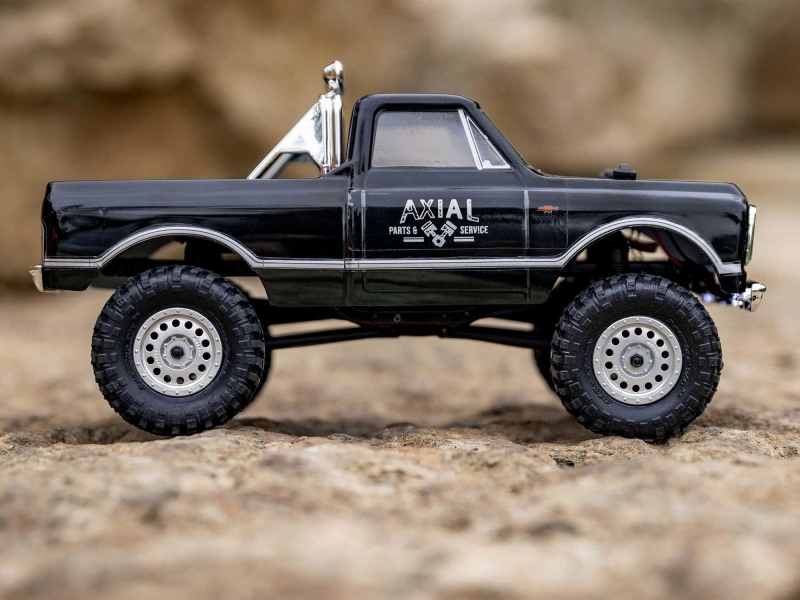

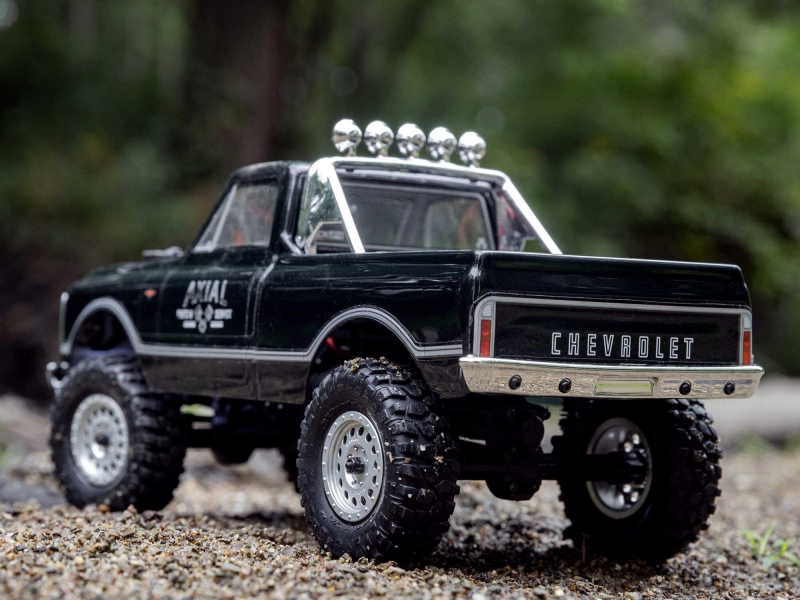

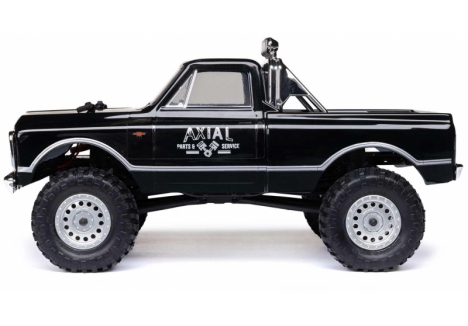

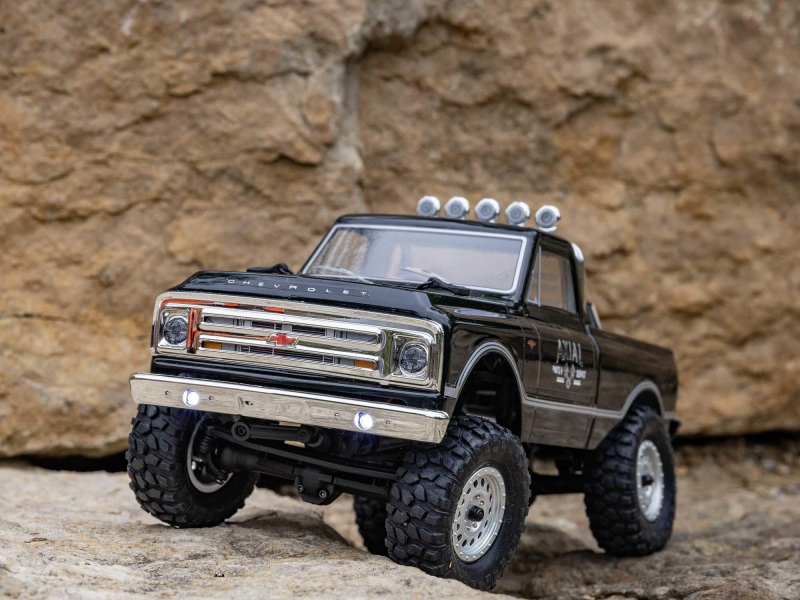

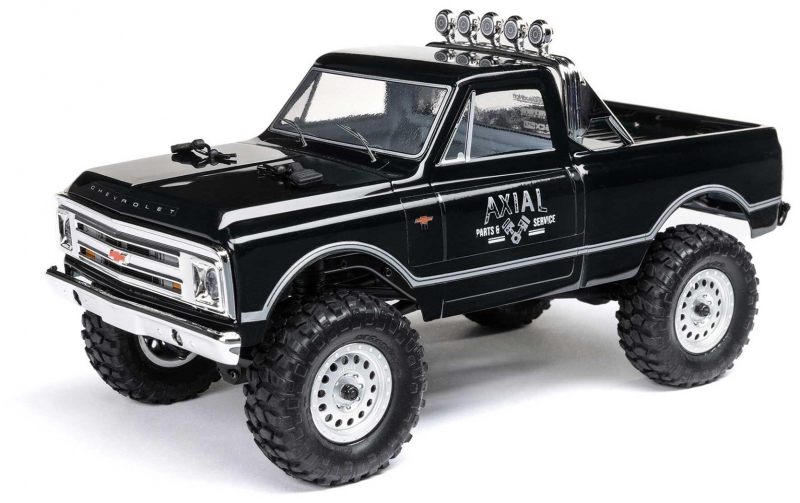

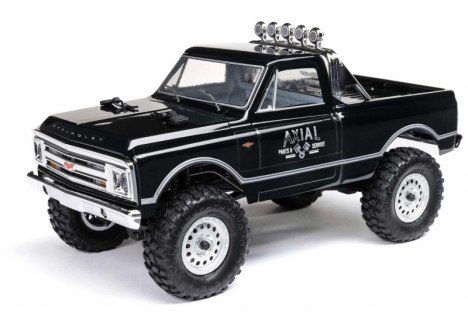

AXIAL 1/24 SCX24 1967 Chevrolet C10 4WD Rock Crawler RTR Black C-AXI00001V2T4

Name: AXIAL 1/24 SCX24 1967 Chevrolet C10 4WD Rock Crawler RTR Black C-AXI00001V2T4
Brand: Axial
Price: 123.99 GBP
Availability: InStock

Model No: C-AXI00001V2T4

£123.99

Inc VAT & delivery

ONP:

£139.99

You Save:

£16.00

Quantity:

Delivery:

Dispatched Within 3 Working Days

We Accept

Price Match

If you find this product cheaper elsewhere we will check if we can match or beat the price

In Stock With Supplier

Delivery Included

1 Year Warranty

Product Details

The performance and value of the SCX24 1967 Chevrolet C10 are better than ever before! Oil-filled shocks, Spektrum electronics, and new body colours have been added for a classic style RC rig that's completely ready-to-run and sized to run anywhere.

Key Features

Detailed 1967 Chevrolet C10 polycarbonate body in two fresh colour options
Plush oil-filled shocks
Realistic steel frame rails for added strength
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery and USB charger

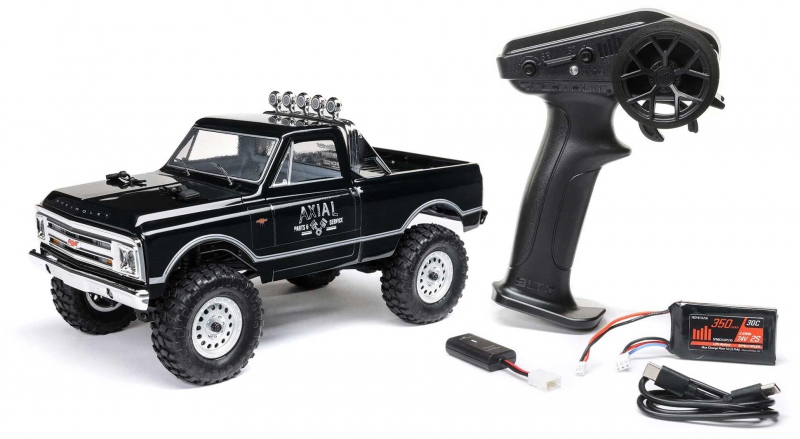

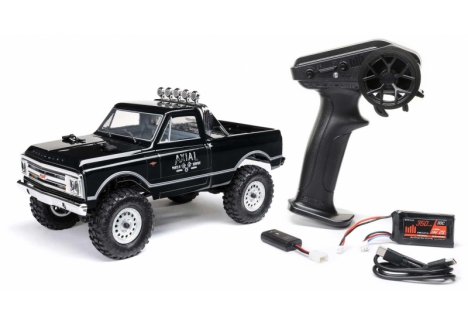

In The Box

Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR with:
Assembled SCX24 chassis, drivetrain, and suspension
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery and USB charger
(4) AA transmitter batteries
Product manual

Needed to Complete

Absolutely nothing!

Overview

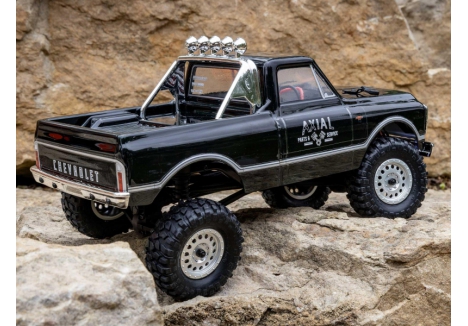

Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial^® micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 original's classic styling but also delivers exceptional value in an RC rig - value that's better than ever in this updated version.

Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colours to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.

The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.

The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tyres that tackle on-road and off-road challenges with ease.

Inside the box, in addition to the assembled and finished rig, you'll find a Spektrum SLT2 2.4GHz transmitter, 350mAh LiPo battery, and handy USB charger. Four AA batteries are also included for the transmitter. Unleash big crawling adventures with the updated Axial SCX24 1967 Chevrolet C10!

Features

Detailed 1967 Chevrolet C10 polycarbonate body in two fresh colour options
Plush oil-filled shocks
Realistic steel frame rails for added strength
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery and USB charger
Two LED lights in the front bumper

080-size brushed motor
True, full-time 4-wheel drive
Metal worm drive gear on front and rear axles
3-Link front and 4-link rear suspension
Fully equipped and ready-to-run
Licensed wheels modelled after 1:1 Method Wheels
Licensed tyres modelled after 1:1 BFGoodrich Tyres

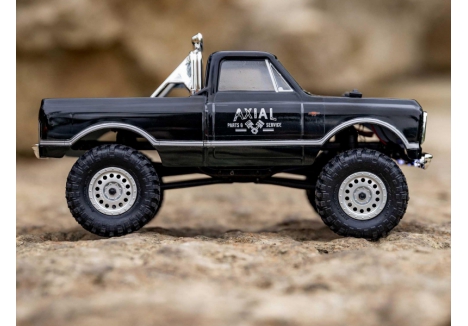

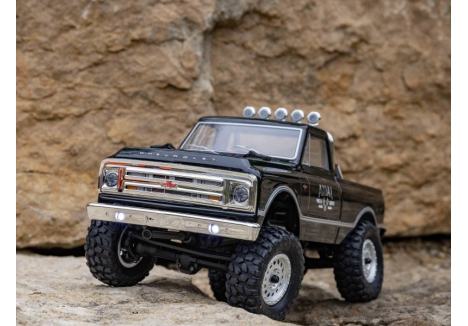

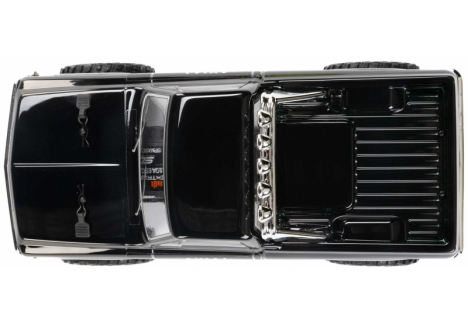

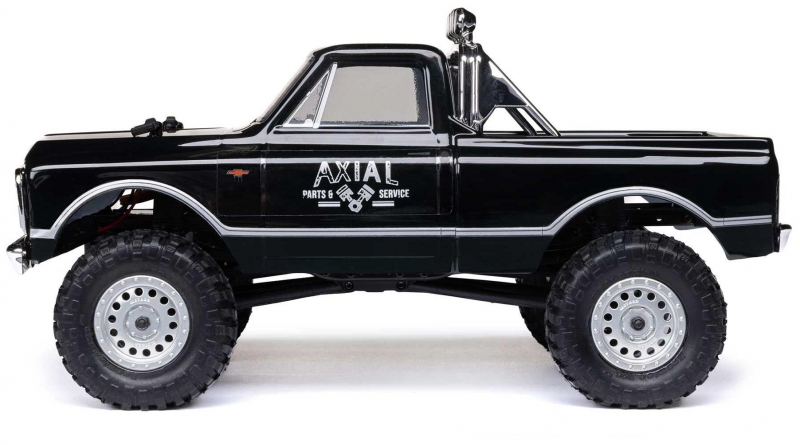

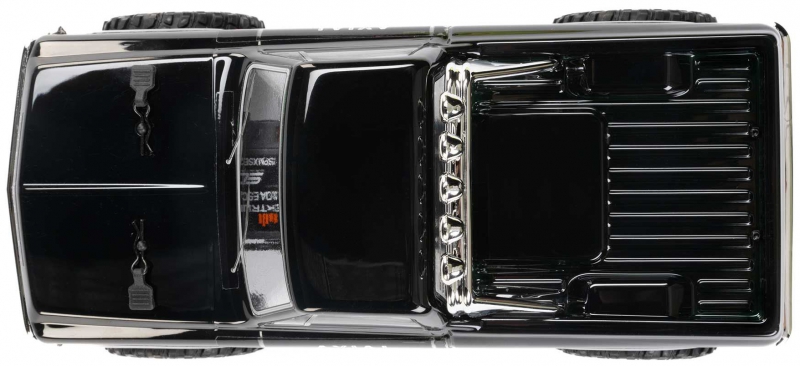

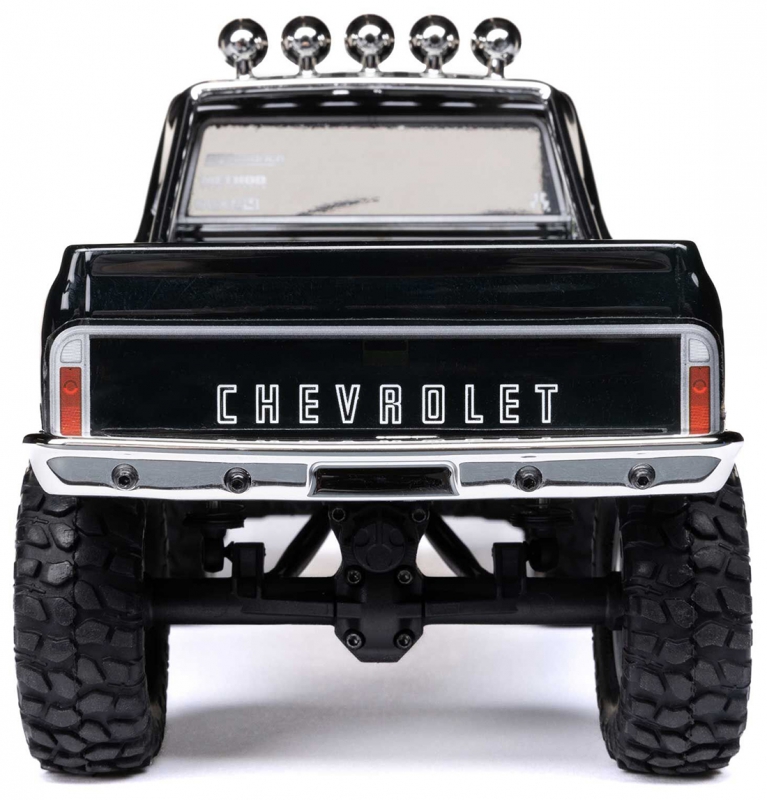

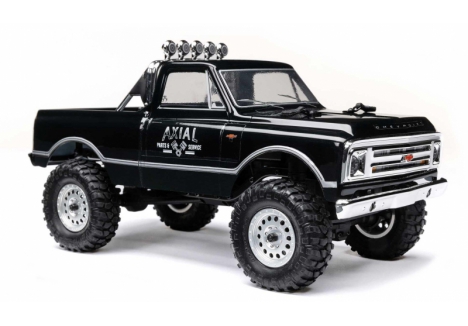

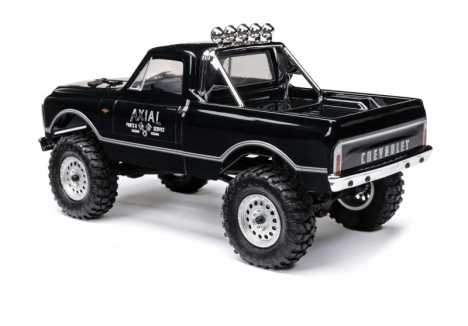

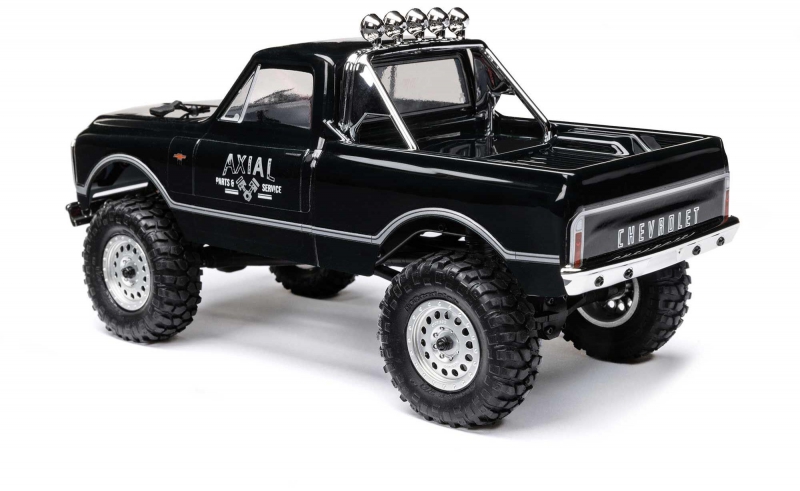

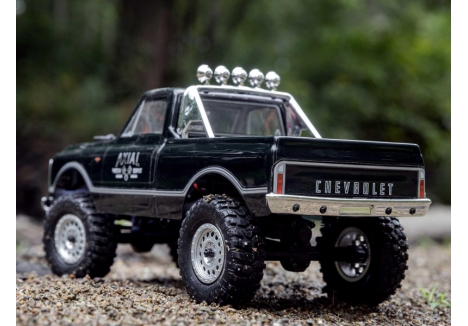

1967 CHEVROLET C10 BODY

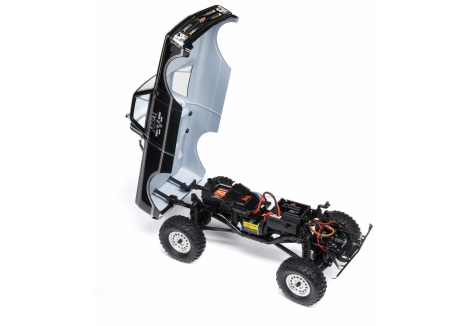

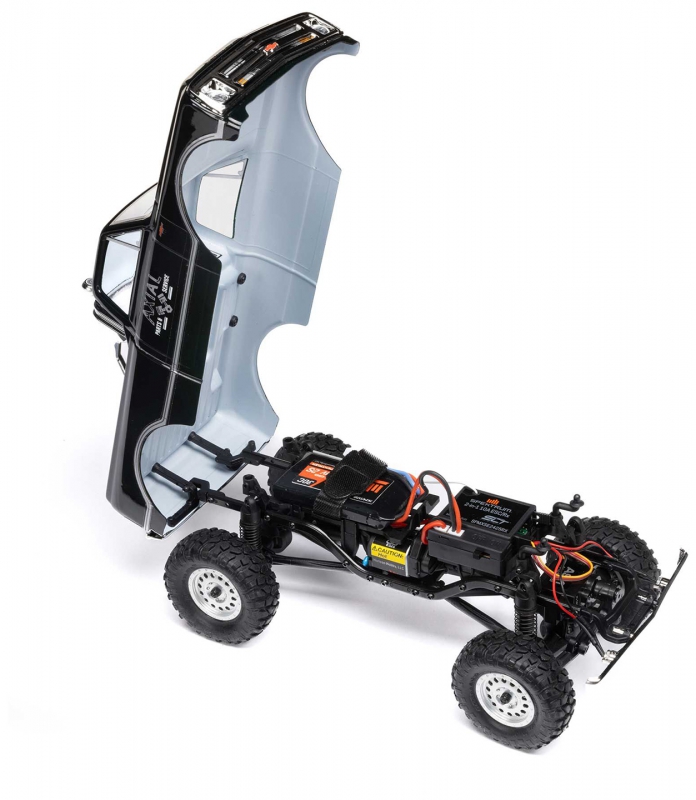

The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new colour options. For quick battery access, just remove two clips to tilt back the body.

WORM GEARS

The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.

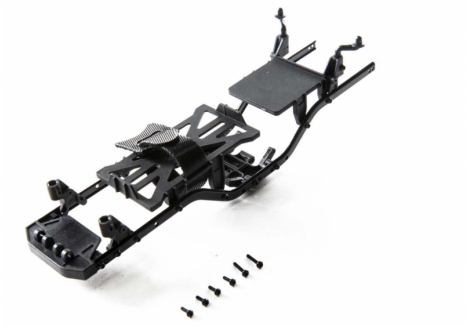

STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.

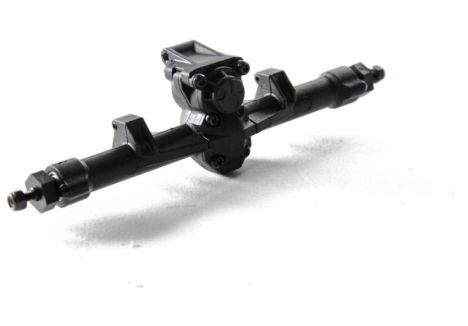

FRONT AND REAR SOLID AXLE HOUSINGS

The front and rear axles consist of a two piece, moulded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.

4-LINK REAR SUSPENSION

The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.

OIL-FILLED SHOCKS

Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.

DURABLE STEEL AXLES

Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.

SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

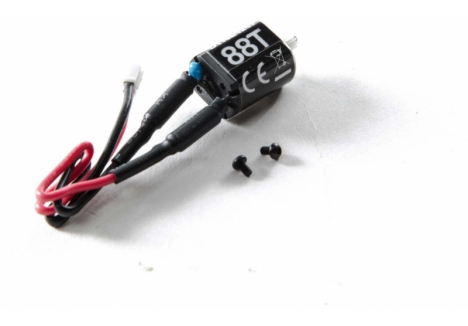

DYNAMITE BRUSHED MOTOR

The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.

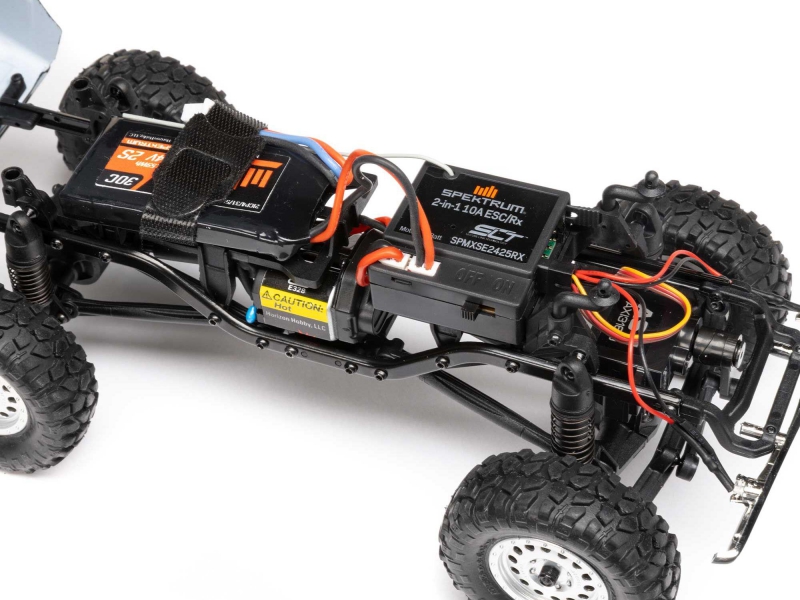

SPEKTRUM SLT2 2.4GHz RADIO SYSTEM

The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.

FULL BALL BEARINGS

Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entyre vehicle.

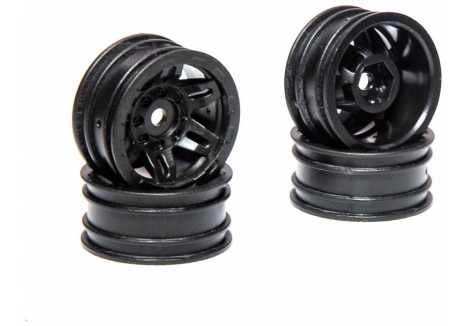

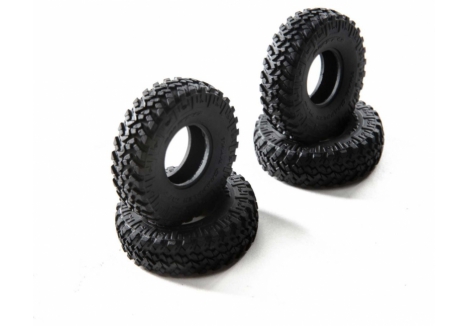

METHOD MR307 HOLE WHEELS & BFGOODRICH<sup>®</sup> KRAWLER<sup>™</sup> T/A<sup>®</sup> KX TYRES

METHOD MR307 HOLE WHEELS & BFGOODRICH^® KRAWLER^™ T/A^® KX TYRES

The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler^™ T/A^® KX tyres have won more rock-crawling championships than all other tyres combined. The Axial version captures the same aggressive look in 1/24 scale.

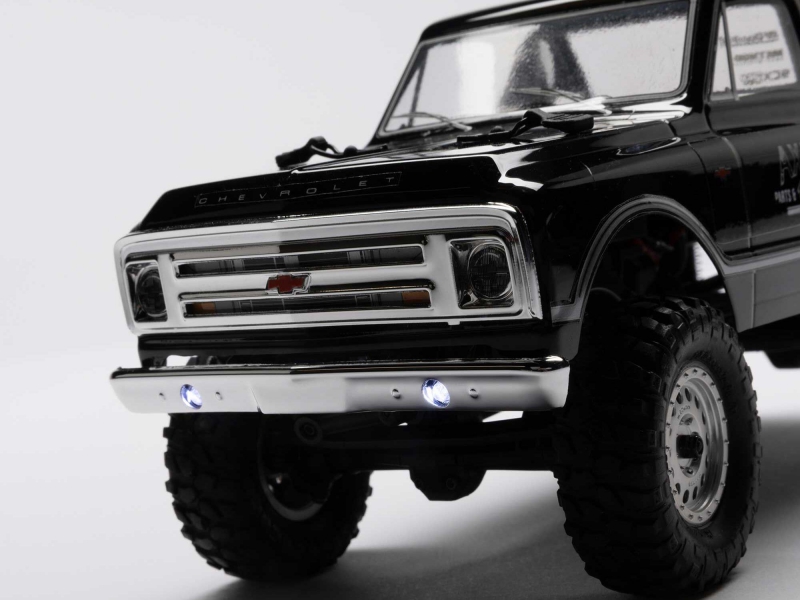

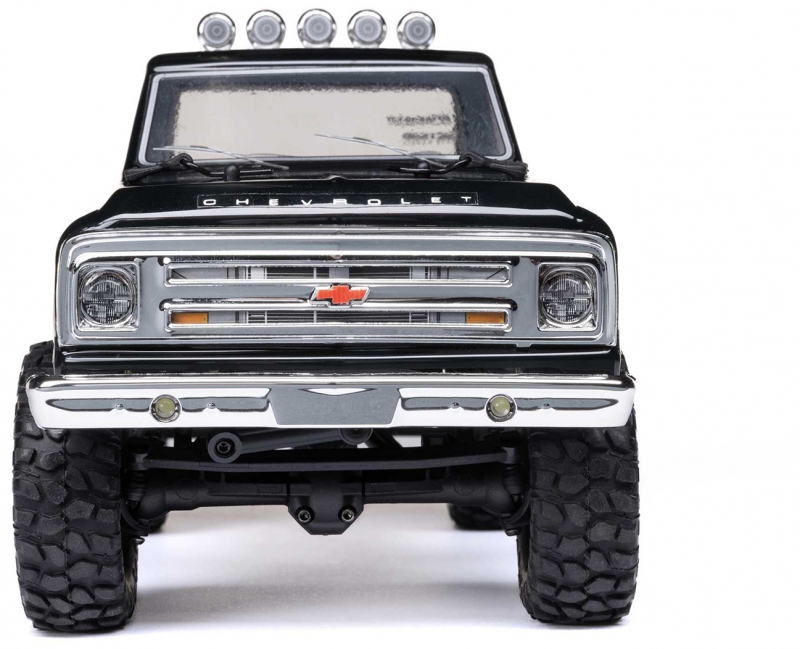

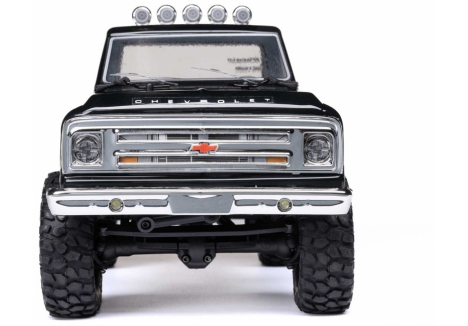

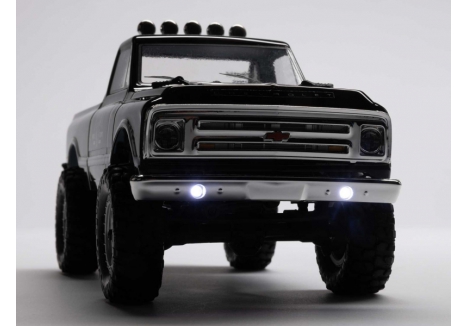

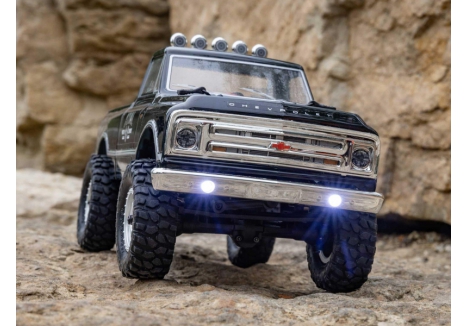

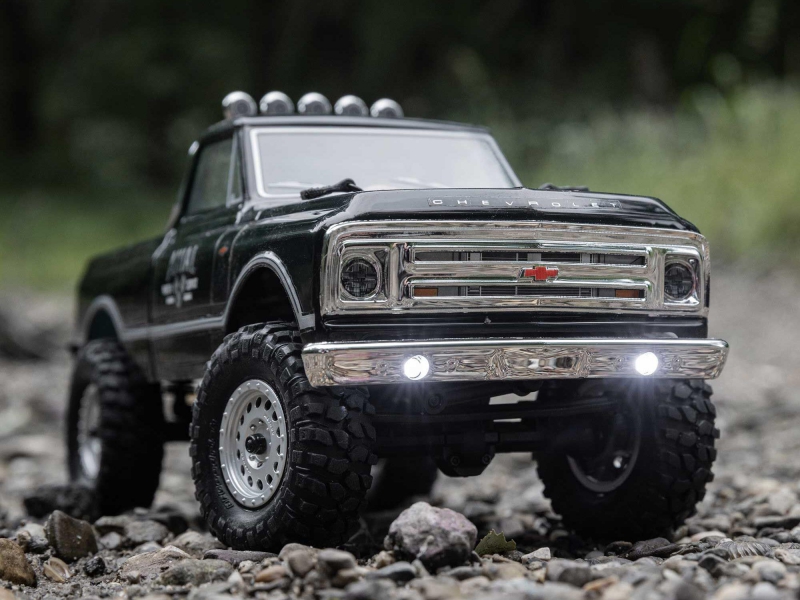

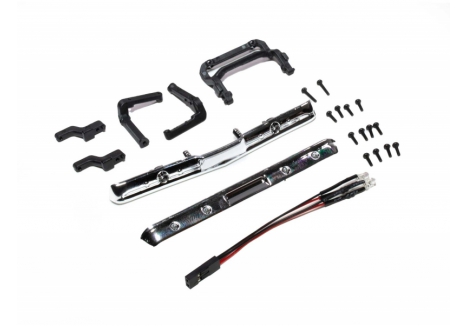

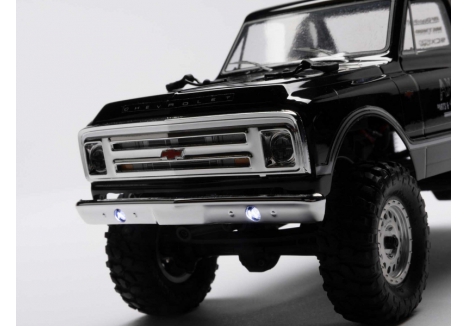

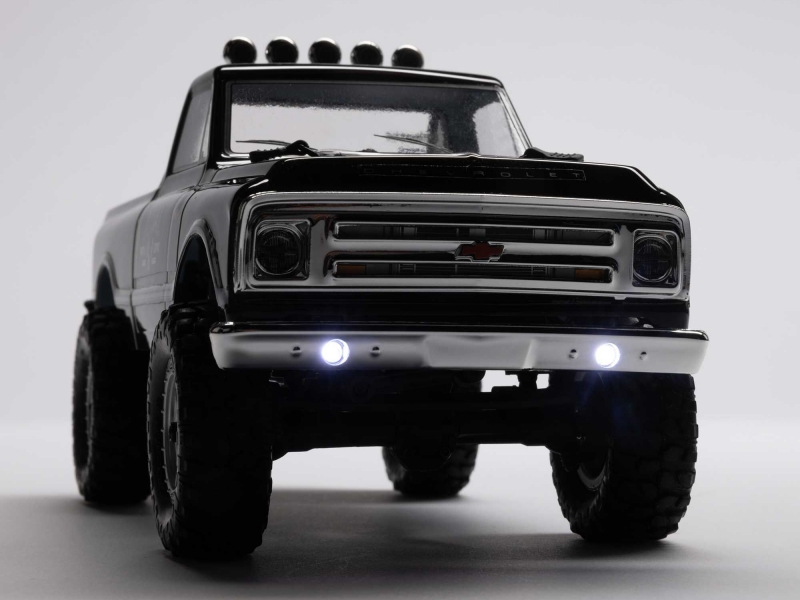

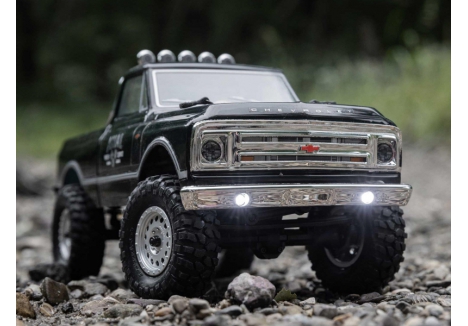

LED LIGHTS INCLUDED

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.

Â©2024 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, SCX24, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. General Motors Trademarks are used under license to Horizon Hobby, LLC. BFGoodrich and the BFGoodrich logo are trademarks of Michelin Lifestyle Limited, used under license. Method Race Wheels and associated logos are property of Method Race Wheels, used under license. All other trademarks, service marks and logos are property of their respective owners.

NOTE: Prototype shown. Some imagery may differ from the actual product.

Brand, Model and Product Type

Brand: Axial
Model: C-AXI00001V2T4
Product Type: Axial SCX24 C-AXI00001V2T4, Axial SCX24 black Chevy C10 rock crawler RTR, Axial SCX24 black C10 with oil-filled shocks and steel frame rails, Axial SCX24 black crawler with Spektrum SLT2 radio and 350mAh LiPo, Axial SCX24 black Chevy C10 4WD RTR crawler with battery and charger, Axial 1/24 black Chevy C10 with worm gear axles and LED bumper lights

Dimensions

Product Length: 21.8 cm – compact size ideal for indoor crawling and portable outdoor use
Product Width: 9.9 cm – wide enough for stable maneuvering across uneven terrain
Product Height: 9.1 cm – low-profile build supports balance and scale realism
Wheelbase: 13.2 cm – optimized for articulation and obstacle clearance
Ground Clearance: 2.7 cm – elevated chassis aided by worm gear axles for improved terrain handling
Product Weight: 0.22 kg – lightweight for responsive control and efficient power usage

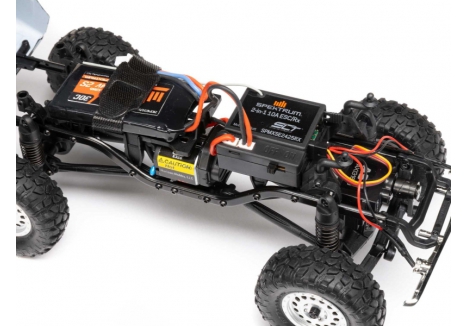

Chassis and Suspension

Chassis Type: Stamped steel C-channel frame rails – reinforced for durability and structural integrity
Suspension Setup: 3-link front and 4-link rear – geometry designed to reduce torque twist and axle steer
Shock Type: Coil-over oil-filled shocks – adjustable preload spacers for fine-tuned suspension response
Axle Design: Molded composite solid axle housings – rugged and lightweight for consistent performance

Drivetrain and Motor

Drive Type: 4WD – full-time four-wheel drive for maximum traction and crawling capability
Differential: Metal worm gear 16T/4T – increases ground clearance and provides strong drag brake control
Motor Type: Dynamite 88T 080-size brushed electric motor – torque-optimized for steep climbs
Motor Mount: Steel – minimizes flex and protects drivetrain components
Drive Shafts: Splined and sleeved – allows full suspension travel while maintaining power delivery
Spur Gear: 55T – balanced for low-speed crawling precision

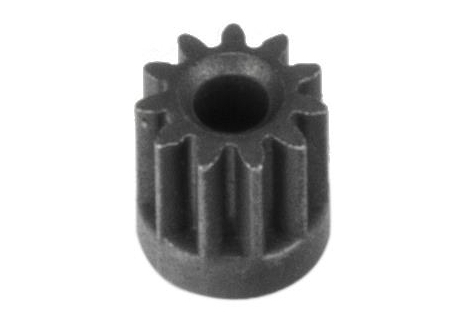

Pinion Gear: 10T – matched for torque and control

Electronics and Control

Radio System: Spektrum SLT2 2-channel 2.4GHz – includes throttle limiting and steering travel adjustment

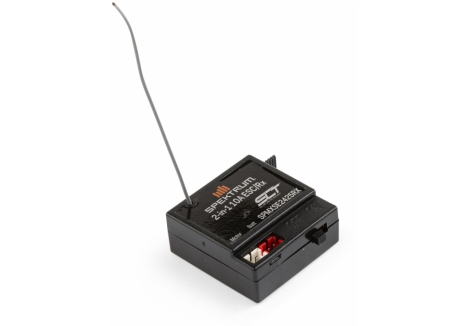

Receiver: Integrated with ESC – compact and waterproof for simplified installation
Speed Control: Included – forward/reverse operation with integrated braking
Steering Type: 2WS – two-wheel steering for precise directional control

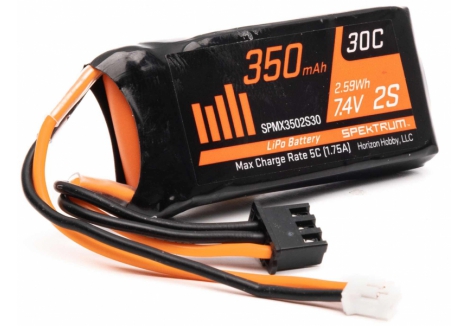

Battery Type: Spektrum 350mAh LiPo – compact and efficient for extended runtime
Battery Connector: PH 2.0 (High-Current Ultra Micro) – secure and high-efficiency connection
Charger Type: USB – convenient and portable charging solution

Wheels, Tires and Lighting

Wheel Type: Licensed Method MR307 Hole wheels – scale replica design for authentic appearance
Wheel Width: 1.24 cm – narrow profile for realistic crawling dynamics
Tire Type: Licensed BFGoodrich Krawler T/A KX – aggressive tread pattern for superior grip
Tire Outer Diameter: 4.8 cm – sized for scale realism and obstacle clearance
LED Lights: Two front bumper-mounted LEDs – improves visibility in low-light conditions
Additional LED Port: Available on ESC – supports optional lighting upgrades

What’s in the Box

Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR
Assembled SCX24 chassis, drivetrain, and suspension
Spektrum SLT2 2.4GHz radio system
Spektrum 350mAh LiPo battery
USB charger
Four AA transmitter batteries
Product manual

What You Will Need

Absolutely nothing – fully equipped and ready-to-run straight out of the box

Warranty

1 Year Manufacturer Warranty – covers defects in materials and workmanship

Parts Diagrams

Front Assembly

Rear Assembly

TransmissionAssembly

Chassis Assembly 1

Chassis Assembly 2

Bodyshell / Wheels & Tyres
