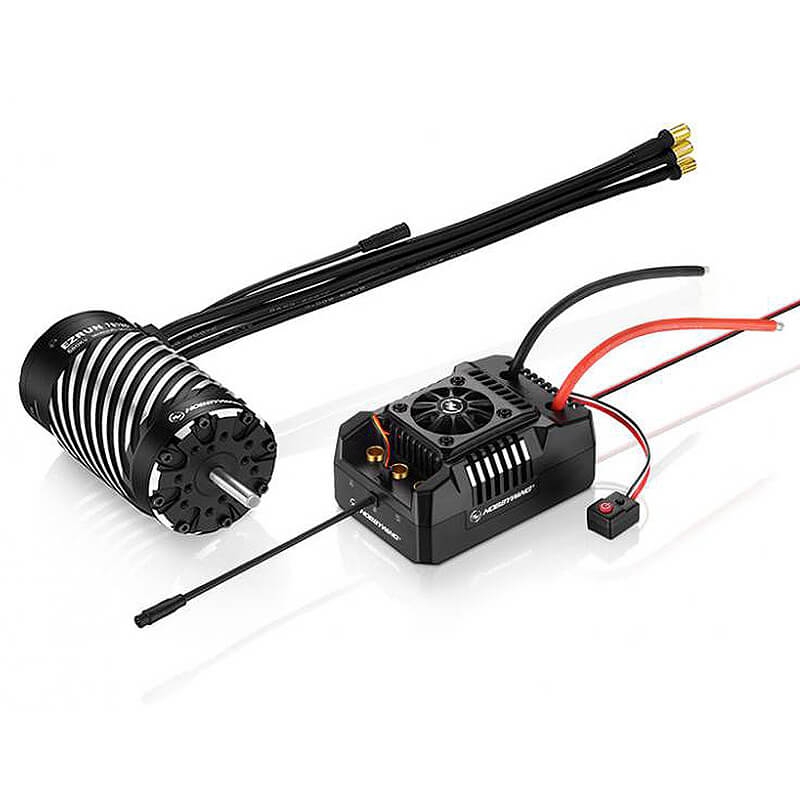

Hobbywing EZRun MAX4 HV ESC Combo With 70125/560Kv Motor HW38020369

The Hobbywing Ezrun MAX4 HV Combo 70125 SD 560kV HW38020369 is a high-power sensored brushless system designed for 1/4-scale and 1/5-scale large off-road models that demand torque, durability, and high current capability. This combo pairs the MAX4 HV 300A ESC with the 70125 SD sensored motor, tuned for rugged terrain, steep climbs, and heavy loads.

Key features of the HW38020369 combo

• 300A continuous / 2000A peak ESC – built to handle high loads without overheating
• Sensored 70125 SD motor rated at 560kV – smooth throttle control even under low RPM
• Adjustable BEC – switchable output between 6 V, 7.4 V, and 8.4 V with 10A constant and up to 25A peak
• Robust waterproof and dustproof design – rubber-covered components and sealed assemblies
• CNC aluminium housing, quality steel laminations, high torque magnets for efficiency and power
• Real-time telemetry and data recording, programmable via external modules or programming box

With dimensions ~125 × 85 × 61.7 mm and ESC weight ~775.4 g, this set is substantial. The motor is large: 70 mm diameter, 125 mm length, 8 mm shaft, weighing ~1,995 g. Ideal for large-scale trucks, buggies or desert rigs where raw power matters.

What applications suit this combo?

Best for 1/4 and 1/5 scale off-road, monster trucks, or ultra-large scale rock crawlers. If you need strong acceleration, large torque, or driving over rough ground, the MAX4 combo delivers.

For serious power and reliability, the Hobbywing HW38020369 MAX4 HV combo is built to outperform. Buy Hobbywing HW38020369 today and push what your large-scale rig can do.

Brand, Model & Product Type

• Brand: Hobbywing
• Model: Ezrun MAX4 HV Combo 70125 SD 560kV HW38020369
• Product Type: Sensored Brushless ESC + Motor Combo for 1/4-1/5 Scale Off-Road / Heavy Duty Use

ESC Specifications

• Continuous current rating: 300 A
• Peak current rating: 2000 A
• Supported LiPo cells: 6-12S input for ESC
• BEC output: Adjustable 6V / 7.4V / 8.4V, 10A continuous, up to 25A peak
• Waterproof / dustproof design (rubber seals / covered connections)

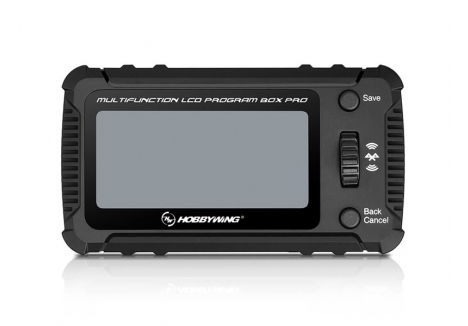

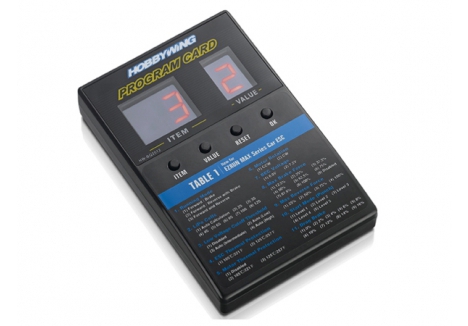

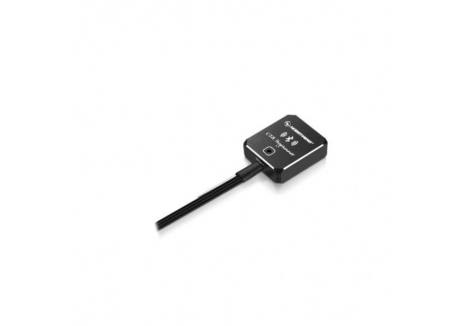

• Programming options: LED programming box, OTA Bluetooth module, LCD program box

Motor Specifications

• Motor model: 70125 SD sensored motor
• KV rating: 560 kV
• No-load current: ≈ 3.6 A
• Supported LiPo cell count: 8-12S for motor use
• Diameter: 70 mm
• Length: 125 mm
• Shaft Diameter: 8 mm
• Shaft Length: 30 mm
• Pole count: 4 poles

Physical & Build Details

• ESC dimensions: 125 × 85 × 61.7 mm
• ESC weight: approximately 775.4 g
• Motor weight: approximately 1,995 g

Features & Additional Info

• CNC-milled aluminium for heat dissipation and structural strength
• High-torque NdFeB magnets for stable power output
• Real-time data recording and telemetry support
• Compatible with large scale off-road / monster truck applications

Power Requirements & Conditions

• Recommended battery: high quality 8-12S LiPo to fully unlock power
• Note: switching between BEC voltages depending on servo load / auxiliary systems

Warranty / Guarantee

• Warranty: 1-Year Manufacturer Guarantee (depending on retailer policy)
