In Stock
Delivery Included
1 Year Warranty
Experience the features normally associated with larger 1/10 scale crawlers with the latest, EVO spec 1/18th Outback XP from FTX.
Small scale doesn’t mean less features and the EVO is no exception, boasting a servo operated 2-speed transmission for high and low speed crawling. A new final drive ratio provides the EVO with super slow crawling performance coupled with a new 130 size 100T motor for maximum torque. Switch to second gear for more straight-line speed when on flat ground. Full internal metal gears mean you can consider a future larger motor size upgrade, such as 180, 240 or 270 without losing sleep. The transmissions reverse rotation of the rear driveshaft also helps to minimise chassis torque twist.
Weight bias is redesigned to increase crawling performance with weight further forward and lower. Of course, front and rear portal axles provide super clearance over obstacles.
Choose from three super detailed 1.2mm thick painted lexan bodies; Rock Van, Texan pick up or Unitrak utility vehicle, all featuring moulded scale accessories and LED lights.
When it comes to small scale crawling, it doesn’t get much better than an FTX Outback Mini XP EVO!
FEATURES

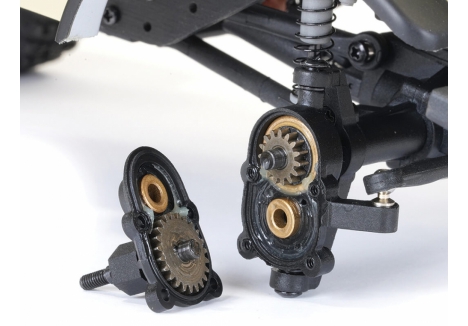

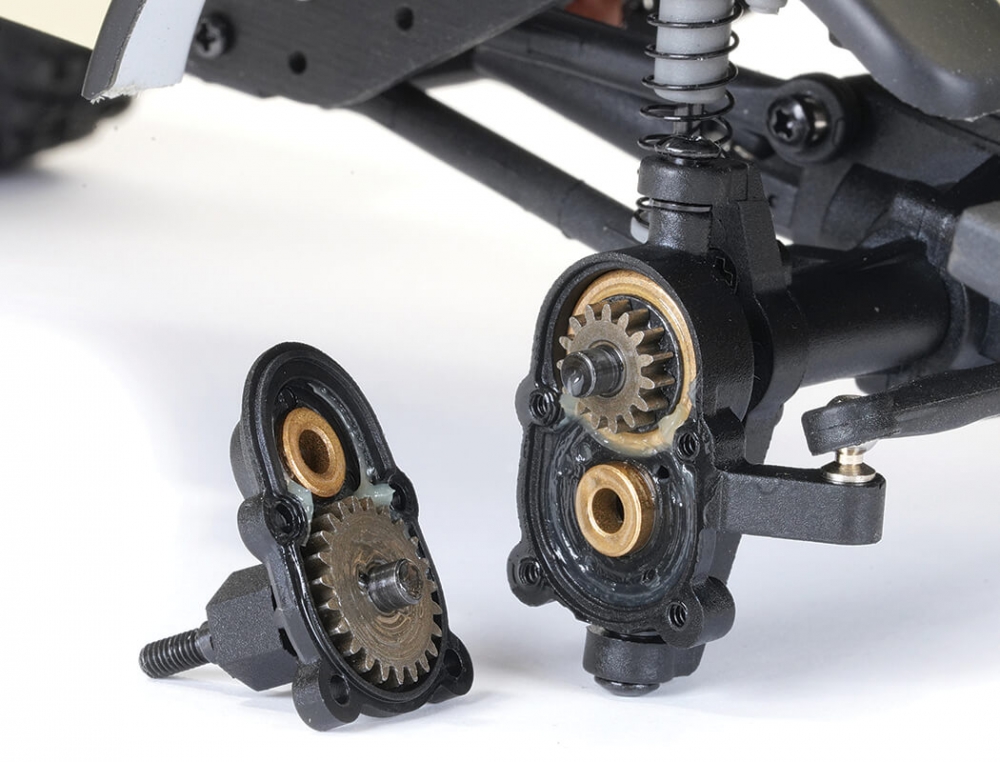

- Front and Rear High Clearance Portal Axles

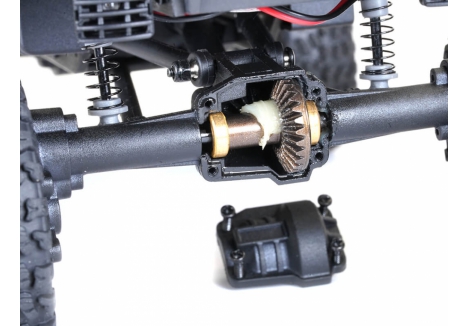

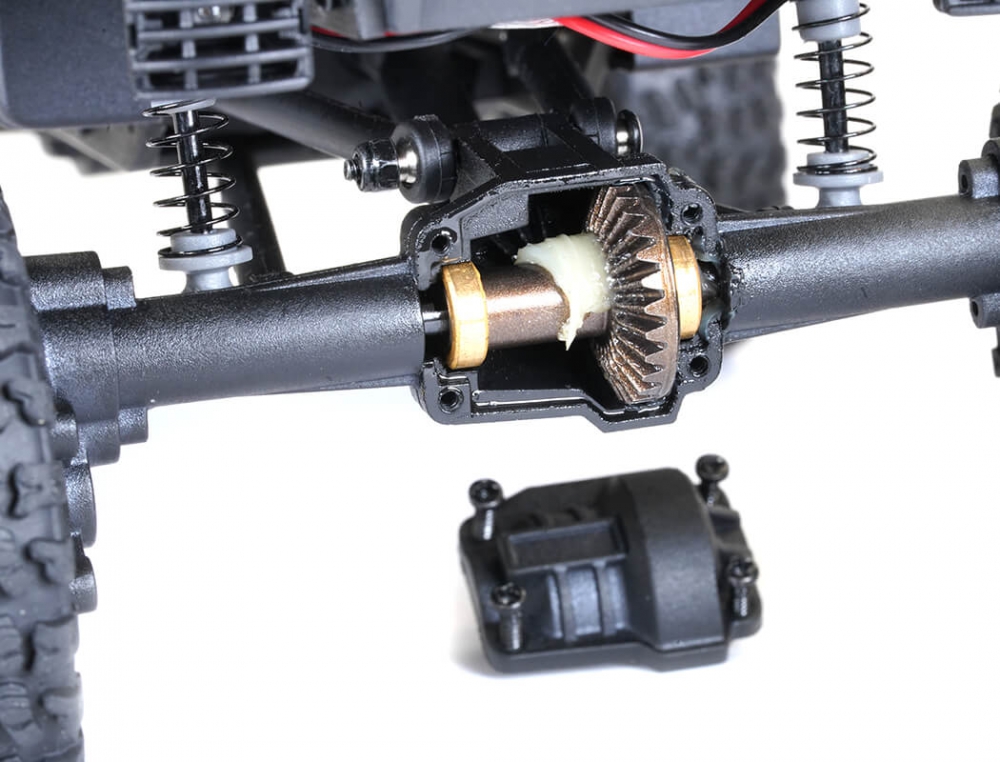

- Heavy duty metal gears in front and rear axles
- 2-Speed Transmission Gearbox w/Metal Gears
- Clipless body mounting on Van and Unitrack
- New 4 channel ESC/RX with super smooth low speed throttle response
- Full function light system controlled by TX (body types may differ)
- Oversize internal bead lock wheel (1.2”)
- Oversize All Terrain tyre (1.2”)
- Oversize 130 Brushed Motor
- Chassis mounted servo with panhard bar
- LCG Weight Bias with Front Mounted Motor
- High torque transmission (FDR: 1st Gear 98:1, 2nd Gear 24.5:1)
- PPX 4 standard water-resistant electronics
- Aluminum rail chassis
- 1.2mm thick painted lexan body w/clear windows
- Tight turning radius of 80cm
- Large steering angle up to 45 degrees
- Extended run times of up to 45 minutes
- 7.4V 2S 600 mAh Li-Po battery & USB Charger
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5483MY
- Product Type: FTX FTX5483MY, FTX Outback Mini XP Evo Van, FTX FTX5483MY brushed 4WD Van crawler with portal axles and 2-speed gearbox, FTX FTX5483MY Van trail truck with aluminium chassis and LED light system, FTX Outback Evo Van with high torque transmission and clipless body mount FTX5483MY, FTX 1/18 Van crawler with panhard bar steering and bead lock wheels FTX5483MY
Dimensions
- Body Thickness: 0.12 cm painted lexan shell with clear windows and moulded scale accessories
- Tyre Diameter: 3.05 cm oversized all-terrain tyres for improved grip and trail performance
- Wheel Diameter: 3.05 cm internal bead lock wheels for secure tyre fitment and consistent traction
- Turning Radius: Tight 80 cm turning radius enables agile manoeuvring in confined trail environments
- Steering Angle: Up to 45 degrees for precision control and responsive handling
Chassis and Drivetrain

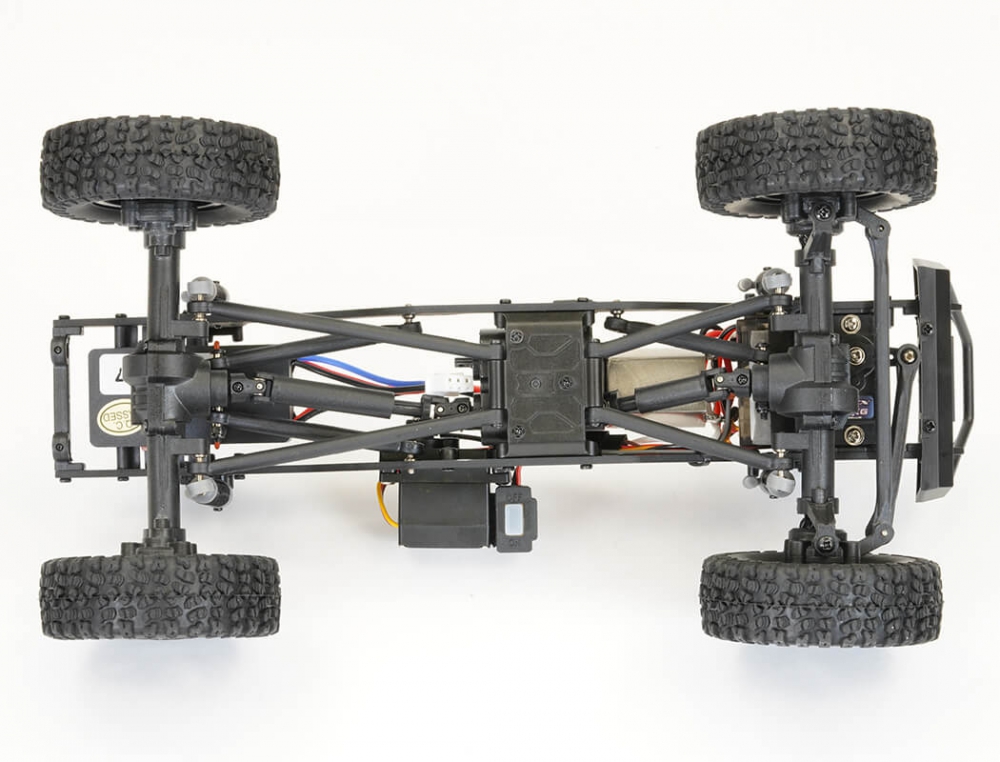

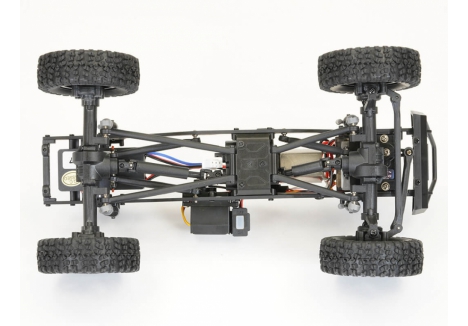

- Chassis Type: Aluminium rail chassis provides structural rigidity and low centre of gravity for stable crawling

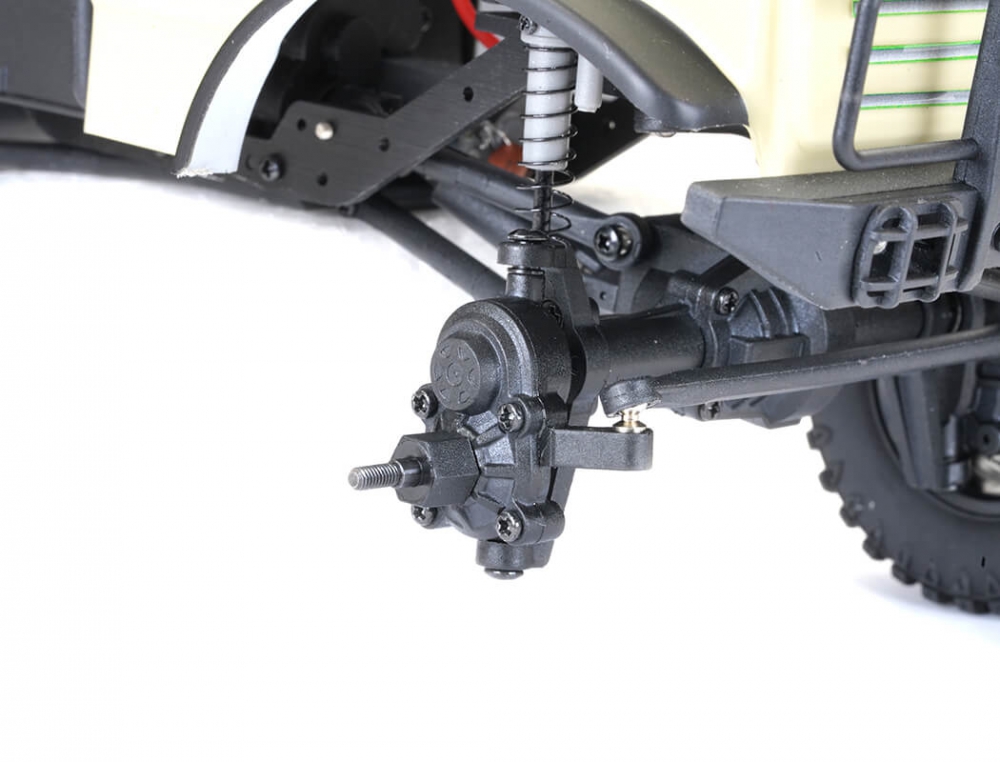

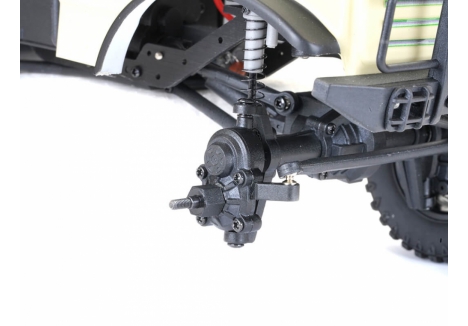

- Axle Configuration: Front and rear high-clearance portal axles improve approach angles and terrain capability
- Gearbox: Servo-operated 2-speed transmission with metal gears for switchable torque and speed modes
- Final Drive Ratios: 1st Gear – 98:1 for slow crawling; 2nd Gear – 24.5:1 for faster flat-ground driving
- Driveshaft Rotation: Reverse rear driveshaft rotation reduces chassis torque twist during acceleration
- Transmission Type: High torque transmission optimised for low-speed control and obstacle negotiation
Motor and Electronics
- Motor Type: Oversized 130 brushed motor (100T) delivers maximum torque and extended runtime
- ESC/RX: New 4-channel ESC/RX system with smooth low-speed throttle response for precise crawling
- Electronic Protection: PPX 4 standard water-resistant electronics ensure reliable operation in damp conditions
- Battery: 7.4V 2S 600mAh Li-Po battery supports up to 45 minutes of continuous trail use
- Charging: USB charger included for convenient power replenishment
Body and Mounting

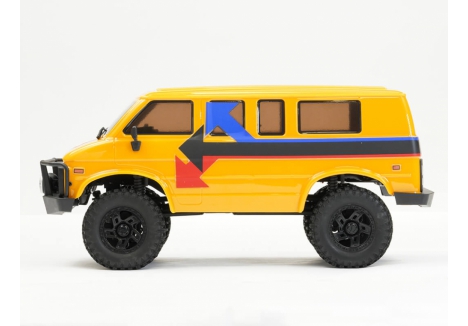

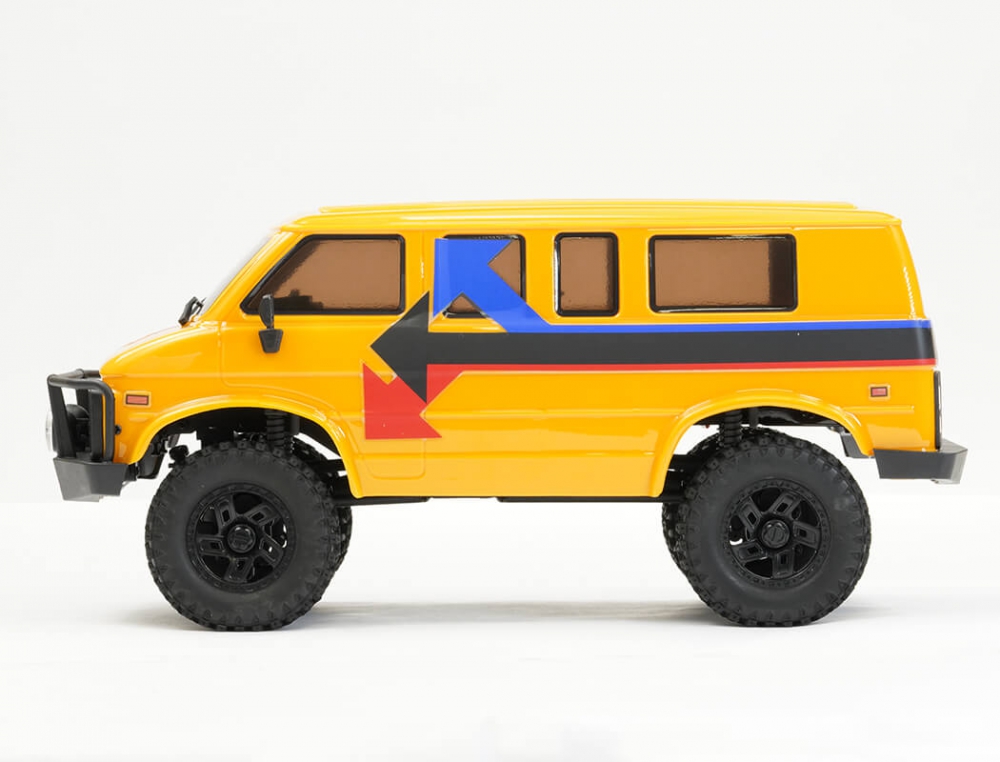

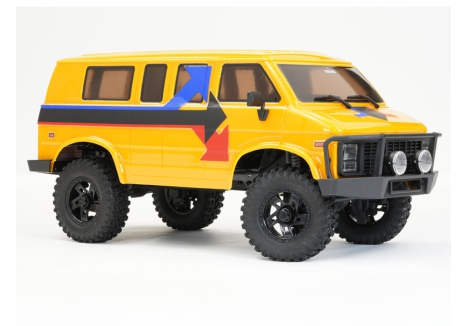

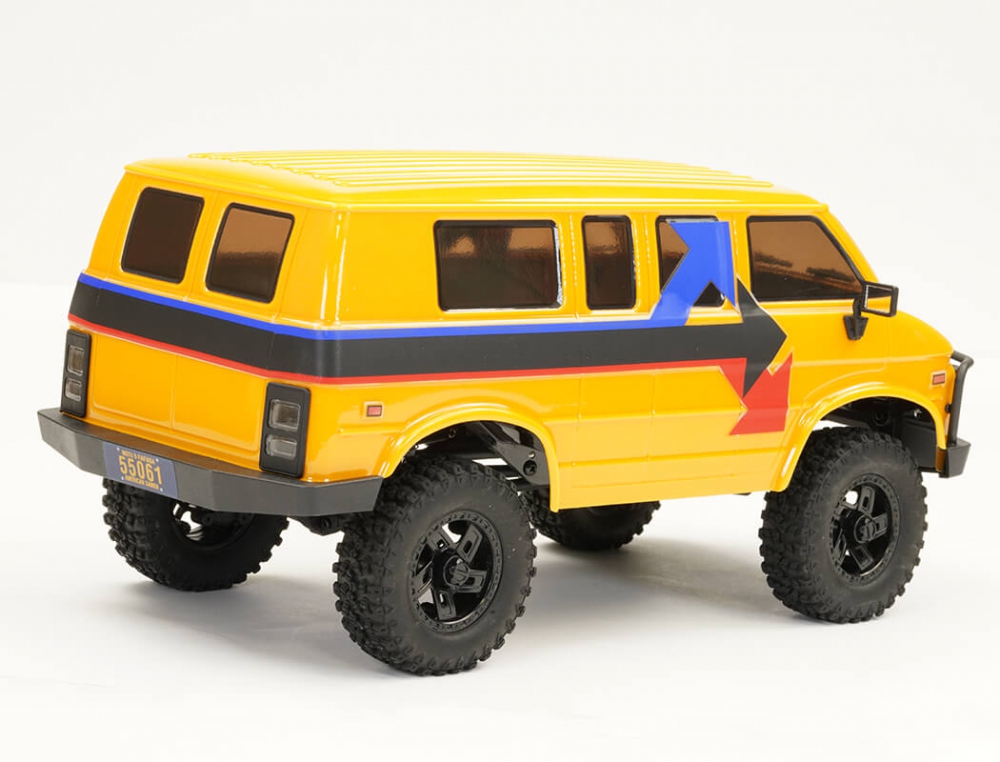

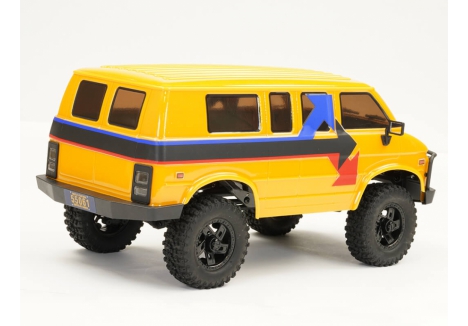

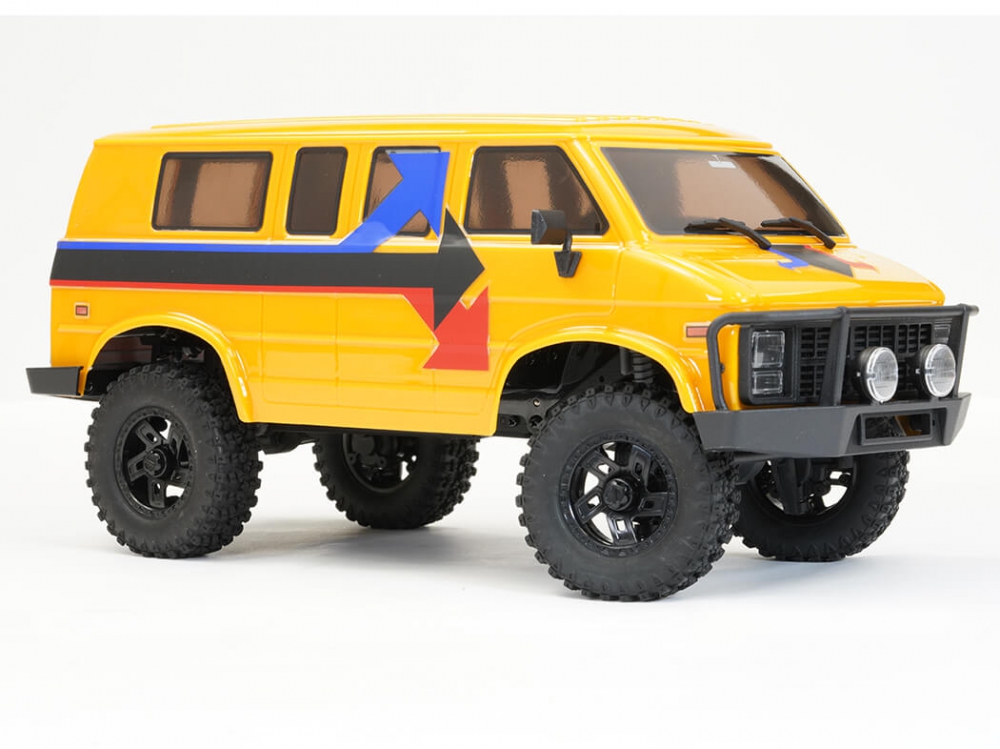

- Body Style: 1.2mm thick painted lexan Van body in mustard yellow with moulded scale accessories and clear windows
- Mounting System: Clipless body mounting for fast access and secure fitment without body pins
Steering and Suspension
- Steering System: Chassis-mounted servo with panhard bar for reduced bump steer and accurate control
Lighting and Visuals

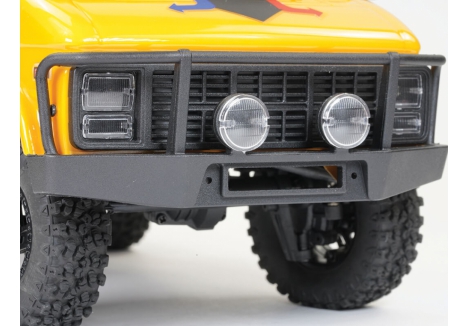

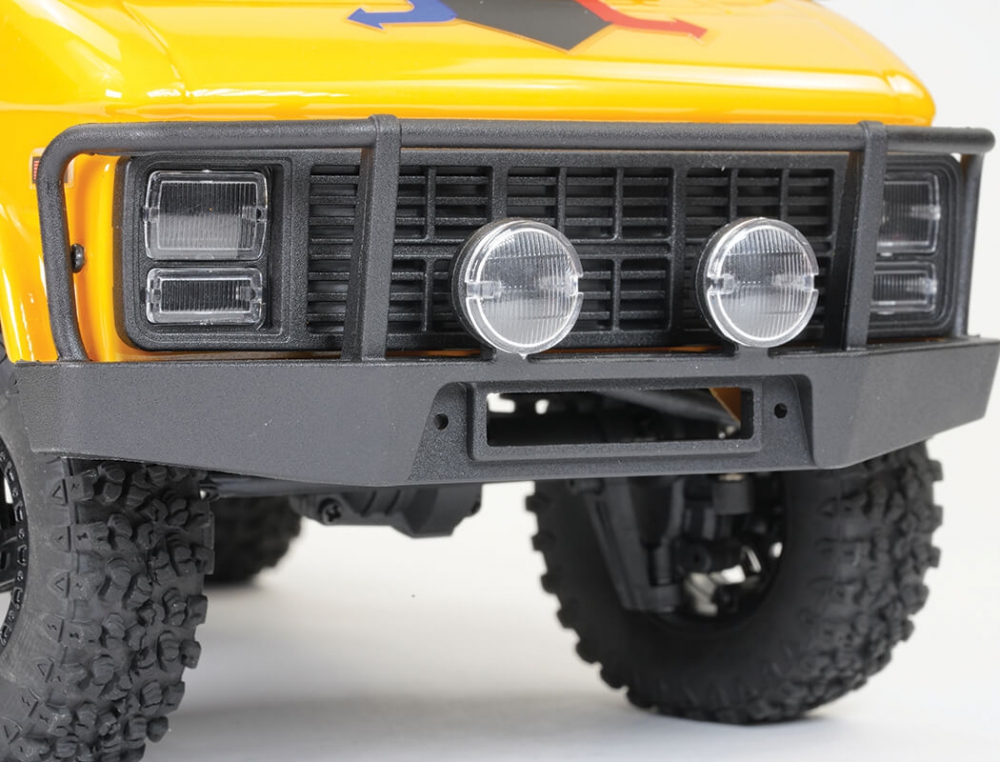

- Lighting System: Full-function LED light system controlled via transmitter for enhanced realism and visibility
What’s in the Box
- FTX Outback Mini XP Evo Van Trail RTR – Mustard Yellow (FTX5483MY)
- 7.4V 2S 600mAh Li-Po battery
- USB charger
Warranty
- 1 year manufacturer warranty included
