Experience the features normally associated with larger 1/10 scale crawlers with the latest, EVO spec 1/18th Outback XP from FTX.
Small scale doesn’t mean less features and the EVO is no exception, boasting a servo operated 2-speed transmission for high and low speed crawling. A new final drive ratio provides the EVO with super slow crawling performance coupled with a new 130 size 100T motor for maximum torque. Switch to second gear for more straight-line speed when on flat ground. Full internal metal gears mean you can consider a future larger motor size upgrade, such as 180, 240 or 270 without losing sleep. The transmissions reverse rotation of the rear driveshaft also helps to minimise chassis torque twist.

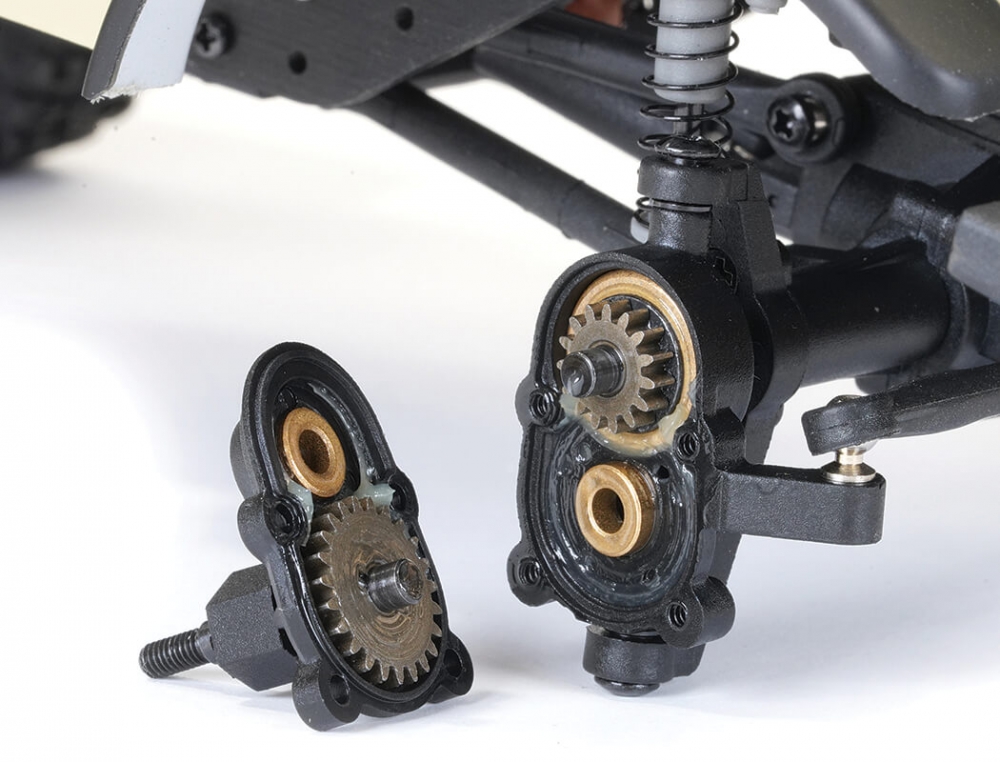

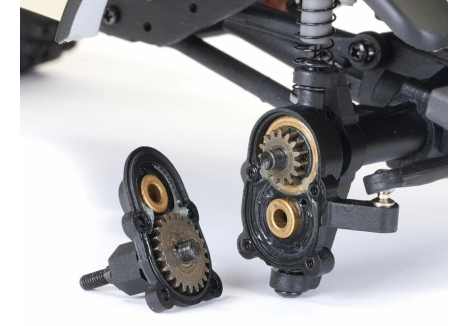

Weight bias is redesigned to increase crawling performance with weight further forward and lower. Of course, front and rear portal axles provide super clearance over obstacles.

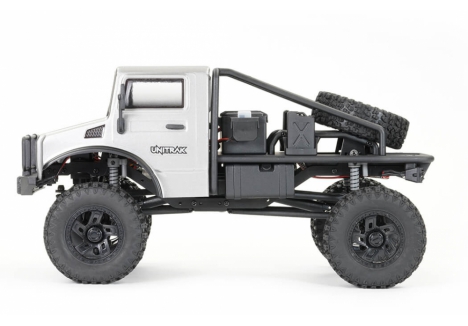

Choose from three super detailed 1.2mm thick painted lexan bodies; Rock Van, Texan pick up or Unitrak utility vehicle, all featuring moulded scale accessories and LED lights.
When it comes to small scale crawling, it doesn’t get much better than an FTX Outback Mini XP EVO!
FEATURES
- Front and Rear High Clearance Portal Axles

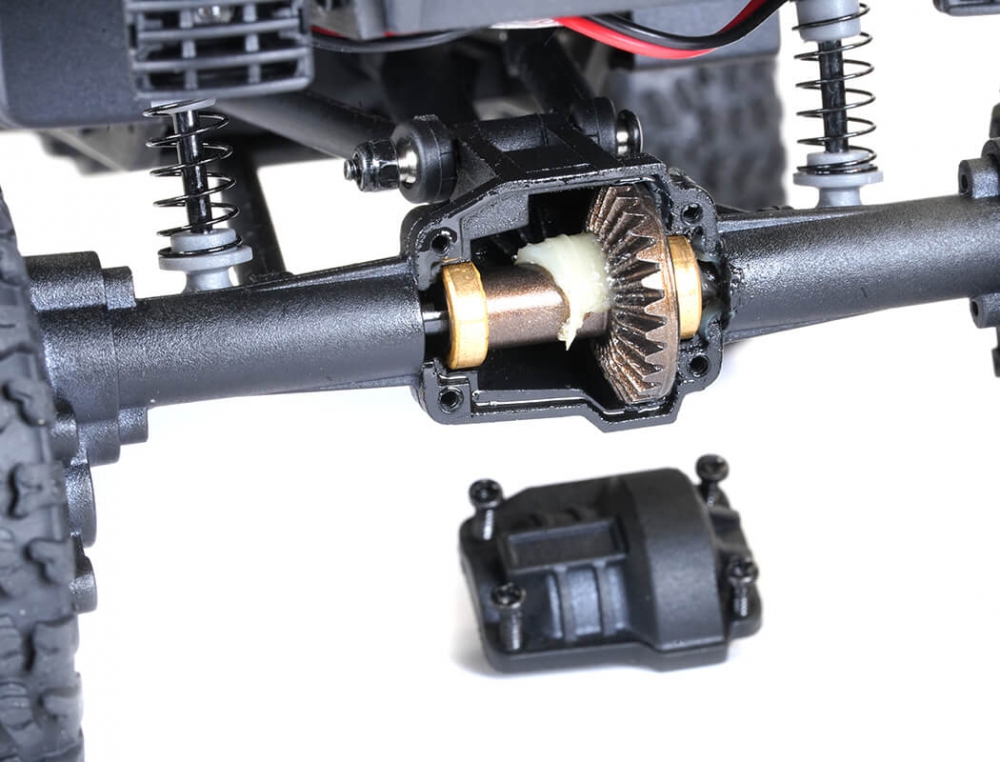

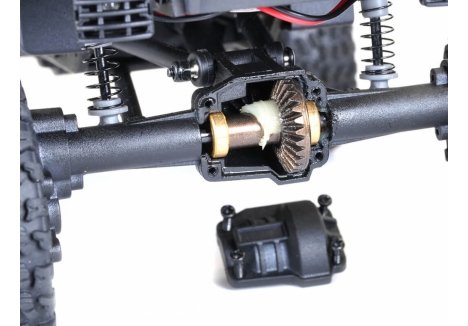

- Heavy duty metal gears in front and rear axles
- 2-Speed Transmission Gearbox w/Metal Gears
- Clipless body mounting on Van and Unitrack
- New 4 channel ESC/RX with super smooth low speed throttle response
- Full function light system controlled by TX (body types may differ)
- Oversize internal bead lock wheel (1.2”)
- Oversize All Terrain tyre (1.2”)
- Oversize 130 Brushed Motor
- Chassis mounted servo with panhard bar
- LCG Weight Bias with Front Mounted Motor
- High torque transmission (FDR: 1st Gear 98:1, 2nd Gear 24.5:1)
- PPX 4 standard water-resistant electronics
- Aluminum rail chassis
- 1.2mm thick painted lexan body w/clear windows
- Tight turning radius of 80cm
- Large steering angle up to 45 degrees
- Extended run times of up to 45 minutes
- 7.4V 2S 600 mAh Li-Po battery & USB Charger
Brand, Model and Product Type
- Brand: FTX
- Model: FTX5484S
- Product Type: FTX FTX5484S, FTX Outback Mini XP Evo, FTX FTX5484S Outback Mini XP Evo Unitrak, FTX 1/18 scale crawler, FTX FTX5484S silver RTR, FTX Outback Mini XP Evo with 130 brushed motor, FTX 1/18 Unitrak crawler with clipless body
Dimensions
- Body Thickness: 0.12 cm painted lexan shell with clear windows for realistic scale detailing
- Steering Angle: Up to 45 degrees for enhanced manoeuvrability in tight trail conditions
- Turning Radius: 80 cm for precision cornering and obstacle navigation
Drivetrain and Transmission
- Drive System: 4WD configuration for balanced traction across all terrain types
- Transmission Type: Servo-operated 2-speed gearbox with selectable high and low speed modes
- Gear Ratios: 1st Gear – 98:1 for slow crawl torque, 2nd Gear – 24.5:1 for increased flat-ground speed
- Gear Material: Full internal metal gears in both transmission and axle assemblies for durability and upgrade compatibility
- Rear Driveshaft: Reverse rotation design to minimise chassis torque twist during acceleration
Motor and Power System
- Motor Type: Oversized 130 size 100T brushed motor for high torque output and extended runtime
- Battery Type: 7.4V 2S 600mAh Li-Po battery included for up to 45 minutes of continuous operation
- Charging Method: USB charger included for convenient recharging
Chassis and Suspension

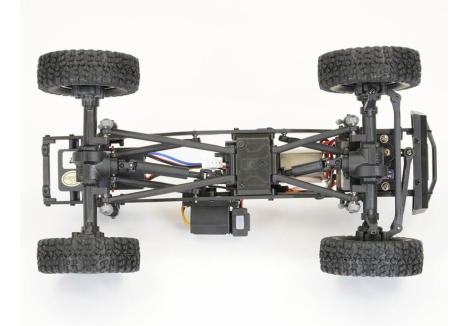

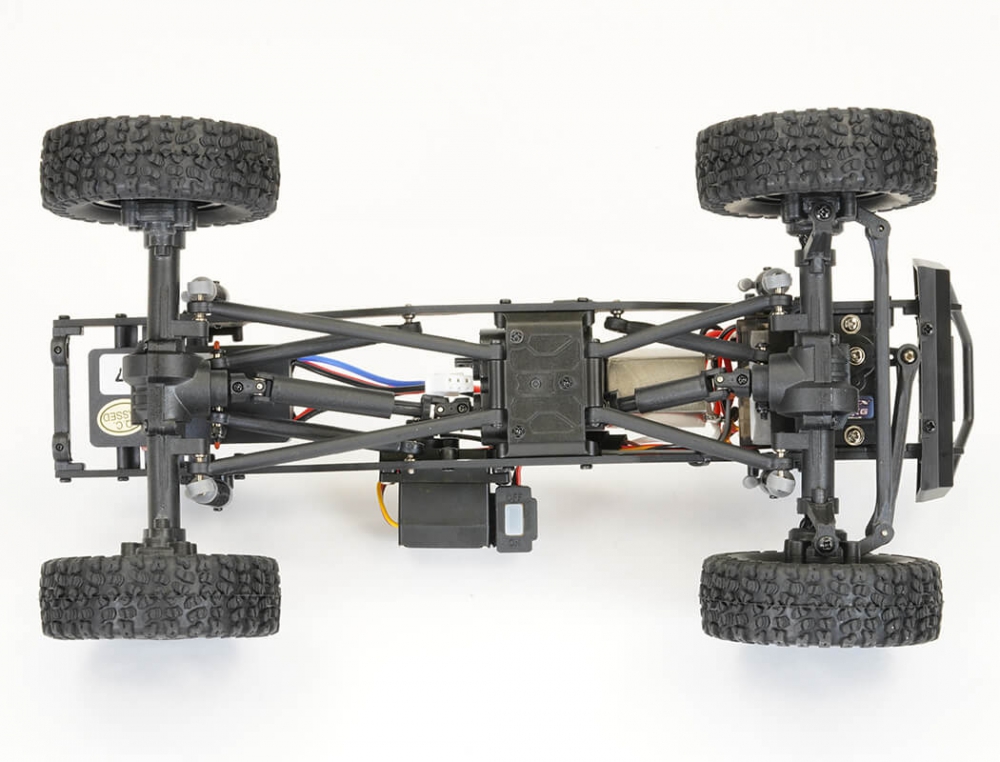

- Chassis Design: Aluminum rail chassis for structural rigidity and off-road durability
- Weight Distribution: Low centre of gravity with forward-biased motor placement for improved crawling stability

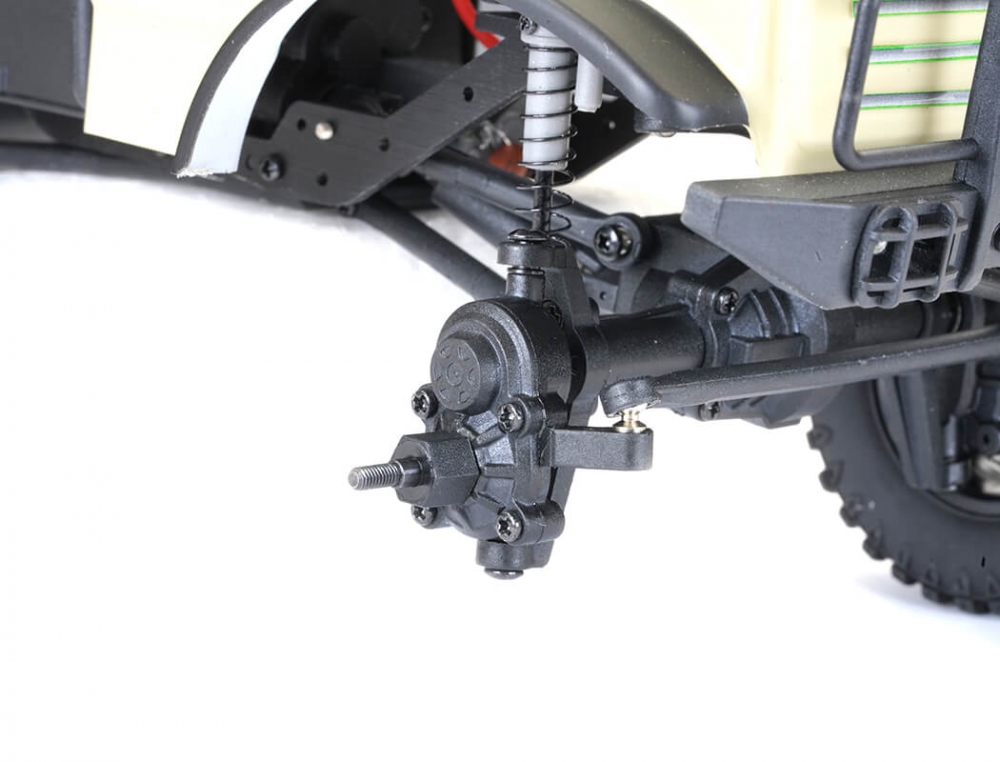

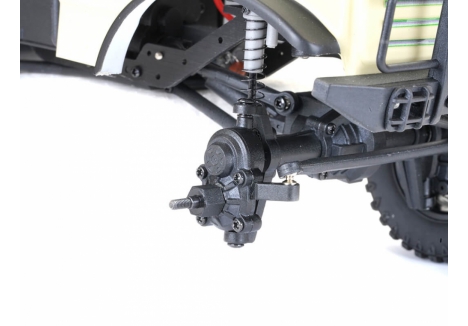

- Axle Type: Front and rear portal axles for increased ground clearance and obstacle traversal
Steering and Control
- Steering System: Chassis-mounted servo with panhard bar for reduced bump steer and tight control
- ESC/RX Unit: New 4-channel integrated system with smooth low-speed throttle response
Body and Exterior
- Body Mounting: Clipless system on Van and Unitrak variants for secure fitment and easy access
- Body Options: Choice of Rock Van, Texan pickup or Unitrak utility vehicle with moulded scale accessories
- Tyres: Oversized all-terrain tyres (1.2 inch) for grip and stability
- Wheels: Oversized internal bead lock wheels (1.2 inch) to prevent tyre slippage under torque
Lighting and Electronics
- Lighting System: Full-function LED lights controlled via transmitter for enhanced realism and visibility
- Electronics Rating: PPX 4 standard water-resistant electronics for reliable performance in wet and dusty conditions
What’s in the Box

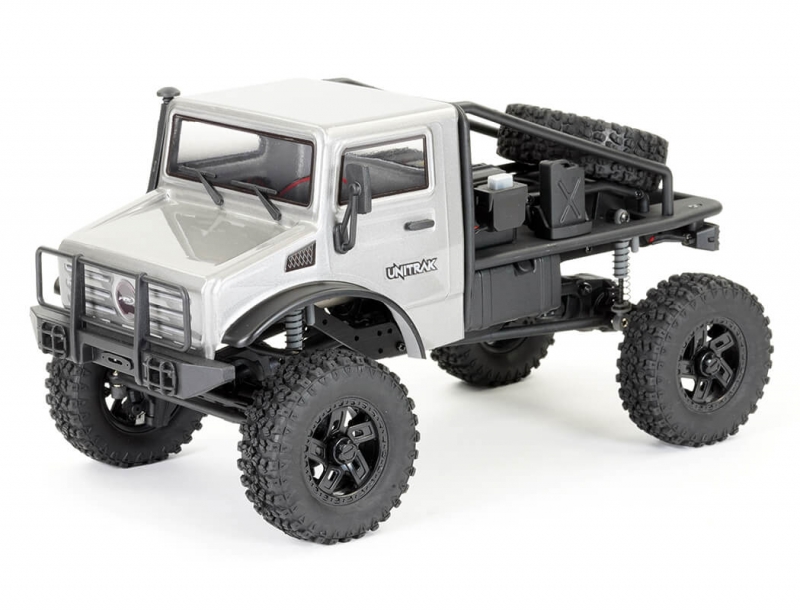

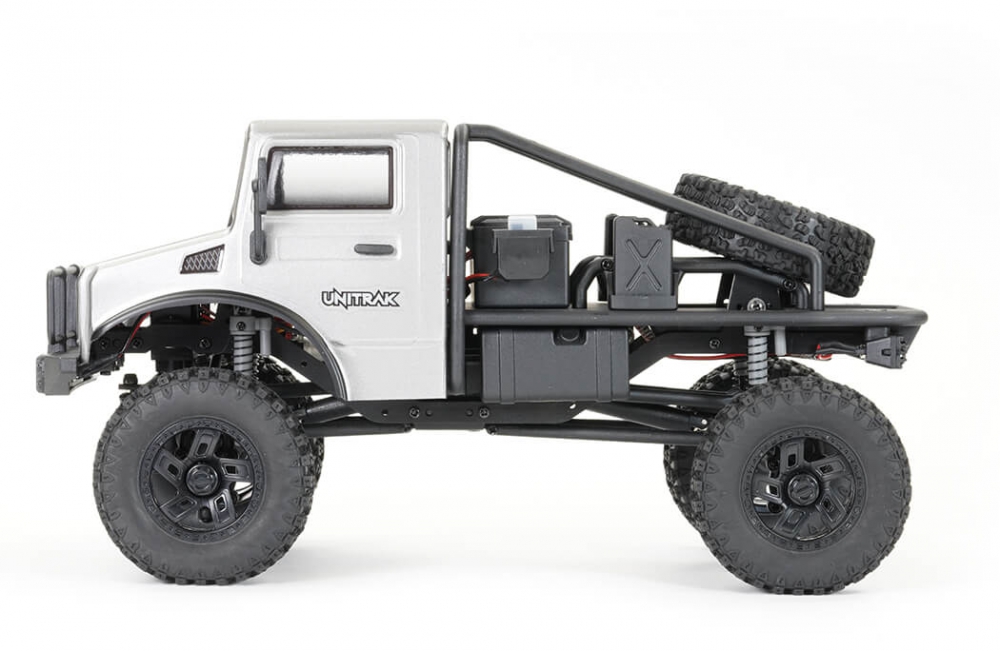

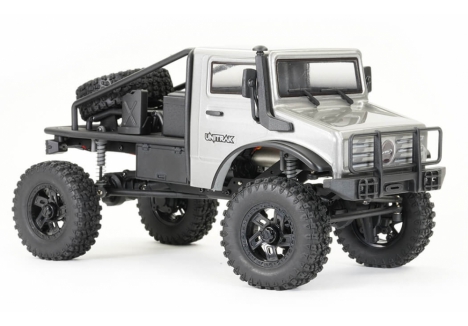

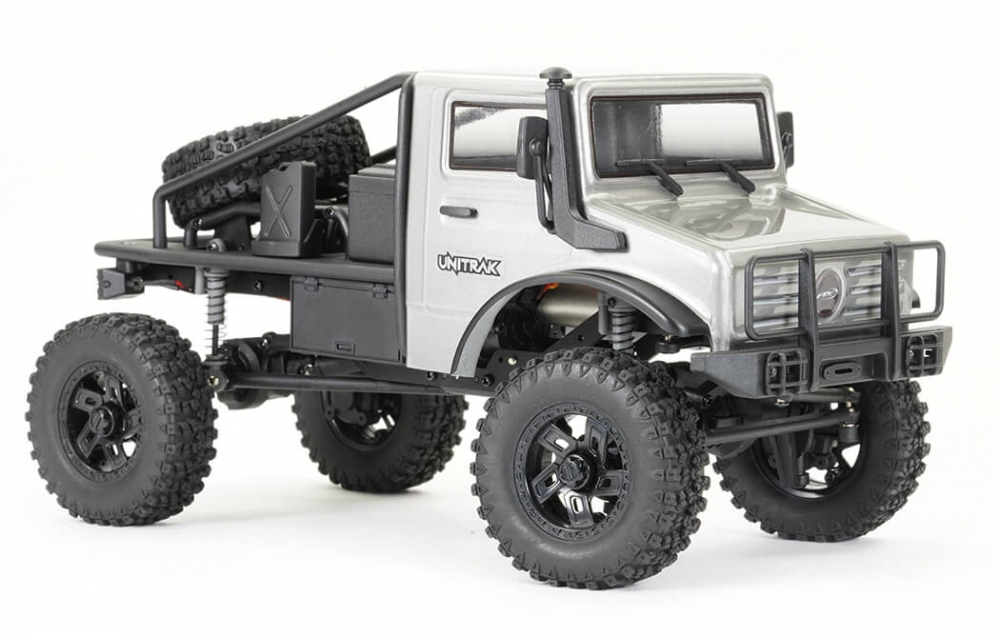

- FTX FTX5484S Outback Mini XP Evo Unitrak trail crawler (silver)
- 7.4V 2S 600mAh Li-Po battery
- USB charger
Warranty
- Warranty Period: 1 year manufacturer warranty included
