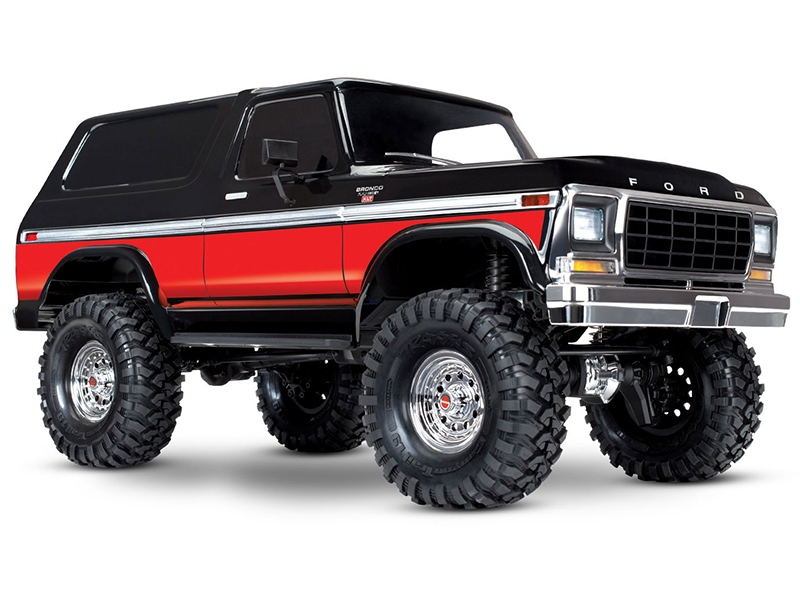

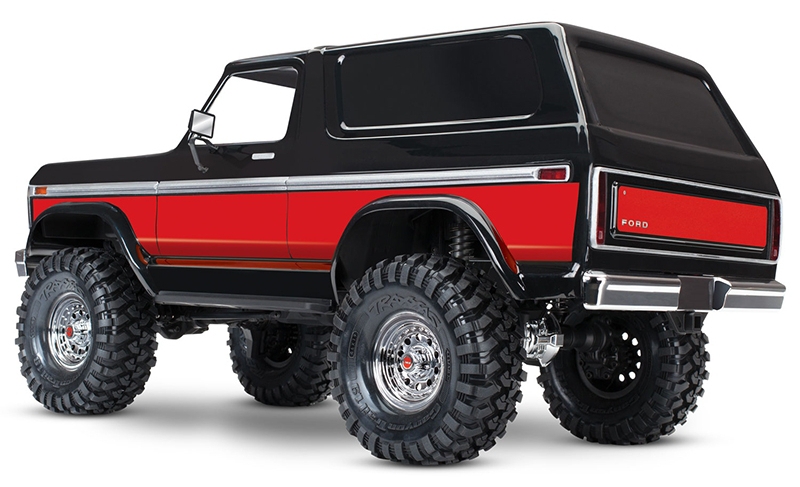

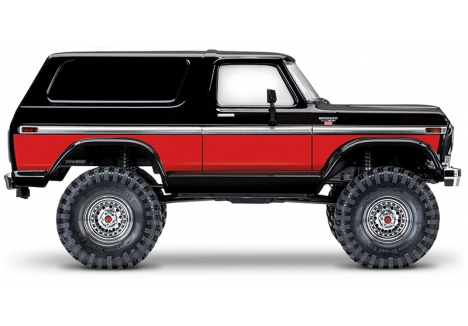

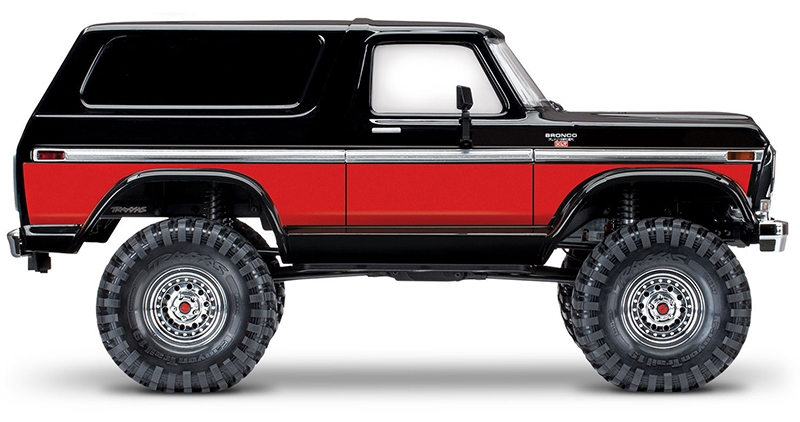

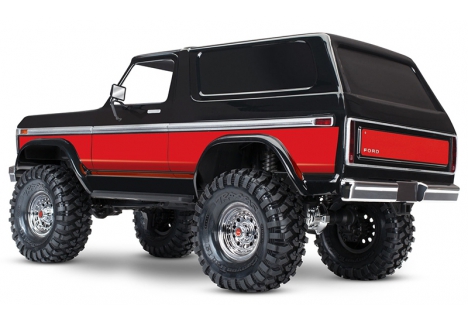

Traxxas TRX-4 1979 Ford Bronco 1:10 4x4 Electric RTD All-Terrain Crawler with Clipless Body

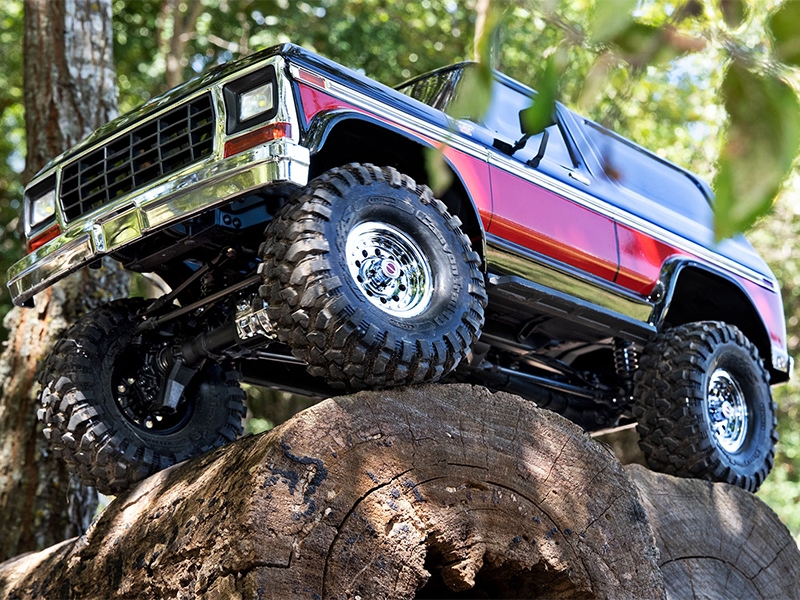

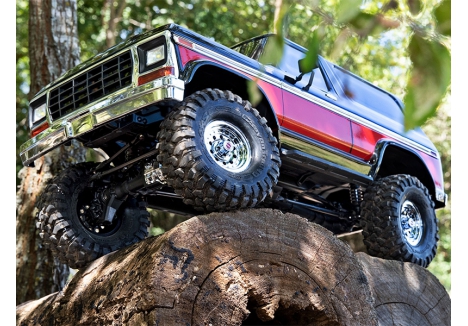

Originally introduced in 1966 as a 4X4 compact SUV, the Ford® Bronco matured as a full-size truck in the late 1970s, cementing its status as a rugged off-roader. Traxxas honors the classic 1979 Ford Bronco with this beautifully detailed and faithful reproduction mounted on the incredibly capable TRX-4® chassis. From the chrome wheels and bumpers to the gorgeous Sunset or red graphics, the TRX-4 recaptures the Bronco’s iconic era with the toughness and technology that could only come from Traxxas.
New Clipless Body Mounting
New to TRX-4 79′ Ford Bronco, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Ford Bronco’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Vehicle Specs:
- Length: 20.57 inches (523 mm)
- Front Track: 9.78 inches (249 mm)
- Rear Track: 9.78 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 6.42 pounds (2.91 kg)
- Height: 10.47 inches (266 mm)
- Wheelbase: 12.28 inches (312 mm)
- Approach Angle: 63.82°
- Departure Angle: 43.22°
- Breakover Angle: 59°
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Front Wheels: 1.9″ x 1.02″ (49 x 26 mm)
- Rear Wheels: 1.9″ x 1.02″ (49 x 26 mm)
- Front Tires: 4.64″ x 1.89″ (118 x 48 mm)
- Rear Tires: 4.64″ x 1.89″ (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): 21T Reverse Rotation
- Transmission: 2-speed high/low, remote shifting
- Gear Pitch: 32 pitch
- Differential Type: 4 gear, remote locking
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft driven 4WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQi™ 2.4 GHz 4-channel transmitter
- Receiver: 6533
- Skill Level: 1
- Battery Tray: 159 L x 47 W x 23/26 mm H
What’s In The Box:
- TRX-4, Ready-To-Race model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need:
Batteries
- TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
- Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter.
Brand, Model, Product Type
- Brand: Traxxas
- Model: TRX82246-4-RED
- Product Type: Traxxas TRX82246-4-RED 1/10 4X4 trail crawler with 1979 Ford Bronco body, Traxxas TRX82246-4-RED RTR scale crawler with Titan 21T brushed motor, Traxxas TRX82246-4-RED crawler with XL-5 HV ESC and TQi 4-channel radio, Traxxas 1979 Ford Bronco scale trail crawler TRX82246-4-RED with portal axles, Traxxas brushed 1/10 RC crawler with waterproof XL-5 HV speed control
Dimensions
- Scale: 1/10 – ideal for realistic trail crawling and scale detailing
- Weight: 2.91 kg – balanced for stability and maneuverability
- Length: 52.3 cm – provides a commanding presence on trails
- Width: 24.9 cm – wide stance enhances off-road stability
- Height: 26.6 cm – accommodates high ground clearance and scale body
- Wheelbase: 31.2 cm – adjustable for SWB and LWB configurations
- Center Ground Clearance: 8.0 cm – optimized for obstacle clearance
- Battery Compartment: 15.9 cm x 4.7 cm x 2.3 cm – fits full-size and compact packs
Motor and ESC
- Motor Type: Titan® 21T reverse rotation brushed motor – delivers high torque for trail crawling
- Motor Cooling: Internal cooling fan – maintains performance during extended use
- Motor Weight: 240 g – lightweight for efficient power-to-weight ratio
- ESC Type: XL-5™ HV brushed ESC – waterproof and trail-tuned for multiple driving modes
- ESC Modes: Trail Mode, Crawl Mode, Sport Mode, Race Mode, Training Mode™ – versatile control options
- ESC Voltage Range: Supports 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- ESC Setup: EZ-Set® one-button configuration – simplifies tuning and setup
Drivetrain and Transmission
- Drivetrain: Full-time shaft-driven 4WD – ensures consistent traction across terrain
- Differentials: Remote locking steel gear differentials – cable-actuated for on-the-fly control
- Transmission: Two-speed high/low range – remote shifting for adaptable trail performance
- Transfer Case: Steel gear – durable and trail-ready
- Axles: Portal axles – increase ground clearance and eliminate torque twist
- Driveshafts: Hardened steel rear axle shafts and steel front CV driveshafts – built for durability
Suspension and Steering
- Front Suspension: 3-link with panhard bar – enhances articulation and stability
- Rear Suspension: Triangulated 4-link – optimized for trail crawling
- Shocks: Aluminium GTS oil-filled coilover shocks – adjustable ride height and smooth damping
- Steering Servo: 2075X metal gear digital servo – waterproof and high-torque
- Steering Angle: 45° – superior turning radius for tight trail navigation
Radio System and Electronics
- Radio System: TQi™ 2.4 GHz 4-channel transmitter – cruise control and telemetry-ready
- Receiver: 6533 micro receiver – 5-channel with fail-safe and telemetry ports
- Compatibility: Supports optional Traxxas Link Wireless Module for app integration
- Receiver Box: Patented waterproof design – protects electronics in wet conditions
- Micro Servos: Waterproof with sleeved cables – reliable under harsh conditions

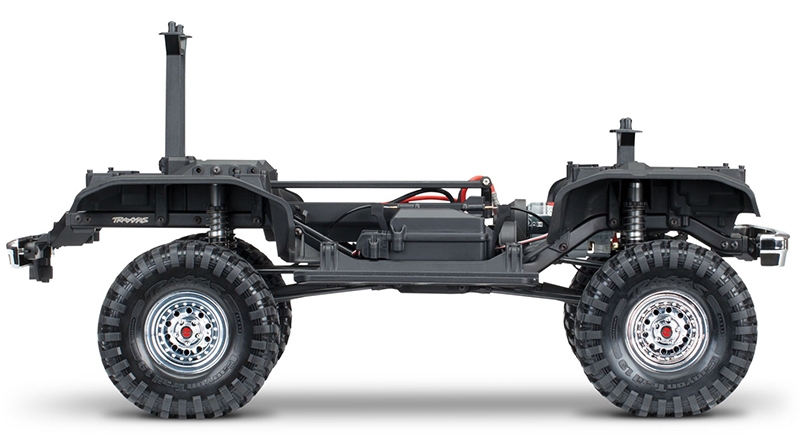

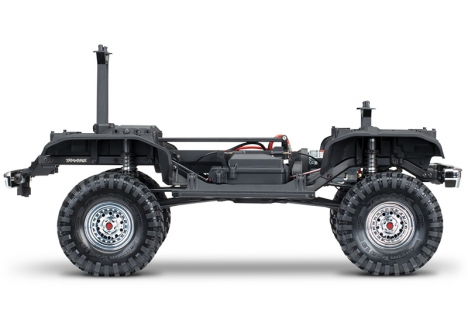

Chassis and Frame
- Frame Rails: 1.5 mm thick steel – increases torsional rigidity
- Wheelbase Positions: Adjustable – 30 cm, 31.2 cm, 32.4 cm, 33.6 cm
- Battery Tray: Dual tray design – accommodates full-size and compact batteries
- Wire Routing: Integrated clips – clean and secure cable management
- Rock Rails: Adjustable width – protects chassis and body during trail use
Wheels and Tyres
- Wheels: Replica chrome wheels with hub inserts – scale realism and durability
- Tyres: 1.9″ Canyon Trail tyres – trail-tuned foam inserts and S1 rubber compound
- Hex Size: 12 mm steel hex – secure and rugged wheel mounting
What’s in the Box
- TRX-4 Scale and Trail™ crawler with 1979 Ford® Bronco Body
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You’ll Need
- NiMH (4–7 cell) or LiPo (2s–3s) battery packs
- Traxxas EZ-Peak® Live charger (recommended)
- Four AA alkaline batteries for the transmitter
Sold Separately
- Accessory LED Light Kit
- Additional scale accessories
- Traxxas Link Wireless Module (6511) for full app functionality
- Optional battery straps for smaller 1/16 scale batteries
- Accessory push bar and spare tyre
Warranty
- 1-year limited warranty – covers manufacturing defects and electronics as per Traxxas policy
