Traxxas TRX-4 1979 Ford Bronco 1:10 4X4 Electric RTD All-Terrain Crawler, Sunset (+ TQ 2-ch, XL-5 HV, Titan 550, Clipless Body) TRX82246-4-SUN

Model No: TRX82246-4-SUN


Dispatched Within 3 Working Days

£619.99

£63.00

£556.99

Inc VAT & delivery

We Accept
Supplier Stock
Delivery Included
1 Year Warranty

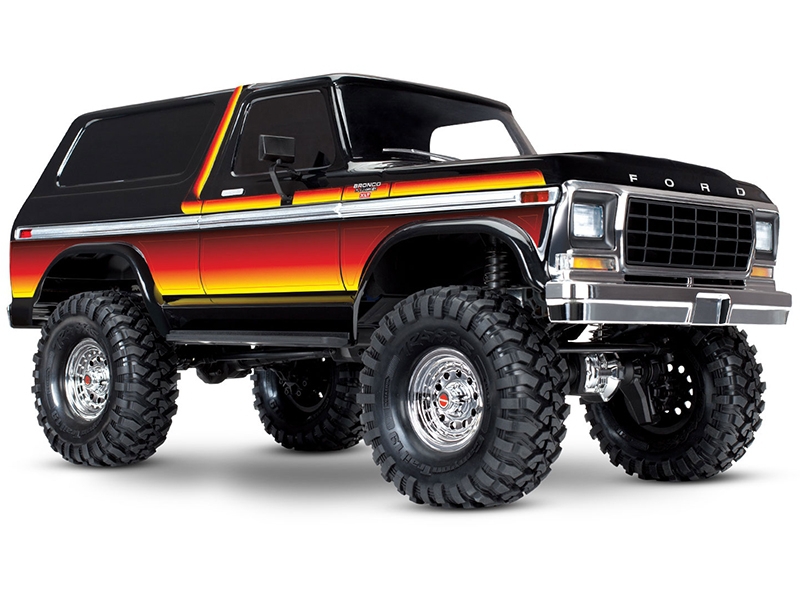

Traxxas TRX-4 1979 Ford Bronco 1:10 4x4 Electric RTD All-Terrain Crawler with Clipless Body

Originally introduced in 1966 as a 4X4 compact SUV, the Ford® Bronco matured as a full-size truck in the late 1970s, cementing its status as a rugged off-roader. Traxxas honors the classic 1979 Ford Bronco with this beautifully detailed and faithful reproduction mounted on the incredibly capable TRX-4® chassis. From the chrome wheels and bumpers to the gorgeous Sunset or red graphics, the TRX-4 recaptures the Bronco’s iconic era with the toughness and technology that could only come from Traxxas.

New Clipless Body Mounting
New to TRX-4 79′ Ford Bronco, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Ford Bronco’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

Vehicle Specs:

  • Length: 20.57 inches (523 mm)
  • Front Track: 9.78 inches (249 mm)
  • Rear Track: 9.78 inches (249 mm)
  • Ground Clearance: 3.14 inches (80 mm)
  • Weight: 6.42 pounds (2.91 kg)
  • Height: 10.47 inches (266 mm)
  • Wheelbase: 12.28 inches (312 mm)
  • Approach Angle: 63.82°
  • Departure Angle: 43.22°
  • Breakover Angle: 59°
  • Front Shock Length: 3.54 inches (90 mm)
  • Rear Shock Length: 3.54 inches (90 mm)
  • Front Wheels: 1.9″ x 1.02″ (49 x 26 mm)
  • Rear Wheels: 1.9″ x 1.02″ (49 x 26 mm)
  • Front Tires: 4.64″ x 1.89″ (118 x 48 mm)
  • Rear Tires: 4.64″ x 1.89″ (118 x 48 mm)
  • Hex Size: 12 mm
  • Speed Control: XL-5™ HV
  • Motor (electric): 21T Reverse Rotation
  • Transmission: 2-speed high/low, remote shifting
  • Gear Pitch: 32 pitch
  • Differential Type: 4 gear, remote locking
  • Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
  • Brake Type: Electronic “Hill Hold”
  • Drive System: Shaft driven 4WD
  • Steering: Chassis mounted servo
  • Servo: 2075X metal gear
  • Transmitter: TQi™ 2.4 GHz 4-channel transmitter
  • Receiver: 6533
  • Skill Level: 1
  • Battery Tray: 159 L x 47 W x 23/26 mm H

What’s In The Box:

  • TRX-4, Ready-To-Race model
  • XL-5 HV waterproof electronic speed control
  • Titan 21T reverse rotation motor
  • TQi 2.4 GHz radio system with cruise control
  • High quality maintenance tools

What You’ll Need:
Batteries

  • TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

Charger

  • Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).

AA Alkaline Batteries

  • Four AA alkaline batteries for the transmitter.

Brand, Model and Product Type

  • Brand – Traxxas
  • Model – TRX82246-4-SUN
  • Product Type – Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body, Traxxas TRX82246-4-SUN electric 4WD RTR scale RC with Titan 550 motor, Traxxas TRX82246-4-SUN crawler with XL-5 HV ESC and TQi radio system, Traxxas 1979 Ford Bronco trail crawler TRX82246-4-SUN with chrome bumpers, Traxxas brushed 1/10 trail crawler with portal axles and metal gear servo

Dimensions

  • Length – 52.3 cm, providing a stable footprint for scale crawling
  • Width – 24.9 cm front and rear track, ensuring balanced handling
  • Height – 26.6 cm, accommodating the detailed Bronco body and electronics
  • Wheelbase – 31.2 cm, adjustable to four positions for terrain flexibility
  • Ground Clearance – 8.0 cm, enhanced by portal axles for obstacle traversal
  • Weight – 2.91 kg, offering stability and durability on rugged terrain
  • Battery Compartment – 15.9 cm x 4.7 cm x 2.3 cm, supports full-size and compact packs

Motor and Speed Control System

  • Motor Type – Titan 21T 550 brushed motor with internal cooling fan
  • Motor Voltage – 16.8 volts, delivering high torque for trail performance
  • Motor Weight – 240 g, compact and efficient for scale applications
  • Motor Dimensions – 7.8 cm overall length, 5.7 cm can length, 3.9 cm diameter
  • Motor Shaft Size – 0.3 cm, with bullet connectors for secure installation
  • ESC Type – XL-5 HV brushed ESC, waterproof and trail-tuned
  • ESC Dimensions – 3.1 cm x 5.5 cm x 2.6 cm, compact for chassis integration
  • ESC Weight – 74 g, lightweight and efficient
  • ESC Modes – Trail, Crawl, Sport, Race, Training
  • ESC Features – Drag brake, hill hold, low voltage protection, EZ-Set® one-button setup

Drivetrain and Transmission

  • Drivetrain – Full-time shaft-driven 4WD with steel gear transfer case
  • Axles – Portal axles with steel gears and hardened steel shafts
  • Differentials – Remote-locking steel gear differentials with cable actuation
  • Transmission – 2-speed high/low range with remote shifting
  • Clutch – Twin friction plate slipper clutch, easily removable for servicing

Radio System and Control Features

  • Radio System – TQi 2.4 GHz 4-channel transmitter with 6533 receiver
  • Receiver – 5-channel micro receiver with telemetry ports and fail-safe
  • Cruise Control – Integrated for extended trail driving
  • Adjustability – Steering/throttle sensitivity and endpoints
  • Model Memory – Stores settings for up to 30 Traxxas Link enabled models

Chassis and Suspension

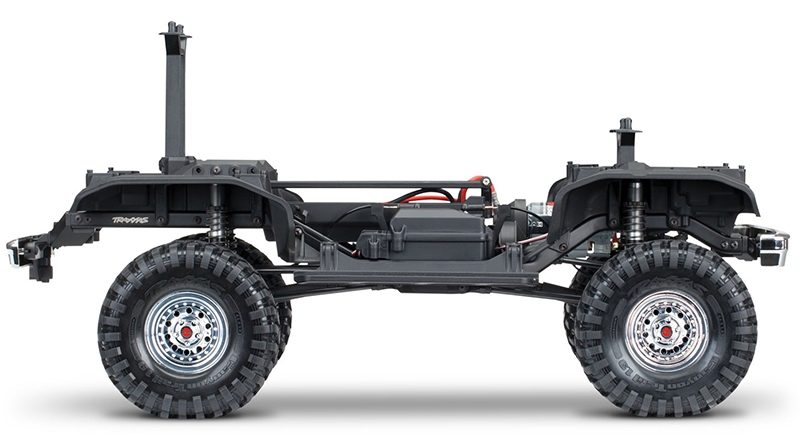

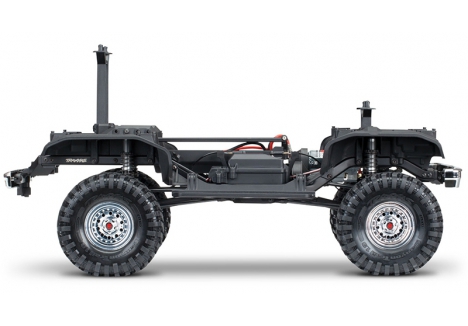

  • Frame – 1.5 mm thick steel rails with integrated wire routing clips
  • Wheelbase Adjustment – Four positions: 30 cm, 31.2 cm, 32.4 cm, 33.6 cm

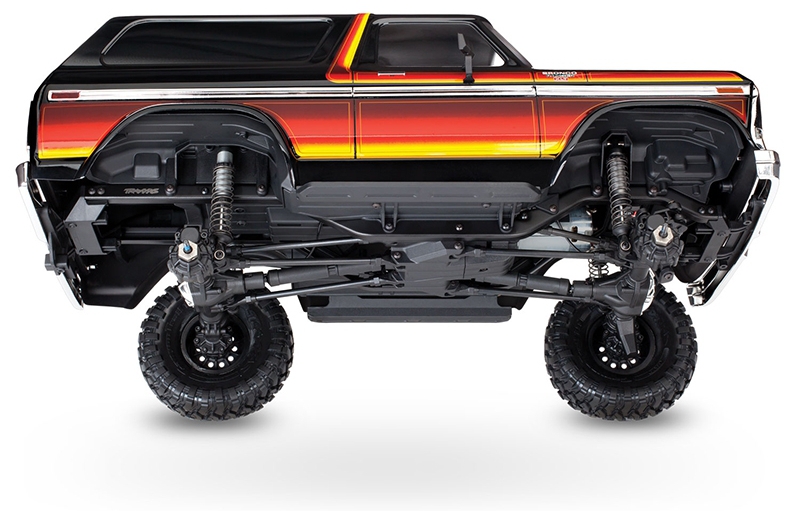

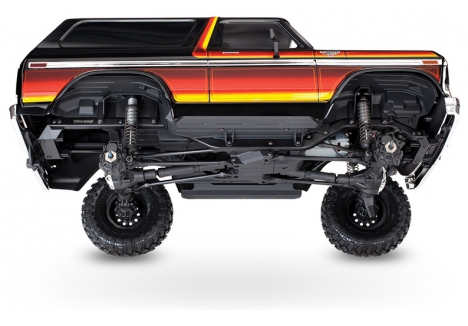

  • Suspension – Front: 3-link with panhard; Rear: triangulated 4-link
  • Shocks – Aluminum GTS oil-filled coilover shocks with threaded bodies
  • Steering – 2075X metal gear digital servo with 45° steering angle

Wheels and Tires

  • Wheels – Replica chrome wheels with hub inserts
  • Tires – 1.9 inch Canyon Trail tires with trail-tuned foam inserts
  • Rubber Compound – S1 trail-tuned for grip and durability
  • Hex Size – 1.2 cm (12 mm) steel hex

Scale Detailing

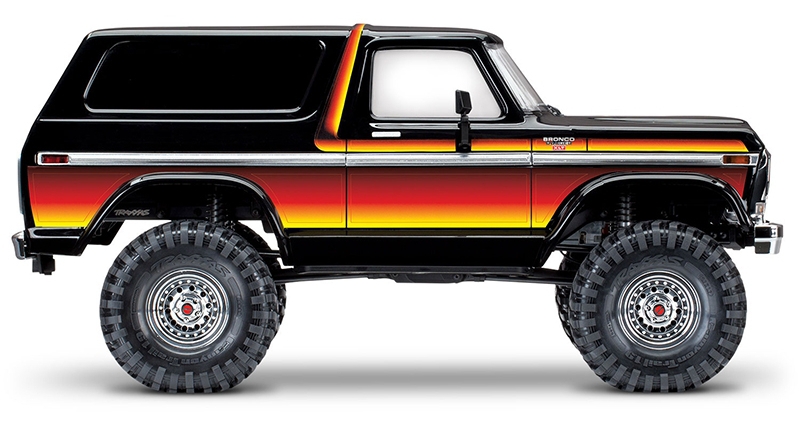

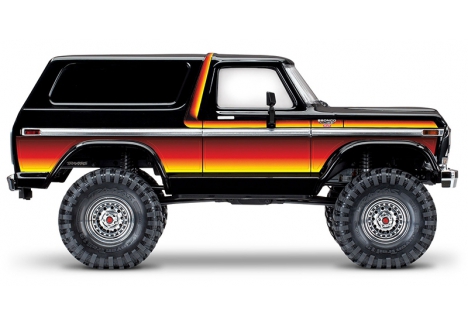

  • Body – Officially licensed 1979 Ford Bronco with Sunset graphics
  • Trim – Chrome bumpers, grille, side mirrors, and differential covers
  • Accessories – Molded push bar, spare tire, inner fenders, and rock sliders

What’s In The Box

  • Fully assembled Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body
  • XL-5 HV waterproof electronic speed control
  • Titan 21T reverse rotation motor
  • TQi 2.4 GHz radio system with cruise control
  • High quality maintenance tools

What You’ll Need

  • 4–7 cell NiMH or 2s–3s LiPo battery pack
  • Compatible charger (Traxxas EZ-Peak® Live recommended)
  • Four AA alkaline batteries for transmitter

Sold Separately

  • Battery pack and charger
  • Accessory LED light kit

Warranty

  • 1 year warranty as stated in manufacturer info

Product Description of Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body

The Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body is a Ready-To-Drive® electric 4WD scale RC built for rugged terrain and authentic styling. Mounted on the TRX-4® Scale and Trail™ chassis, this model features a fully licensed 1979 Ford® Bronco body in Sunset finish, complete with chrome bumpers, grille, and molded trim. Engineered for performance, the Traxxas TRX82246-4-SUN electric 4WD RTR scale RC with Titan 550 motor integrates waterproof electronics, portal axles, and a dual battery tray system, making it a versatile and trail-tuned crawler for enthusiasts who demand realism and capability.

Key features of the Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body

  • Clipless body system – quick access with no pins to lose
  • Portal axles – increased ground clearance and reduced torque twist
  • XL-5 HV ESC – waterproof and trail-tuned with multiple driving modes
  • Titan 550 motor – high-torque brushed motor with internal cooling fan
  • Chrome bumpers and grille – officially licensed scale detailing
  • TQi 4-channel radio system – cruise control and telemetry-ready
  • Adjustable wheelbase – supports multiple configurations for terrain flexibility
  • Dual battery tray – accommodates full-size and compact packs

Why is the Traxxas TRX82246-4-SUN crawler with XL-5 HV ESC and TQi radio system built for trail dominance?

The Traxxas TRX82246-4-SUN crawler with XL-5 HV ESC and TQi radio system is engineered for all-terrain control. Its XL-5 HV ESC offers five distinct driving modes including Trail, Crawl, Sport, Race, and Training, each tailored for specific conditions. The waterproof design ensures reliability in wet environments, while the cruise control feature on the TQi transmitter allows for consistent speed during extended trail runs. Integrated telemetry ports and compatibility with the Traxxas Link app (module sold separately) provide advanced tuning and model memory for up to 30 vehicles.

What makes the Titan 550 motor ideal for scale crawling?

Powering the Traxxas RTR trail truck with Titan 550 motor and waterproof XL-5 ESC TRX82246-4-SUN is a Titan 21T brushed motor designed for high torque and trail endurance. With a 7.8 cm overall length, 5.7 cm can length, and 3.9 cm diameter, the motor is compact yet powerful. It features an internal cooling fan and bullet connectors for secure installation. Operating at 16.8 volts and weighing 240 g, the motor delivers consistent output for climbing, crawling, and long-distance trail driving.

How do portal axles improve performance?

The Traxxas brushed 1/10 trail crawler with portal axles and metal gear servo features portal axle geometry that raises the center driveshafts and suspension links, increasing ground clearance and eliminating torque twist. Steel gears and hardened components reduce strain on the drivetrain, while the design improves approach angles and axle articulation. This setup enhances stability and control on uneven terrain, making it ideal for technical crawling and off-road exploration.

Is the Traxxas 1979 Ford Bronco trail crawler TRX82246-4-SUN with chrome bumpers visually accurate?

Yes. The Traxxas 1979 Ford Bronco trail crawler TRX82246-4-SUN with chrome bumpers features a fully licensed replica body with molded inner fenders, chrome-finish differential covers, and detailed front grille. The Sunset paint scheme is complemented by chrome wheels and scale accessories such as side mirrors, wipers, and push bar. The clipless body system allows quick access without pins, preserving the clean aesthetic while enhancing usability.

How does the adjustable wheelbase and dual battery tray enhance versatility?

The Traxxas 4X4 RTR crawler with adjustable wheelbase and dual battery tray supports four wheelbase positions (30 cm, 31.2 cm, 32.4 cm, and 33.6 cm), allowing users to tailor the chassis for different body styles and terrain needs. The innovative battery compartment accommodates full-size long packs and smaller 1/16 scale batteries with optional straps. A secondary front tray adds flexibility for dual battery setups, making this crawler adaptable for extended trail runs and varied power configurations.

What suspension and steering features support trail performance?

The suspension system includes aluminum GTS coilover shocks with threaded bodies for adjustable ride height and silky damping. The front uses a 3-link with panhard bar, while the rear features a triangulated 4-link setup. Steel hollow balls and heavy-duty rod ends ensure durability. Steering is handled by a chassis-mounted 2075X waterproof metal gear servo with a 45° angle and direct linkage, eliminating servo saver and correcting bump steer for precise control.

For scale enthusiasts and trail drivers alike, the Traxxas TRX82246-4-SUN electric 4WD RTR scale RC with Titan 550 motor delivers a complete Ready-To-Race® experience with waterproof electronics, portal axles, and authentic detailing. Whether navigating rocky paths or showcasing the Sunset Bronco body, this crawler offers performance and realism in equal measure. Buy Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body today and conquer terrain with style and precision.

Technical Specifications of Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body

Brand, Model and Product Type

  • Brand – Traxxas
  • Model – TRX82246-4-SUN
  • Product Type – Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body, Traxxas TRX82246-4-SUN electric 4WD RTR scale RC with Titan 550 motor, Traxxas TRX82246-4-SUN crawler with XL-5 HV ESC and TQi radio system, Traxxas 1979 Ford Bronco trail crawler TRX82246-4-SUN with chrome bumpers, Traxxas brushed 1/10 trail crawler with portal axles and metal gear servo

Dimensions

  • Length – 52.3 cm, providing a stable footprint for scale crawling
  • Width – 24.9 cm front and rear track, ensuring balanced handling
  • Height – 26.6 cm, accommodating the detailed Bronco body and electronics
  • Wheelbase – 31.2 cm, adjustable to four positions for terrain flexibility
  • Ground Clearance – 8.0 cm, enhanced by portal axles for obstacle traversal
  • Weight – 2.91 kg, offering stability and durability on rugged terrain
  • Battery Compartment – 15.9 cm x 4.7 cm x 2.3 cm, supports full-size and compact packs

Motor and Speed Control System

  • Motor Type – Titan 21T 550 brushed motor with internal cooling fan
  • Motor Voltage – 16.8 volts, delivering high torque for trail performance
  • Motor Weight – 240 g, compact and efficient for scale applications
  • Motor Dimensions – 7.8 cm overall length, 5.7 cm can length, 3.9 cm diameter
  • Motor Shaft Size – 0.3 cm, with bullet connectors for secure installation
  • ESC Type – XL-5 HV brushed ESC, waterproof and trail-tuned
  • ESC Dimensions – 3.1 cm x 5.5 cm x 2.6 cm, compact for chassis integration
  • ESC Weight – 74 g, lightweight and efficient
  • ESC Modes – Trail, Crawl, Sport, Race, Training
  • ESC Features – Drag brake, hill hold, low voltage protection, EZ-Set® one-button setup

Drivetrain and Transmission

  • Drivetrain – Full-time shaft-driven 4WD with steel gear transfer case
  • Axles – Portal axles with steel gears and hardened steel shafts
  • Differentials – Remote-locking steel gear differentials with cable actuation
  • Transmission – 2-speed high/low range with remote shifting
  • Clutch – Twin friction plate slipper clutch, easily removable for servicing

Radio System and Control Features

  • Radio System – TQi 2.4 GHz 4-channel transmitter with 6533 receiver
  • Receiver – 5-channel micro receiver with telemetry ports and fail-safe
  • Cruise Control – Integrated for extended trail driving
  • Adjustability – Steering/throttle sensitivity and endpoints
  • Model Memory – Stores settings for up to 30 Traxxas Link enabled models

Chassis and Suspension

  • Frame – 1.5 mm thick steel rails with integrated wire routing clips
  • Wheelbase Adjustment – Four positions: 30 cm, 31.2 cm, 32.4 cm, 33.6 cm
  • Suspension – Front: 3-link with panhard; Rear: triangulated 4-link
  • Shocks – Aluminum GTS oil-filled coilover shocks with threaded bodies
  • Steering – 2075X metal gear digital servo with 45° steering angle

Wheels and Tires

  • Wheels – Replica chrome wheels with hub inserts
  • Tires – 1.9 inch Canyon Trail tires with trail-tuned foam inserts
  • Rubber Compound – S1 trail-tuned for grip and durability
  • Hex Size – 1.2 cm (12 mm) steel hex

Scale Detailing

  • Body – Officially licensed 1979 Ford Bronco with Sunset graphics
  • Trim – Chrome bumpers, grille, side mirrors, and differential covers
  • Accessories – Molded push bar, spare tire, inner fenders, and rock sliders

What’s In The Box

  • Fully assembled Traxxas TRX82246-4-SUN 1/10 trail crawler with 1979 Ford Bronco body
  • XL-5 HV waterproof electronic speed control
  • Titan 21T reverse rotation motor
  • TQi 2.4 GHz radio system with cruise control
  • High quality maintenance tools

What You’ll Need

  • 4–7 cell NiMH or 2s–3s LiPo battery pack
  • Compatible charger (Traxxas EZ-Peak® Live recommended)
  • Four AA alkaline batteries for transmitter

Sold Separately

  • Battery pack and charger
  • Accessory LED light kit

Warranty

  • 1 year warranty

Finance Options

Click to see Novuna Finance Information

Novuna

Novuna Personal Finance Available on this product


DEPOSIT MONTHS APR MONTHLY PAYMENTS TOTAL AMOUNT PAYABLE
24 Month Credit
£55.70 24 19.9% 24 x £25.10 £658.10
36 Months Credit
£55.70 36 19.9% 36 x £18.20 £710.90
48 Months Credit
£55.70 48 19.9% 48 x £14.80 £766.10
Buy Now Pay Later 48 months (6 months Deferred)
£55.70 48 24.9% 48 x £17.46 £893.78
Buy Now Pay Later 48 months (10 months Deferred)
£55.70 48 24.9% 48 x £18.46 £941.78
Buy Now Pay Later 48 months (12 months Deferred)
£55.70 48 24.9% 48 x £19.51 £992.18

We want to make sure your delivery goes smoothly, so here are some important details about our service:

  • For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
  • Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
  • Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
  • If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
  • We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
  • As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
  • If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
  • For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
