Race-Inspired Handling. Built Traxxas Tough.
Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.

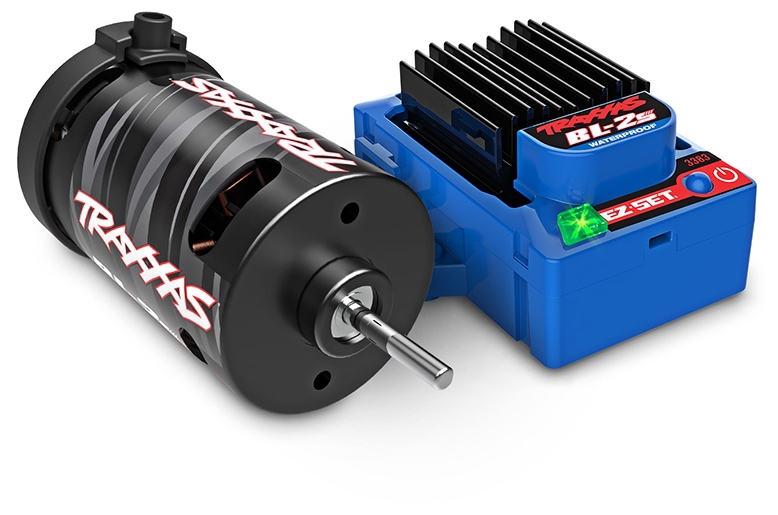

BL-2s Brushless System
The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.
Next-Level Toughness
Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.
Car Specs:
- Length: 20.4 inches (517 mm)
- Front Track: 12 inches (305 mm)
- Rear Track: 12 inches (305 mm)
- Ground Clearance: 1.02 inches (26 mm) (center)
- Weight (no battery): 5.2 pounds (2.36 kg)
- Height (overall): 7 inches (179 mm)
- Wheelbase: 12.6 inches (320 mm)
- Shock Length (front): 3.98 inches (101 mm) - XX-long
- Shock Length (rear): 3.98 inches (101 mm) - XX-long
- Speed Control: BL-2s™ electronic speed control
- Motor (electric): BL-2s™ 3300 Kv sensorless brushless
- Overall Drive Ratio: 12.80:1
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32
- Chassis Structure/Material: Composite tub
- Drive System: Shaft-driven 4WD
- Steering: Dual-bellcrank with integrated servo saver
- Tires: Sledgehammer® with foam inserts
- Tire Diameter: 4.5 inches (114 mm) (front and rear)
- Wheels (front/rear): 3″ Gray buggy wheels
- Wheel Diameter: 3″ inches (78 mm)
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof digital 2075 servo (125 oz-in torque)
- Skill Level: 1
- Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm
- Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
What’s In The Box:
- Jato 4X4 with BL-2s ESC and 3300 Kv motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
Batteries
- Jato 4X4 requires a 7.4-volt LiPo battery or 8.4-volt NiMH battery.
Charger
- The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter.
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX90154-4-RED
- Color: Red
- Product Type: Traxxas TRX90154-4-RED brushless buggy, Traxxas TRX90154-4-RED 1/8 scale RC car, Traxxas TRX90154-4-RED Jato 4X4 BL-2S, Traxxas TRX90154-4-RED with 3300Kv motor and BL-2S ESC, Traxxas Jato with clipless body and GTR shocks, Traxxas RC buggy with Sledgehammer tyres and HD driveshafts
Dimensions
- Length: 51.7 cm – extended chassis improves straight-line stability and aerodynamic balance
- Width: 30.5 cm – wide track enhances cornering grip and lateral control
- Height: 17.9 cm – low profile supports rollover resistance and high-speed stability
- Wheelbase: 32 cm – tuned for directional precision and predictable handling
- Front Track: 30.5 cm – optimised for responsive steering and balance
- Rear Track: 30.5 cm – maximises rear traction under brushless torque
- Weight: 2.36 kg – balanced for durability and power-to-weight performance
- Battery Compartment: 16.5 cm × 5 cm × 2.3–2.6 cm – secure fit with latch-style hold-down

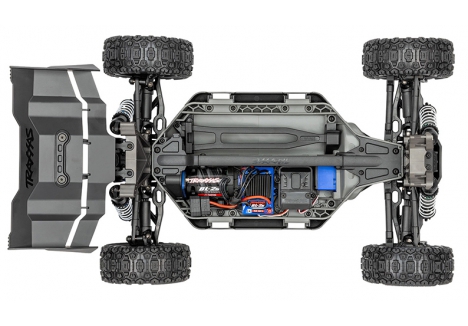

Motor and ESC System
- Motor Type: BL-2S 3300Kv sensorless brushless – efficient ball bearings and integrated cooling fan
- Motor Dimensions: 8 cm length × 3.6 cm diameter – compact and thermally stable
- Motor Weight: 213 g – lightweight for rapid acceleration and reduced load
- Motor Shaft Size: 3 mm – standard fitment for secure gear engagement
- ESC Type: BL-2S electronic speed control – waterproof and programmable with three drive profiles
- ESC Dimensions: 3.9 cm × 5.9 cm × 3.1 cm – compact case with heat sink and fan compatibility
- ESC Weight: 87 g – efficient and lightweight for compact platforms
- ESC Drive Modes: Sport, Race, Training – selectable profiles for skill-based control
- Voltage Protection: Two-stage low-voltage detection – safeguards battery health during extended use
- Battery Compatibility: 2-cell LiPo (7.4V) or 6–7 cell NiMH (7.2–8.4V) – supports flexible power setups
Drivetrain and Transmission
- Drive System: Shaft-driven 4WD – full-time four-wheel traction for consistent grip and acceleration
- Differential Type: Hardened steel bevel, sealed, limited slip – front and rear for torque distribution
- Gear Pitch: 32 pitch – heavy-duty gearing designed for brushless power
- Overall Drive Ratio: 12.80:1 – calibrated for torque-heavy launches and top-speed control
- Driveshafts: Maxx-duty – oversized 6 mm axles with 17 mm hex hubs for high-torque durability
- Slipper Clutch: Heavy-duty – absorbs shock loads and protects drivetrain under aggressive acceleration

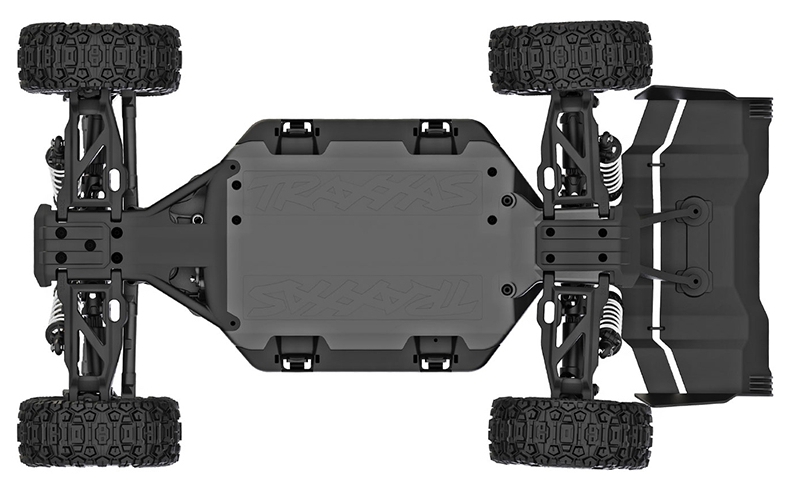

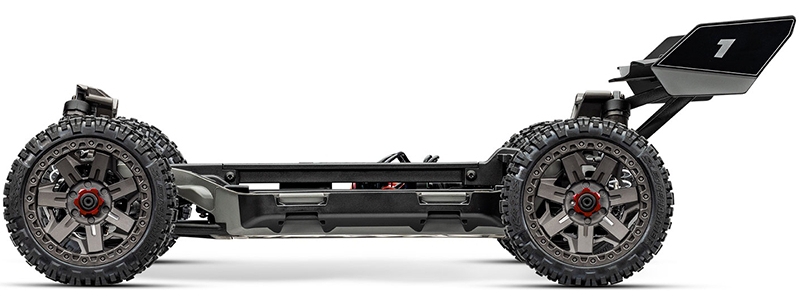

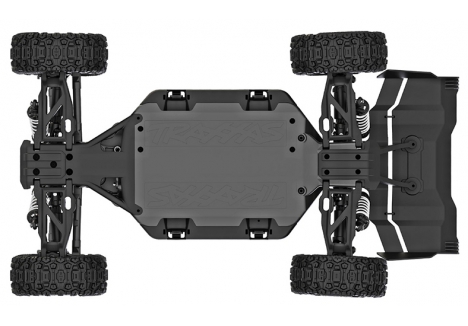

Chassis and Suspension
- Chassis Type: Modular composite tub – low-CG design with T-Bar stiffener and high-clearance skid plate
- Suspension Arms: Heavy-duty – reinforced for durability and terrain absorption
- Shock Towers: Extreme HD – supports suspension geometry and absorbs vertical loads
- Shock Type: Oil-filled GTR shocks – extra-long dampers with threaded collars and white powder-coated springs
- Shock Length: 10.1 cm (front and rear) – maximises travel and terrain adaptability
- Camber Links: One-piece heavy-duty – double-shear connections for strength and alignment retention
Steering and Control
- Servo: 2075 waterproof digital – 125 oz-in torque for responsive steering under load
- Steering System: Dual bellcrank design – integrated servo saver for impact protection
- Radio System: TQ 2.4 GHz 2-channel – ergonomic transmitter with long-range precision
Wheels and Tyres
- Wheel Type: 3″ gray buggy wheels – impact-resistant and scale accurate
- Tyres: 4.53″ Sledgehammer – aggressive tread with foam inserts for all-terrain grip and reduced ballooning
- Wing: High-downforce – stabilises chassis at speed and adds rollover protection
What’s In The Box
- 1 × Traxxas TRX90154-4-RED Jato 4X4 BL-2S Brushless Buggy
- 1 × BL-2S brushless ESC
- 1 × 3300Kv brushless motor
- 1 × TQ 2.4 GHz radio system
- 1 × Quick Start Guide
- 1 × High quality maintenance tools
What You Require
- 1 × 7.4V LiPo or 8.4V NiMH battery
- 1 × Compatible charger (EZ-Peak 2970 recommended)
- 4 × AA alkaline batteries for transmitter
Sold Separately
Product Description of Traxxas TRX90154-4-RED Jato 4X4 BL-2S

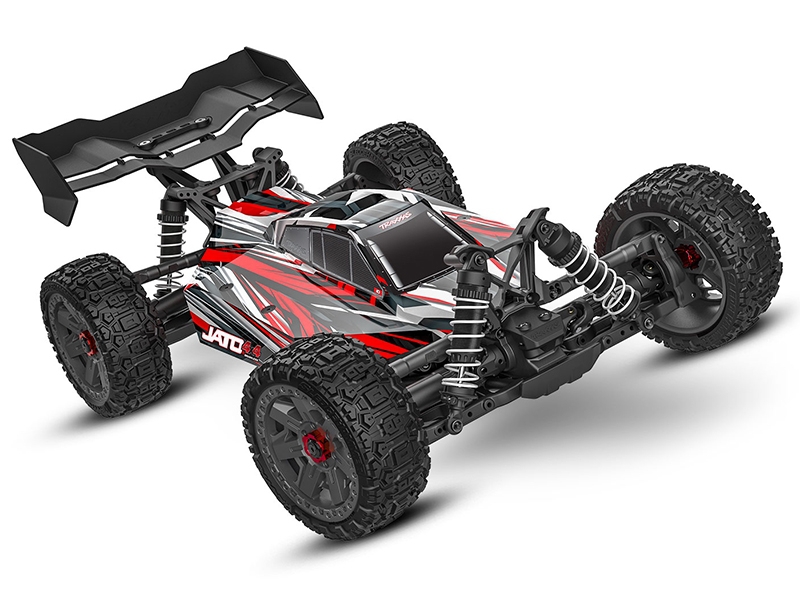

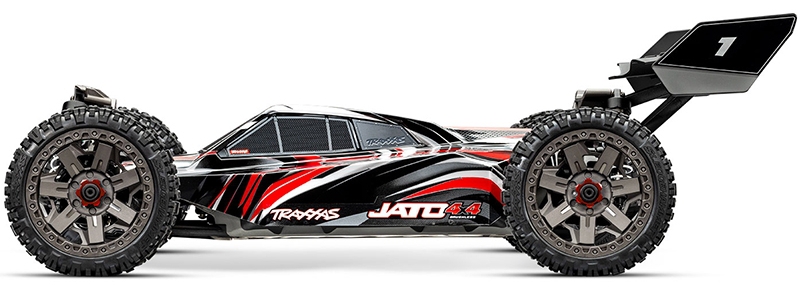

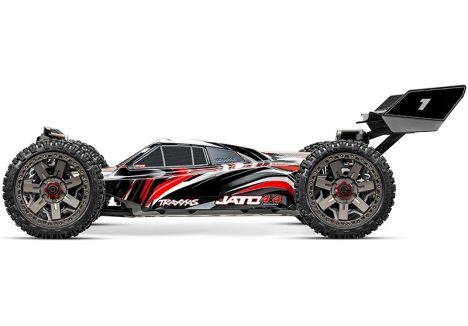

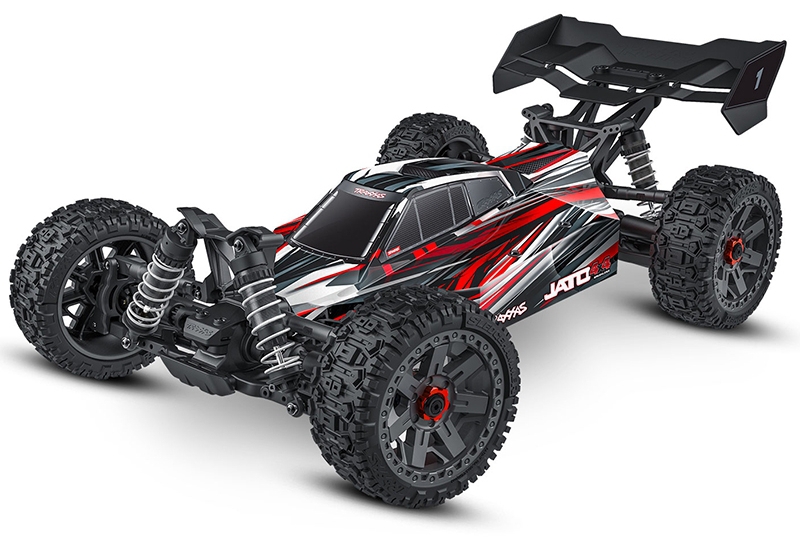

The Traxxas TRX90154-4-RED Jato 4X4 BL-2S is a red 1/8 scale brushless racing buggy engineered for precision control, rugged durability, and race-grade performance. Designed for drivers who demand more than just speed, the Traxxas TRX90154-4-RED brushless buggy combines a low-CG composite chassis, advanced suspension geometry, and a high-downforce wing to deliver sharp handling and consistent traction across varied terrain. With a factory-installed Extreme Heavy Duty Upgrade Kit and a BL-2S brushless power system, the Traxxas TRX90154-4-RED 1/8 scale RC car is built to absorb punishment while maintaining peak performance. Whether you're navigating dirt tracks or launching off jumps, this 4WD buggy offers a rewarding driving experience that balances brute strength with refined control.
Key features of the Traxxas TRX90154-4-RED Jato 4X4 BL-2S
- Clipless body system – aerodynamic shell with secure latching and fast removal

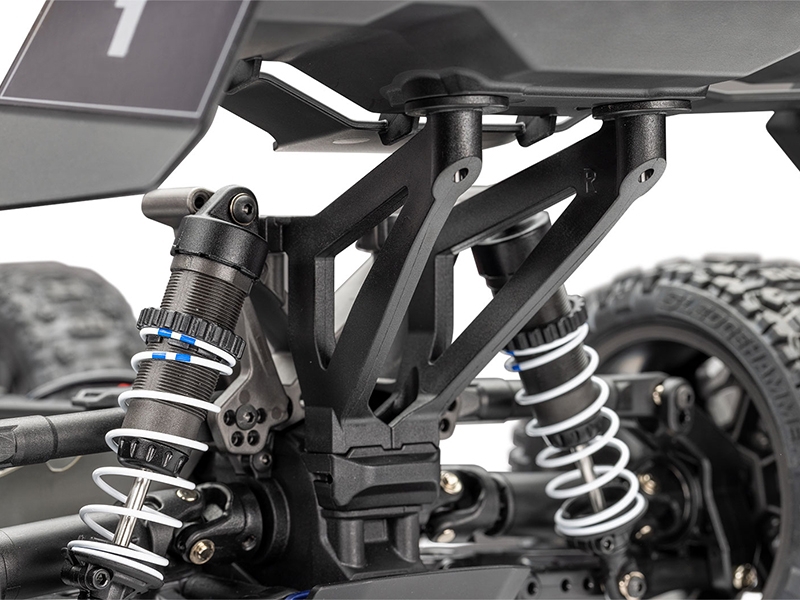

- GTR shocks – extra-long oil-filled dampers with threaded collars for precise ride height tuning
- Maxx-duty driveshafts – oversized 6 mm axles and 17 mm hex hubs for high-torque durability
- High-downforce wing – stabilizes chassis at speed and adds rollover protection

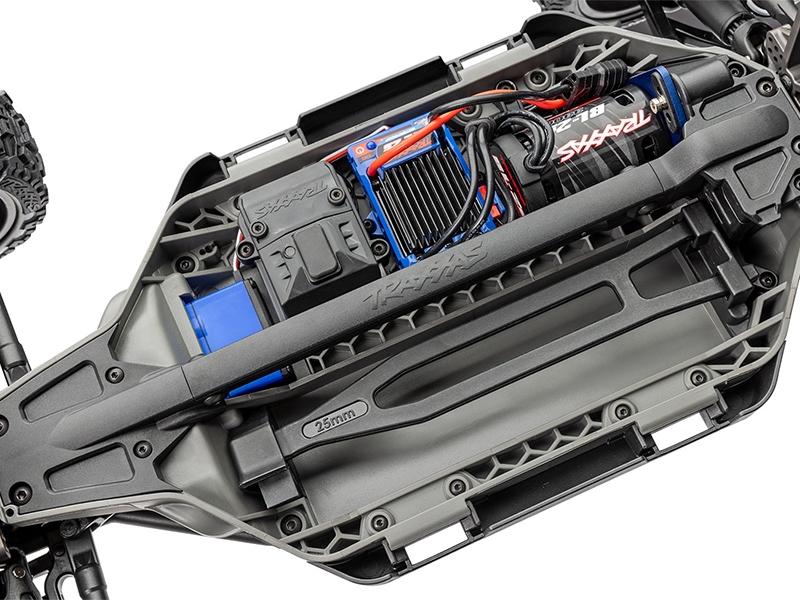

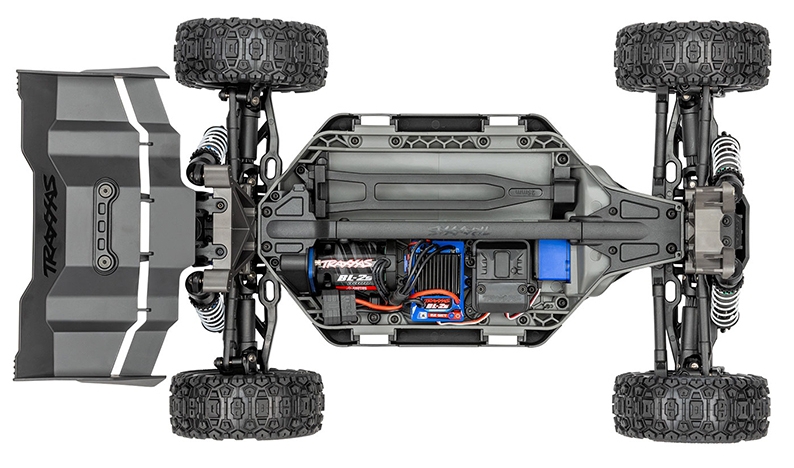

- Low-CG composite chassis – optimized weight distribution for responsive handling
- Sledgehammer tyres – aggressive tread with foam inserts for all-terrain grip
- BL-2S brushless system – 3300Kv motor and waterproof ESC with selectable drive modes
- Sealed steel differentials – hardened bevel gears for consistent 4WD traction
- TQ 2.4 GHz radio system – ergonomic 2-channel transmitter with long-range precision
How does the clipless body system enhance usability and performance?
The Traxxas Jato with clipless body and GTR shocks features a form-fitted shell that eliminates the need for body clips, streamlining battery swaps and maintenance. The aerodynamic profile reduces drag and prevents parachuting during high-speed runs, while the integrated side latches hold the body securely in place under intense action. The clipless design also enhances the visual appeal of the buggy, maintaining a clean silhouette without protruding hardware. Combined with the high-downforce wing borrowed from the Sledge® platform, the body setup ensures that the chassis remains planted during acceleration and cornering, while also providing rollover protection in case of impact.

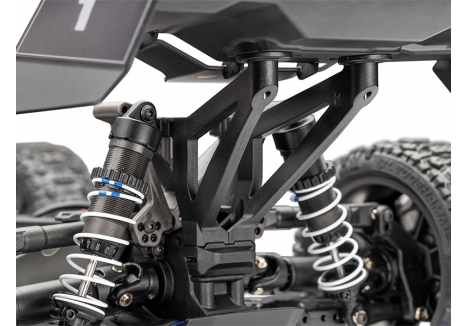

Why are GTR shocks essential for terrain adaptability?
The Traxxas RC buggy with Sledgehammer tyres and HD driveshafts is equipped with extra-long GTR shocks that deliver consistent damping across rough terrain. These oil-filled coilovers feature threaded shock collars for precise ride height adjustment, allowing users to tailor suspension response to track conditions. The large oil capacity ensures fade-free performance during extended runs, while white powder-coated springs provide a balanced rebound rate. Reinforced shock mounts and double-shear camber link connections enhance durability, making the suspension system capable of absorbing jumps and bumps without compromising control. Whether you're racing or bashing, the GTR shocks maintain traction and composure across varied surfaces.
What makes the drivetrain of the Traxxas TRX90154-4-RED Jato 4X4 BL-2S so resilient?
The drivetrain of the Traxxas TRX90154-4-RED with 3300Kv motor and BL-2S ESC is built to handle high-output brushless power. Factory-installed Maxx-duty driveshafts feature oversized 6 mm axles and 17 mm hex hubs for maximum strength under load. The sealed steel gear differentials use hardened bevel gears to distribute torque evenly across all four wheels, ensuring consistent traction during acceleration and cornering. A heavy-duty slipper clutch and large 32-pitch spur gear further reinforce the driveline, allowing the buggy to absorb shock loads without damage. These components work together to deliver reliable 4WD performance, even under aggressive driving conditions.
How does the BL-2S brushless system elevate speed and control?
The Traxxas TRX90154-4-RED brushless buggy is powered by the BL-2S system, which includes a 3300Kv sensorless motor and a waterproof ESC. This setup offers up to 60% more speed and faster acceleration than brushed alternatives, with improved efficiency and reduced maintenance. The motor features high-speed ball bearings and an integrated cooling fan to maintain thermal stability during extended runs. The ESC supports three programmable drive profiles—Sport, Race, and Training Mode—allowing users to adjust throttle response based on skill level and terrain. Built-in low-voltage detection protects LiPo batteries, while the EZ-Set one-button setup simplifies configuration. This system enables the buggy to reach speeds approaching 30 mph on 2S power, with smooth and predictable control throughout.
What role does the low-CG chassis play in handling dynamics?

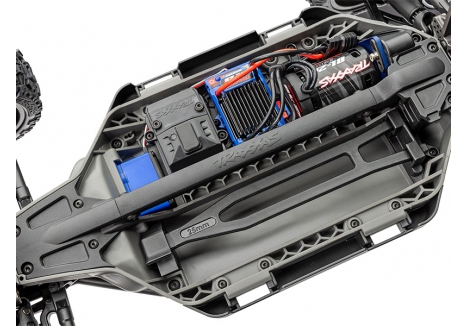

The composite tub chassis of the Traxxas TRX90154-4-RED 1/8 scale RC car is designed to concentrate mass below the driveshafts, enhancing stability and responsiveness. A T-Bar stiffener reinforces the structure, reducing flex under load and improving cornering precision. The modular layout allows easy access to electronics and drivetrain components, while the secure battery hold-down latch keeps power packs firmly in place during aggressive maneuvers. High-clearance skid plates protect the underside from debris and impacts, making the chassis suitable for off-road racing and trail exploration. This low-CG design contributes to the buggy’s race-inspired handling, allowing quick turn-in and flat cornering even at high speeds.
How do the wheels and tyres support all-terrain performance?
The Traxxas RC buggy with Sledgehammer tyres and HD driveshafts rolls on 3″ gray buggy wheels fitted with 4.53″ Sledgehammer tyres. These tyres feature an aggressive tread pattern and foam inserts that maintain shape under load, providing consistent grip across dirt, gravel, and grass. The large diameter enhances ground clearance, while the wide contact patch improves stability during cornering and braking. Sealed ball bearings and rust-resistant hex hardware ensure smooth rotation and long-term reliability. This wheel and tyre combination is tuned for off-road versatility, giving drivers the confidence to tackle varied terrain without sacrificing control or speed.
Is the Traxxas TRX90154-4-RED Jato 4X4 BL-2S suitable for competitive use?
Yes. The Traxxas Jato with clipless body and GTR shocks is built to deliver track-ready performance with the durability of a basher. Its race-optimized suspension geometry, low-CG chassis, and high-downforce wing provide the precision needed for competitive driving. The TQ 2.4 GHz radio system offers long-range control with ergonomic comfort, while the 2075 waterproof digital servo delivers responsive steering through a dual-bellcrank setup. For those seeking the best Traxxas 1/8 RC car with sealed steel differentials and high-downforce wing, this buggy offers a compelling blend of speed, control, and resilience. Whether you're practicing on a local track or pushing limits in open terrain, the Jato 4X4 BL-2S is engineered to perform.
The Traxxas TRX90154-4-RED Jato 4X4 BL-2S is a red brushless buggy that combines race-inspired handling with next-level toughness. With its clipless body system, GTR shocks, and Sledgehammer tyres, this 1/8 scale platform is ready for aggressive driving and all-day fun. Powered by a 3300Kv motor and BL-2S ESC, the buggy delivers smooth acceleration and customizable control. Reinforced with Extreme Heavy Duty components and a low-CG chassis, the Jato 4X4 BL-2S is built to handle demanding terrain and high-speed action. Buy Traxxas TRX90154-4-RED buggy with low-CG chassis and 4WD traction and experience the precision and power of a true off-road performer.
Technical Specifications of Traxxas TRX90154-4-RED Jato 4X4 BL-2S
Brand, Model and Product Type
- Brand: Traxxas
- Model: TRX90154-4-RED
- Color: Red
- Product Type: Traxxas TRX90154-4-RED brushless buggy, Traxxas TRX90154-4-RED 1/8 scale RC car, Traxxas TRX90154-4-RED Jato 4X4 BL-2S, Traxxas TRX90154-4-RED with 3300Kv motor and BL-2S ESC, Traxxas Jato with clipless body and GTR shocks, Traxxas RC buggy with Sledgehammer tyres and HD driveshafts
Dimensions
- Length: 51.7 cm – extended chassis improves straight-line stability and aerodynamic balance
- Width: 30.5 cm – wide track enhances cornering grip and lateral control
- Height: 17.9 cm – low profile supports rollover resistance and high-speed stability
- Wheelbase: 32 cm – tuned for directional precision and predictable handling
- Front Track: 30.5 cm – optimised for responsive steering and balance
- Rear Track: 30.5 cm – maximises rear traction under brushless torque
- Weight: 2.36 kg – balanced for durability and power-to-weight performance
- Battery Compartment: 16.5 cm × 5 cm × 2.3–2.6 cm – secure fit with latch-style hold-down
Motor and ESC System
- Motor Type: BL-2S 3300Kv sensorless brushless – efficient ball bearings and integrated cooling fan
- Motor Dimensions: 8 cm length × 3.6 cm diameter – compact and thermally stable
- Motor Weight: 213 g – lightweight for rapid acceleration and reduced load
- Motor Shaft Size: 3 mm – standard fitment for secure gear engagement
- ESC Type: BL-2S electronic speed control – waterproof and programmable with three drive profiles
- ESC Dimensions: 3.9 cm × 5.9 cm × 3.1 cm – compact case with heat sink and fan compatibility
- ESC Weight: 87 g – efficient and lightweight for compact platforms
- ESC Drive Modes: Sport, Race, Training – selectable profiles for skill-based control
- Voltage Protection: Two-stage low-voltage detection – safeguards battery health during extended use
- Battery Compatibility: 2-cell LiPo (7.4V) or 6–7 cell NiMH (7.2–8.4V) – supports flexible power setups
Drivetrain and Transmission
- Drive System: Shaft-driven 4WD – full-time four-wheel traction for consistent grip and acceleration
- Differential Type: Hardened steel bevel, sealed, limited slip – front and rear for torque distribution
- Gear Pitch: 32 pitch – heavy-duty gearing designed for brushless power
- Overall Drive Ratio: 12.80:1 – calibrated for torque-heavy launches and top-speed control
- Driveshafts: Maxx-duty – oversized 6 mm axles with 17 mm hex hubs for high-torque durability
- Slipper Clutch: Heavy-duty – absorbs shock loads and protects drivetrain under aggressive acceleration
Chassis and Suspension
- Chassis Type: Modular composite tub – low-CG design with T-Bar stiffener and high-clearance skid plate
- Suspension Arms: Heavy-duty – reinforced for durability and terrain absorption
- Shock Towers: Extreme HD – supports suspension geometry and absorbs vertical loads
- Shock Type: Oil-filled GTR shocks – extra-long dampers with threaded collars and white powder-coated springs
- Shock Length: 10.1 cm (front and rear) – maximises travel and terrain adaptability
- Camber Links: One-piece heavy-duty – double-shear connections for strength and alignment retention
Steering and Control
- Servo: 2075 waterproof digital – 125 oz-in torque for responsive steering under load
- Steering System: Dual bellcrank design – integrated servo saver for impact protection
- Radio System: TQ 2.4 GHz 2-channel – ergonomic transmitter with long-range precision
Wheels and Tyres
- Wheel Type: 3″ gray buggy wheels – impact-resistant and scale accurate
- Tyres: 4.53″ Sledgehammer – aggressive tread with foam inserts for all-terrain grip and reduced ballooning
- Wing: High-downforce – stabilises chassis at speed and adds rollover protection
What’s In The Box
- 1 × Traxxas TRX90154-4-RED Jato 4X4 BL-2S Brushless Buggy
- 1 × BL-2S brushless ESC
- 1 × 3300Kv brushless motor
- 1 × TQ 2.4 GHz radio system
- 1 × Quick Start Guide
- 1 × High quality maintenance tools
What You Require
- 1 × 7.4V LiPo or 8.4V NiMH battery
- 1 × Compatible charger (EZ-Peak 2970 recommended)
- 4 × AA alkaline batteries for transmitter
Sold Separately
Finance Options
Click to see Novuna Finance Information
Novuna Personal Finance Available on this product
DEPOSIT |
MONTHS |
APR |
MONTHLY PAYMENTS |
TOTAL AMOUNT PAYABLE |
24 Month Credit |
£35.80 |
24 |
19.9% |
24 x £16.13 |
£422.92 |
36 Months Credit |
£35.80 |
36 |
19.9% |
36 x £11.69 |
£456.64 |
48 Months Credit |
£35.80 |
48 |
19.9% |
48 x £9.51 |
£492.28 |
Buy Now Pay Later 48 months (6 months Deferred) |
£35.80 |
48 |
24.9% |
48 x £11.22 |
£574.36 |
Buy Now Pay Later 48 months (10 months Deferred) |
£35.80 |
48 |
24.9% |
48 x £11.86 |
£605.08 |
Buy Now Pay Later 48 months (12 months Deferred) |
£35.80 |
48 |
24.9% |
48 x £12.54 |
£637.72 |
We want to make sure your delivery goes smoothly, so here are some important details about our service:
- For orders above £120, we offer delivery to most mainland UK addresses. For orders under £120, we can still deliver to Northern Ireland and the outlying isles, as long as the item can be sent by Royal Mail, weighs less than 30kg, and fits within 61cm × 46cm × 46cm. Some highland and remote areas may carry an extra delivery charge as couriers often apply surcharges in these locations. If you live in one of these areas, feel free to contact us before ordering so we can confirm the delivery options and costs for you.
- Most of our products include delivery in the price. If your order is under £90, a small delivery fee will apply but do not worry this will always be clearly shown at checkout before you complete your purchase.
- Depending on what you choose at checkout, your order will usually be delivered either the next working day or within 2 working days. For next day delivery please place your order before 2:00pm. Orders are dispatched Monday to Friday only. Some items may take a little longer and if that is the case we will always show the expected delivery time on the product page.
- If your order includes items with different dispatch times we will normally wait and send everything together once all items are in stock. If one of the items is going to take a while we will give you the choice either wait for everything to arrive or let us send the available items now and deliver the rest later. It is up to you.
- We use trusted delivery partners to make sure your order gets to you safely and on time. We use DPD for next working day deliveries and Royal Mail for the 2 day option.
- As soon as your order is on its way we will send you a tracking number by email. If you provide your mobile number at checkout we will also send delivery updates straight to your phone so you can keep an eye on progress.
- If a product is marked as "Dispatched within 3 working days" delivery usually takes around 3 to 5 working days from when your order is placed.
- For customers in Inverness and other parts of the Scottish Highlands deliveries can take up to 2 working days even if you select next day delivery as couriers do not currently offer a guaranteed next day service to those areas.
