Overview
Castle Creations commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!
In The Box
- Mamba X ESC with Sensor Harness and 1515-2200kv V2 sensored motor
- Mamba Decals
- Driver's Ed Guide/ Quick Start Guide
Application
This setup is recommended for 3s or 4s use in a vehicle weighing less than ~4.08Kg and geared for no more than ~45 MPH.
ESC Features
- Wide 2s-4s input voltage range for powering a wide variety of applications
- Sensored, Sensorless and SmartSense Running Modes
- Brushless and brushed motor operation
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for on-the-fly adjustments using your transmitter
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (coupon for USB adapter included with purchase, Castle Link software located here)
- Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android
- ESC is housed in a rugged CNC aluminium case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Waterproof design for all weather conditions
- Factory equipped thermally controlled (and removable) 30mm cooling fan
- 12 AWG high strand count silicone coated copper power wires
- Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
- Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff
Motor Features
- Input Voltage range: 2s-6s LiPo
- Redesigned rotor and stator assemblies.
- Reduced magnetic cogging, producing less residual drag brake.
- Increased efficiency, resulting in lower temperatures and longer run times.
- Smoother start-up, reducing cogging or stuttering when starting from a stop.
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 4.0mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminium CNC Machines Front/Rear End bell
Data Logging
Enabled by default, the Mamba X captures and records performance data from your vehicle. This allows you to view a detailed turn-by-turn record of what your ESC actually experienced during the run. You will be able to record real-time data such as motor RPM, battery current and voltage, ESC and motor temperature, throttle input, and more. Download and analyze the collected data via Castle Link and make adjustments to maximize both performance and battery life. You can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection.
On-The-Fly Adjustment
The Mamba X allows on-the-fly adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
Castle Link
For 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters, simply redeem the coupon for the Castle Link adapter included with your Mamba X purchase and download the simple to install software from our website and you are ready to personalize your controller's settings. Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit or the Castle Link App and a B-Link Bluetooth Adapter.
Bluetooth Interface
You can now WIRELESSLY PROGRAM settings with the free Castle-Link app available on the Apple App store or Google Play for Android devices and the Castle B-Link Bluetooth Adapter (sold separately). It is compact and lightweight installed in your vehicle, for anytime programming!
SmartSense
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SMARTSENSE software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with ELECTRONIC TIMING. Smooth sensored startups and high-efficiency sensorless running makes the Mamba X system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
Telemetry Link
Mamba X is telemetry ready, which means owners of Futaba T4PX or 7PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the unknown parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.
Alerts
Mamba X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

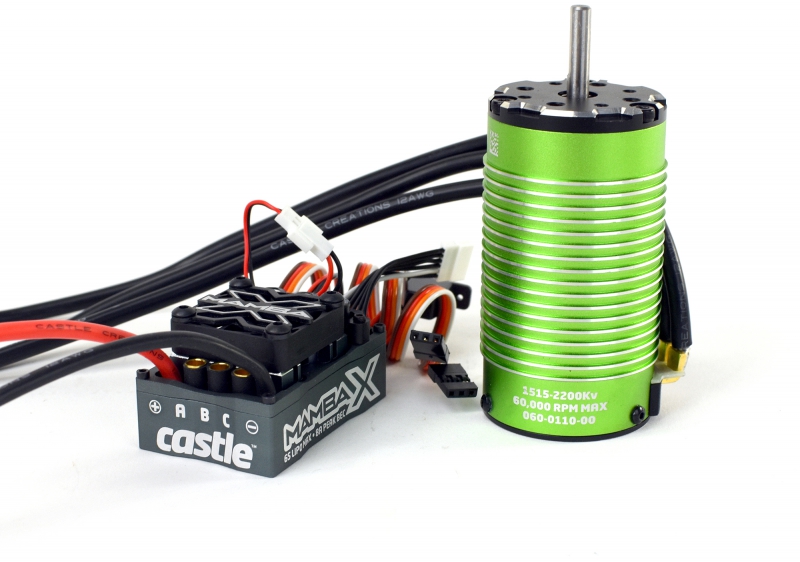

Product Description of Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo
The Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo is engineered for 1/8 scale eBuggy platforms that demand torque, telemetry, and thermal efficiency. This combo pairs Castle’s flagship waterproof ESC with the newly redesigned 1515-2200kV V2 motor, delivering smoother startups, lower operating temperatures, and enhanced runtime. Designed for vehicles under 4.08 kg and geared for speeds below 45 MPH, this system offers SmartSense running modes, real-time tuning, and data logging—all housed in a rugged CNC aluminum case with splashproof epoxy protection. Whether you're racing on 3S or pushing limits on 4S, this combo delivers precision control and enduring performance.
Key features of the Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo
- SmartSense startup – sensor-driven launches with seamless transition to efficient sensorless mode
- Redesigned rotor and stator – improved efficiency, reduced temperatures, and smoother acceleration
- Telemetry-ready ESC – enables real-time monitoring of voltage, temperature, and RPM
- Auxiliary wire tuning – allows on-the-fly adjustments to throttle, brake, and torque settings
- Removable 30mm fan – provides active cooling and can be detached for wet terrain use
- Waterproof epoxy housing – protects internal components from moisture and trail debris
- CNC aluminum case – enhances heat dissipation and structural durability under stress
- Integrated data logging – captures performance metrics for post-run optimization
- Castle Link support – enables firmware updates and full ESC customization via USB or Bluetooth
- Rebuildable motor design – allows replacement of rotor, shaft, and bearing assemblies
How does SmartSense improve startup precision and drivability?
SmartSense technology is a core feature of the Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo. Enabled by default in the Castle Link Programming Suite, SmartSense uses motor sensors to deliver smooth, cog-free launches and precise throttle response. Once the motor is in motion, the system transitions to Castle’s ultra-efficient sensorless mode, which uses electronic timing to optimize performance across varying load conditions. This hybrid approach ensures consistent torque delivery while minimizing heat buildup, making it ideal for eBuggy setups under 9 lbs.
What improvements define the 1515-2200kV V2 motor?
The 1515-2200kV V2 motor included in the Castle P-CC010-0155-16 ESC combo for 1/8 scale eBuggy under 9 lbs features a redesigned rotor and stator assembly that significantly improves efficiency and thermal performance. These upgrades reduce magnetic cogging, lower residual drag brake, and deliver smoother startups. The result is a motor that runs cooler, accelerates more predictably, and extends runtime. With oversized NMB bearings, high-purity copper windings, and Kevlar wrapping, this motor is built for durability and high-output performance.
How does telemetry integration enhance runtime diagnostics?
Telemetry integration in the Castle P-CC010-0155-16 waterproof ESC with telemetry and 8A adjustable BEC allows drivers to monitor ESC temperature, motor RPM, battery voltage, and throttle input in real time. Compatible with Futaba T4PX and 7PX transmitters via S.BUS2, this feature provides critical insight during operation, helping prevent overheating and enabling strategic adjustments. For competitive racers and technical trail drivers, telemetry adds a layer of control and protection that elevates overall performance.
Can you adjust throttle and brake settings while driving?
Yes. The auxiliary wire functionality in the Castle eBuggy combo with auxiliary wire tuning and SmartSense running modes enables real-time adjustments while driving. Once configured via Castle Link, the AUX wire can be assigned to control torque limit, throttle curve, drag brake, or brake strength. These settings can be modified directly from the transmitter, allowing drivers to adapt instantly to changing terrain or track conditions. This flexibility is especially useful in endurance events and multi-surface races.
What role does the removable 30mm fan play in thermal management?
The removable 30mm fan included with the Castle brushless ESC with removable 30mm fan and splashproof epoxy housing provides active cooling during high-speed runs and warm-weather sessions. Mounted directly on the ESC, the fan helps dissipate heat generated during intense operation, maintaining optimal performance and preventing thermal shutdowns. For wet or muddy conditions, the fan can be removed to reduce exposure to moisture, while the splashproof epoxy housing continues to protect internal components.
Why is the CNC aluminum case essential for durability?
The CNC-machined aluminum case featured in the Castle P-CC010-0155-16 with CNC aluminum case and 4mm bullet connectors enhances both structural integrity and thermal efficiency. Unlike plastic housings, aluminum provides superior impact resistance and vibration damping, making it ideal for off-road use. Additionally, the metal casing acts as a heat sink, drawing thermal energy away from sensitive electronics and extending operational lifespan. This rugged enclosure ensures consistent performance in demanding eBuggy environments.
Is this the best Castle waterproof ESC with 2200kV V2 motor for 3S or 4S eBuggy setups?
The best Castle waterproof ESC with 2200kV V2 motor and telemetry-ready design delivers a rare combination of torque, control, and adaptability. With SmartSense running modes, real-time tuning, and rebuildable motor architecture, this combo is validated for competitive use and endurance challenges. Whether you're building for speed, torque, or trail versatility, this system performs reliably across diverse conditions and is optimized for 3S or 4S setups under 45 MPH.
For RC builders seeking a sensored, eBuggy-optimized brushless system with telemetry, real-time tuning, and thermal efficiency, the Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo is the strategic upgrade. Buy Castle P-CC010-0155-16 ESC combo for 3S or 4S eBuggy setups under 45 MPH.
Technical Specifications of Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo
Brand, Model and Product Type
- Brand: Castle Creations
- Model: P-CC010-0155-16
- Product Type: Castle P-CC010-0155-16 Mamba X ESC and 1515-2200kV V2 sensored motor combo, Castle P-CC010-0155-16 waterproof ESC with telemetry and 8A adjustable BEC, Castle P-CC010-0155-16 ESC combo for 1/8 scale eBuggy under 9 lbs, Castle P-CC010-0155-16 with CNC aluminum case and 4mm bullet connectors, Castle brushless ESC with removable 30mm fan and splashproof epoxy housing, Castle eBuggy combo with auxiliary wire tuning and SmartSense running modes
ESC Specifications
- ESC Type: Castle Mamba X – waterproof surface ESC
- Input Voltage Range: 2S–4S LiPo (recommended for vehicles under 4.08 kg and geared below 45 MPH)
- BEC Output: Adjustable – 5.25V to 8.0V with 8A peak current
- ESC Housing: CNC-machined aluminum case, potted in waterproof epoxy
- Cooling System: Thermally controlled and removable 30mm fan
- Integrated Capacitors: Yes – for stable voltage delivery
- ESC Alerts: Audible and LED alerts for diagnostics and error conditions
Motor Specifications
- Motor Type: Castle 1515-2200kV V2 – 4-pole sensored brushless motor
- Motor Design: Rebuildable with replaceable rotor, shaft, and bearing assemblies
- Kv Rating: 2200Kv – optimized for 1/8 scale eBuggy platforms
- Voltage Range: 2S–6S LiPo
- Efficiency Enhancements: Redesigned rotor and stator for reduced cogging and lower temperatures
- Motor Connectors: 4mm bullet connectors – compatible with Mamba X ESC
Programming and Tuning
- Programming Interface: Castle Link USB and Castle Link Mobile (Bluetooth adapter sold separately)
- Transmitter Programming: Yes – supports six common adjustable settings
- Auxiliary Wire: Yes – enables real-time tuning of torque, throttle, brake, and drag brake
Telemetry and Data Logging
- Telemetry Ready: Yes – compatible with Futaba T4PX and 7PX transmitters via S.BUS2
- Data Logging: Yes – records motor RPM, battery voltage/current, ESC/motor temperature, and throttle input
Drive and Control Modes
- Drive Type: Forward/Brake/Reverse
- Brakes: Electronic – programmable for precision deceleration
- Startup Logic: SmartSense™ – sensor-driven launches with adaptive timing
- Noise Reduction: QuietSense™ – minimizes startup noise and improves low-speed control
Vehicle Compatibility
- Recommended Use Case: 1/8 scale eBuggy platforms under 4.08 kg on 3S or 4S LiPo
- Speed Limitation: Geared for no more than ~45 MPH
Construction and Materials
- Motor Windings: High-purity copper
- Magnets: 180°C grade Neodymium sintered magnets with Kevlar wrap
- Bearings: Oversized NMB bearings
- Stator: High-performance 0.2mm steel lamination stacked stator
- Sensor Board: Temperature-stabilized sensors
- End Bells: CNC-machined T6 aluminum front and rear
What’s in the Box
- 1 × Castle Mamba X Electronic Speed Controller with Sensor Harness
- 1 × Castle 1515-2200kV V2 sensored brushless motor
- 1 × Coupon for Castle Link USB adapter
- 1 × Mamba Decal Sheet
- 1 × Driver’s Ed and Quick Start Guide
What You Require / What You Will Need
- Castle Link USB or Bluetooth adapter for programming (sold separately)
- Castle telemetry device for real-time monitoring (sold separately)
Sold Separately
- Castle Link USB adapter
- Castle B-Link Bluetooth adapter
- Castle telemetry device
