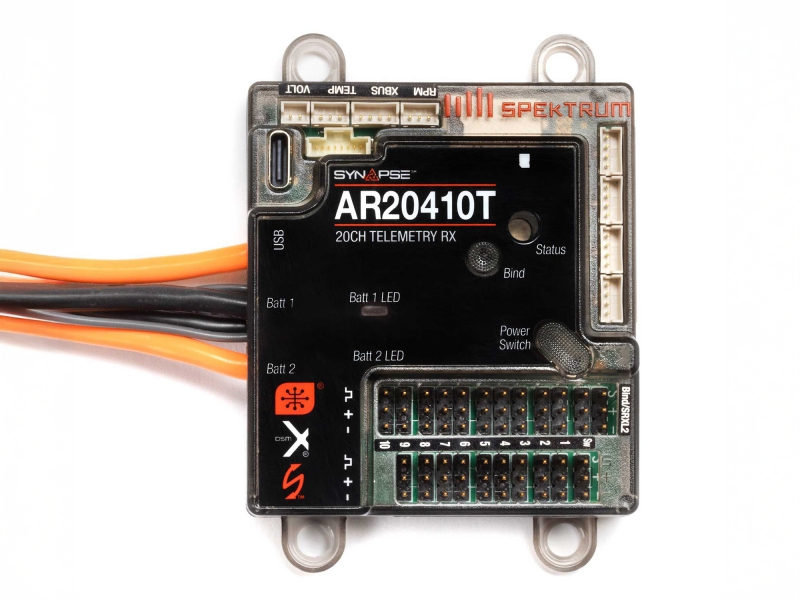

Product Description of Spektrum P-SPMAR20410T 20-channel DSMX receiver with Smart ESC support and Synapse AS3X+ compatibility
The Spektrum P-SPMAR20410T 20-channel DSMX receiver with Smart ESC support and Synapse AS3X+ compatibility is engineered for giant-scale aircraft, jet models, and IMAC competition platforms that demand uncompromising power delivery, telemetry depth, and stabilization precision. Built on Spektrum’s patented PowerSafe™ architecture, this receiver offers true dual battery redundancy, regenerative servo support, and full-range telemetry—all within a compact, flight-ready form. With advanced features like USB-C firmware updates, SD telemetry logging, and fast boot recovery, the AR20410T delivers the control, data, and safety required for high-performance flight environments.
Key features of the Spektrum P-SPMAR20410T 20-channel DSMX receiver
- Dual IC3 battery inputs with failover - ensures uninterrupted power delivery for high-current aircraft
- Integrated barometer and telemetry logging - provides altitude, vario, and flight data without external modules
- Smart ESC support and USB-C firmware updates - enables streamlined telemetry and simplified setup
- SRXL2 receiver support and MultiLink™ RF redundancy - enhances signal integrity with multiple remote paths
- Sleep mode and fast boot recovery - allows transmitter-based power control and in-flight gyro reboot
- Battery capacity monitor and regenerative servo support - tracks mAh usage and supports high-current servo loads
How does the PowerSafe receiver with dual IC3 inputs protect high-current aircraft?
The Spektrum PowerSafe receiver with dual battery monitoring, SRXL2 RF redundancy, and USB-C firmware updates is designed to handle the extreme demands of power-hungry aircraft. With dual battery input ports and 13AWG IC3 connectors, each pack is isolated to prevent failure propagation. If one battery fails or shorts, the other seamlessly takes over, ensuring uninterrupted operation. The integrated soft switch routes servo current around the switch itself, so even in the event of switch failure, the system remains powered. This architecture supports continuous current draw up to 35A, with burst capacity reaching 50A—ideal for turbine aircraft and large-scale aerobats.
What telemetry capabilities are built into this full-range DSMX receiver?
The Spektrum P-SPMAR20410T telemetry receiver with USB-C updates, SD logging, and SRXL2 redundancy offers a comprehensive telemetry suite without requiring external modules. Its integrated barometer delivers altitude and vario data directly to compatible Spektrum transmitters. Built-in ports support RPM, flight pack voltage, and temperature sensors, while the XBUS expansion allows for GPS, airspeed, and turbine ECU telemetry integration. When a micro SD card is inserted, the receiver automatically logs flight data—including battery status and telemetry metrics—into a CSV file for post-flight analysis. This “Black Box” logging system helps pilots diagnose performance issues and optimize aircraft setup over time.
Can this DSMX telemetry receiver support Smart ESC integration?
Yes. The Spektrum P-SPMAR20410T with 3.5–12.6V input, 2048 resolution, and regenerative servo support is fully compatible with Spektrum Smart ESCs. This enables one-wire telemetry transmission for voltage, current, RPM, and temperature data—eliminating the need for additional modules, links, or wires. The receiver also supports 12V servo applications, which can be activated via Forward Programming. Combined with high-speed 11ms frame rates, and boostable to 5.5ms with compatible servos, this integration ensures responsive control and real-time telemetry for high-performance aircraft.
How does MultiLink™ RF redundancy improve signal reliability?
RF integrity is critical in large-scale and turbine-powered aircraft. The DSMX telemetry receiver with XBUS expansion, RPM/voltage/temp ports, and integrated barometer includes four SRXL2 remote receivers that leverage Spektrum’s MultiLink™ technology. This system eliminates antenna blind spots and reflected signal fading common in 2.4GHz setups. Each receiver can be placed strategically throughout the airframe using the included extensions, ensuring robust signal coverage from all angles. The integrated status LED provides real-time feedback on receiver readiness, remote connectivity, and SD card recording status—helping pilots confirm system health before takeoff.
What makes this PowerSafe receiver ideal for turbine and IMAC aircraft?
The PowerSafe receiver for giant-scale aircraft with sleep mode, fast boot recovery, and battery capacity monitor is purpose-built for platforms that demand high channel counts, telemetry depth, and power redundancy. With 20 channels, pilots can configure complex servo layouts, retracts, lighting systems, and more. The battery capacity monitor tracks mAh usage across flights and resets automatically when fully charged packs are installed. Sleep mode allows pilots to power the system on or off directly from their transmitter, streamlining field operations and eliminating the need for physical switches. Fast boot recovery ensures the gyro system reboots mid-flight within milliseconds after electrostatic discharge or power interruption, preserving control and stabilization.
How does Forward Programming simplify receiver setup?
Configuration is streamlined with Forward Programming, allowing pilots to adjust failsafe settings, servo frame rates, and AS3X+ stabilization parameters directly from a compatible Spektrum transmitter. No external devices or software are required. This wireless setup method is especially useful for tuning aircraft systems at the field, enabling quick adjustments without disassembly. Combined with the receiver’s USB-C update port, pilots can maintain firmware and registration with ease, ensuring optimal performance across all flight conditions.
Why this 20-channel DSMX receiver is trusted for advanced builds
For pilots building high-performance aircraft, the best 20-channel DSMX receiver with bind button, SD telemetry logging, and AS3X+ stabilization support offers a complete solution. Its combination of dual battery redundancy, expansive telemetry support, RF path diversity, and Smart ESC integration makes it a top-tier choice for serious flyers. Whether you're configuring a turbine jet, IMAC competition aircraft, or a complex aerobatic platform, this receiver delivers the control, data, and protection needed to fly with confidence.
Buy Spektrum P-SPMAR20410T AR20410T receiver for turbine and IMAC aircraft with PowerSafe redundancy.
Technical Specifications of Spektrum P-SPMAR20410T 20-channel DSMX receiver with Smart ESC support and Synapse AS3X+ compatibility
Brand, Model and Product Type
- Brand: Spektrum
- Model: P-SPMAR20410T
- Product Type: Spektrum P-SPMAR20410T AR20410T PowerSafe receiver with dual IC3 battery inputs and full-range telemetry, Spektrum P-SPMAR20410T 20-channel DSMX receiver with Smart ESC support and Synapse AS3X+ compatibility, Spektrum P-SPMAR20410T telemetry receiver with USB-C updates, SD logging, and SRXL2 redundancy, Spektrum P-SPMAR20410T with 3.5–12.6V input, 2048 resolution, and regenerative servo support, PowerSafe receiver for giant-scale aircraft with sleep mode, fast boot recovery, and battery capacity monitor, DSMX telemetry receiver with XBUS expansion, RPM/voltage/temp ports, and integrated barometer
Dimensions
- Length: 6.1 cm – compact enough for clean installations in jet and IMAC aircraft
- Width: 6.9 cm – accommodates multiple telemetry ports and high-current battery leads
- Height: 1.9 cm – low-profile design for streamlined fuselage integration
Power and Voltage Specifications
- Input Voltage: 4V–12.6V – supports standard and 12V servo applications via Forward Programming
- Battery Leads: Dual IC3 connectors with 13AWG wiring – optimized for high-current draw systems
- PowerSafe Redundancy: True dual battery isolation – seamless failover if one pack fails
- Battery Capacity Monitor: Integrated telemetry tracking – displays mAh consumed and resets automatically when charged
- Regenerative Servo Support: Handles any number of servos – ideal for power-hungry aircraft configurations
Telemetry and Sensor Integration
- Telemetry Range: Full – supports long-range data transmission for altitude, vario, and system metrics
- Integrated Barometer: Provides altitude and vario telemetry without external modules
- Telemetry Ports: RPM, Flight Pack Voltage, Temperature – built-in support for standard sensors
- XBUS Expansion: Enables GPS, airspeed, and turbine ECU telemetry integration
- Smart ESC Compatibility: One-wire telemetry support – transmits voltage, current, RPM, and temperature data
- SD Flight Log: Integrated Black Box telemetry – logs flight data to micro SD card (not included)
Connectivity and RF Redundancy
- Remote Receiver Ports: 4 – supports up to four SRXL2 receivers for MultiLink™ RF path diversity
- SRXL2 Connectivity: Simplifies one-wire connection to supported devices
- Bind Method: Bind button and bind plug – offers four binding options for flexible setup
- Modulation: DSMX/DSM2 – compatible with all Spektrum DSMX and DSM2 transmitters
- Resolution: 2048 – ensures precise signal fidelity and servo response
- Frame Rate: Capable of high-speed 11ms – boostable to 5.5ms with compatible servos
Status and Diagnostics
- Status LED Indicators: Displays system readiness, SD recording status, and error codes
- Fast Boot Recovery: Reboots gyro system mid-flight after electrostatic discharge or power interruption
- Sleep Mode: Allows transmitter-based power control – no hatch removal or physical switches required
Programming and Updates
- Forward Programming: Wireless configuration – adjust failsafe, frame rate, and AS3X+ settings via transmitter
- USB Port: USB-C – supports firmware updates and product registration via Spektrum PC Programmer
Stabilization and Compatibility

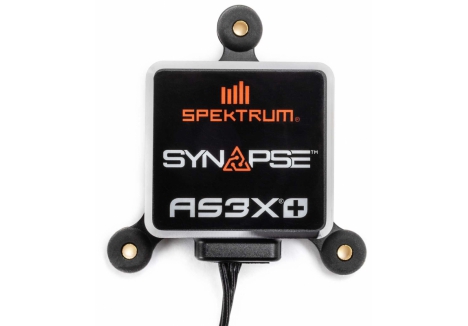

- Technology: AS3X+ – compatible with Synapse AS3X+/SAFE stabilization module (SPMAS6000, sold separately)
- XPlus Compatibility: Yes – supports extended channel configurations
What’s in the Box

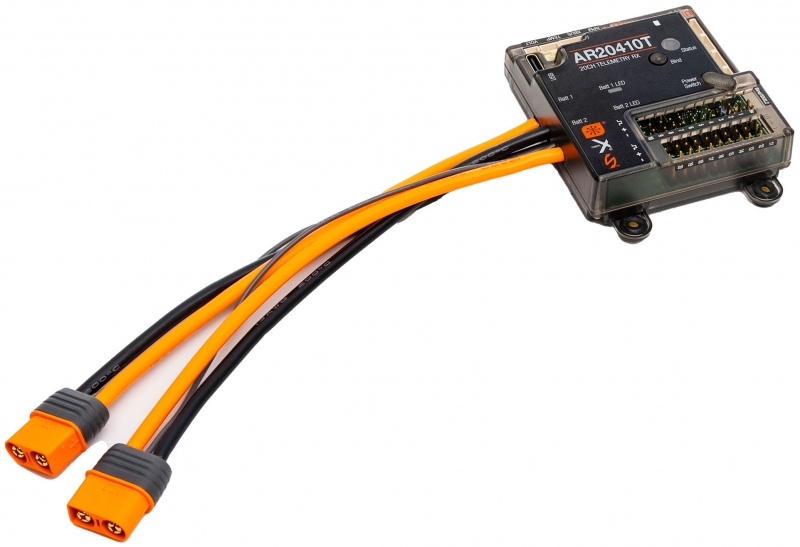

- 1 × AR20410T 20-Channel PowerSafe Receiver
- 1 × SPM4651T SRXL2 Remote Serial Telemetry Receiver
- 3 × SPM9747 SRXL2 DSMX Remote Receivers

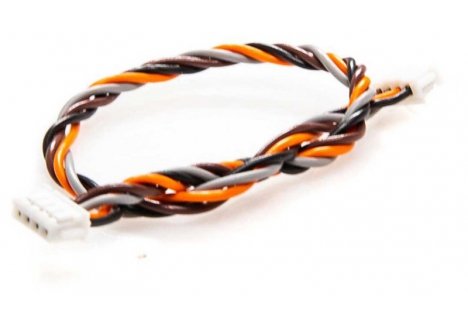

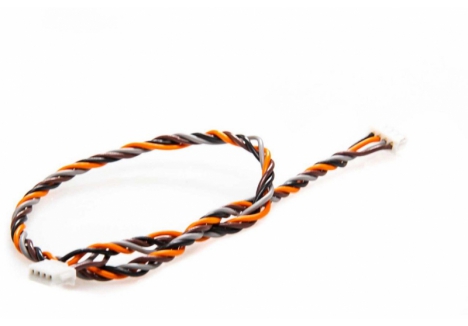

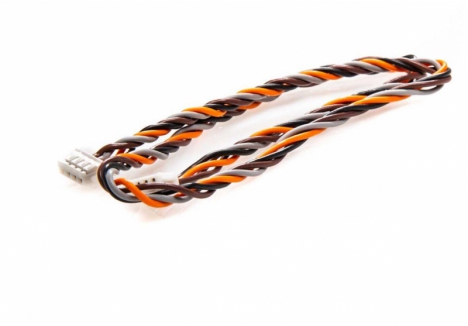

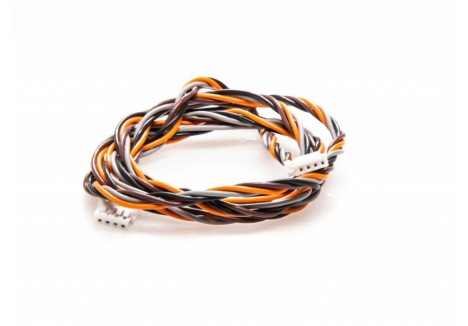

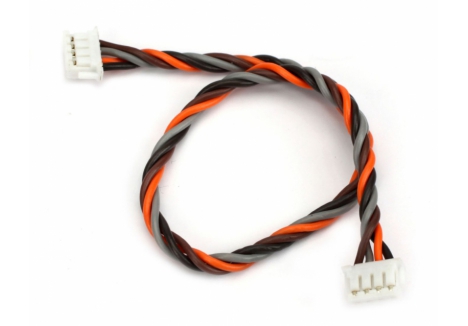

- 1 × 6" SRXL2 Remote Receiver Extension

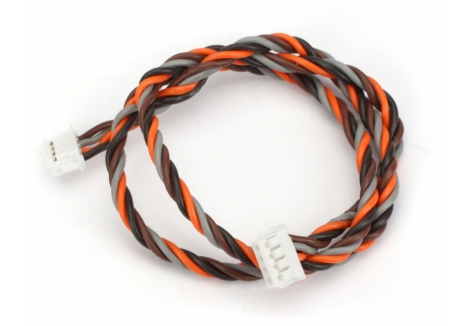

- 1 × 12" SRXL2 Remote Receiver Extension

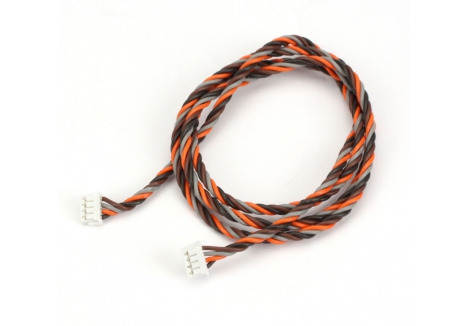

- 1 × 24" SRXL2 Remote Receiver Extension

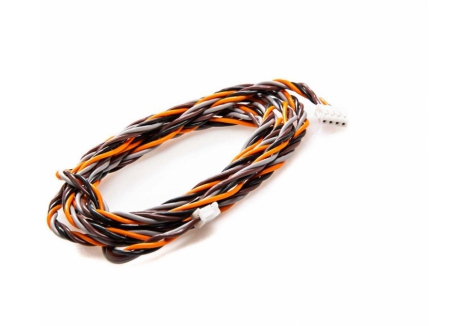

- 1 × 36" SRXL2 Remote Receiver Extension
- 2 × Battery IC3 Connectors
- 2 × Charge Receptacles
- 1 × Aircraft Telemetry Volt Sensor

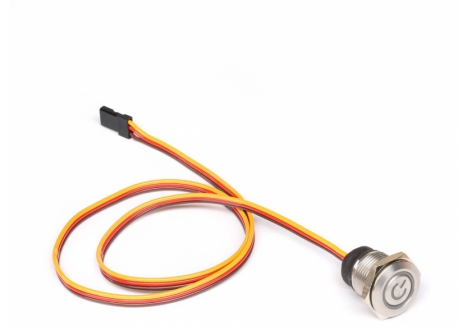

- 1 × Soft Switch
- 1 × Instruction Manual
What You Require / What You Will Need
- Compatible Spektrum DSMX transmitter
- Micro SD card – required for telemetry logging
- Synapse AS3X+/SAFE stabilization module (SPMAS6000) – sold separately
Sold Separately
- Micro SD card – for Black Box telemetry logging
- Additional telemetry sensors – GPS, airspeed, turbine ECU modules
